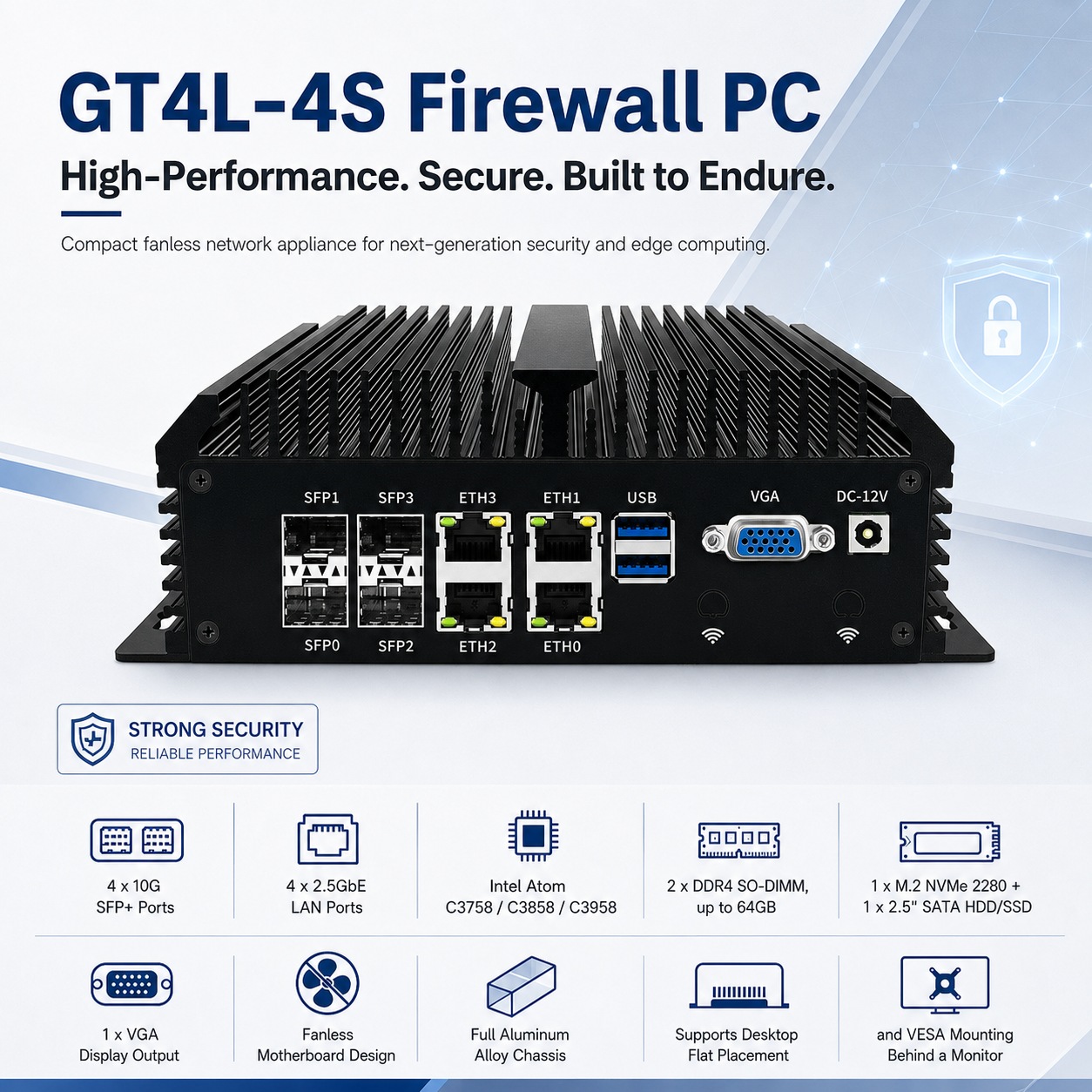

Intel Atom C3000 4 LAN 4 SFP+ Mini PC | 64GB DDR4, 10G SFP+, Data Center & Edge Computing
Model name: GT4L-4S-C3000
1.Intel Atom-Powered Compact PC
2. 64GB DDR4 + NVMe SSD Support
3. 4x SFP+ & 4x GbE Network Ports
4. Front I/O: 4x USB 3.0 + VGA + SFP+/GbE
5. Rear I/O: GPIO, RS232/485, COM
6. 4x Intel 2.5GbE + 10G SFP+
7. Auto-Power Recovery & Wake-on-LAN
8. 12-36V Wide DC Input
9. Tool-Free Rapid Deployment
10. Data Center & Office Edge Solutions
Product Details
Specification
Ordering information
Product Details
Product Features
🚀 Core Performance
Intel Atom C3758/C3858/C3958 processors for 24/7 mission-critical workloads
Dual DDR4 SO-DIMM slots (up to 64GB) + M.2 NVMe SSD & SATA 6Gb/s storage
🌐 Industrial-Grade Networking

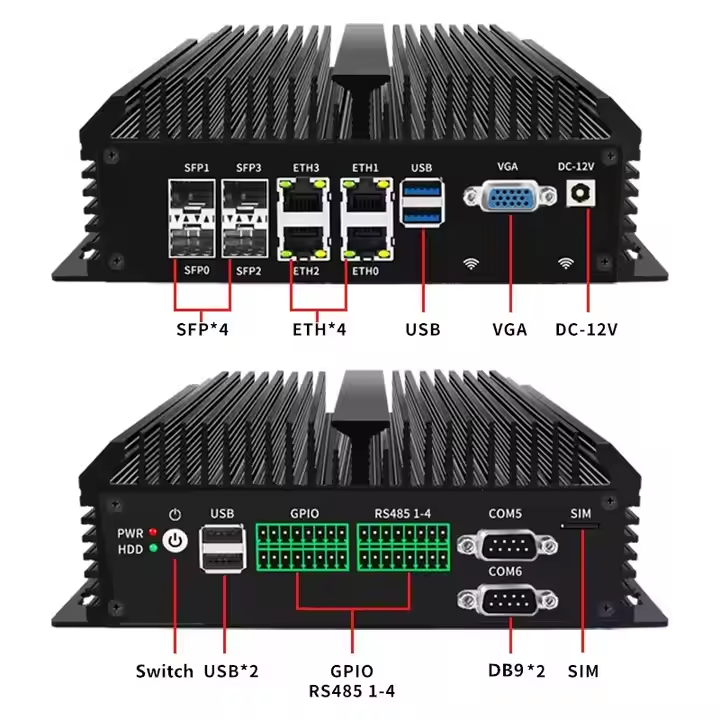

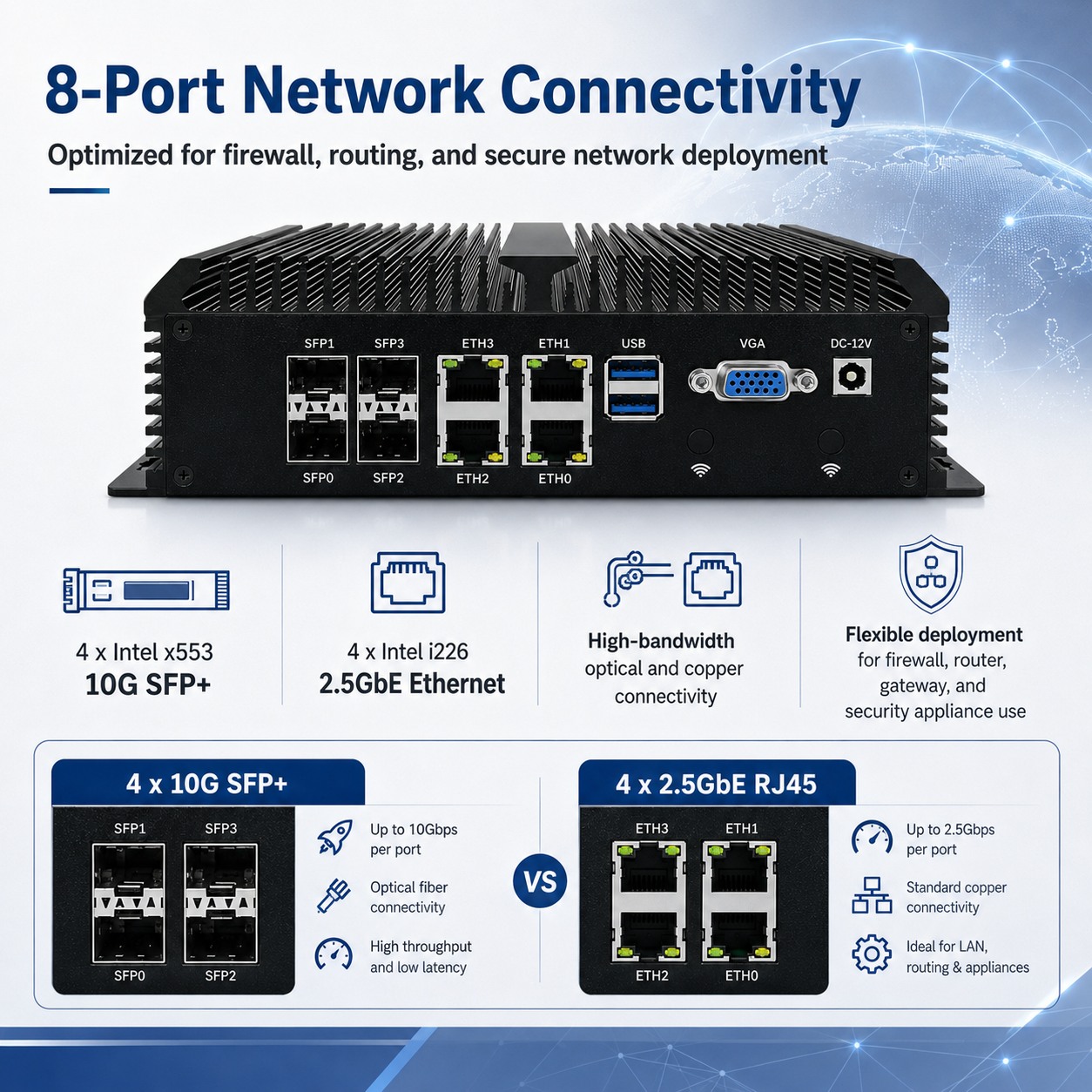

Front I/O: 4×10G SFP+, 4×GbE, 2×USB 3.0, VGA
Rear I/O: 4×Intel i226 2.5GbE, 4×Intel x553 10G SFP+, GPIO, RS232/RS485
Dual Intel NICs (x553 + i226) for zero packet loss
🛡️ 24/7 Reliability
Watchdog timer / Auto-power restore / Wake-on-LAN (WoL) / PXE boot
12-36V wide voltage DC input (12V 10A PSU included), -20°C~60°C operation
🔧 Rapid Deployment

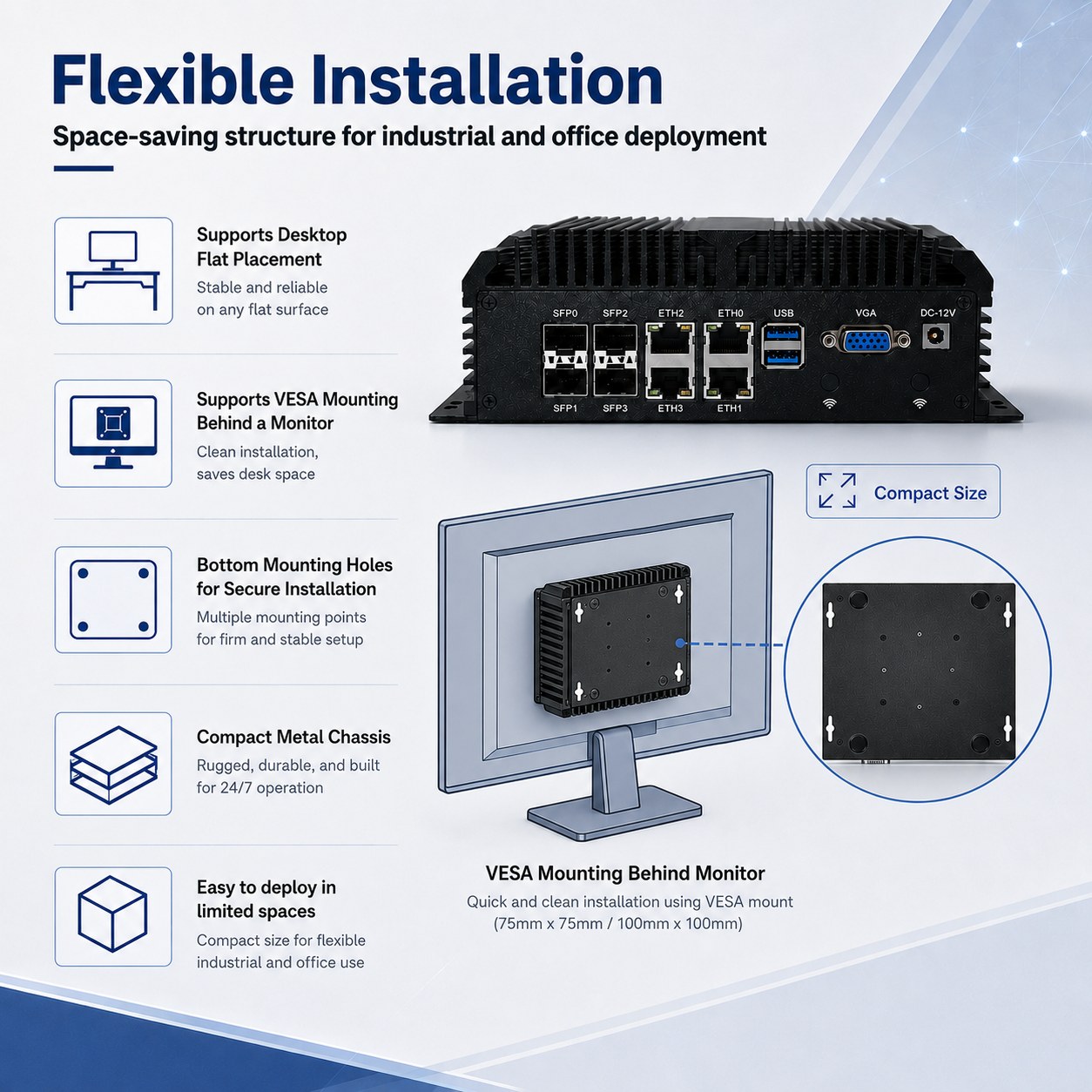

Tool-free installation with rail kit, wall mount, and VESA bracket
Pre-configured OS support (Windows/Linux/ESXi) with driver toolkit

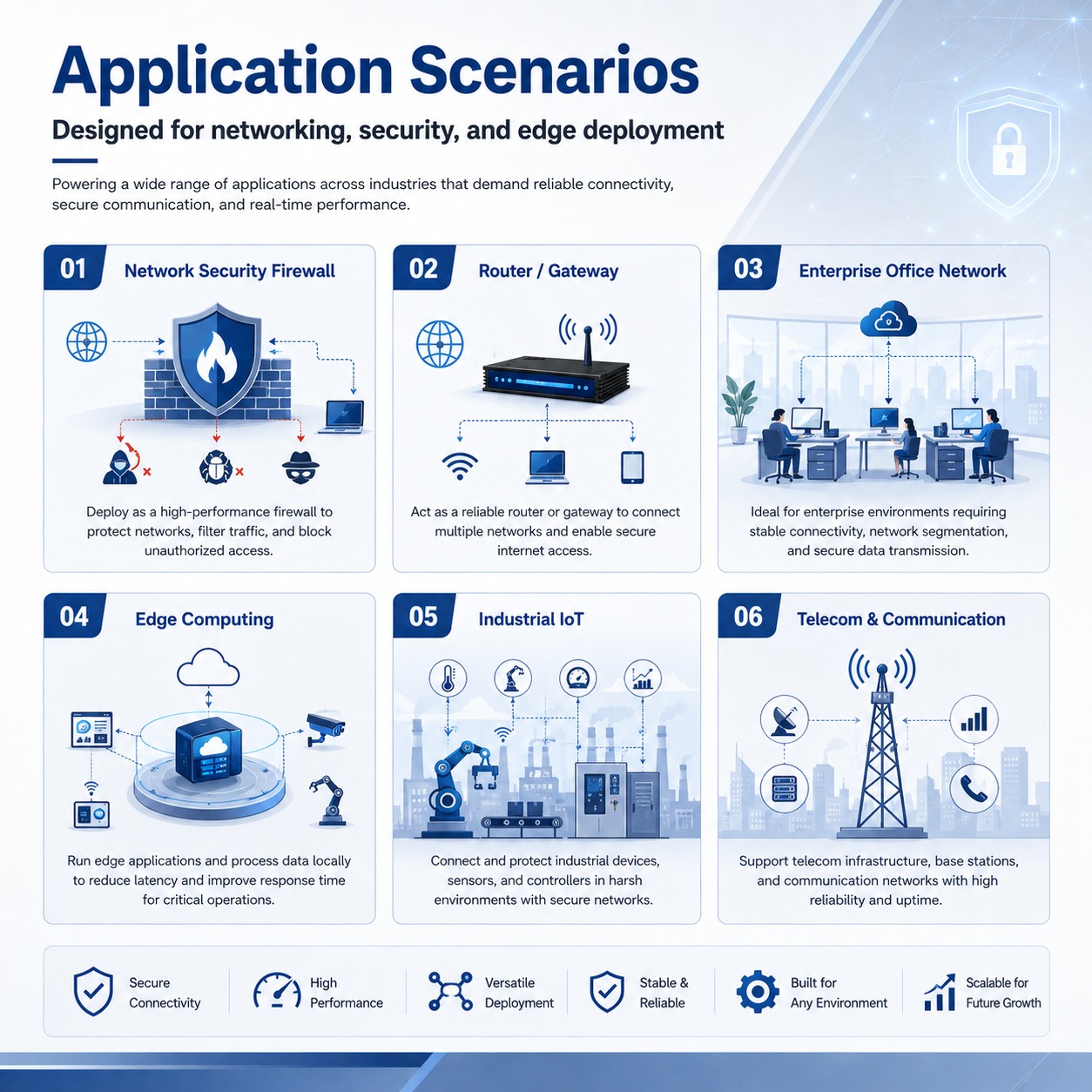

🏭 Application Scenarios
Data Centers: SD-WAN nodes, virtualization servers, storage gateways
Edge Computing: IIoT gateways, AI inference, 5G MEC
Enterprise Networks: Firewall/NAS, smart building controllers
Specification

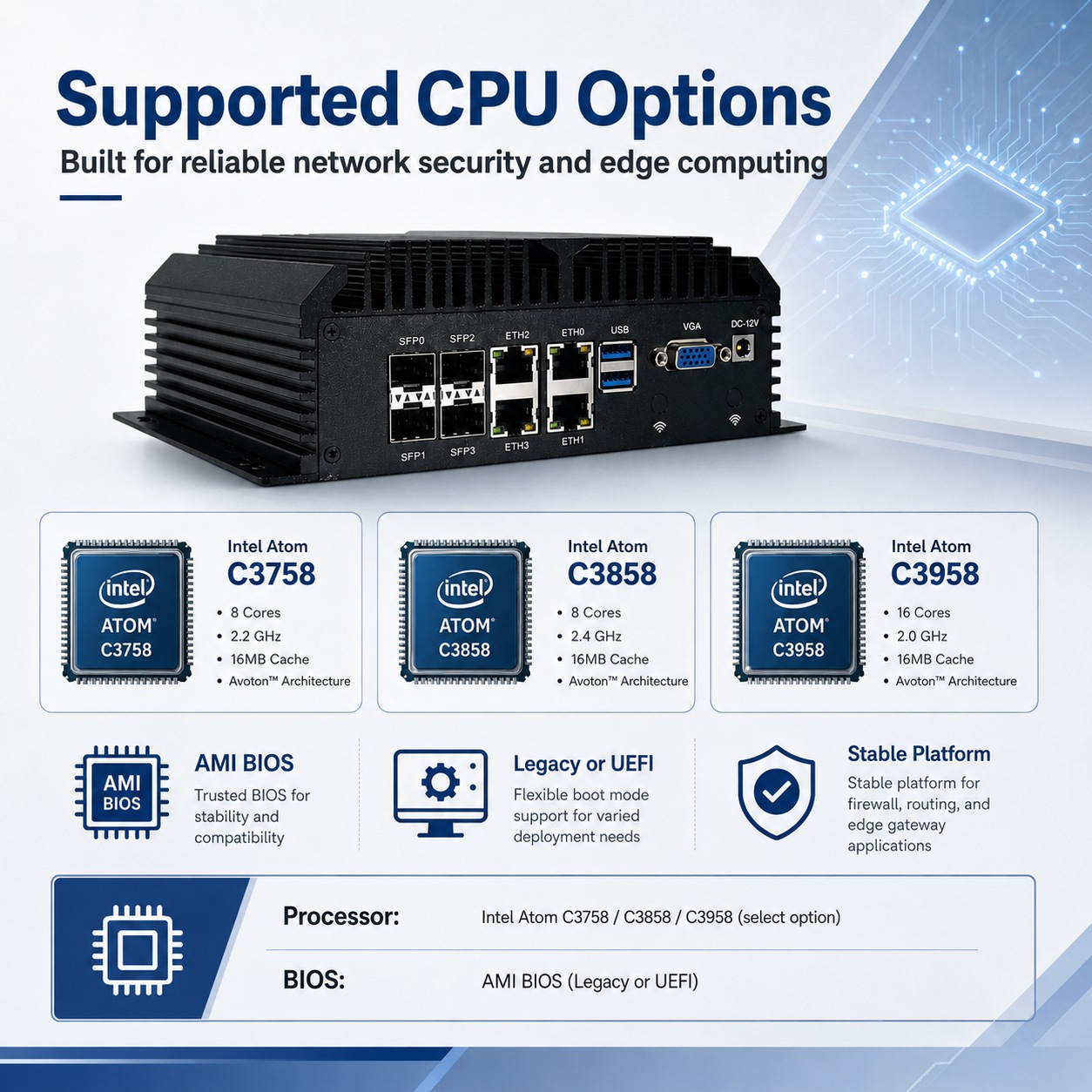

| Processor | Intel Atom C3758/C3858/C3958 (Select option) |
| BIOS | AMI BIOS (Legacy or UEFI) |

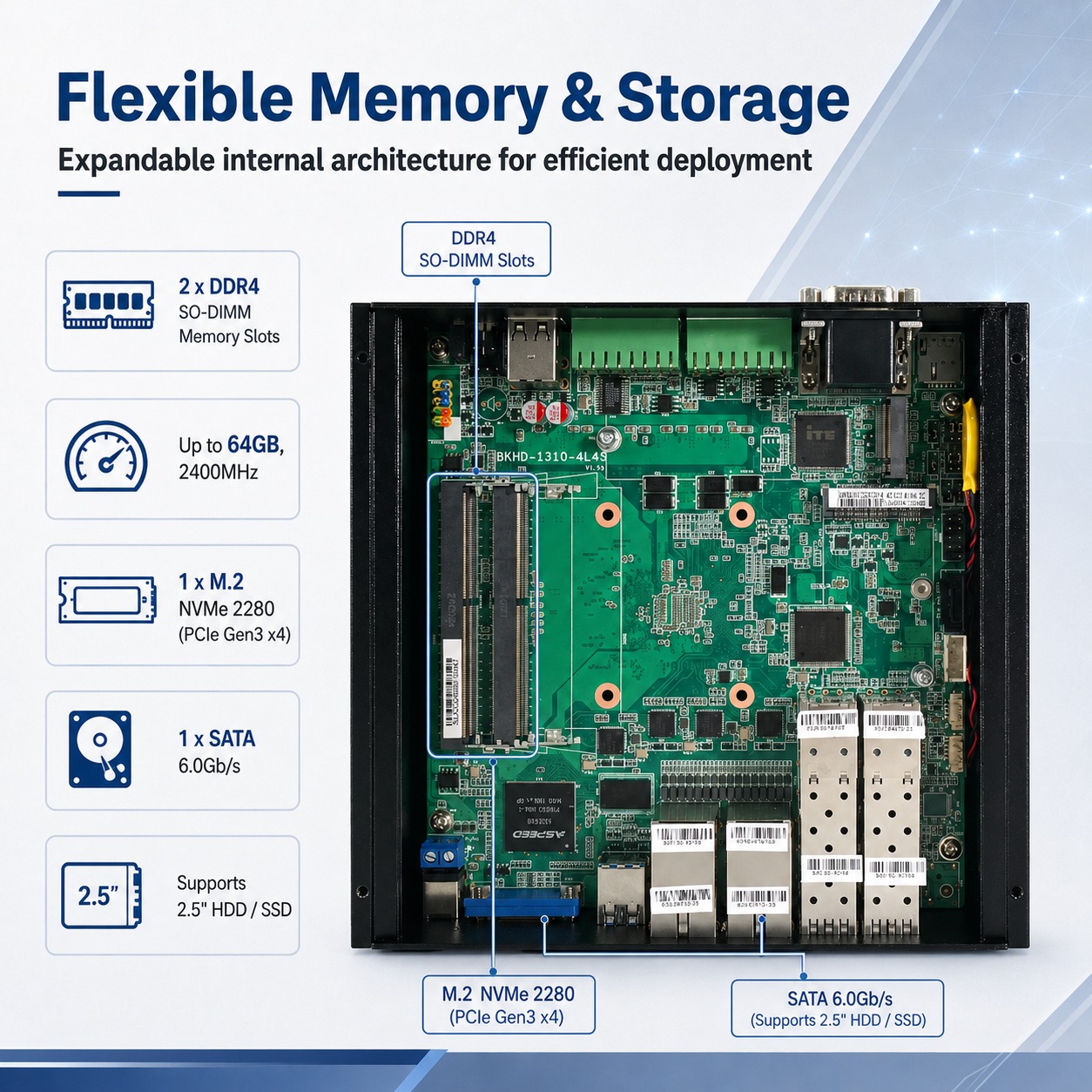

| Memory slot | 2*DDR4 SO-DIMM Memory slot, Up to 64GB 2400MHz |
| Storage slot | 1*M.2 NVMe (PCIe Gen3 x4) 2280; 1*SATA 6.0Gb/s (Support 2.5 inch HDD/SSD) |

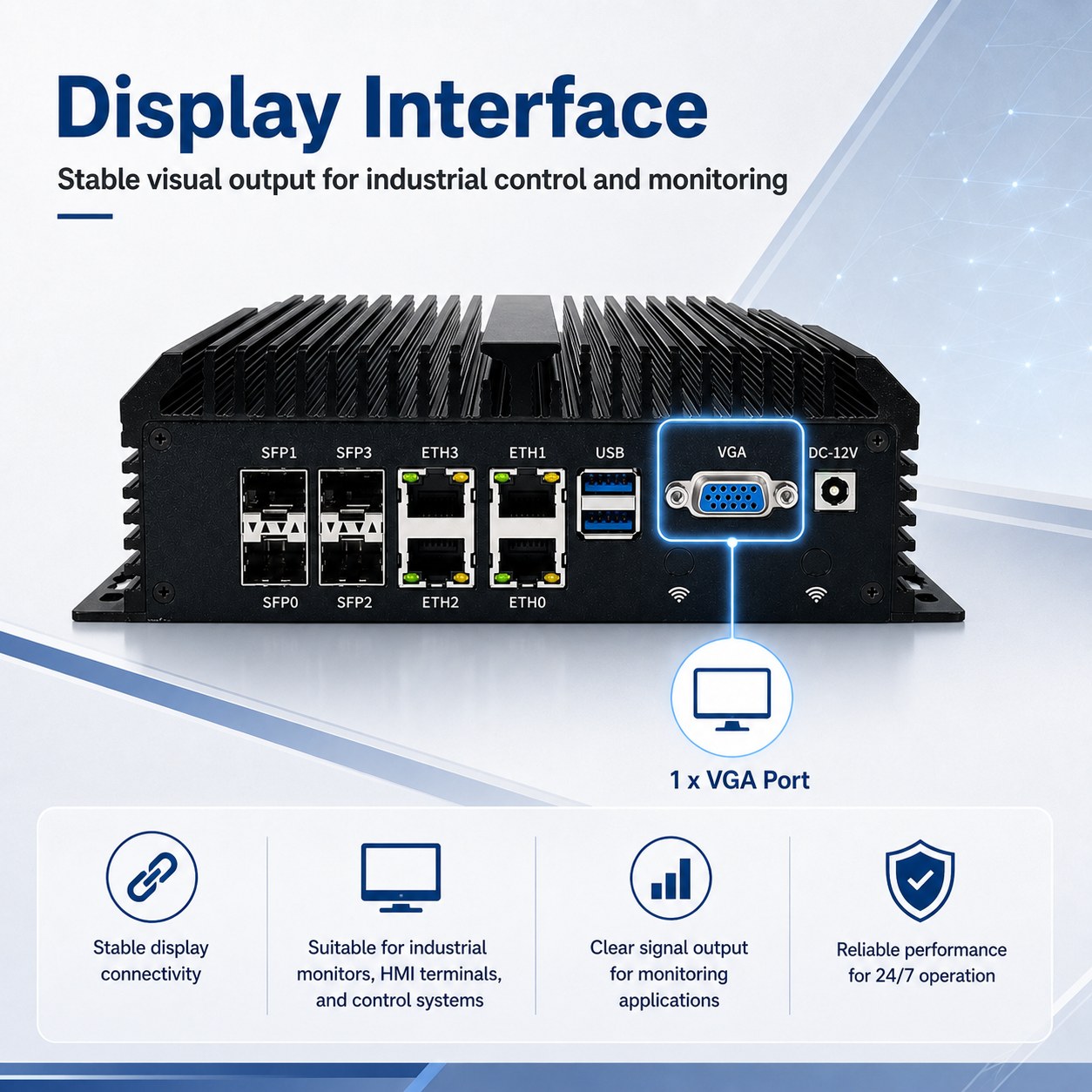

| Display Port | 1*VGA port |

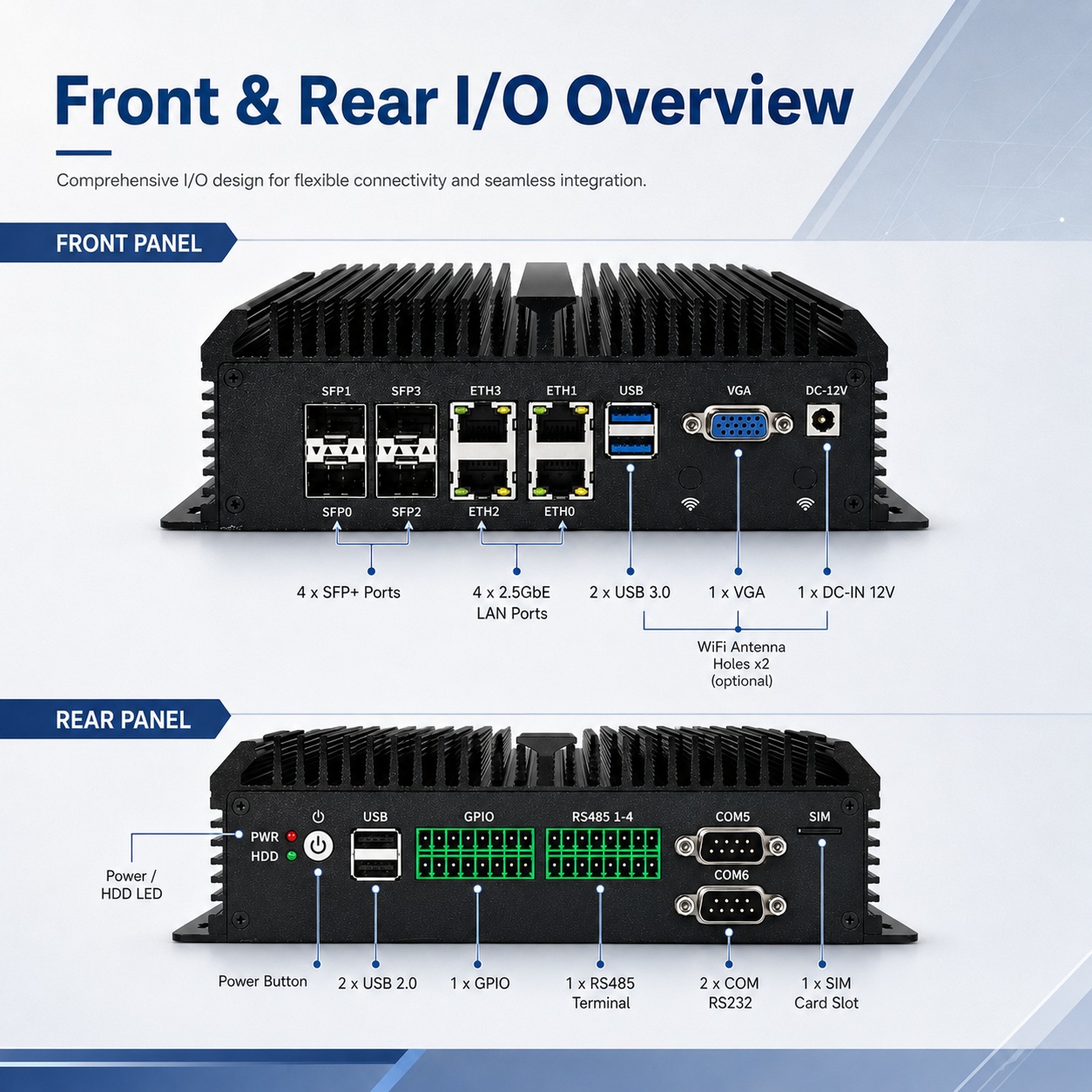

| Front I/O interface | 4*SFP+ ports; 4*Ethernet ports; 2*USB3.0; 1*VGA; 1*DC_IN |
| Back I/O interface | 1*Power Button; 2*USB2.0; 1*GPIO; 1*RS485 Phoenix terminal; 2*COM RS232; 1*SIM card slot |
| Ethernet port | 4*Intel i226 2.5Gigabit Ethernet |
| SFP+ port | 4*Intel x553 10G SFP+ |

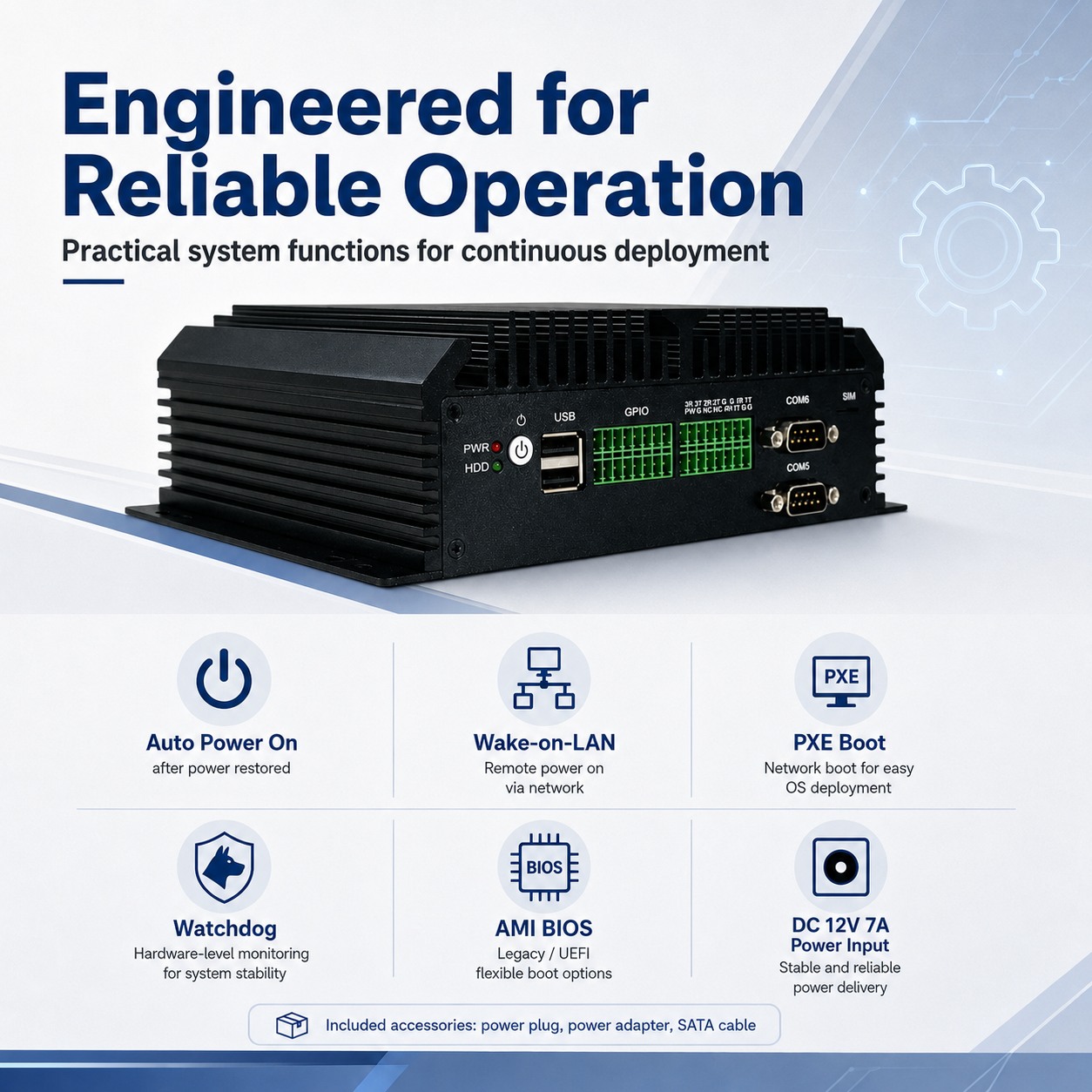

| Other functions | Start auto after power restored; Wake-up on LAN; PXE; Watchdog |
| Power supply | Jack DC 5.5/2.5mm 12V 10A |
| Included accessories | 1*Power plug; 1*Power adapter; 1*SATA cable |
Ordering information
| Model | Processor | Frequency | SFP+ | Display | Memory | Storage | LAN | USB | COM | Power |
| GT4L-4S-C3000 | C3758 | 8Core 8Threads Up to 2.2GHz | 4 x X553 10G SFP | 1 x VGA | 2 x SO-DIMM DDR4 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA | i226*4 | 4 | 6 | 12V 7A |
| GT4L-4S-C3000 | C3858 | 12Core 12Threads Up to 2.0GHz | 4 x X553 10G SFP | 1 x VGA | 2 x SO-DIMM DDR4 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ | i226*4 | 4 | 6 | 12V 7A |
| GT4L-4S-C3000 | C3958 | 16Core 16Threads Up to 2.0GHz | 4 x X553 10G SFP | 1 x VGA | 2 x SO-DIMM DDR4 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ | i226*4 | 4 | 6 | 12V 7A |
