PfSense Router 6*Intel I225 I226 2.5GBE NIC Rackmount Firewall Appliance
– 6*Intel i226 2.5G RJ45 Ethernet Controllers, 2*USB3.0.
– 2*DDR4 SO-DIMM 2133/2400 MHz RAM slots, Maximum support 16GB.
– 1*mSATA
– Support 1 x VGA
– 2*Mini PCIE Extension slots, support WiFi and 4G/5G module at the same time.
– Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
– Widely Applications: Data centers, enterprise networks, cloud service providers, internet serviceproviders
Product Details
Specification
Ordering information
Product Details
Product Introduction

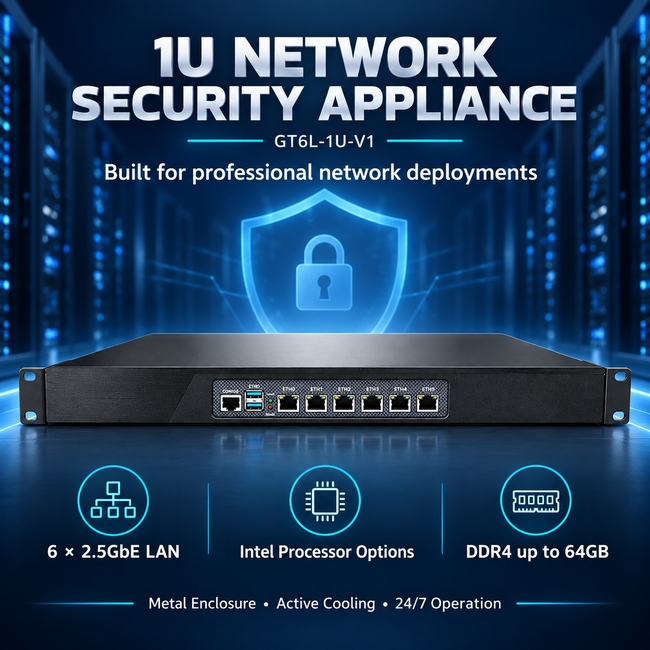

The JIERUICC GT6L-1U-V1 is a 1U rackmount network appliance for firewall, VPN gateway, and network segmentation deployments. It combines six Intel i226 2.5GbE Ethernet ports with Intel N5105, Core i3-1115G4, or Core i7-1165G7 processor options, up to 64GB DDR4 memory, and mSATA SSD storage.
As an OEM/ODM manufacturer, JIERUICC supplies configurable hardware for network security solution providers, system integrators, distributors, and enterprise procurement teams. Its metal enclosure, active cooling, and deployment functions support continuous operation in business network environments.
Product Features
Intel processor options: Choose N5105, Core i3-1115G4, or Core i7-1165G7 to match your software and project requirements.

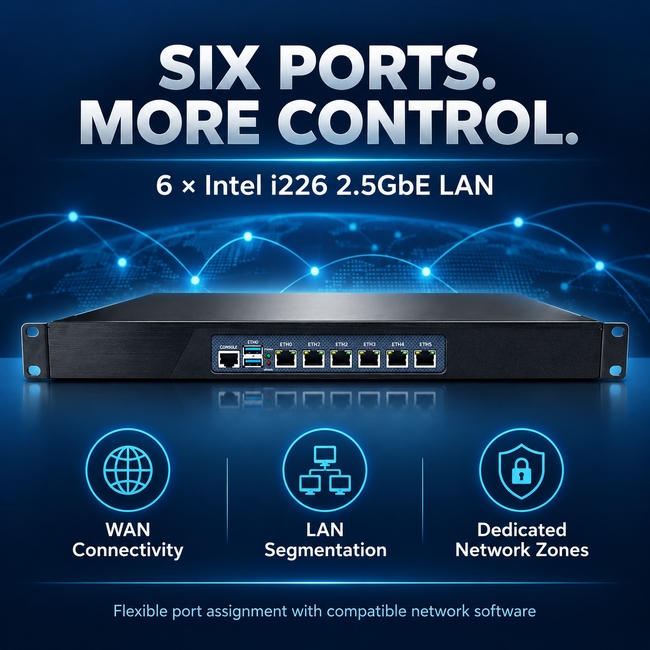

Six 2.5GbE Ethernet ports: Intel i226 controllers provide dedicated interfaces for WAN, LAN, and separate network zones.

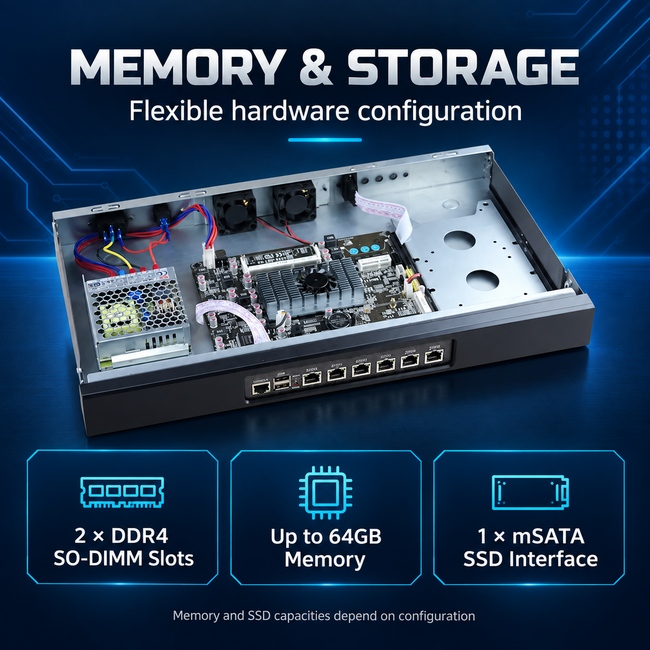

Expandable DDR4 memory: Two SO-DIMM slots support up to 64GB for compatible configurations.
mSATA SSD storage: One mSATA interface accommodates solid-state storage for the operating system and network software.

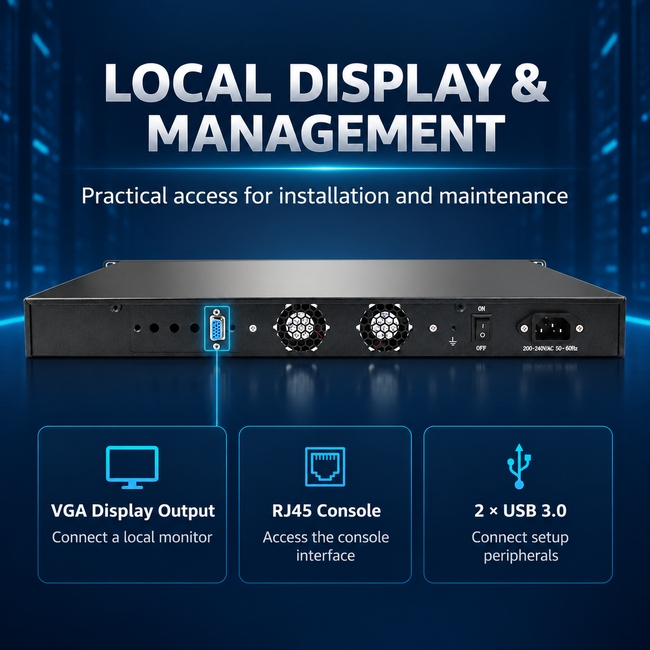

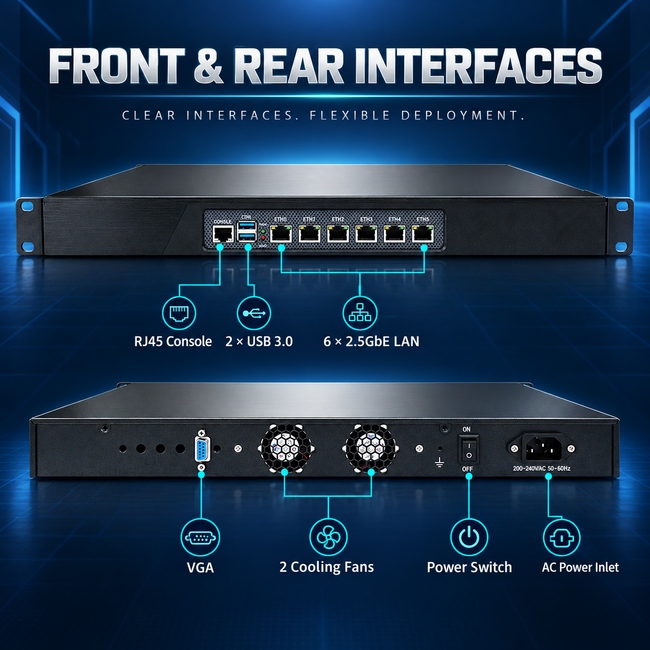

Local management interfaces: VGA display output, an RJ45 console, and two USB 3.0 ports simplify installation and maintenance.

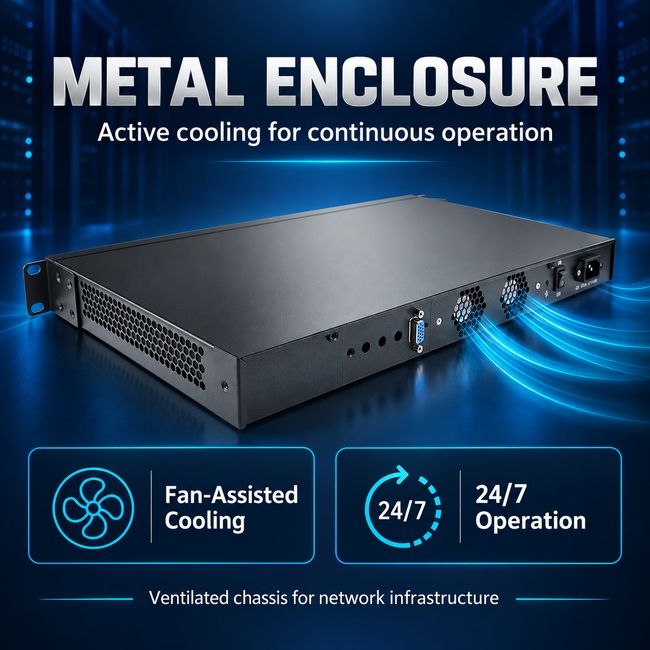

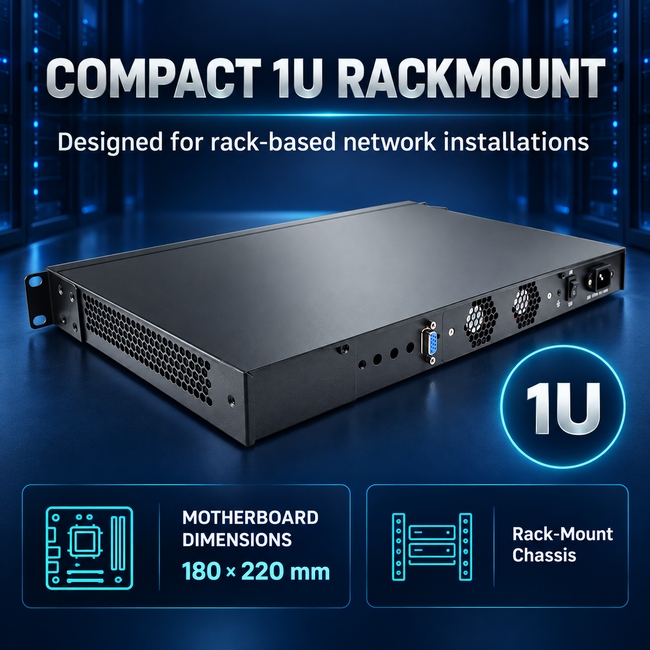

1U rackmount metal enclosure: Rack installation and fan-assisted cooling suit network cabinets and equipment rooms.
Continuous operation: Designed for 24/7 network deployments with active chassis cooling.
Deployment functions: Auto Power On, PXE booting, and Wake-on-LAN support recovery and remote deployment workflows.
OEM/ODM support: Hardware configurations and customization can be reviewed against your integration and purchasing requirements.
Application Industries
Industry / Buyer | Specific Application |
Network security solution providers | Hardware platform for firewall, VPN, and security gateway solutions |
Managed service providers | Standardized gateway hardware for customer network deployments |
Enterprise IT departments | Office perimeter security and separation of departmental networks |
Retail and chain stores | Branch gateways connecting POS, back-office and business networks |
Manufacturing and industrial integration | Segmentation between factory IT and operational network zones |
Education and training institutions | Separation of administration, teaching and laboratory networks |
Hospitality and commercial properties | Gateways separating guest access from internal business systems |
Multi-site businesses | Branch connectivity and site-to-site VPN deployments |
Firewall, VPN, and other security functions depend on the installed software and configuration.
OEM/ODM Manufacturing Support
Work directly with JIERUICC to configure a network appliance for your product line or project. We support OEM/ODM development, configuration selection and volume supply for distributors, wholesalers, system integrators and enterprise buyers. Share your software platform, hardware requirements, and expected order quantity for a project-specific proposal.
Specification
| Brand | JIERUICC | |||
| CPU | Onboard Intel ® Core ™ N5105, FCBGA1338, 4 core 4 threads, 2.00GHz Base Frequency, 4MB Cache cache, TDP15W | |||
| Memory | 2 x DDR4 260PIN SO-DIMM slot (memory support voltage 1.2V) | |||
| Memory type DDR4, with a maximum of 16GB support | ||||
| Storage | 1 M-SATA, Solid-state disk interface | |||
| Extended Bus | 2 MINI PCIE interfaces (MPCIE2 only supports USB signal 4G module) | |||
| Network Cards | 6 x Onboard Intel i226 network card chip | |||
| Backplane I/O | 1*DC_IN power supply interface | 1*LED lamp | ||
| 1*double-layer USB3.0 interface | 6*LAN interface | |||
| 1*reset button | 1*switch button | |||
| 1*RJ45 COM port | ||||
| Onboard I/O | 1*VGA interface | 1*VGA interface | ||
| 1*KM mouse / keyboard interface | 1*DC power supply 4Pin interface | |||
| 2*USB2.0 pin (external 4*USB2.0 interface) | 1*COM interface (9pin) RS232 optional | |||
| 1*CPU fan supply outlet | 1*system fan supply socket | |||
| 1*SIM card slot optional | ||||
| Power Supply | DC _IN 12V | |||
| Working Temperature | -20~55 ℃ | |||
| Dimension of motherboard | 180mm x 220mm | |||
| Dimension of Device | Dimension of motherboard | |||
| Weight | 6.5KG | |||
| Ambient Temperature | 5~90℃ Relative humidity, no condensation | |||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT1U6L-N5105 | N5105 | Intel UHD Graphics | 2.0~2.9 GHz | VGA | 2 x SO-DIMM DDR4, Max 16G | 1 x Msata | 6 x i225/226 | 2 | 12V/5A |
