Product Introduction

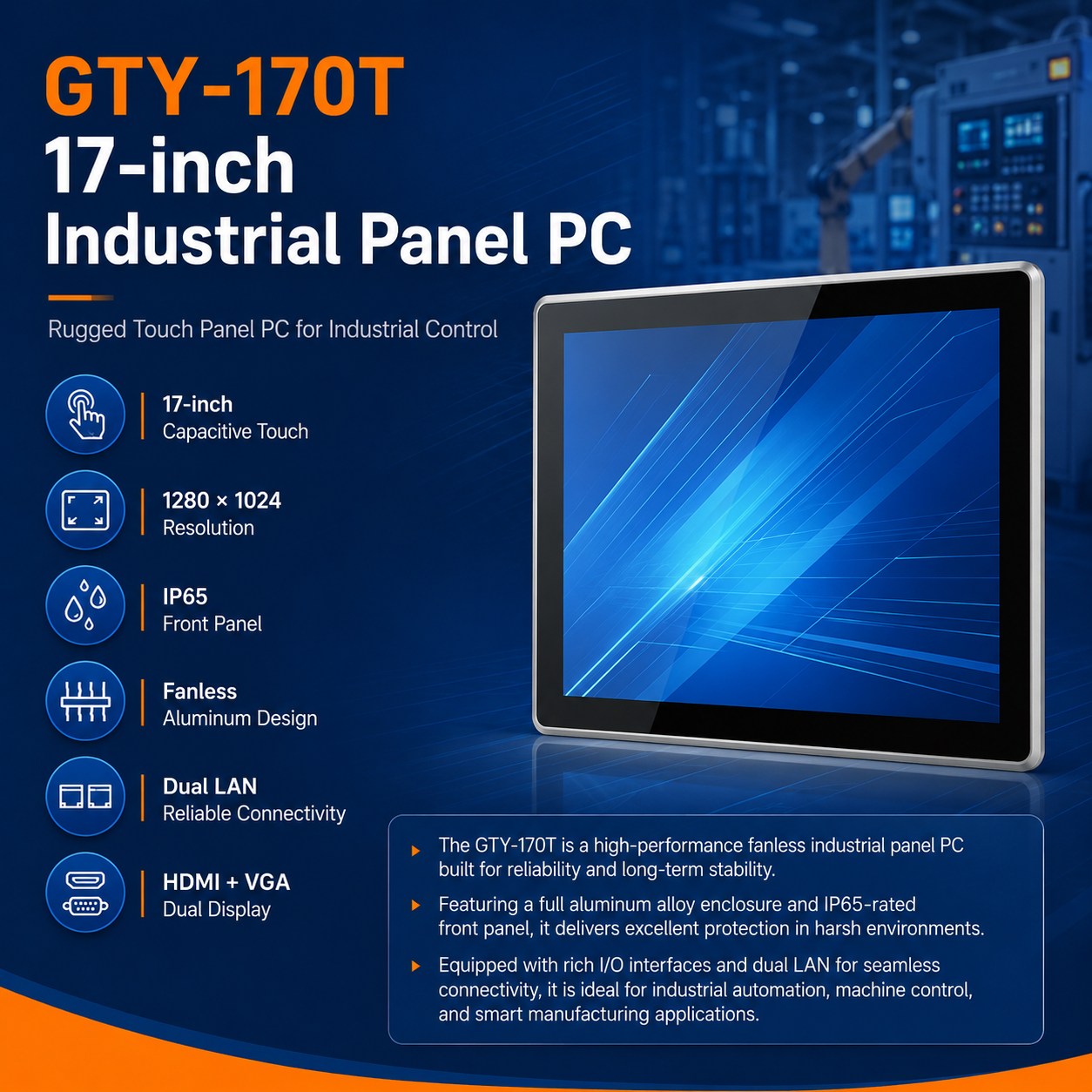

The GTY-170T is a 17-inch fanless industrial panel PC built for stable control, monitoring, and data visualization in demanding environments. It combines a 1280 × 1024 capacitive touch display, embedded Intel low-power computing platform, full aluminum alloy housing, and IP65-rated front panel protection in one compact unit. With dual Gigabit LAN, HDMI + VGA display output, USB, COM, audio, optional wireless expansion, and wide-voltage customization, it is a practical HMI terminal for factory automation, MES systems, machine control, and industrial self-service equipment.

Product Features

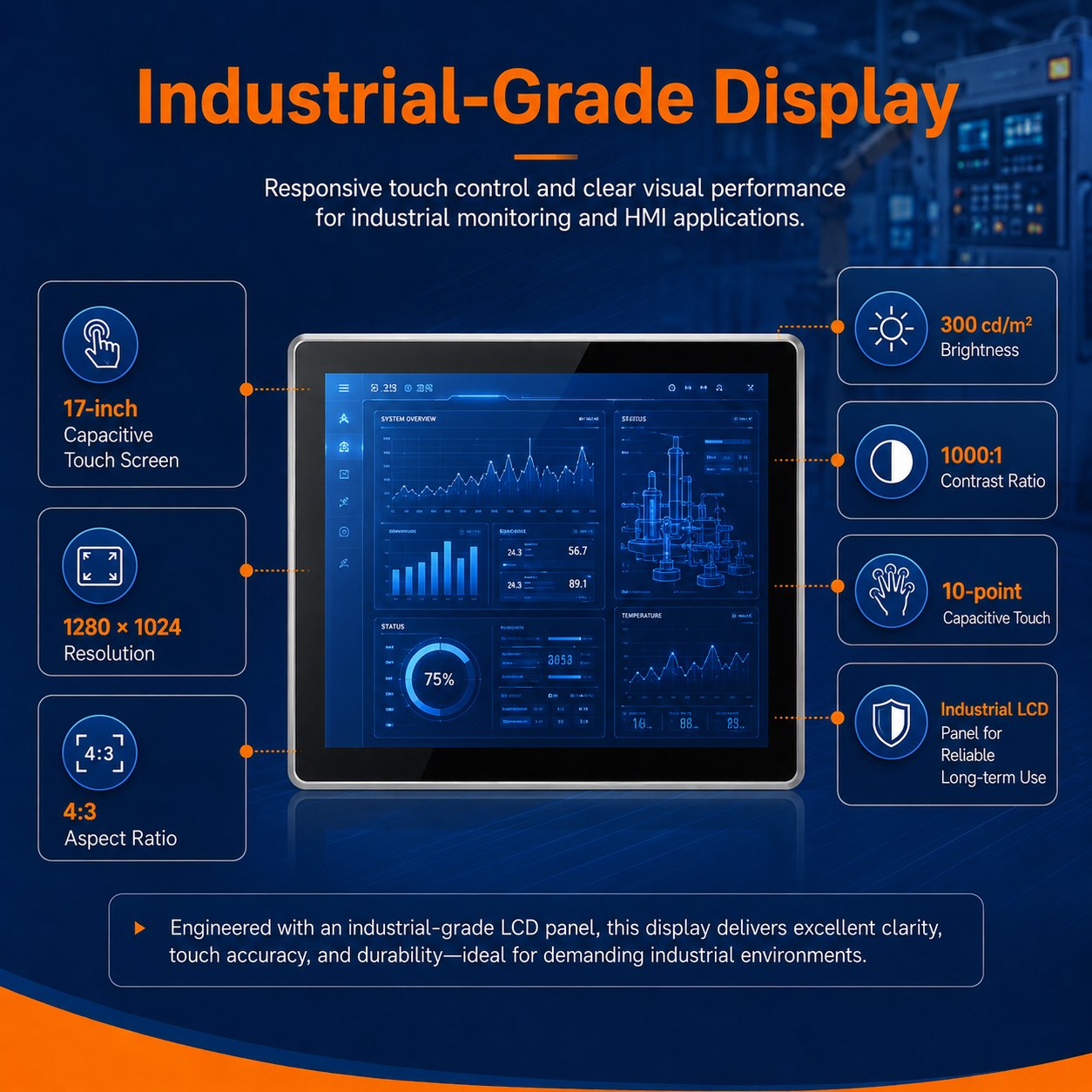

17-inch industrial touch display
1280 × 1024 resolution, 4:3 aspect ratio, 300 cd/m² brightness, 1000:1 contrast ratio, and 10-point capacitive touch.

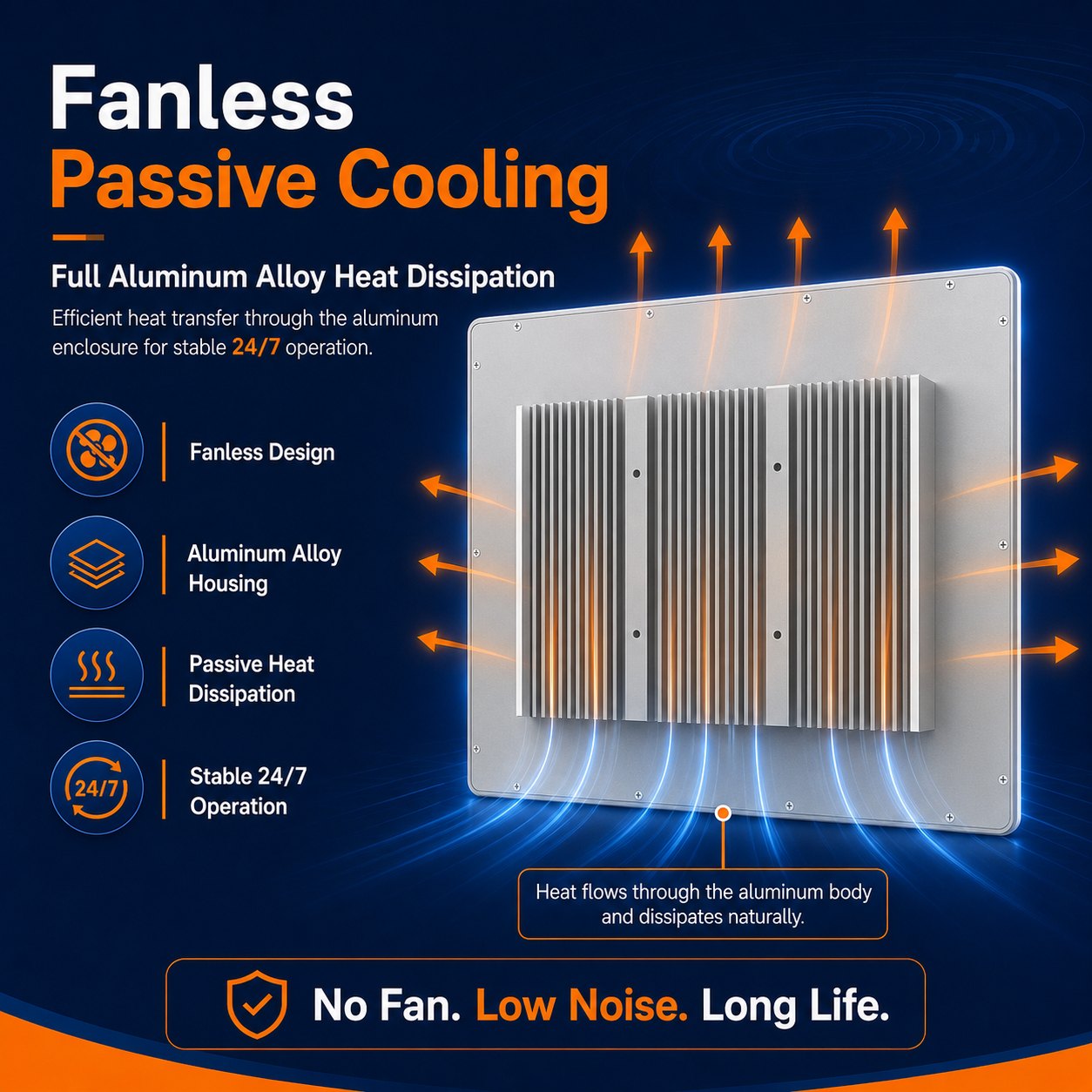

Fanless aluminum cooling structure
The full aluminum alloy enclosure and rear heat-dissipation fins transfer heat naturally, reducing noise, dust intake, and fan maintenance.

Flexible CPU platform
Supports Intel Celeron J1900, J6412, Intel Processor N100, and Intel Core i3/i5/i7 low-power processors from 3rd to 13th generation.

Industrial memory and storage options
DDR3L / DDR4 SODIMM memory, 4GB–64GB optional; 64GB SSD standard, upgradeable to 128GB, 256GB, 512GB, or 1TB, with optional 2.5-inch drive expansion.

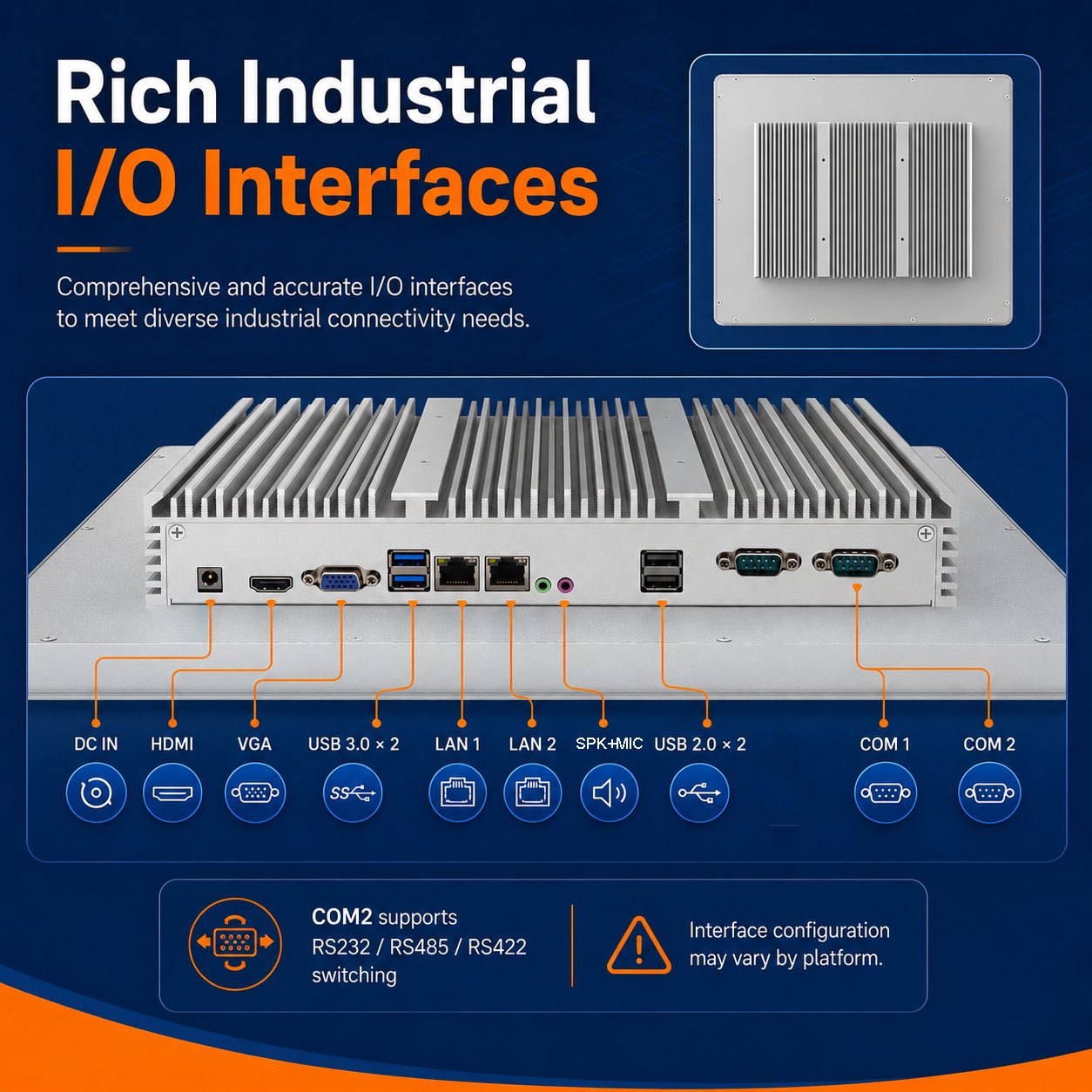

Rich industrial interfaces
Includes HDMI, VGA, 2 × Gigabit LAN, 2 × USB 3.0, 2 × USB 2.0, Line Out, MIC, DC input, and 2–6 × RS232 ports. COM2 supports RS232 / RS485 / RS422 switching.

Designed for industrial reliability
Supports Wake-on-LAN, PXE, watchdog timer, 7×24 operation, and operating temperatures from -10°C to 60°C.

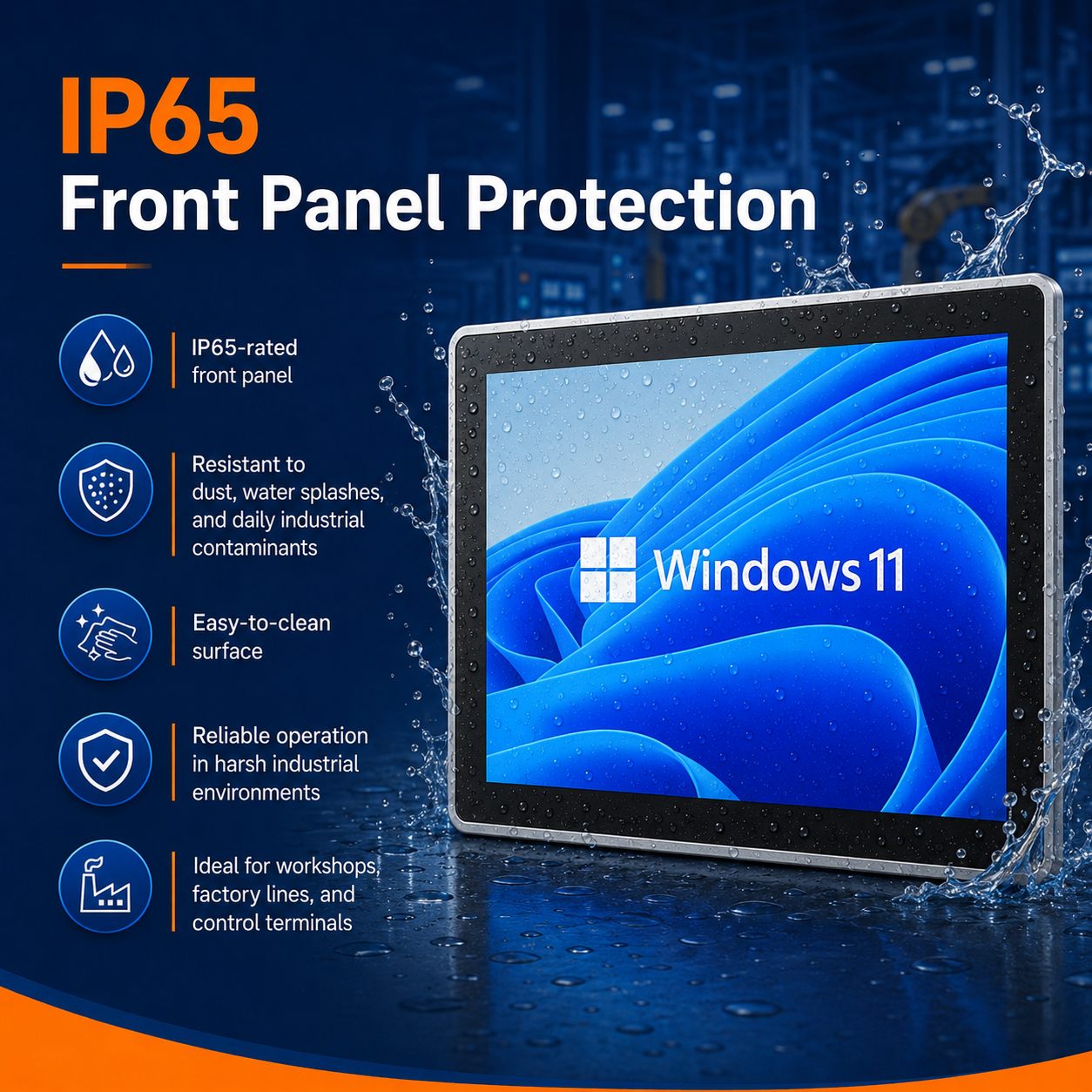

IP65-rated front panel
The sealed front panel helps protect against dust, water splashes, and daily industrial contaminants.

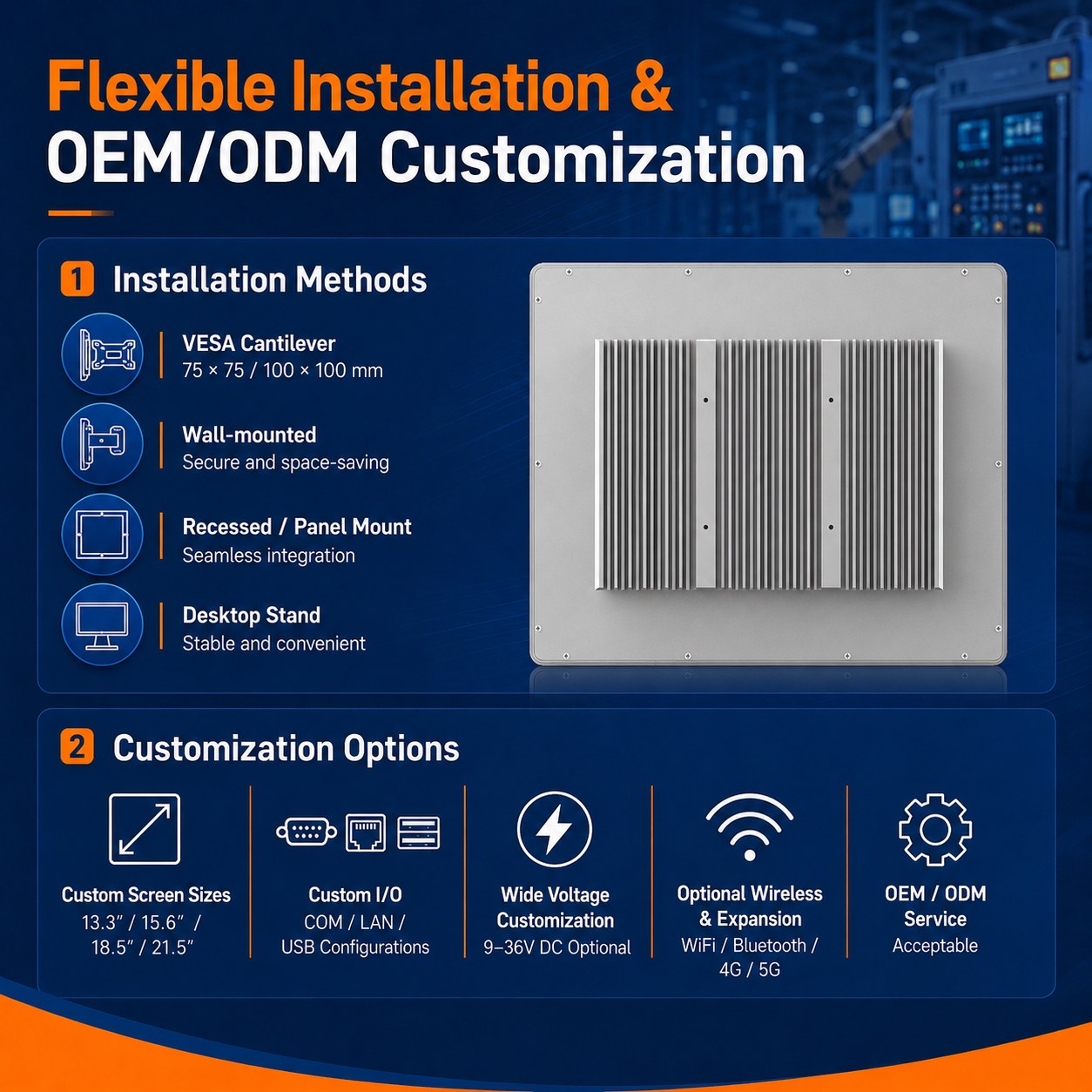

Multiple installation methods
Supports VESA cantilever, wall-mounted, recessed / panel mount, and desktop stand installation.

OEM/ODM customization
Screen size, I/O layout, wireless module, 4G/5G module, voltage input, COM/LAN/USB configuration, and housing design can be customized for project needs.

Application Industries

Manufacturing automation, machine control, factory HMI terminals, MES / ERP / PLM workstations, food and beverage production, chemical processing, pharmaceutical equipment, energy monitoring, transportation systems, logistics terminals, smart infrastructure, industrial self-service kiosks, and control cabinet integration.
