19-Inch Fanless Industrial Embedded Panel PC with IP65 Touchscreen
Model name: GTY-190T
19″ 1280×1024 HD PCAP capacitive touchscreen
100% fanless passive cooling, all-aluminum enclosure
Intel Celeron J6412 / N100 / Core i3/i5/i7 CPU options
Front IP65 dust & water resistant
Optional 9-36V wide DC power input
Dual LAN + USB + Dual COM + HDMI + VGA ports
Supports Windows & Linux operating systems
Designed for 24/7 continuous industrial operation
Product Details
Specification
Ordering information
Product Details
Product Introduction

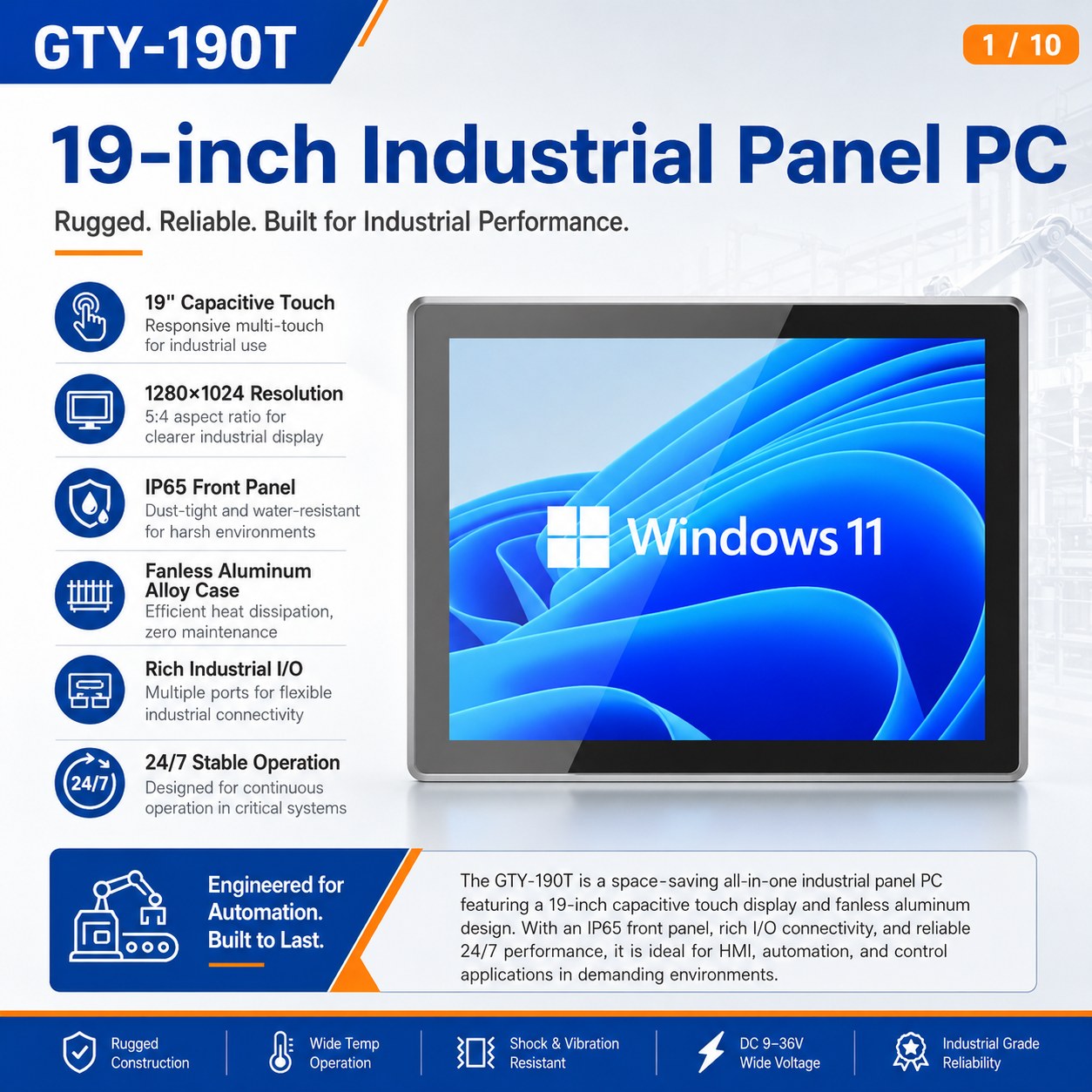

The GTY-190T is a 19-inch industrial panel PC designed for stable HMI, automation, and control tasks in demanding environments. It combines a responsive capacitive touchscreen, fanless embedded computing platform, and rugged aluminum enclosure in one compact unit. With IP65 front protection, dual LAN, HDMI and VGA display output, flexible RS232 expansion, and multiple Intel processor options, it is built for continuous use on production lines, control cabinets, terminals, and smart manufacturing systems. Its clean front panel, solid heat-dissipation structure, and flexible installation options make it easy to deploy in both new projects and equipment upgrades.
Key Product Features

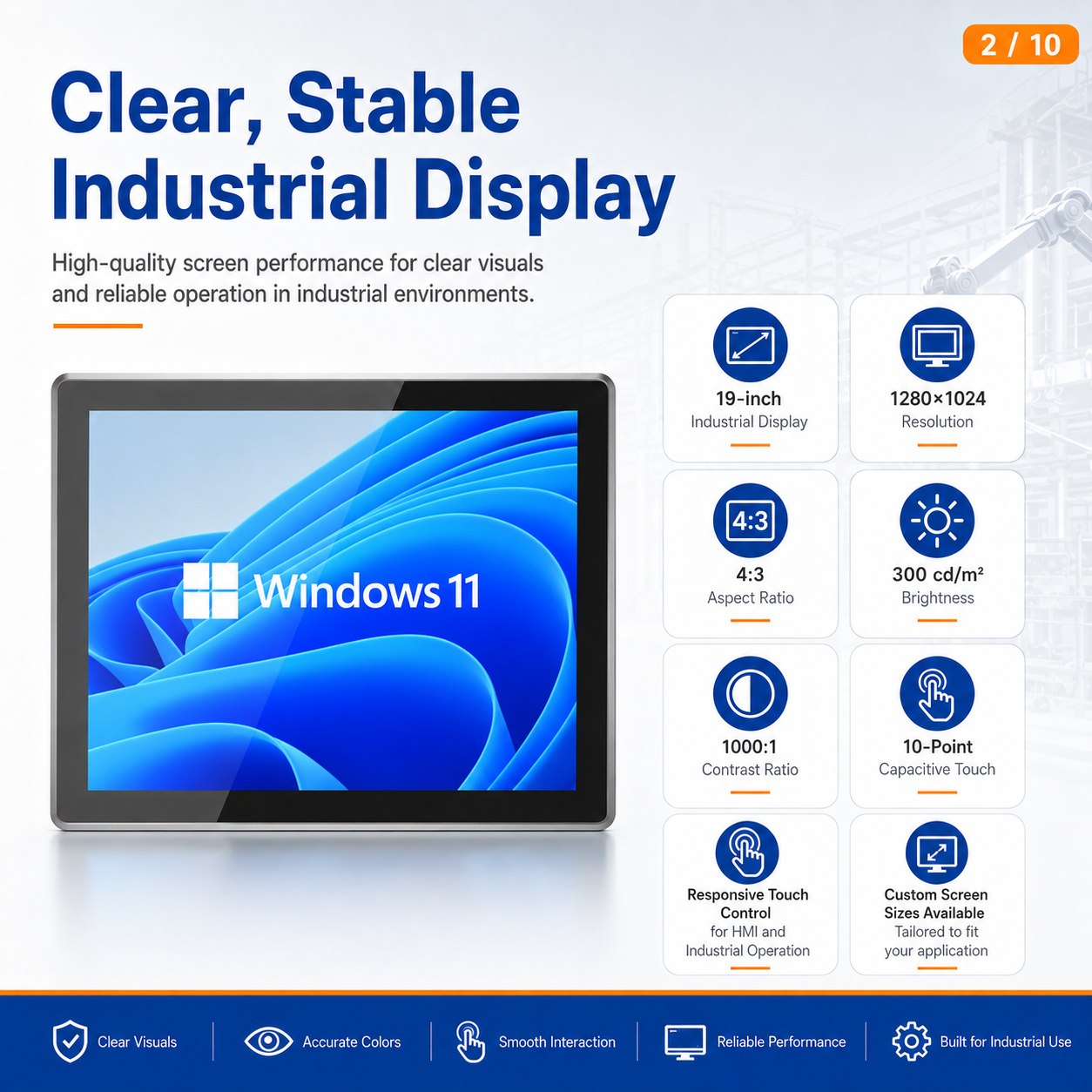

- 19-inch capacitive touch displaywith 1280 × 1024 resolution, 4:3 aspect ratio, 300 cd/m² brightness, and 1000:1 contrast ratio.

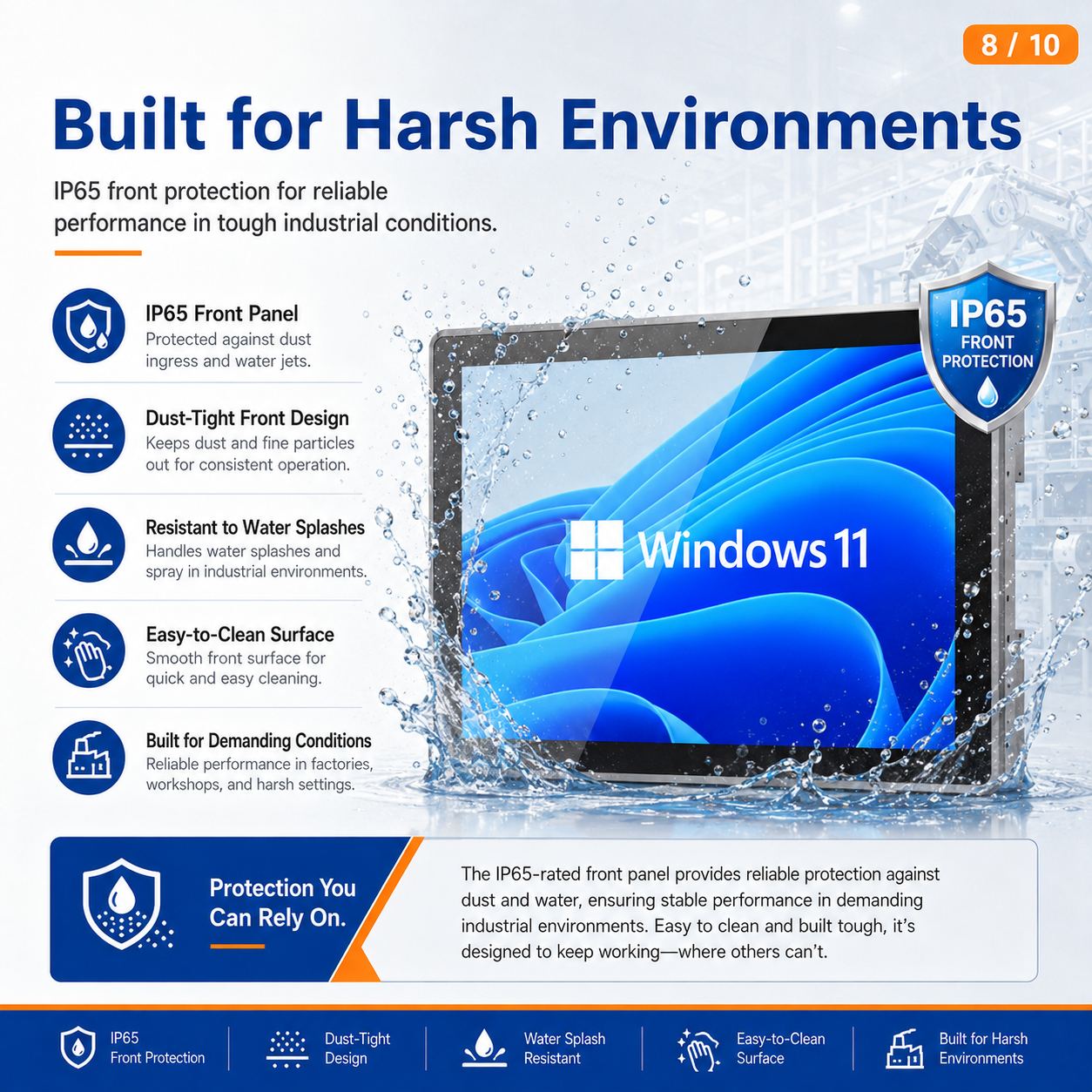

- IP65-rated front panel helps protect against dust, water splashes, and harsh workshop conditions.

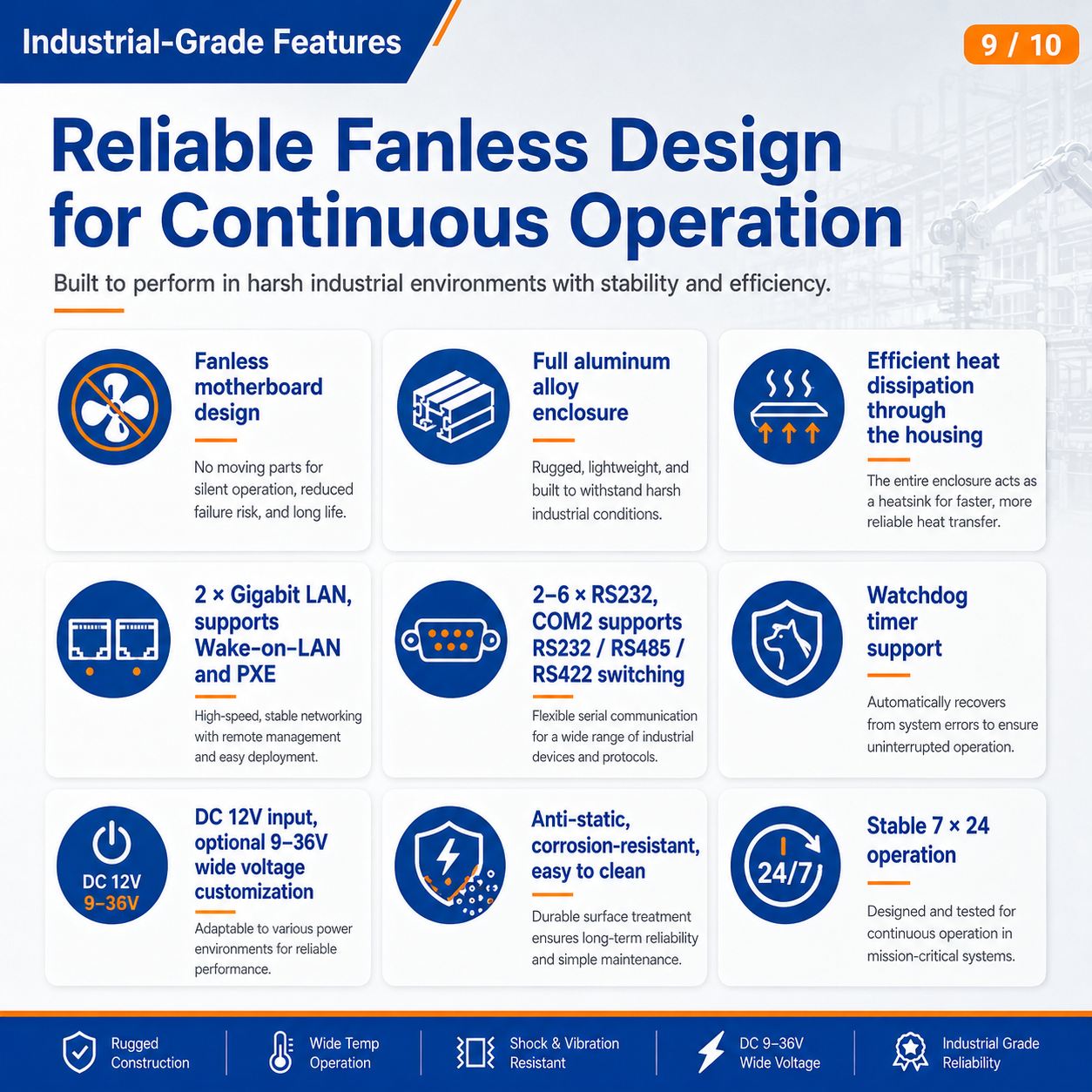

- Fanless aluminum alloy housing uses the enclosure as a heat sink for silent, low-maintenance operation.

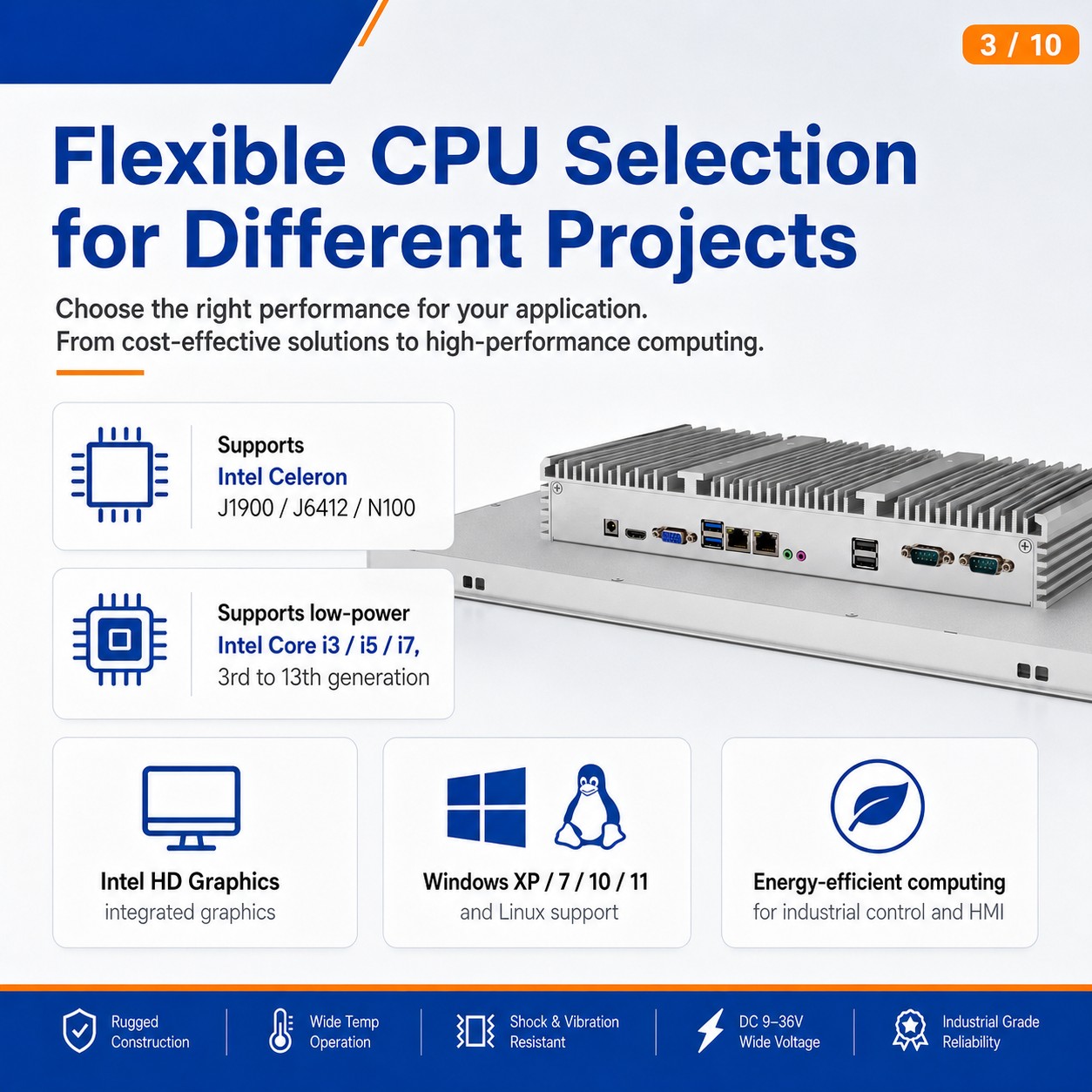

- Flexible CPU optionssupport Intel Celeron J1900, J6412, N100, and low-power Intel Core i3/i5/i7 platforms.

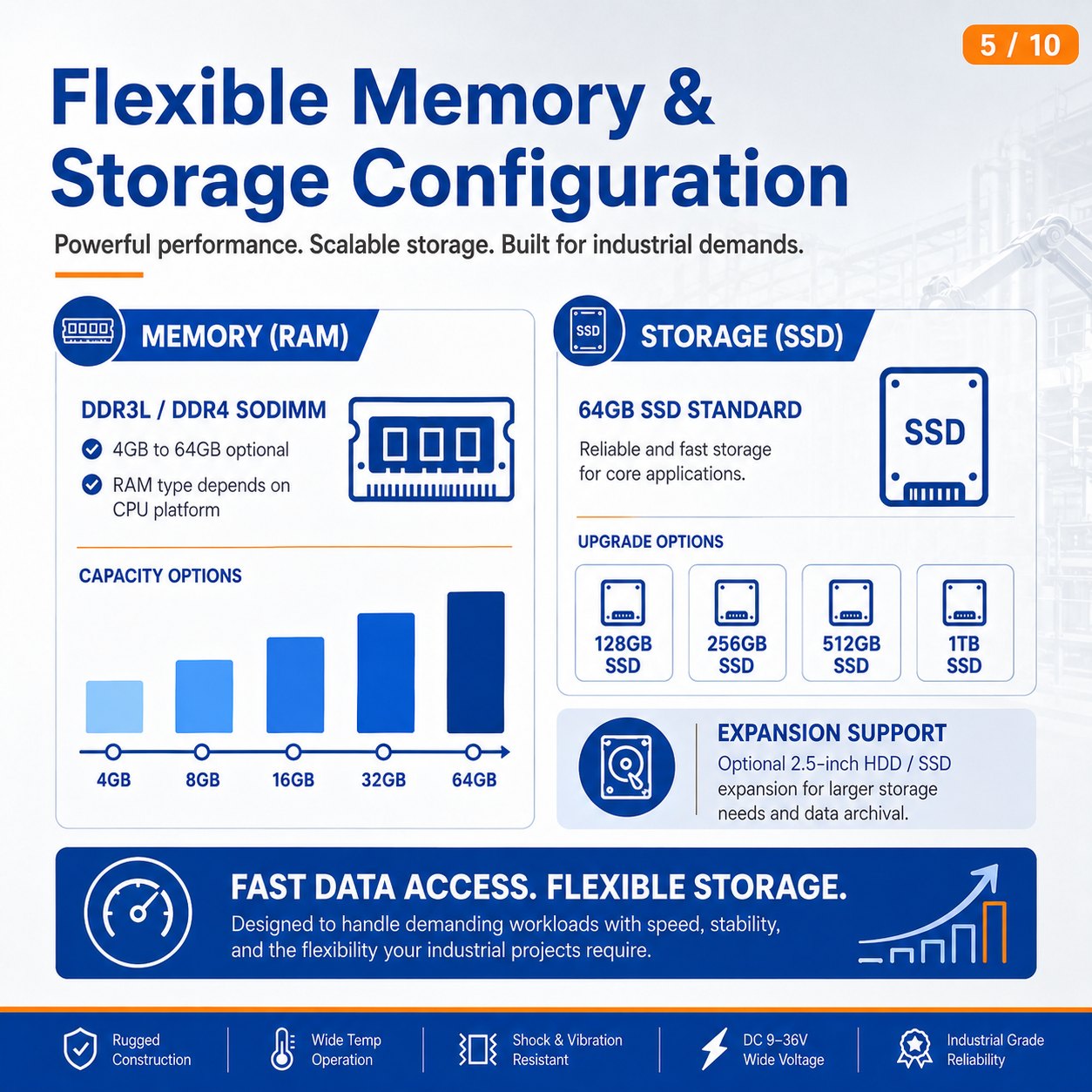

- Expandable memory and storage with DDR3L/DDR4 SODIMM RAM, SSD options up to 1TB, and optional 2.5-inch storage expansion.

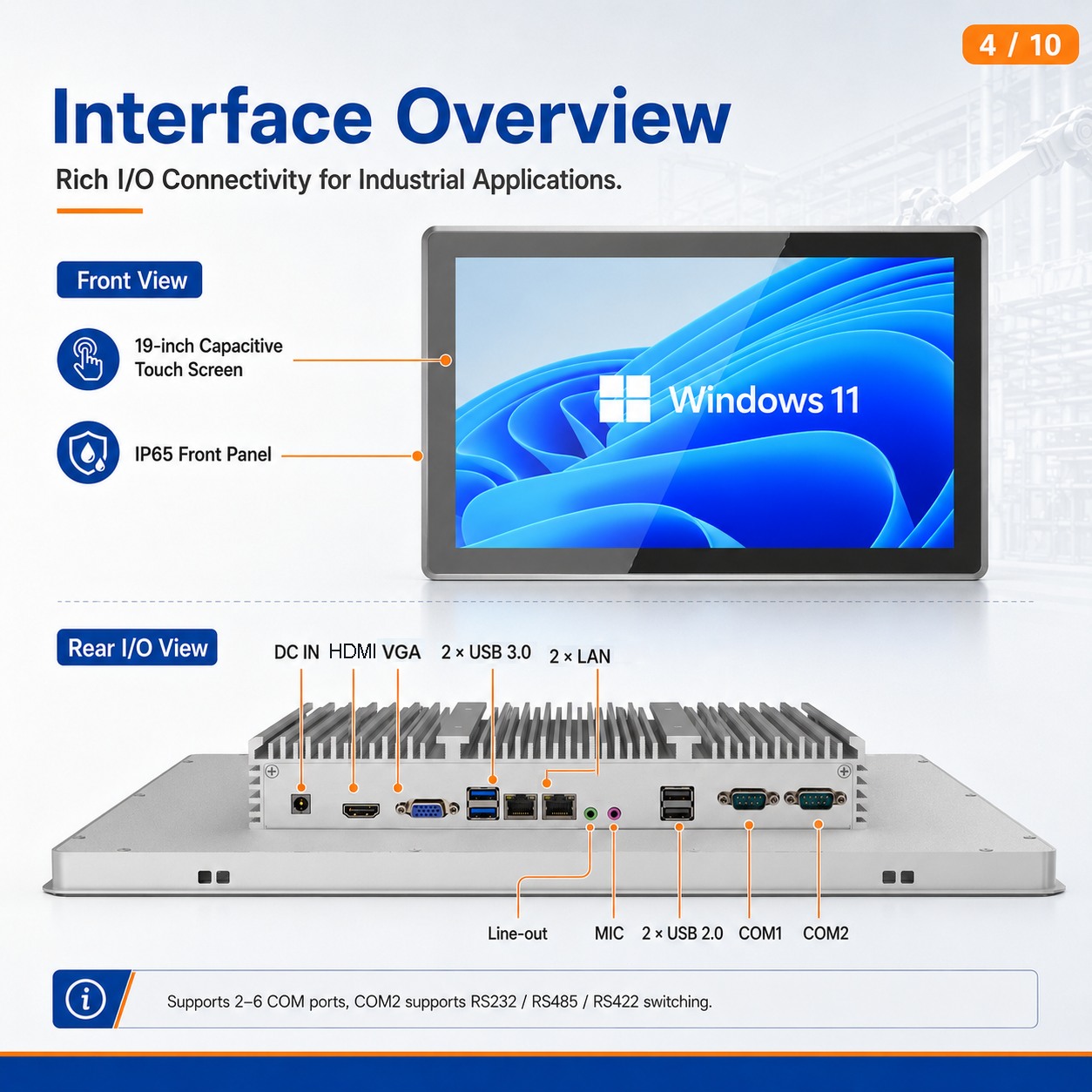

- Rich industrial I/Oincludes HDMI, VGA, 2 × LAN, USB 3.0, USB 2.0, Line-out, MIC, and RS232 serial ports.
- Industrial networking support with dual Gigabit LAN, Wake-on-LAN, and PXE for easier deployment and remote management.
- Customizable communication modules support optional WiFi, Bluetooth, 4G, and 5G according to project needs.

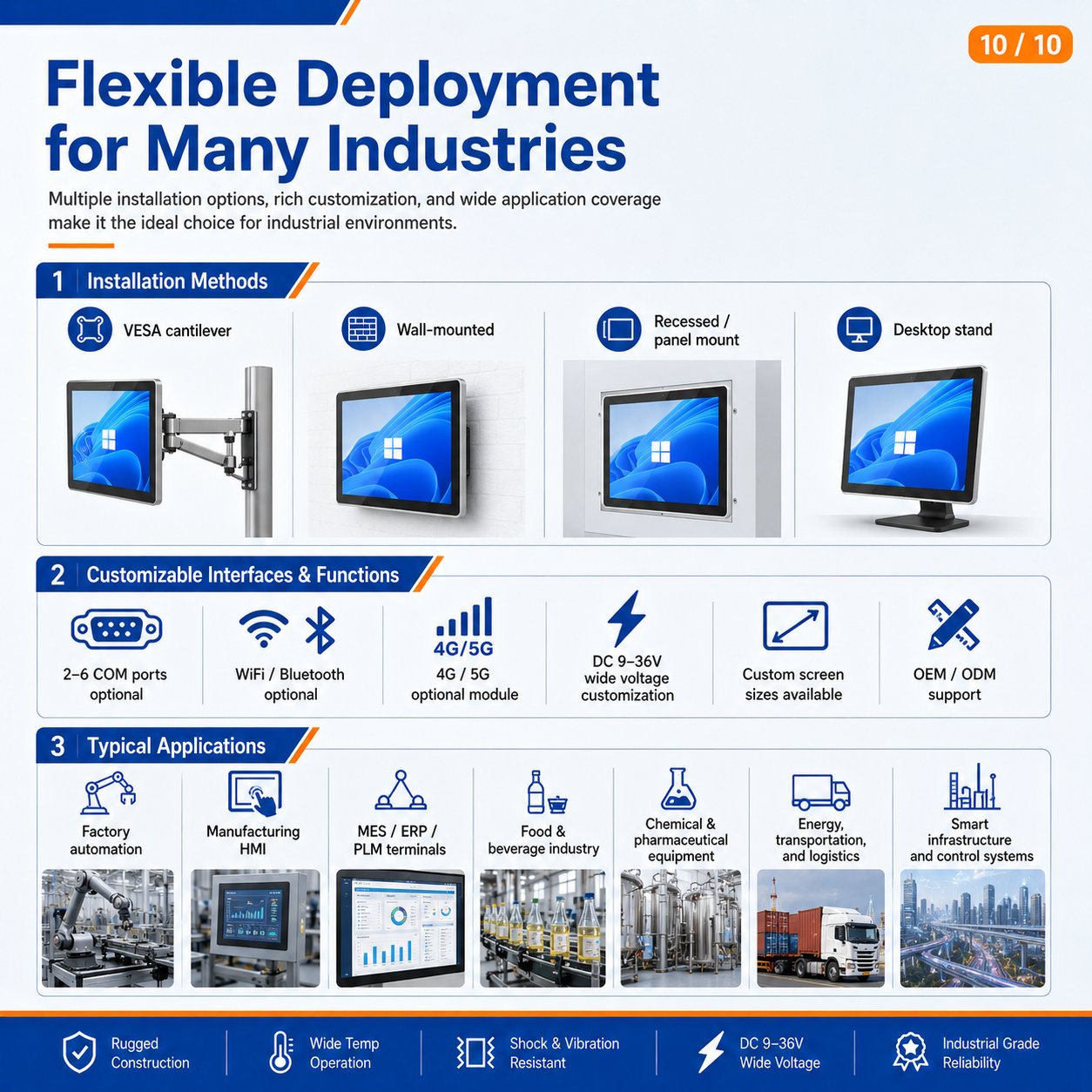

- Wide installation flexibility supports VESA cantilever, wall-mounted, recessed/panel mount, and desktop stand installation.
- Built for long service life with watchdog support, anti-static surface treatment, corrosion resistance, and 7 × 24 operation capability.
Product Application Industries
- Factory automation and production line control
- Manufacturing HMI terminals
- MES / ERP / PLM workstation terminals
- Food and beverage processing equipment
- Chemical and pharmaceutical machinery
- Energy management and monitoring systems
- Transportation and logistics control terminals
- Smart infrastructure and industrial control systems
- Workshop data collection and visualization
- Equipment operation panels and self-service industrial terminals
Specification
| System Configuration | |
| processor | Celeron J1900/J6412/N100 Processors |
| 3th /4th /5th/6th/7th/8th/10th/11th/12th/13th Gen Intel Core i3/i5/i7 Processors | |
| operating system | Windows XP/ 7/10/11, Linux support |
| Memory capacity | DDR3L / DDR4 SODIMM memory slots, supporting 4-64 GB optional. RAM type is Depands on CPUs |
| Hard drive support | 64 G SSD ( upgradeable to 128GB/ 256GB/512GB/1TB/2TB , 2.5-inch hard drive can be added separately) |
| graphics card | Depands on the CPUs |
| WiFi function | Built-in WiFi and Bluetooth module (Optional module) |
| Extend | 1 Mini PCIe / M.2 slot, supporting WIFI , Bluetooth, 4G , 5G (optional module) |
| network | 2* Gigabit Ethernet, supports Wake-on-LAN and PXE functionality . |
| Power characteristics | DC 12V (supports 9-36V wide voltage customization) , power consumption 30-100W |
| Screen size | 19″ capacitive touch screen, 4 : 3 wide, 300 cd /m² (1000:1) Size can be customized |
| resolution | 1280×1024 |
| Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
| Structural parameters | |
| Box material | IP 65 rated aluminum alloy panel, all-aluminum fanless design. |
| Installation method | Supports VESA cantilever, wall- mounted, recessed , and desktop stand types. |
| Overall dimensions | 428.4mm*358.4mm*58.5mm |
| Opening size | 421.4mm*351.4mm R7.5 |
| Packaging size | 500*425*155mm |
| Backlight | More than 50000H |
| Product weight | gross weight:8 kg |
| Product Color | silver |
| Ambient temperature | Operating temperature: -10℃~60℃ |
| Storage temperature: -20℃~70 ℃ | |
| relative humidity | 5%-95% relative humidity, non-condensing |
| Interface parameters | |
| POWER | 1* Power switch |

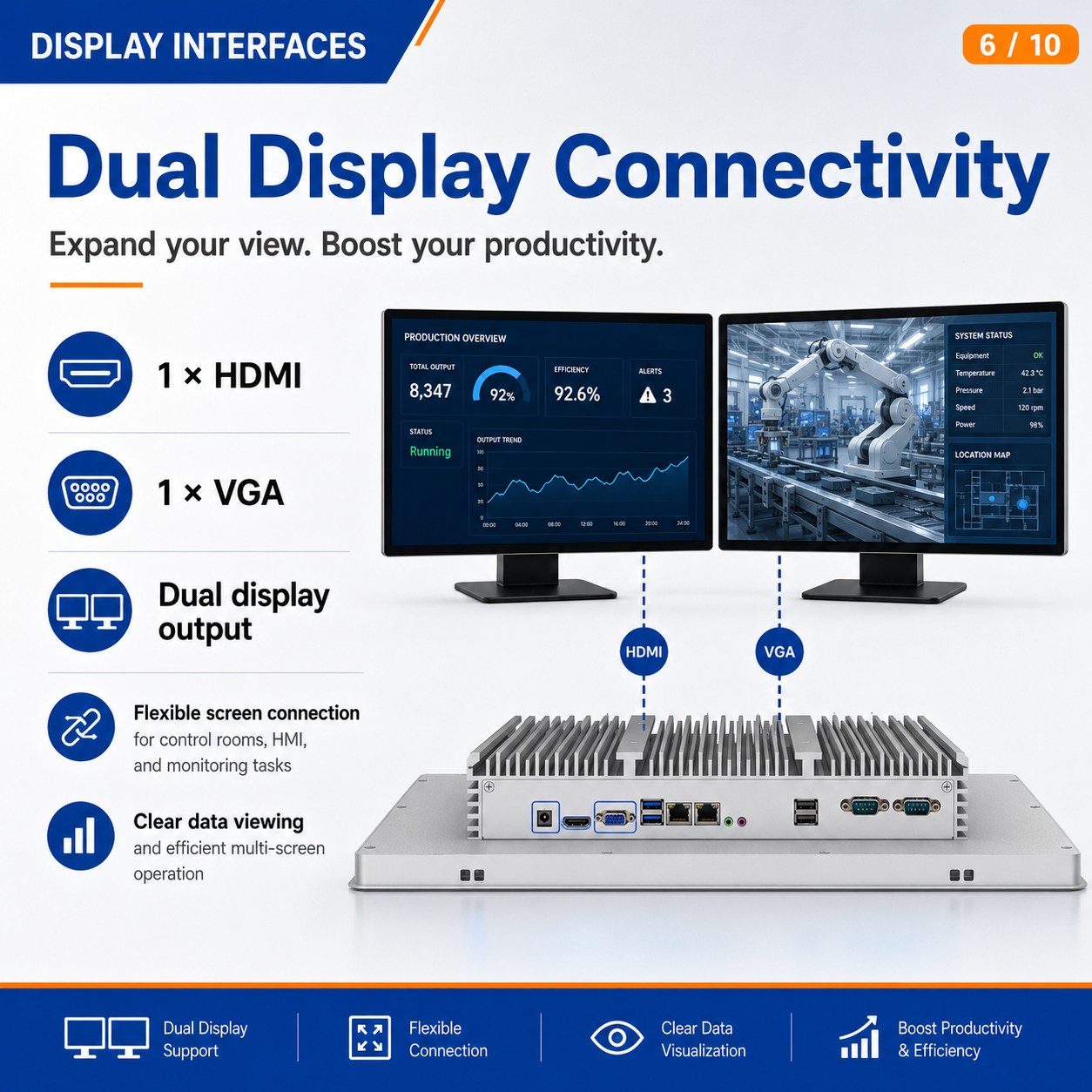

| Display Interface | 1 VGA, 1 HDMI |
| LAN | 2 * Gigabit Ethernet, supporting Wake-on-LAN and PXE functionality . |
| USB | 2 USB 2.0 ports, 2 USB 3.0 ports ( the number of USB 3.0 ports varies depending on the platform) |
| COM | 2-6* RS232 serial interface, COM2 supports RS232/RS485 switching. |
| audio | 1* Line out interface, 1* MIC interface |
| power supply | 1* DC power interface, supports 12V power input |
| Heat dissipation | Fanless aluminum block heat sink |
| Quality Inspection | Material intake, assembly, aging, and multiple inspections(Resistant to earthquakes, shockproof, and anti-drop) |
| Certification | RoHS, CE, FCC , CCC |
| warranty | One-year warranty for the whole machine |
