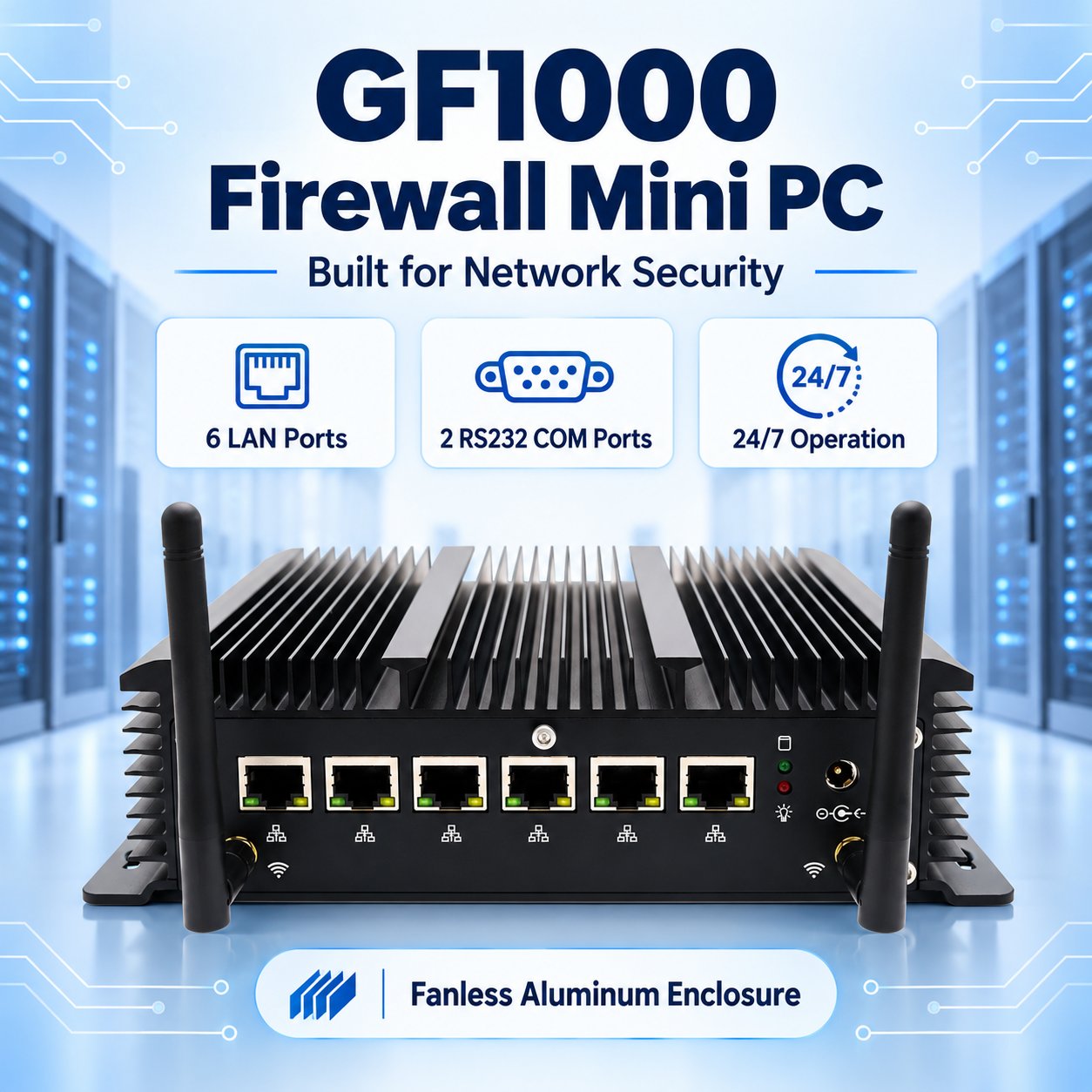

GF1000 Fanless Firewall Mini PC with 6 LAN Ports
Model name: GF1000
Products Features
1. Intel Pentium / Core i3 / i5 / i7 options.
2. Six Ethernet ports for network segmentation.
3. Up to 32GB DDR4/DDR5, configuration dependent.
4. mSATA / SATA; NVMe on i5-1235U models.
5. HDMI, 4 × USB 3.0, 2 × RS232.
6. Fanless aluminum enclosure.
7. Auto Power On, PXE, WoL, watchdog, RTC.
8. Optional 3G/4G module support with SIM slot.
9. Compact 209 × 150 × 57 mm; 12V DC input.
Product Details
Specification
Ordering information
Product Details
The JIERUICC GF1000 is a fanless firewall mini PC for enterprise gateways, network segmentation, and VPN deployments. It combines selectable Intel processors, six Ethernet ports, and two RS232 interfaces in a compact aluminum enclosure.
As an OEM/ODM manufacturer, JIERUICC supplies configurable hardware for distributors, channel partners, system integrators, and enterprise procurement teams. CPU, memory, storage, and customization requirements can be specified for your deployment and volume purchasing needs.
Product Features
Selectable Intel processors: Pentium 5405U and Core i3, i5, and i7 options, including Core i5-1235U.

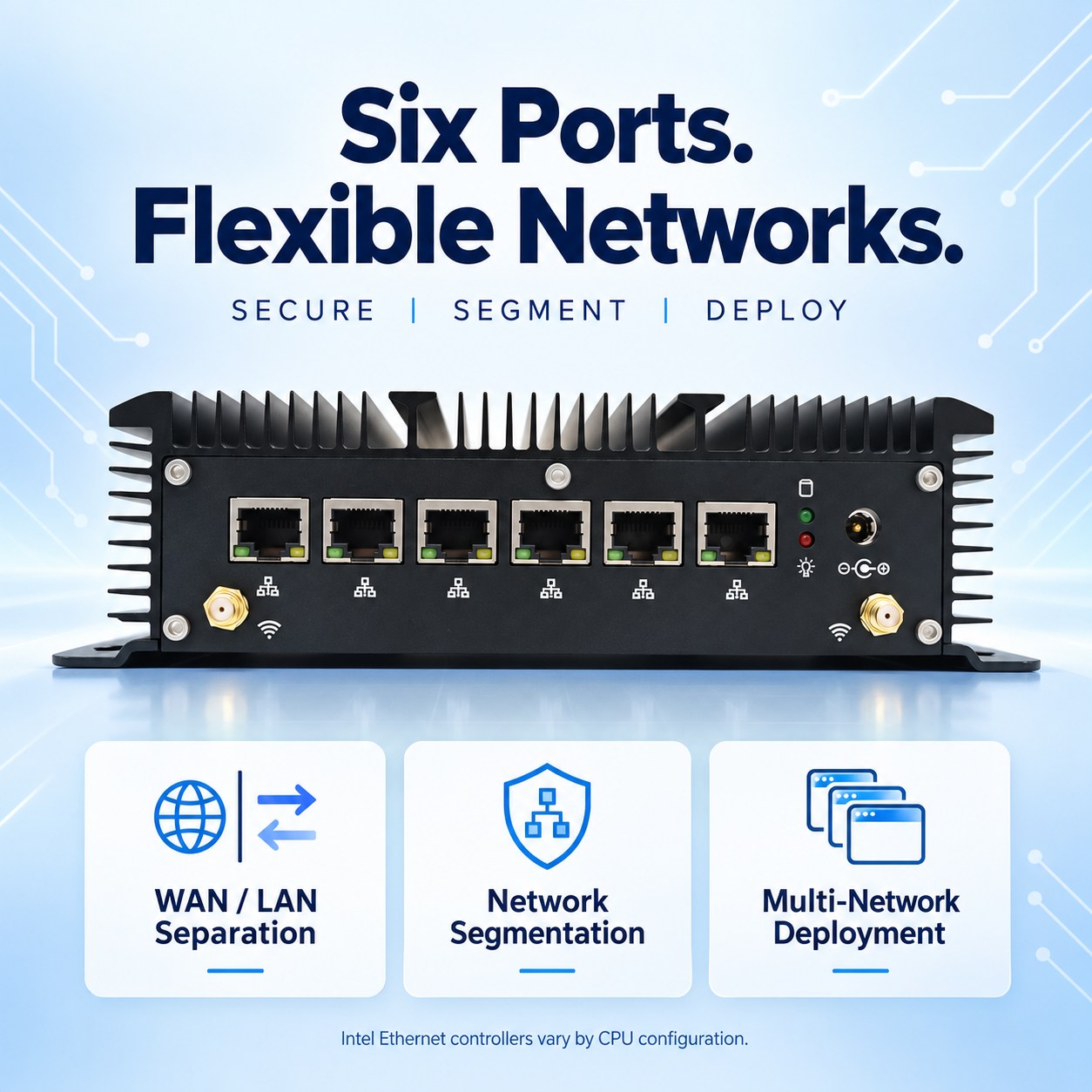

Six Ethernet interfaces: Separate connections for WAN, LAN, and network zones; Intel controllers vary by configuration.

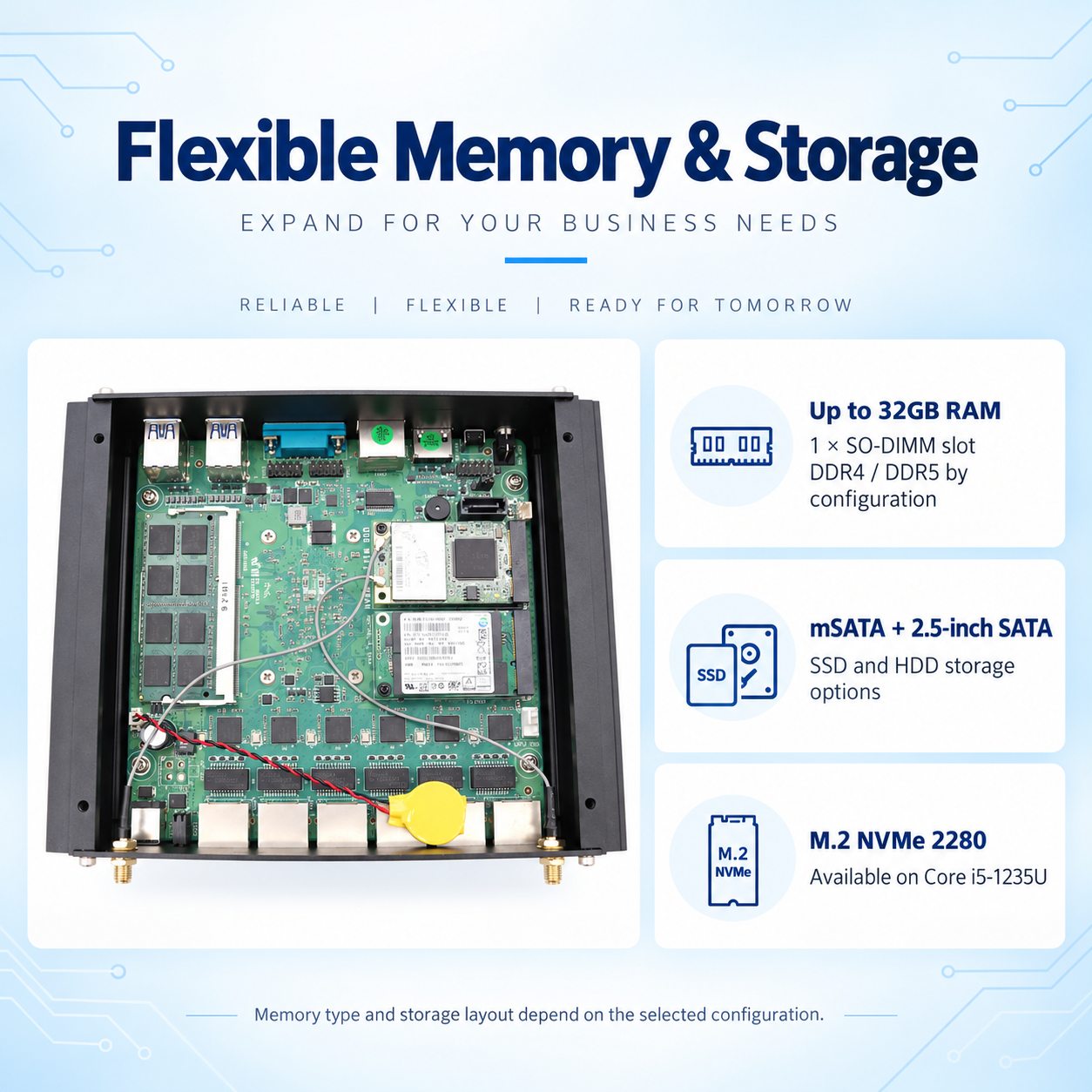

Up to 32GB memory: One SO-DIMM slot with DDR4 or DDR5 support depending on the motherboard configuration.
Flexible storage: mSATA and SATA drive support, with M.2 NVMe 2280 available on the Core i5-1235U configuration.

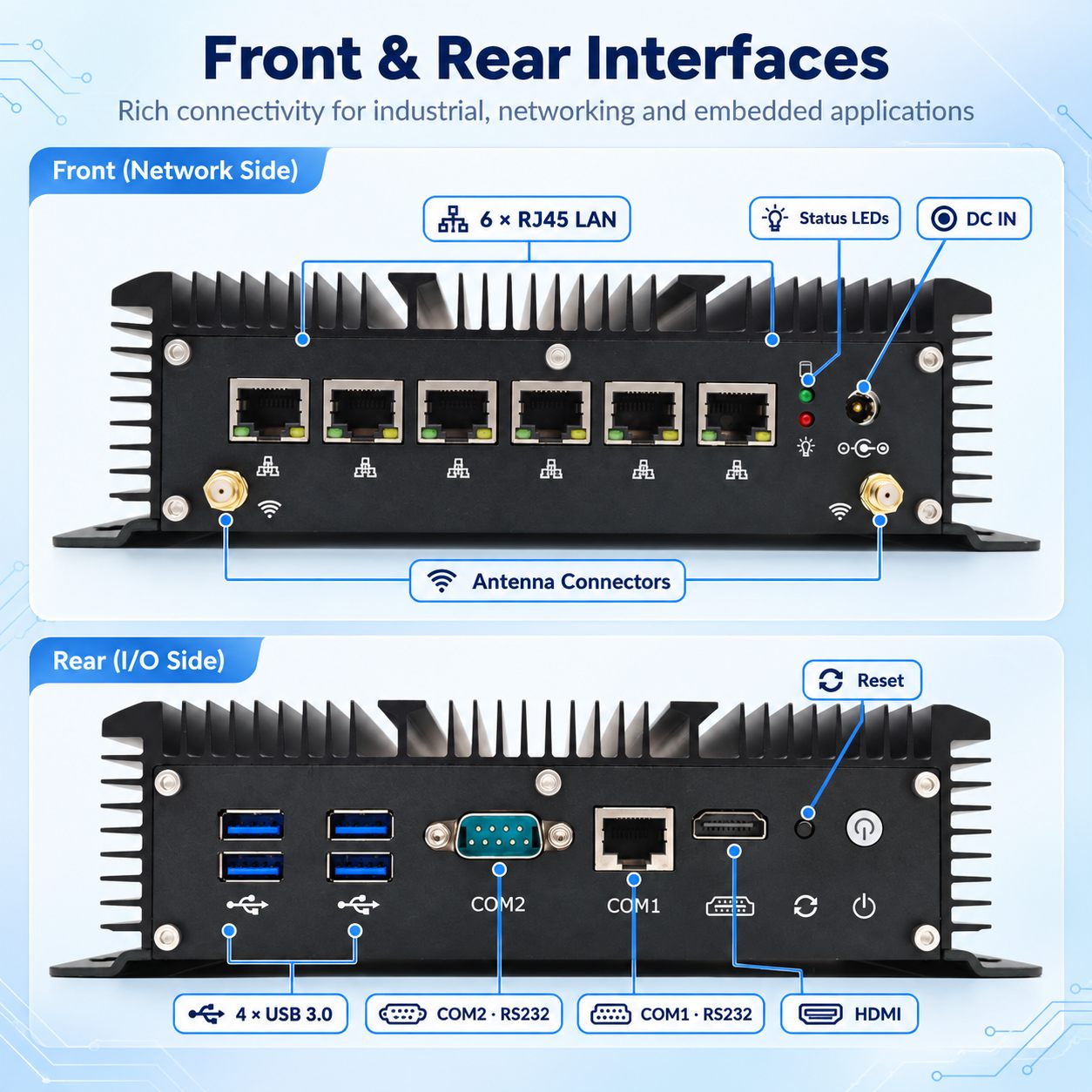

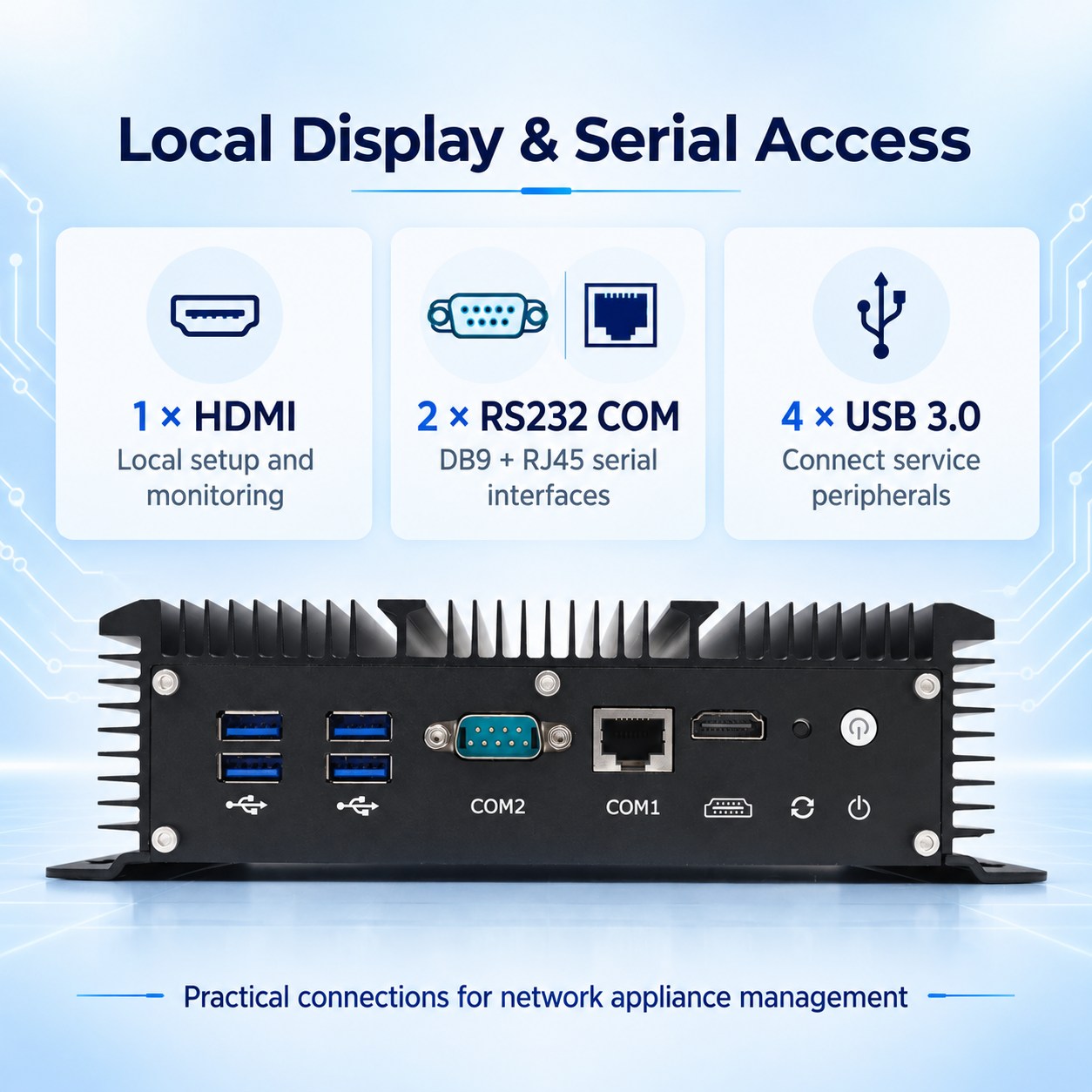

Practical management connections: One HDMI, four USB 3.0 ports, and two RS232 ports—one DB9 and one RJ45.
Fanless aluminum enclosure: Passive cooling without fan noise for continuous network deployments.

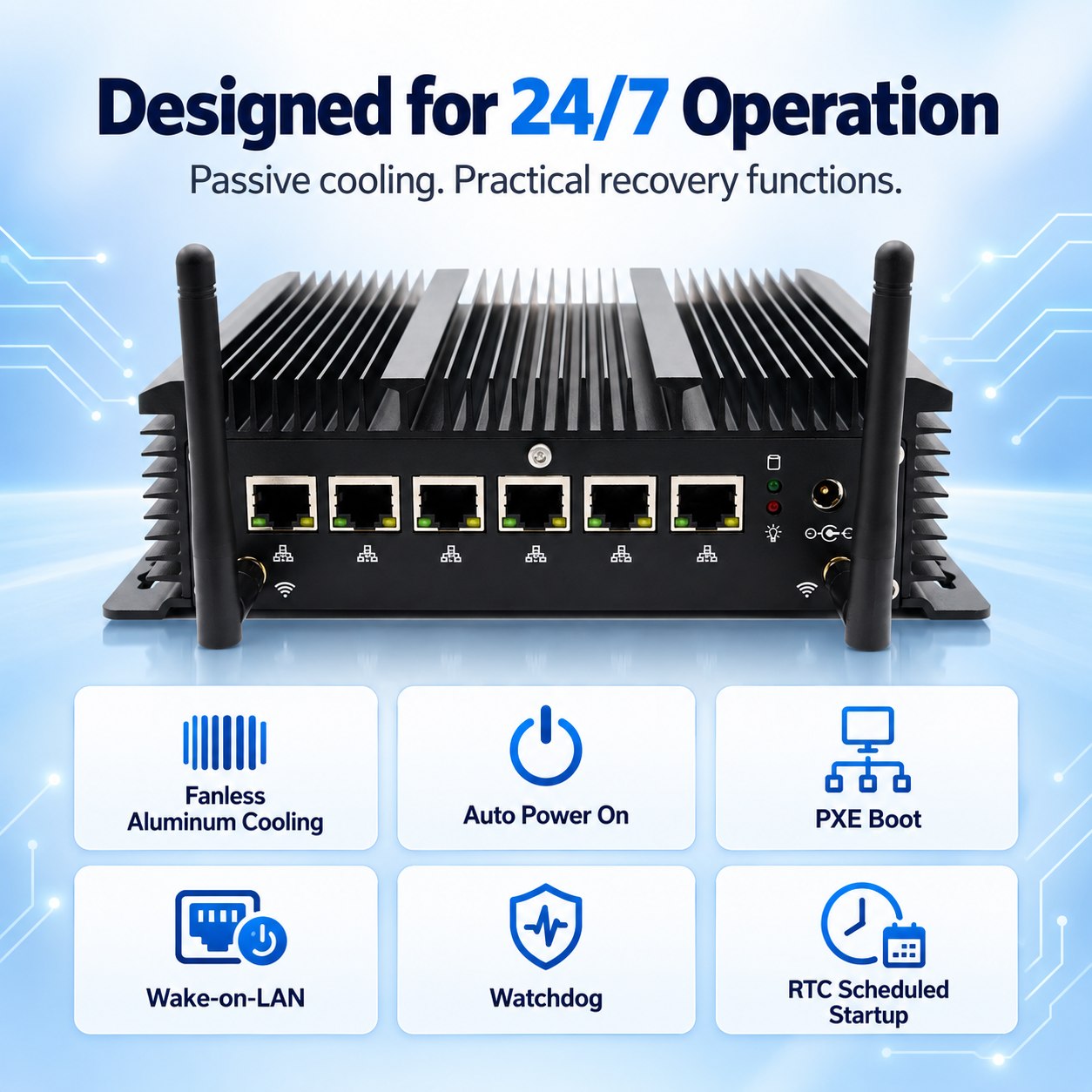

Deployment and recovery functions: Auto Power On, PXE boot, Wake-on-LAN, watchdog, and RTC scheduled startup.
Optional cellular connectivity: Onboard SIM slot and expansion support for compatible 3G/4G modules.

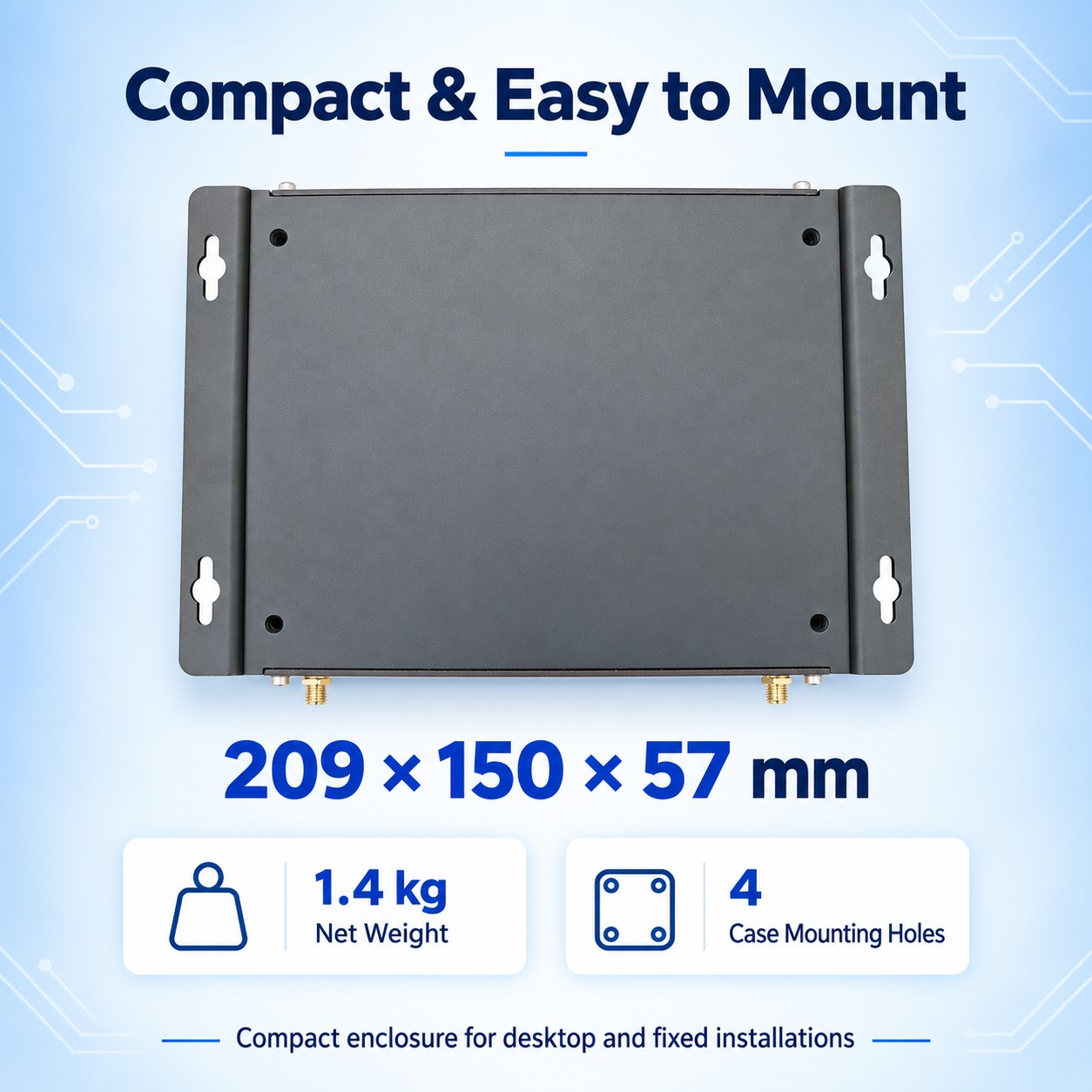

Compact installation: 209 × 150 × 57 mm enclosure with four case mounting holes and 12V DC input.
Product Applications
- Enterprise IT — Perimeter firewalls and branch office gateways.
- Industrial Automation — Factory network segmentation and equipment access control.
- Retail Chains — POS network isolation and inter-store VPN connectivity.
- Hospitality — Guest Wi-Fi and hotel management network separation.
- Education — Campus internet gateways and computer-lab network management.
- Healthcare — Clinical, administrative, and guest network isolation.
- Logistics & Warehousing — Segmented networks for scanners, terminals and office systems.
- Commercial Buildings — Building automation and tenant network separation.
- Energy & Utilities — Remote-site gateways with optional 4G connectivity.
- Managed IT Services — Firewall and VPN appliance deployments for business clients.

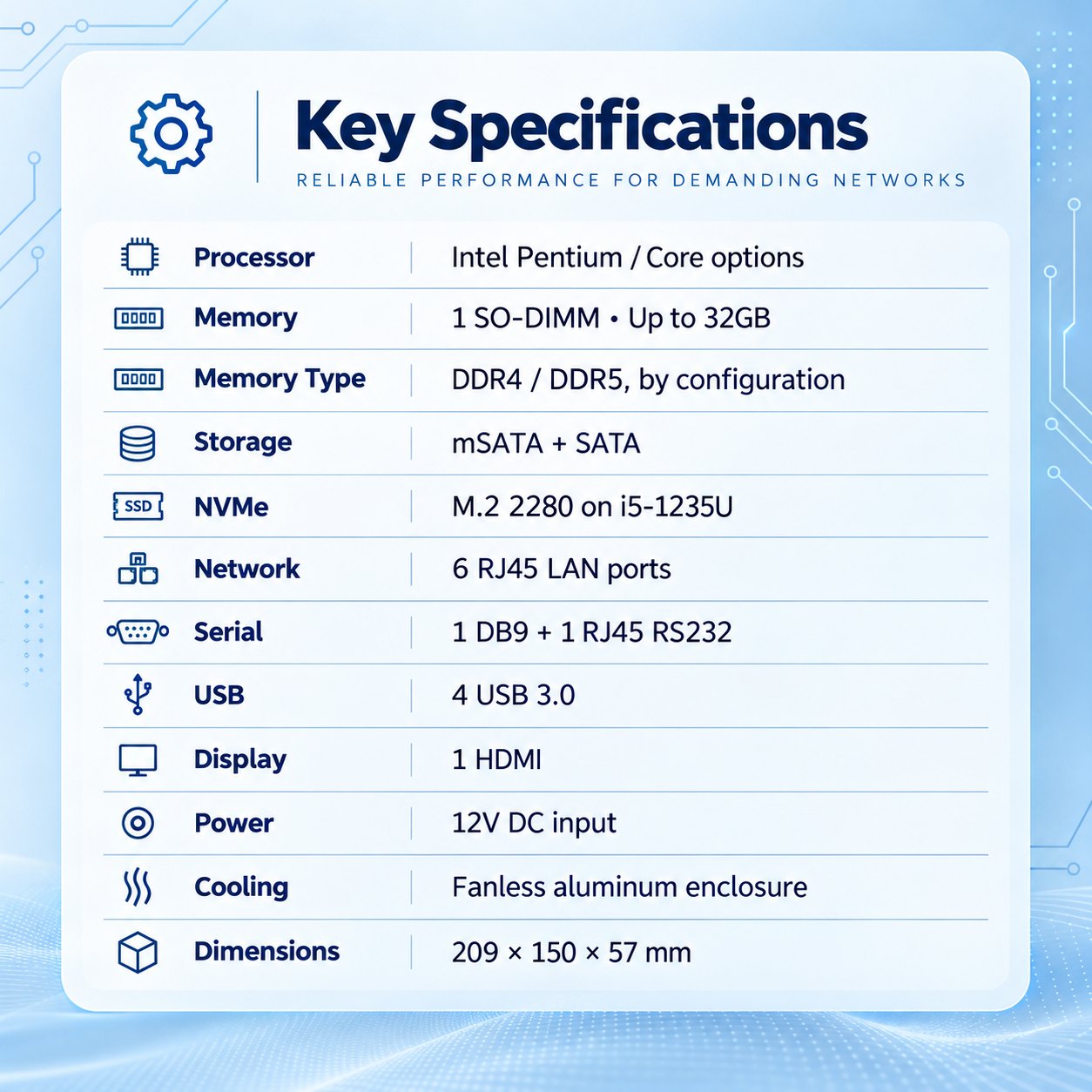

Specification
| Basic Information: | |||
| CPU | Onboard Intel Pentium 5405U 2.30 GHz 2 Core 4 Threads Onboard Intel Core i3-7100U 2.4GHz 2 Core Four Threads. Onboard Intel Core i3-8130U 2.2GHz up to 3.4Ghz 2 Core Four Threads. Onboard Intel Core i5-7287U 3.3GHz up to 3.7GHz 2 Core Four Threads Onboard Intel Core i5-8265U 1.6GHz up to 3.9GHz 4 Core 8 Threads Onboard Intel Core i5-10210U 1.6GHz up to 4.2GHz 4 Core 8 Threads Onboard Intel Core i7-10510U 1.8GHz up to 4.9GHz 4 Core 8 Threads Onboard Intel Core i5-1235U 1.3GHz up to 4.4GHz 10 Cores 12 Threads | ||
| TDP | Depands on the CPUs | ||
| Motherboard Size | 15 x 15cm customized size | ||
| Chipset | Intel Sunrise Point-LP, Intel Kaby Lake-U | ||
| BOIS | American Megatrends Inc.5.12 | ||
| Memory | 1 x SO-DIMM DDR4/5 Slot Support 4GB/8GB/16GB/32GB optional | ||
| OS | Windows 7/8/10/11/LINUX/Pfsense | ||
| Audio | Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH – High Definition Audio Controller | ||
| Network | 6 x GbE RJ45 Intel i225V/i226V（i3-7100U/8130U is 6 x GbE RJ45 Intel i210/211） | ||
| Video | Refer to CPU | ||
| Storage: | |||
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s | ||
| M.2 SSD | 1 x M.2 nvme 2280 (Core i5-1235U) | ||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-full/mini PCIE-half port for 3G/4G/Wi-Fi module(USB WIFI protocol) 1 x mini PCIE-full port for 3G/4G module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 1 x Power LED, 1 x HDD LED | ||
| USB | 4 x USB3.0 | ||
| Display | 1 x HDMI | ||
| LAN | 6 x RJ45 Giga LAN | ||
| Audio | 1 x MIC, 1 x SPK | ||
| COM | 1 x DB9 RS232 COM, 1 x RJ45 RS232 COM | ||
| SIM Card slot | 1 x Embedded SIM card slot onboard for 3G/4G | ||
| Others | 1 x Reset bution | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC+12V~+19V, recommend 12V/5A | ||
| Operating Temperature | -20/+60Centigrade | ||
| Storage Temperature | -20/+85 Centigrade | ||
| Relative Humidity | 0%~90%@30 (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Watchdog, AWAL, RTC, WOL,PXE | ||
| Size | 209*150*57mm | ||
| Weight | Net 1.4kg, Gross 2.5kg | ||
| Shell | Black color aluminum alloy(any customized color for bulk order) | ||
| Mounting | 4 mounting holes on case | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,Wi-Fi antennas | ||
