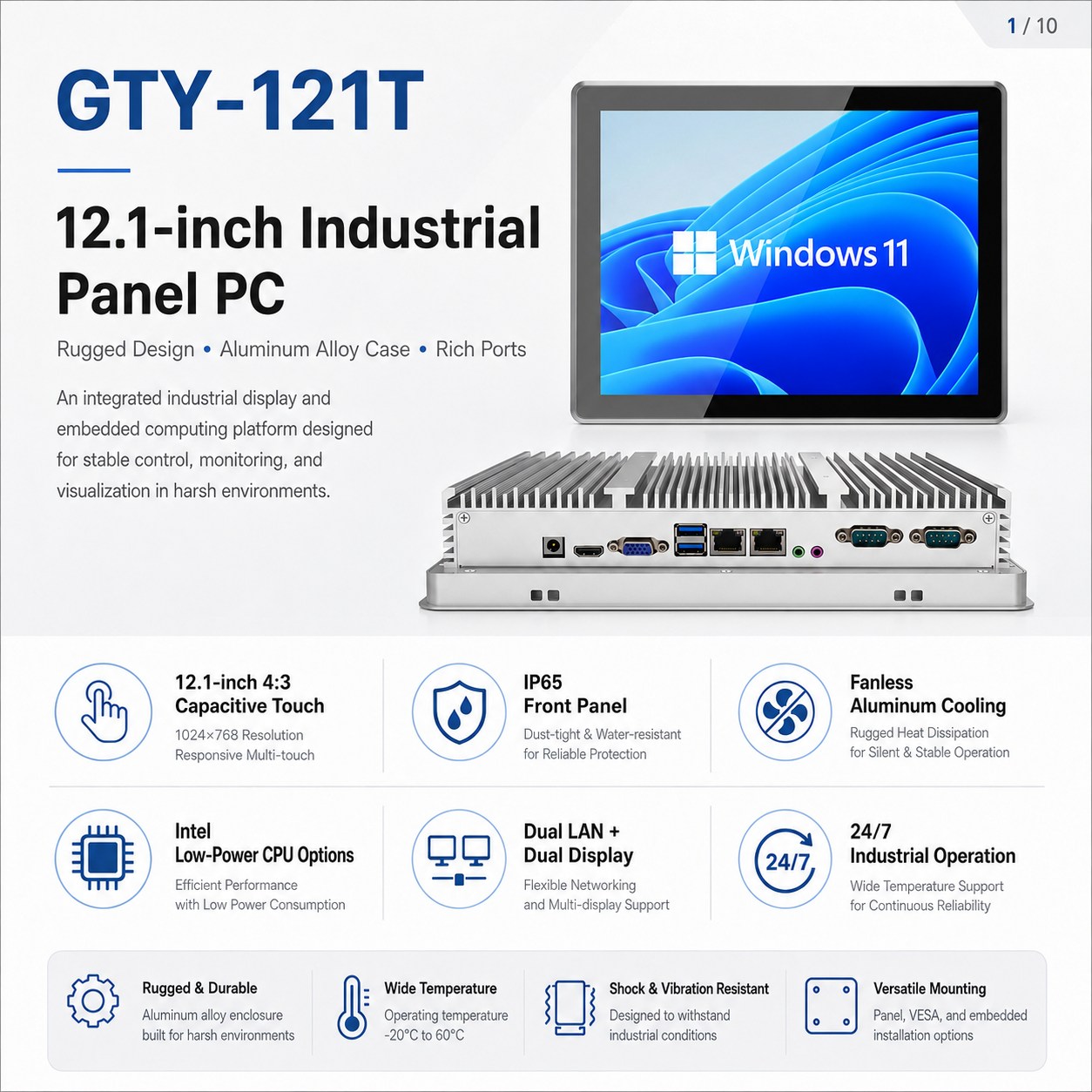

12.1-inch IP65 fanless Industrial Panel PC with Capacitive Touch
Model name: GTY-121T
12.1″ 1024×768 HD PCAP capacitive touchscreen
100% fanless passive cooling, all-aluminum enclosure
Intel Celeron J6412 / N100 / Core i3/i5/i7 CPU options
Front IP65 dust & waterproof
Optional 9-36V wide DC power input
Dual LAN + USB + 2*COM rs232/rs485 + HDMI + VGA ports
Supports Windows 10/11 & Linux operating systems
Designed for 24/7 continuous industrial operation
Product Details
Specification
Ordering information
Product Details
Product Introduction
The GTY-121T is a 12.1-inch industrial panel PC made for machine control, production monitoring, and on-site HMI operation. It brings the display, touchscreen, and embedded computing platform into one compact unit, helping system integrators reduce wiring, save cabinet space, and simplify installation.
Its IP65-rated front panel is designed for dusty, humid, and splash-prone work areas, while the fanless aluminum body provides quiet heat dissipation with fewer moving parts. With Intel low-power processor options, dual Gigabit LAN, RS232 serial ports, HDMI/VGA output, and expandable storage, this panel PC fits a wide range of automation and industrial terminal projects.
Product Features

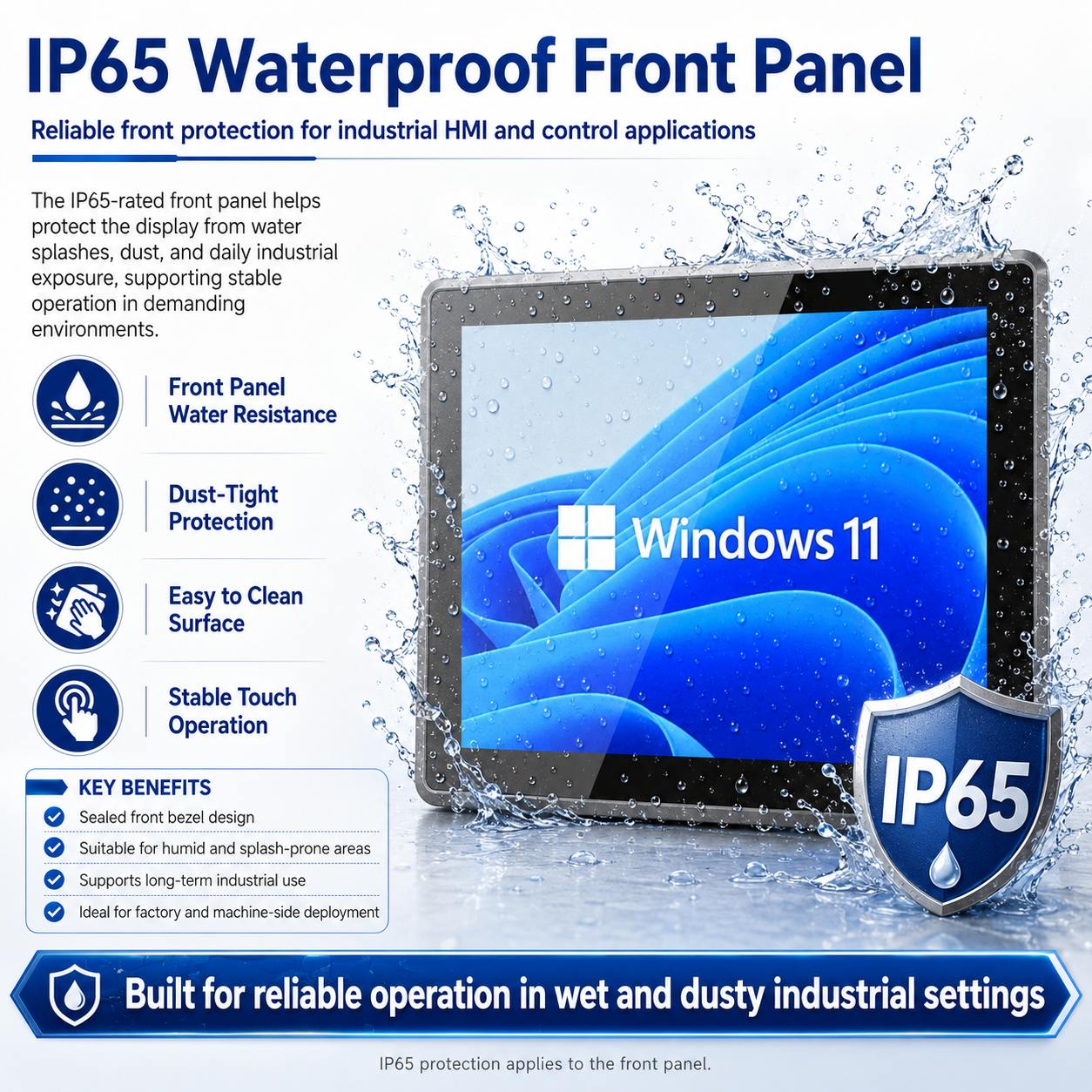

IP65 Front Touch Panel
12.1-inch capacitive touchscreen with a sealed front design for industrial use near machines, cabinets, and production lines.

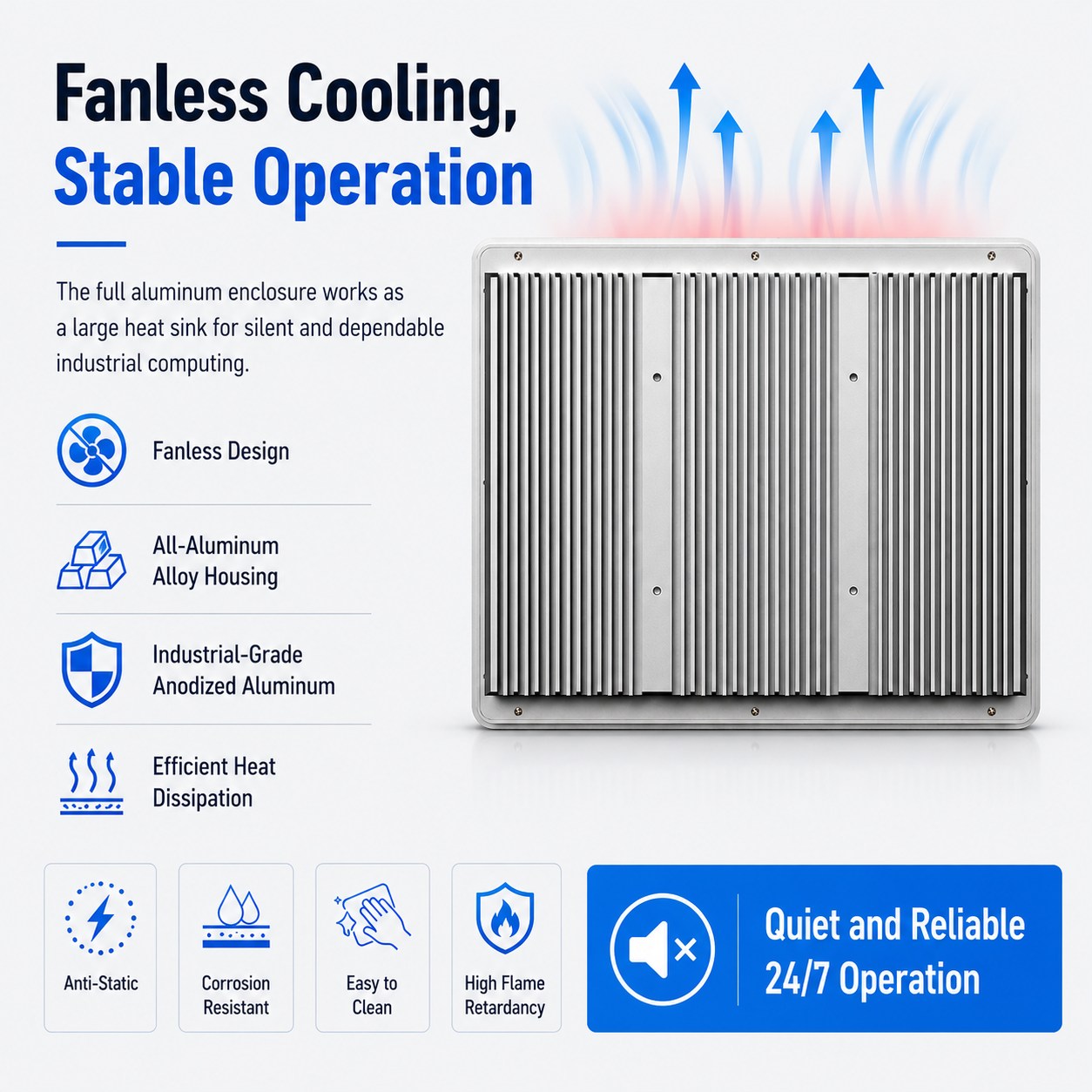

Fanless Aluminum Housing
The full aluminum structure helps dissipate heat silently and reduces dust-related maintenance.
Flexible CPU Choices
Supports Intel Celeron J1900, J6412, N100, and low-power Intel Core i3/i5/i7 platforms for different performance needs.

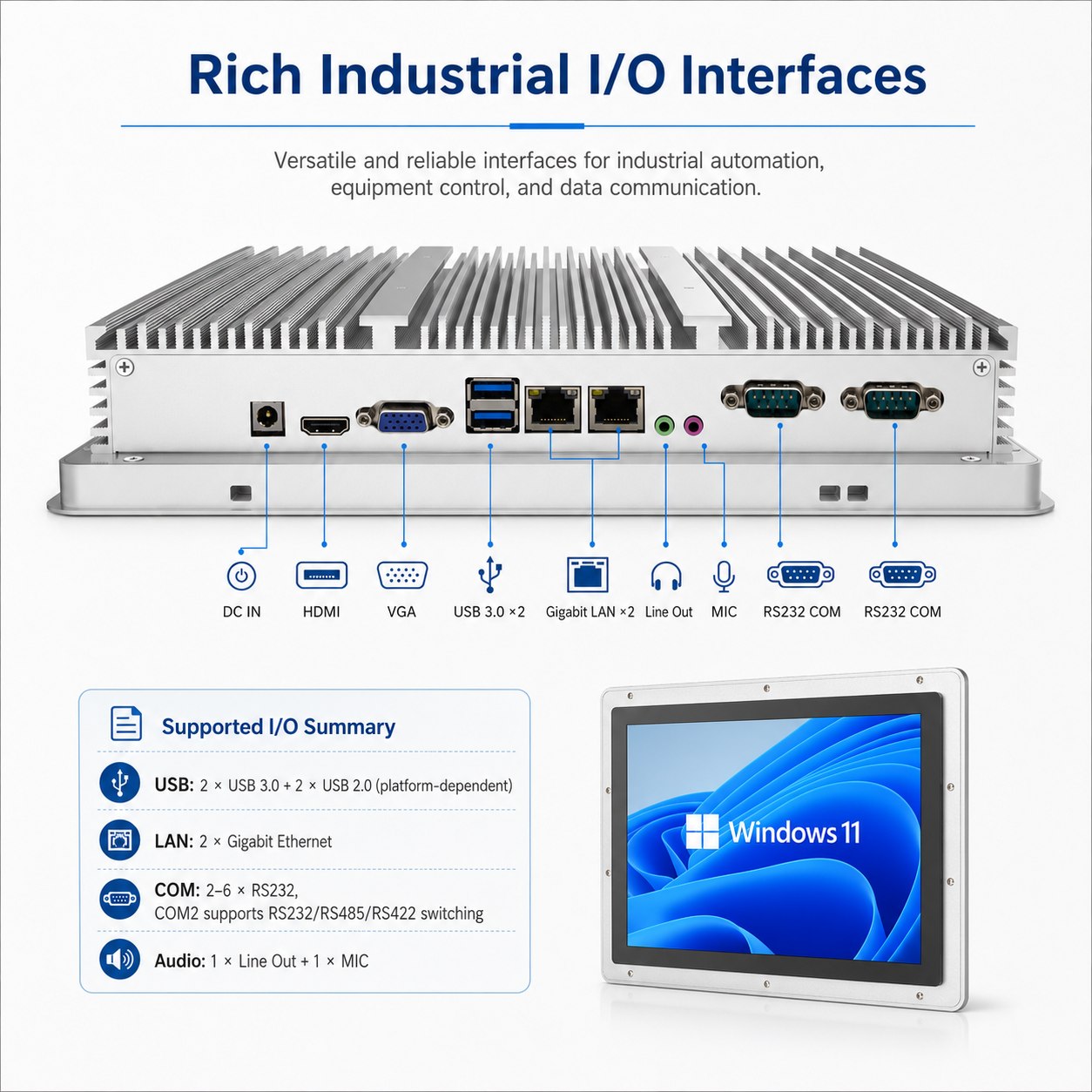

Industrial I/O Ready
Equipped with dual Gigabit LAN, HDMI, VGA, USB, audio, and 2–6 RS232 COM ports for equipment connection.

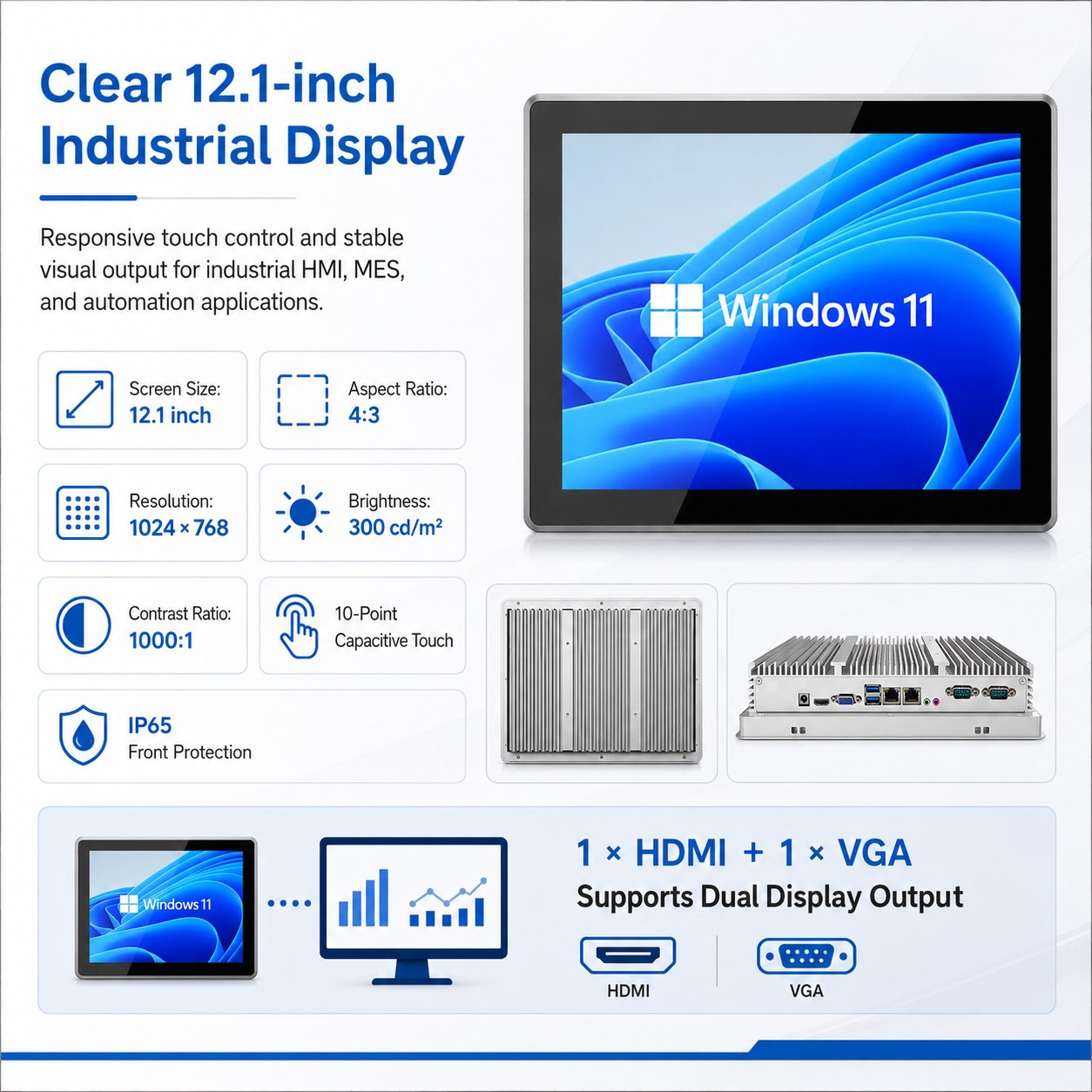

Dual Display Support
HDMI and VGA outputs allow local display extension for monitoring, control, or maintenance tasks.
Expandable Memory & Storage
Supports DDR3L/DDR4 SODIMM memory from 4GB to 64GB, standard SSD storage, and optional larger SSD/HDD capacity.
Stable 24/7 Deployment
Supports watchdog, Wake-on-LAN, PXE boot, DC 12V input, and optional 9–36V wide voltage customization.

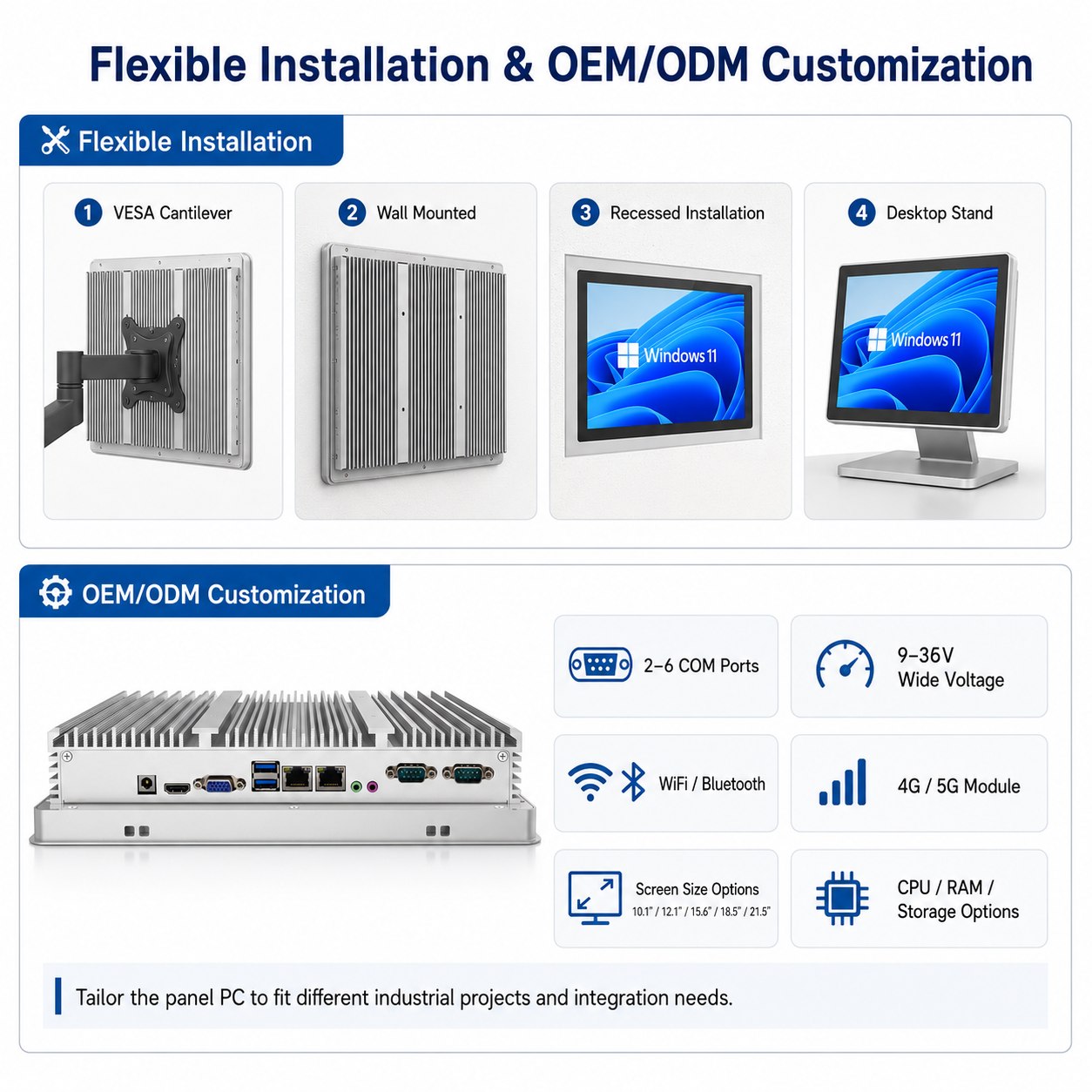

Flexible Installation
Available for VESA cantilever, wall-mounted, recessed, and desktop stand installation.
OEM/ODM Customization
CPU, RAM, storage, COM ports, wireless module, wide voltage input, and screen sizes can be adjusted for project needs.
Product Application Industries
Factory automation, industrial HMI stations, machine control panels, MES / ERP / PLM terminals, production line monitoring, food and beverage processing, pharmaceutical equipment, chemical processing, energy management, transportation and logistics, smart manufacturing, control cabinets, self-service industrial terminals, and equipment-side data visualization.
Specification
| System Configuration | |
| processor | Celeron J1900/J6412/N100 Processors |
| 3th /4th /5th/6th/7th/8th/10th/11th/12th/13th Gen Intel Core i3/i5/i7 Processors | |
| operating system | Windows XP/ 7/10/11, Linux support |
| Memory capacity | DDR3L / DDR4 SODIMM memory slots, supporting 4-64 GB optional. RAM type is Depands on CPUs |
| Hard drive support | 64 G SSD ( upgradeable to 128GB/ 256GB/512GB/1TB , 2.5-inch hard drive can be added separately) |
| graphics card | Intel @ HD Graphics core graphics card |
| WiFi function | Built-in WiFi and Bluetooth module (Optional module) |
| Extend | 1 Mini PCIe / M.2 slot, supporting WIFI , Bluetooth, 4G , 5G (optional module) |
| network | 2* Gigabit Ethernet, supports Wake-on-LAN and PXE functionality . |
| Power characteristics | DC 12V (supports 9-36V wide voltage customization) , power consumption 30-100W |
| Screen size | 12.1 ” capacitive touch screen, 4 : 3 wide, 300 cd /m² (1000:1) Size can be customized |
| resolution | 1024×768 |
| Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
| Structural parameters | |
| Box material | IP 65 rated aluminum alloy panel, all-aluminum fanless design. |
| Installation method | Supports VESA cantilever, wall- mounted, recessed , and desktop stand types. |

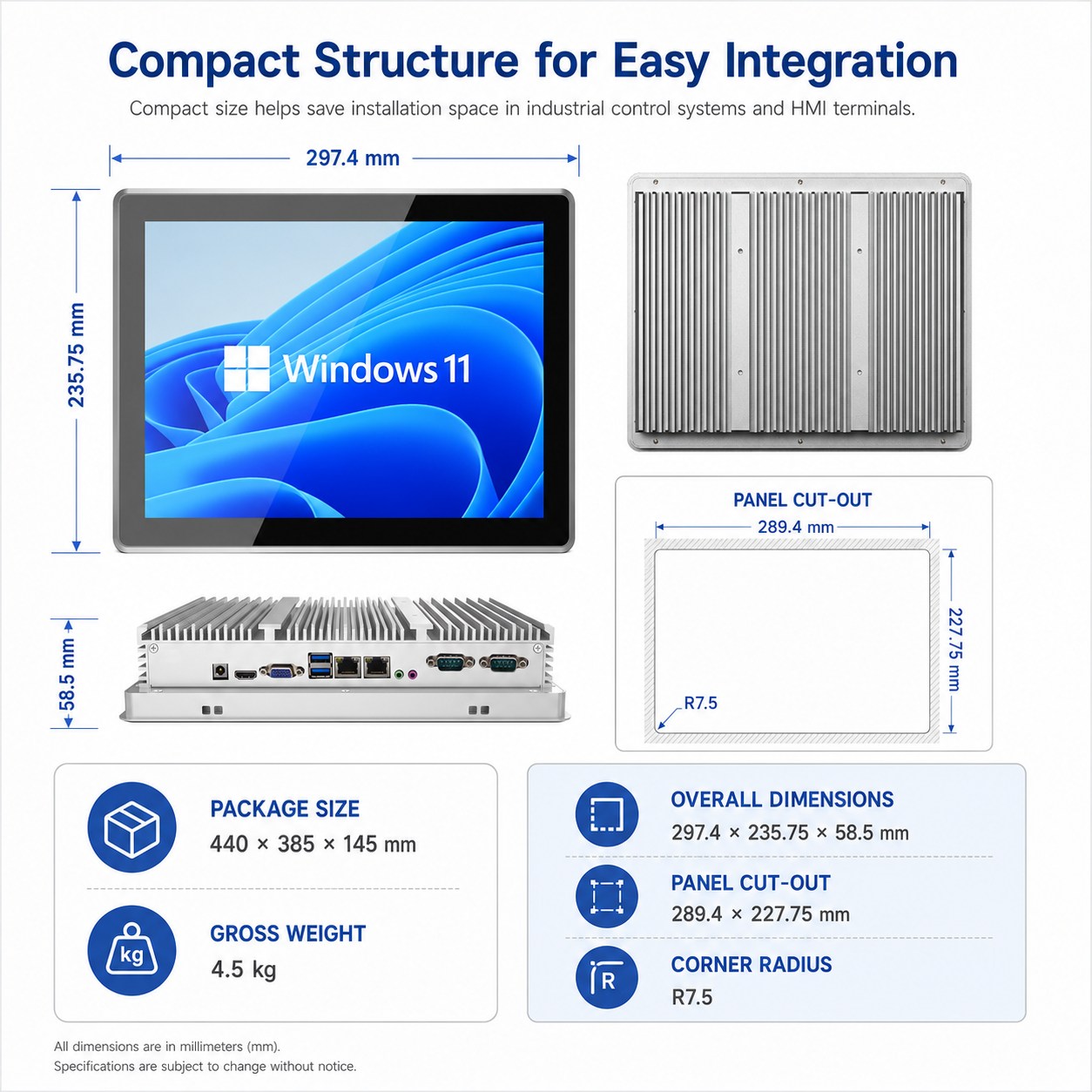

| Overall dimensions | 297.4mm*235.75mm*58.5mm |
| Opening size | 289.4mm*227.75mm R7.5 |
| Packaging size | 440*385*145mm |
| Backlight | More than 50000H |
| Product weight | gross weight:4.5 kg |
| Product Color | silver |
| Ambient temperature | Operating temperature: -10℃~60℃ |
| Storage temperature: -20℃~70 ℃ | |
| relative humidity | 5%-95% relative humidity, non-condensing |
| Interface parameters | |
| POWER | 1* Power switch |
| Display Interface | 1 VGA, 1 HDMI |
| LAN | 2 * Gigabit Ethernet, supporting Wake-on-LAN and PXE functionality . |
| USB | 2 USB 2.0 ports, 2 USB 3.0 ports ( the number of USB 3.0 ports varies depending on the platform) |
| COM | 2-6* RS232 serial interface, COM2 supports RS232/RS485 switching. |
| audio | 1* Line out interface, 1* MIC interface |
| power supply | 1* DC power interface, supports 12V power input |
| Heat dissipation | Fanless aluminum block heat sink |
| Quality Inspection | Material intake, assembly, aging, and multiple inspections(Resistant to earthquakes, shockproof, and anti-drop) |
| Certification | RoHS, CE, FCC , CCC |
| warranty | One-year warranty for the whole machine |
