The Cost-effective RDP Thin Client G2-S Quad-core Cortex-A7 1.2Ghz
1. Quad-core Cortex-A7 processor 1.2Ghz;
2. 1*HDMI high-definition video interface output;
3. Support RDP8.0/8.1/10.0-10.6 protocols;
3. Onboard 1GB of RAM and 8GB of flash;
4. 1*RJ45 (100Mbps network card), onboard WiFi module, support 2.4G WIFI;
5. Support online/local 1080P video play
6. Come with free management software/Smart Teaching software
Product Details
Specification
Ordering information
Product Details
Product Introduction

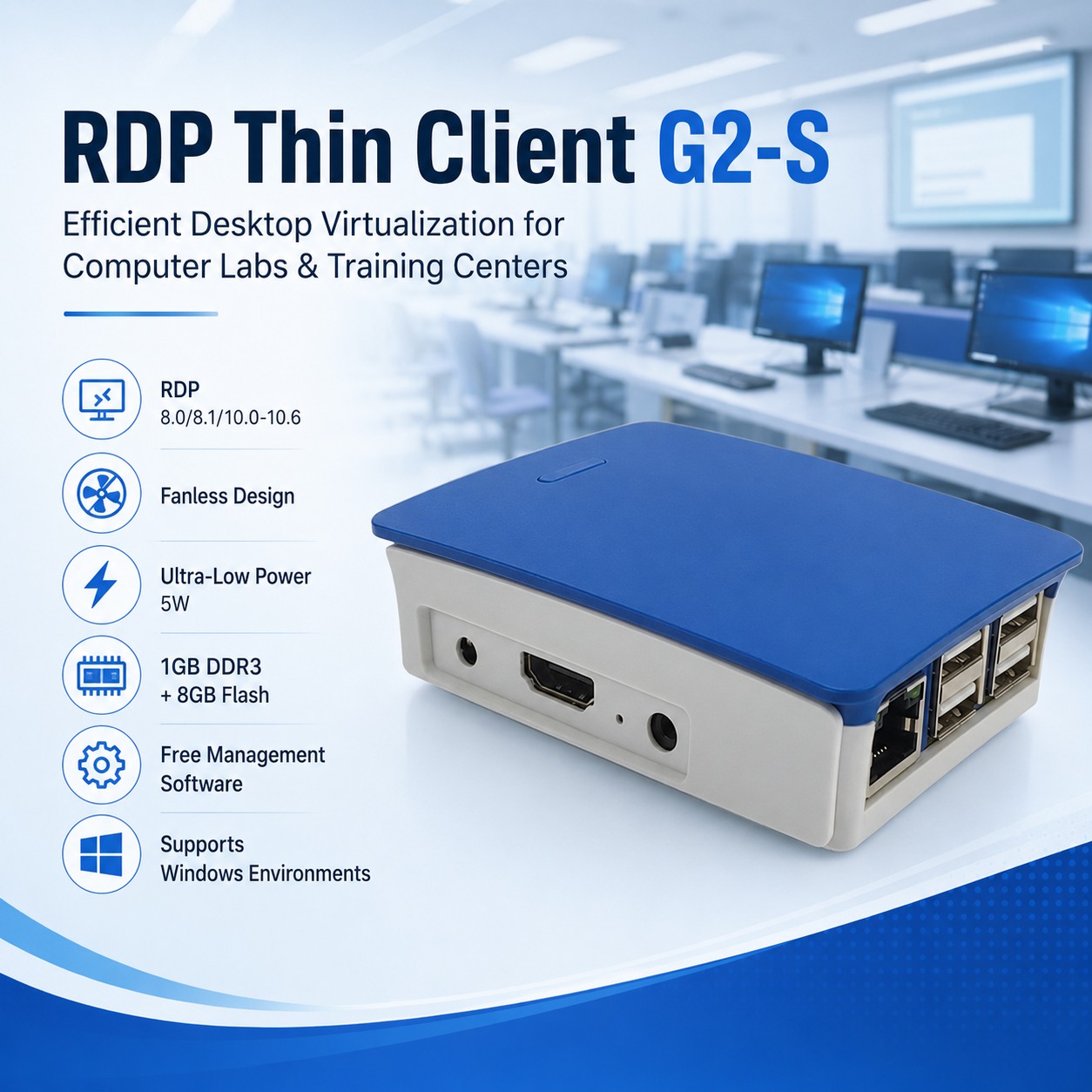

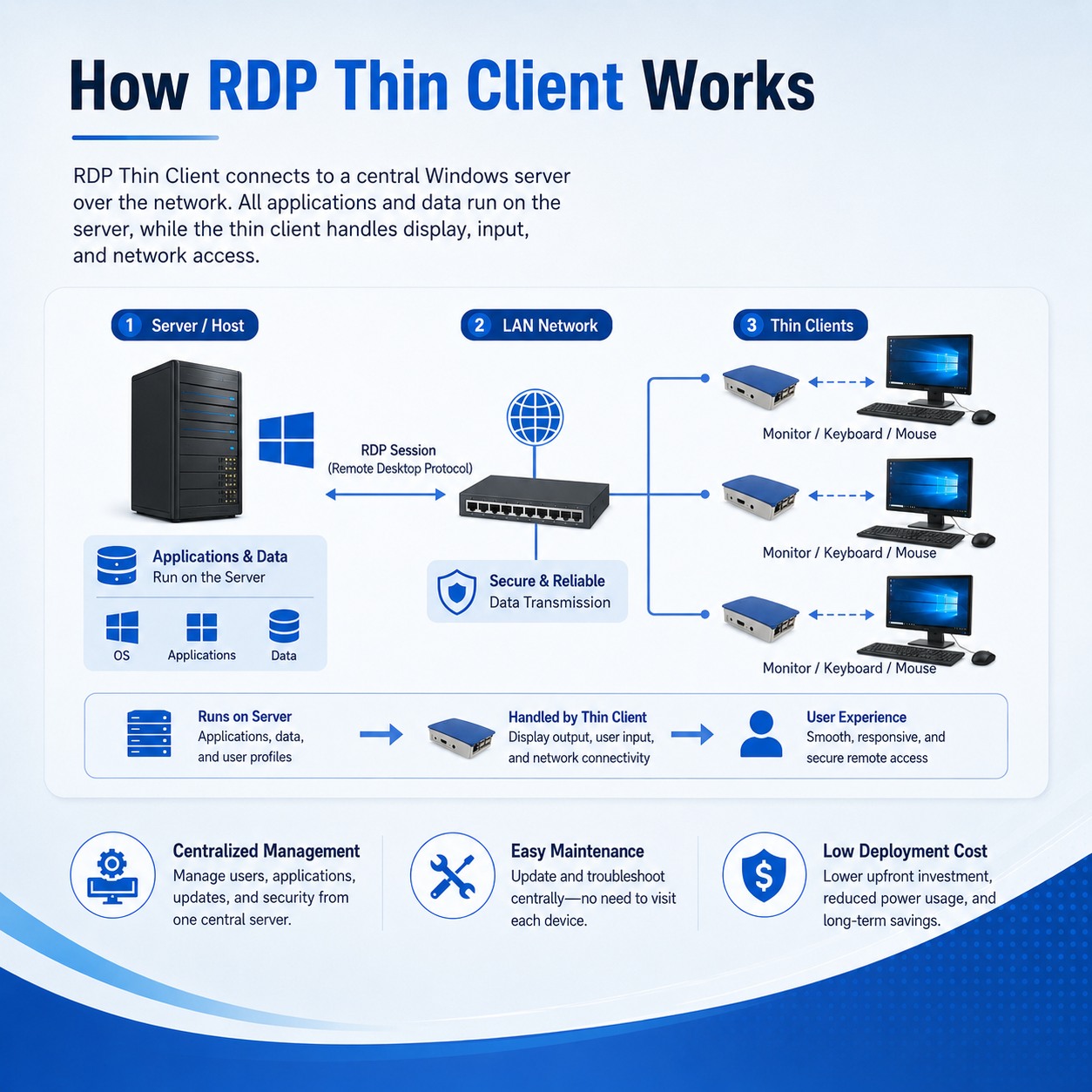

The RDP Thin Client G2-S is a compact and energy-efficient desktop virtualization terminal designed for computer labs, CBT centers, libraries, offices, and training classrooms. It connects users to a centralized Windows server through RDP, helping schools and enterprises reduce hardware costs, simplify maintenance, and manage multiple terminals from one place.
With RDP 8.0/8.1/10.0-10.6 support, HDMI display output, 4 USB 2.0 ports, RJ45 network connectivity, and ultra-low 5W power consumption, the G2-S provides a stable and cost-effective solution for centralized desktop environments. It also includes free Thin Client Management Software and Share-Class Teaching Software for easier deployment, monitoring, and classroom control.

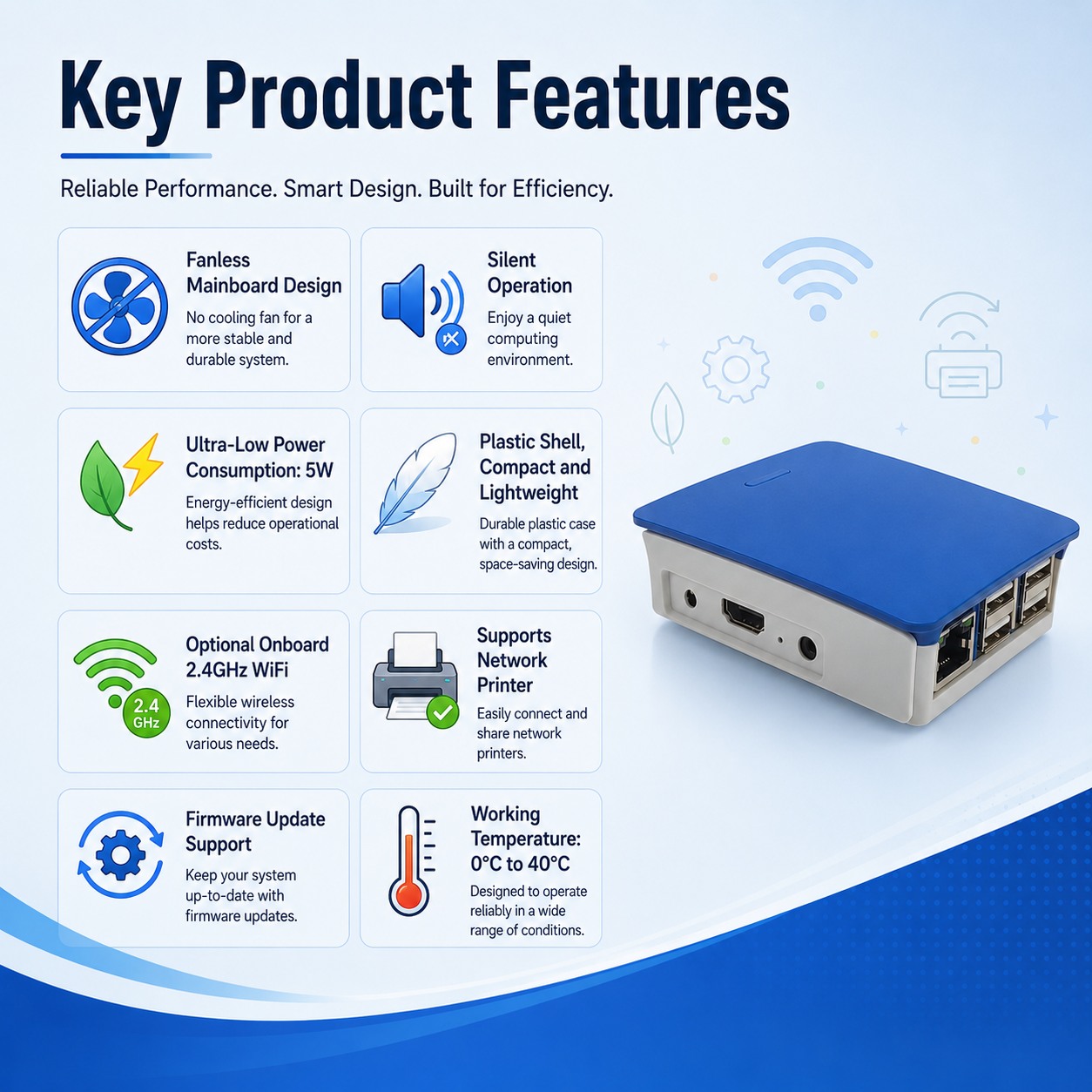

Product Features
- Supports RDP 8.0 / 8.1 / 10.0-10.6 protocol
- Quad-core Cortex-A7 1.2GHz processor
- 1GB DDR3 onboard memory and 8GB Flash storage
- HDMI output, up to 1920 × 1080 @ 60Hz

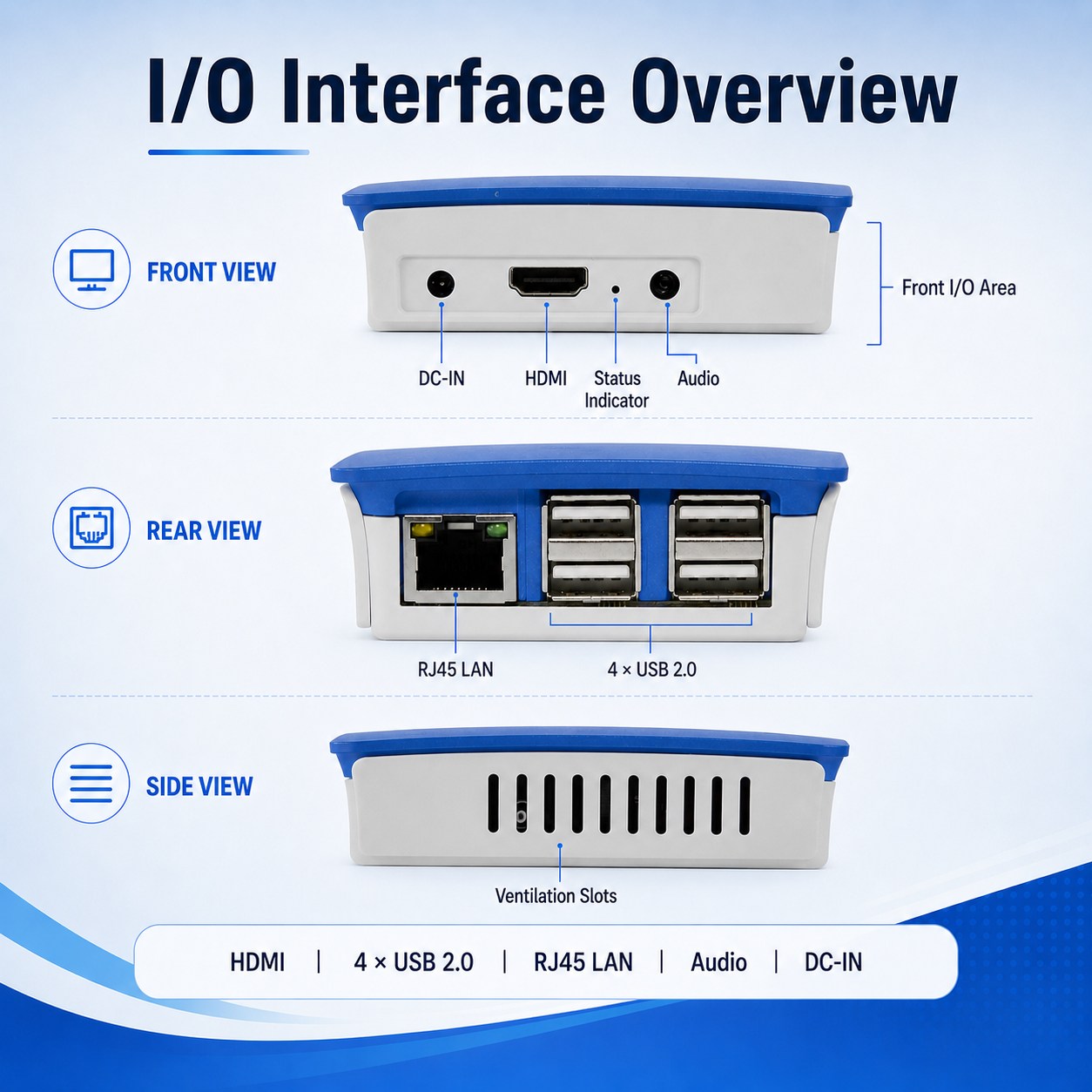

- 4 × USB 2.0, 1 × RJ45 LAN, MIC, SPK, DC-IN, power switch
- Ultra-low power consumption: only 5W
- Fanless mainboard design for silent operation
- Compact plastic shell, size: 98.1 × 71.6 × 37.8 mm
- Supports Windows 7/8/10/11 and Windows Server environments
- Optional onboard 2.4GHz WiFi
- Supports network printer
- Firmware update supported

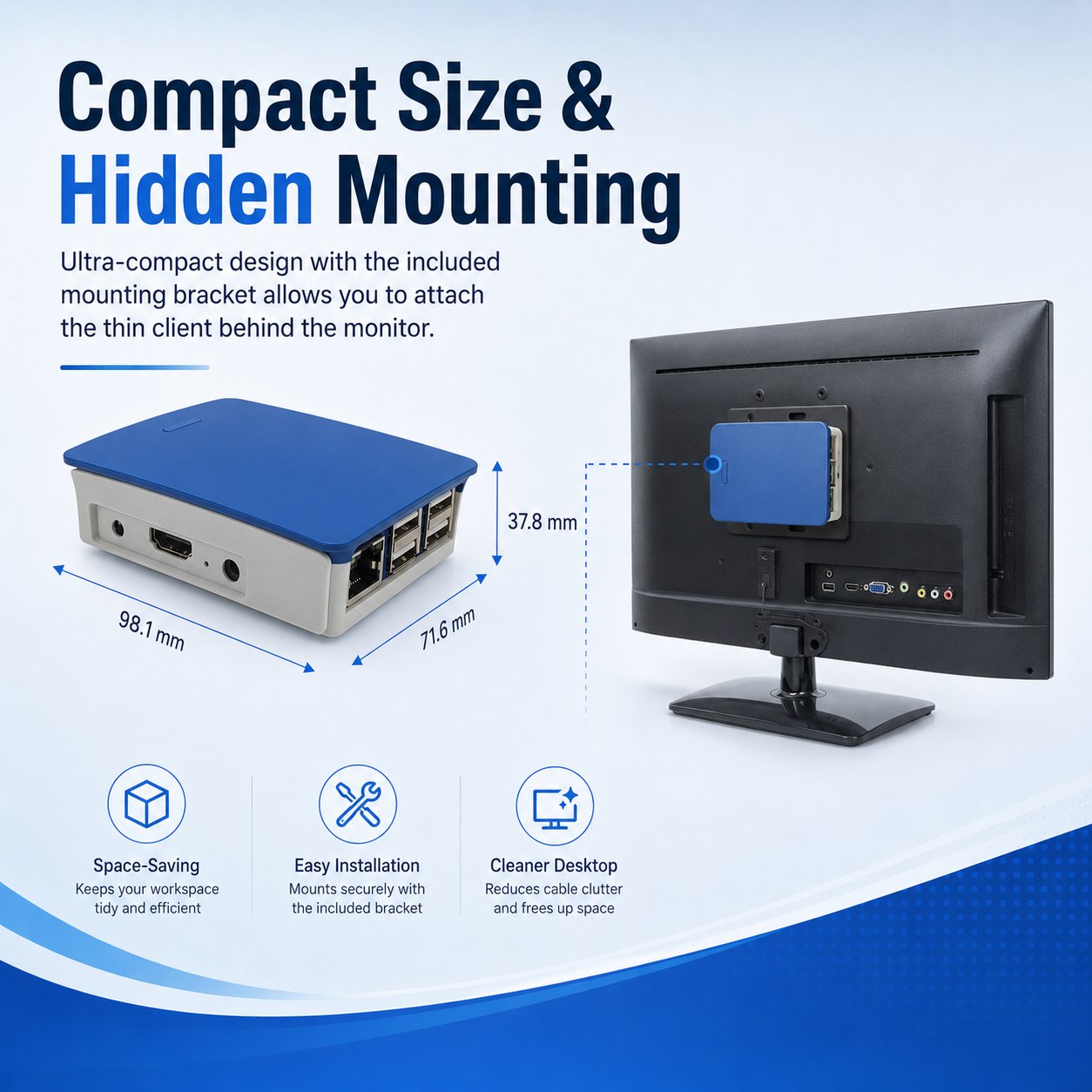

- Can be mounted behind a monitor with a mounting bracket

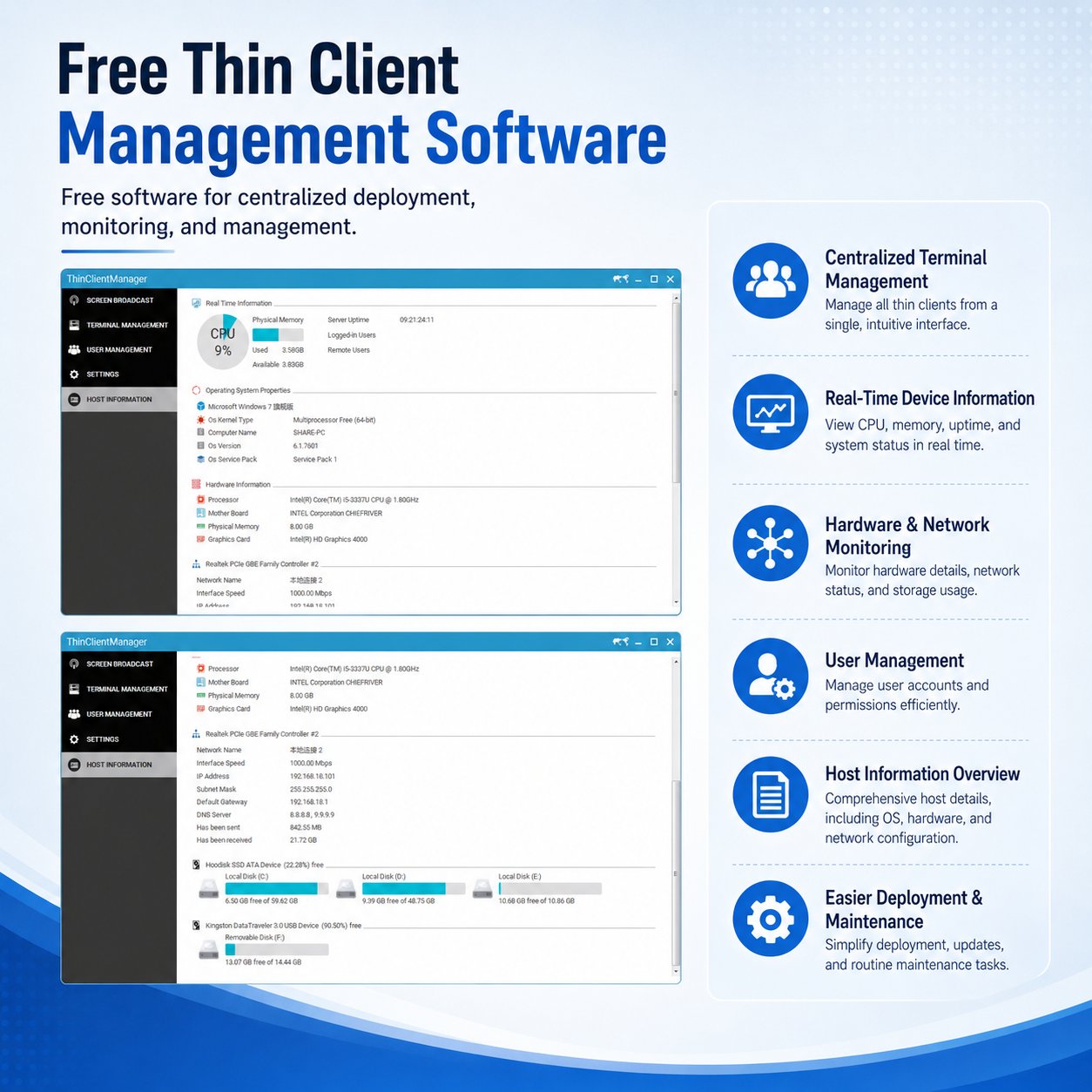

- Free Thin Client Management Software included

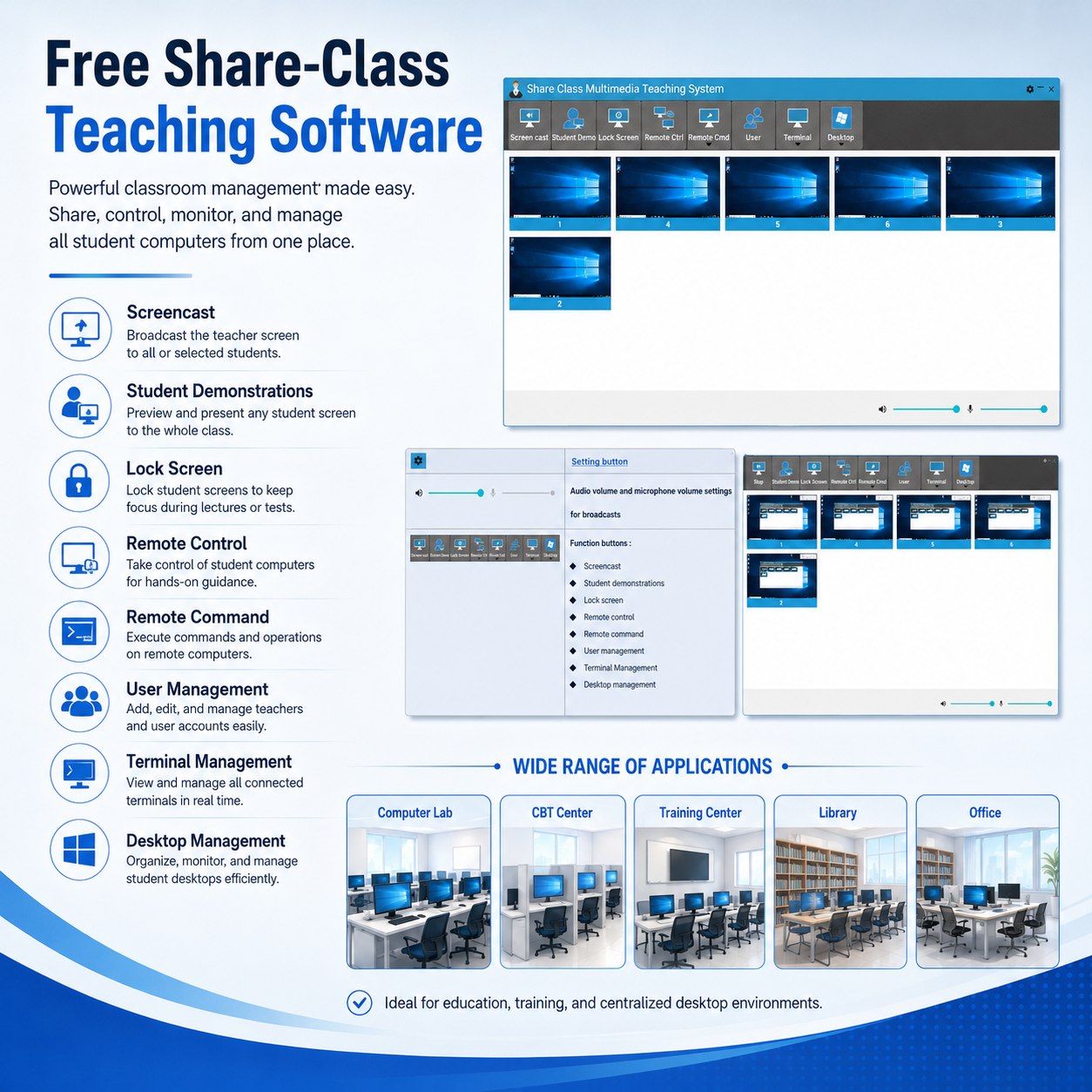

- Free Share-Class Teaching Software included
Application Industries
- Computer labs
- CBT centers
- Training centers
- Libraries
- Schools and universities
- Office desktop virtualization
- SMEs
- Call centers
- Public service terminals
- Centralized enterprise workstations

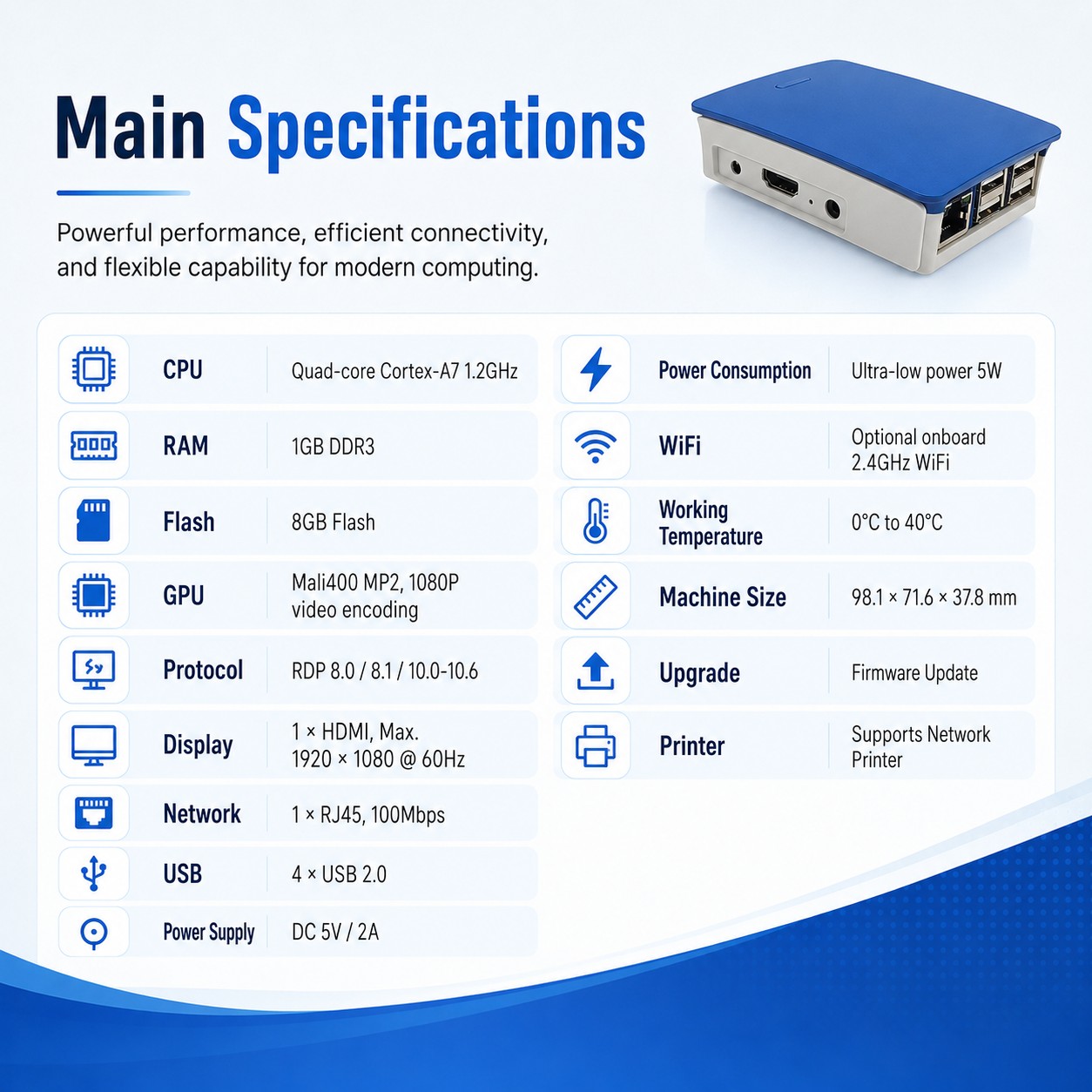

Specification
| Shell | Plastic shell | |
| CPU | Quad-core Cortex-A7 1.2Ghz | |
| 32bit color depth | ||
| RAM | DDR3 1GB | |
| Flash | 8GB Flash | |
| Protocol | Support RDP 8.0/8.1/10.0-10.6 protocol | |
| GPU | Mali400 MP2, 1080P video encoding | |
| Display | 1* HDMI (Max.1920*1080@60Hz), Don’t support VGA port | |
| Power supply | DC 5V/2A | |
| I/O Ports | HDMI, USB2.0*4, 1*RJ45(100Mbps network card), ON/OFF, SPK,MIC, DC-in | |
| Machine size | 98.1X71.6X37.8MM | |
| Upgrade | Firmware Update | |
| Working Temperature | 0℃~40℃（32~104℉） | |
| WIFI | (optional) Onboard WiFi 2.4GHz | |
| Pinter | Support network printer | |
| Software include | Share-Class Teaching Software Thin client management software | |
| Server OS supported | Windows 7/8/10/2011/2012R2/2016/2019/2022 | |
| Product Packing List | ||
| NO. | Qty | Material List |
| 1 | 1 | Thin client G2-S |
| 2 | 1 | 5V.2A Power adapter |
| 3 | 1 | Mounted Bracket |
| 4 | 1 | 2*Screws for Mounted Bracket |
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Protocol | Display | Memory | Storage | LAN | USB | Power |
| G2-s | Quad-core Cortex-A7 1.2Ghz | Mali-400 | Quad-core 1.2Ghz | 5W | RDP 8.0/8.1/10.0-10.6 | 1*HDMI | Onboard 1GB | Onboard Flash 8GB | 1 | 4 | 5V/2A |
