Industrial PC for SCADA Systems | Fanless Automation Computer
6COM RS232 RS422 RS485+2*I225 LAN+1HDMI+1VGA+GPIO+SIM Card slot+6USB+PS/2
Products Features
– Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat dissipation,
fit for industrial grade field, work as long as 24 hours.
– High-end Industrial PC less than 1% defective rate, super long lifetime and 3 years warranty.
– 2 x Intel i225V 2.5 Gigabit RJ45 LANs, 6 DB9 COM, 4 COM support RS422/RS485, PS/2, GPIO
rich interfaces for different equipments.
– One embedded SIM card slot onboard for 3G/4G Wi-Fi module.
– Support VGA + HDMI dual display output synchronously.
– Support Watchdog, AWAL, RTC, WOL, PXE, Reset functions.
Product Details
Specification
Ordering information
Product Details

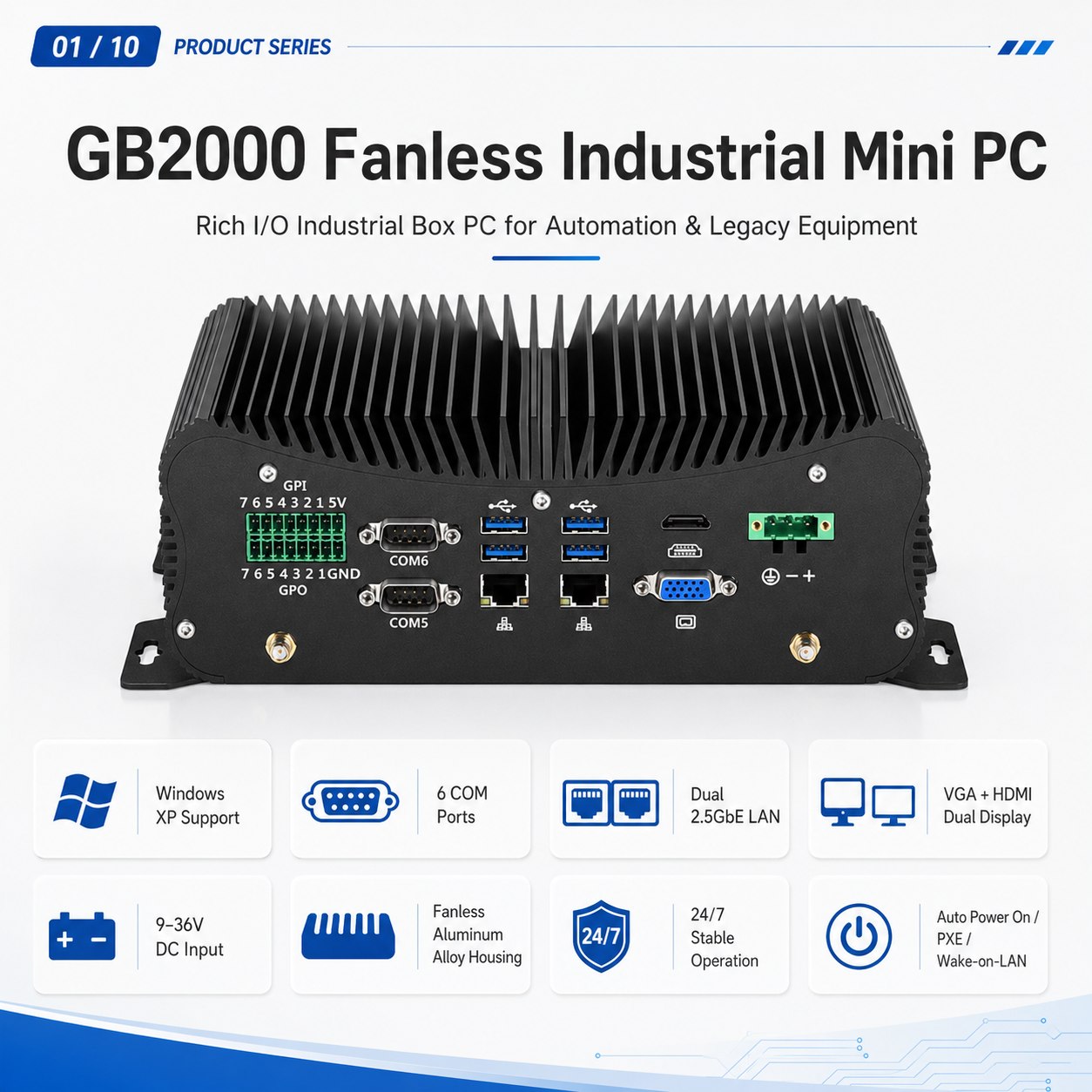

The JIERUICC GB2000 is a fanless rugged industrial mini PC engineered for round-the-clock industrial deployment. Built with full brushed aluminum alloy passive heat dissipation, it eliminates fan failure risks and delivers ultra-low failure rate below 0.5%. It supports flexible Intel Core i5/i7 CPUs spanning 4th to 12th generations, scalable DDR3L/DDR4/DDR5 memory and triple storage expansion (mSATA + M.2 NVMe + SATA 3.0). Equipped with abundant industrial I/O including dual 2.5G i225V Ethernet, multi RS485/422 serial ports, GPIO, embedded SIM slot and dual VGA+HDMI display, it runs stably from -10℃ to 60℃, compatible with Windows 7/10/11 & Linux, ideal as industrial controllers, IoT gateways and edge computing nodes.
Core Product Features

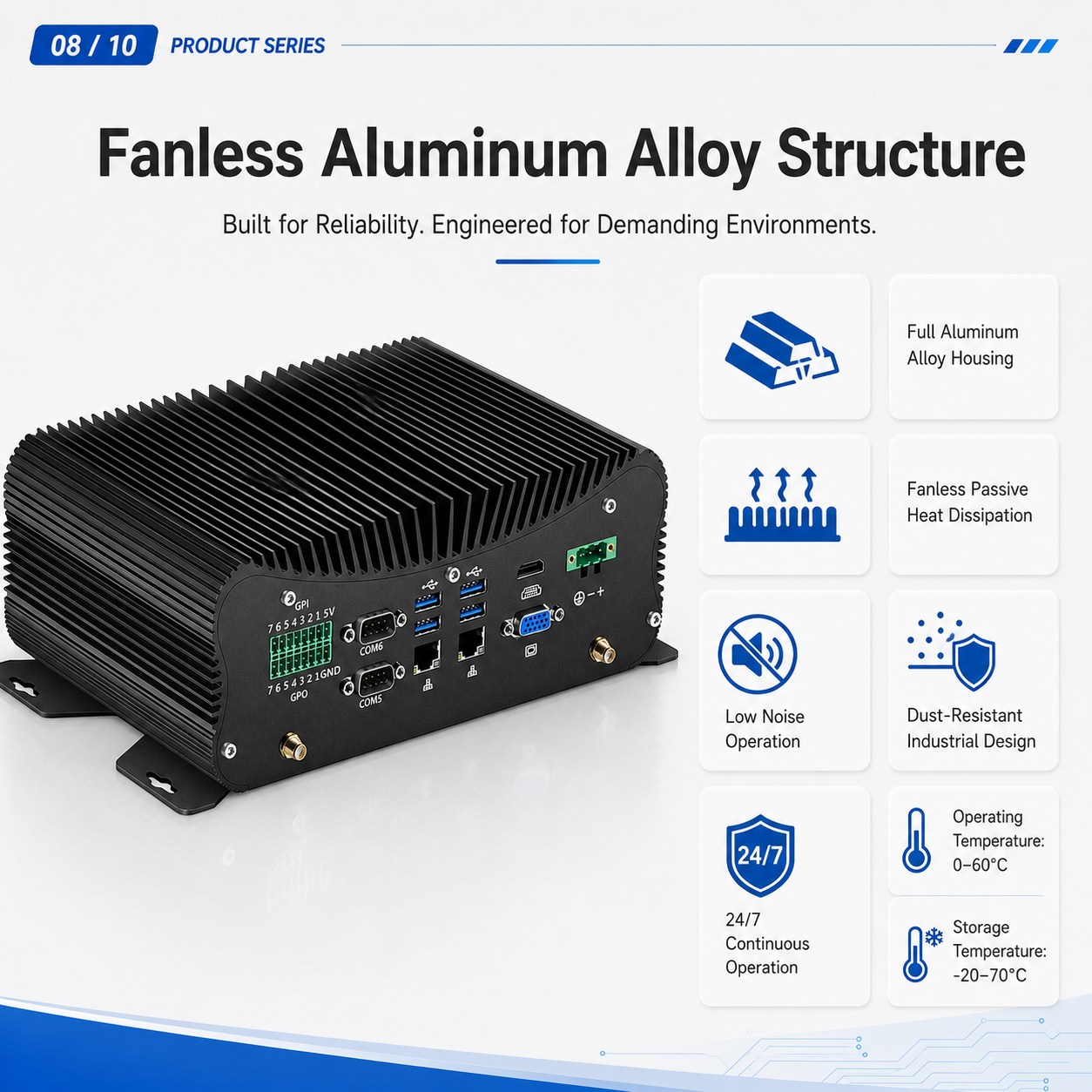

Cooling & Durability
• Fanless aluminum passive cooling, maintenance-free 24/7 running
• Industrial rugged design, <0.5% failure rate, 3-year warranty
• Work temp: -10–60℃; storage: -20–70℃, non-condensing humidity 10%–90%
• Compact 249×150×86mm, mountable chassis CPU & Memory

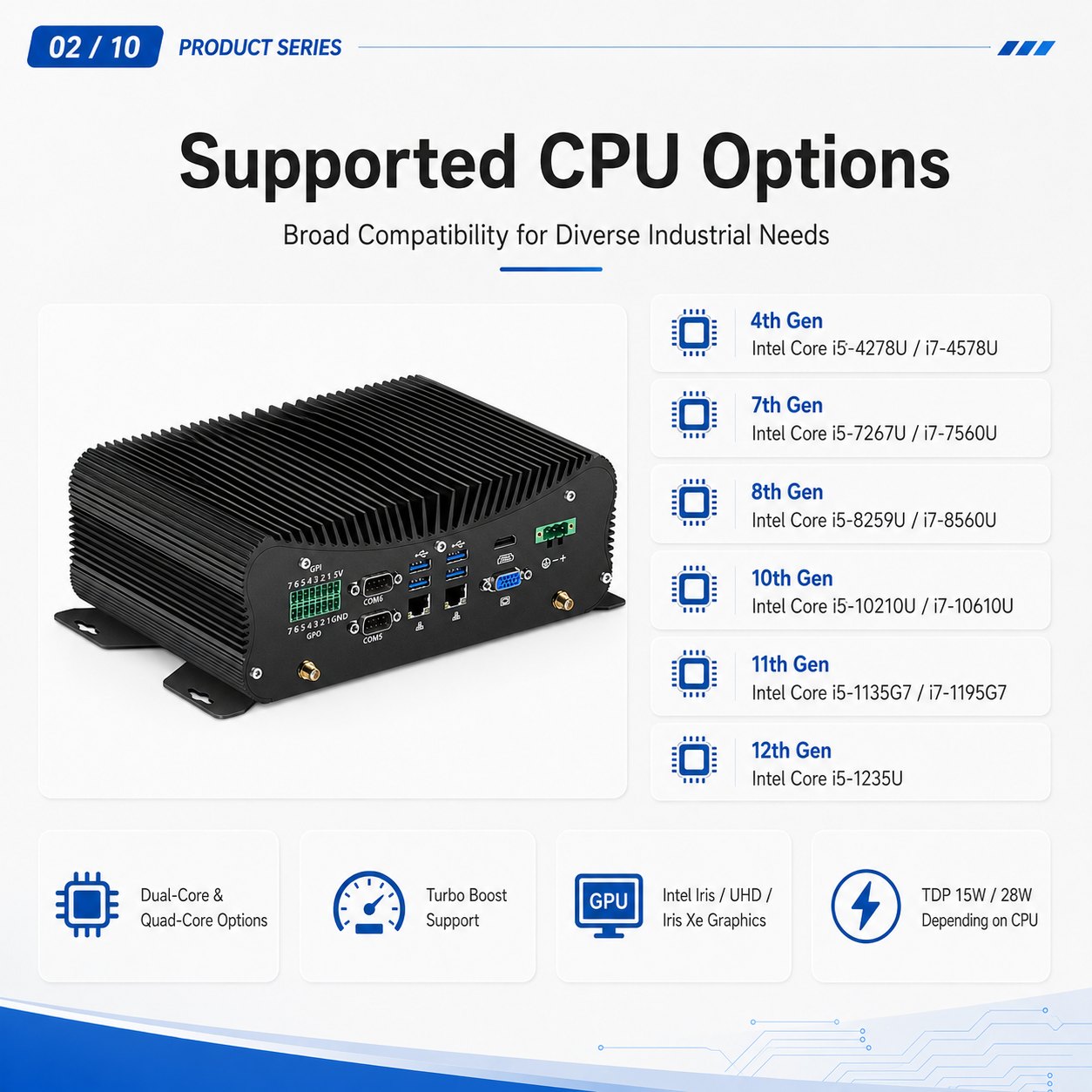

• Optional Intel i5/i7 4/7/8/10/11/12 Gen low-power processors

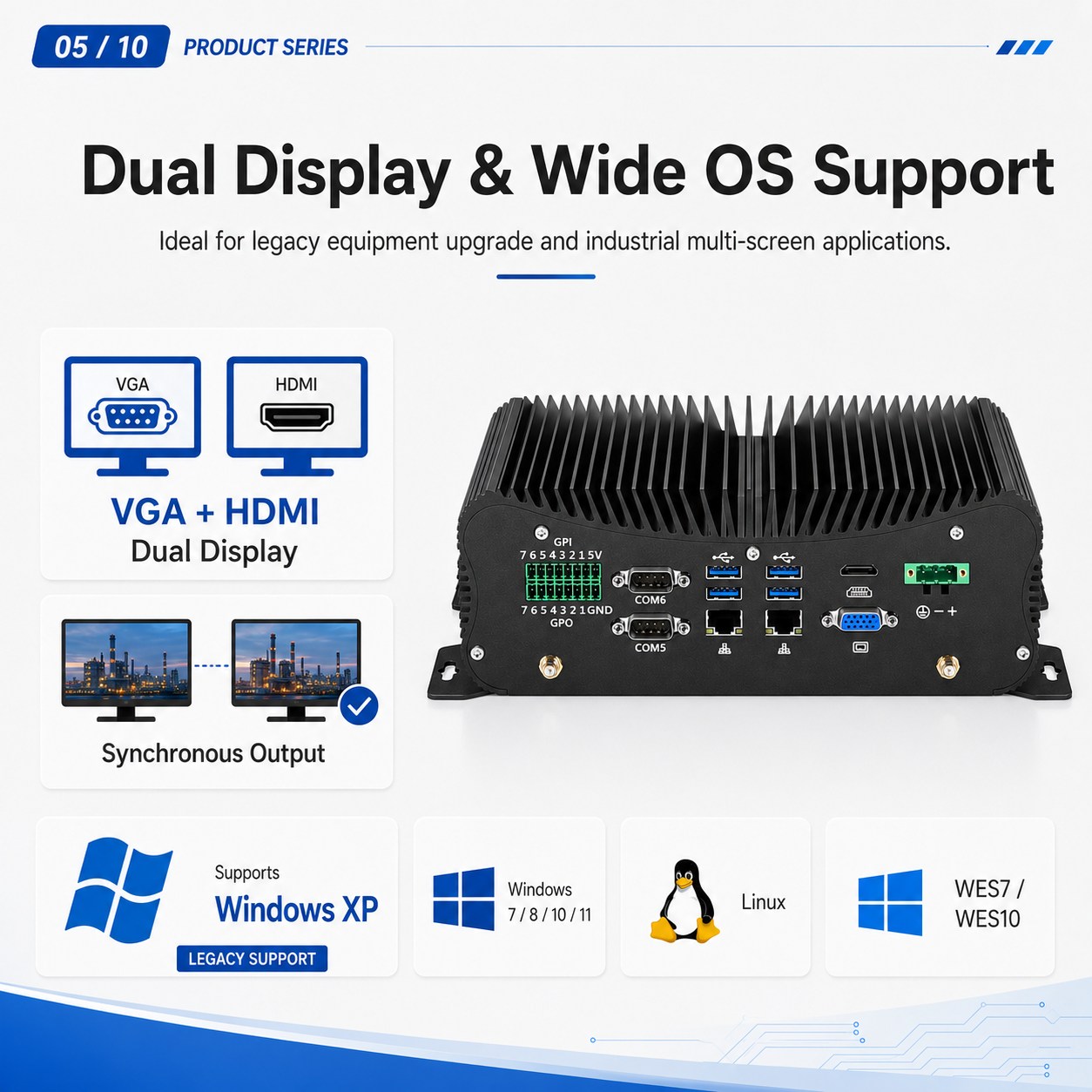

• Integrated Iris Xe/UHD graphics for dual VGA+HDMI output

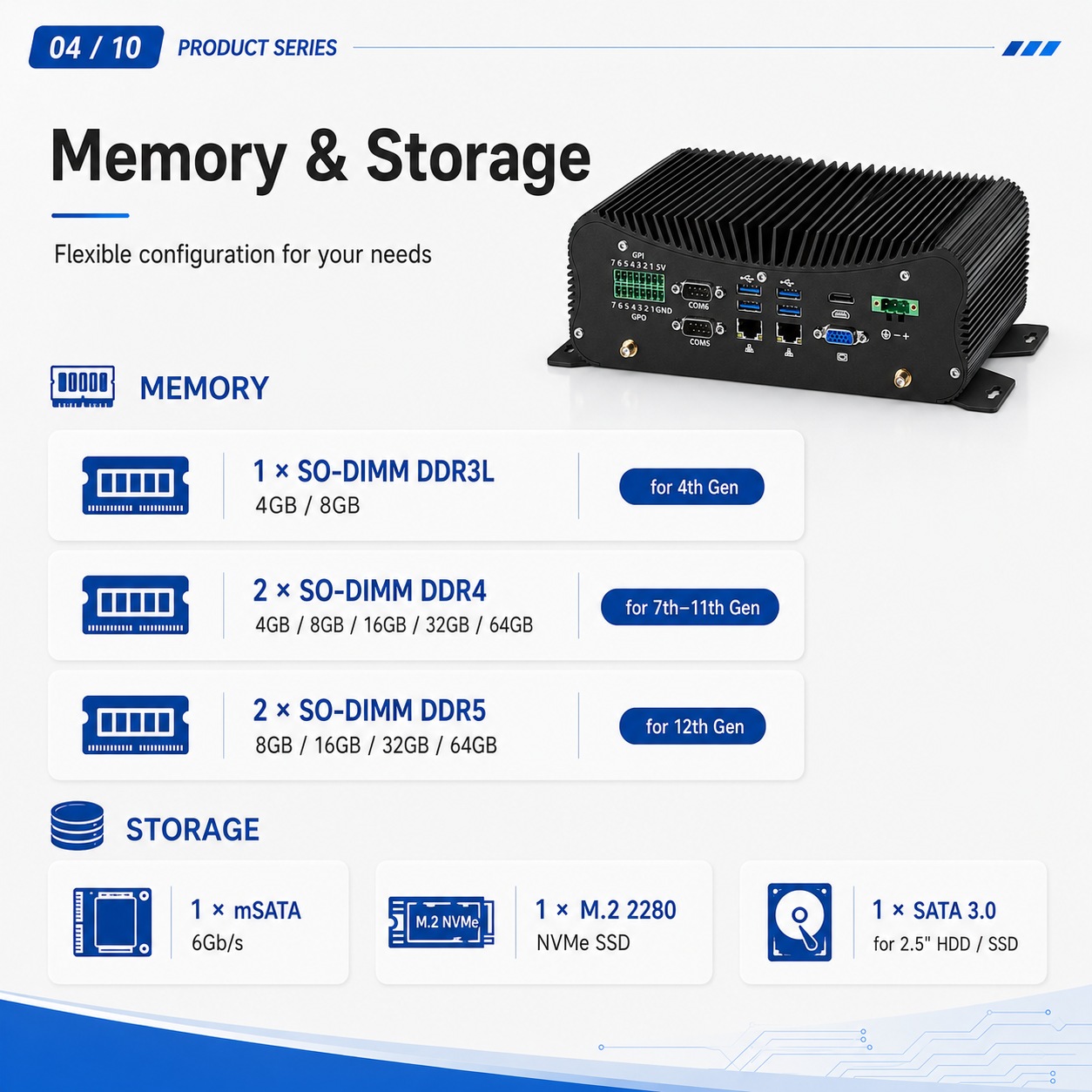

• Max 64GB DDR3L/DDR4/DDR5 SO-DIMM expandable memory Storage
• Triple storage: mSATA + M.2 NVMe 2280 + SATA 3.0, all 6Gbps bandwidth Industrial I/O Ports

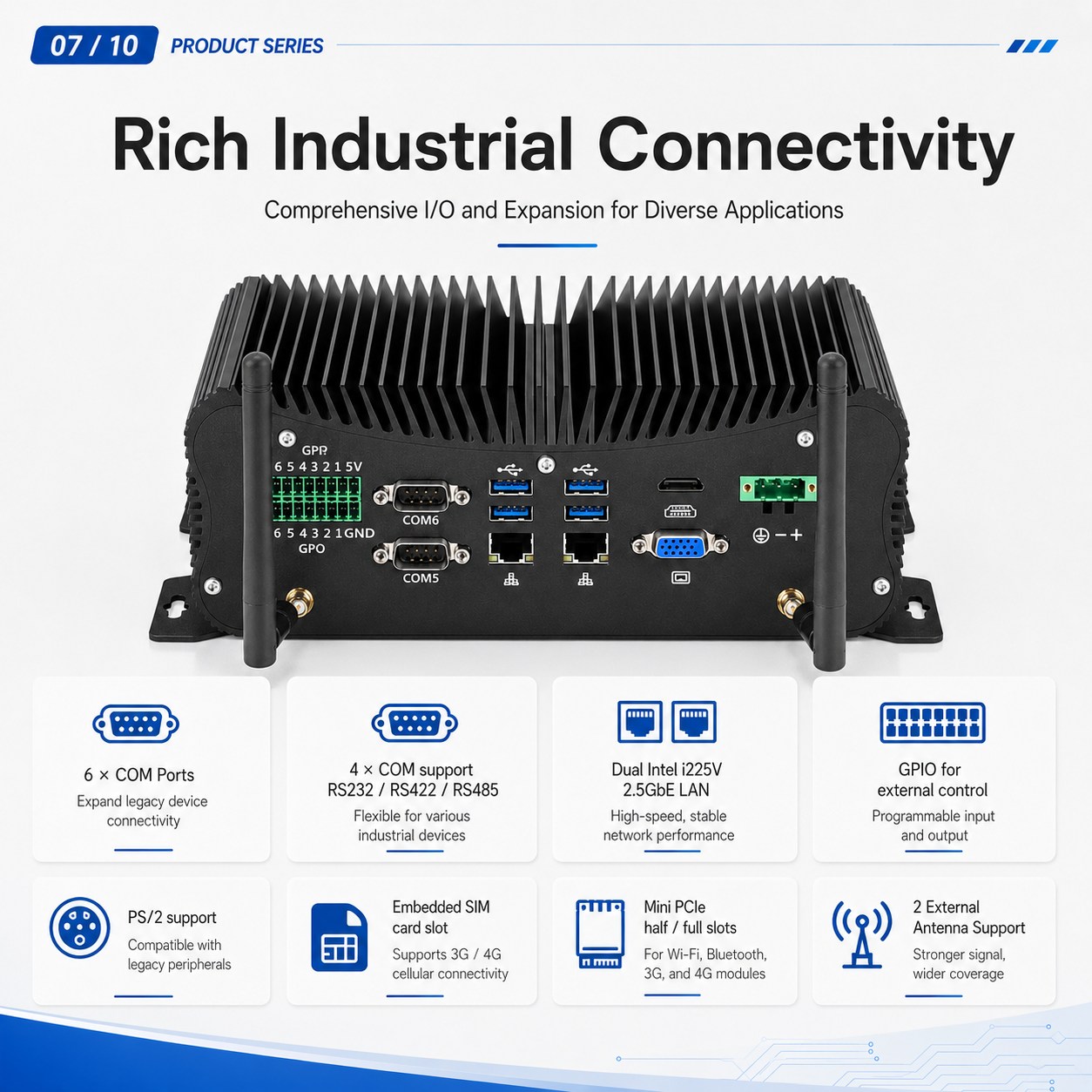

• Dual Intel i225V 2.5G RJ45 LAN
• 6 DB9 COM (4 ports support RS422/RS485)
• 4×USB3.0 + 2×USB2.0, PS/2, 7IN/7OUT GPIO
• Onboard SIM slot for 3G/4G cellular network
• Mini PCIE slots for Wi-Fi/Bluetooth/4G module expansion Power & Industrial Functions
• Wide DC input 9–36V via phoenix terminal

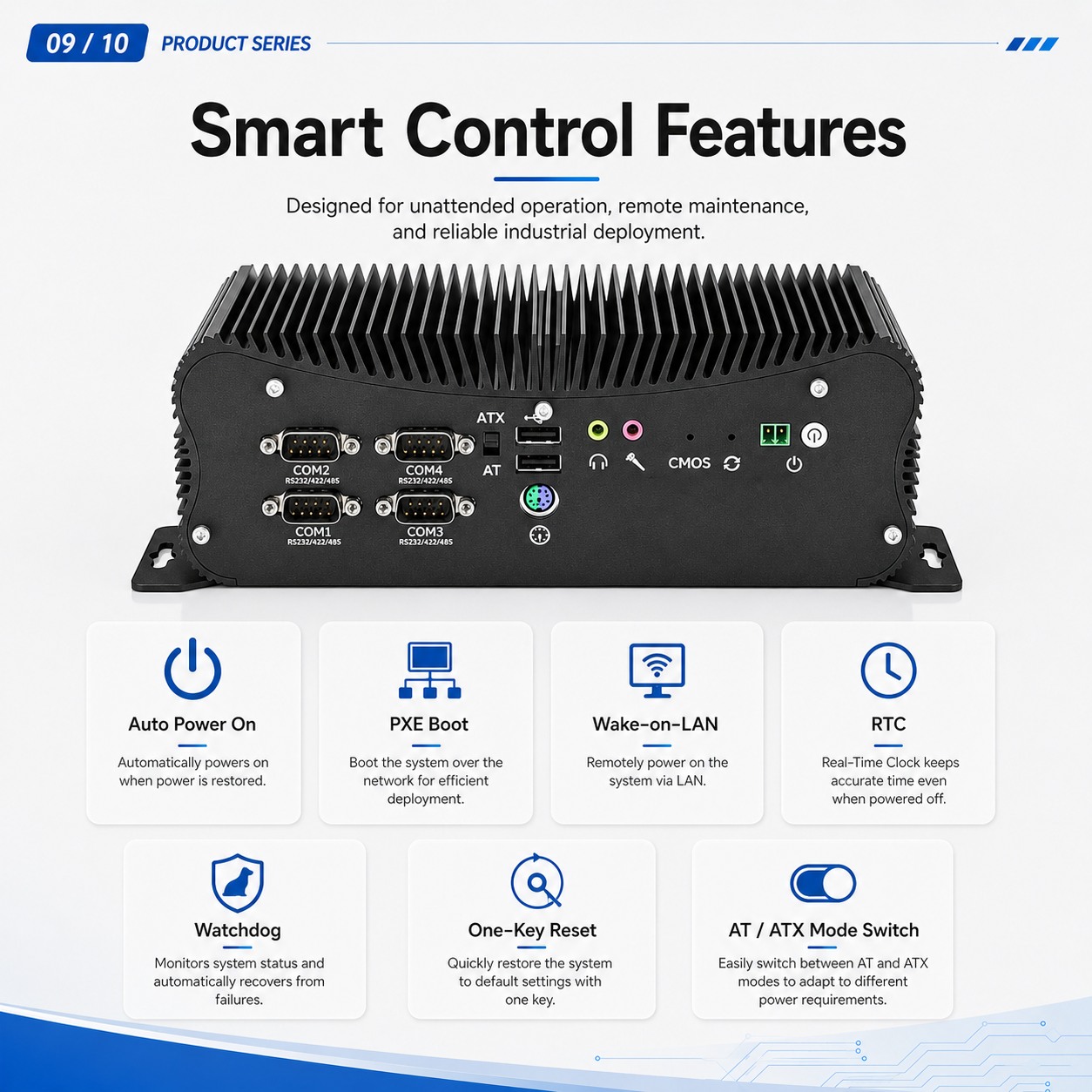

• Watchdog, RTC, WOL, PXE, auto power-on, hardware reset
• Supports Win7/10/11, Linux, embedded WES systems

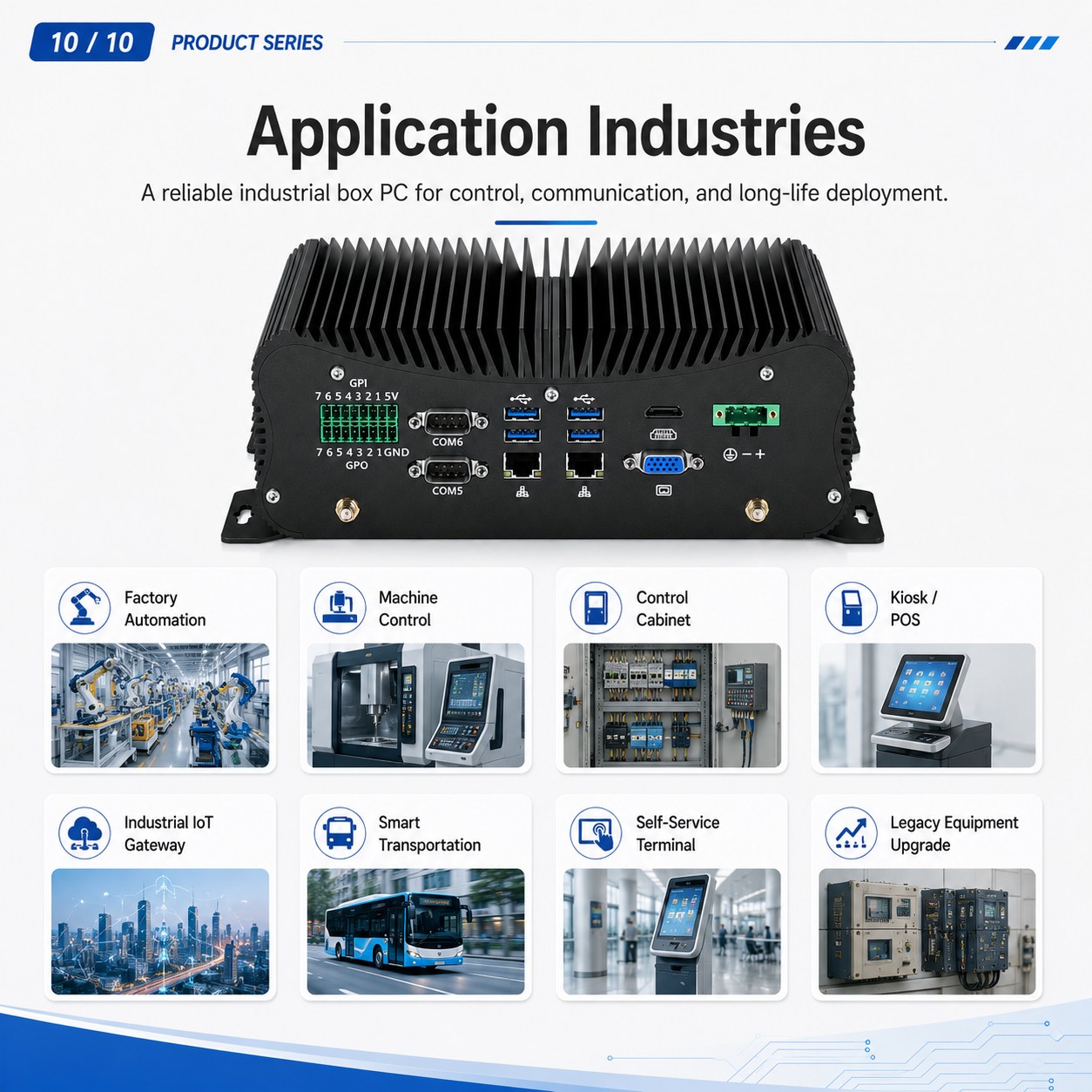

Application Scenarios
1. Industrial Automation: Production line control, machine vision, AGV & robot control
2. Industrial IoT & Edge Gateway: On-site data collection, remote equipment monitoring
3. Transportation: Vehicle-mounted control, traffic monitoring terminals
4. Surveillance: Factory multi-channel video recording & monitoring
5. Embedded Terminals: Kiosks, environmental monitoring, new energy control
6. Harsh Environment: Unattended outdoor & workshop computing nodes
Specification
| Basic Information: | |||
| CPU | 1. Intel Core i5-1235U, 12M Cache, 1.3GHz up to 4.4GHz(Turbo boost Technology) Ten Cores 12Threads Intel® Iris® Xe Graphics eligible | ||
| 2. Intel Core i7-1265U, 12M Cache, 1.8GHz up to 4.8GHz(Turbo boost Technology) Ten Cores 12Threads Intel® Iris® Xe Graphics eligible | |||
| 3. Intel Core i5-1335U 1.3GHz up to 4.6GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache Intel® Iris® Xe Graphics eligible | |||
| 4. Intel Core i7-1355U up to 5.0GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache Intel® Iris® Xe Graphics eligible. | |||
| TDP | 15W | ||
| Chipset | Refer to CPU | ||
| BOIS | American Megatrends Inc | ||
| Memory | 2 x SO-DIMM DDR5 Slot Support 8GB/16GB/32GB/64GB | ||
| OS | Windows 10/11/Linux | ||
| Audio | Intel High Definition Audio Controller | ||
| Network | 2 x Intel(R) i225 Gigabit Network Connection10/100Mbps/1000Mbps BaseT LAN | ||
| Video | Refer to CPU | ||
| Storage: | |||
| M.2/Msata | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1 x M.2 slot for NVME 2280 SSD, support 6Gb/s | ||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-full port for 3G/4G/Wi-Fi/Bluetooth module 1 x Extended IO, support LPC, USB, PCIE | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

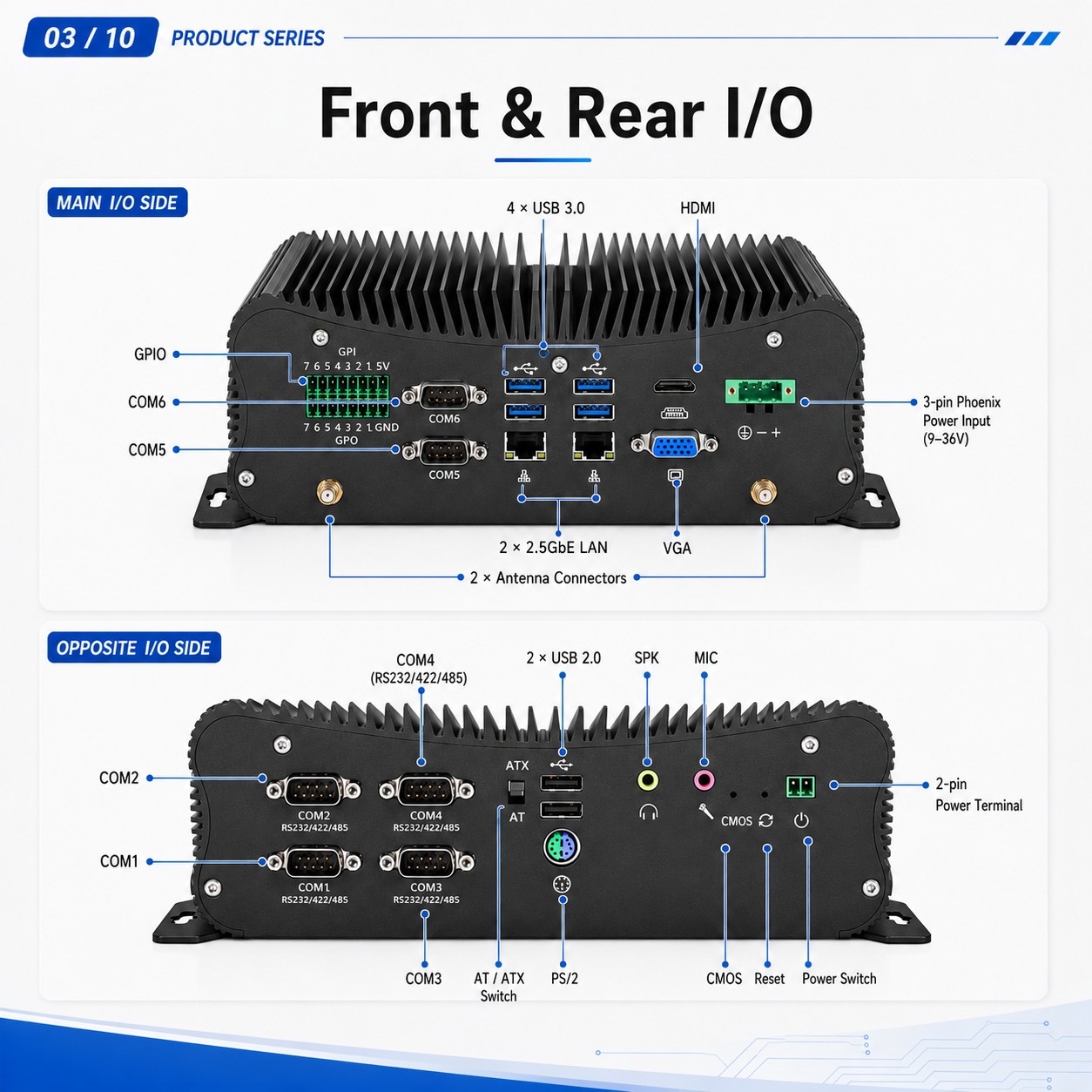

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 3pin phoenix terminal power supply input, support 9~36V | ||
| Button | 1 x ATX/AT quick switch | ||
| PS/2 | 1 x PS/2(keyboard and mouse 2 in 1) | ||
| USB | 4 x USB3.0, 2 x USB2.0 | ||
| Display | 1 x VGA, 1 x HDMI | ||
| LAN | 2 x Intel i225V 2.5 Gigabit RJ45 LANs | ||
| Audio | 1 x MIC, 1 x SPK | ||
| COM | 6 x DB9 COM(4xCOM support RS422/RS485) | ||
| GPIO | 1 x GPIO( 7pin input, 7pin output) | ||
| SIM | 1 x embedded SIM card slot onboard support 3G/4G network | ||
| Others | 1 x Reset, 1 x CMOS clear bution, 1 x 2pin Phoenix terminal power supply input | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +9V~+36V, recommend 12V/5A | ||
| Operating Temperature | 0/+60 Centigrade | ||
| Storage Temperature | -20/+70 Centigrade | ||
| Relative Humidity | 10%~90%@30 Centigrade (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | PEX,Watchdog, One key reset, AWAL, RTC, WOL(ATX mode) | ||

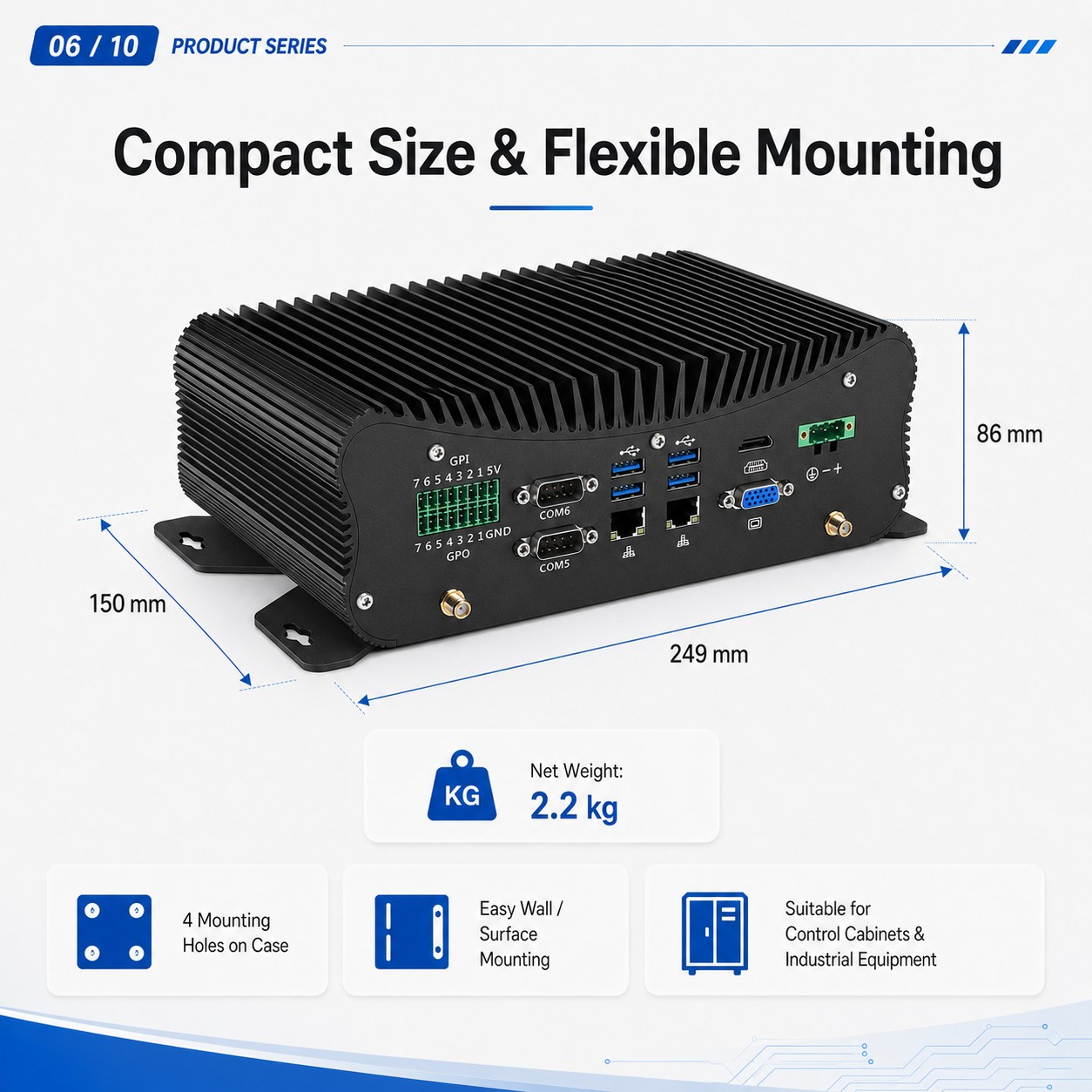

| Size | 249*150*86mm | ||
| Weight | NW 2.2KG, GW 3.5KG | ||
| Shell | Black color PVP top and aluminum alloy body | ||
| Mounting | 4 mounting holes on case | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | COM | USB | Power |
| GB2000 | i5 1235U | Intel® Iris® Xe Graphics eligible | 1.3GHz up to 4.4GHz | 15W | 1 x VGA / 1 x HDMI | 2 x SO-DIMM DDR5 up to 64GB | 1 x M.2 2280 Nvme 1 x M-sata 1 x 2.5inch SATA | 2 | 6 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GB2000 | i7 1255U | Intel® Iris® Xe Graphics eligible | 1.8GHz up to 4.8GHz | 15W | 1 x VGA / 1 x HDMI | 2 x SO-DIMM DDR5 up to 64GB | 1 x M.2 2280 Nvme 1 x M-sata 1 x 2.5inch SATA | 2 | 6 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GB2000 | i5 1335U | Intel® Iris® Xe Graphics eligible | 1.3GHz up to 4.6GHz | 15W | 1 x VGA / 1 x HDMI | 2 x SO-DIMM DDR5 up to 64GB | 1 x M.2 2280 Nvme 1 x M-sata 1 x 2.5inch SATA | 2 | 6 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GB2000 | i7 1355U | Intel® Iris® Xe Graphics eligible | up to 5.0GHz | 15W | 1 x VGA / 1 x HDMI | 2 x SO-DIMM DDR5 up to 64GB | 1 x M.2 2280 Nvme 1 x M-sata 1 x 2.5inch SATA | 2 | 6 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
