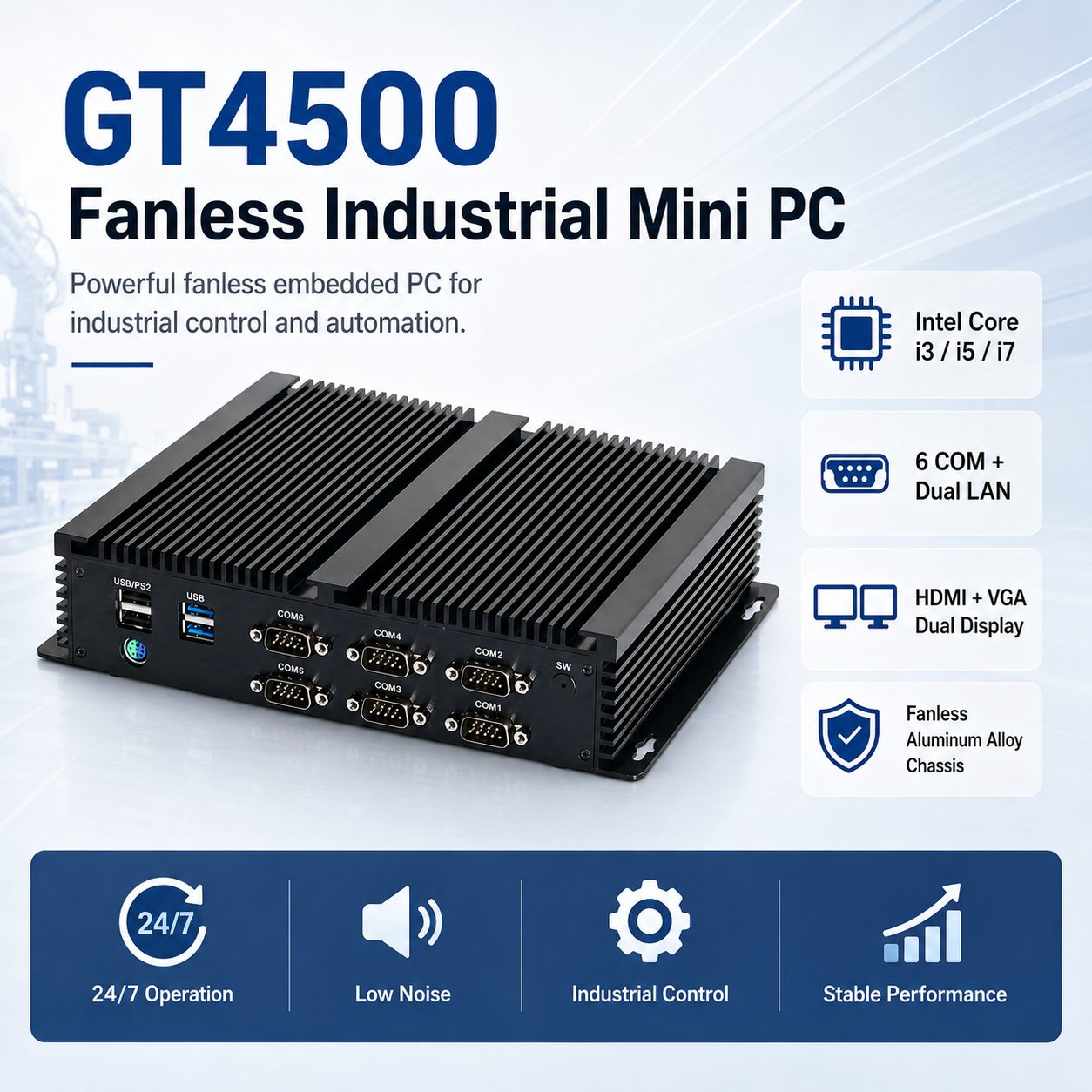

Fanless Industrial Mini PC for Factory Automation JIERUICC GT4500
1 x HDMI, 2 x LAN, 4 x USB 3.0, 4 x USB2.0,PS/2, 6 x COM, Spk, Mic.1 x VGA
-Intel® 6th 7th 8th 10th Gen Intel® Core™ i3/i5/i7 BGA Processor and Intel® SOC Chipset
– 1* SODIMM for up to 16GB DDR4 Memory

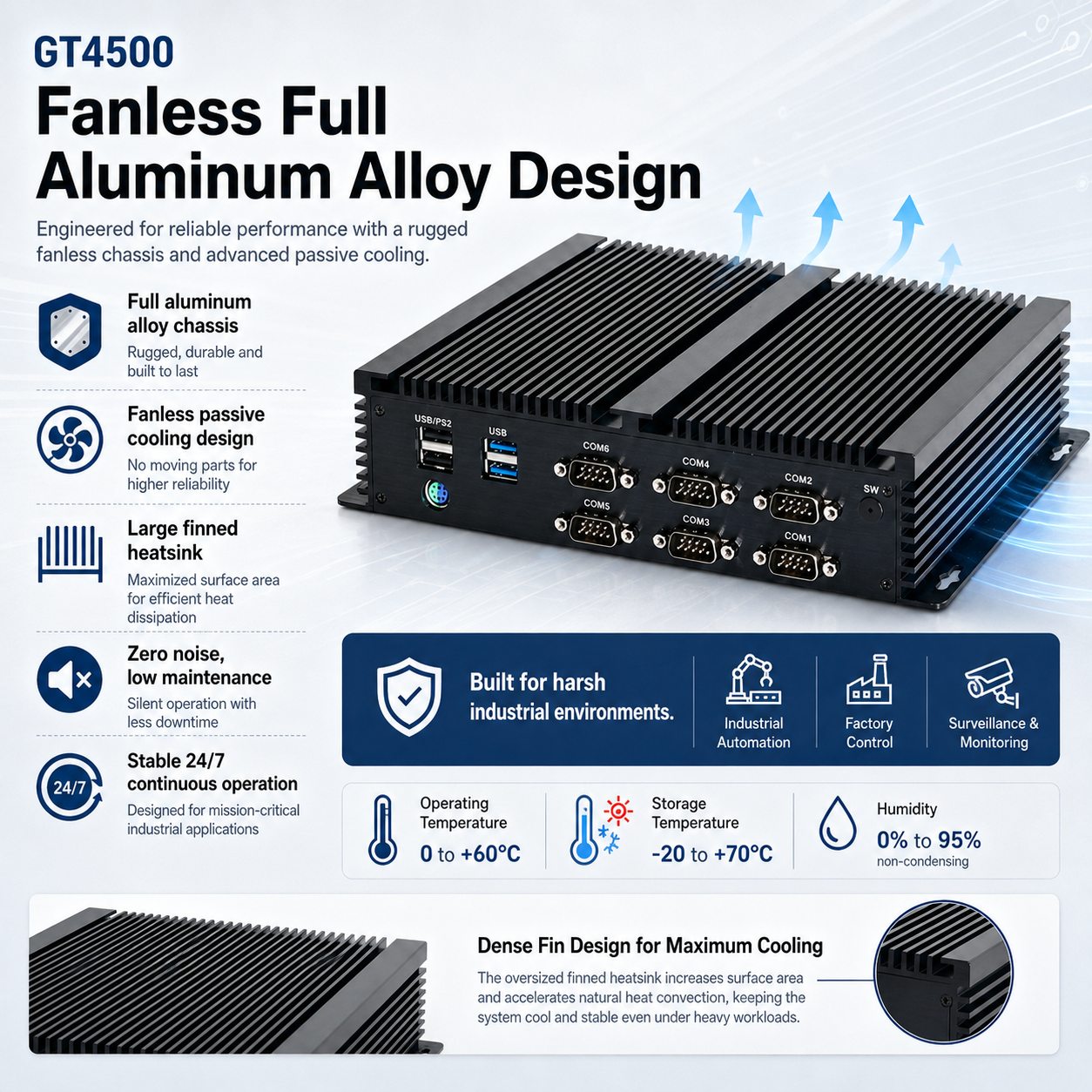

-Aluminum chassis, 212*155*45mm

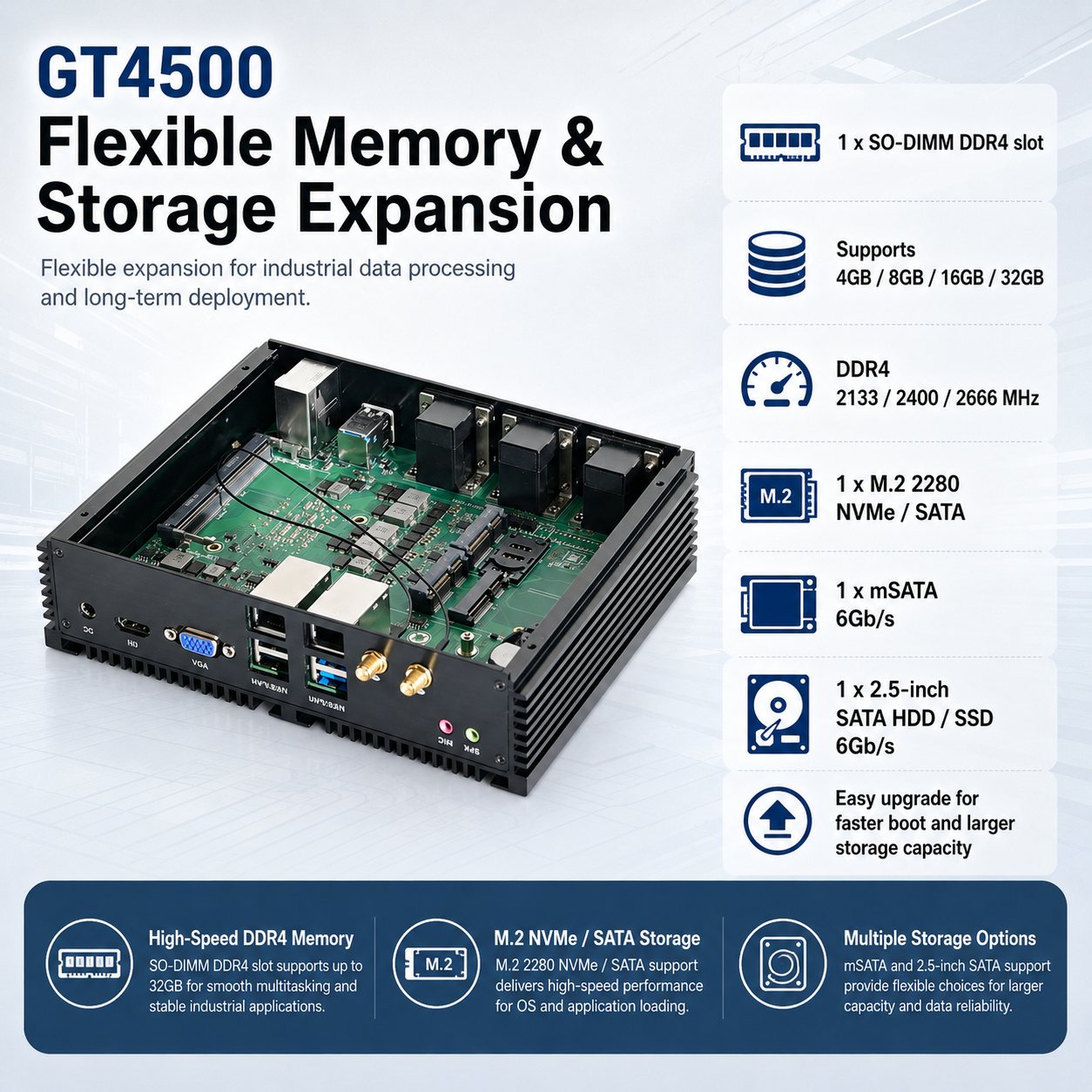

-Rich Storage: mSATA SSD, M.2 2280 SATA/NVME, 2.5 Inch SSD/HDD
-Embedded Expansion: PCIe for WiFi/4G, with SIM Slot

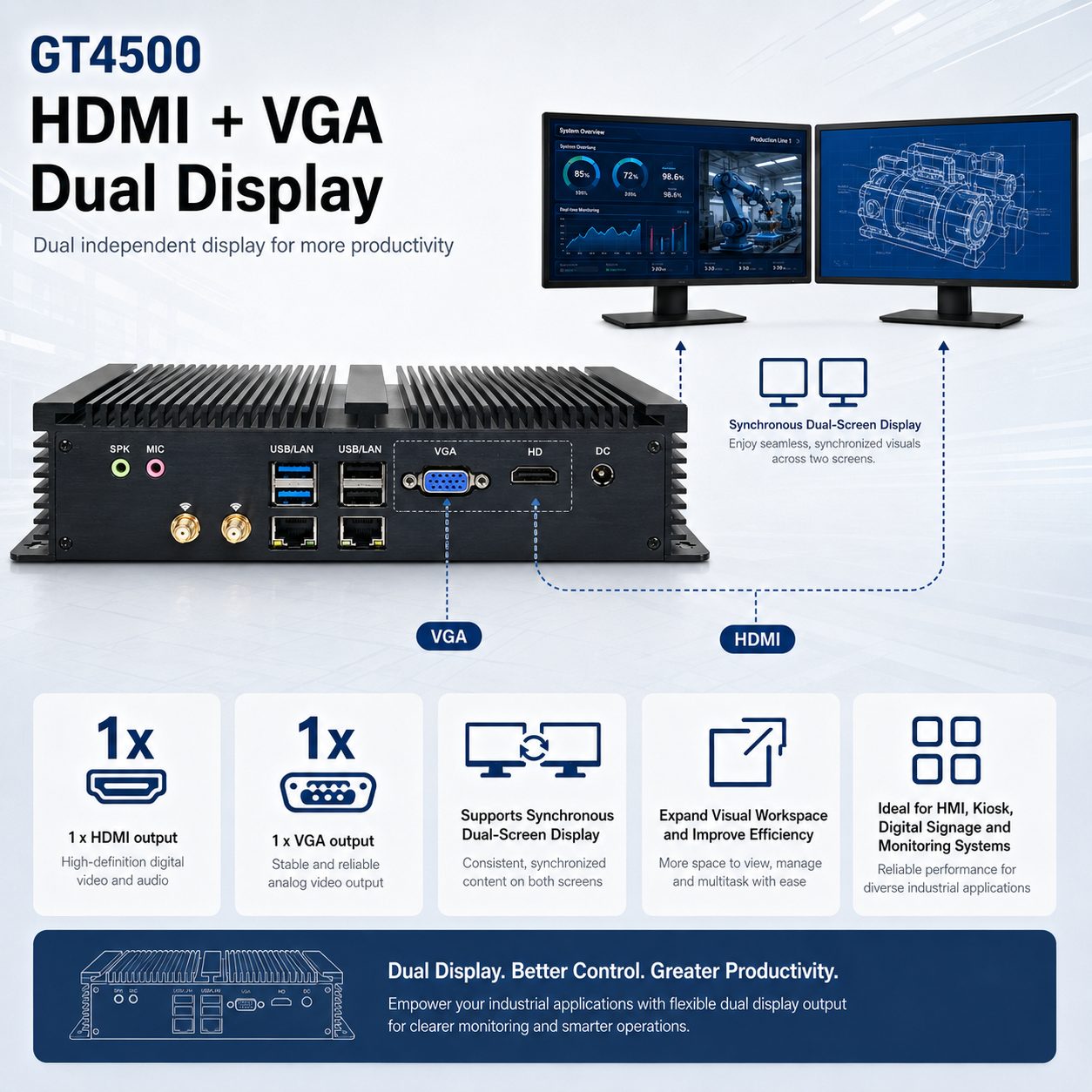

-Support dual screen (1*HDMI+1*VGA) for simultaneous display or synchronous different display
-Support diskless boot/Restore AC Power Loss
-Support Windows 7/10/11, Linux Ubuntu etc
Product Details
Specification
Ordering information
Product Details
Industrial computers are designed with expansion slots and interfaces to allow for customization and integration with other industrial equipment and systems. Such as multiple LAN, COM, GPIO, USB, HDMI, DP, etc…
JIERUICC industrial computer GT4500 is a very cost-effective industrial embedded box pc Intel Core i3 I5 I7 with i3 6157U / i5-7260U/ i7-6500U/ i5 8250U/ i7 8550U/ i7-7510U/ i7-10510U CPU
With Rich I/O:1 x HDMI, 2 x LAN, 4 x USB 3.0, 4 x USB2.0,PS/2, 6 x COM, Spk, Mic.1 x VGA
Supports diskless boot/ Restore AC Power Loss
Widely Application Area: Industrial Automation / AI / IOT Internet of Things/Smart Education /Smart Medical/Smart City /Digital Signage/Cloud Computing/Smart Robot/Smart Transportation/New Retail(Kiosk)/Network Security etc…
Specification
| General | |

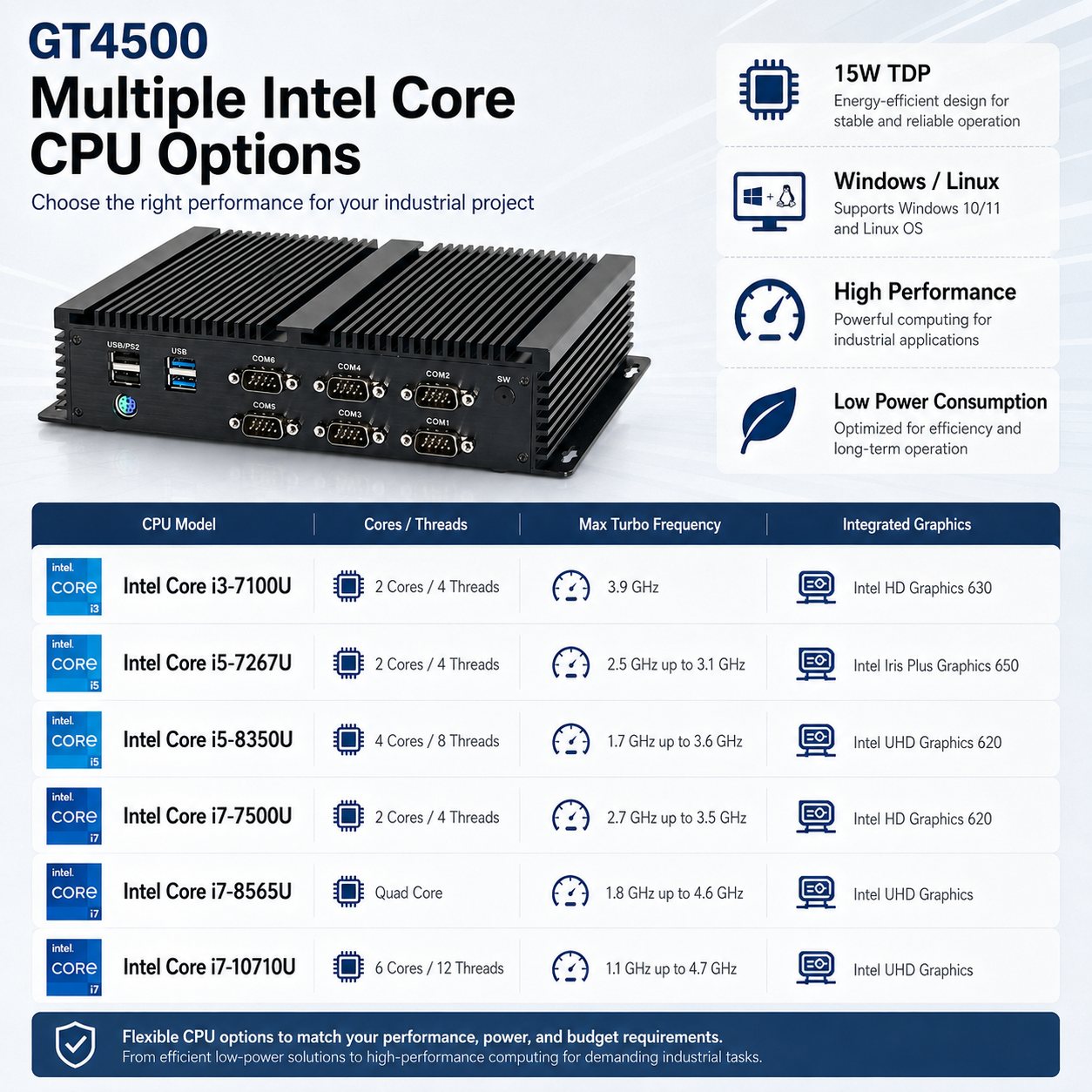

| CPU | 1.Intel® Core i3 6157U Dual core 4threads(3M Cache, dual core 4threads 2.4GHz) Intel Iris Graphics. |
| 2.Intel® Core™ i5-7260U (3M Cache, 2.2GHz); Turbo Boost up to 3.4Ghz Intel Iris Plus Graphics 640. | |
| 3.Intel® Core i7-6500U, Dual core 4threads 2.5Ghz Turbo Boost to 3.1Ghz Intel HD Graphics 520 | |
| 4.Intel Core® i5 8250U Quad core 4 threads (6M Cache,1.6Ghz-3.4GHz) , Intel UHD Graphics 620 | |
| 5. Intel Core® i7 8550U Quad core 4 threads (8M Cache,1.8Ghz-4.0GHz) , Intel UHD Graphics 620 | |
| 6.Intel® Core® i7-7510U Dual core 4 threads (8M Cache,2.7Ghz-3.7GHz) | |
| 7.Intel® Core® i7-10510U Quad core 4 threads (8M Cache,1.8Ghz-4.9GHz) | |
| BOIS | American Megatrends Inc. |
| Memory | 1* SO-DIMM RAM Slot1, DDR4 2400MHz/2666Mhz,Max 16GB |
| Storage | 1*MSATA SSD: 32G/64G/128G/256G/512G/1TB (Optional) |
| 1* M.2 2280 SSD 128GB/256GB/512GB/1TB (Optional) | |
| 1*SATA HDD: 160G/320G/500G/1TB (Optional) | |
| Operating System | Windows 7/Windows 8/Windows 10/Linux |
| Audio | ALC662 HD Audio(Line-in, Line-out, Mic-in) |
| Intel Lynx Point-LP HD Audio Controller | |
| Network | Onboard Intel i211 Gigabit Network Connection |
| 10/100Mbps/1000Mbps BaseT LAN | |

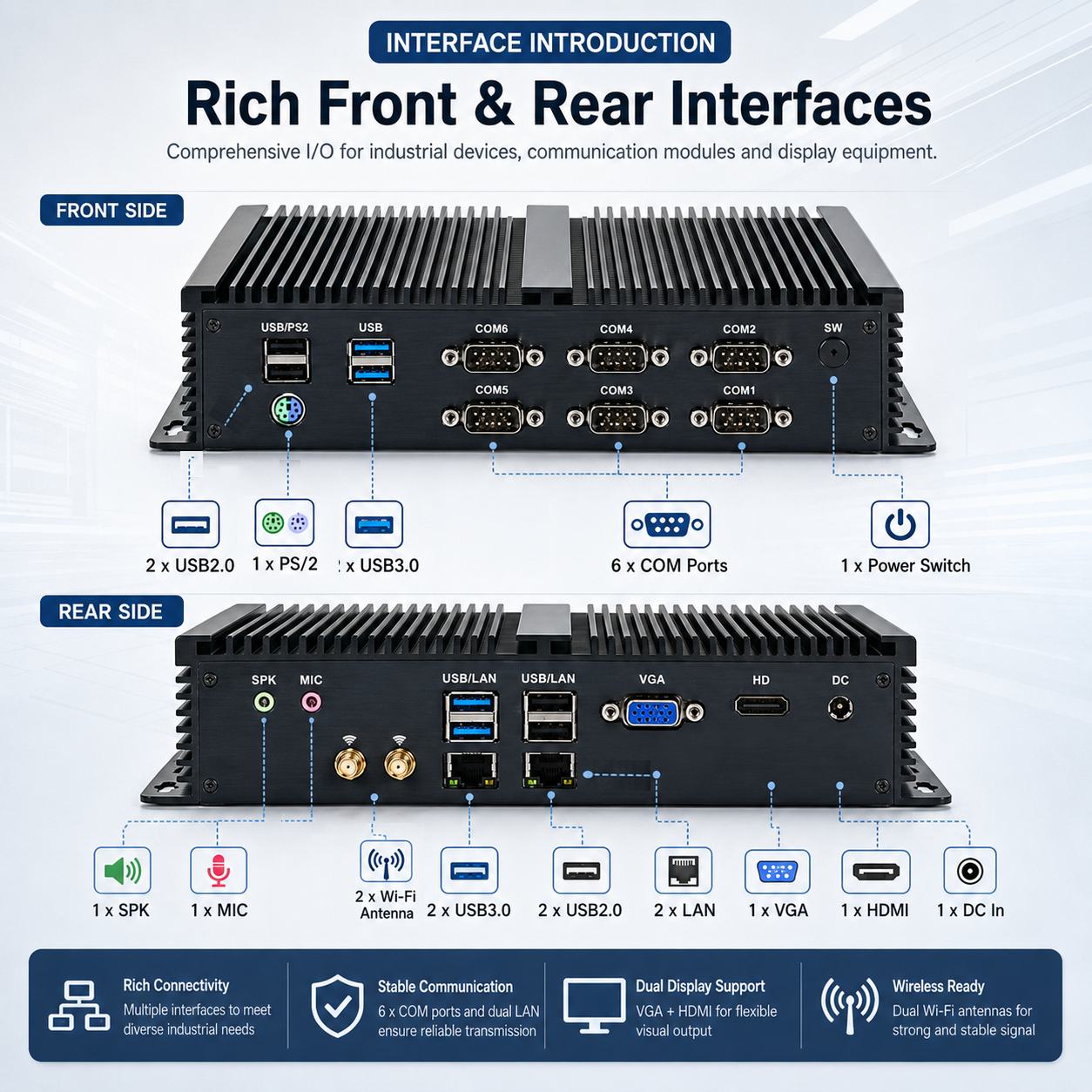

| I/O port | |
| front panel ports | 2*USB3.0, 2*USB2.0, 1* Switch, 6*RS232 COM.1*PS2 port,1*Switch |
| Backside ports | 2*USB3.0, 2*USB2.0, 1*HDMI, 1*VGA, 2*LAN,1*MIC, 1*SPK, 1*DC IN, 2*Wi-Fi |

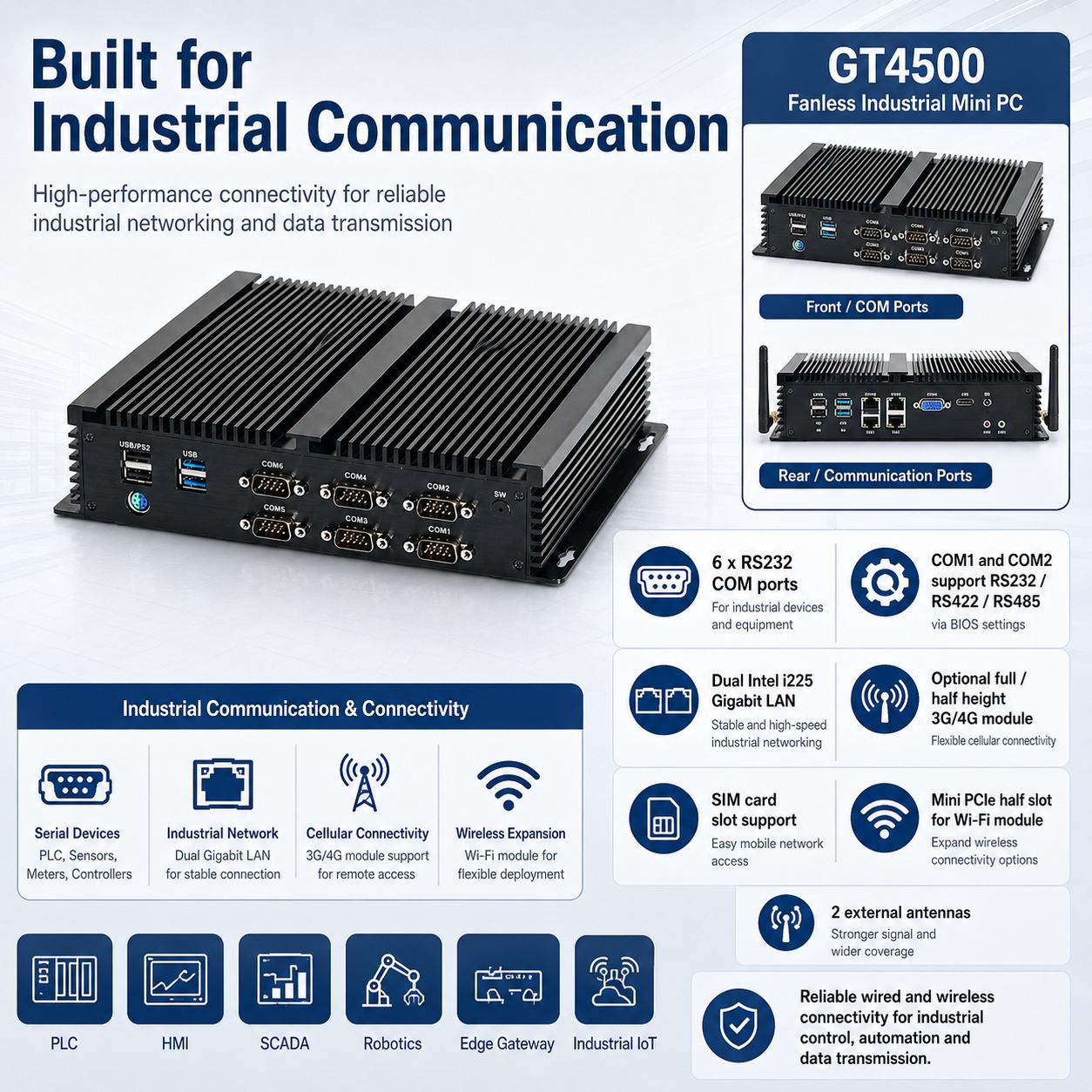

| COM | 6*RS232(3 line), COM1 COM2 support set to RS485/RS422 on BIOS |
| Internal ports | 1*M-SATA3.0 port, support 6Gb/s |
| 1*SATA3.0 port, support 6Gb/s | |
| 1*mini PCIE-half(Pcie bus) port for WiFi module | |
| 1*mini PCIE-full(Usb bus) port for 4G module | |
| SIM slot | Micro SIM, with PUSH function,Support 4G module |

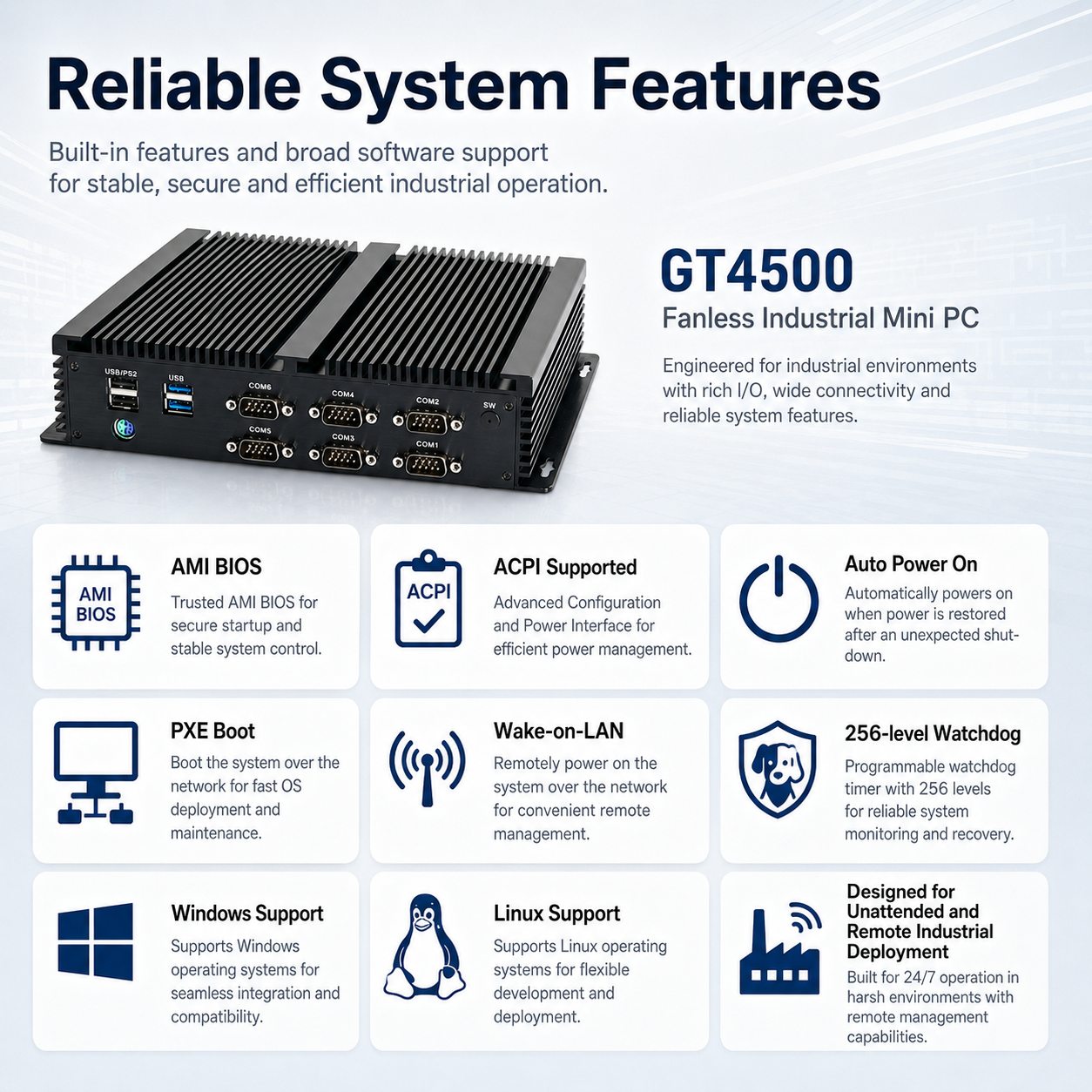

| Features function | Auto power on, S5,Wake-on-Lan, PXE,256 Watchdog |
| Power and Working Environment | |
| Input | DC100-240V AC/50-60Hz |
| Output | 12V/5A |
| Operating Temperature | -20/+75 Centigrade |
| Storage Temperature | -40/+80 Centigrade |
| Relative Humidity | 0%~90% (non-condensing) |
| Product Dimension & Details | |
| Size | 212*155*45mm |
| Weight | 2.5KG |
| Consumption | 15W |
| Shell | Black |
| Package Content | 1x Mini PC |
| 1x Power Adapter (Correct plug shipped based on buyer’s country) | |
| 1x WiFi Module with antennas | |
| 1x SATA cables | |
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | COM | USB | Power |
| GT4500 | I3 6157U | Intel® HD Graphics 520 | 2.00 GHz | VGA/HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 2 | 6 | 8 | 12V/3A |
| GT4500 | I3 7167U | Intel® HD Graphics 620 | 2.30 GHz | VGA/HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 2 | 6 | 8 | 12V/3A |
| GT4500 | I5 7267U | Intel® HD Graphics 620 | 2.50~3.10 GHz | VGA/HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 2 | 6 | 8 | 12V/5A |
| GT4500 | I5 8250U | Intel® UHD Graphics 620 | 1.60~3.40 GHz | VGA/HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 2 | 6 | 8 | 12V/5A |
| GT4500 | I7 8550U | Intel® UHD Graphics 620 | 1.80~4.00 GHz | VGA/HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 2 | 6 | 8 | 12V/5A |
| GT4500 | I7 10510U | Intel® UHD Graphics | 1.80~4.90 GHz | VGA/HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 2 | 6 | 8 | 12V/5A |
| GT4500 | I7 7510U | Intel® Iris® Plus Graphics 640 | 2.7~3.70 GHz | VGA/HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 2 | 6 | 8 | 12V/5A |
