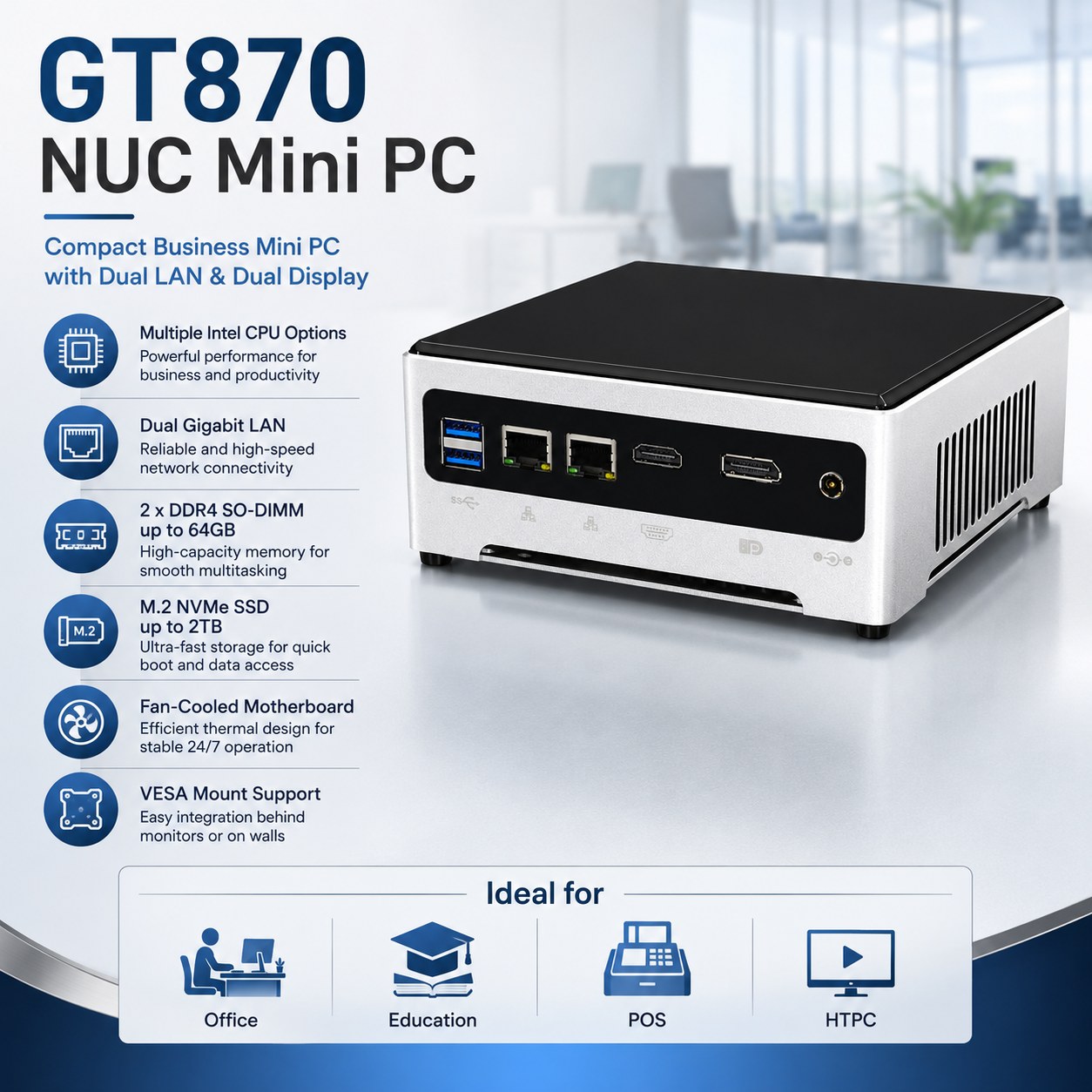

NUC Mini PC GT870 with Dual LAN, Dual Display,Core i3/i5/i7/i9 Options
Products Features
Model name: GT870
Powerful Performance: Supports Intel i7-9750H, i9-9880H, i7-1165G7, and other mid-to-high-end CPUs.
Expandable Memory: 2 x SO-DIMM DDR4 slots (up to 64GB RAM).
Dual Storage: 1 x M.2 2280 (SATA/NVMe) + 1 x M.2 2280 (NVMe) for fast data access.
Rich Connectivity: 6 x USB ports, Dual Gigabit LAN, DP+HDMI for multi-screen setups.
Enterprise Features: Wake-on-LAN, PXE booting, auto power-on after outage.

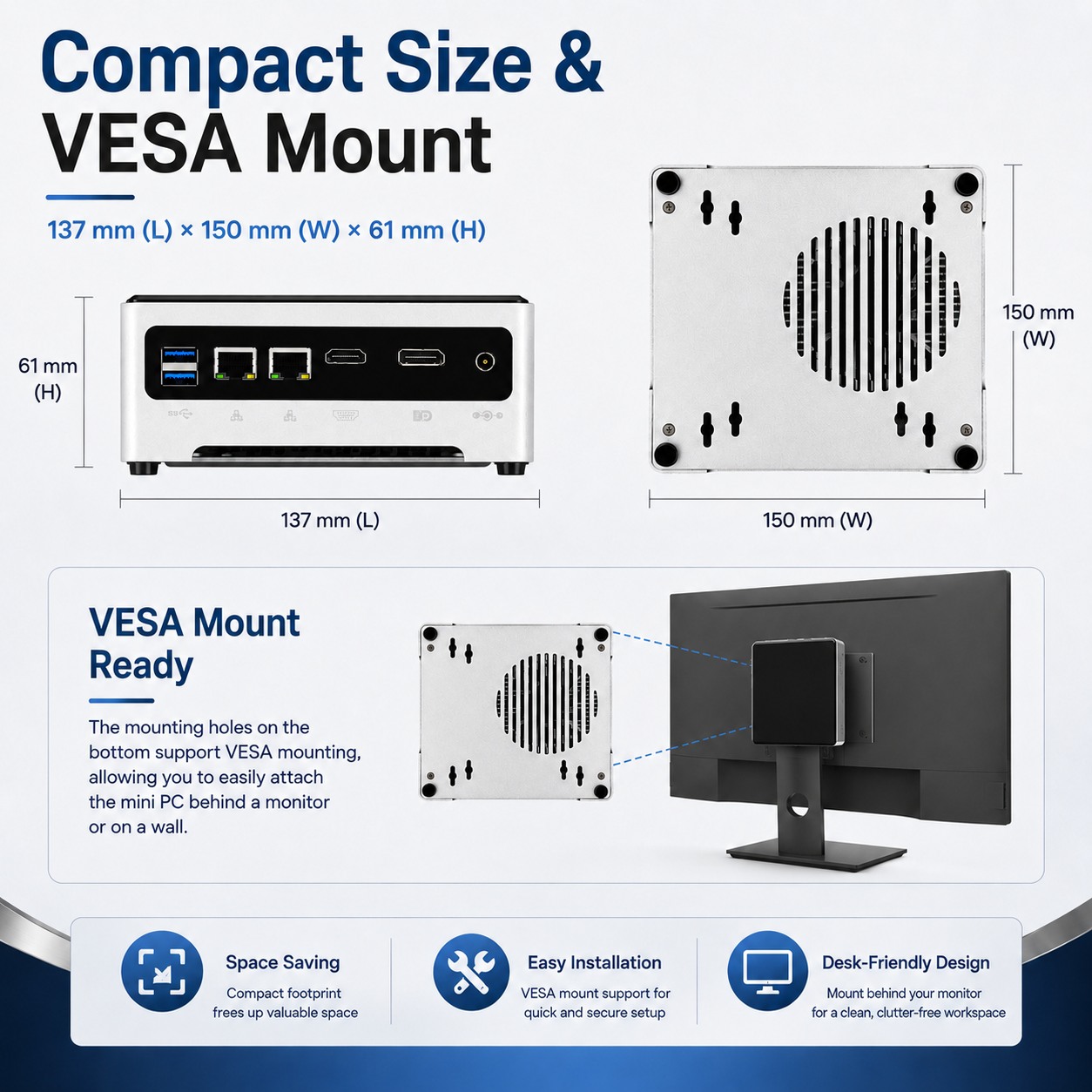

Space-Saving Design: Compact size (137x150x61mm) with VESA mount for behind-monitor installation.
Energy-Efficient: Low power consumption for 24/7 operation.
Versatile Applications: Ideal for offices, HTPC, call centers, classrooms, stock trading, and digital signage.
Product Details
Specification
Ordering information
Product Details
Product Introduction
The GT870 is a compact NUC Mini PC designed for business, education, POS, HTPC, banking, retail, and surveillance applications. With multiple Intel Core processor options, dual Gigabit LAN, HDMI 2.0 + DP dual display output, 6 USB 3.0 ports and DDR4 memory up to 64GB, it delivers reliable performance in a small 137 × 150 × 61mm chassis. Its fan-cooled motherboard, silver aluminum alloy body and VESA mounting support make it suitable for long-term operation and space-saving deployment.
Product Features

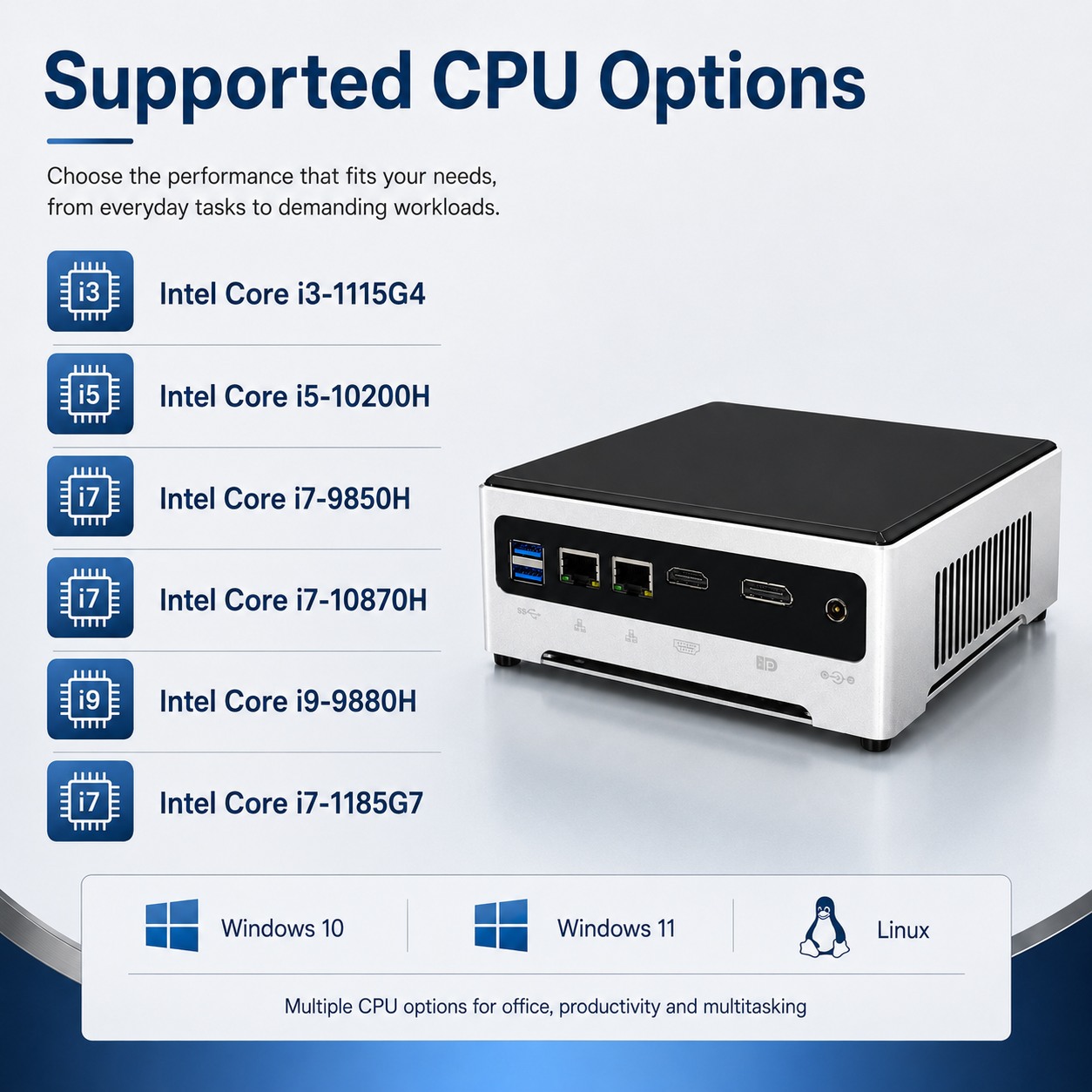

1. Multiple Intel CPU Options: Supports Intel Core i3-1115G4, i5-10200H, i7-9850H, i7-10870H, i9-9880H and i7-1185G7.

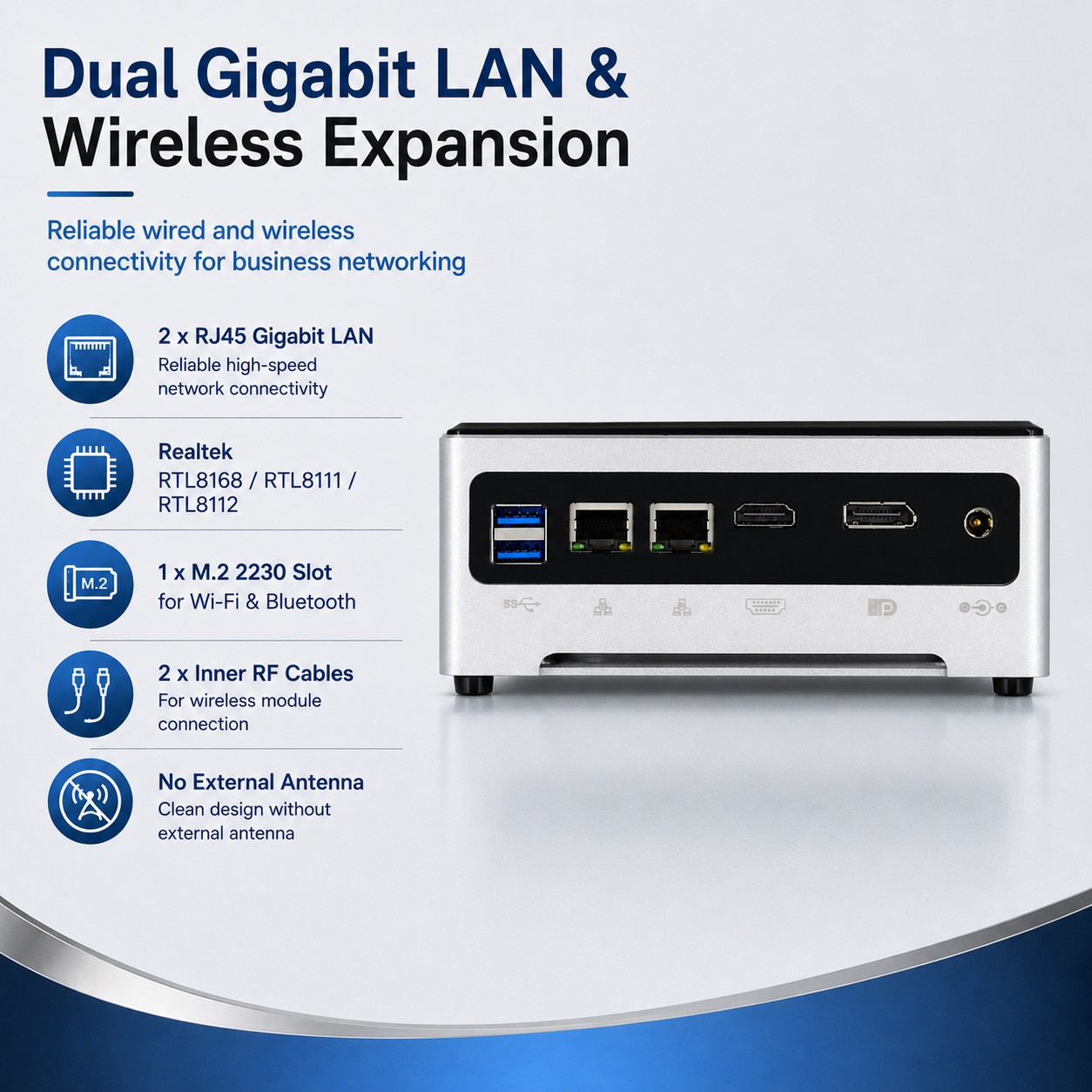

2. Dual Gigabit LAN: 2 × RJ45 Gigabit LAN with Realtek RTL8168 / RTL8111 / RTL8112 controllers.

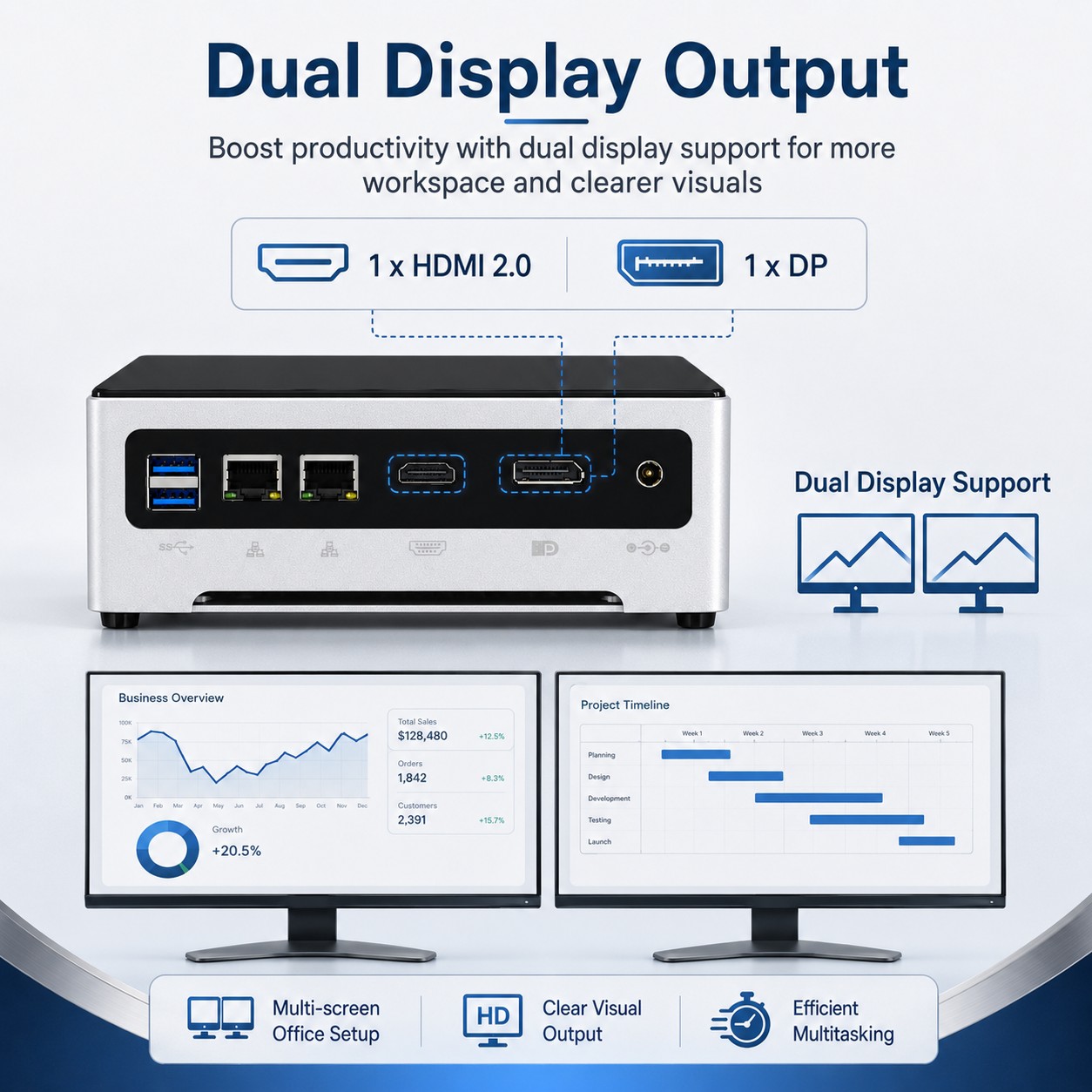

3. Dual Display Output: 1 × HDMI 2.0 + 1 × DP for efficient multi-screen office use.

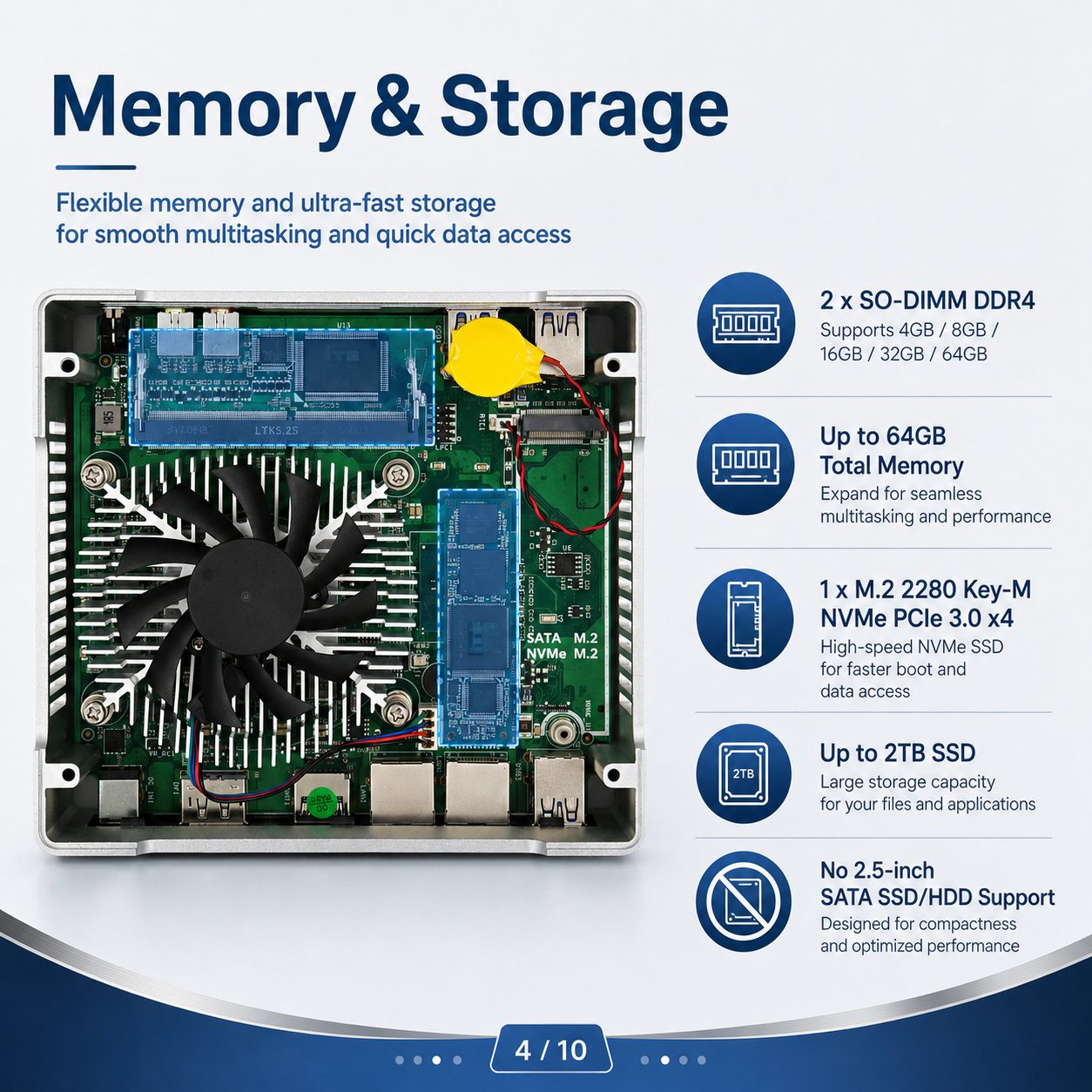

4. High-Speed Memory: 2 × DDR4 SO-DIMM slots, supporting up to 64GB memory.
5. Fast NVMe Storage: 1 × M.2 2280 Key-M NVMe PCIe 3.0 x4 SSD, up to 2TB.

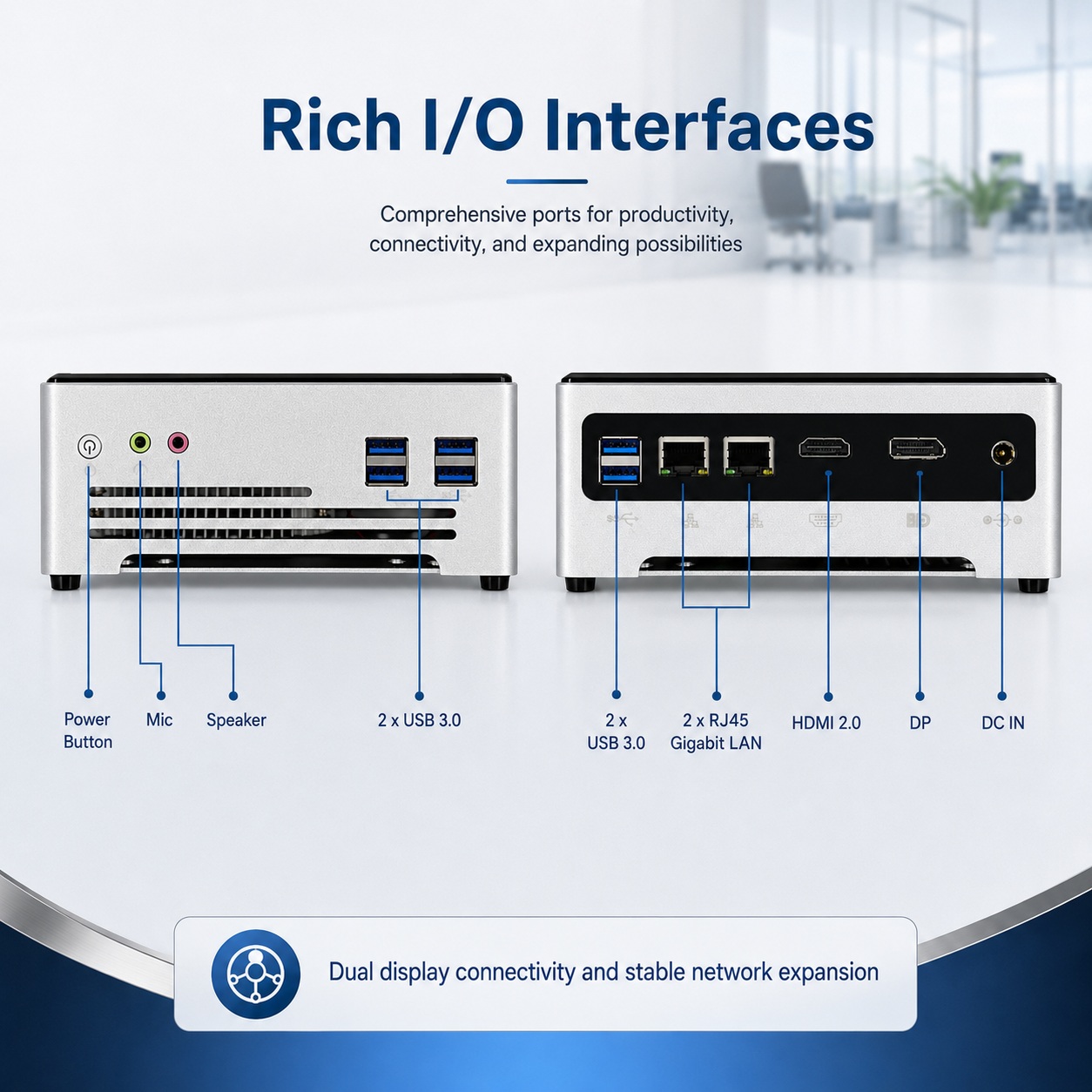

6. Rich I/O Ports: 6 × USB 3.0, 2 × LAN, HDMI, DP, MIC, speaker, and DC input.

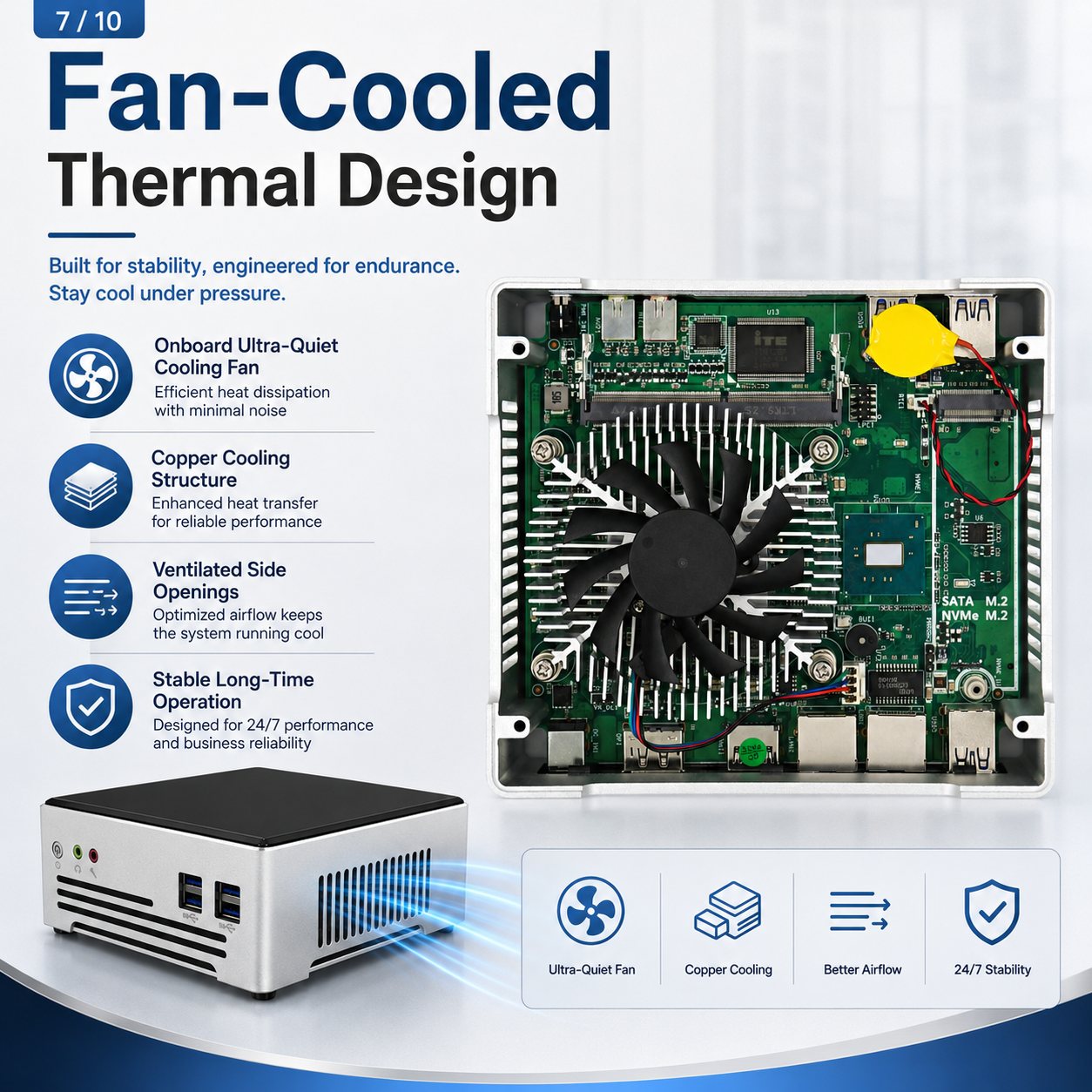

7. Fan-Cooled Design: Copper cooling fan and ventilated chassis support stable long-time operation.
8. Wireless Expansion: M.2 2230 slot for Wi-Fi and Bluetooth module, with internal RF cables.
9. Compact & VESA Ready: 137 × 150 × 61mm size, suitable for desktop or monitor-back installation.

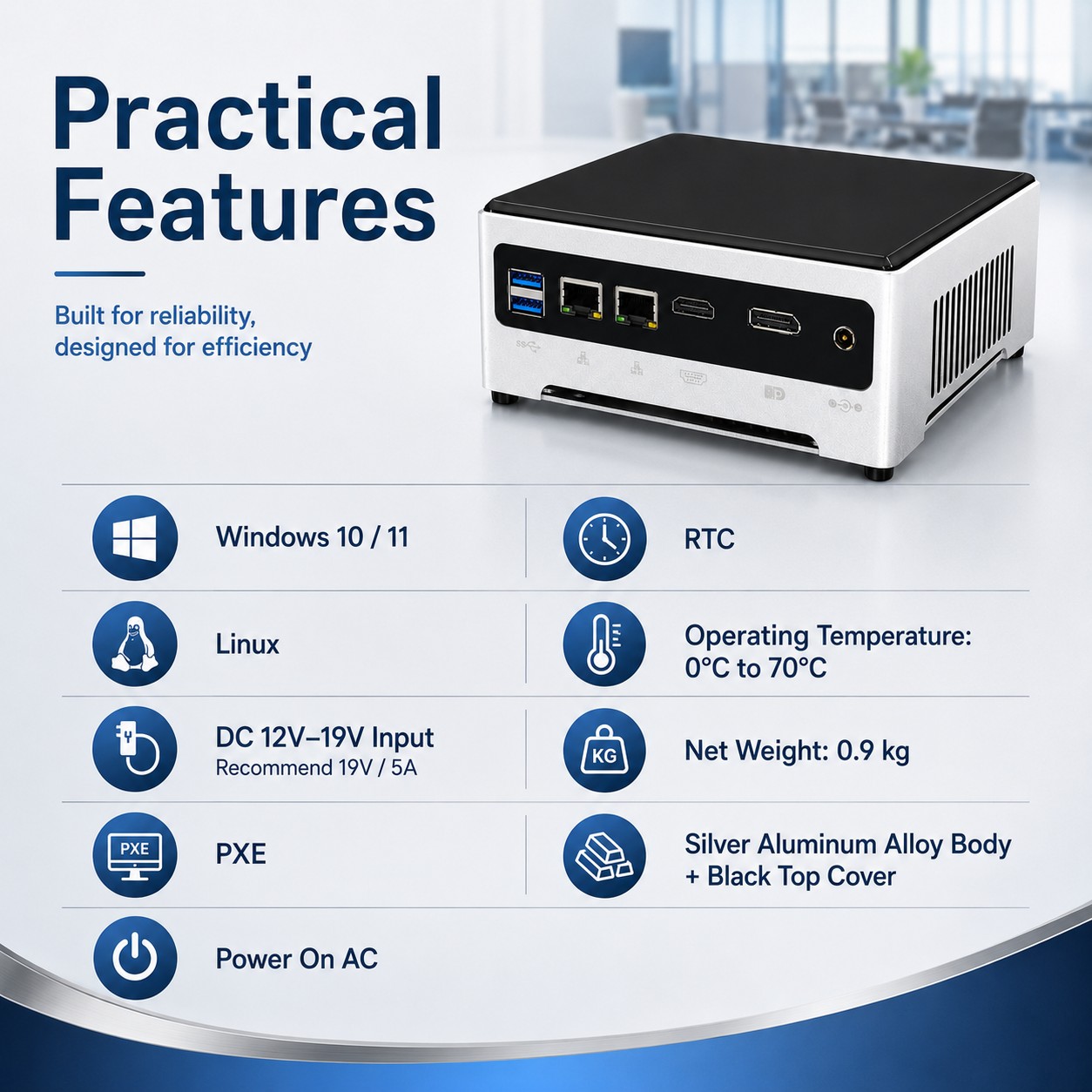

10. Business-Friendly Functions: Supports Windows 10/11, Linux, PXE, RTC, and Power On AC.
Product Application Industries
Office workstations, schools and computer labs, banks, supermarkets, service centers, hospitals, POS systems, HTPC media centers, CCTV monitoring systems, self-service terminals, digital signage and business desktop replacement projects.
Specification
| Basic Information: | ||||
| CPU | 1.Onboard Intel Core i5-7300HQ 4 cores 4 Threads 2.50GHz up to 3.50GHz, 6M Cache, TDP 45W,Intel® HD Graphics 630. | |||
| 2. Onboard Intel Core i3-1115G4 2 cores 4 threads 3.0GHz up to 4.1GHz 6MB cache TDP 15W Intel® UHD Graphics | ||||
| 3.Onboard Intel Core i7-1165G7 4 cores 8 threads 3.0GHz up to 4.8GHz 12MB cache TDP 15W Intel® Iris® Xe Graphics | ||||
| 4. Onboard Intel Core i7-9750H, 6 Cores 12 Threads 8M Cache, 2.60GHz up to 4.5GHz (Turbo boost Technology)TDP 45W Intel® HD Graphics | ||||
| 5. Onboard Intel Core i7-10750H 6 cores 12 threads 2.6GHz up to 5GHz 12MB cache TDP 45W Intel UHD Graphics | ||||
| 6. Onboard Intel Core i9-9880H, 8 Cores 16 Threads 8M Cache, 2.3GHz up to 4.8GHz (Turbo boost Technology)TDP 45W Intel® HD Graphics | ||||
| 7. Onboard Intel Core i9-10885H, 8 Cores 16 Threads 16M Cache, 2.4GHz up to 5.1GHz (Turbo boost Technology)TDP 45W Intel® HD Graphics | ||||
| TDP | 45W | |||
| Motherboard Size | 140 x 130mm customized size | |||
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB, LPDDR4-2400, LPDDR4-2133, LPDDR4-2666 | |||
| OS | Windows 10/Linux | |||
| Network | 2 x Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller10/100Mbps/1000Mbps BaseT LAN | |||
| Video | Refer to the above CPU | |||
| Wi-Fi: | ||||
| Module | 1 x M.2 NGFF 2230 slot for Wi-Fi & Bluetooth module | |||
| Antenna | 2 x inner RF cables and without external antenna | |||
| Power and Working Environment: | ||||
| Input | DC100-240V AC/50-60Hz | |||
| Output | DC+12V~+19V, recommend 19V/5A | |||
| Operating Temperature | 0/+70 Centigrade | |||
| Storage Temperature | -20/+85 Centigrade | |||
| Relative Humidity | 10%~85% | |||
| Input/output port： | ||||
| Switch | 1 x Power On/Off Switch | |||
| Power | 1 x Power In | |||
| USB | 6 x USB3.0 | |||
| Display | 1 x DP, 1 x HDMI 2.0 | |||
| LAN | 2 x RJ45 Giga LAN | |||
| Audio | 1 x MIC, 1 x SPK | |||
| Storage: | ||||
| M.2 | 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(Only NVME PCIe3.0x4) | |||
| SATA | 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME/SATA) | |||
| Product Dimension & Details: | ||||
| Size | 137*150*61mm | |||
| Weight | Net 0.9kg, Gross 1.5kg | |||
| Shell | Black color PVP top and Silver aluminum alloy body | |||
| Cooling Mode | With a copper cooling fan | |||
| Functions | PXE, Power On AC, RTC | |||
| Package Content： | ||||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | |||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | USB | Power |
| GT870 | I5 7300HQ | Intel® HD Graphics 630 | 2.5~3.5 GHz | 45 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 32GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | i7-7820HK | Intel® UHD Graphics 630 | 2.9~3.9 GHz | 45 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | i5-1035G4 | Intel Iris Plus Graphics | 1.1~3.7 GHz | 15 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 32GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | i5-1135G7 | Intel Iris Xe Graphics | 2.4~4.2 GHz | 28 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 32GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | i7-1065G7 | Intel Iris Plus Graphics | 1.3~3.9 GHz | 15 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 32GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | i7-1165G7 | Intel Iris Xe Graphics | 2.8~4.7 GHz | 28 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 32GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | I7 8750H | Intel® UHD Graphics 630 | 2.2~4.1 GHz | 45 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | i7-9750H | Intel® UHD Graphics 630 | 2.6~4.5 GHz | 45 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | I7 10870H | Intel® UHD Graphics | 2.2~5.0 GHz | 45 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | I9 9880H | Intel® UHD Graphics 630 | 2.3~4.8 GHz | 45 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
| GT870 | i9-10885H | Intel® UHD Graphics | 2.4~5.3 GHz | 45 W | DP/HDMI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x M.2 2280 (NVME) | 2 | 6 | 19V/4.7A |
