Android Industrial Tablet PC 10.1 Inch with RJ45 Port
Model: GTP101A64
● Display size: 10.1 inch.
● Flat design, elegant appearance.
● IP65 rating of dustproof and waterproof.

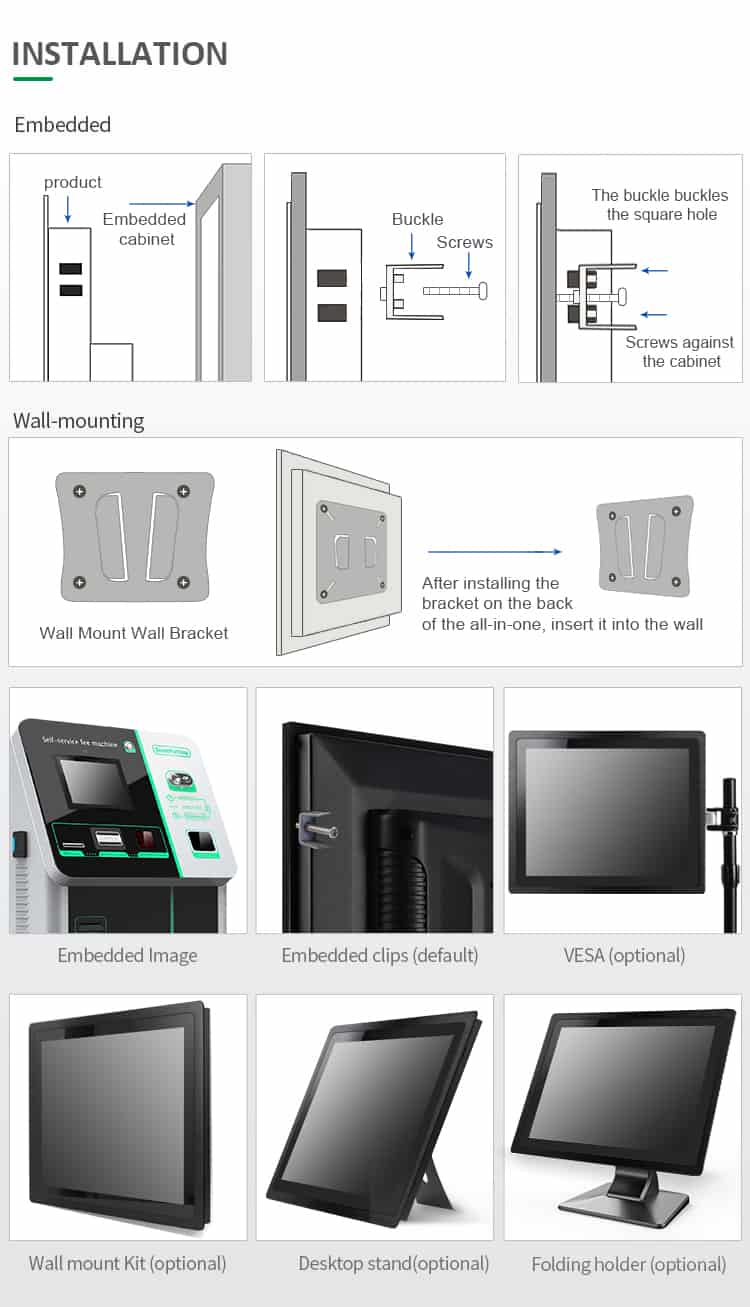

● Multiple installation: embedded / desktop / wall / VESA 75/100.
● Ultra-sensitive touch screen, precise positioning, free control.
Product Details
Specification
Ordering information
Product Details
JIERUICC Android Industrial panel PCs are designed to perfect running under harsh conditions and
can be placed into extreme high or low temperature industrial environments. They are support sunlight
readable for outdoor terminal and self-service devices for 24 hours*7 days.
Specification
| Model No.: | GTP101A64 (touch screen tablet PC, panel mount panel pc) |
| CPU: | 1. A64, Cortex-A53 quad-core 64-bit 1.5GHz(2G+8G),Android 6.0; 2. RK3288, Cortex-A17 quad-core 1.8GHz(2G+16G/4G+32G),Android 7.1/10.0/linux4.4; 3. RK3399 Cortex-A72+Cortex-A53 six-core 64-bit 2.0GHz(4G+32G),Android 7.1/9.0 |
| Memory: | 2GB (4GB optional) |
| EMMC: | 8GB (16GB/32GB optional) |
| OS: | Android 6.0 (Android 5.1/7.1 optional) |
| Color: | Black & Silver (IP65 rated panel pc) |
| Display size and Panel type: | 10.1 inch Industrial A grade LCD with LED backlight |
| Resolution: | 1280*800 (embedded panel pc, industrial panel pc) |
| Contrast: | 600:01:00 |
| Luminance: | 300nits |
| Display colors: | 16.7M(8-bit) |
| Response time: | 5ms |
| Touch screen: | Default with 10-point capacitive touch, Resistive touch / Non-touch optional |
| Touch Screen Surface Hardness: | 7 Mohs |
| Dot pitch: | 0.264mm |
| View angle: | 170° |
| Touch Screen Transparency: | 90% (±3%) |
| I/O Ports: | 1*DC12V |
| 2*COM | |
| 1*HDM-I | |
| 1*LAN | |
| 1* Sim card slot & 1* SD card slot | |
| 1*Audio I/O interface | |
| 2*USB | |
| Wifi: | 2.4G, 802.11a/b/g/n; (Dual band 2.4G/5.0G is optional) |
| BT: | 4.0 |
| Power Input: | AC 110-240V, 50/60Hz |
| Operation Temperature: | -10°C-60°C |
| Storage Temperature: | -40°C-85°C |
| Material: | Aluminum alloy enclosure (10mm) |
| Installation ways: | Wall Mount / VESA / Desktop optional |
| IP rating: | IP65 for front panel |
| Lifespan: | ≥50000hours |
| MTBF: | 7*24hours |
| Warranty: | 3 years |
| Certifications: | CE,FCC,ROHS,ISO9001 |
Ordering information
| Model | Screen size | Resolution | CPU | OS | Display | Aspect Ratio | Memory | Storage | LAN | USB | COM | Power |
| GTP101A64 | 10.1inch | 1280*800 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:10 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 10.4 inch | 1024*768 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 4:3 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 11.6 inch | 1920*1080 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:9 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 12 inch | 1024*768 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 4:3 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 12 inch widescreen | 1280*800 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:10 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 13.3 inch | 1920*1080 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:9 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 15 inch | 1024*768 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 4:3 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 15.6 inch | 1920*1080 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:9 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 17 inch | 1280*1024 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 4:3 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 17.3 inch | 1920*1080 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:9 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 19 inch | 1280*1024 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 4:3 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 19inch widescreen | 1440*900 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:10 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 21.5 inch | 1920*1080 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:9 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
| GTP101A64 | 23.8 inch | 1920*1080 | A64 / RK3288 / RK3399 / RK3568 / RK3588 | Android 6.0 / 7.1/10.0 / Linux 4.4 depends on CPU | VGA+HDMI | 16:9 | 2GB DDR3 (8GB optional) | Emmc 64GB (32/64GB optional) | 1 | 2 | 1 | 12V/5A |
