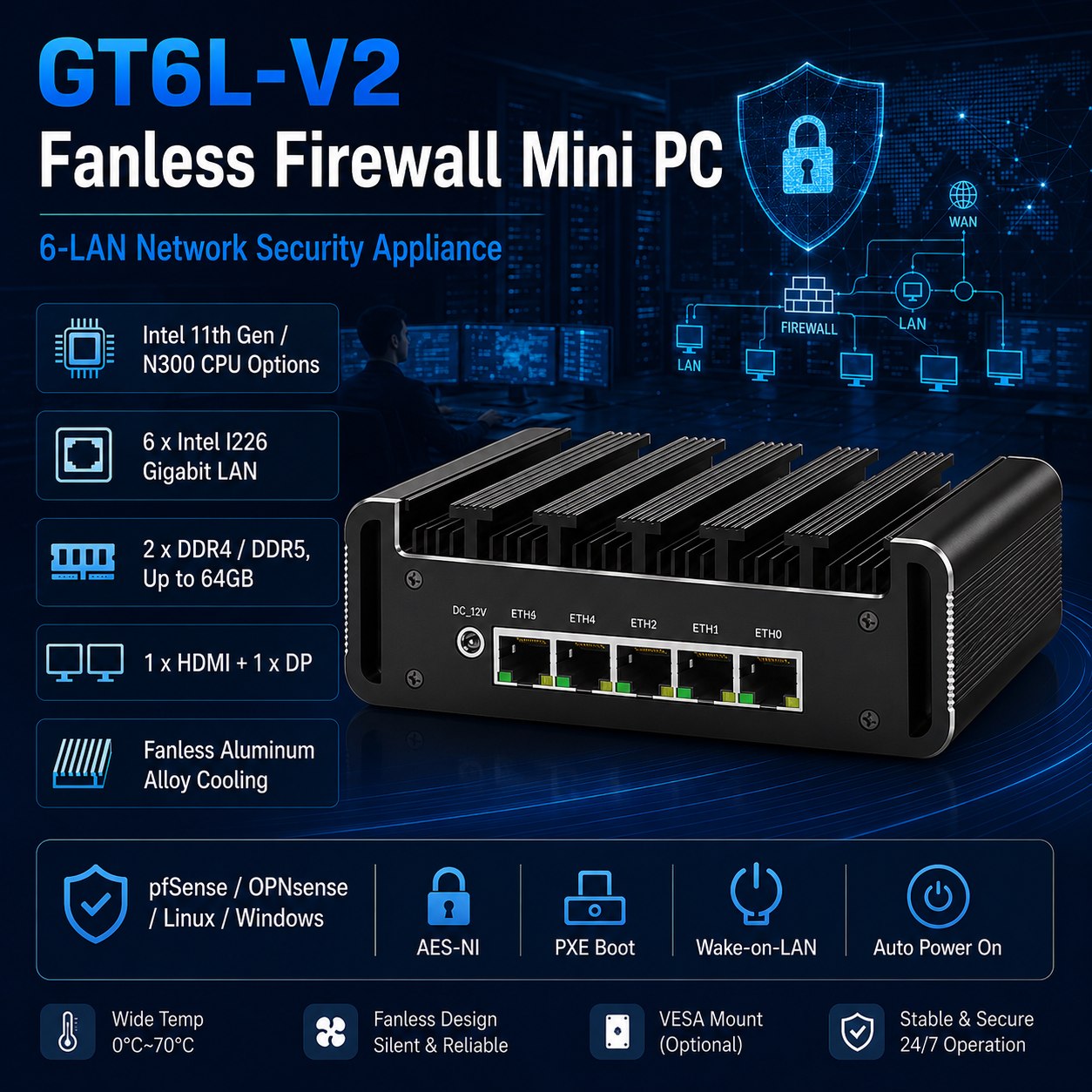

GT6L-V2 6-LAN Fanless Firewall Mini PC with Intel I226
Model name: GT6L-V2
6 x INTEL I226 LAN+1 x HDMI, 1 x DP+1 x COM(RJ45 Console), 1 Reset+DC12V
-Aluminum alloy structure, fanless design
-Onboard Intel Celeron I3-1115G4 quad-core processor (can select I5-1135G7, I7-1195G7, 7505, i3-N300)
-Support 2 x DDR4 /2 x DDR5 memory, up to 64GB
-1 x m.2 2280 NVME slot, 1 x 2.5 inch SATA
-Support WOL and PXE boot
-FANLESS System with heat sink
-Support Windows 7/10/11/LINUX/Pfsense OS
-Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN, etc
Product Details
Specification
Ordering information
Product Details
Product Introduction
The GT6L-V2 is a compact 6-LAN fanless firewall mini PC designed for secure, stable, and space-saving network deployments. Built with a rugged aluminum alloy chassis and passive cooling structure, it is ideal for pfSense, OPNsense, Linux routing, VPN gateway, branch office networking, and industrial edge security applications.
This model supports multiple Intel CPU platforms, including Pentium 7505, Intel Core i3/i5/i7 11th Gen, and Intel i3-N300 options. With 6× Intel I226 Gigabit LAN ports, HDMI + DP display output, DDR4 or DDR5 memory options, and flexible SSD storage, the GT6L-V2 delivers reliable performance for firewall, router, and gateway workloads.
Product Features
- 6× Intel I226 Gigabit LAN ports for firewall, routing, VPN, and network segmentation

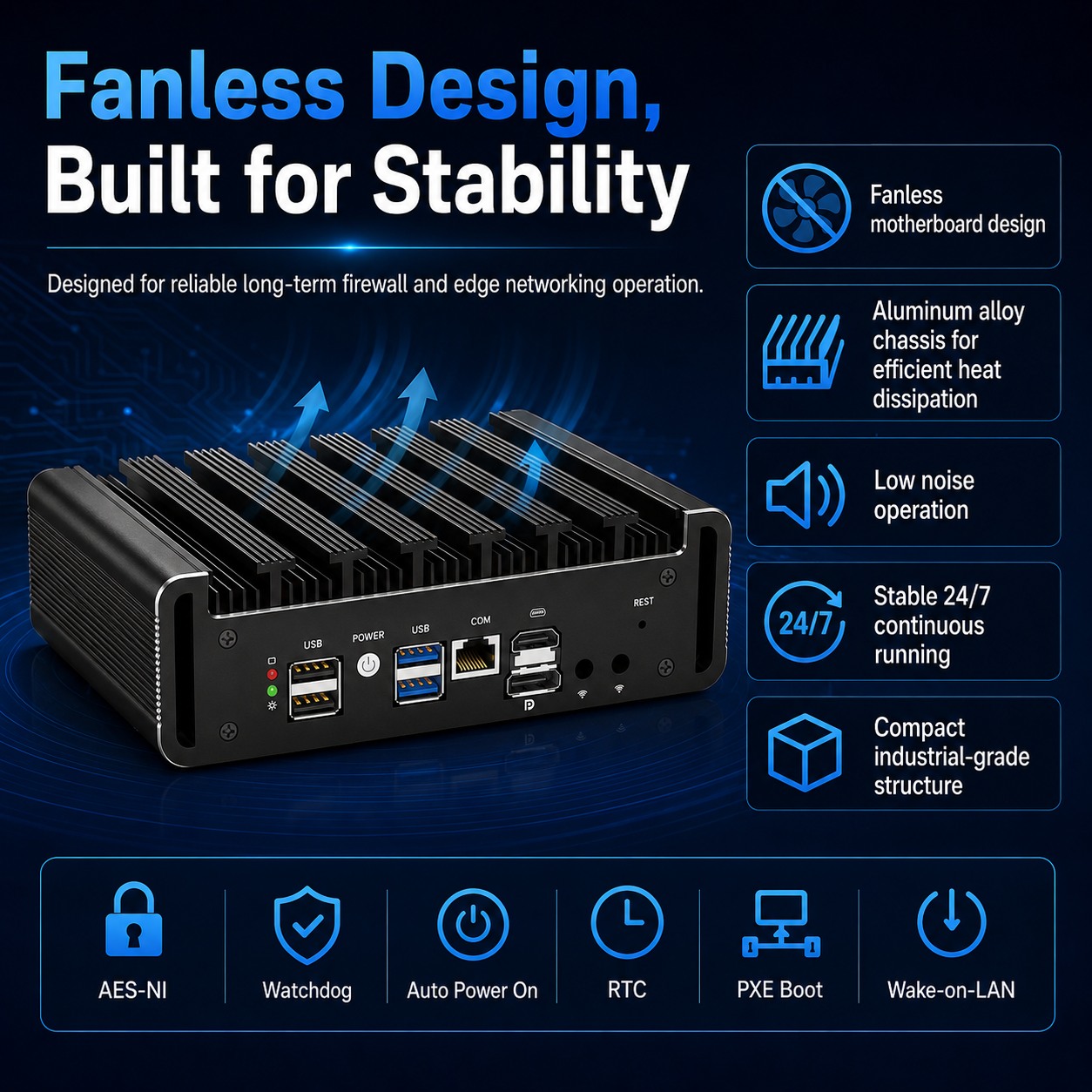

- Fanless aluminum alloy chassis for silent operation and efficient heat dissipation
- Intel Pentium 7505, Core i3/i5/i7 11th Gen, and i3-N300 CPU options
- Supports DDR4 or DDR5 memory, up to 64GB
- Supports M.2 2280 NVMe SSD and 2.5-inch SATA storage
- HDMI + DP dual display output for setup, monitoring, and management
- 2× USB 3.0 + 2× USB 2.0 for external peripherals

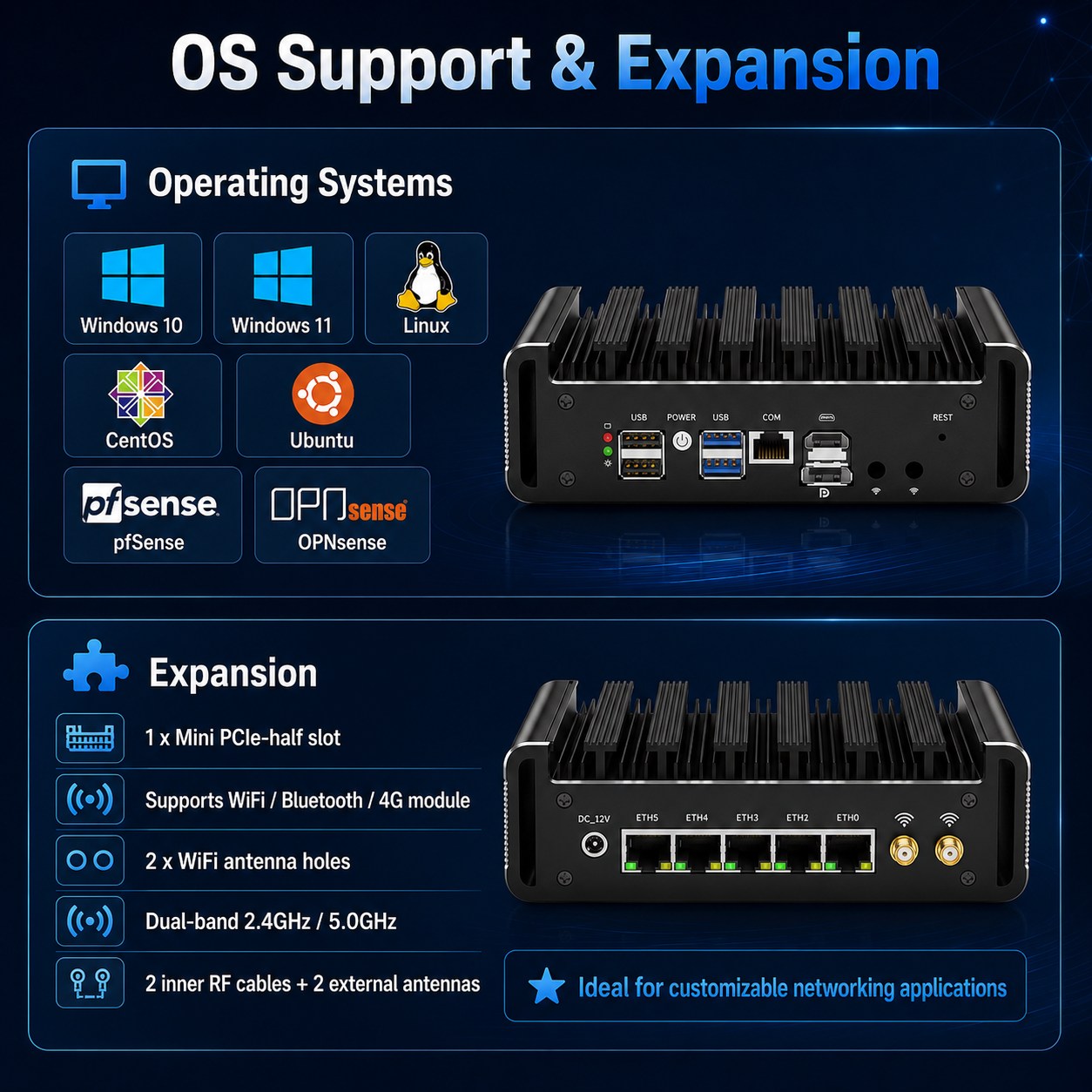

- Mini PCIe expansion for WiFi, Bluetooth, or 4G module
- Supports pfSense, OPNsense, Linux, Ubuntu, CentOS, Windows 10/11
- Built-in support for AES-NI, Watchdog, RTC, PXE Boot, Wake-on-LAN, and Auto Power On
- Compact 178×123×55mm design for desktop, wall mount, or VESA mounting behind monitor
Product Application Industries
- Enterprise firewall and network security
- pfSense / OPNsense router deployment
- VPN gateway and remote access network
- Branch office network management
- Industrial edge gateway
- Cybersecurity monitoring system
- Home lab and soft router projects
- Small business router and gateway
- Network segmentation and traffic control
- IoT gateway and edge computing

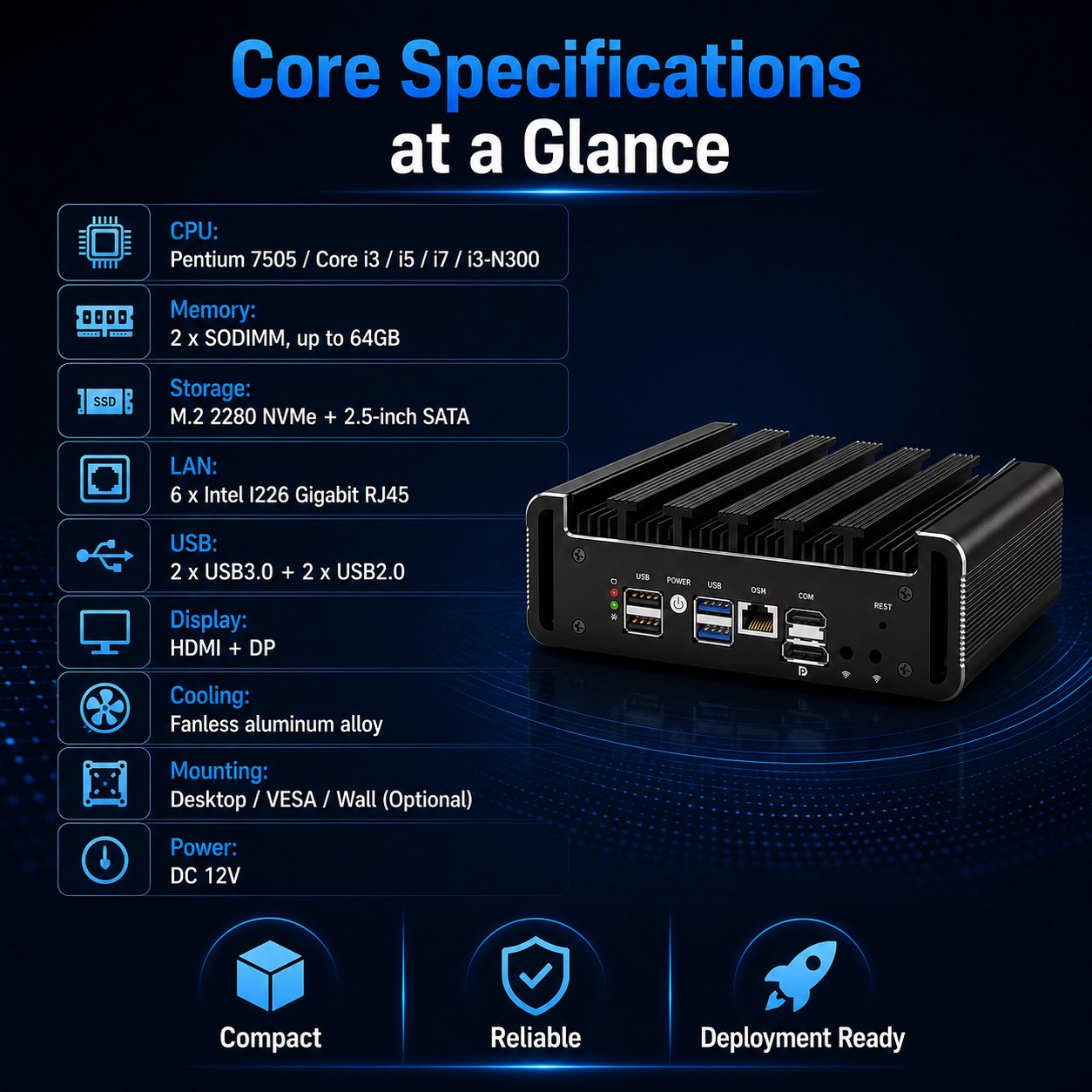

Specification
| Basic Information: | |||

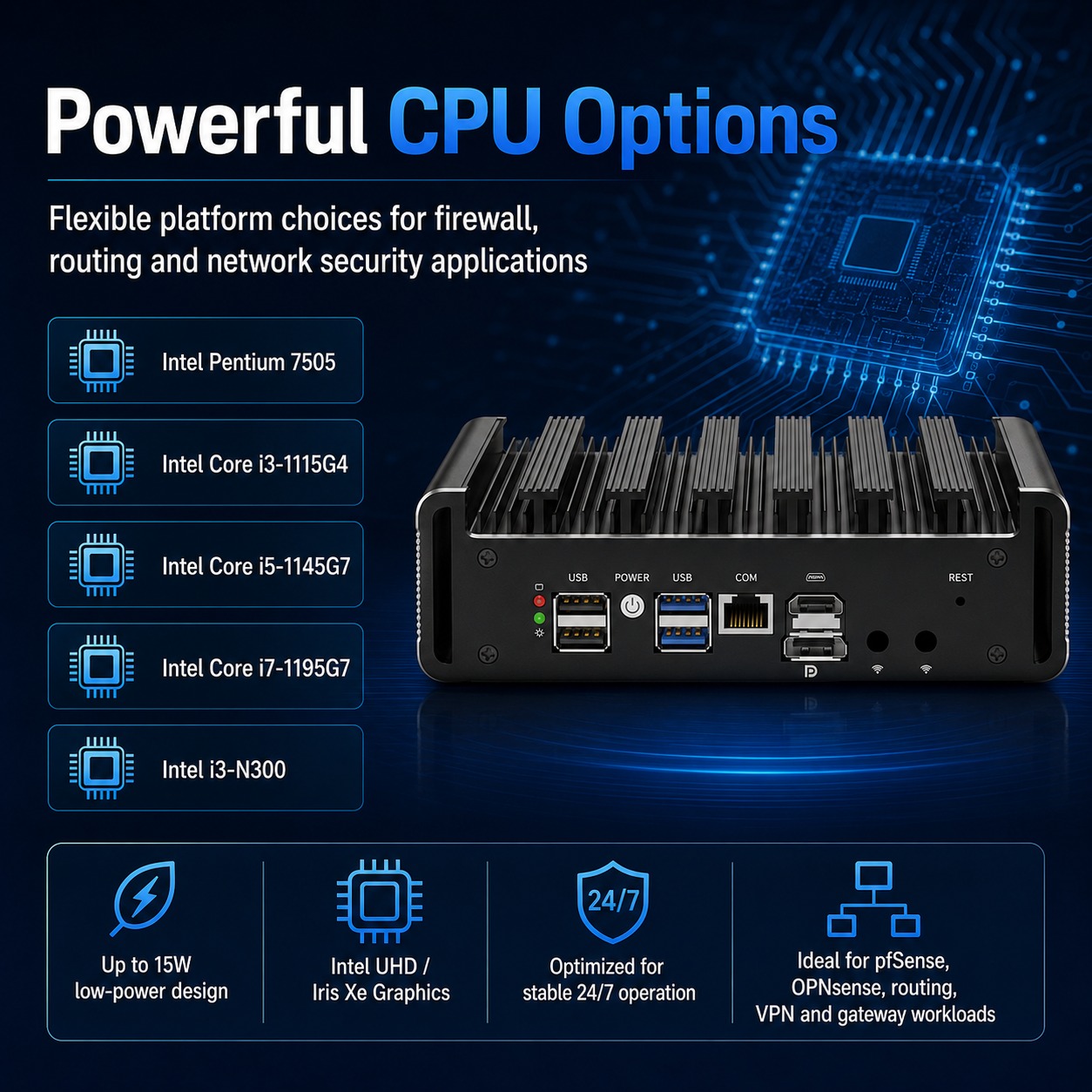

| CPU | Intel Pentium 7505 2 cores, 4 threads, max up to 3.5GHz, 4M Cache,Intel® UHD Graphics | ||
| Intel Core i3 1115G4 Processor, 2 cores, 4 threads, 6M Cache, 1.70 GHz, up to 4.10 GHz,Intel® UHD Graphics | |||
| Intel Core i5-1145G7 Processor, 4 cores, 8 threads, 8M Cache, max up to 4.4 GHz,Intel® Iris® Xe Graphics | |||
| Intel Core i7-1195G7 Processor, 4 cores, 8 threads, 12M Cache, max up to 5.0GHz,Intel® Iris® Xe Graphics | |||
| Intel i3-N300 Processor, 8 cores, 8 threads, 6M Cache, max up to 3.8GHz,Intel® UHD Graphics | |||
| TDP | 15W | ||
| BOIS | AMI EFI BIOS | ||
| Chipset | Refer to the CPUs | ||

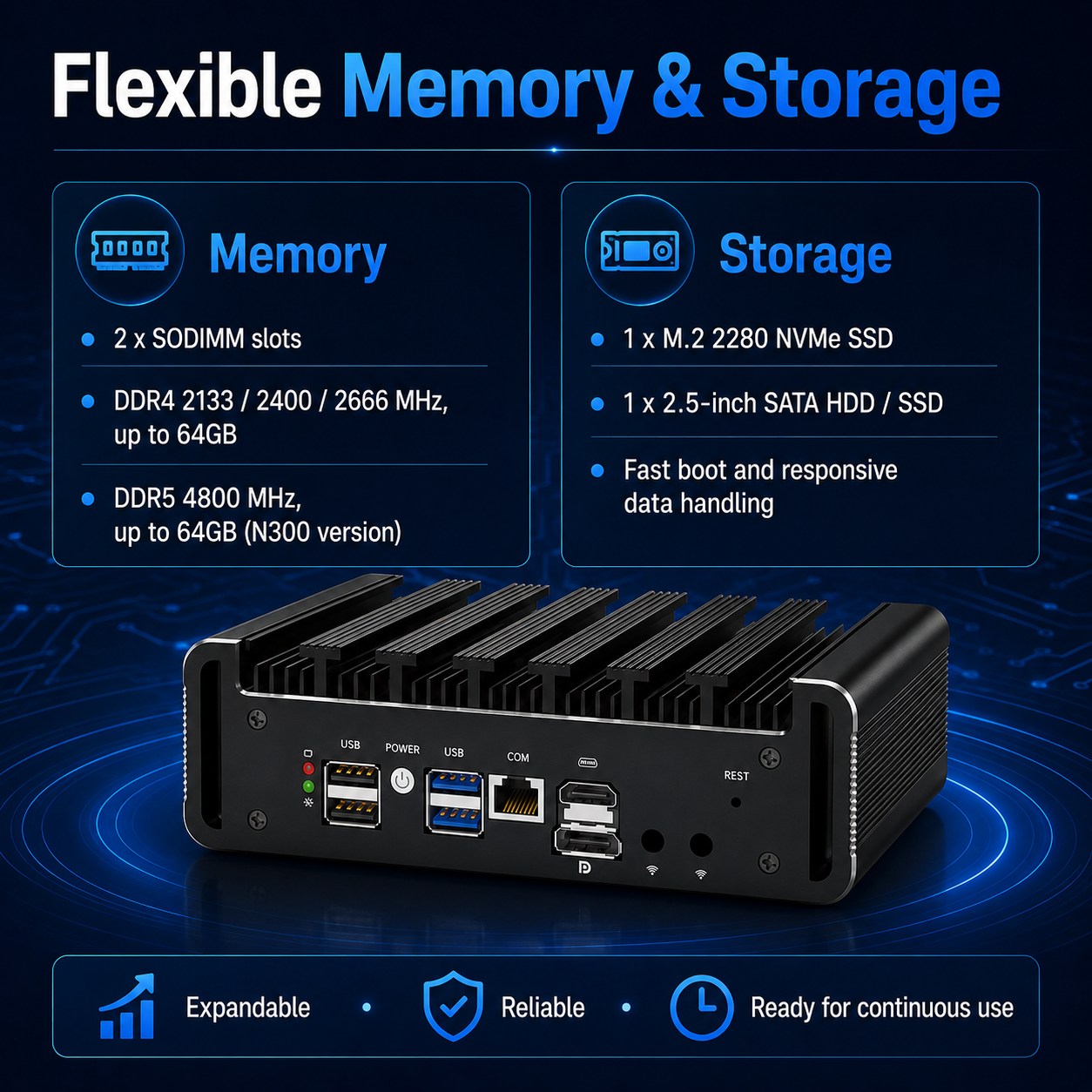

| Memory | 2 x DDR4 2133/2400/2666 MHz SODIMM memory slots, up to 64GB(Pentium 7505, i3 i5 i7 11th gen) | ||
| 2 x DDR5 4800 MHz SODIMM memory slots, up to 64GB(i3-N300 CPU) | |||
| OS | Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc | ||
| Network | 6 x INTEL I226 LAN RJ45 | ||
| Video | Intel UHD Graphiacs/Intel Iris Xe Graphics | ||
| Storage: | |||
| SSD | 1 x M.2 2280 nvme, 1 x 2.5-inch hard drive | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

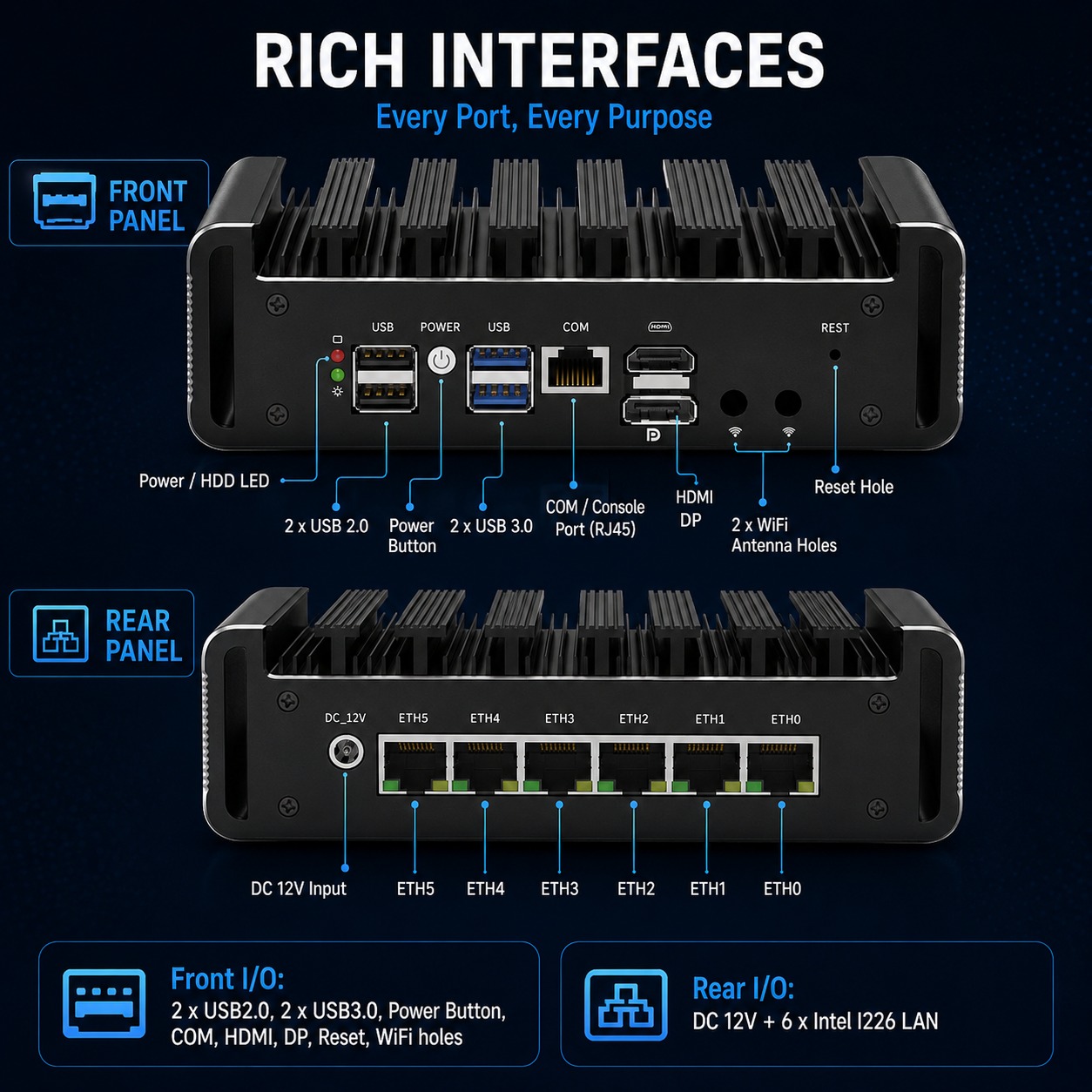

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | DC12V-7A 5.A*A | ||
| LED | 1 x Power LED, 1 x HDD LED | ||
| USB | 2 x USB3.0+2 x USB2.0 | ||

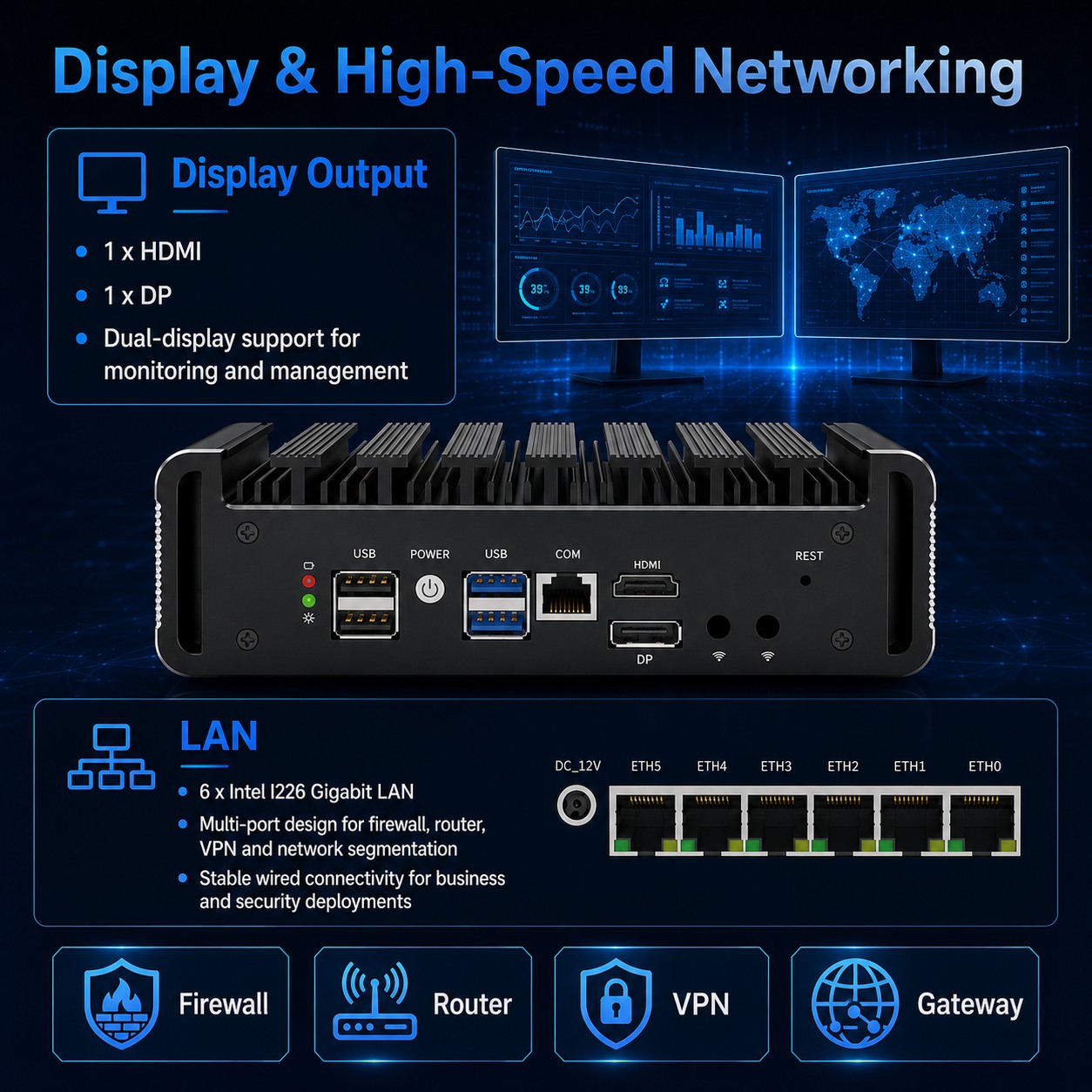

| Display | 1 x HDMI, 1 x DP | ||
| LAN | 6 x INTEL I226 LAN RJ45 | ||
| Audio | 1 x MIC, 1 x SPK | ||
| RST | 1 x RST | ||
| WIFI | 2 x WiFi Holes Dual band 2.4GHz/5.0GHz | ||
| Expand | Support 1 MINIPCIE channel (can be WIFI/Bluetooth/4G) | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC12V-7A 5.A*A | ||
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) | ||
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) | ||
| Relative Humidity | 0%~90%@30 (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc | ||

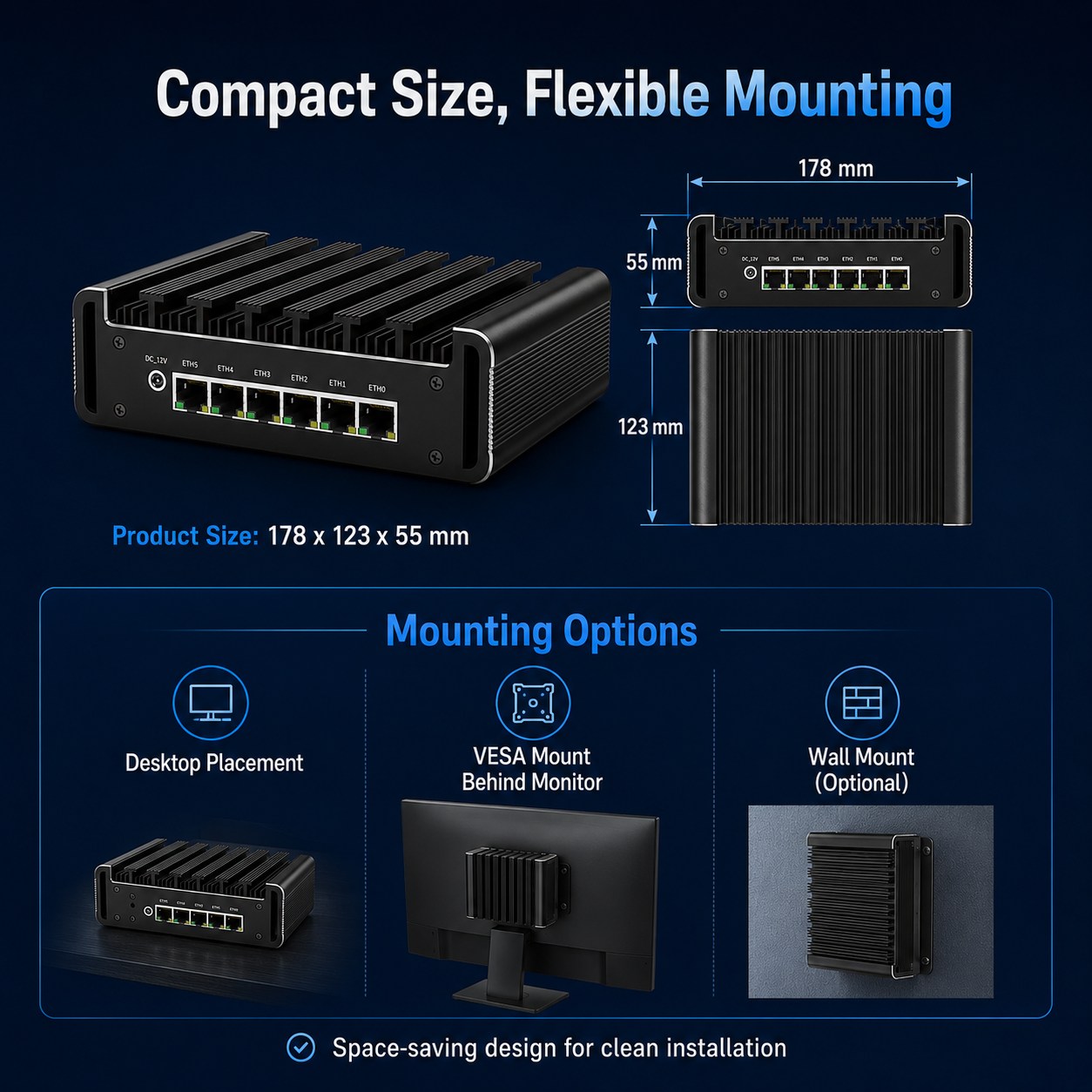

| Size | 178*123*55mm | ||
| Weight | Net 1kg, Gross 1.2kg, 2KG/full units | ||
| Shell | Black color aluminum alloy | ||
| Mounting | Can be mounted back of monitor or wall by optional VESA mount | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xUser Manual, 1xVESA mount | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT6L-11th | I3 1115G4 | Intel UHD Graphics | 1.7~4.1 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 64G | 1 x M.2 NVMe 2280/1 x mSATA/2.5 inch SATA3.0 | 6 x i226 | 4 | 12V/7A |
| GT6L-11th | I5 1135G7 | Intel Iris Xe Graphics | 2.4~4.2 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 64G | 1 x M.2 NVMe 2280/1 x mSATA/2.5 inch SATA3.0 | 6 x i226 | 4 | 12V/7A |
| GT6L-11th | I7 1165G7 | Intel Iris Xe Graphics | 2.8~4.7 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 64G | 1 x M.2 NVMe 2280/1 x mSATA/2.5 inch SATA3.0 | 6 x i226 | 4 | 12V/7A |
