Compact Gaming PCs for Maximum Fun With GTX1660S 6G/RTX2060S 8GB/RTX3050 8G Gaming Graphics Cards
Triple Display: 1 x HDMI2.0 + 1x Mini-DP+1*DVI +1xRJ45 LAN+8USB+GTX1660S 6G/RTX2060S 8GB/RTX3050 8G Discrete Graphics
Products Features
-Support i3-9100F/ i5-9400F/ i7-9700F/i9-9900T Processor
-Dedicated Graphics: GTX1660S 6G/RTX2060S 8GB/RTX3050 8G Discrete Graphics
-RAM: 2 x so-dimm RAM DDR4 slot,max support 64GB.
-SSD: 1 x M.2 2280 PCIE3.0 / NVME SSD, max support 2TB.
-HDD: SATA -Support 2 x 2.5 inch SATA 3.0 SSD/HDD, max support 2TB.
-Motherboard: B360 all solid-state motherboard
-Support 3 Display: 1 x HDMI2.0 + 1 x Mini-DP+1*DVI-D.
-Gigabit NIC, Type-C, Triple Display, WiFi 6+BT5.1, Windows 11 Pro Preinstalled
Product Details
Specification
Ordering information
Product Details
JIERUICC MT200 Compact Mini Gaming PC with Graphics Card: GTX1660S 6G/RTX2060S 8GB/RTX3050 8G
The computer is equipped with Core i3-9100F /i5-9400F/i7-9700F/i9-9900T Hign end performance processor

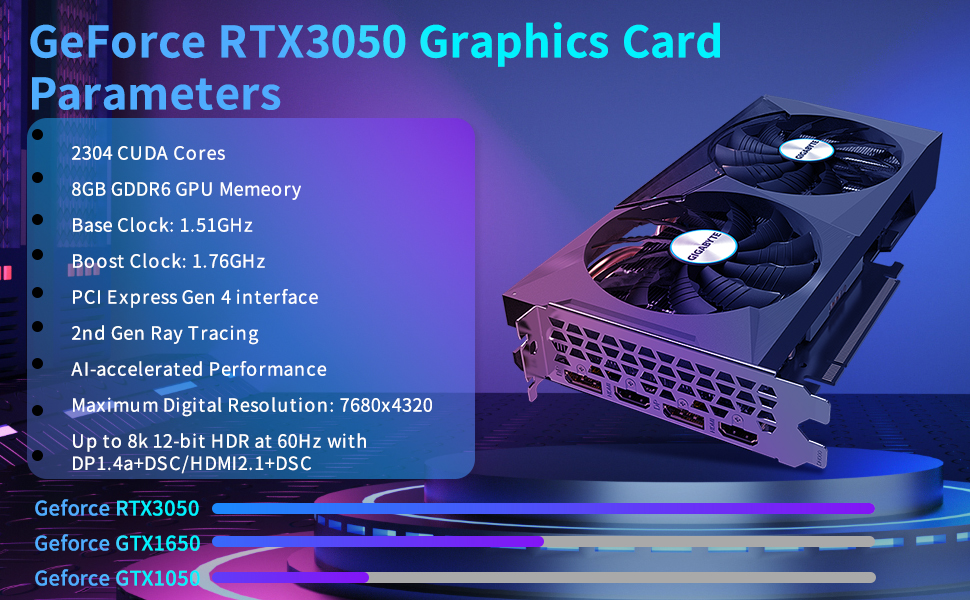

The GPU is a powerful GeForce GTX1660S 6G/RTX2060S 8GB/RTX3050 8G gaming graphic video card, Triple display 1*HDMI2.0 Max support 4096*2160/60Hz, 1 x DP 4096*2160/60Hz
1*DVI 1920*1080/60Hz Supporting simultaneous connection of 3 monitors support 4K video.
High-Speed RAM and SSD: This compact mini gaming PC has 2*DDR4 RAM Slots. Max 64GB (32GB*2) and 1*M2 2280 NVME SSD, support adding double 2.5″ SATA HDD/SSD which we will install the SSD on it by default.
Rich Interfaces: 4*USB3.0 4*USB2.0 1*TYPE-C, 1* Gigabit ethernet, 1* Audio, 1*DC IN, 1* HDMI, 1* DisplayPort, 1*DVI, 2* Wireless antennae ports. Built-in WiFi 6 and Bluetooth 5.1, support Gigabit wireless ethernet the antennae could enhance the signal.
Compact Design: The product size is 260*220*55mm. Inside the chassis are four all-copper turbo fans and eight vacuum heat pipes for powerful cooling performance. Compared with a traditional desktop, the mini PC saves a lot of space
Unleash Your Gaming Power in JIERUICC
Specification
| Basic Information: | |||
| CPU | Intel Core i3-9100F 3.6GHz up to 4.2GHz(Turbo boost Technology) 4 Cores 4 Threads 6MB Smart Cache TDP 65W | ||
| Intel Core i5-9400F 2.9GHz up to 4.1GHz(Turbo boost Technology) 6 Cores 6 Threads 9MB Smart Cache TDP 65W | |||
| Intel Core i7-9700F 3.0GHz up to 4.7GHz(Turbo boost Technology) 8 Cores 8 Threads 12MB Smart Cache TDP 65W | |||
| Intel Core i9-9900T 2.1GHz up to 4.4GHz(Turbo boost Technology) 8 Cores 16 Threads 16MB Smart Cache TDP 65W | |||
| TDP | 65W | ||
| Motherboard | B360 all solid-state motherboard | ||
| Memory | 2 x SO-DIMM DDR4 SlotSupport 4GB/8GB/16GB/32GB/64GBDDR4-2666/3200MHz | ||
| OS | Windows 8/10/Sever2012/2016/Linux/Centos/Ubuntu | ||
| Network | 1* Gigabit RJ45 Lan Intel i211, 1* 10/100/1000 BaseT Ethernet Controller | ||
| Audio | ALC662 Chipset supports 6 audio channel | ||
| Graphic card | GTX1660S 6G/RTX2060S 8GB/RTX3050 8G | ||
| Storage: | |||
| M.2 | 1 x M.2 2280 PCIE3.0 / NVME SSD | ||
| SATA | 1x 2.5inch SATA SSD Or HDD support 6Gb/s. | ||
| Wi-Fi: | |||
| Module | 1 x Intel AX200 wifi6+Bluetooth5.2 Support 802.11A/B/G AC | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Bluetooth | 5.1 | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 19V DC In | ||
| Type-C | 1*TYPE-C | ||
| USB | 4*USB3.0 4*USB2.0 1*TYPE-C | ||
| Display | 1*HDMI2.0 Max support 4096*2160/60Hz 1 x DP 4096*2160/60Hz 1*DVI 1920*1080/60Hz | ||
| LAN | 1 x RJ45 Giga LAN | ||
| Audio | 3.5 Jack，1*MIC 1*SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +12V~+19V, recommend 19V/15.79A | ||
| Operating Temperature | -10 ~60°CCentigrade | ||
| Storage Temperature | -40~85°C (-40 ~185°F) C37 | ||
| Relative Humidity | 95% @ 40°C (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | PXE, Auto Power On, RTC, Wake On LAN | ||
| Size | 260*220*55MM | ||
| Weight | Net 2.2kg, Gross 2.5kg, Packing weigth 5kg | ||
| Shell | Black color Magnesium alloy | ||
| Cooling Mode | All-copper turbo fan | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xHDMI cable, 1xUser Manual | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| MT200 | I3-9100F | GTX1660S 6G RTX2060 6G RTX3050 8G | 3.6~4.20 GHz | 1 x DP/1 x HDMI/1 x DVI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 SSD/1 x 2.5 inch SATA | 1 | 8 | 19V/15.79A |
| MT200 | I5-9400F | GTX1660S 6G RTX2060 6G RTX3050 8G | 2.9~4.1 GHz | 1 x DP/1 x HDMI/1 x DVI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 SSD/1 x 2.5 inch SATA | 1 | 8 | 19V/15.79A |
| MT200 | I7-9700F | GTX1660S 6G RTX2060 6G RTX3050 8G | 3.0~4.7 GHz | 1 x DP/1 x HDMI/1 x DVI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 NVME SSD/1 x 2.5 inch SATA | 1 | 8 | 19V/15.79A |
| MT200 | I9-9900T | GTX1660S 6G RTX2060 6G RTX3050 8G | 2.1~4.4 GHz | 1 x DP/1 x HDMI/1 x DVI | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 NVME SSD/1 x 2.5 inch SATA | 1 | 8 | 19V/15.79A |
