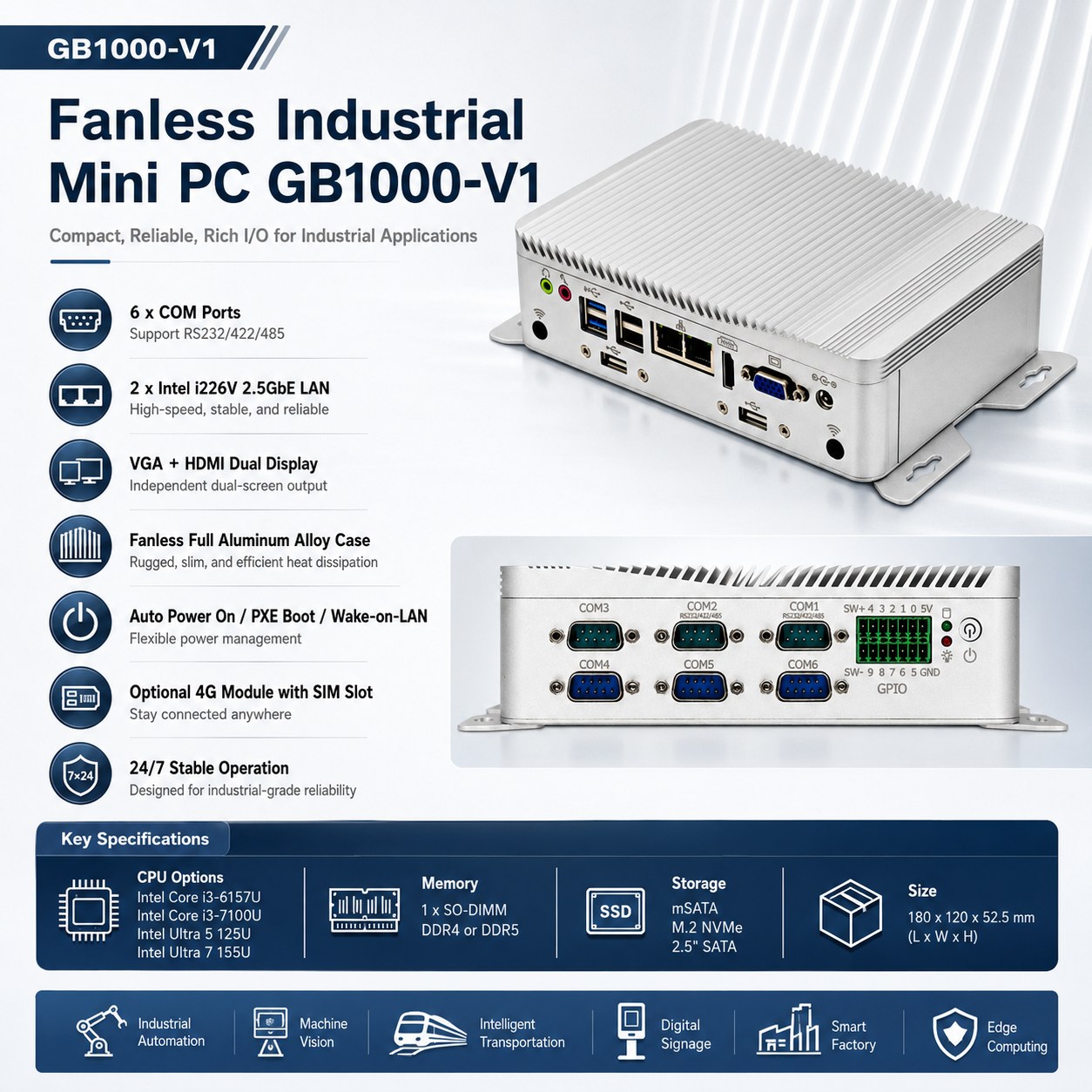

JIERUICC GB1000-V1 Fanless Industrial PC Dual Lan, 6 COM RS232 RS485 Support 4G LTE
Model name: GB1000-V1
Products Features
Fanless Rugged Design: 180×120×52.5mm compact chassis, 24/7 operation
Multi-Processor Support: Intel i3-6157U/i3-7100U/Ultra 5 125U/Ultra 7 155U CPUs

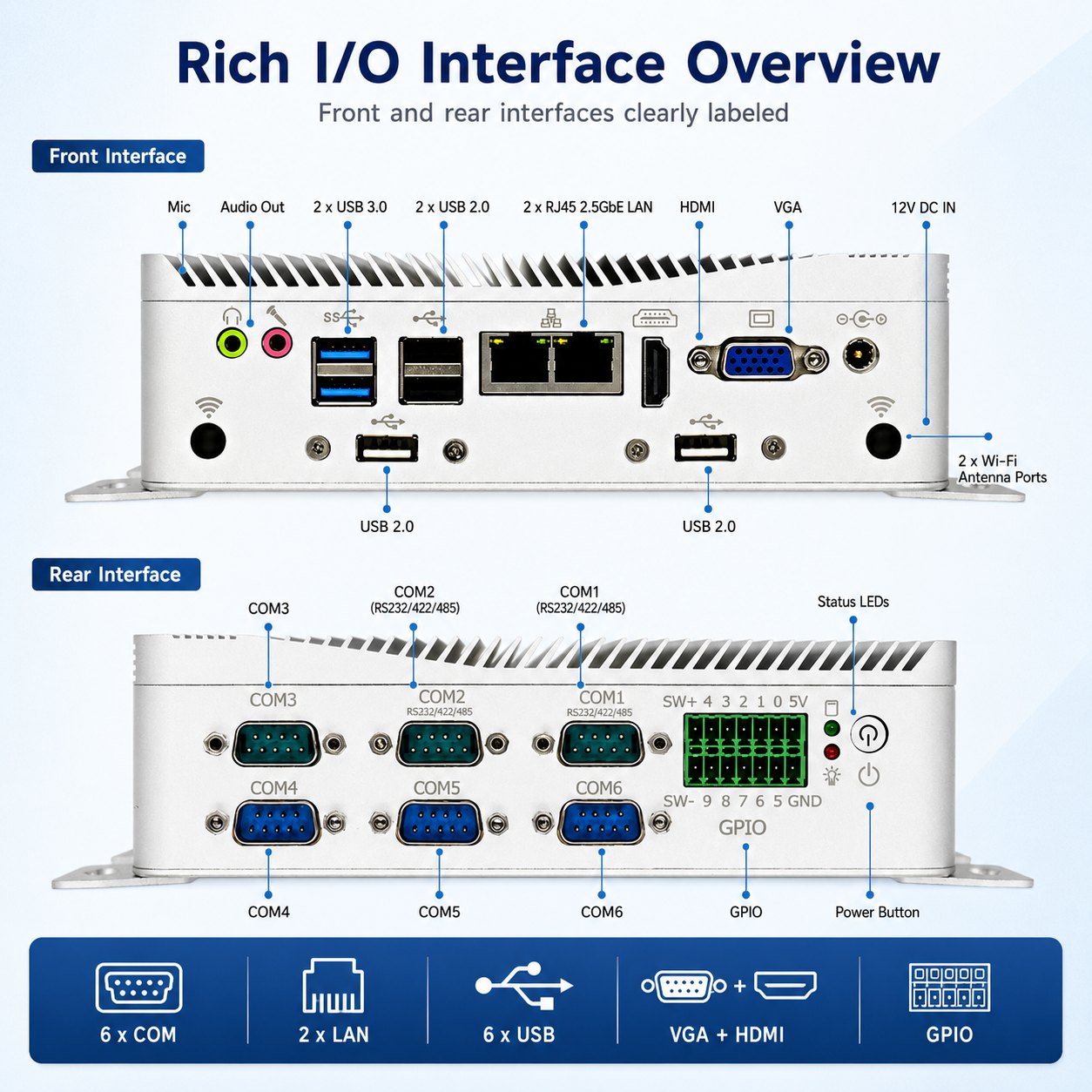

Industrial I/O: 6× COM ports (RS232/422/485 configurable), 4× USB 2.0, 2× USB 3.0
Dual 2.5GbE LAN: Intel® i226-V controllers + Embedded SIM slot for 3G/4G
Reliability Features: Watchdog, RTC, Auto Power-On, -10°C to 60°C operating range
Expansion Ready: GPIO, Trigger Switch, State Lamp, PXE Boot, VGA+HDMI dual sync display
Product Details
Specification
Ordering information
Product Details
Product Introduction
The GB1000-V1 is a compact fanless industrial mini PC designed for stable embedded computing in industrial and commercial environments. Built with a brushed full aluminum alloy enclosure, it provides efficient passive heat dissipation without a cooling fan, helping reduce dust buildup, noise, and maintenance needs.
This embedded box PC supports multiple CPU options, including Intel Core i3-6157U, Intel Core i3-7100U, Intel Core Ultra 5 125U, and Intel Core Ultra 7 155U. With 6 COM ports, dual Intel i226V 2.5GbE LAN, VGA + HDMI dual display, GPIO, optional Wi-Fi, and optional 4G module with SIM card slot, it is ideal for kiosk terminals, vending machines, POS systems, ATM terminals, industrial automation, and edge computing projects.

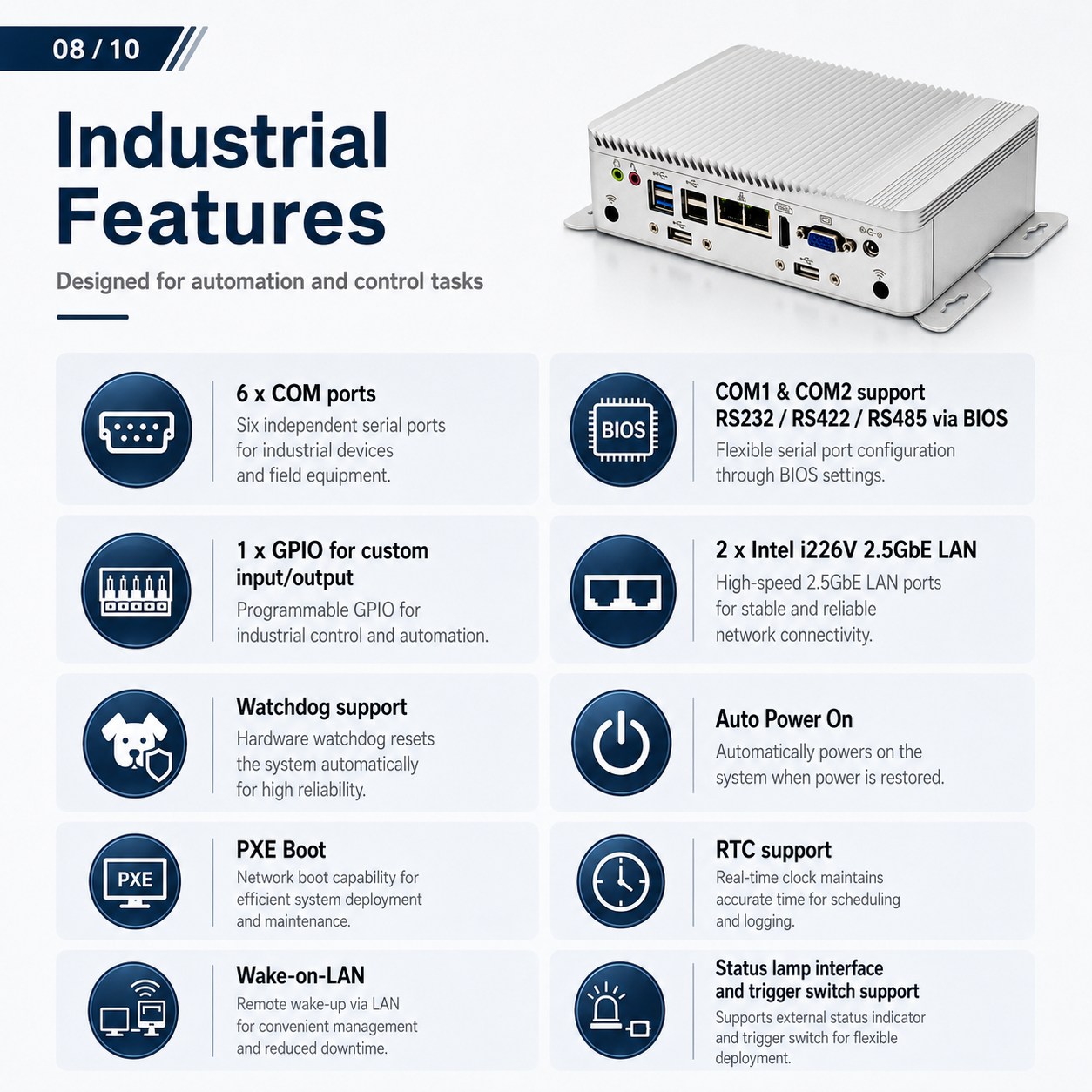

Product Features

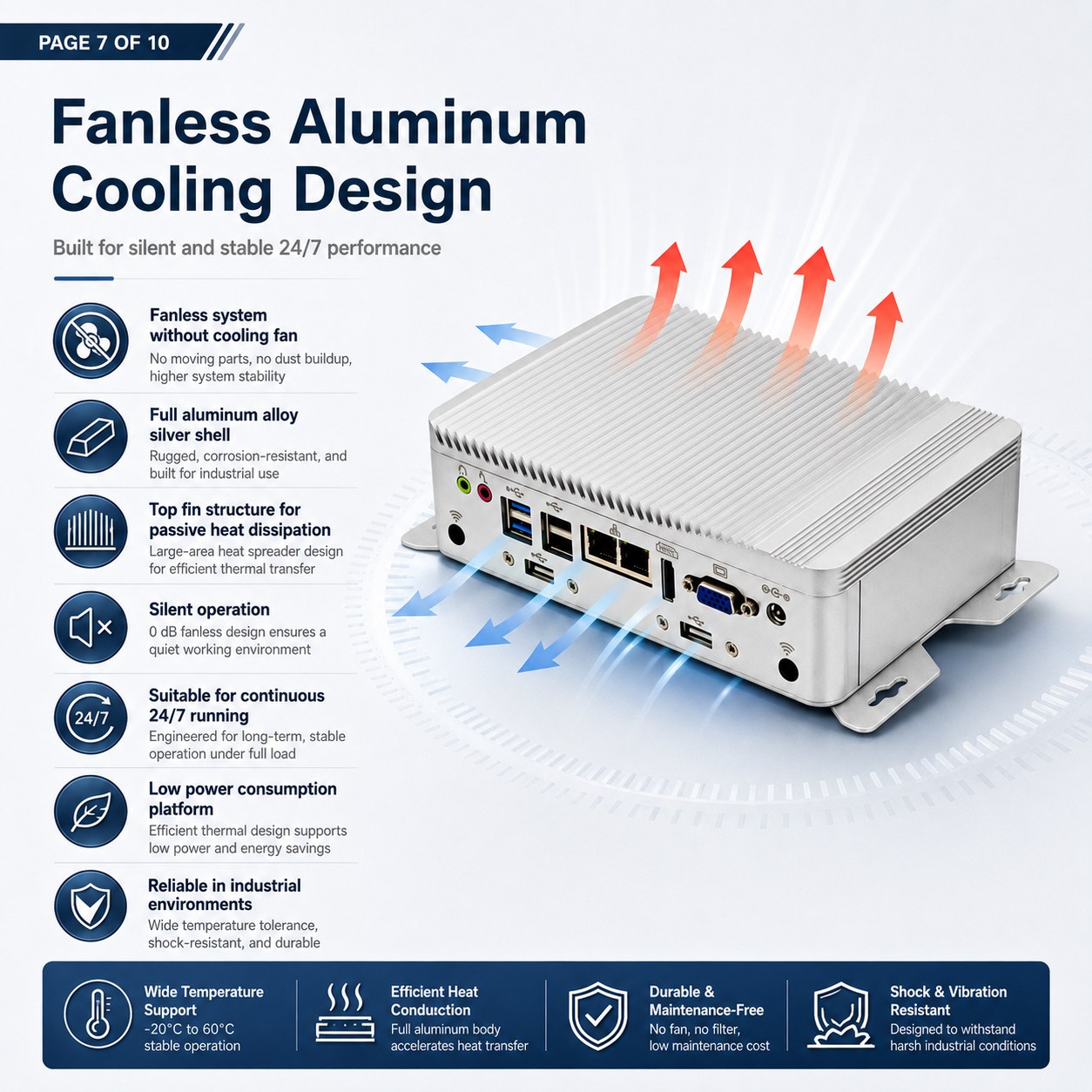

1. Fanless full aluminum alloy housing for silent operation and efficient heat dissipation
2. Multiple CPU options: Intel Core i3-6157U, i3-7100U, Ultra 5 125U and Ultra 7 155U
3. 6 x COM ports for serial device communication
4. COM1 and COM2 support RS232 / RS422 / RS485 configuration via BIOS
5. 2 x Intel i226V 2.5GbE RJ45 LAN ports for high-speed industrial networking

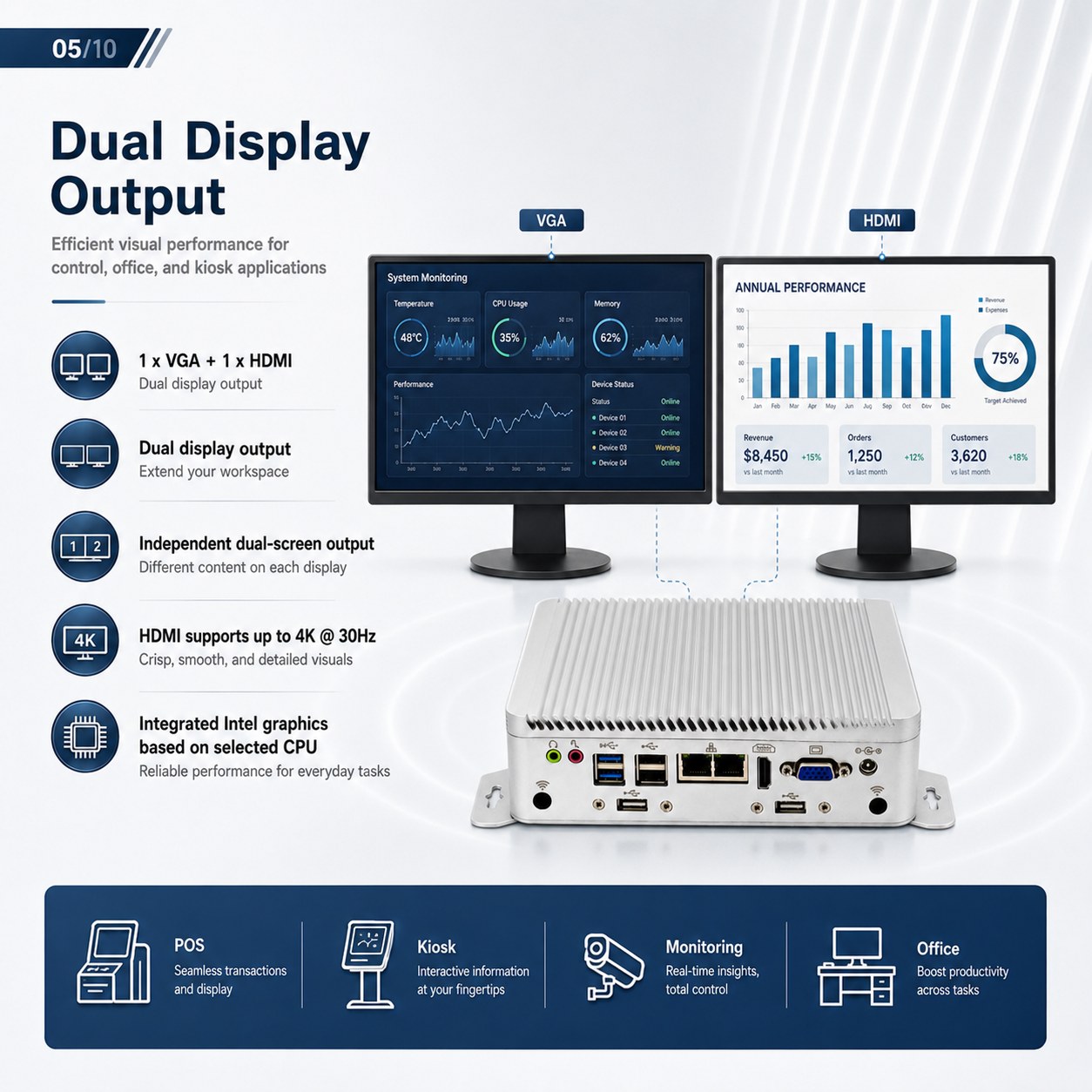

6. VGA + HDMI dual display output, with HDMI support up to 4K @ 30Hz
7. 4 x USB 2.0 and 2 x USB 3.0 for peripheral expansion
8. 1 x GPIO for custom input and output control
9. Optional Wi-Fi module and optional 4G module with embedded SIM card slot
10. Supports Watchdog, Auto Power On, RTC, PXE Boot, and Wake-on-LAN

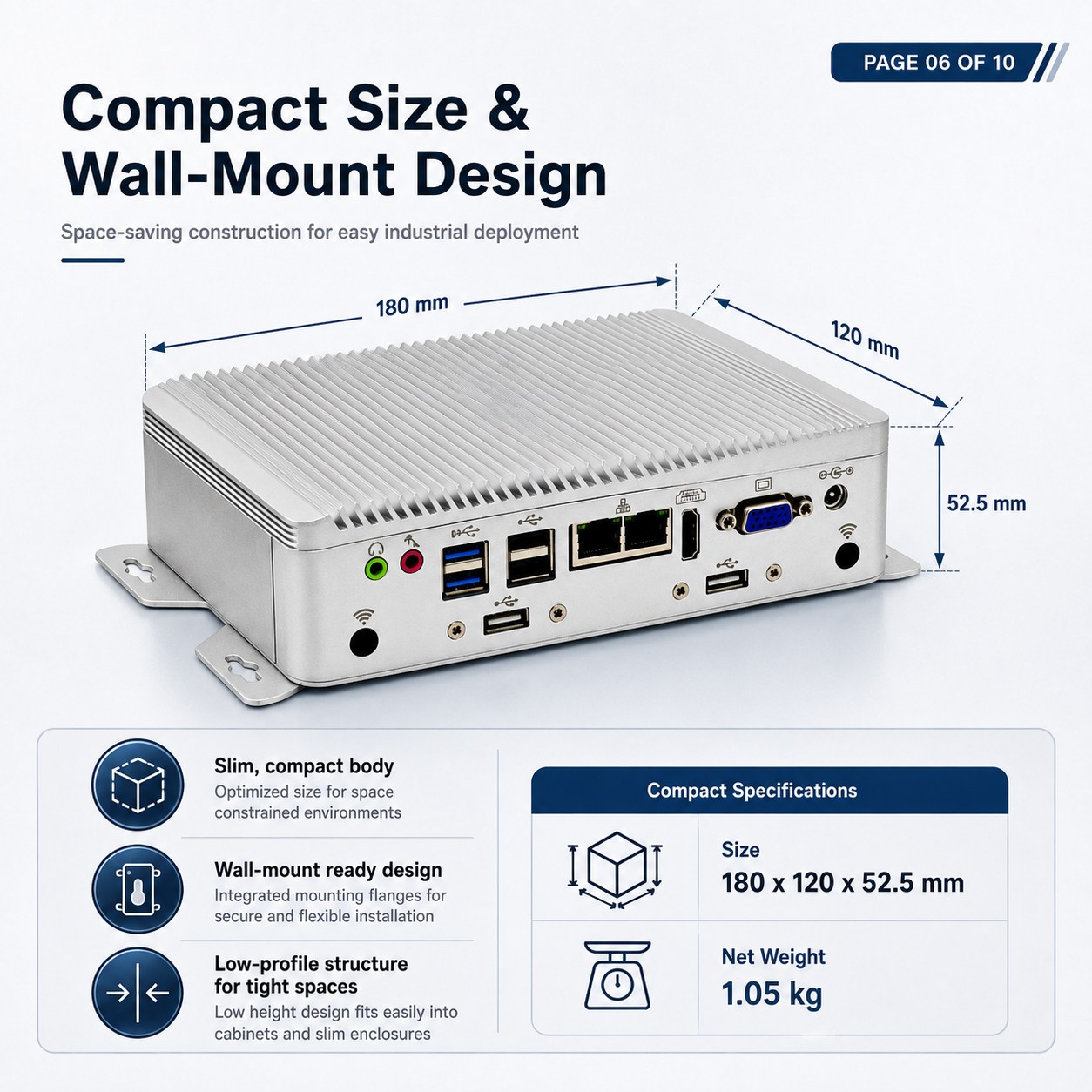

11. Compact 180 x 120 x 52.5 mm body with wall-mount ready design

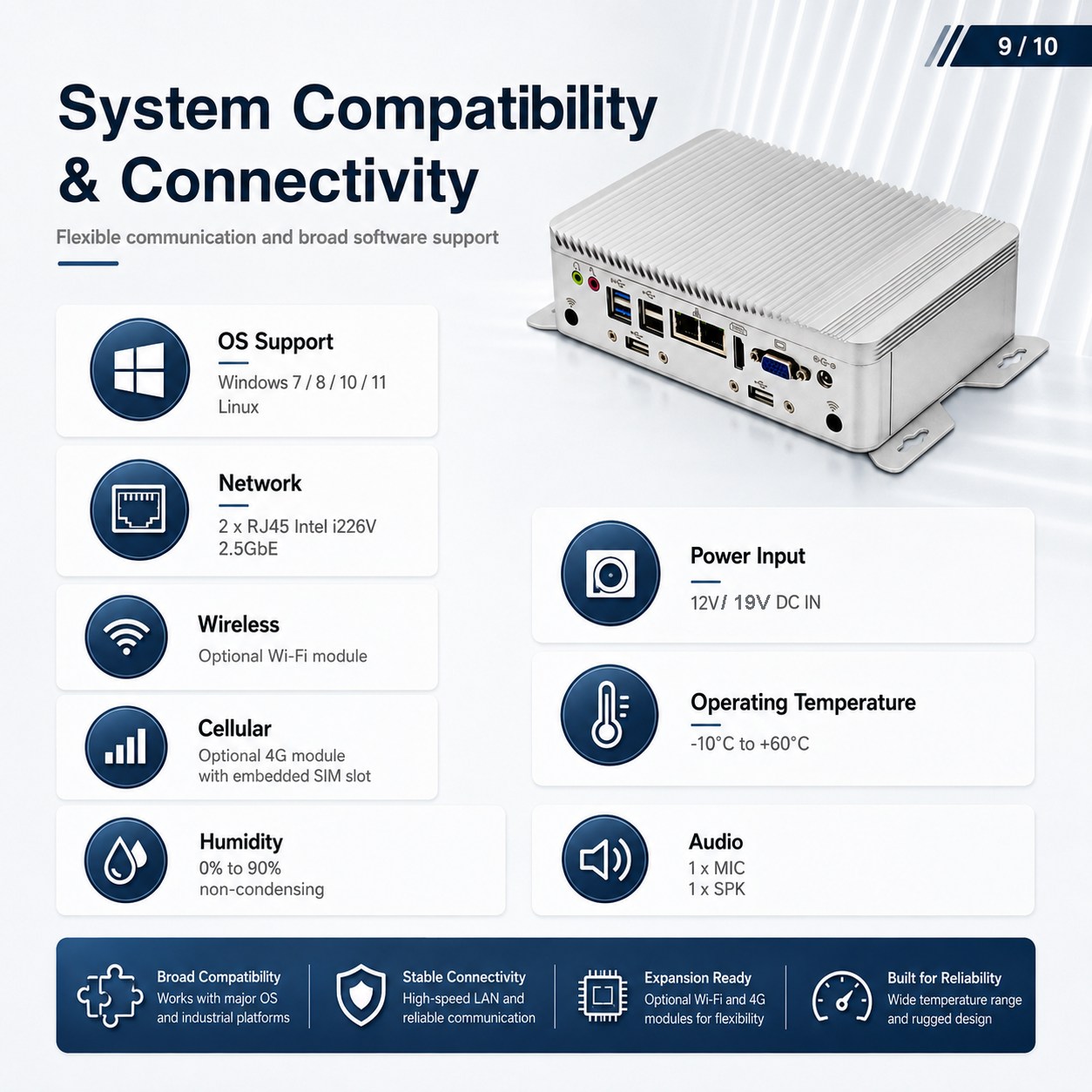

12. Supports Windows 7 / 8 / 10 / 11 and Linux
13. Designed for 24/7 industrial-grade operation
14. Operating temperature range: -10°C to +60°C
Product Applications
Terminal kiosk systems
Vending machines
POS systems
ATM terminals
Industrial automation control
Smart factory equipment
Edge computing gateways
Machine control systems
Self-service terminals
Digital signage and information display systems
Transportation and embedded control projects
Industrial IoT communication systems
Specification
| Basic Information: | |||
| CPU | Onboard Intel Core i3-6157U 2.4GHz Dual Core Four Threads Intel® Iris® Graphics 550 TDP 28W | ||
| Onboard Intel Core i3-7100U 2.4GHz Dual Core Four Threads Intel HD Graphics 620 TDP 15W | |||
| Intel Ultra 5 125U 1.3GHz up to 4.6GHz(Turbo boost Technology) 12 Core 14 Threads 12MB cache 15W TDP Intel® Graphics. | |||
| Intel Ultra 7 155U 1.7GHz up to 4.8GHz(Turbo boost Technology) 12 Core 14 Threads 12MB cache 15W TDP Intel® Graphics. | |||
| TDP | 6W-28W | ||
| Chipset | Intel SOC | ||
| BOIS | AMI BIOS, ACPI supported | ||

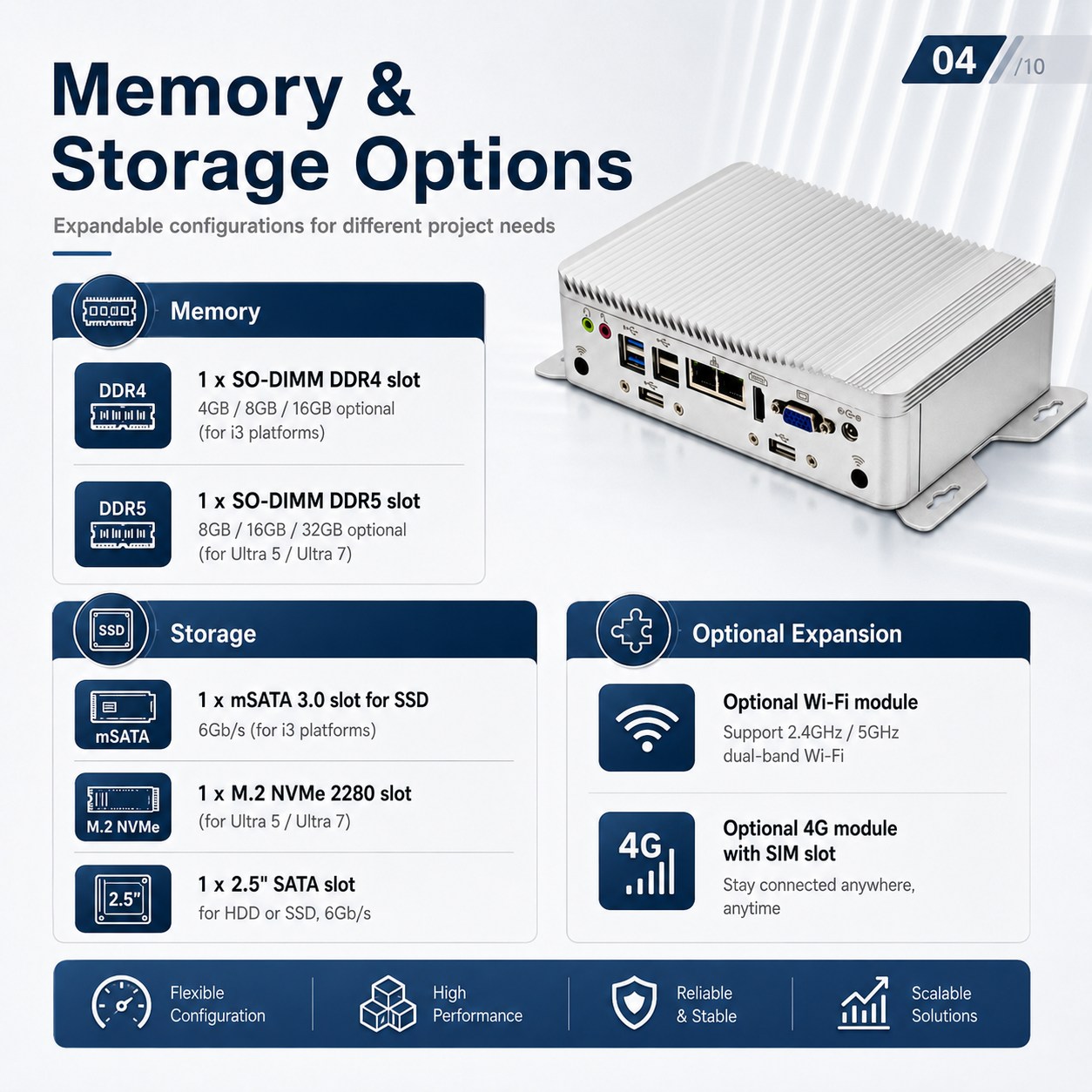

| Memory | 1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB optional (i3-6157U/i3-7100U) 1 x SO-DIMM DDR5 Slot Support 8GB/16GB/32GB optional (Ultra 5/7) | ||
| OS | Windows 7/8/ 10/11/ Linux | ||
| Audio | ALC662 chip Support 6 channels of sound | ||
| Network | 2 x RJ45 2.5GbE Intel i226V | ||
| Video | Refer to Above CPU | ||
| 4G | Full hight Minipcie 4G Module support. with SIM Card slot | ||
| Storage: | |||
| SATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s (i3-6157U/i3-7100U) | ||
| M.2 | 1 x M.2 NVME 2280 (Ultra 5/7 only) | ||
| 2.5inch SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi module(I3 only) / M.2 KEY-E x 1 (For N100) | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 2 x LED | ||
| USB | 4 x USB2.0, 2 x USB3.0 | ||
| Display | 1 x VGA, 1 x HDMI support 4K@30Hz | ||
| GPIO | 1 x GPIO（Custom Input and Output） | ||
| COM | 6 x COM, COM1 COM2 can change to RS232/RS422/RS485 from BIOS | ||
| LAN | 2 x 2.5GbE RJ45 Intel i226V | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +12V~+19V | ||
| Operating Temperature | -10/+60 Centigrade | ||
| Storage Temperature | -20/+ 70 Centigrade | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Watchdog, Auto power on, RTC, State lamp interface, Trigger switch(wafer 1*2) | ||
| Size | 180*120*52.5mm | ||
| Weight | Net 1.05kg, Gross 2.5kg | ||
| Shell | Silver color aluminum alloy(any customized color for bulk order) | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | COM | USB | Power |
| GB1000-V1 | i3-6157U | Intel Iris Graphics 550 | 2.4GHz | 28W | 1 x VGA / 1 x HDMI | 1 x SO-DIMM DDR4 up to 32GB | 1 x M-SATA 1 x 2.5inch SATA | 2 | 6 | 2 x USB3.0 4 x USB2.0 | 12V/5A |
| GB1000-V1 | i3-7100U | Intel HD Graphics 620 | 2.4GHz | 15W | 1 x VGA / 1 x HDMI | 1 x SO-DIMM DDR4 up to 32GB | 1 x M-SATA 1 x 2.5inch SATA | 2 | 6 | 2 x USB3.0 4 x USB2.0 | 12V/5A |
| GB1000-V1 | Ultra 5 125U | Intel® Graphics | 1.3Ghz up to 4.6GHz | 15W | 1 x VGA / 1 x HDMI | 1 x SO-DIMM DDR5 up to 32GB | 1 x M.2 2280 Nvme 1 x 2.5inch SATA | 2 | 6 | 2 x USB3.0 4 x USB2.0 | 19V-4.74A |
| GB1000-V1 | Ultra 7 155U | Intel® Graphics | 1.7Ghz up to 4.8GHz | 15W | 1 x VGA / 1 x HDMI | 1 x SO-DIMM DDR5 up to 32GB | 1 x M.2 2280 Nvme 1 x 2.5inch SATA | 2 | 6 | 2 x USB3.0 4 x USB2.0 | 19V-4.74A |
