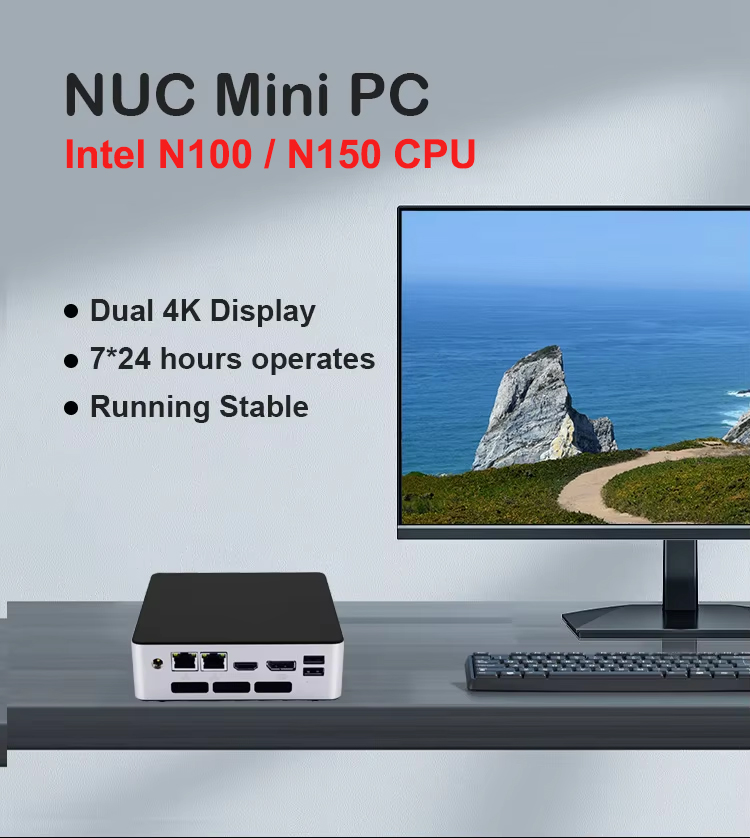

Small Mini PC N100 N150 For Office/Home/Digital signage
Model name: GT900-N100/N150
Products Features
– 2 x SO-DIMM DDR5 memory slots up to 64GB.
– 2x M.22280 NVME + 2 x GbE RJ45 Realtek 8111H
– Support three Display: HDMI2.0 + DP 1.4 + USB Type-C 3 display output synchronously.
– With a silent copper cooling fan, it works as long as 24 hours.
– Compact design: 130mm * 125mm *42mm
– Support PXE, Auto Power On, RTC, Wake On LAN
Product Details
Specification
Ordering information
Product Details
Small mini pc N100 N150 for office/HTPC/digital signage
Key features
CPU: Intel Alder Lake Gen12 N100 3.4GHz Quad Core Four Threads, Cache 6MB /Intel Twin Lake N150 4 cores 4 threads up to 3.60GHz 6MB Cache TDP 6W
RAM: DDR5 RAM up to 64GB | PCIe 3.0 NVMe x2
Triple Display: DP1.4 + HDMI2.0 + USB-C Alt Mode 8K@60Hz HDR Ready
SSD: 2x M.2 2280 slots (NVMe/SATA)

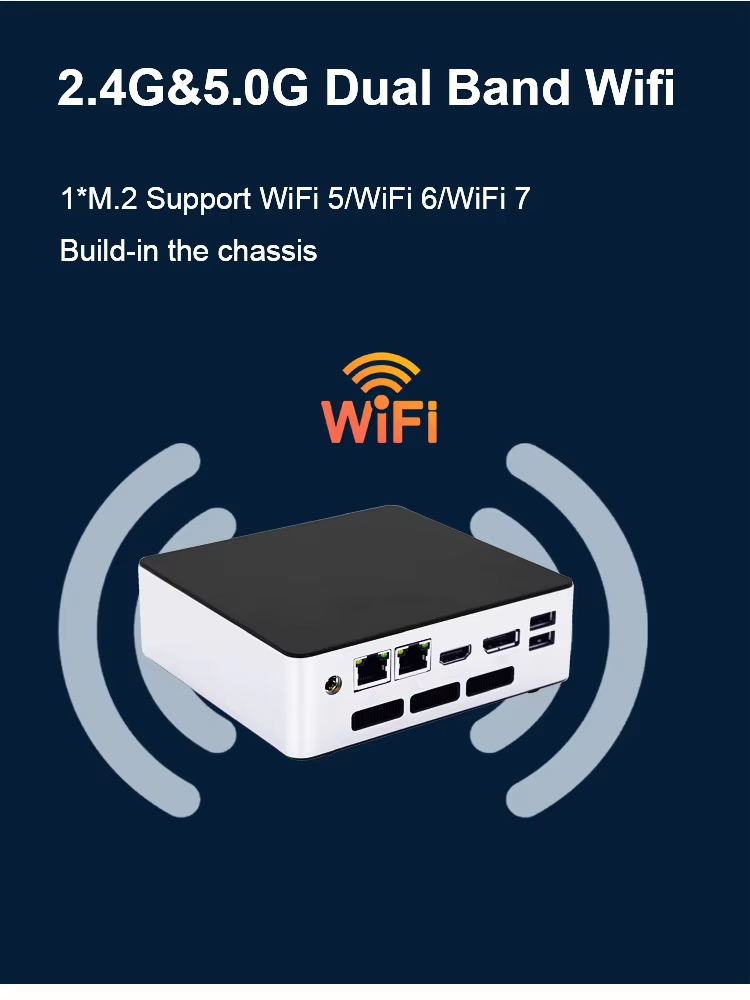

WIFI: WiFi 6 & Bluetooth 5.2 pre-installed
LAN: Dual 2.5G LAN ports (Realtek RTL8111H)
USB Port: 6x USB ports (4x USB 3.2 Gen2 + 2x USB 2.0)
Home Office Master
Simultaneously drives three screens: financial software + video conferencing, + stock quotes
Hardware-level data encryption ensures remote office security
Creative Studio
4K video editing + color correction screen + material library management multi-tasking
Thunderbolt 4 external graphics dock expansion capability
Entertainment Hub
HDR streaming + game live broadcast + smart home control center
Education
For multimedia teaching
Specification
| Basic Information: | ||||
| CPU | Intel Alder Lake Gen12 N100 3.4GHz Quad Core Four Threads,Cache 6MB | |||
| Intel Twin Lake N150 4 cores 4 threads up to 3.60GHz 6MB Cache TDP 6W | ||||
| TDP | Refer to the above CPU | |||
| Graphics Card | Core graphics card, Intel Iris graphics | |||
| Display Port | 1*HD+1*DP+1*Type-C display | |||
| Memory | 2 x SO-DIMM DDR5 Slot, up to 64GBDDR5 4800MHz/ 5600MHz | |||
| OS | Windows 10/11/Linux/Pfsense | |||
| Network | 2 x Realtek RTL8111H Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN | |||
| Audio | CJC6811A sound card | |||
| Wi-Fi: | ||||
| Module | 2*RTL8168/8111/8112G/H gigabit network card 1*M.2 WiFi interface, Support 2.4G/5G WIFI communication | |||
| Input/output port： | ||||
| Switch | 1 x Power On/Off Switch | |||
| Power | 1×DC（55*25) 12-19V | |||
| USB | 3 x USB3.2, 2 x USB2.0 | |||
| Display | 1*HDMI2.0+1*DP+1.4*Type-C display | |||
| LAN | 2 x GbE RJ45 Realtek 8111H | |||
| Type-c | 1 x Type-C(display) | |||
| Audio | 1 x MIC, 1 x SPK | |||
| Storage: | ||||
| M.2 | 1*NVME M.2 SSD interface 1*NVME M.2 compatible SATA M.2 SSD interface | |||
| Power and Working Environment: | ||||
| Input | DC100-240V AC/50-60Hz | |||
| Output | DC +12V~+19V, recommend 19V 4.74A | |||
| Operating Temperature | -10/+60 Centigrade | |||
| Storage Temperature | -30/+70 Centigrade | |||
| Relative Humidity | 5%~95% @30°C(non-condensing) | |||
| Product Dimension & Details: | ||||
| Size | Mini PC: 130mm * 125mm *42mm / Packing size: 30*20*12CM | |||
| Weight | Netweight:0.64 kg / GW：1.5KG | |||
| Shell | Aluminum alloy chassis with plastic cover | |||
| Cooling Mode | All-copper turbo fan | |||
| Plugs Type | US/JP/AU/UK/EU | |||
| BIOS | Supports power-on/network wake-up/diskless startup | |||
| Package Content： | ||||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | |||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | USB | Power |
| GT900 | N100 | Intel® UHD Graphics | UP to 3.4GHz | 6W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 NVMe | 2 | 3*USB3.2 2*USB2.0 | 12V 3A |
| GT900 | N150 | Intel® UHD Graphics | UP to 3.6GHz | 6W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 NVMe | 2 | 3*USB3.2 2*USB2.0 | 12V 3A |
