GC3000-V1 adopts a high-strength aluminum fin heat dissipation shell and precision sheet metal box structure for stable performance and strong impact resistance.

Modular industrial design with H610 chipset and Intel’s 12th generation Alder Lake-S series independent CPU, supporting multi-tasking and high-load computing.

Rich I/O expansions make it widely applicable in fields like industrial automation, machine vision, power communication, rail transit, edge computing, and smart healthcare.

Technical Specifications

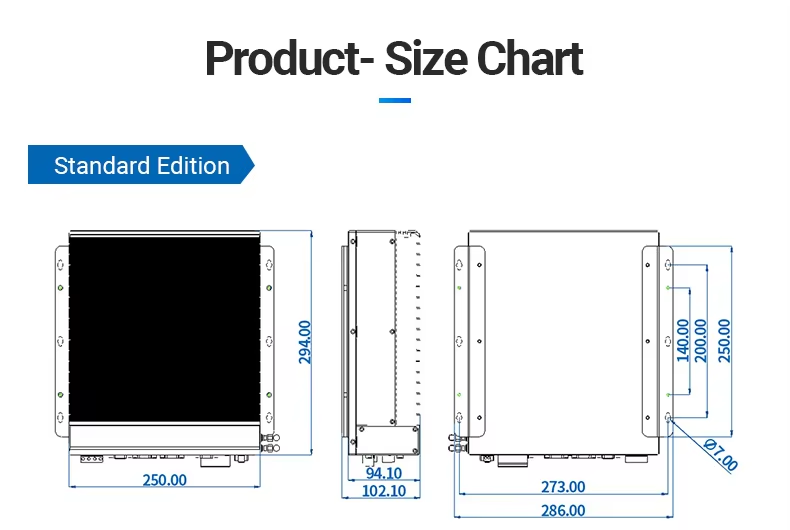

Dimensions: 250mm (W) x 274mm (D) x 102mm (H)

Processing Platform:
– Features a discrete CPU socket compatible with Intel® 12th, 13th, and 14th Gen Core™ i3/i5/i7/i9 processors.
– Built on the Intel® H610 chipset platform.

Memory: Equipped with 16GB DDR5 RAM (expandable), utilizing dual-channel architecture via two 262-pin SODIMM slots supporting speeds up to 4800MHz. Maximum capacity is 64GB.

Storage & Expansion:
– Internal storage options include two 2.5″ SATA3 bays and one mSATA slot.

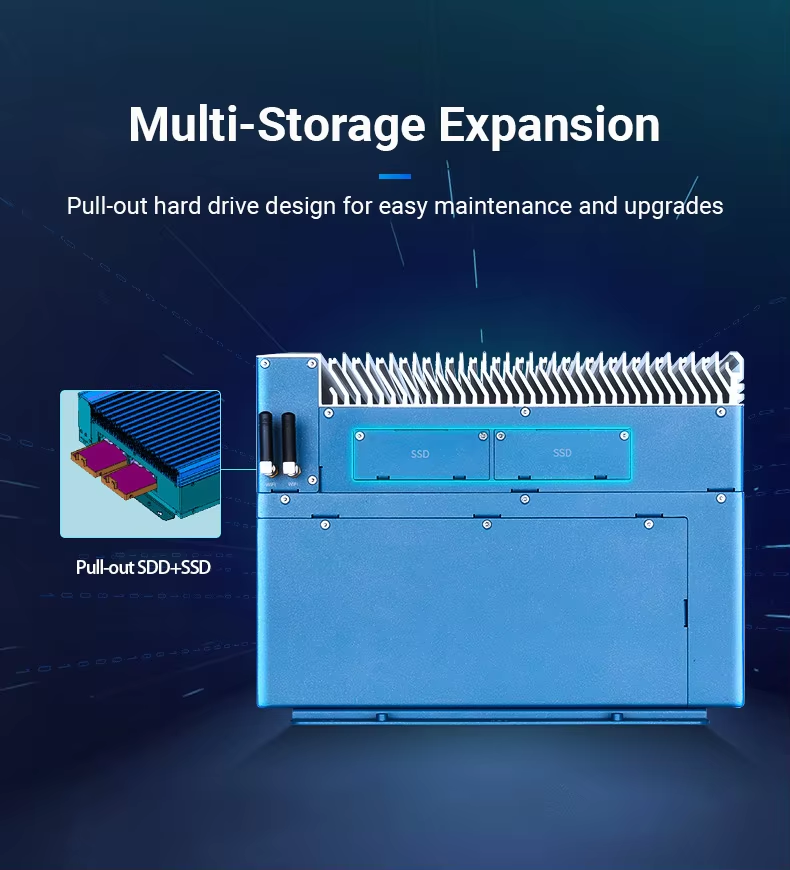

– Designed with a tool-less, removable drive tray for simplified maintenance, storage upgrades, and expansion.

Connectivity & I/O:

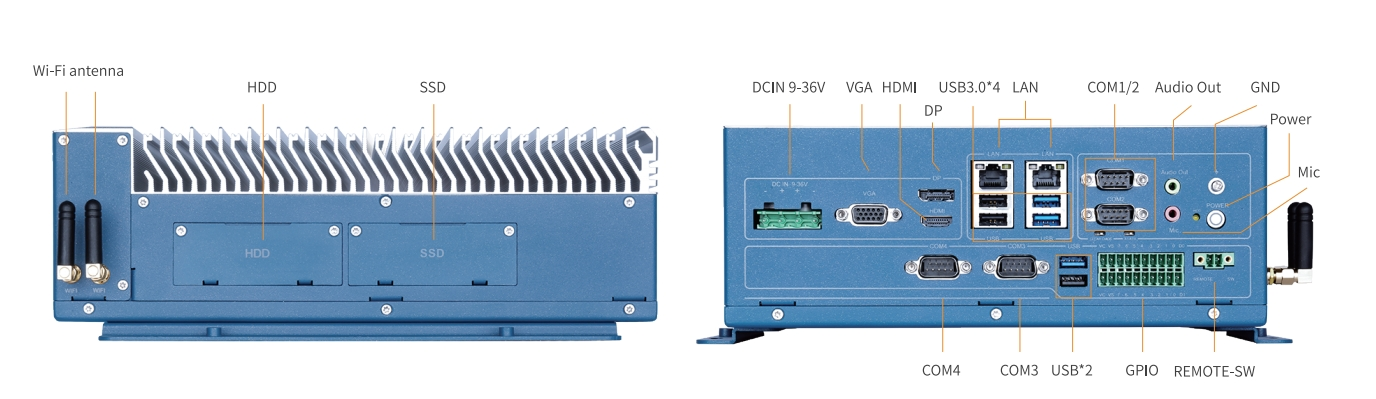

– Comprehensive I/O panel: 6x USB ports, 4x COM (serial) ports, and 16-bit isolated GPIO.
– Optional 4G or 5G cellular modem for mobile network connectivity.

Display Capabilities: Supports advanced multi-display setups with independent output to three screens, including combinations of 8K and 4K resolution. Video outputs consist of 1x DisplayPort, 1x HDMI, and 1x VGA.

Operating System: Supports Windows 10/11. Compatible with various Linux distributions (e.g., Ubuntu, Red Hat, Debian).

Design: Modular industrial architecture facilitating easy customization and future upgrades.
