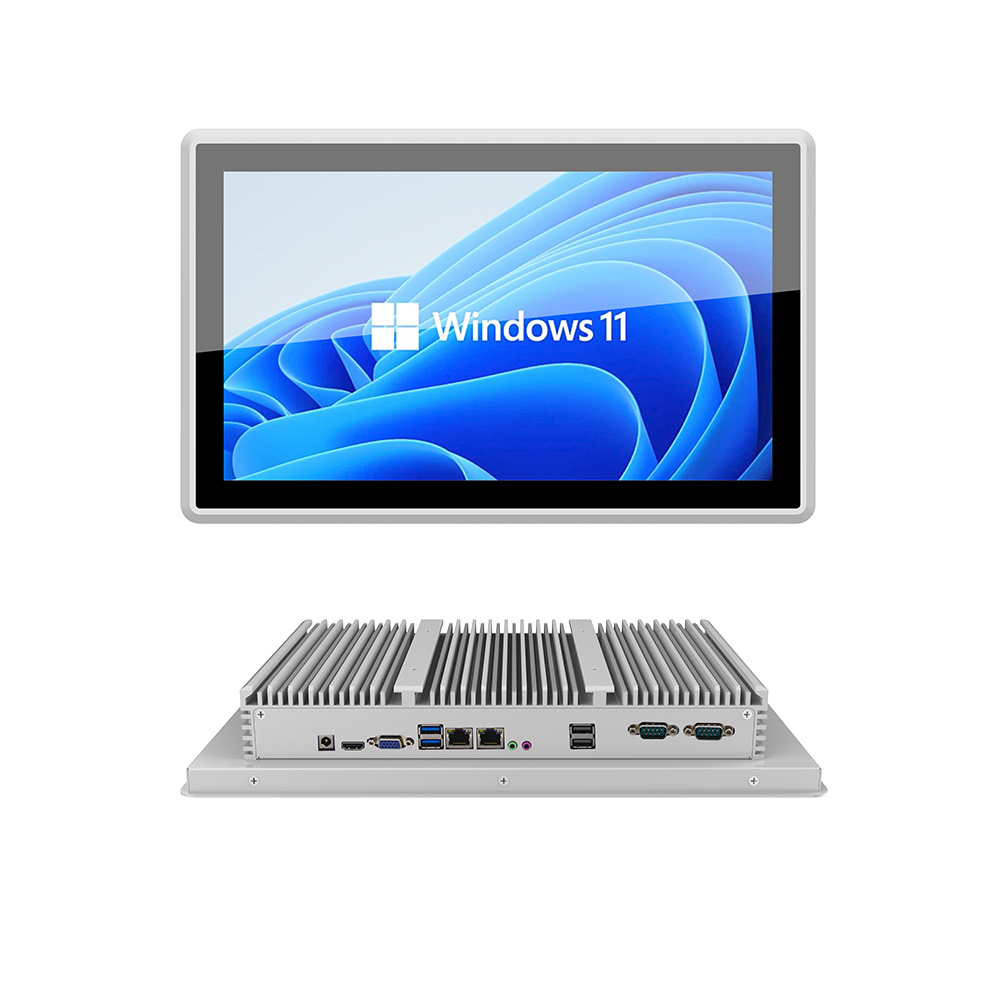

13.3″ IP65 Industrial Touch Panel PC | Fanless Intel Celeron N100
13.3″ 1920×1080 HD PCAP capacitive touchscreen
100% fanless passive cooling, all-aluminum enclosure
Intel Celeron J6412 / N100 / Core i3/i5/i7 CPU options
Front IP65 dust & water resistant
Optional 9-36V wide DC power input
Dual LAN + USB + COM + HDMI + VGA ports
Supports Windows 11 & Linux operating systems
Designed for 24/7 continuous industrial operation
Product Details
Specification
Ordering information
Product Details

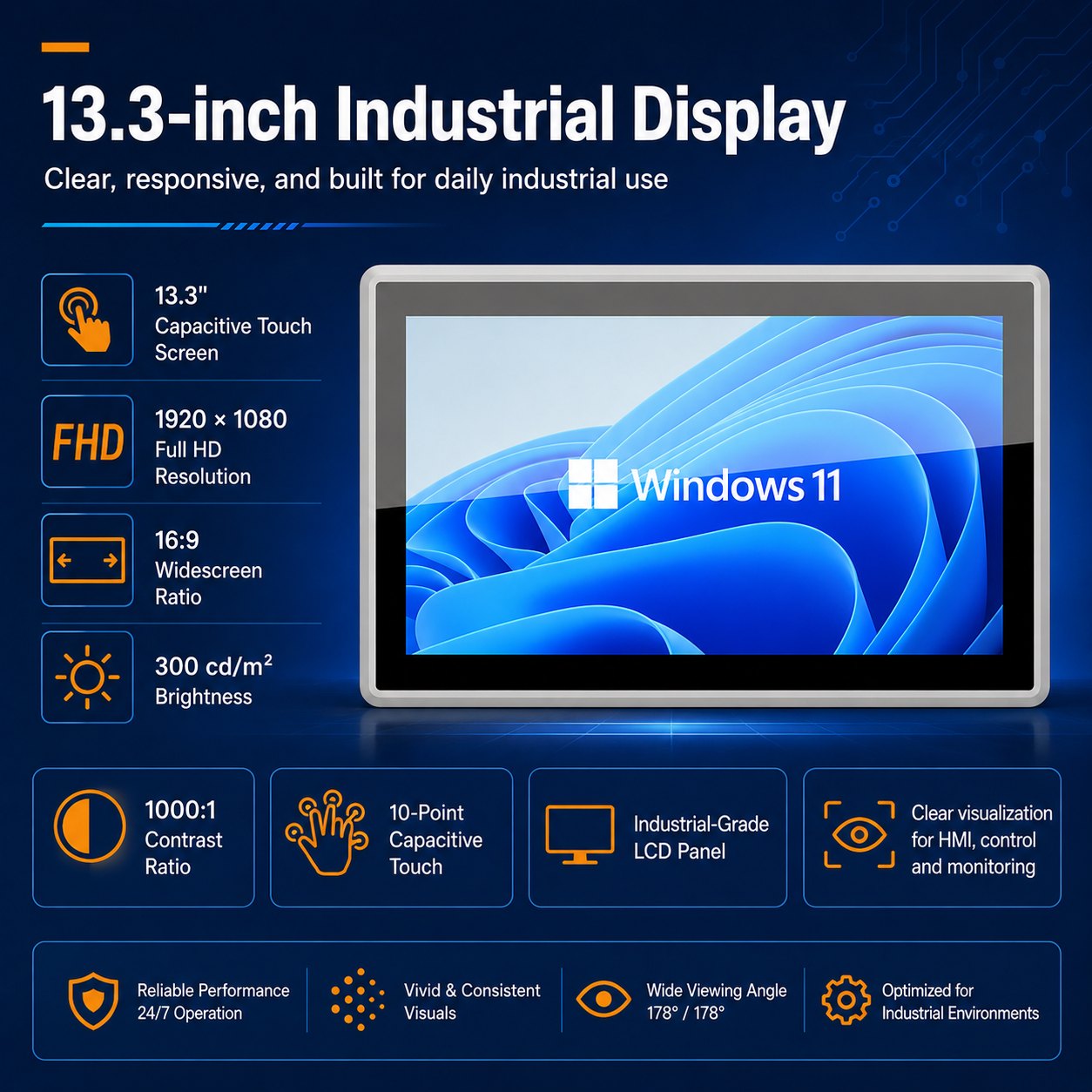

Built with industrial-grade components, the GTY-133T features a 13.3-inch 1920×1080 capacitive touch screen with 300 cd/m² brightness and over 50000 hours of backlight life.
It supports a wide range of Intel processors, including Celeron J1900/J6412/N100 and multi-generation Core i3/i5/i7, delivering reliable computing power for data processing and real-time monitoring.
This fanless industrial panel PC offers flexible configuration options to meet diverse application needs. It supports DDR3L/DDR4 memory up to 64GB and upgradable SSD storage from 64GB to 1TB,
along with optional WiFi, Bluetooth, 4G and 5G modules via Mini PCIe/M.2 slots. It is fully compatible with Windows XP/7/10/11 and Linux operating systems for versatile software deployment.
Widely applied across key industries, the GTY-133T serves as a professional human-machine interface and control terminal for manufacturing, food and beverage, chemical processing, pharmaceuticals, logistics, and intelligent infrastructure.
Specification
| System Configuration | |
| processor | Celeron J1900/J6412/N100 Processors |
| 3th /4th /5th/6th/7th/8th/10th/11th/12th/13th Gen Intel Core i3/i5/i7 Processors | |
| operating system | Windows XP/ 7/10/11, Linux support |
| Memory capacity | DDR3L / DDR4 SODIMM memory slots, supporting 4-64 GB optional. RAM type is Depands on CPUs |
| Hard drive support | 64 G SSD ( upgradeable to 128GB/ 256GB/512GB/1TB , 2.5-inch hard drive can be added separately) |
| graphics card | Intel @ HD Graphics core graphics card |
| WiFi function | Built-in WiFi and Bluetooth module (Optional module) |
| Extend | 1 Mini PCIe / M.2 slot, supporting WIFI , Bluetooth, 4G , 5G (optional module) |
| network | 2* Gigabit Ethernet, supports Wake-on-LAN and PXE functionality . |
| Power characteristics | DC 12V (supports 9-36V wide voltage customization) , power consumption 30-100W |
| Screen size | 13.3 ” capacitive touch screen, 16 : 9 wide, 300 cd /m² (1000:1) Size can be customized |
| resolution | 1920×1080 |
| Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
| Structural parameters | |

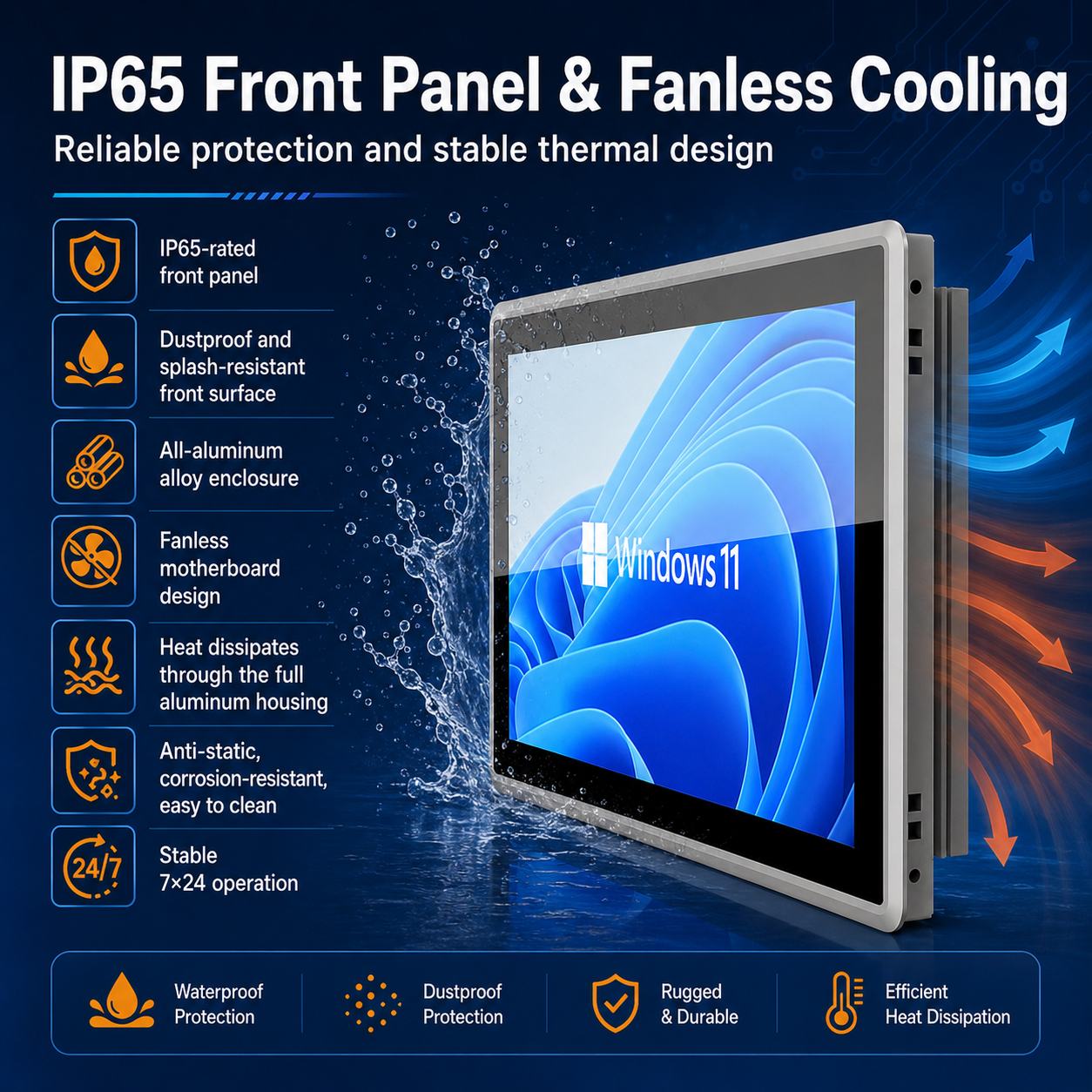

| Box material | IP 65 rated aluminum alloy panel, all-aluminum fanless design. |

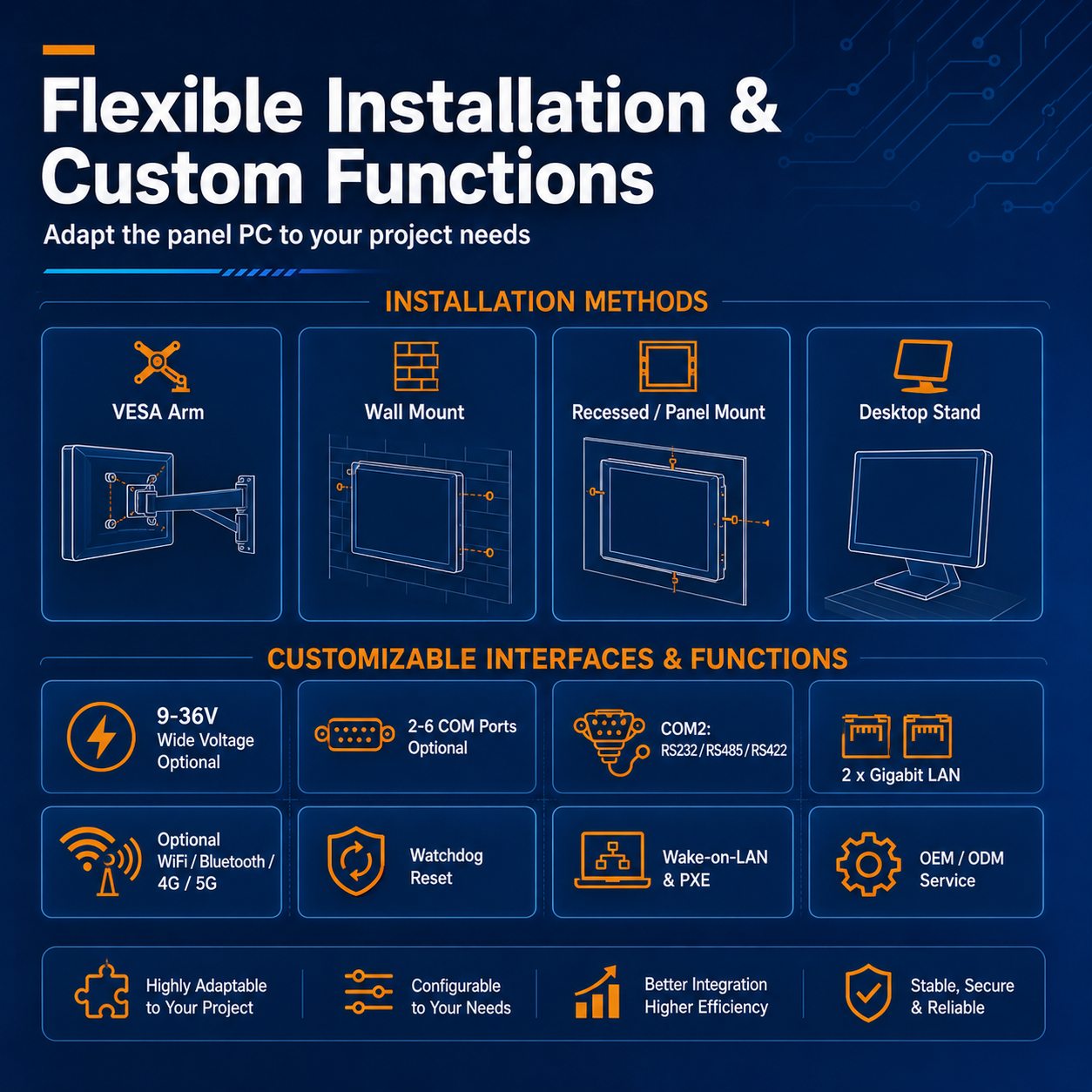

| Installation method | Supports VESA cantilever, wall- mounted, recessed , and desktop stand types. |

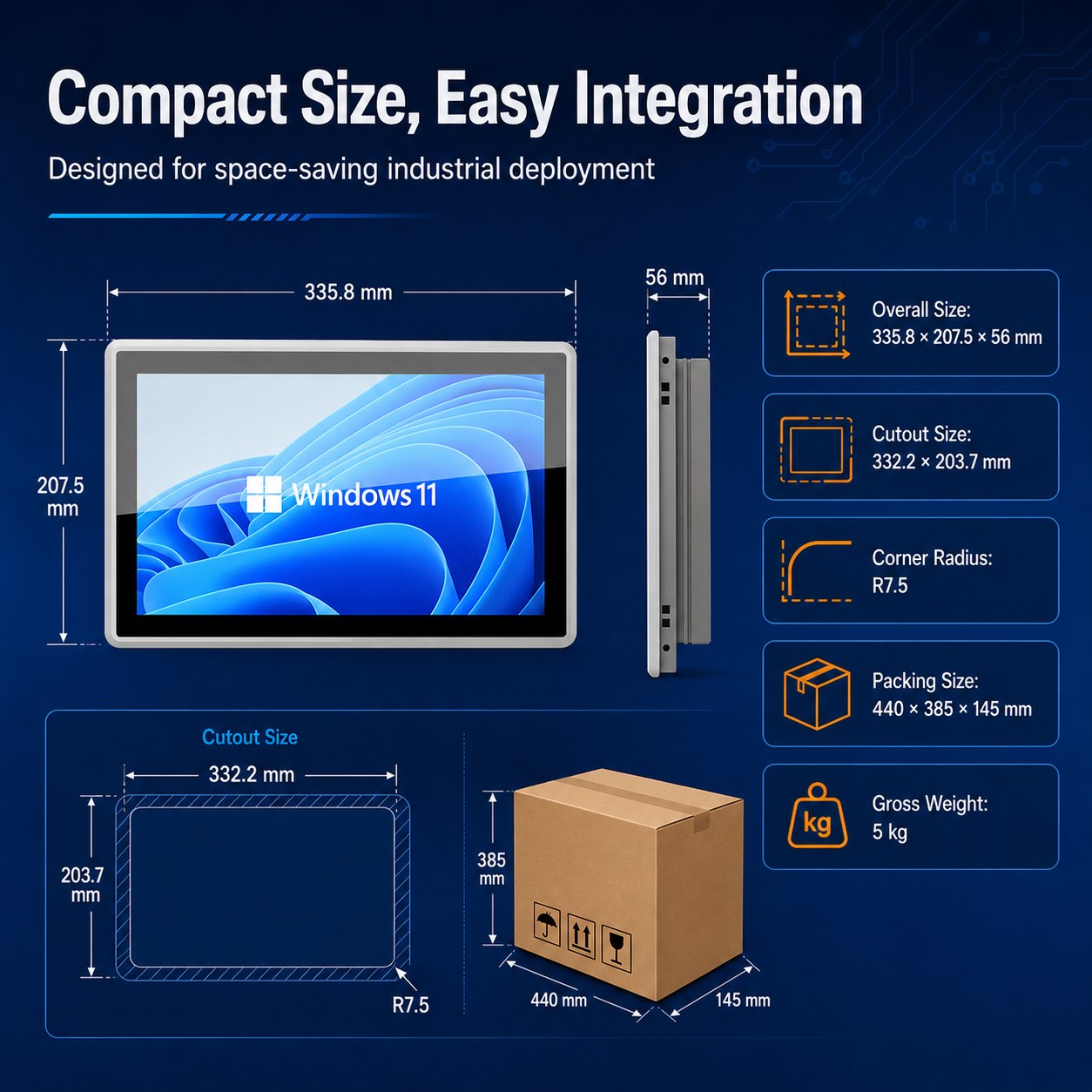

| Overall dimensions | 335.8mm*207.5mm*56mm |
| Opening size | 332.2mm*203.7mm R7.5 |
| Packaging size | 440*385*145mm |
| Backlight | More than 50000H |
| Product weight | gross weight:5 kg |
| Product Color | silver |
| Ambient temperature | Operating temperature: -10℃~60℃ |
| Storage temperature: -20℃~70 ℃ | |
| relative humidity | 5%-95% relative humidity, non-condensing |

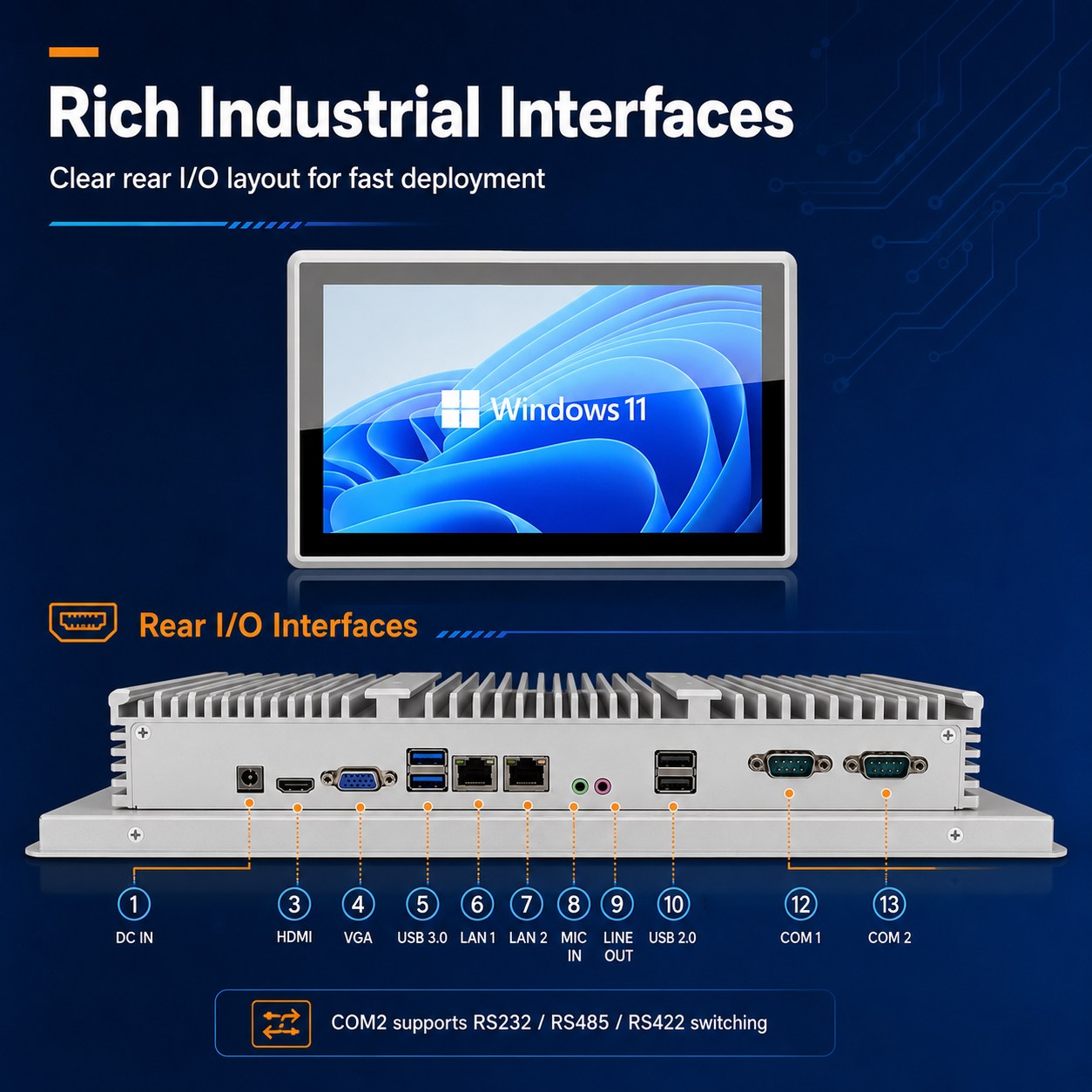

| Interface parameters | |
| POWER | 1* Power switch |
| Display Interface | 1 VGA, 1 HDMI |
| LAN | 2 * Gigabit Ethernet, supporting Wake-on-LAN and PXE functionality . |
| USB | 2 USB 2.0 ports, 2 USB 3.0 ports ( the number of USB 3.0 ports varies depending on the platform) |
| COM | 2-6* RS232 serial interface, COM2 supports RS232/RS485 switching. |
| audio | 1* Line out interface, 1* MIC interface |
| power supply | 1* DC power interface, supports 12V power input |
| Heat dissipation | Fanless aluminum block heat sink |
| Quality Inspection | Material intake, assembly, aging, and multiple inspections(Resistant to earthquakes, shockproof, and anti-drop) |
| Certification | RoHS, CE, FCC , CCC |
| warranty | One-year warranty for the whole machine |
