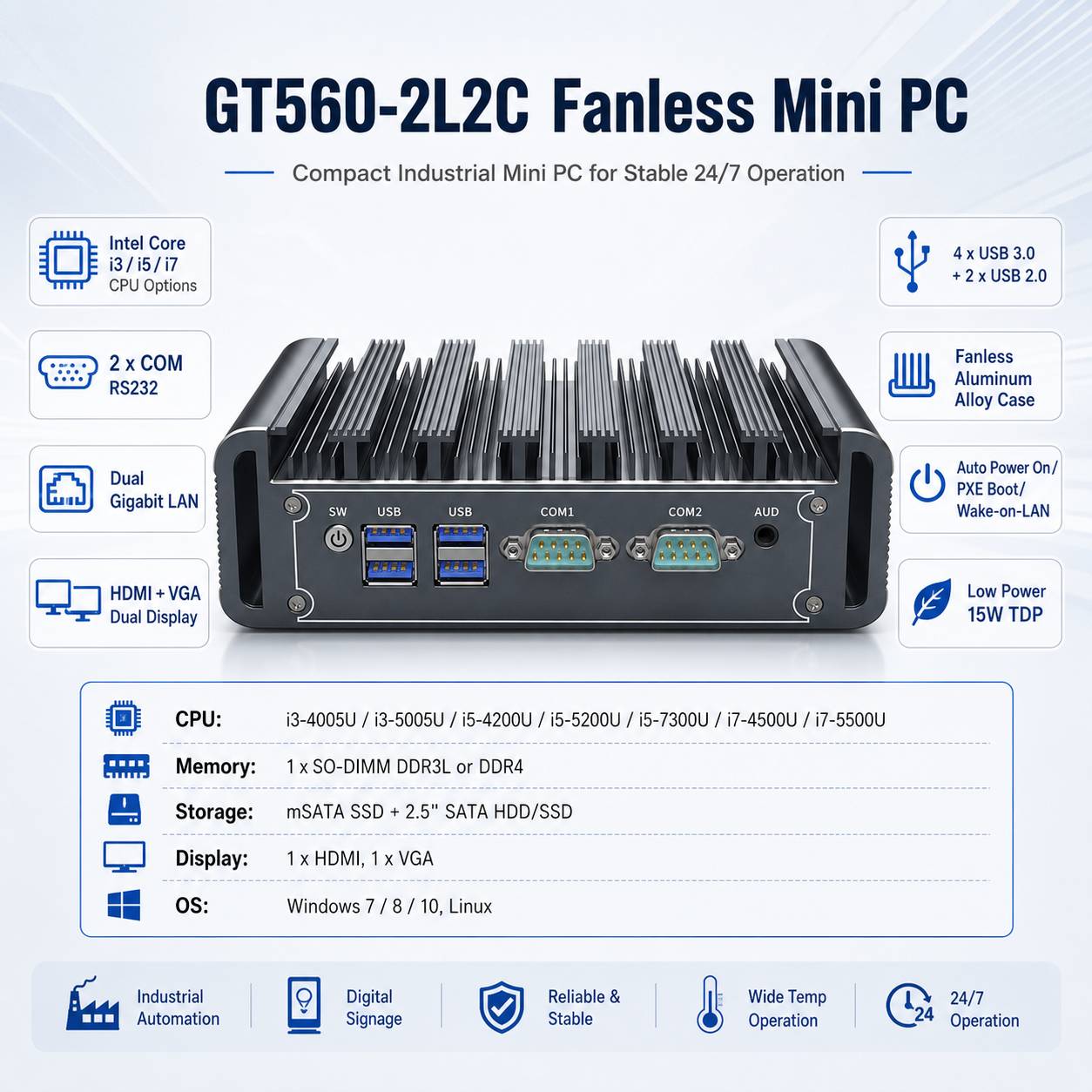

Fanless Mini Industrial PC | 2COM Dual Gigabit LAN | 24/7 Stable Operation
Model name: GT560-2L2C
Products Features
– Full aluminum slim shell, compact size 177*127*54MM, multiple color options

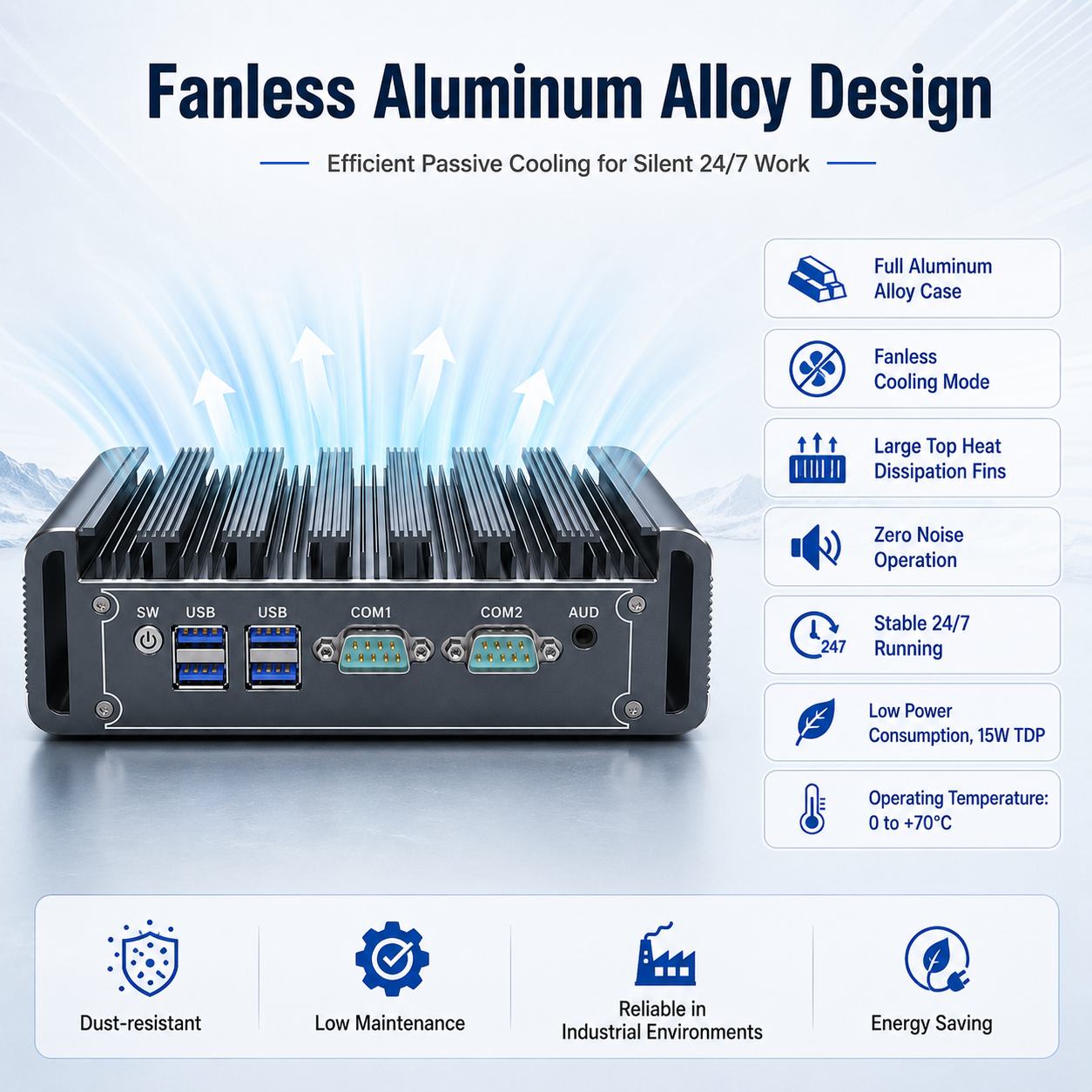

– Fanless heat dissipation, zero noise, 24/7 long-term stable operation
– Rich industrial interfaces: 2*RS232 COM, 2*Gigabit RJ45 LAN, 4*USB3.0+2*USB2.0

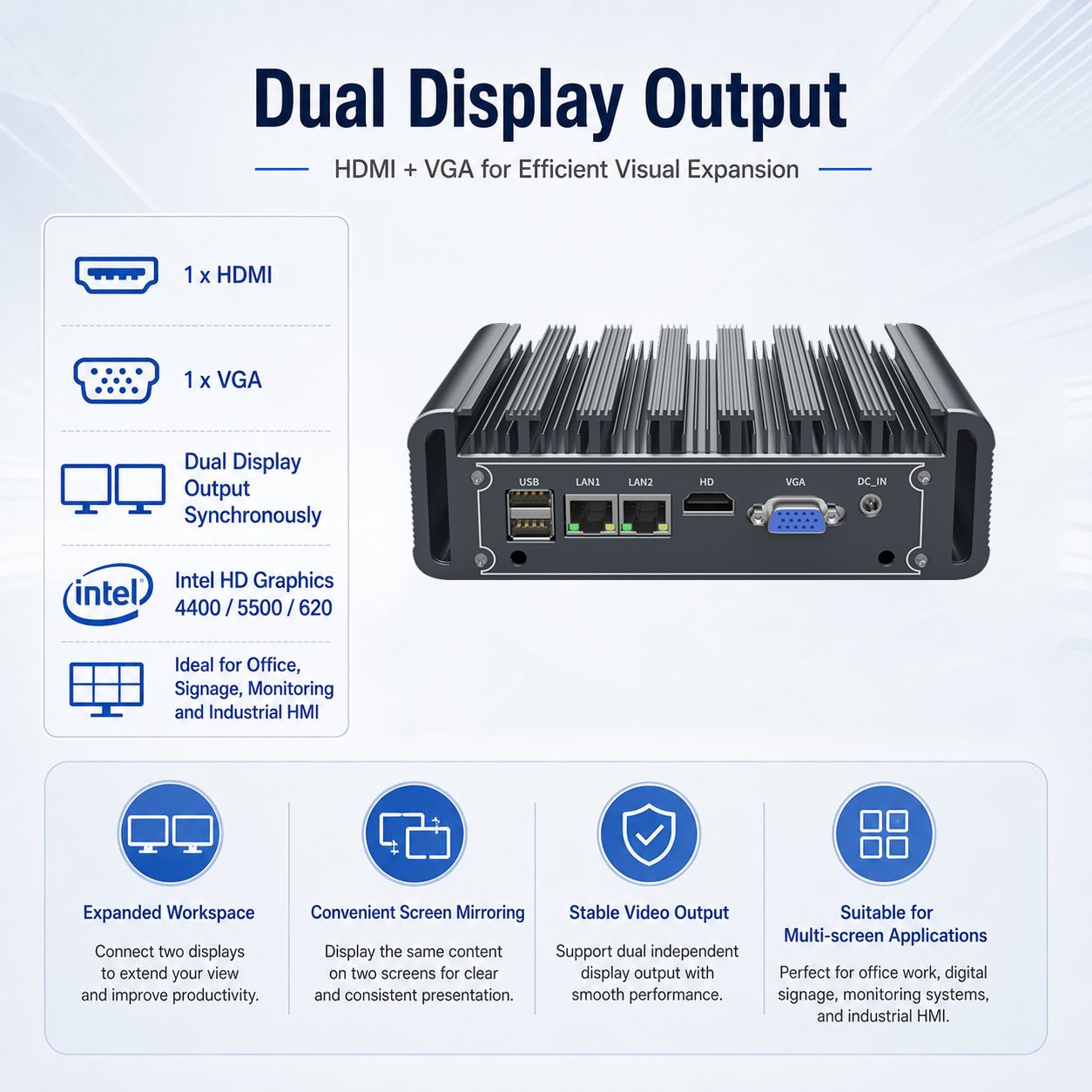

– HDMI+VGA synchronous dual display+energy-saving, eco-friendly
– Compatible with Windows 7/8/10 & Linux, mini PCIE half slot for WiFi with dual antennas
– Support PXE boot, Wake On LAN, auto startup, VESA wall mount & bracket standing
Product Details
Specification
Ordering information
Product Details

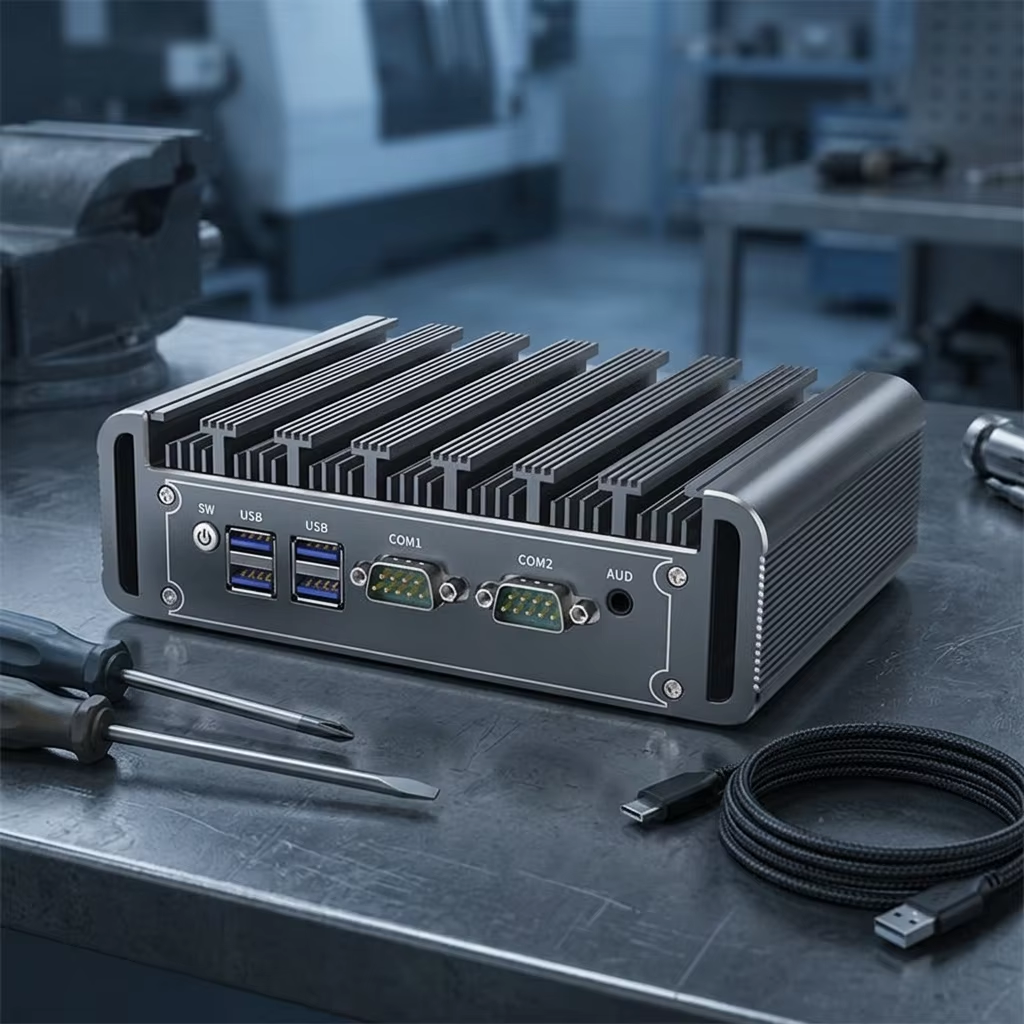

The JIERUICC Fanless Mini Industrial PC GT560-2L2C is a high-performance, industrial-grade embedded computer designed for 24/7 stable operation in harsh industrial environments.
Equipped with Intel Haswell Core i3/i5/i7 processors (4th gen to 7th gen ), 15W ultra-low TDP power consumption, and a full aluminum alloy shell for excellent fanless heat dissipation,
This mini industrial PC delivers reliable performance with zero noise operation.

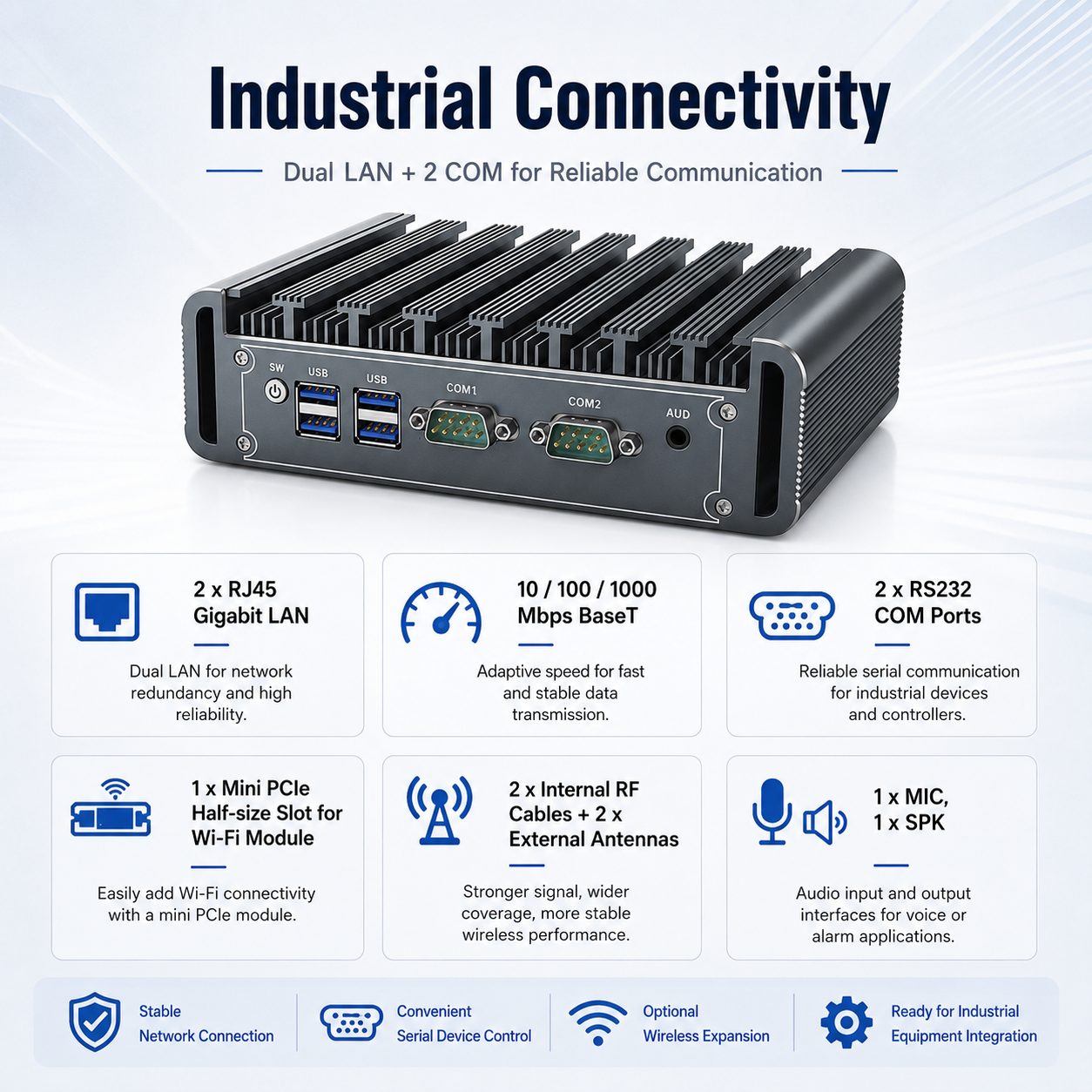

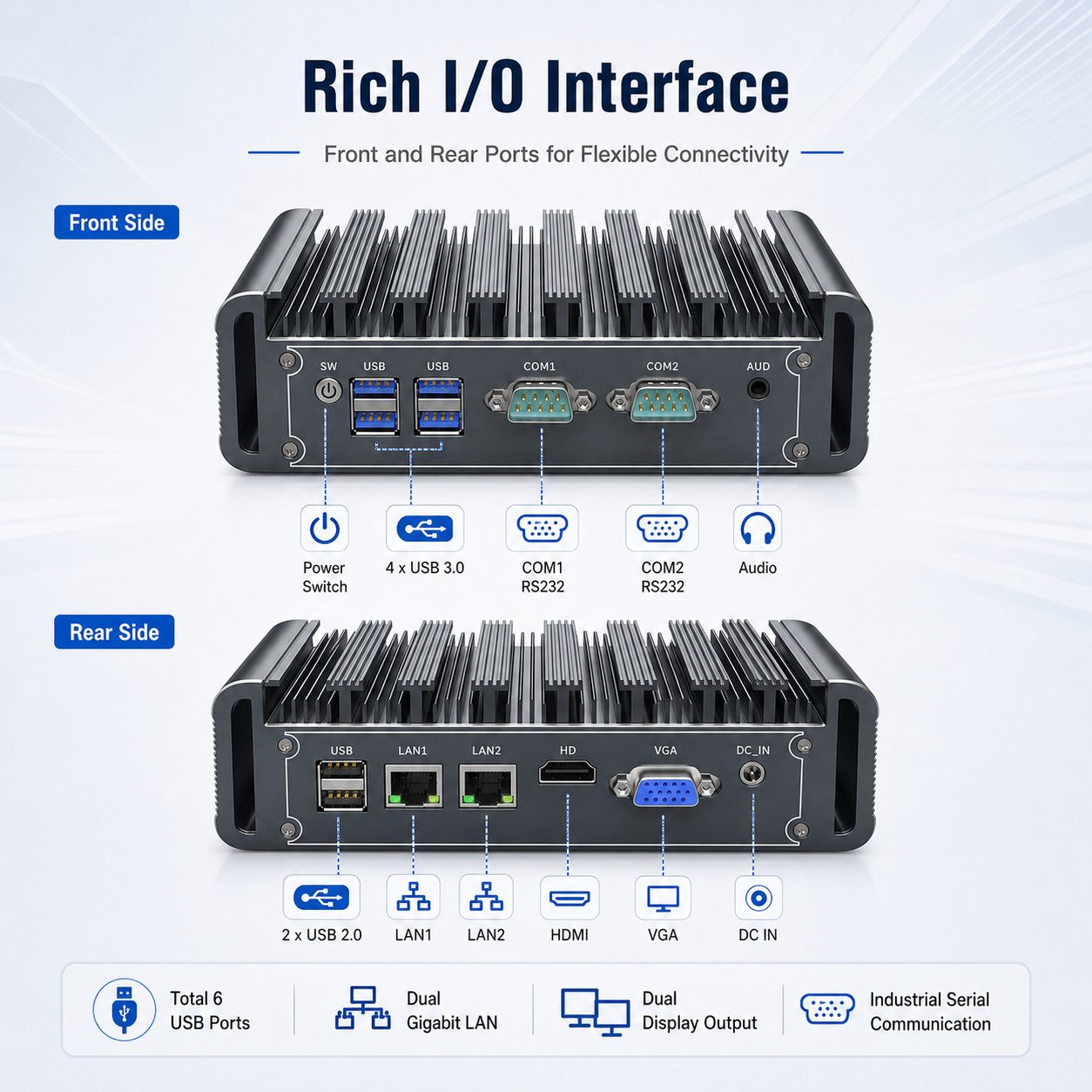

Featuring rich industrial interfaces including 2*RS232 COM ports, 2*Gigabit RJ45 LAN ports, 4*USB3.0 + 2*USB2.0 ports, HDMI+VGA synchronous dual display,
and 6-channel HDA audio with MIC & SPK ports, the GT560-2L2C is fully adaptable to various industrial application scenarios. It supports DDR3L SO-DIMM memory,
MSATA3.0 and SATA3.0 high-speed storage, and is compatible with Windows 7/8/10 and Linux operating systems.
With a wide working temperature range of 0℃~+70℃, DC12V voltage input, and 0%-90% non-condensing humidity resistance,

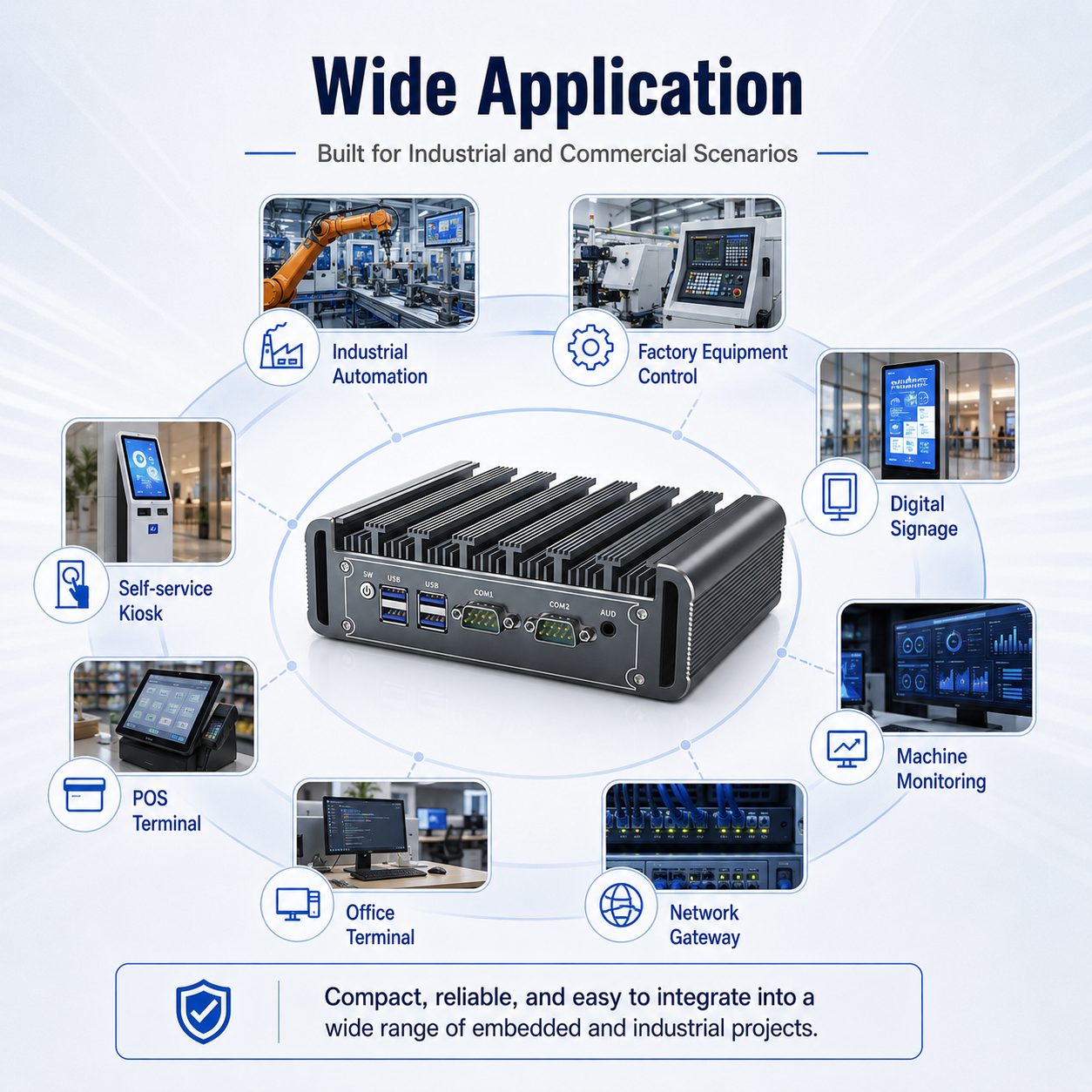

This rugged fanless mini industrial PC is ideal for factory automation, retail kiosks, smart city security monitoring, industrial control, and other embedded applications.
We are a professional industrial computer manufacturer, offering wholesale prices, OEM/ODM custom services, and full support for bulk orders and project cooperation.
Specification
| Basic Information: | ||||

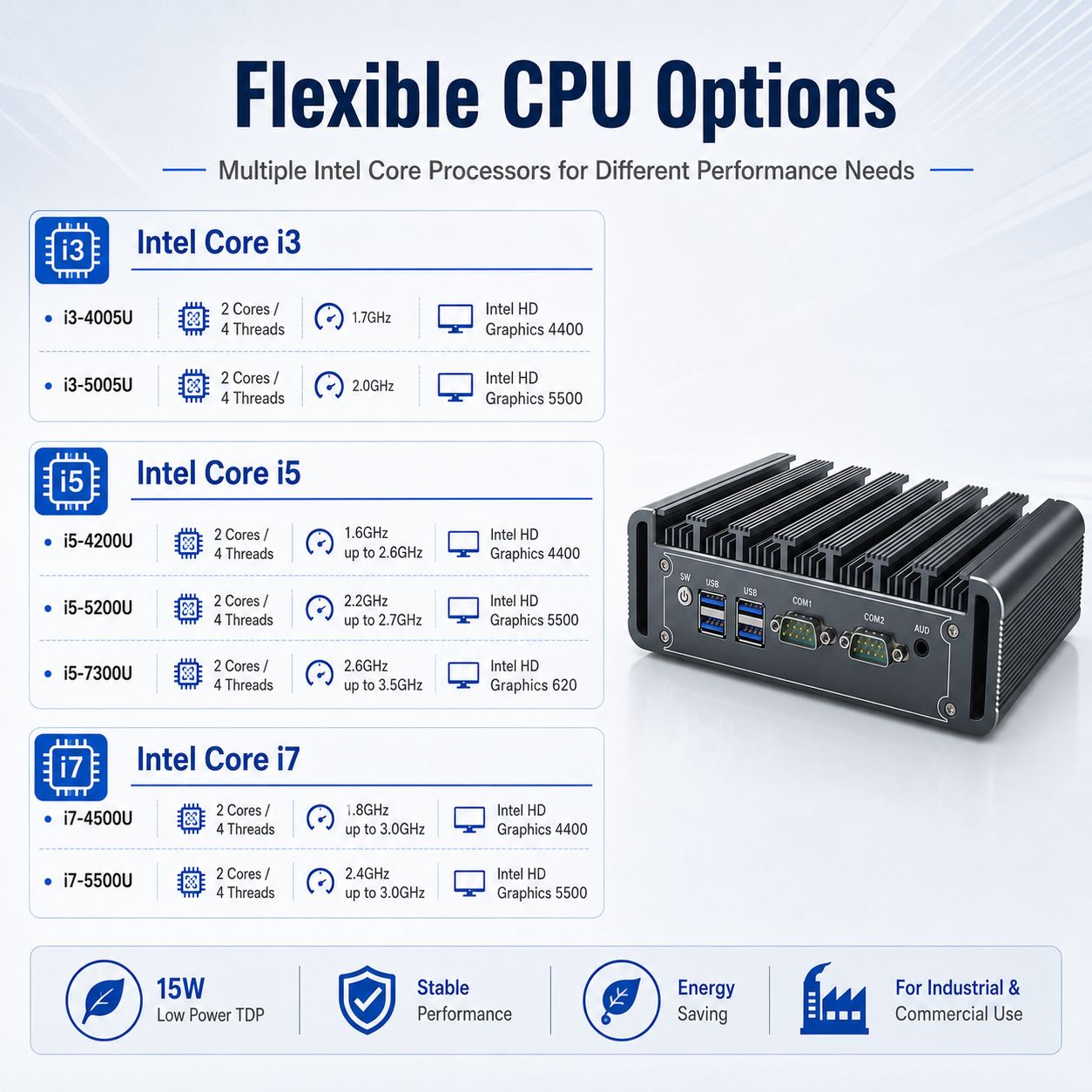

| CPU | 1. Intel Core i3 4005U 2 cores 4 threads 1.7GHz 3MB cache TDP 15W Intel HD Graphics 4400 | |||
| 2. Intel Core i3 5005U 2 cores 4 threads 2.0GHz 3MB cache TDP 15W Intel HD Graphics 5500 | ||||
| 3. Intel Core i5-4200U 1.6Ghz up to 2.6GHz Dual Core Four Threads 3MB Cache TDP 15W Intel HD Graphics 4400 | ||||
| 4. Intel Core i5-5200U 2.2Ghz up to 2.7GHz Dual Core Four Threads 3MB Cache TDP 15W Intel HD Graphics 5500 | ||||
| 5. Intel Core i5-7300U 2.6Ghz up to 3.5GHz Dual Core Four Threads 3MB Cache TDP 15W Intel HD Graphics 620 | ||||
| 6. Intel Core i7 4500U Dual core 4 threads 4MB cache 1.8GHz Max 3.0GHz TDP 15W Intel HD Graphics 4400 | ||||
| 7. Intel Core i7-5500U 2.4Ghz up to 3GHz Dual Core Four Threads 4MB Cache TDP 15W Intel HD Graphics 5500 | ||||
| TDP | 15W | |||
| Motherboard Size | 120 x 120 mm customized size | |||
| BOIS | AMI BIOS, ACPI supported | |||
| Chipset | Intel Haswell | |||
| Memory | 1 x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB DDR3L-1600/1333mhz | |||
| OS | Windows 7/Windows 8/Windows 10/Linux | |||
| Audio | ALC662 sound chip, 6-channel Intel Panther Point HDA | |||
| Network | Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN | |||
| Video | Intel® HD Graphics | |||
| Wi-Fi: | ||||
| Module | 1 x mini PCIE-half port for Wi-Fi module | |||
| Antenna | 2 x inner RF cables and 2 x external antennas | |||
| Power and Working Environment: | ||||
| Input | DC100-240V AC/50-60Hz | |||
| Output | DC+12V~+19V, recommend 12V/4A | |||
| Operating Temperature | 0/+70 Centigrade | |||
| Storage Temperature | -20/+85 Centigrade | |||
| Relative Humidity | 0%~90% (non-condensing) | |||
| Input/output port： | ||||
| Switch | 1 x Power On/Off Switch | |||
| Power | 1 x 12V DC In | |||
| LED | 1 x LED | |||
| USB | 4 x USB3.0, 2 x USB2.0 | |||
| Display | 1 x VGA, 1 x HDMI | |||
| LAN | 2 x RJ45 Giga LAN | |||
| Audio | 1 x MIC, 1 x SPK | |||
| COM | 2 x RS232 COM | |||
| Storage: | ||||
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s | |||
| SATA | 1 x SATA3.0 slot for 2.5inch SATA HDD or SSD, support 6Gb/s | |||
| Product Dimension & Details: | ||||

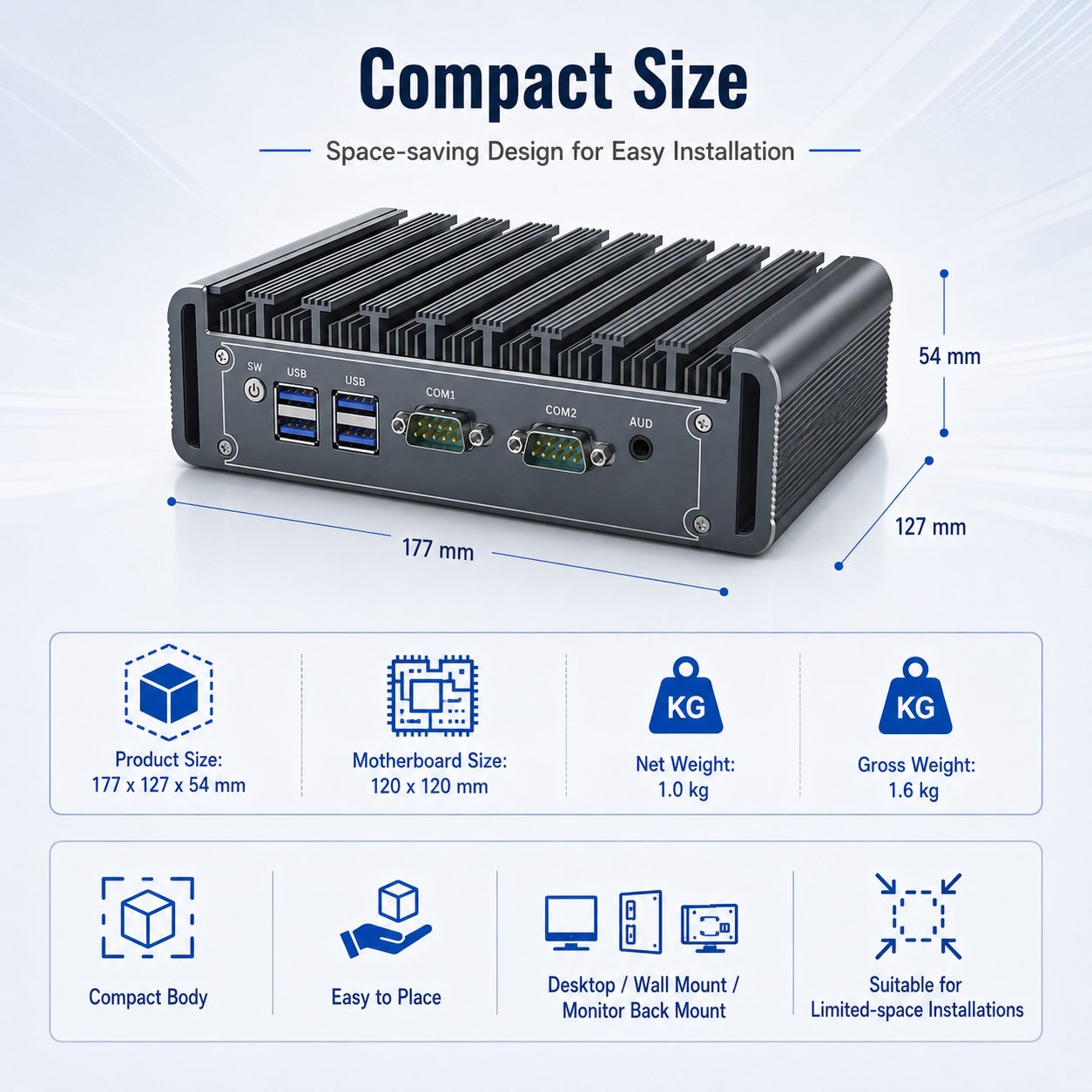

| Size | 177*127*54mm | |||
| Weight | Net 1kg, Gross 1.6kg | |||
| Shell | Dark grey | |||
| Cooling Mode | Fanless | |||

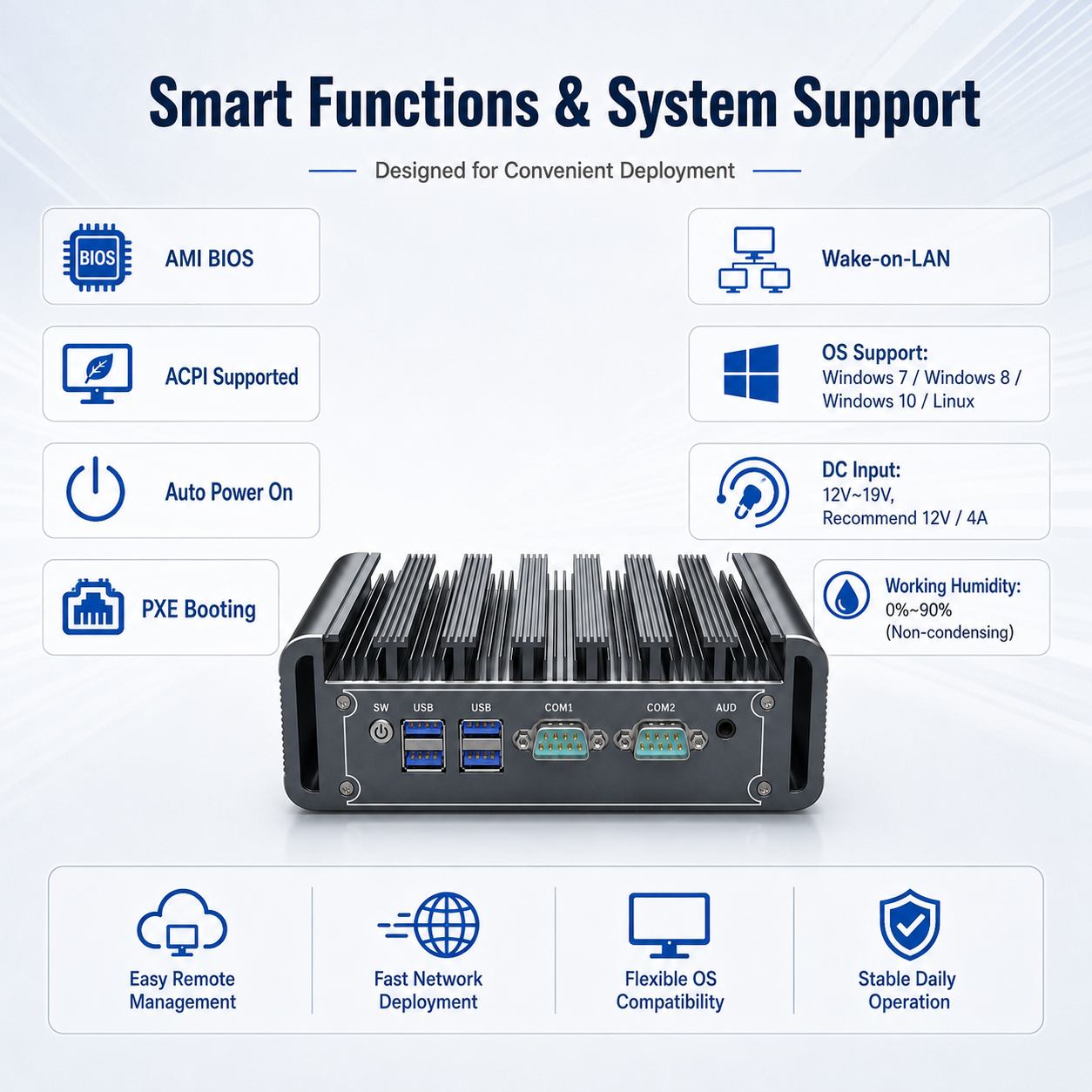

| Functions | Calls on function automatically, Wake-On-LAN, PXE Booting | |||
| Package Content： | ||||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, Wi-Fi antennas, | |||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | COM | USB | Power |
| GT560-2L2C | i3-4005U | Intel HD Graphics 4400 | 1.7Ghz | 1 x VGA /1 x HDMI | 1 x SO-DIMM DDR3L | 1 x M-sata SSD 1 x 2.5 inch SATA | 2 | 2*RS232 | 6 | DC IN 12V |
| GT560-2L2C | i3-5005U | Intel HD Graphics 5500 | 2.0GHz | 1 x VGA /1 x HDMI | 1 x SO-DIMM DDR3L | 1 x M-sata SSD 1 x 2.5 inch SATA | 2 | 2*RS232 | 6 | DC IN 12V |
| GT560-2L2C | i5-4200U | Intel HD Graphics 4400 | 1.6GHz to to 2.6Ghz | 1 x VGA /1 x HDMI | 1 x SO-DIMM DDR3L | 1 x M-sata SSD 1 x 2.5 inch SATA | 2 | 2*RS232 | 6 | DC IN 12V |
| GT560-2L2C | i5-5200U | Intel HD Graphics 5500 | 2.2GHz to to 2.7Ghz | 1 x VGA /1 x HDMI | 1 x SO-DIMM DDR3L | 1 x M-sata SSD 1 x 2.5 inch SATA | 2 | 2*RS232 | 6 | DC IN 12V |
| GT560-2L2C | i5-7300U | Intel HD Graphics 620 | 2.6GHz to to 3.5Ghz | 1 x VGA /1 x HDMI | 1 x SO-DIMM DDR3L | 1 x M-sata SSD 1 x 2.5 inch SATA | 2 | 2*RS232 | 6 | DC IN 12V |
| GT560-2L2C | i7 4500U | Intel HD Graphics 4400 | 1.8GHz to to 3.0Ghz | 1 x VGA /1 x HDMI | 1 x SO-DIMM DDR3L | 1 x M-sata SSD 1 x 2.5 inch SATA | 2 | 2*RS232 | 6 | DC IN 12V |
| GT560-2L2C | i7 5500U | Intel HD Graphics 5500 | 2.4GHz to to 3Ghz | 1 x VGA /1 x HDMI | 1 x SO-DIMM DDR3L | 1 x M-sata SSD 1 x 2.5 inch SATA | 2 | 2*RS232 | 6 | DC IN 12V |
