GT2200 Industrial Mini PC with Dual LAN, 2 COM & Dual HDMI
Model name: GT2200

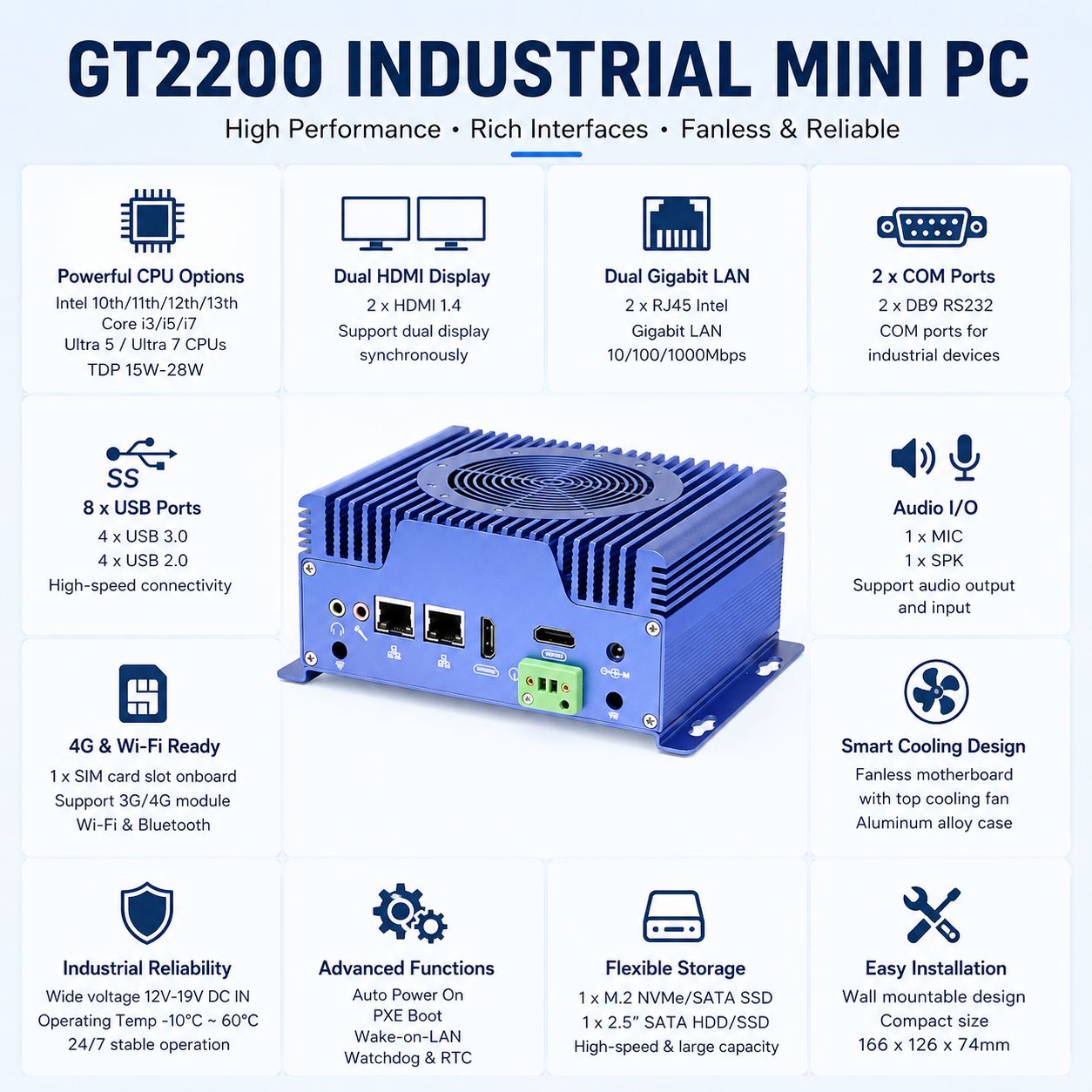

Products Features

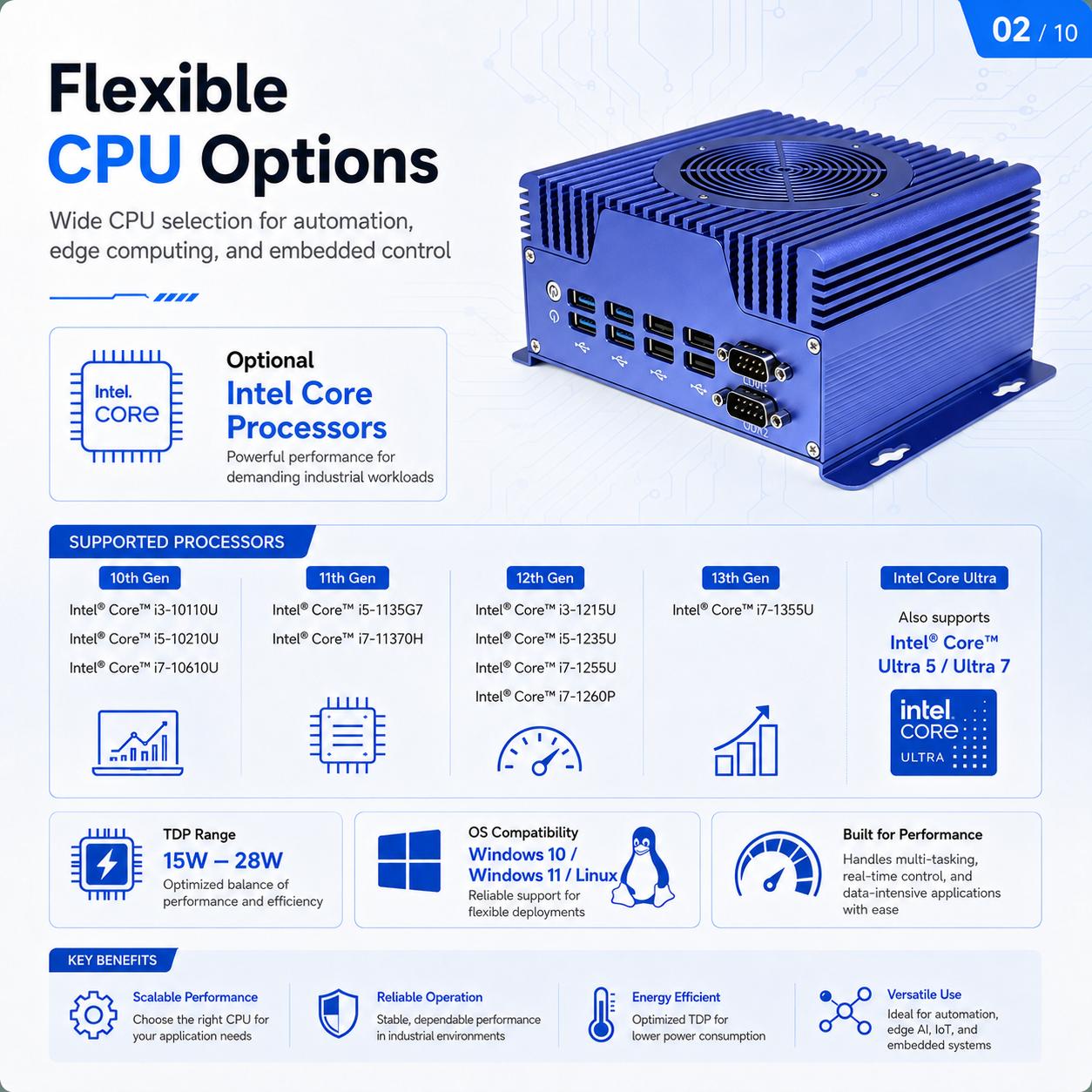

Intel Core Options – 10th–13th Gen Core i3/i5/i7, optional Core Ultra 5/7
Rich Industrial I/O – Dual Gigabit LAN, 2 × RS232 COM, 8 × USB

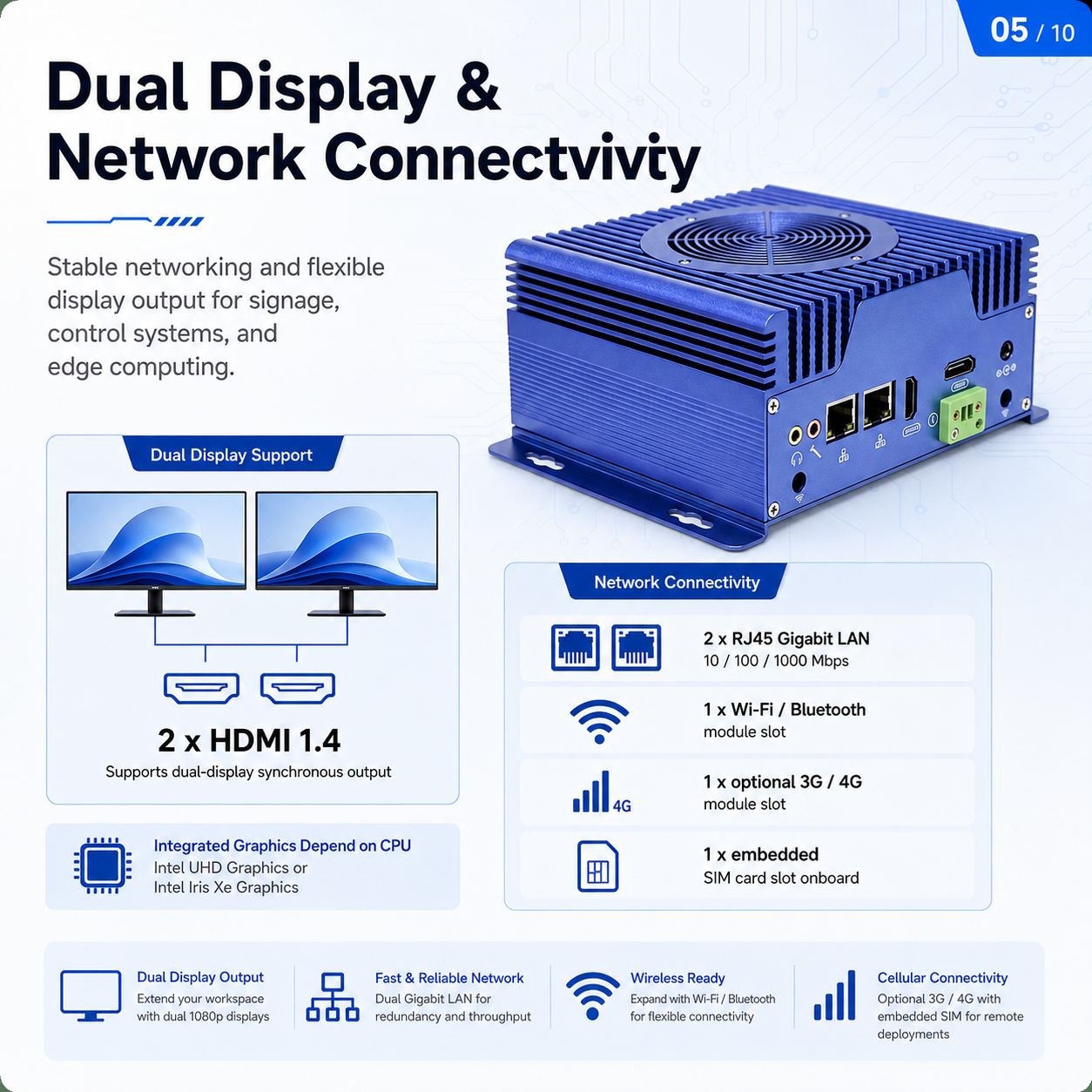

Dual Display – 2 × HDMI 1.4 for synchronous display output

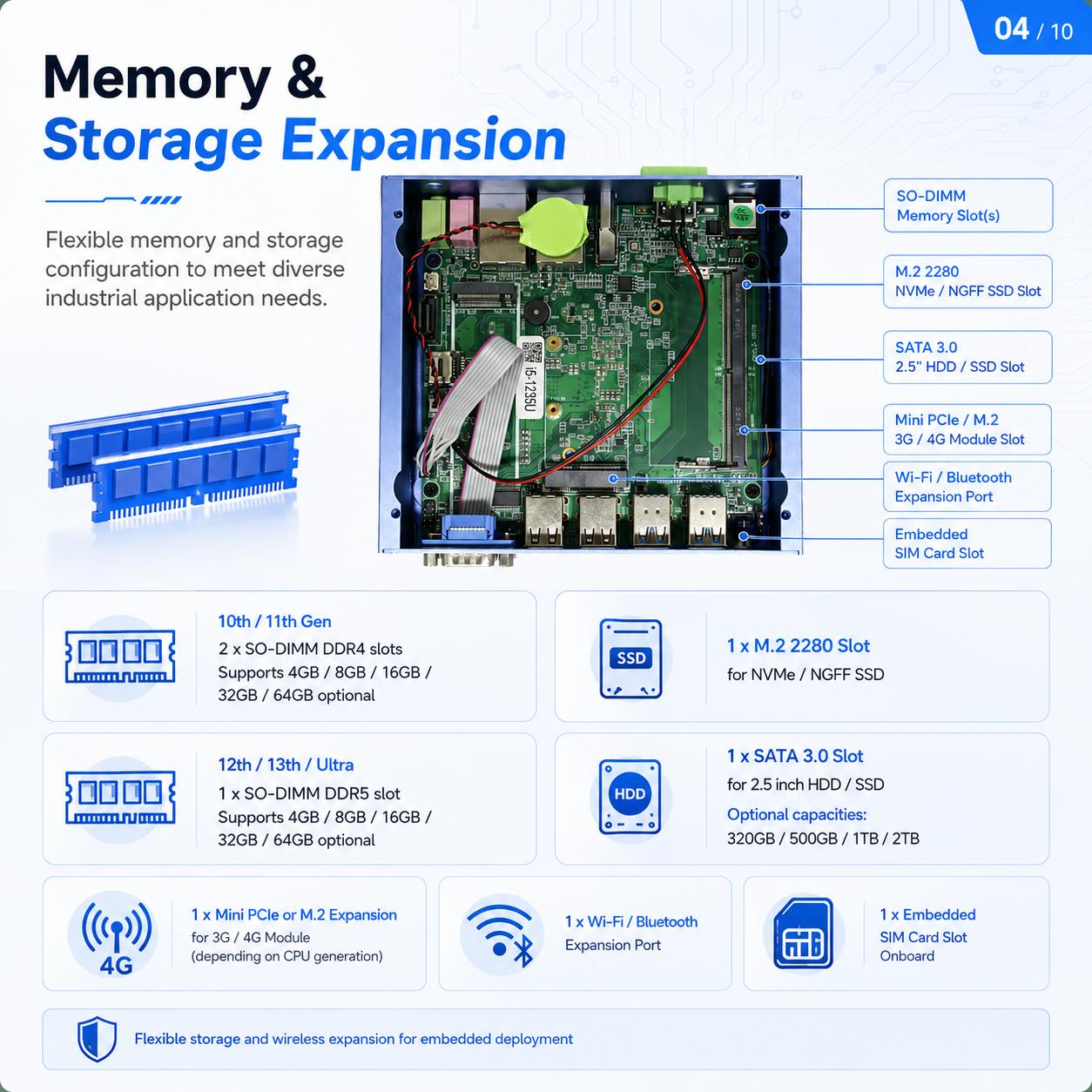

Flexible Memory – DDR4 or DDR5 platform depending on CPU generation
Expandable Storage – M.2 2280 NVMe/NGFF SSD + 2.5″ SATA HDD/SSD
Wireless Ready – Optional Wi-Fi, Bluetooth and 3G/4G with onboard SIM slot
Industrial Cooling – Aluminum alloy chassis with top-assisted cooling fan
Smart Functions – Auto Power On, PXE Boot, Wake-on-LAN, RTC and Watchdog
Industrial Deployment – 12–19V DC input, wall-mount design and 24/7 operation
Product Details
Specification
Ordering information
Product Details

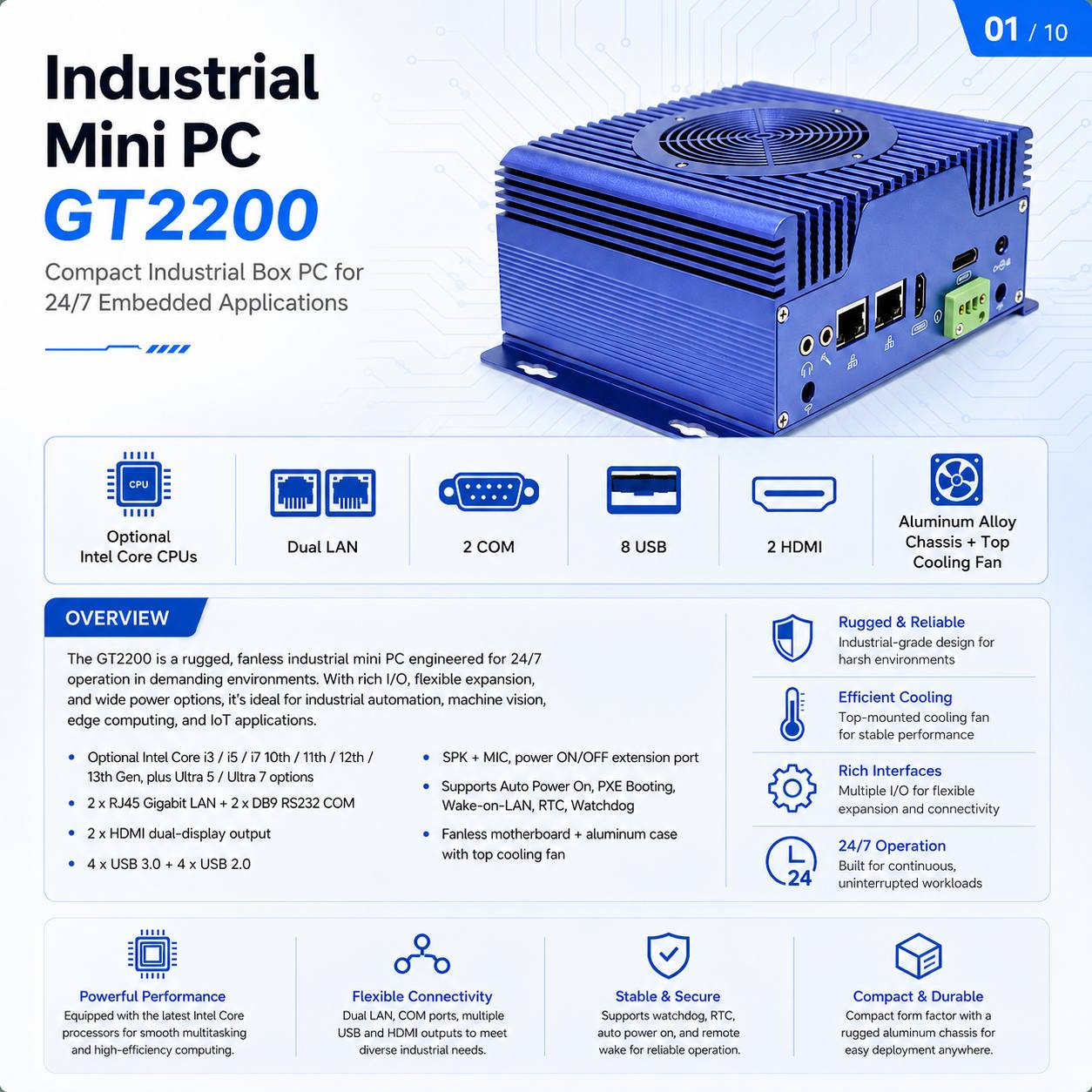

The GT2200 Industrial Mini PC is a compact embedded computer designed for automation, control and edge applications. Its scalable Intel processor platform, industrial connectivity and flexible expansion make it easy to integrate into both new equipment and existing systems.

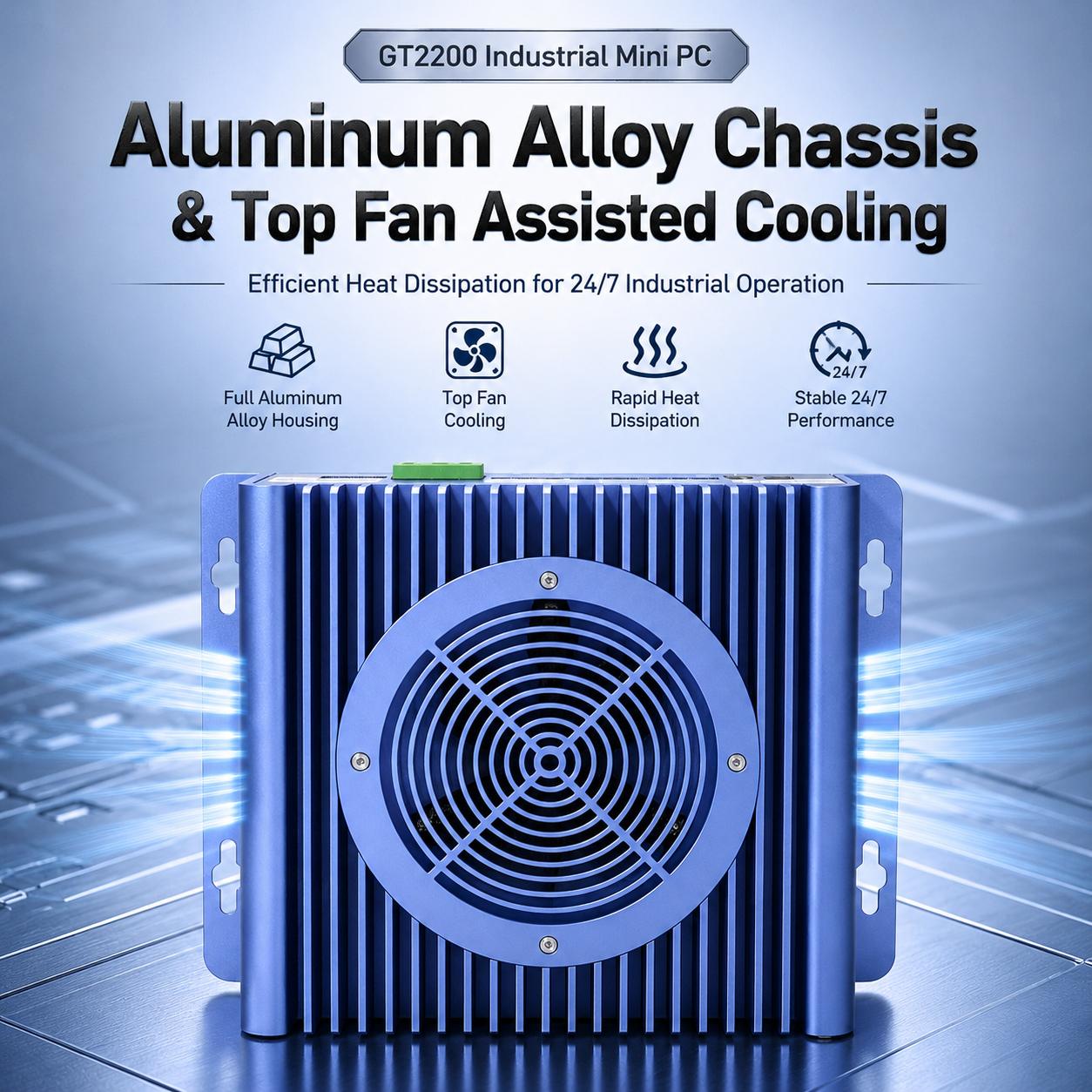

The aluminum alloy enclosure combines passive chassis heat dissipation with a top-mounted cooling fan for stable long-hour operation. With dual LAN, serial communication, multiple USB ports and dual HDMI output, the GT2200 is built for equipment that requires reliable connectivity and continuous operation.
Application Scenarios
Factory Automation
PLC communication, production equipment and automated control systems.
CNC & Machine Control
Embedded computing for CNC machines, test equipment and industrial controllers.
MES & HMI Systems
Production terminals, shop-floor data collection and operator workstations.
Machine Vision
Camera-connected inspection, quality control and visual monitoring systems.
Industrial IoT & Edge Computing
Local data processing, protocol communication and remote device management.
Smart Warehousing & Logistics
AGV systems, sorting equipment, warehouse terminals and logistics control.
Self-Service & Digital Signage
Kiosks, information terminals, digital displays and interactive equipment.
Remote Equipment Monitoring
Optional 4G connectivity for energy, infrastructure and unattended installations.
Specification
| Basic Information: | |||
| CPU | 1.Intel Core i3-10110U 2.1GHz Max 4.1GHz (Turbo boost Technology) Dual Cores Four Threads 4MB cache TDP 15W Intel®UHD Graphics. | ||
| 2.Intel i5-10210U , 8M Cache, 1.6GHz up to 4.20GHz (Turbo boost Technology) Quad Cores 8 Threads TDP 15W Intel® UHD Graphics. | |||
| 3. Intel Core i7-10610U , 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) Quad Cores 8 Threads TDP 15W Intel® UHD Graphics. | |||
| 4.Intel Core i5-1135G7 4 cores 8 threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel Iris Xe Graphics | |||
| 5. Intel Core i7-11370H 4 cores 8 threads 3.3GHz up to 4.8GHz 12MB cache, Intel Iris Xe Graphics | |||
| 6.Intel Core i3-1215U 1.2GHz up to 4.4GHz (Turbo boost Technology) 6 Cores 8 Threads 10MB cache TDP 15W Intel Iris Xe Graphics. | |||
| 7.Intel Core i5-1235U 1.3GHz up to 4.4GHz (Turbo boost Technology) 10 Cores 12 Threads 12MB cache TDP 15W Intel Iris Xe Graphics. | |||
| 8.Intel Core i7-1255U 1.7GHz up to 4.7GHz (Turbo boost Technology) 10 Cores 12 Threads 12MB cache TDP 15W Intel Iris Xe Graphics. | |||
| 9.Intel Core i7-1260P max up to 4.7GHz (Turbo boost Technology) 12 Cores 16 Threads 18MB cache TDP 28W Intel Iris Xe Graphics. | |||
| 10.Intel Core i7-1355U up to 5.0GHz (Turbo boost Technology) 10 Cores 12 Threads 12MB cache TDP 15W Intel Iris Xe Graphics. | |||
| 11.Intel Ultra 5 125U 1.3GHz up to 4.6GHz(Turbo boost Technology) 12 Core 14 Threads 12MB cache 15W TDP Intel® Graphics. | |||
| 12. Intel Ultra 7 155U 1.7GHz up to 4.8GHz(Turbo boost Technology) 12 Core 14 Threads 12MB cache 15W TDP Intel® Graphics. | |||
| TDP | 15-28W | ||
| Chipset | Refer to the above CPUs | ||
| Memory | 10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB optional 12th/13th/Ultra5/7: 1 x SO-DIMM DDR5 Slot Support 4GB/8GB/16GB/32GB/64GB optional | ||
| OS | Windows 10/11/ Linux | ||
| Audio | Intel High Definition Audio and USB Audio and HID | ||
| Network | 2 x Onboard Realtek RTL8111 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN | ||
| Video | Refer to the above CPUs | ||
| Storage: | |||
| SSD | 1 x M.2 slot for NVME/NGFF 2280 SSD | ||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s,320G/500G/1TB/2TB (Optional) | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-full/mini PCIE-half port for Wi-Fi/Bluetooth module 1 x mini PCIE-half/full port for 3G/4G module(10th-11th gen support Minipcie,12th-13th/Ultra support M.2 port ) | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

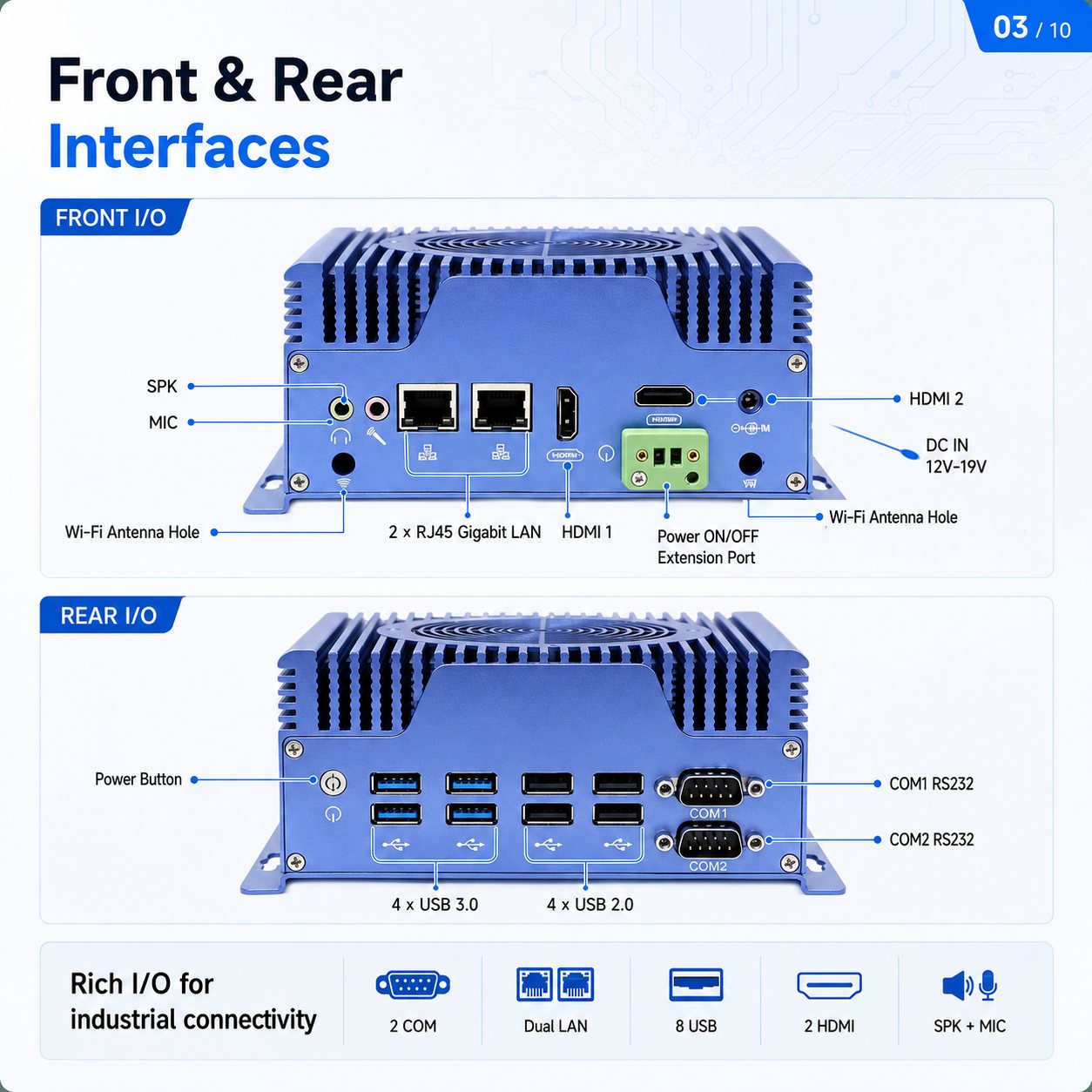

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch (Includes a power ON/OFF extension port) | ||
| Power | 1 x 12V-19V DC In | ||
| COM | 2 x DB9 RS232 COM | ||
| USB | 4 x USB2.0, 4 x USB3.0 | ||
| Display | 2 x HDMI 1.4 | ||
| LAN | 2 x RJ45 Giga LAN | ||
| 4G Module | 1 x mini PCIE-full port for 3G/4G module(10-11th CPU use MiniPCIE 4GModule/12-13/Ultra use M.2 4G Module) | ||
| SIM | 1 x embedded SIM card slot onboard | ||
| Audio | 1 x MIC, 1 x SPK | ||

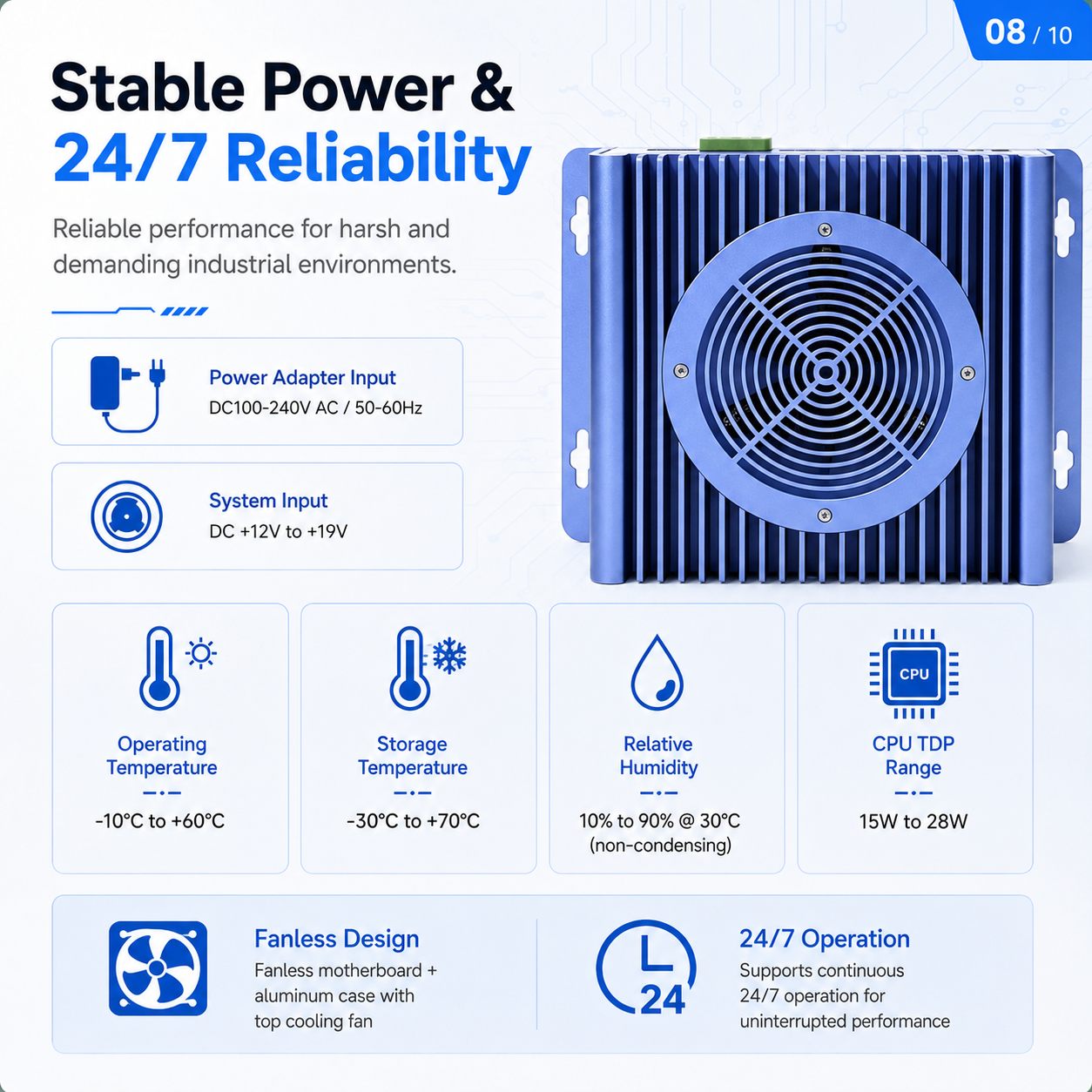

| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC+12V~+19V | ||
| Operating Temperature | -10°C/+60°C Centigrade | ||
| Storage Temperature | -30/+70 Centigrade | ||
| Relative Humidity | 10%~90%@30°C(non-condensing) | ||
| Product Dimension & Details: | |||

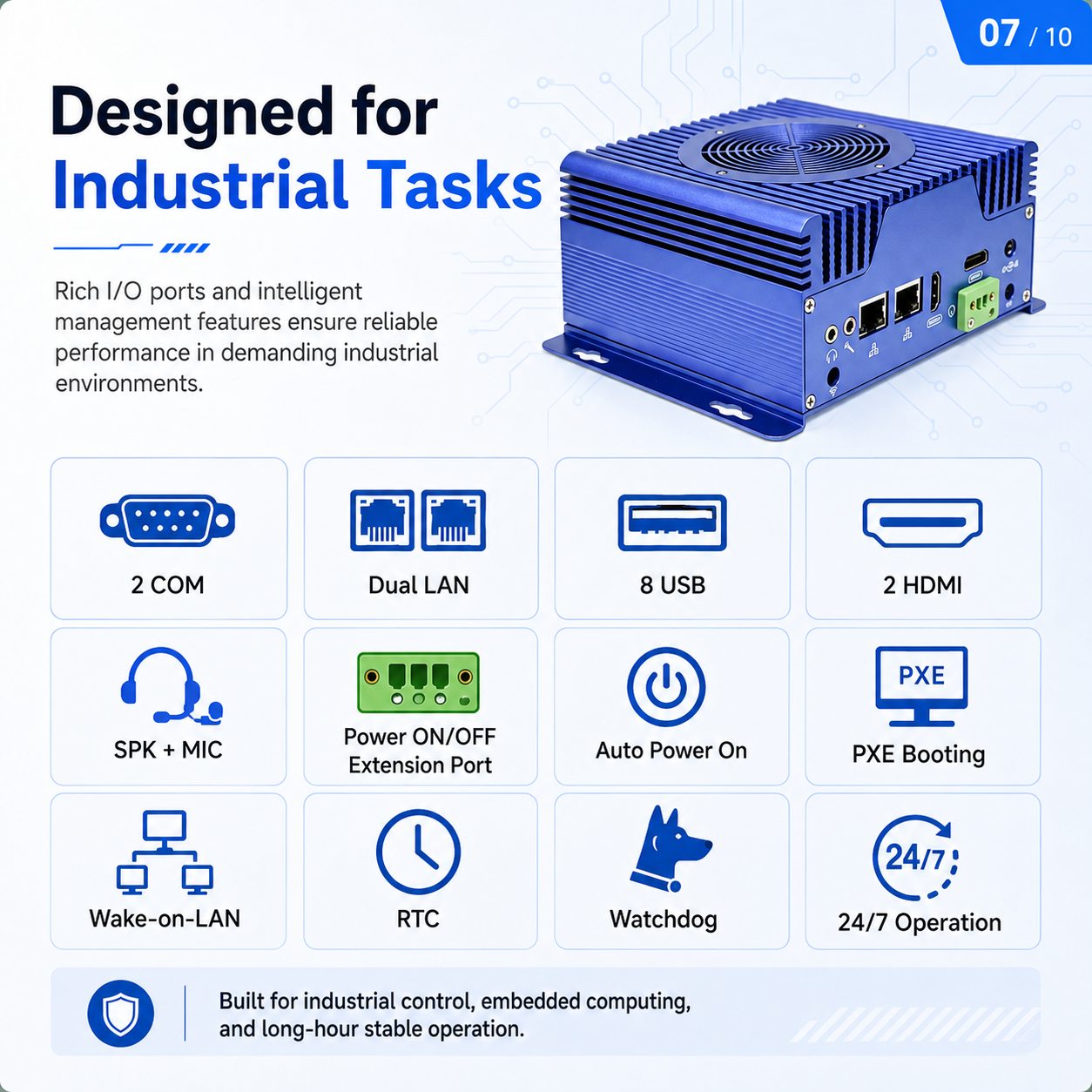

| Functions | AWAL, Wake On LAN, RTC, Watchdog | ||

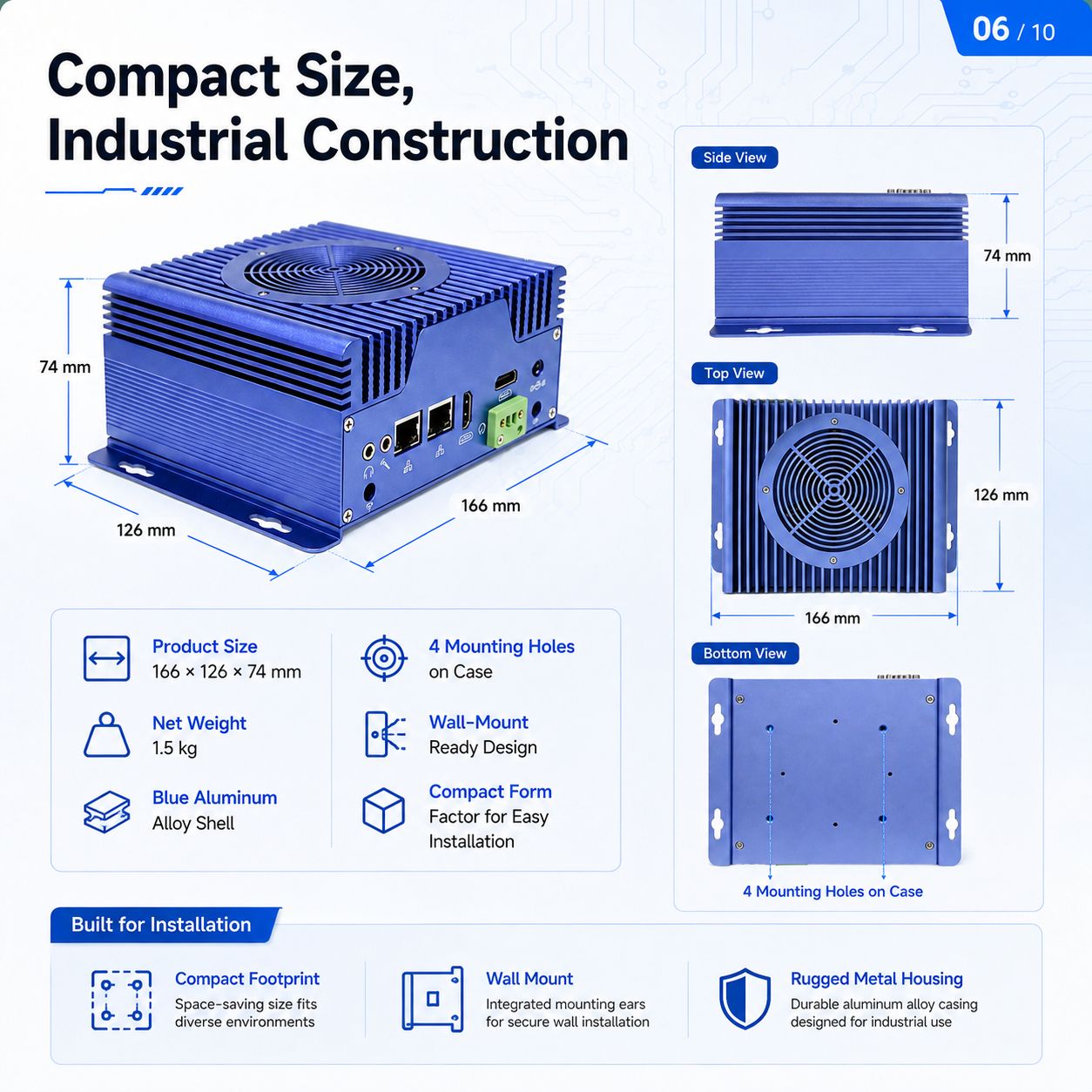

| Size | 166*126*74mm | ||
| Weight | Net 1.5kg, Gross 3kg | ||
| Shell | Blue color aluminum alloy(any customized color for bulk order) | ||
| Mounting | 4 Mounting holes on case | ||
| Cooling Mode | Fanless motherboard without a cooling fan+Aluminum alloy case with a FAN | ||

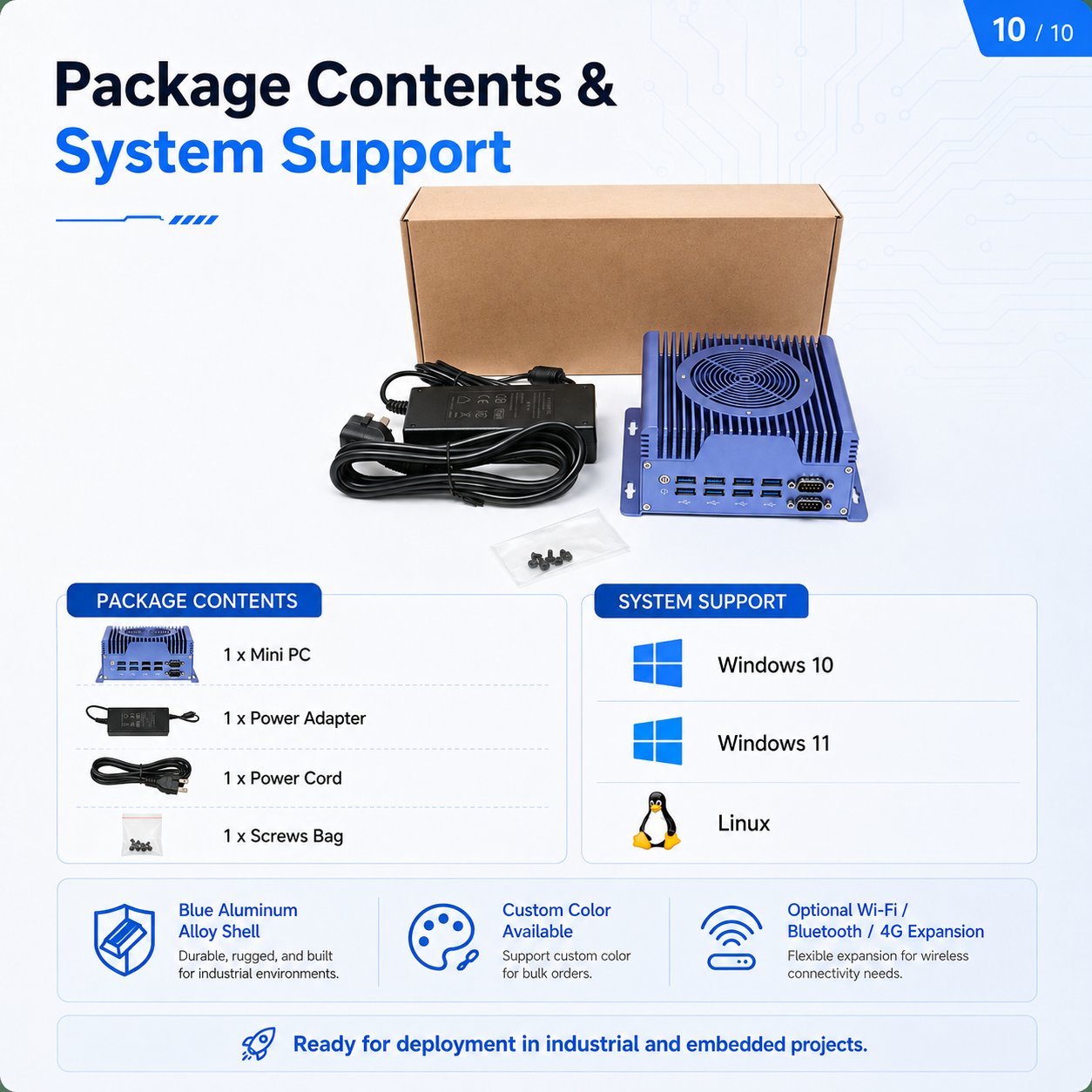

| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | COM | USB | Power |
| GT2200 | i3-10110U | Intel®UHD Graphics. | 2.1GHz up to 4.1GHz | 2 x HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch SATA/SSD/1 x M-SATA/1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | i5-10210U | Intel®UHD Graphics. | 1.6GHz up to 4.20GHz | 2 x HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch SATA/SSD/1 x M-SATA/1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | i7-10610U | Intel®UHD Graphics. | 1.8GHz up to 4.9GHz | 2 x HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch SATA/SSD/1 x M-SATA/1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | i3-1215U | Intel Iris Xe Graphics. | 1.2GHz up to 4.4GHz | 2 x HDMI | 2 x SO-DIMM DDR5 | 1 x 2.5 inch SATA/SSD/ 1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | i5-1235U | Intel Iris Xe Graphics. | 1.3GHz up to 4.4GHz | 2 x HDMI | 2 x SO-DIMM DDR5 | 1 x 2.5 inch SATA/SSD/ 1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | i7-1255U | Intel Iris Xe Graphics. | 1.7GHz up to 4.7GHz | 2 x HDMI | 2 x SO-DIMM DDR5 | 1 x 2.5 inch SATA/SSD/ 1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | i5-1335U | Intel Iris Xe Graphics. | up to 4.6GHz | 2 x HDMI | 2 x SO-DIMM DDR5 | 1 x 2.5 inch SATA/SSD/ 1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | i7-1355U | Intel Iris Xe Graphics. | up to 5.0GHz | 2 x HDMI | 2 x SO-DIMM DDR5 | 1 x 2.5 inch SATA/SSD/ 1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | Ultra 5 125U | Intel® Graphics. | 1.3Ghz up to 4.6GHz | 2 x HDMI | 2 x SO-DIMM DDR5 | 1 x 2.5 inch SATA/SSD/ 1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
| GT2200 | Ultra 7 155U | Intel® Graphics. | 1.7Ghz up to 4.8GHz | 2 x HDMI | 2 x SO-DIMM DDR5 | 1 x 2.5 inch SATA/SSD/ 1*M.2 SSD | 2 | 2 | 8 | 19V/4.74A |
