Fanless Industrial Mini PC GT1130 with Dual LAN, Dual COM
Model name: GT1130
Products Features
1. Intel Core i3 6th-, 7th-, 8th-, or 10th-generation.
2. Dual Gigabit LAN: 2 × Realtek RTL8111H Gigabit Ethernet controllers.
3. 6th–8th Gen: 1 × DDR4 SO-DIMM, up to 16 GB. 10th Gen: 2 × DDR4 SO-DIMM, up to 64 GB.
4. 1 × M.2 2280 SSD slot+1 × M.2 2280 SSD slot.
5. HDMI+VGA, 4 × USB 3.0, 4 × USB 2.0, 2 × RS232.
6. Fanless aluminum enclosure.
7. Auto Power On, PXE, WoL, watchdog, RTC.
8. Optional 3G/4G module support with SIM slot.
9. Compact 205 × 125 × 50 mm (including mounting ears); 12V DC input.
Product Details
Specification
Ordering information
Product Details
Product Introduction

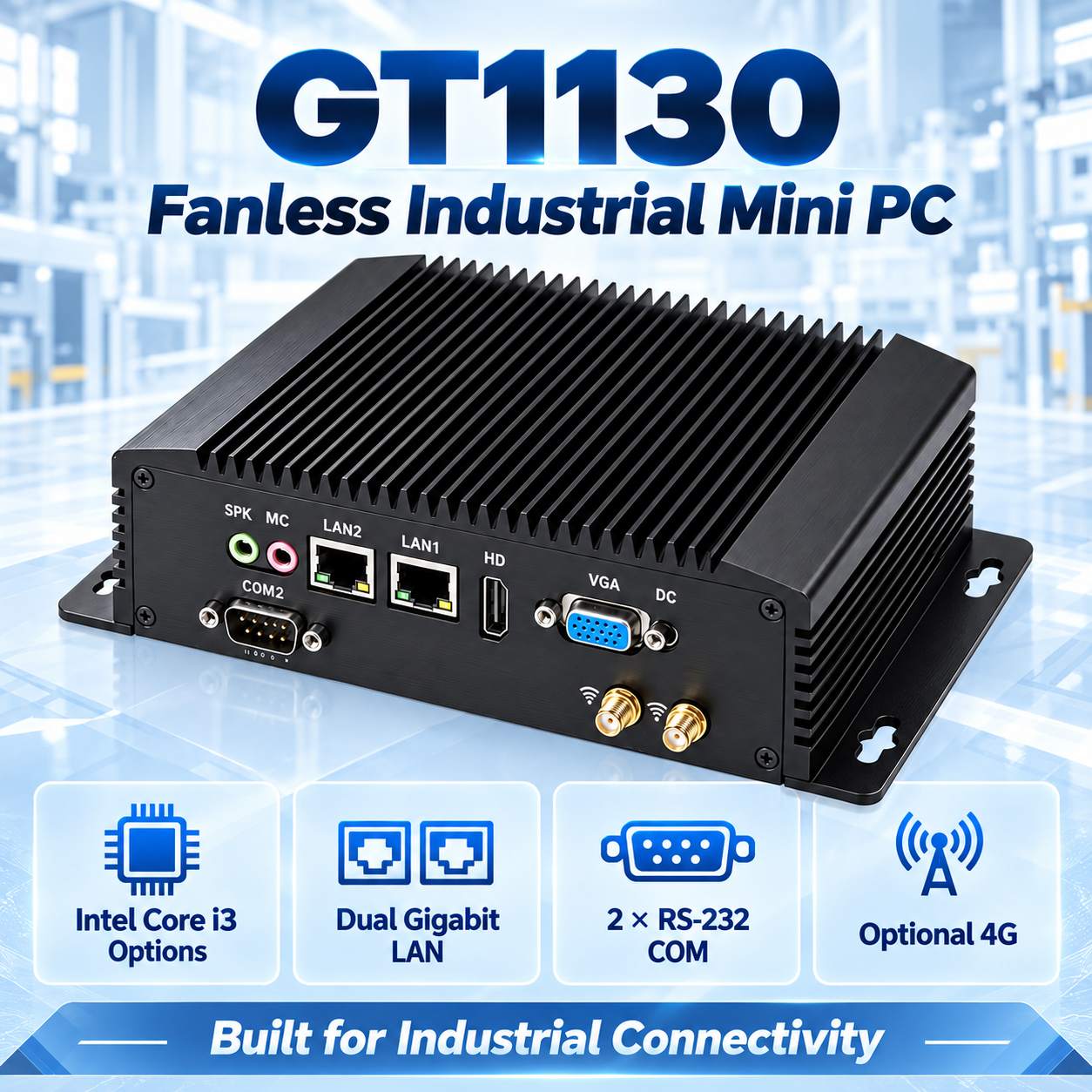

The GT1130 is a fanless industrial mini PC with an aluminum alloy chassis. It supports 6th/7th/8th/10th Gen Intel Core processors (i3 as standard), DDR4 memory, M.2 SSD + 2.5″ SATA storage.
Interfaces: dual Gigabit LAN, 2×RS232, 8×USB, HDMI & VGA. Optional Wi-Fi/4G modules for wireless connectivity. Built for 24/7 continuous operation, it fits automation workstations, retail terminals, digital signage, offices, and lab use.
We offer direct OEM/ODM for distributors, system integrators, and equipment manufacturers. Contact us for configuration advice, samples, and bulk pricing.
Product Features
- Intel Core i3 options: Ideal for device communication, business software, display control, and local data processing.

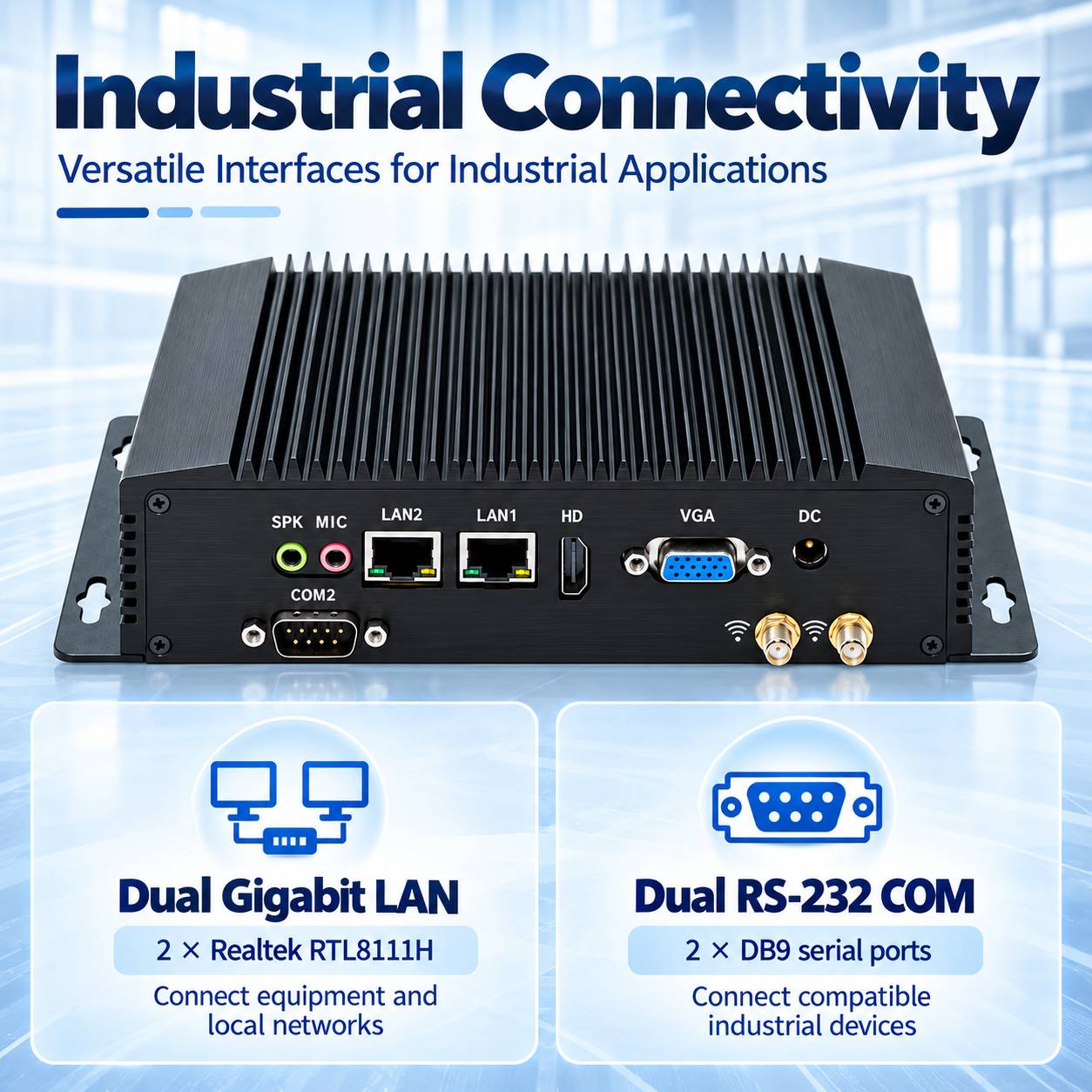

- Dual independent Gigabit Ethernet: Separate physical ports for equipment and upstream network connection.
- 2×DB9 RS-232 serial ports: Direct connection to controllers, meters, scanners, and serial peripherals.
- 8×USB (4×USB3.0 + 4×USB2.0): Flexible integration of industrial and commercial accessories.

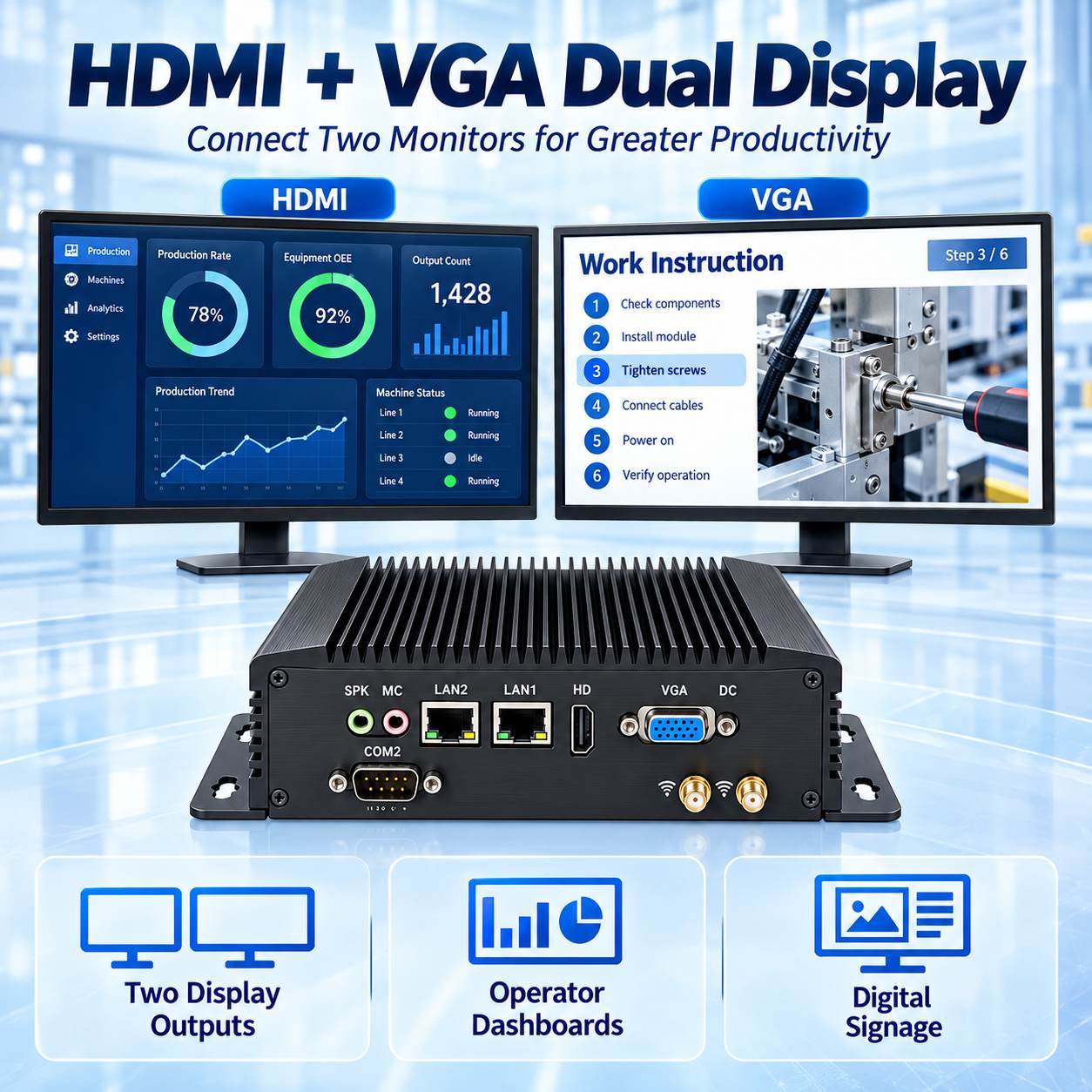

- HDMI + VGA dual display: Works with new monitors and legacy VGA screens for operator stations & digital terminals.

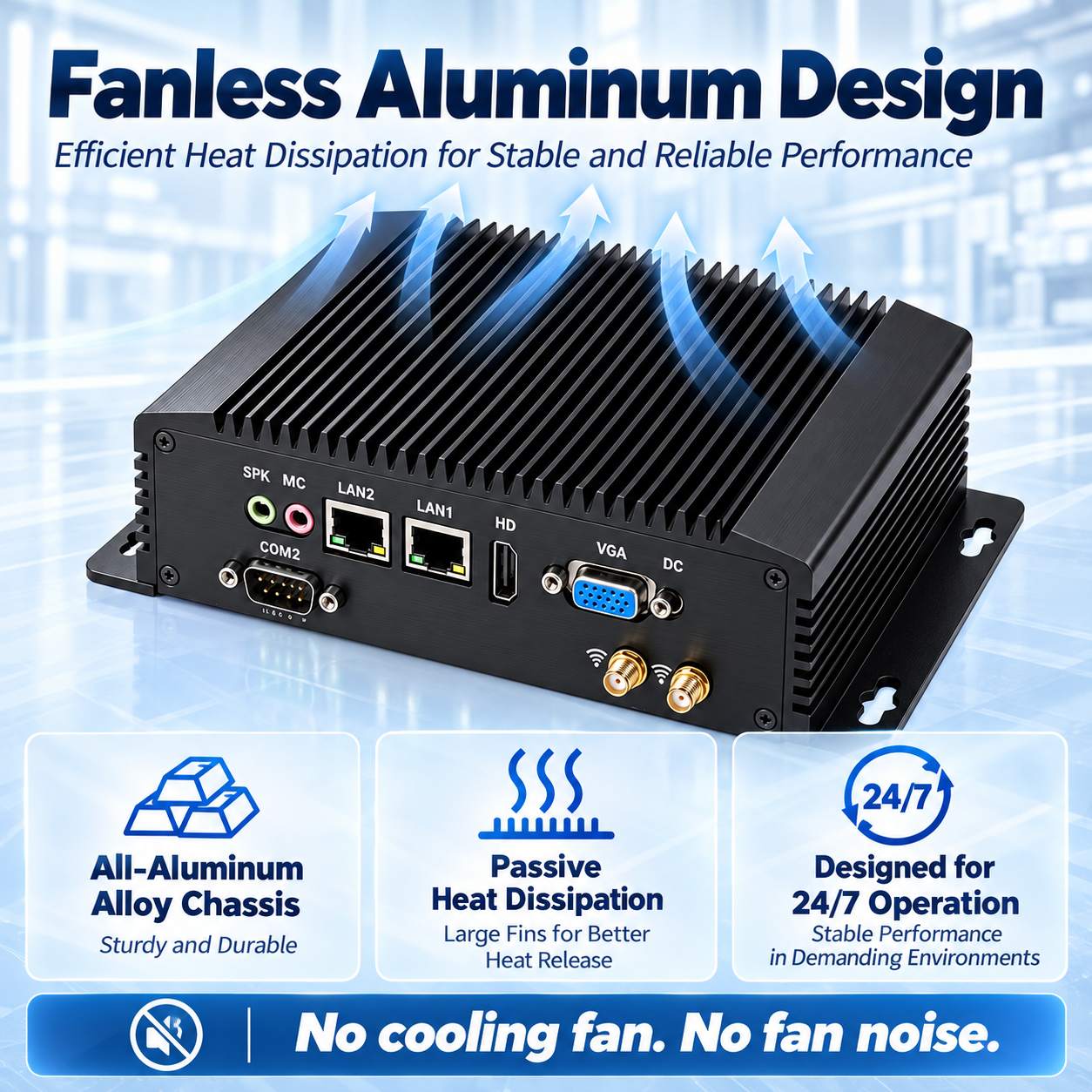

- Fanless aluminum heatsink housing: No fan, zero noise, and reduced maintenance.
- Flexible memory & storage: DDR4 up to 16GB (6th–8th Gen) / 64GB (10th Gen); supports M.2 SSD and 2.5” SATA.
- Optional Wi-Fi / 4G with SIM slot: Meets wireless networking needs for different projects.
- Unattended operation features: Auto Power On, PXE boot, Wake-on-LAN, scheduled power-on, and hardware watchdog.
- Compact aluminum chassis with mounting brackets: Space-saving and easy for secure equipment mounting.
- OEM/ODM & bulk configuration service: Available for overseas distributors, system integrators, and private labeling.
Product Applications
- Automation and data acquisition: Connect serial instruments and Ethernet equipment.
- Kiosks and POS: Integrate scanners, printers, and customer displays.
- Digital signage: Run compatible content software across two displays.
- Security and warehousing: Support monitoring clients and scanning workstations.
- Software routing: Dual LAN for compatible gateway software; throughput varies by configuration.
- Building Management and Energy Monitoring: Optional cellular connectivity is useful where a suitable wired connection is unavailable.
Specification
| Basic Information | |||
| CPU | Onboard Intel Core i3, BGA package. 6th / 7th / 8th / 10th-generation options. | ||
| Processor Options | i3-6167U: Dual-core, quad-thread, 2.70GHz, 3MB cache, base TDP 28W. | ||
| i3-7167U: Dual-core, quad-thread, 2.80GHz, 3MB cache, base TDP 28W. | |||
| i3-8140U: Dual-core, quad-thread, 2.1GHz up to 3.90GHz, 4MB cache, base TDP 15W. | |||
| i3-10110U: Dual-core, quad-thread, 2.1GHz up to 4.10GHz, 4MB cache, base TDP 15W. | |||
| Processor Power | 28 W: i3-6167U / i3-7167U. 15 W: i3-8140U* / i3-10110U | ||
| BIOS | AMI BIOS. ACPI and diskless boot supported. | ||
| Chipset | Intel processor-integrated SoC | ||
| Memory | 6th–8th Gen: 1 × DDR4 SO-DIMM, up to 16 GB. 10th Gen: 2 × DDR4 SO-DIMM, up to 64 GB. | ||
| Operating System | Windows/Linux | ||
| Audio | USB audio controller. Separate speaker/headphone and microphone jacks. | ||
| Network | 2 × Realtek RTL8111H Gigabit Ethernet controllers | ||
| Graphics | Integrated Intel graphics (processor-dependent) | ||

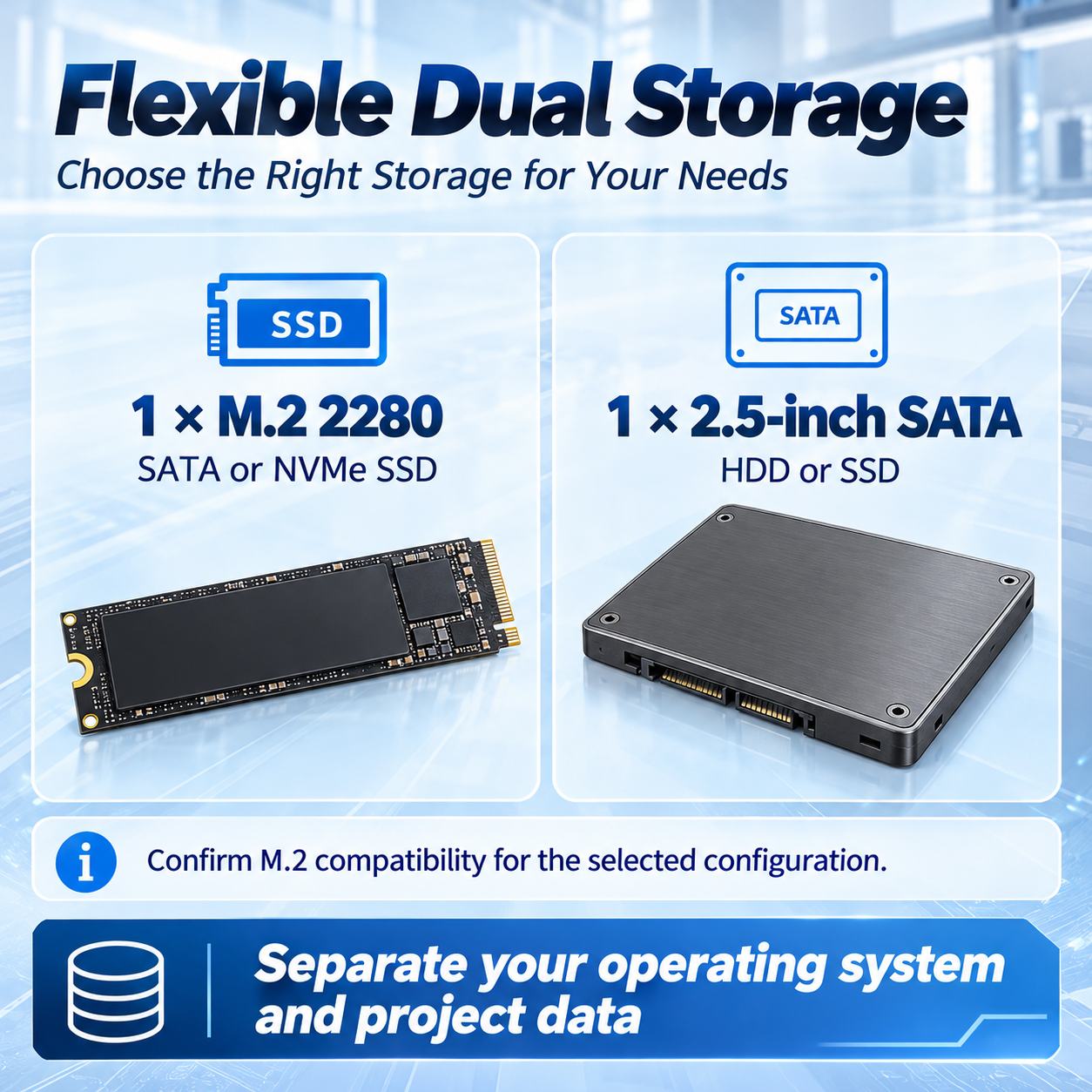

| Storage | |||
| M.2 | 1 × M.2 2280 SSD slot, SATA or NVMe protocol | ||
| SATA | 1 × 2.5-inch SATA HDD / SSD | ||

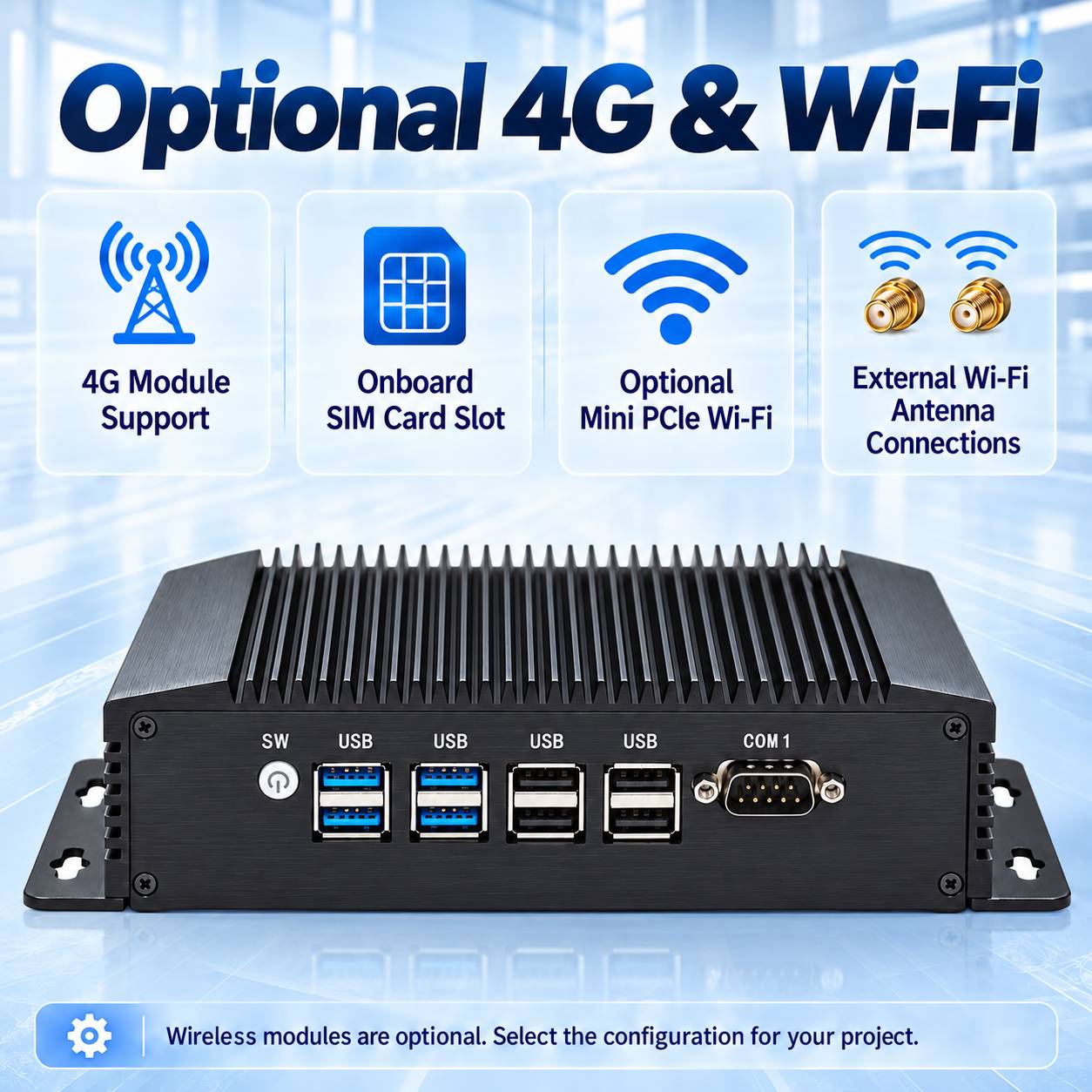

| Wi-Fi | |||
| Module | Optional Mini PCIe Wi-Fi module | ||
| Antenna | External Wi-Fi antenna connections | ||
| 4G Cellular Connectivity | |||
| 4G Module | Supports an optional 4G module | ||
| SIM Card | Onboard SIM card slot | ||

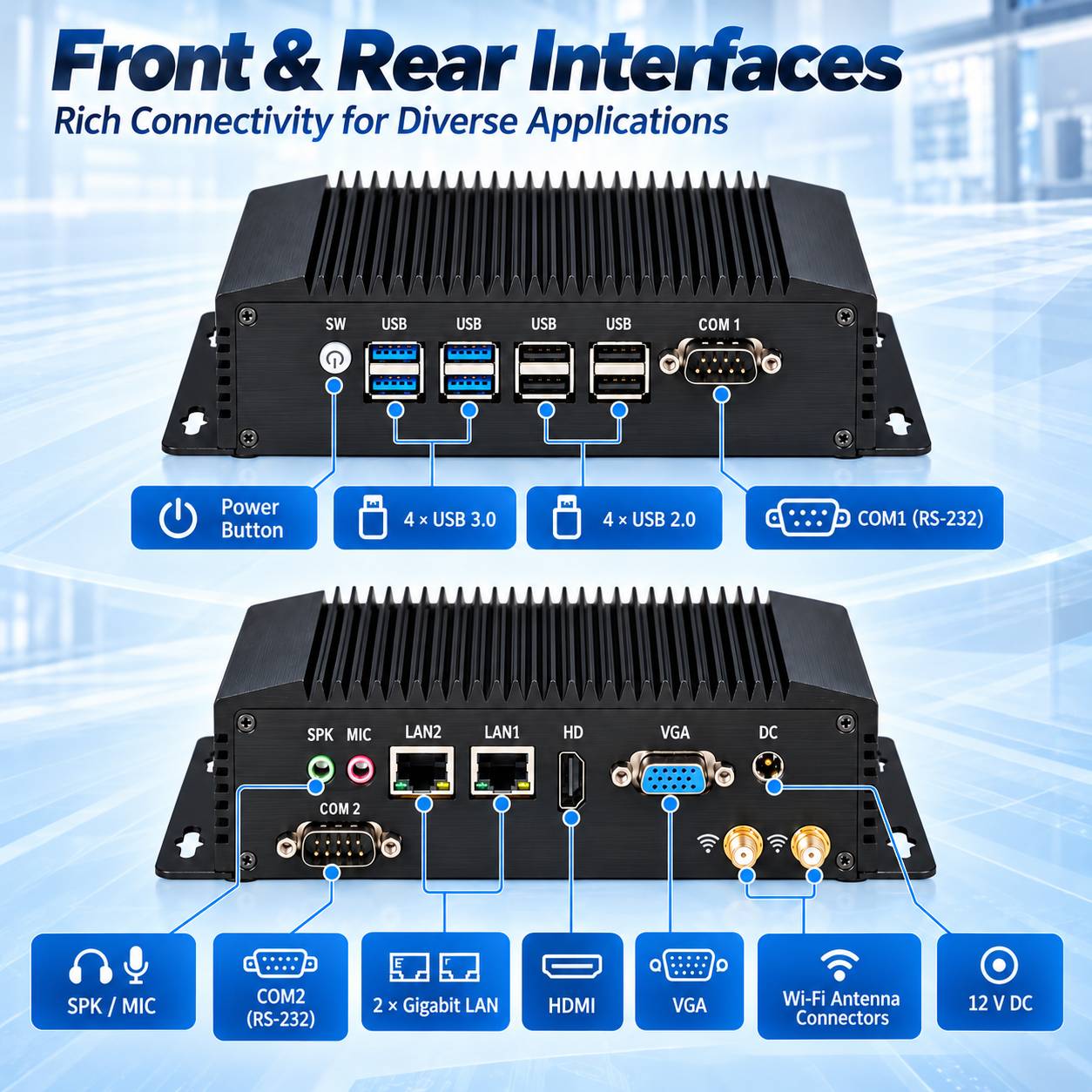

| Input / Output Ports | |||
| Switch | 1 × power on/off button | ||
| Power | 1 × 12 V DC input | ||
| USB | 4 × USB 3.0 + 4 × USB 2.0 (8 ports total) | ||
| Display | 1 × HDMI + 1 × VGA, supporting dual-display output | ||
| LAN | 2 × RJ45 Gigabit Ethernet ports | ||
| Audio | 1 × SPK audio output + 1 × MIC input | ||
| COM | 2 × DB9 RS-232 serial ports (COM1 and COM2) | ||
| Power and Working Environment | |||
| DC Input | 100-240V AC/50-60Hz | ||
| Output | 12V~+19V, recommend 12V/5A | ||
| Operating Temperature | -20°C/+60°C | ||
| Storage Temperature | -30°C/+70°C | ||
| Relative Humidity | 10%~90% @30°C(non-condensing) | ||
| Product Dimensions and Details | |||
| Functions | Auto Power On, watchdog, PXE / diskless boot, scheduled power-on and Wake-on-LAN | ||

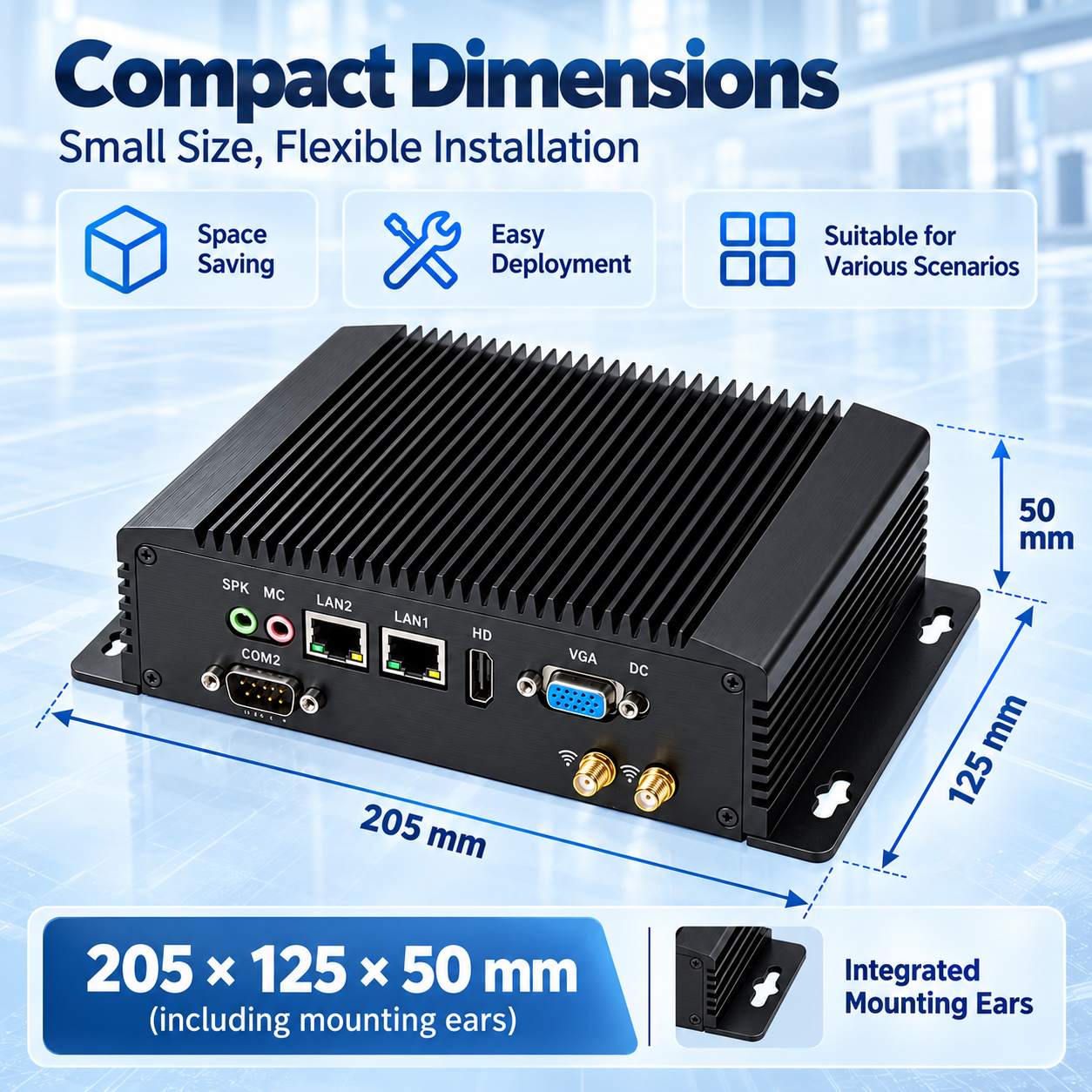

| Dimensions | 205 × 125 × 50 mm (including mounting ears) | ||
| Net Weight | Net 1kg, Gross 2kg | ||
| Chassis / Mounting | Black aluminum alloy(any customized color for bulk orders) and mounting ears | ||
| Operation | Designed for continuous 24/7 operation | ||
| Package Contents | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,2xWIFI Antennas | ||
