Fanless Industrial Mini PC GT1400 Supports 4G/5G LET Network For Factory Automation
Products Features
– 2 x Intel i225V 2.5G LAN and 2 x RS232/RS422/RS485 COM+4 x Expanded RS232 COM.
– Brushed Full Aluminum Alloy Black color shell, Exquisite Appearance Design.
– Optional Intel Celeron J4125/J6412 and Intel 8th/10th/11th Gen core i3/i5/i7 CPU.
– Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production crati on outside design.

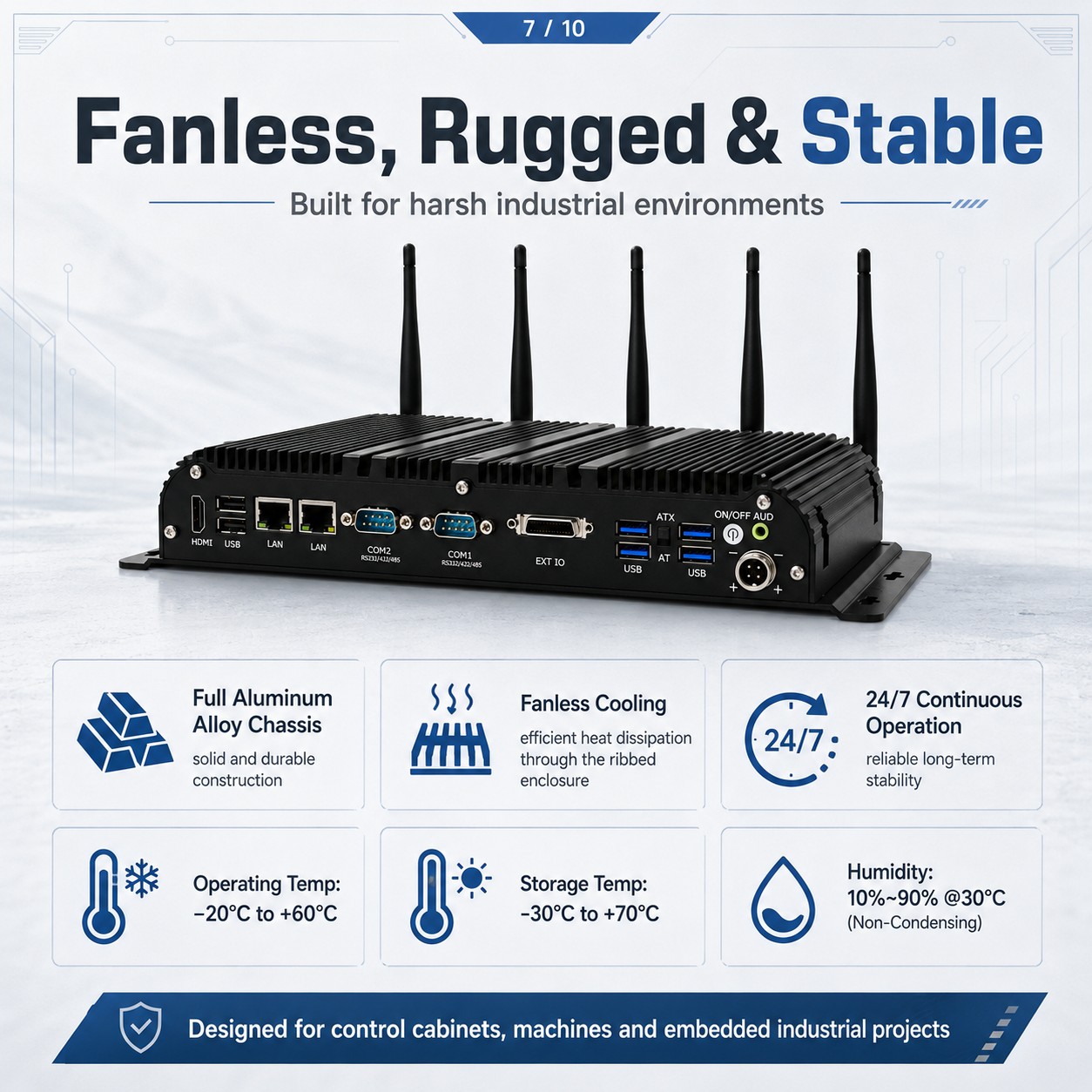

– Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.

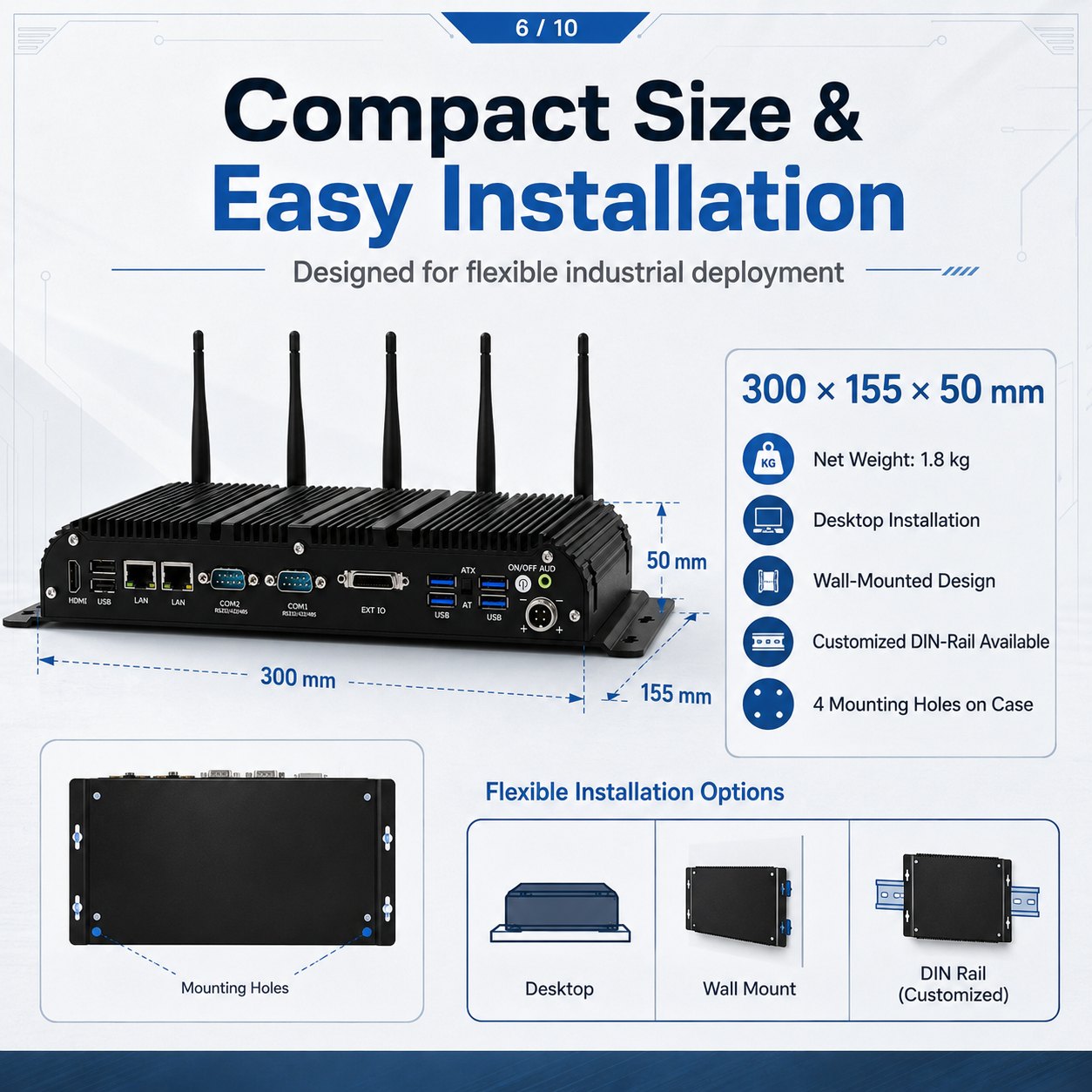

– Installation: support desktop and wall-mounted, customized Din rail.
– Functions: AWAL, Wake On LAN, RTC, Watchdog
-Embedded with SIM Card slot Support 5G Module Network
Product Details
Specification
Ordering information
Product Details

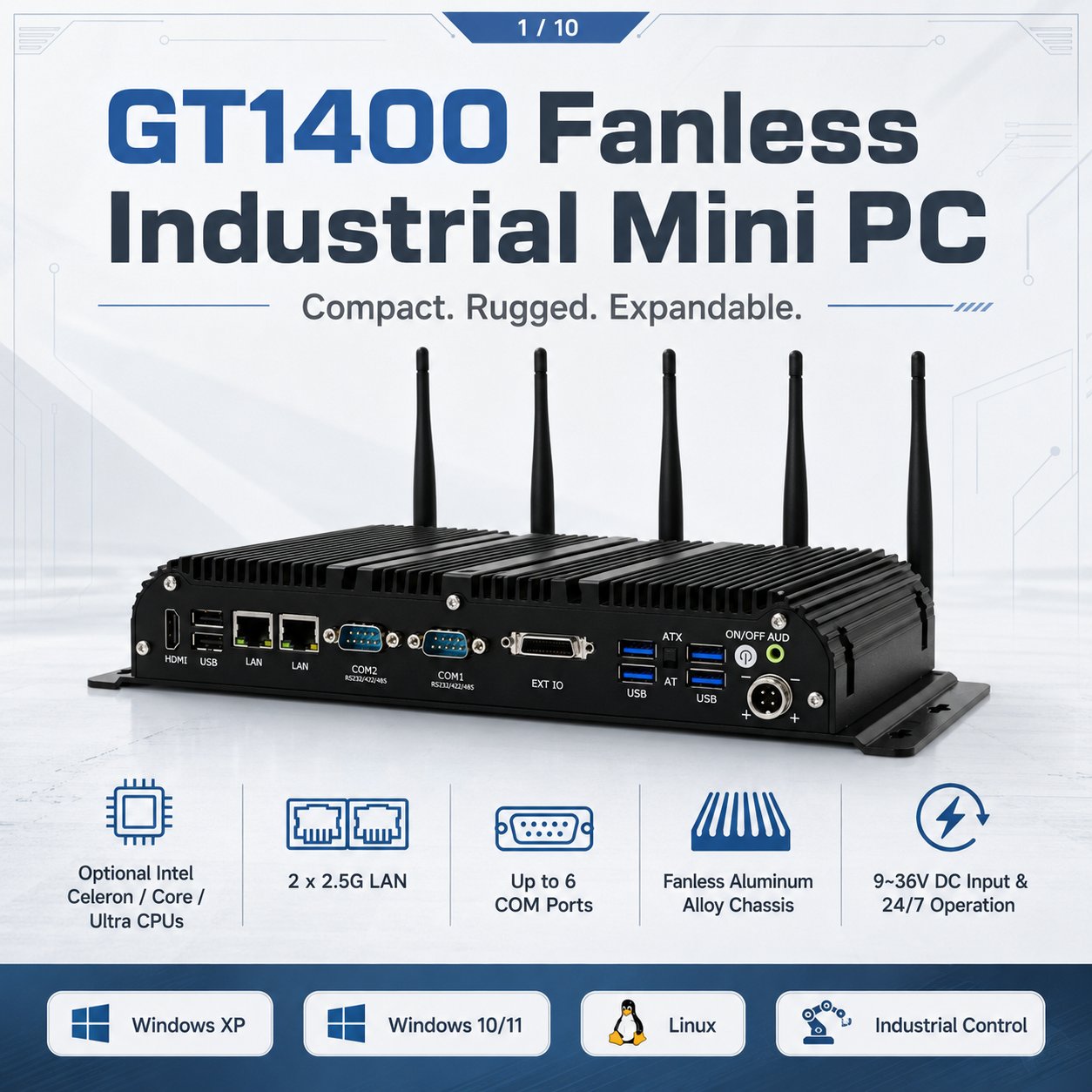

JIERUICC GT1400 is a rugged fanless industrial mini PC built for round-the-clock deployment in harsh industrial, edge computing and automation scenarios.
Adopting full black aluminum alloy passive heat dissipation chassis, it eliminates failure-prone cooling fans to deliver maintenance-free, silent long-term operation.

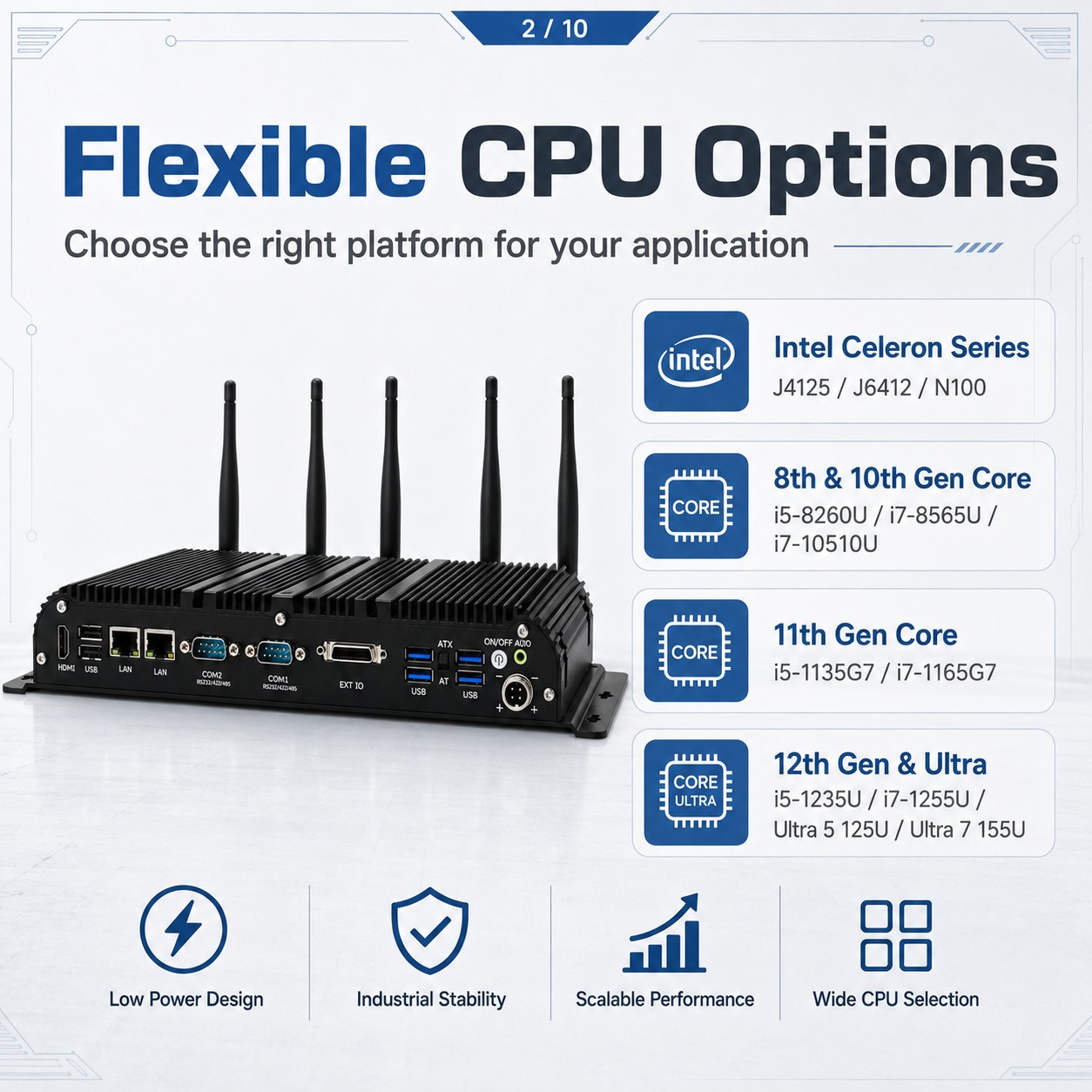

This embedded box PC supports wide-range CPU options from low-power Celeron J4125/J6412/N100 up to high-performance 8th–12th Gen Core i5/i7 & Intel Ultra 5/7.
It integrates abundant industrial I/O including dual Intel i225V 2.5G LAN, 6 configurable RS232/422/485 serial ports, multi USB, GPIO, Phoenix terminal wide-voltage DC input,
and expandable M.2 slots for NVMe/SATA SSD, Wi-Fi & 3G/4G/5G cellular modules.
With wide temperature tolerance (-20℃~+60℃), watchdog, RTC, WOL and auto power-on functions, it supports desktop, wall-mounted and customized DIN rail installation,

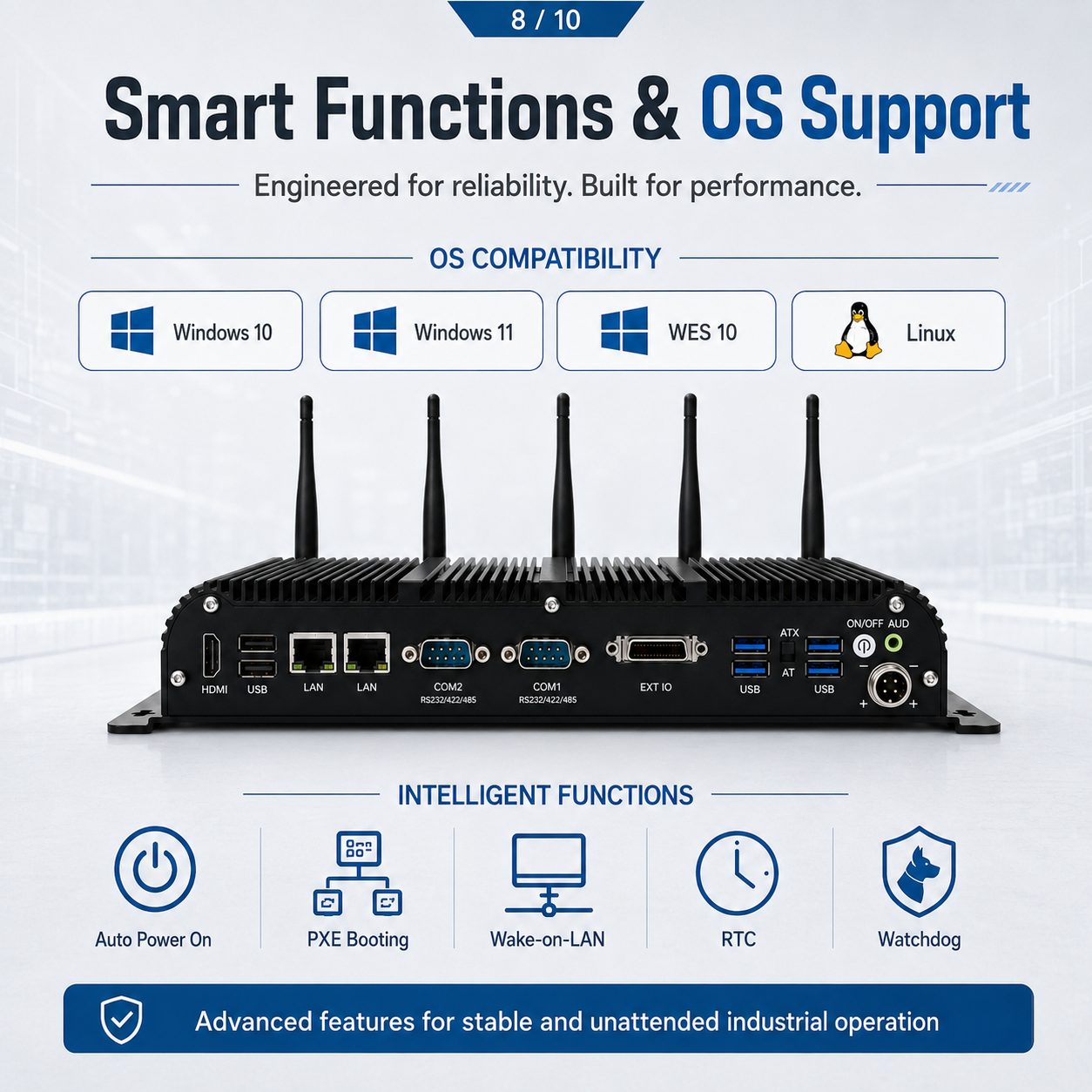

fully compatible with Windows 10/11, WES10 and Linux systems for industrial control, machine vision, IoT gateway and digital signage.

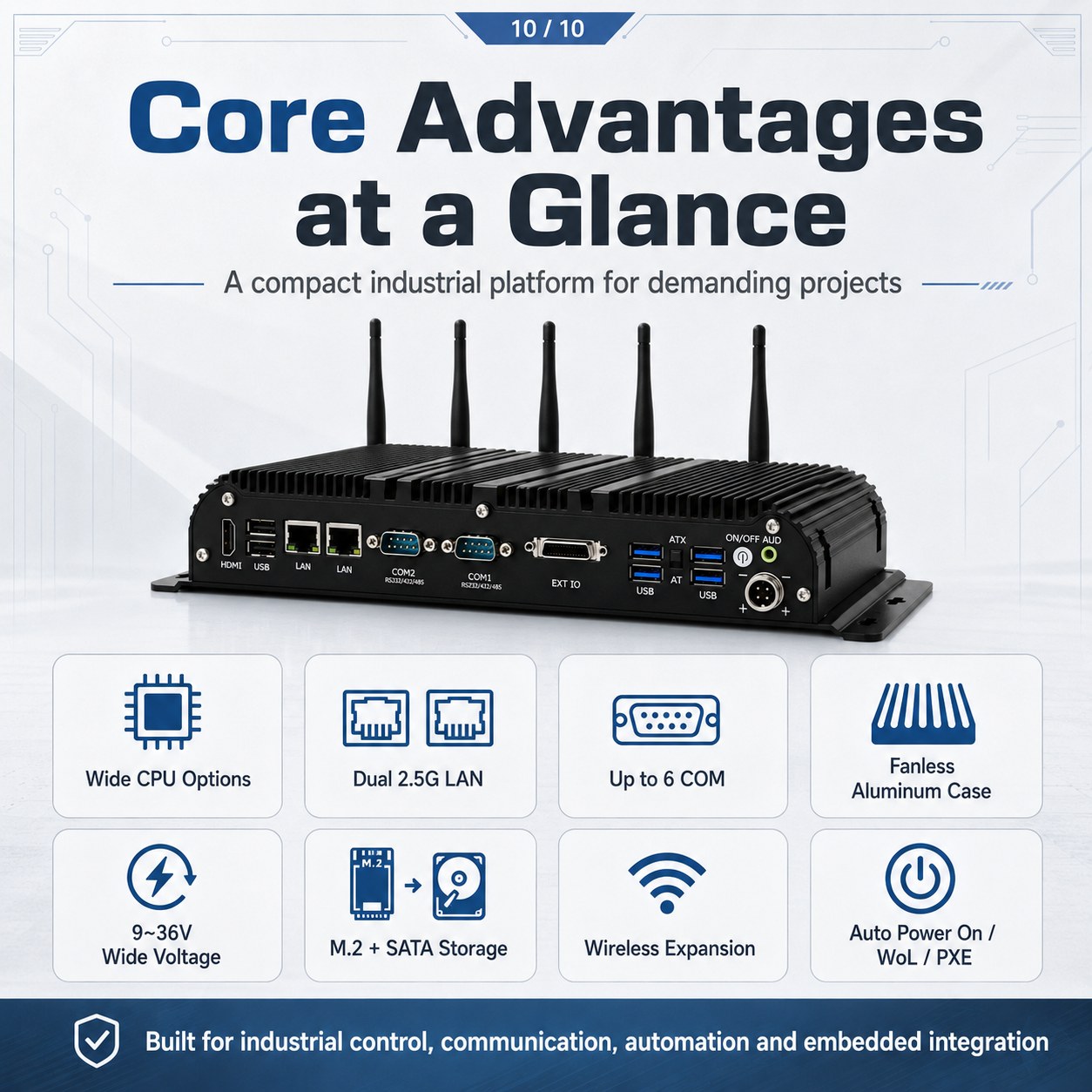

Core Features
1. Fanless Aluminum ChassisNo fan design, silent dustproof, -20℃~+60℃ wide operating temp, vibration resistant
2. Full CPU SelectionCeleron J4125/J6412/N100 / 8–12th Gen Core i5/i7 / Intel Ultra 5/7

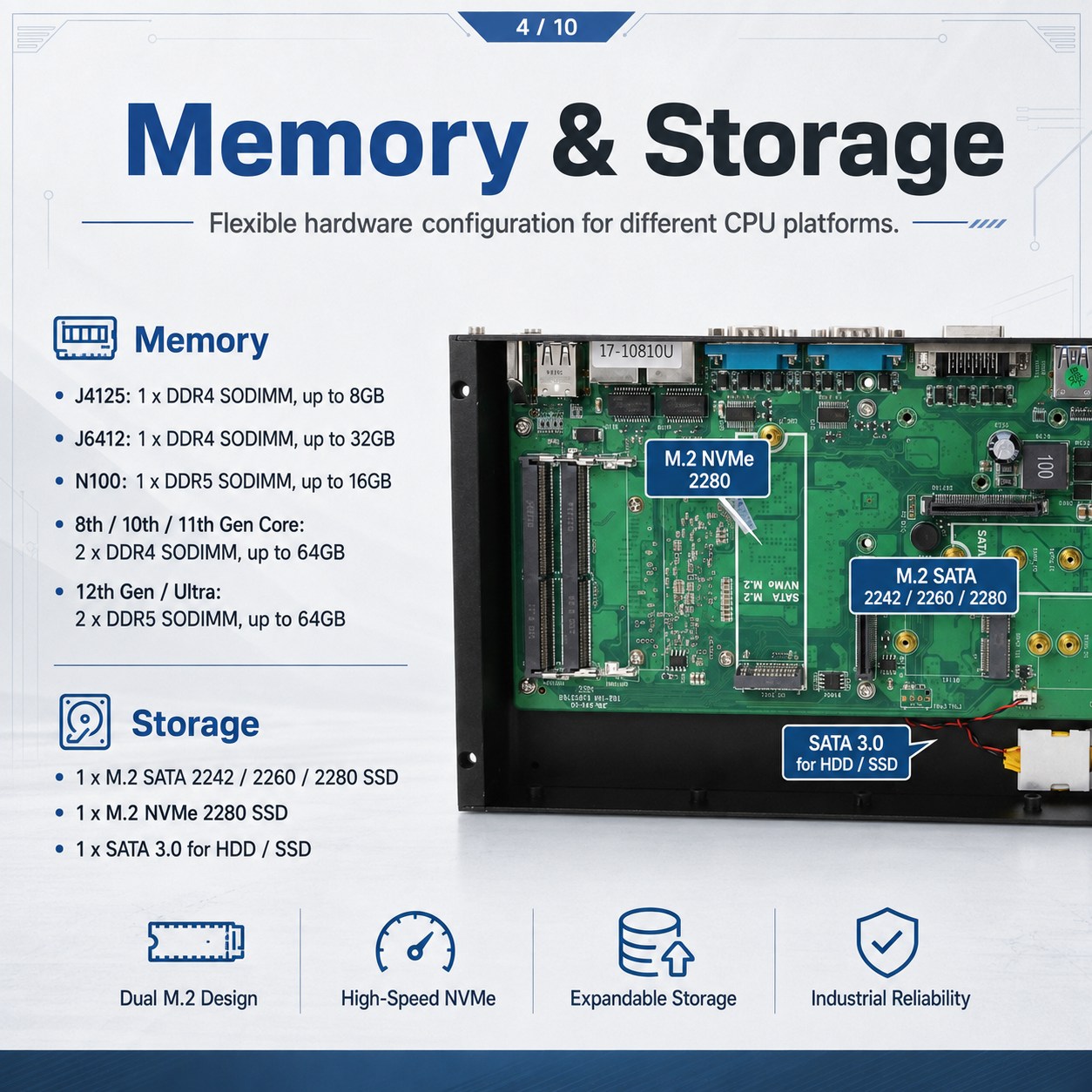

3. Expandable Memory & StorageUp to 64GB DDR4/DDR5 RAM; M.2 NVMe+M.2 SATA+SATA3 triple storage slots

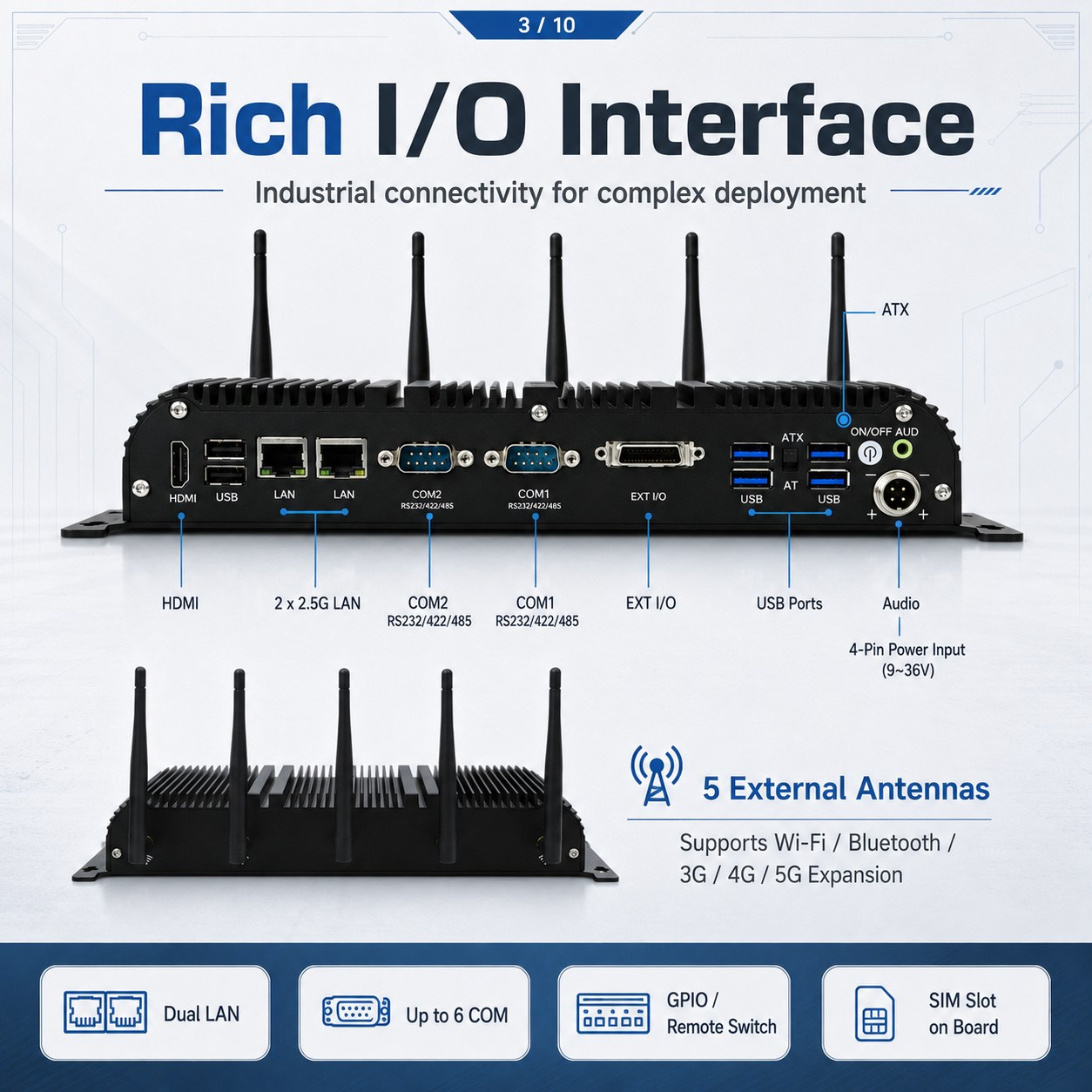

4. Abundant Industrial I/ODual Intel i225V 2.5G LAN; 6×RS232/422/485 COM; GPIO, multi USB, HDMISupport Wi-Fi/BT, 3G/4G/5G cellular modules with onboard SIM slot4-pin Phoenix terminal 9–36V wide DC power input
5. Industrial Reliable FunctionsWatchdog, RTC, WOL, auto power-on; wall/din rail/desktop mounting 6. Customization & Spec300×155×50mm, OEM chassis color available; Win10/11/WES10/Linux supported
Application Scenarios
• Factory automation, machine vision, PLC control
• Industrial IoT edge gateway, 5G data acquisition
• Intelligent transportation, vehicle-mounted control
• Energy & environmental monitoring terminals
• Digital signage, self-service kiosks
• Industrial surveillance & warehouse logistics
Specification
| Basic Information: | |||
| CPU | 1.Onboard 14nm Gemini Lake Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz(Turbo boost Technology) TDP 10W 4MB Cache Intel® UHD Graphics 600 | ||
| 2.Onboard 10nm Elkhart Lake Intel Celeron J6412 2.0GHz Quad Cores Four Threads Max 2.6GHz(Turbo boost Technology) TDP 10W 1.5MB Cache Intel® UHD Graphics | |||
| 3.Onboard 8th Gen Whiskey Lake 14nm CPU Intel Core i5-8260U Four Cores Eight Threads 1.6GHz up to 3.9GHz(Turbo boost Technology) 6MB cache TDP 15W Intel® UHD Graphics 620. | |||
| 4.Onboard Intel Whiskey Lake 14nm CPU Intel Core i5-8365U 1.6GHz Max 4.1GHz (Turbo boost Technology) Four Cores Eight Threads 6MB cache TDP 15W Intel® UHD Graphics | |||
| 5.Onboard Intel Whiskey Lake 14nm CPU Intel Core i7-8565U 1.8GHz Max 4.6GHz (Turbo boost Technology) Four Cores Eight Threads 8MB cache TDP 15W Intel® UHD Graphics | |||
| 6.Onboard Intel Comet Lake Refresh Intel Core i5-10210U Processor, 6M Cache, 1.6GHz up to 4.20GHz (Turbo boost Technology) Two Cores Six Threads TDP 15W Intel® UHD Graphics | |||
| 7.Onboard Intel Comet Lake Refresh Intel Core i7-10510U Processor, 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel® UHD Graphics | |||
| 8.Onboard 11th Gen 10nm CPU Comet Lake Intel Core i5-1135G7 Four cores Eight threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel Iris Xe Graphics | |||
| 9.Onboard 11th Gen 10nm CPU Comet Lake Intel Core i7-1165G7 4 cores 8 threads 2.8GHz up to 4.7GHz 12MB cache TDP 12W Intel Iris Xe Graphics | |||
| TDP | Refer to the above CPU | ||
| Chipset | SOC | ||
| Memory | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | ||
| OS | Windows 10, Windows 11, WES 10, Linux | ||
| Audio | Intel high definition audio controller | ||
| Network | 2 x Intel(R) i225V Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN | ||
| Video | Refer to the above CPU | ||
| Storage: | |||
| M.2 | 1 x M.2 slot for SATA 2242/2260/2280 SSD | ||
| M.2 | 1 x M.2 slot for SATA/NVME 2280 SSD | ||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| Wi-Fi: | |||

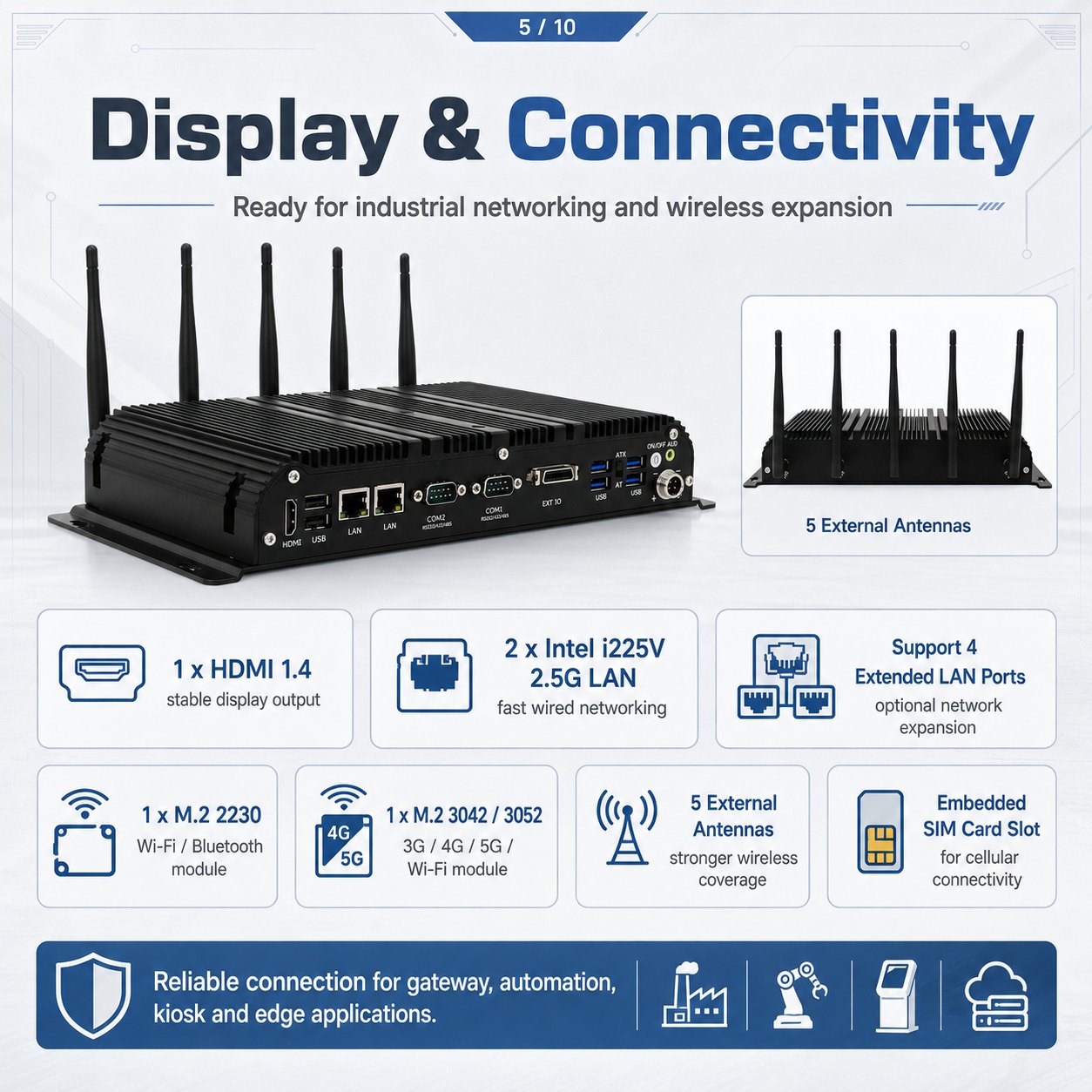

| Module | 1 x M.2 2230 slot for Wi-Fi & Bluetooth module 1 x M.2 3042/3052 slot for 3G/4G/5G/Wi-Fi module | ||
| Antenna | 5 x inner RF cables and 5 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 4pin phoenix terminal power supply input, support 9~36V | ||
| EXT IO | 1 x Integrated 4-way 3-wire COM, 10-way GPIO, 1 x Remote Switch | ||
| COM | 2 x RS232/RS422/RS485 COM, 4 x Expanded RS232 COM | ||
| USB | J4125/J6412: 4 x USB3.0, 2 x USB2.0, 8th/10th/11th: 2 x USB3.0, 4 x USB2.0 | ||
| ATX | 1 x ATX | ||
| Display | 1 x HDMI 1.4 | ||
| LAN | 2 x RJ45 Intel 2.5G LAN(support four extended network ports) | ||
| SIM | 1 x embedded SIM card slot on board | ||
| Audio | 1 x Audio | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | 9V~36V | ||
| Operating Temperature | -20°C/+60°C Centigrade | ||
| Storage Temperature | -30/+70 Centigrade | ||
| Relative Humidity | 10%~90%@30°C(non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | AWAL, Wake On LAN, RTC, Watchdog, Support 3G / 4G / 5G Module | ||
| Size | 300*155*50mm | ||
| Weight | Net 1.8kg, Gross 2kg | ||
| Shell | Black color aluminum alloy(any customized color for bulk order) | ||
| Mounting | 4 Mounting holes on case | ||
| Cooling Mode | Fanless, without a cooling fan | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, extend ports cable (Pay extra) | ||
Ordering information
| GT1400 | i5-8260 | Intel® UHD Graphics 620. | 1.6GHz up to Max 3.9Ghz | 1 x HDMI 1.4 | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | 1 x 2.5 inch 1 x M.2 slot for SATA 2242/2260/2280 SSD 1 x M.2 slot for NVME 2280 SSD | 2 | 2 | 6 | 9V~36V |
| GT1400 | i5-8365U | Intel® UHD Graphics | 1.6GHz up to Max 4.1Ghz | 1 x HDMI 1.4 | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | 1 x 2.5 inch 1 x M.2 slot for SATA 2242/2260/2280 SSD 1 x M.2 slot for NVME 2280 SSD | 2 | 2 | 6 | 9V~36V |
| GT1400 | i7-8565U | Intel® UHD Graphics | 1.8GHz up to Max 4.6Ghz | 1 x HDMI 1.4 | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | 1 x 2.5 inch 1 x M.2 slot for SATA 2242/2260/2280 SSD 1 x M.2 slot for NVME 2280 SSD | 2 | 2 | 6 | 9V~36V |
| GT1400 | i5-10210U | Intel® UHD Graphics | 1.6GHz up to Max 4.2Ghz | 1 x HDMI 1.4 | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | 1 x 2.5 inch 1 x M.2 slot for SATA 2242/2260/2280 SSD 1 x M.2 slot for NVME 2280 SSD | 2 | 2 | 6 | 9V~36V |
| GT1400 | i7-10510U | Intel® UHD Graphics | 1.8GHz up to Max 4.9Ghz | 1 x HDMI 1.4 | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | 1 x 2.5 inch 1 x M.2 slot for SATA 2242/2260/2280 SSD 1 x M.2 slot for NVME 2280 SSD | 2 | 2 | 6 | 9V~36V |
| GT1400 | i5-1135G7 | Intel Iris Xe Graphics | 2.4GHz up to Max 4.2Ghz | 1 x HDMI 1.4 | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | 1 x 2.5 inch 1 x M.2 slot for SATA 2242/2260/2280 SSD 1 x M.2 slot for NVME 2280 SSD | 2 | 2 | 6 | 9V~36V |
| GT1400 | i7-1165G7 | Intel Iris Xe Graphics | 2.8GHz up to Max 4.7Ghz | 1 x HDMI 1.4 | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB 8th/10th/11th: 2 x SO-DIMM DDR4 Slot, Support 4GB/8GB/16GB/32GB/64GB | 1 x 2.5 inch 1 x M.2 slot for SATA 2242/2260/2280 SSD 1 x M.2 slot for NVME 2280 SSD | 2 | 2 | 6 | 9V~36V |
