15-Inch Rugged Panel PC with IP65 Front Panel, Touchscreen for HMI Automation
Model name: GTY-150T
15″1024×768 HD PCAP capacitive touchscreen
100% fanless passive cooling, all-aluminum enclosure
Intel Celeron J6412 / N100 / Core i3/i5/i7 CPU options
Front IP65 dust & water resistant
Optional 9-36V wide DC power input
Dual LAN + USB + Dual COM + HDMI + VGA ports
Supports Windows & Linux operating systems
Designed for 24/7 continuous industrial operation
Product Details
Specification
Ordering information
Product Details
Product Introduction

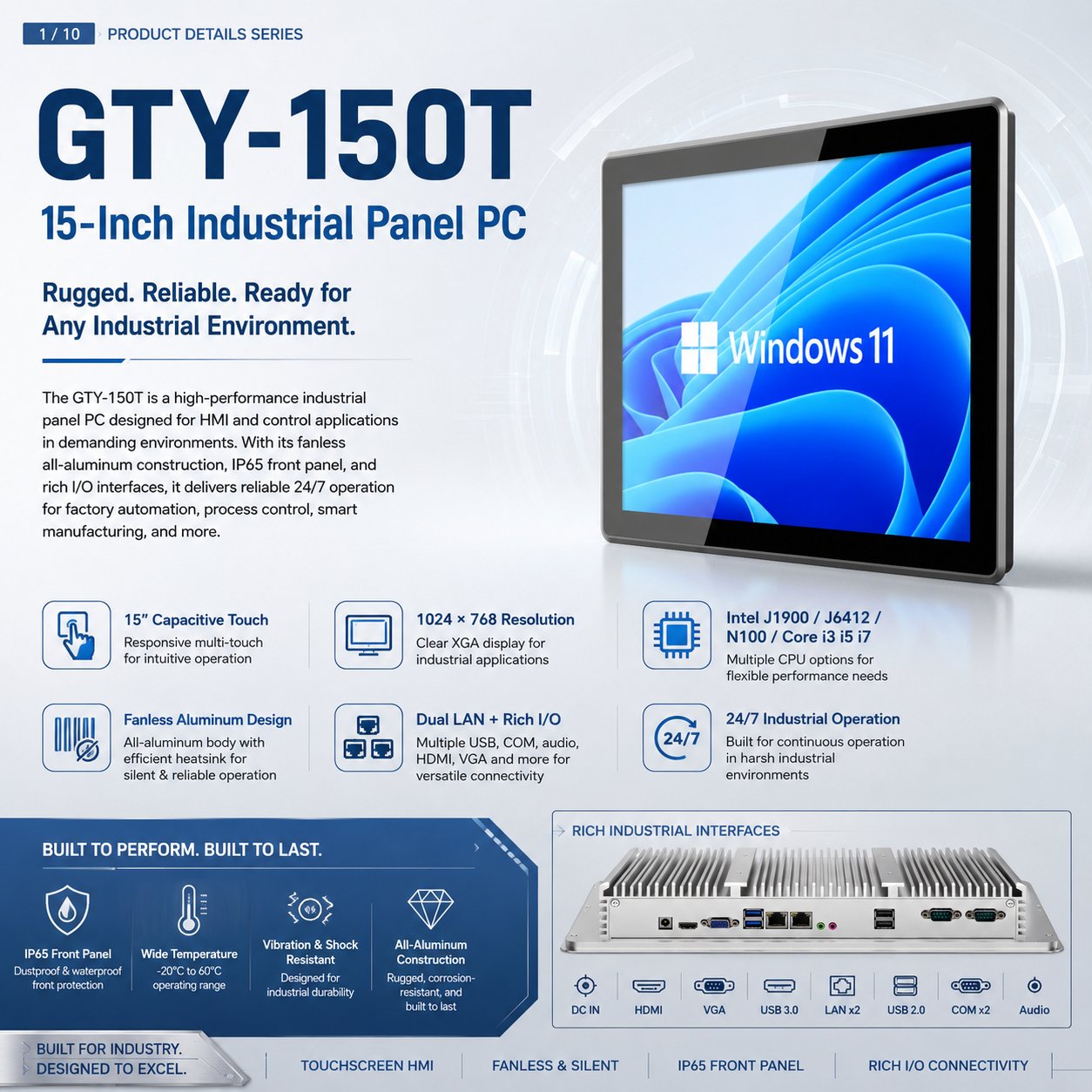

The GTY-150T is a 15-inch industrial panel PC built for HMI control, factory automation, equipment terminals, and harsh workshop environments. It combines a responsive capacitive touchscreen, fanless all-aluminum housing, IP65-rated front panel, and flexible industrial I/O in one compact unit.
With Intel J1900, J6412, N100, and Core i3/i5/i7 processor options, this panel PC can be configured for different performance needs—from simple machine control to MES, ERP, PLM, and data visualization terminals. The rugged aluminum structure, wide installation choices, and OEM/ODM customization make it suitable for long-term industrial deployment.
Product Features

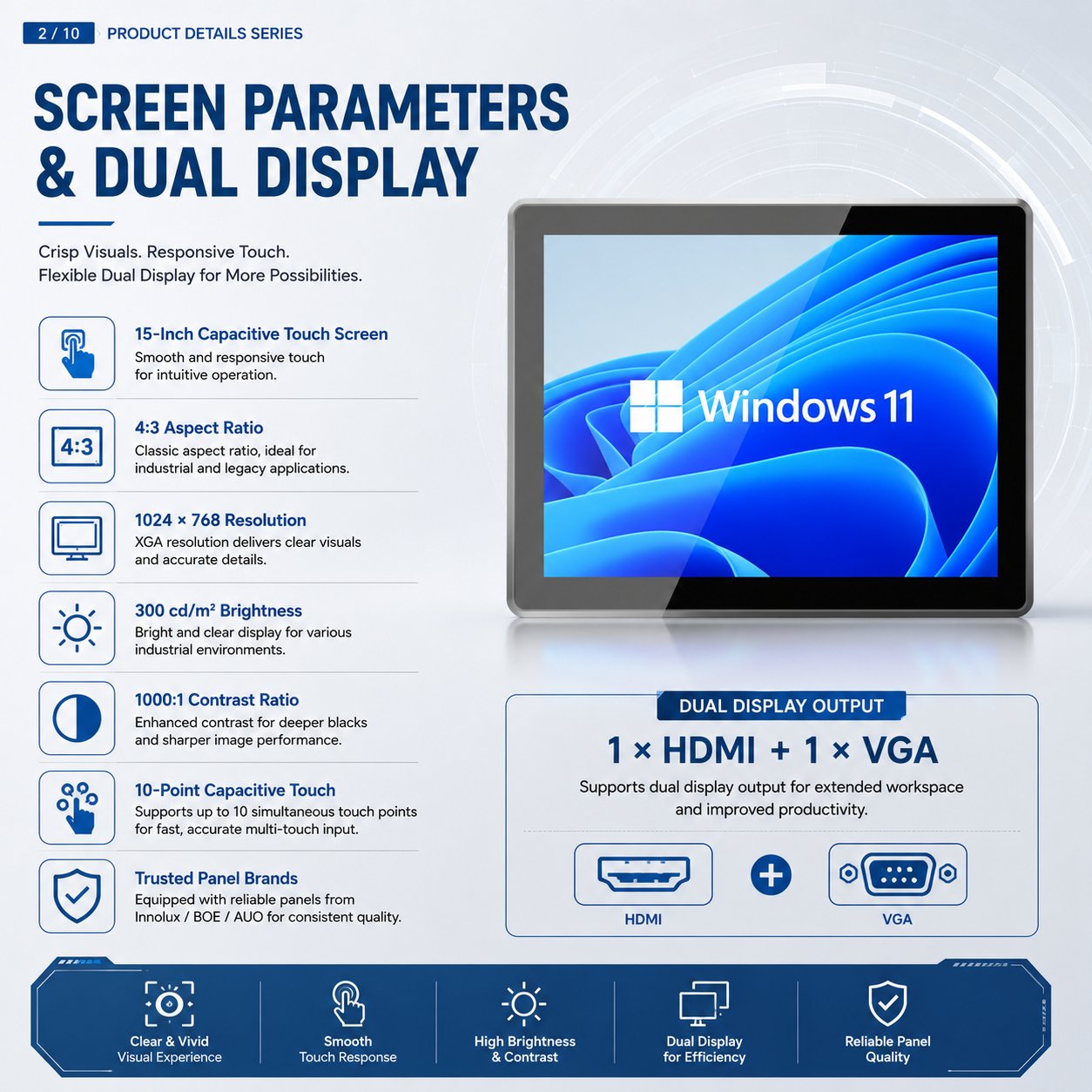

15-Inch Industrial Touchscreen
4:3 capacitive touch display with 1024 × 768 resolution, 300 cd/m² brightness, and 1000:1 contrast ratio.

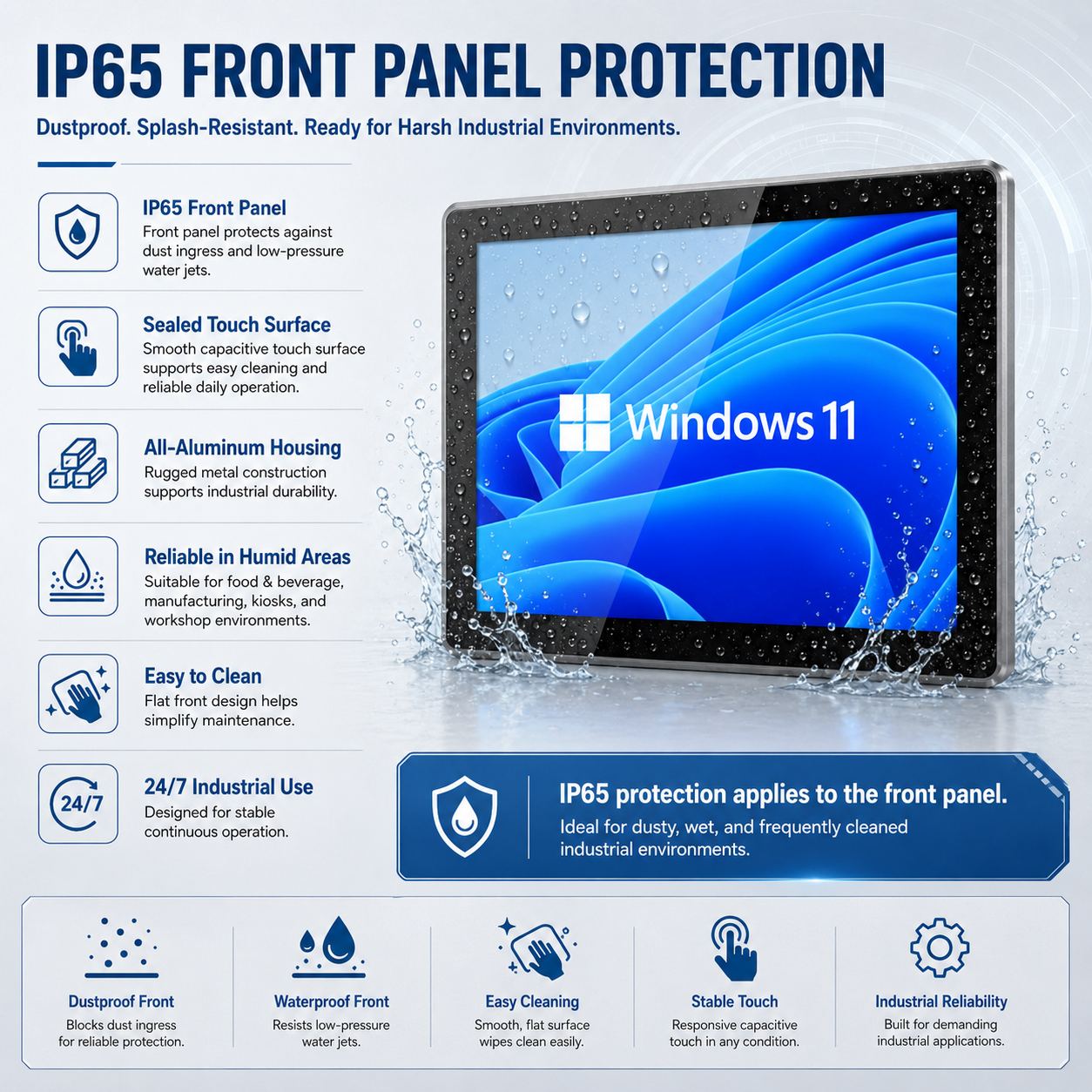

IP65 Front Panel Protection
The front panel is designed to resist dust, splashes, and frequent cleaning in demanding industrial environments.
Fanless Aluminum Design
All-aluminum housing with passive heat dissipation, no moving fan parts, quieter operation, and better long-term reliability.
Flexible CPU Options
Supports Intel Celeron J1900, J6412, Intel N100, and low-power Intel Core i3/i5/i7 platforms.
Expandable Memory & Storage
DDR3L / DDR4 SODIMM memory from 4GB to 64GB, with 64GB SSD standard and optional SSD upgrades up to 2TB.

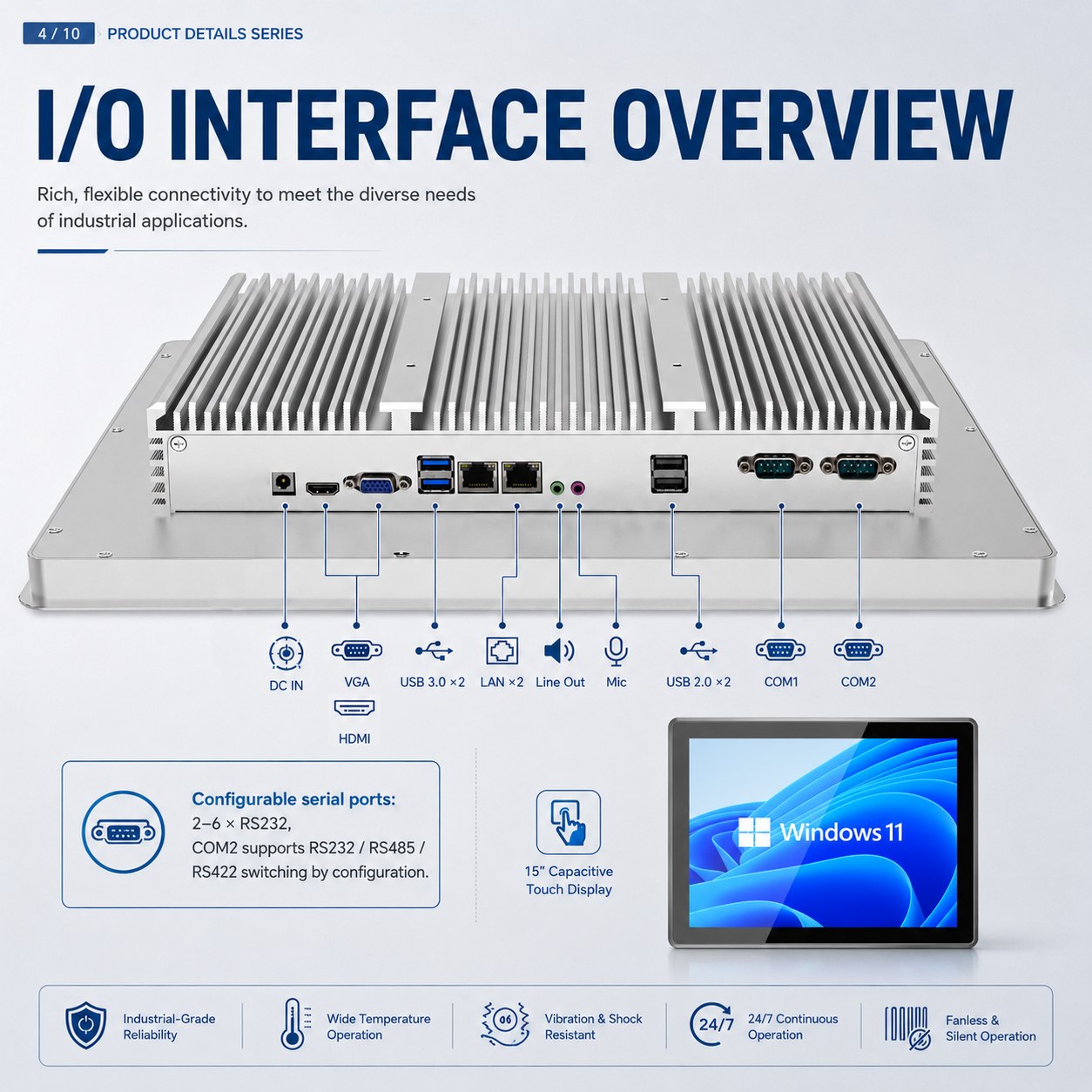

Rich Industrial I/O
Includes HDMI, VGA, dual Gigabit LAN, USB 3.0, USB 2.0, Line Out, Mic, DC input, and 2–6 configurable RS232 serial ports.
Industrial Network Support
Dual Gigabit Ethernet supports Wake-on-LAN and PXE for remote management and flexible deployment.

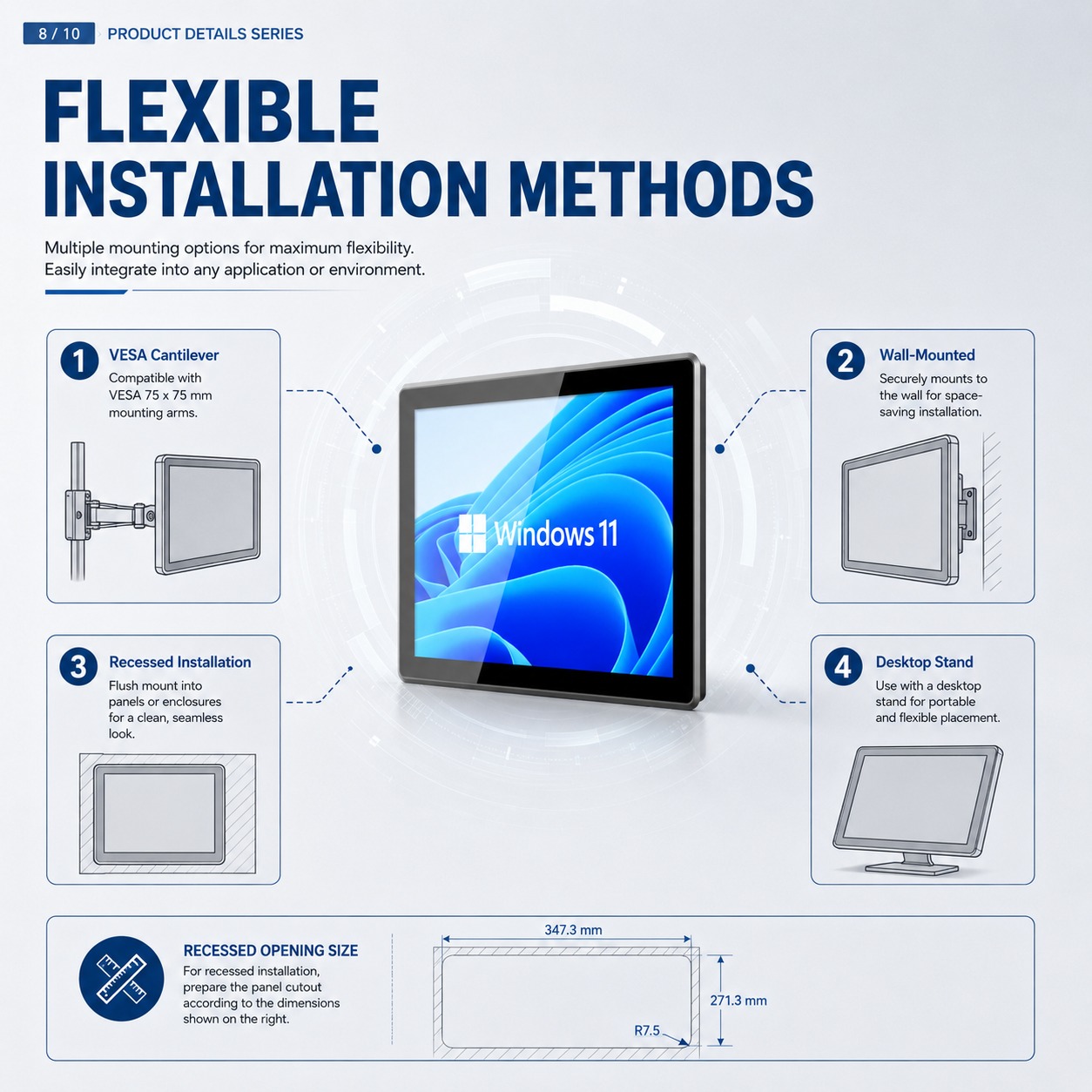

Multiple Installation Methods
Supports VESA cantilever, wall-mounted, recessed installation, and desktop stand installation.
Custom Interface Options
Optional WiFi, Bluetooth, 4G, 5G, 9–36V wide voltage input, screen size customization, and OEM/ODM configuration.
Built for 24/7 Operation
Designed for stable operation in industrial sites, with watchdog support, anti-static protection, corrosion resistance, and easy-clean housing.
Product Application Industries
Manufacturing HMI, factory automation, machine control, food and beverage processing, chemical processing, pharmaceutical production, energy monitoring, transportation systems, logistics terminals, smart manufacturing, MES / ERP / PLM terminals, ESOP workstations, kiosks, and intelligent infrastructure.
Specification
| System Configuration | |
| processor | Celeron J1900/J6412/N100 Processors |
| 3th /4th /5th/6th/7th/8th/10th/11th/12th/13th Gen Intel Core i3/i5/i7 Processors | |
| operating system | Windows XP/ 7/10/11, Linux support |
| Memory capacity | DDR3L / DDR4 SODIMM memory slots, supporting 4-64 GB optional. RAM type is Depands on CPUs |
| Hard drive support | 64 G SSD ( upgradeable to 128GB/ 256GB/512GB/1TB/2TB , 2.5-inch hard drive can be added separately) |
| graphics card | Depands on the CPUs |
| WiFi function | Built-in WiFi and Bluetooth module (Optional module) |
| Extend | 1 Mini PCIe / M.2 slot, supporting WIFI , Bluetooth, 4G , 5G (optional module) |
| network | 2* Gigabit Ethernet, supports Wake-on-LAN and PXE functionality . |
| Power characteristics | DC 12V (supports 9-36V wide voltage customization) , power consumption 30-100W |
| Screen size | 15 ” capacitive touch screen, 4 : 3 wide, 300 cd /m² (1000:1) Size can be customized |
| resolution | 1024×768 |
| Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
| Structural parameters | |
| Box material | IP 65 rated aluminum alloy panel, all-aluminum fanless design. |
| Installation method | Supports VESA cantilever, wall- mounted, recessed , and desktop stand types. |
| Overall dimensions | 355.3mm*279.3mm*58.5mm |
| Opening size | 347.3mm*271.3mm R7.5 |
| Packaging size | 440*385*145mm |
| Backlight | More than 50000H |
| Product weight | gross weight:6 kg |
| Product Color | silver |
| Ambient temperature | Operating temperature: -10℃~60℃ |
| Storage temperature: -20℃~70 ℃ | |
| relative humidity | 5%-95% relative humidity, non-condensing |
| Interface parameters | |
| POWER | 1* Power switch |
| Display Interface | 1 VGA, 1 HDMI |
| LAN | 2 * Gigabit Ethernet, supporting Wake-on-LAN and PXE functionality . |
| USB | 2 USB 2.0 ports, 2 USB 3.0 ports ( the number of USB 3.0 ports varies depending on the platform) |
| COM | 2-6* RS232 serial interface, COM2 supports RS232/RS485 switching. |
| audio | 1* Line out interface, 1* MIC interface |
| power supply | 1* DC power interface, supports 12V power input |
| Heat dissipation | Fanless aluminum block heat sink |
| Quality Inspection | Material intake, assembly, aging, and multiple inspections(Resistant to earthquakes, shockproof, and anti-drop) |
| Certification | RoHS, CE, FCC , CCC |
| warranty | One-year warranty for the whole machine |
