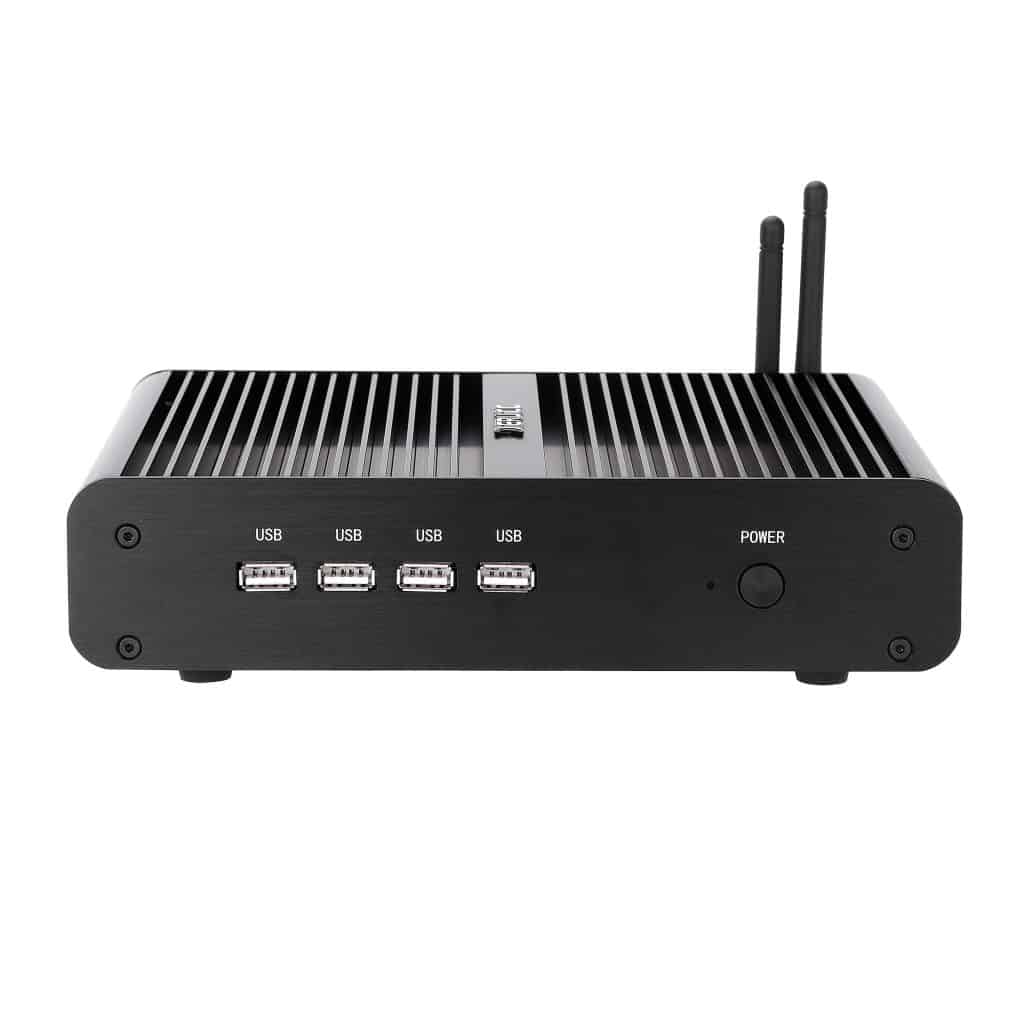

Fanless Mini PC GT770 for Office/Education/HTPC
Products Features
– 1x HDMI+1x VGA+1 x RJ45 Giga LAN+2 x USB2.0, 4 x USB3.0
– Brushed Full Aluminum Alloy Black color shell, Exquisite Appearance Design.
– Fanless system without cooling fan, Zero noise,Stable Performance, work as long as 24 hours.
– Built-in Wi-Fi / Bluetooth with dual external antennas.
– 2x SO-DIMM DDR3L Slot Support 2GB/4GB/8GB/16GB DDR3/L/-RS 1333/1600
– Can install M-sata SSD+2.5” SATA HDD together.
– Can be mounted on the backside of monitor by VESA Bracket
-Support Restore AC Power loss/LAN PXE boot/ WOL on windows 7
Product Details
Specification
Ordering information
Product Details
Fanless Mini PC, a state-of-the-art computing solution designed to deliver high performance with zero noise. Featuring a sleek, full aluminum alloy chassis, this mini PC leverages advanced passive cooling technology for efficient heat dissipation and 24/7 operational reliability.
Key Features:
Fanless Design: Enjoy completely silent operation with no moving parts, ensuring durability and zero noise, ideal for quiet environments.
Wide CPU Options: Choose from a range of processors to fit your needs, from the cost-effective Intel i5-4200U to the powerful Intel i7-1255U.
Expandable Memory: Dual memory channels support up to 64GB of RAM, providing ample power for multitasking and demanding applications.
Large Storage Capacity: Accommodates SSDs up to 2TB, ensuring fast data access and massive storage for all your files.
Rich Connectivity: Equipped with six USB ports, LAN, HDMI, VGA, SPK, MIC, and dual-band Wi-Fi, ensuring seamless connectivity for various peripherals.
Versatile Applications: Perfect for business offices, school computer labs, hotels, digital signage, HTPC setups, small servers, and cloud computing solutions.
The Fanless Mini PC is the ultimate combination of performance, durability, and versatility, designed to excel in a wide range of industries and use cases. Whether you need a quiet home theater PC or a reliable server, this fanless mini PC is your perfect choice.
Specification
| Basic Information: | |||
| CPU | 1. Intel Haswell Core i3 4005U 2 cores 4 threads 1.7GHz 3MB cache TDP 15W Intel HD Graphics 4400 DDR3L RAM | ||
| 2. Intel broadwell-U Core i3 5005U 2 cores 4 threads 2.0GHz 3MB cache TDP 15W broadwell-U DDR3L RAM | |||
| 3. Intel Skylake Core i3 6157U 2 cores 4 threads 2.4GHz 3MB cache TDP 15W Intel HD Intel Iris Graphics 550 DDR3L RAM | |||
| 4. Intel Kaby Lake Core i3 7167U 2 cores 4 threads 2.8GHz 3MB cache TDP 15W Intel HD Intel HD Graphics 650 DDR3L RAM | |||
| 5. Intel Kaby Lake Core i3 7167U 2 cores 4 threads 2.8GHz 3MB cache TDP 15W Intel HD Intel HD Graphics 650 DDR3L RAM | |||
| 6. Intel Core i3-8140U Dual cores 4threads 2.1GHz up to 3.9GHz 4MB cache TDP 15W Intel UHD Graphics 620.DDR4 RAM | |||
| 7. Intel Skylake Core i5 4200U 2 core 1.6GHz up to 2.60GHz with GPU Intel HD 4400 Graphics.DDR3L RAM.DDR3L RAM | |||
| 8.Intel Core i5-8259U 4 cores 8 threads 2.3GHz up to 3.8GHz 6MB cache TDP 15W Intel UHD Graphics 620.DDR4 RAM | |||
9.Intel Tiger Lake Core i5-1135G7 4 cores 8 threads 2.4GHz up to 4.2GHz 8MB cache TDP 15W Intel Iris Xe Graphics.DDR4 RAM | |||
10.Intel Tiger Lake Core i5-1235U 10 cores 12 threads 1.3GHz up to 4.4GHz 12MB cache TDP 15W Intel Iris Xe Graphics G7 (80EU).DDR4 RAM | |||
| TDP | 15W | ||
| BOIS | AMI BIOS, ACPI supported, support call-on fuction, automatically | ||
| Memory | 2 x SO-DIMM Slot, LPDDR3-1866, DDR3L-1600. DDR4 2133(i3-8140U only) | ||
| OS | Windows 7 / 10/ Linux OS | ||
| Characteristic | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0, SSE4.2, HTT… | ||
| Audio | ALC662 sound chip, 6-channel , Intel Panther Point HDA | ||
| Network | RTL8168E PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN | ||
| Video | Intel HD Graphics | ||
| Storage: | |||
| SATA | 1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s | ||
| M-SATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-full port for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 1 x LED | ||
| USB | 4 x USB3.0, 2 x USB2.0 | ||
| Display | 1 x VGA, 1 x HDM Dual Display | ||
| LAN | 1 x RJ45 Giga LAN | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +12V~+19V, recommend 12V/3A-5A | ||
| Operating Temperature | 0/+70 Centigrade | ||
| Storage Temperature | -20/+85 Centigrade | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | PXE/Auto restart when lost power | ||
| Size | 19.8*19.8*3.7CM | ||
| Weight | Net 1.6kg, Gross 2.5kg | ||
| Shell | Sliver | ||
| Cooling Mode | Fanless design | ||
| Wall Mounted | Support with VESA Bracket (Optional) | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT770 | I3 4005U | Intel® HD Graphics 4400 | 1.70 GHz | VGA/HDMI | 2 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 6 | 12V/3A |
| GT770 | I3 5005U | Intel® HD Graphics 5500 | 2.00 GHz | VGA/HDMI | 2 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 8 | 12V/3A |
| GT770 | I3 6157U | Intel® Iris® Graphics 550 | 2.40 GHz | VGA/HDMI | 2 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 8 | 12V/3A |
| GT770 | I3 7167U | Intel® Iris® Plus Graphics 650 | 2.80 GHz | VGA/HDMI | 2 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 8 | 12V/3A |
| GT770 | I5 4200U | Intel® HD Graphics 4400 | 1.60~2.60 GHz | VGA/HDMI | 2 x SO-DIMM DDR3L | 1 x 2.5 inch/1 x M-SATA | 1 | 8 | 12V/5A |
| GT770 | I3 8145U | Intel® UHD Graphics | 2.10~3.90 GHz | VGA/HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 1 | 8 | 12V/3A |
