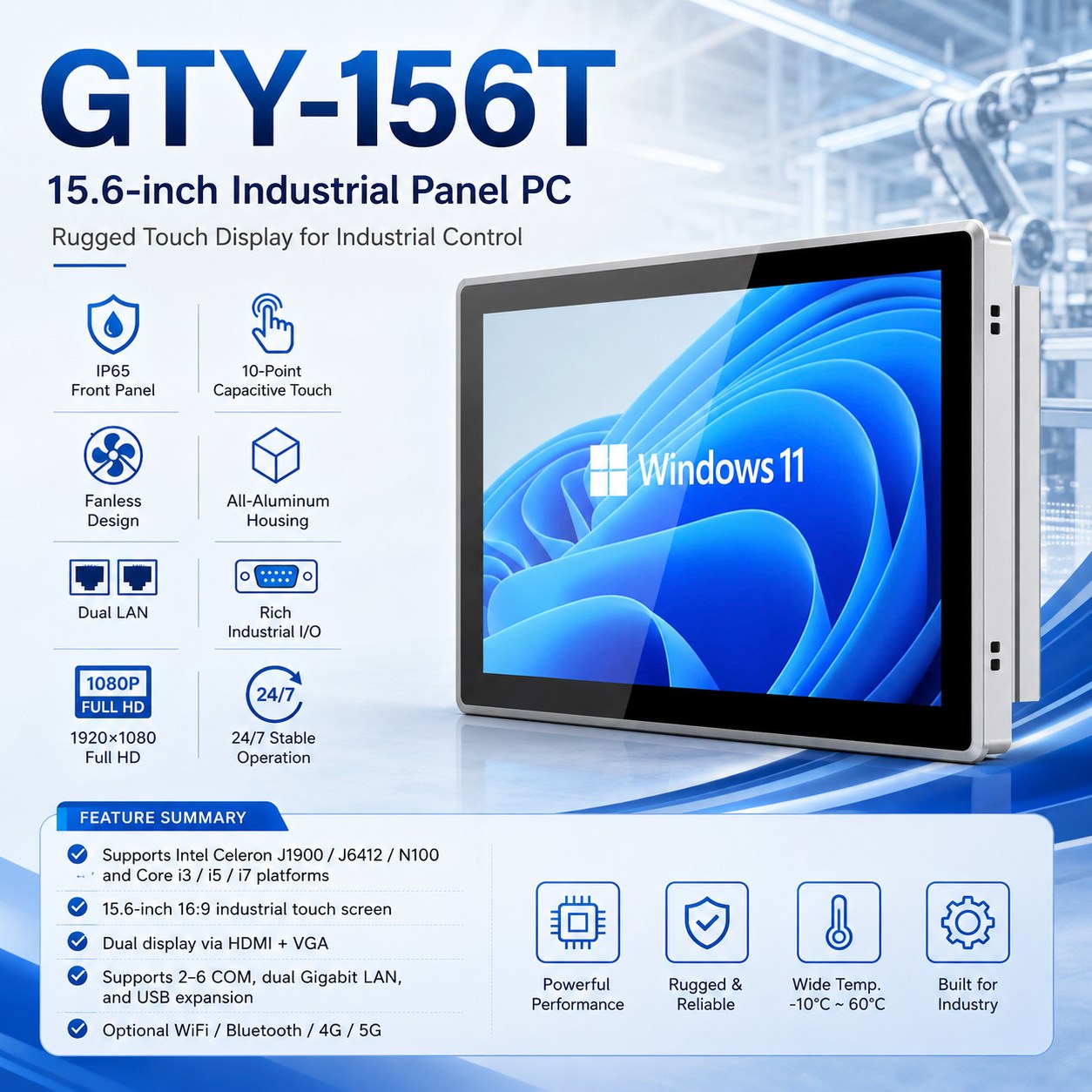

Product Introduction

The GTY-156T is a 15.6-inch industrial panel PC designed for factories, production lines, and smart control systems that need a stable touch terminal in a compact form. It combines a Full HD capacitive touchscreen, embedded computing platform, fanless aluminum structure, and rich industrial I/O into one ready-to-install device.

Built for long working hours and harsh shop-floor conditions, it supports Intel Celeron and Core i3/i5/i7 platforms, dual Gigabit LAN, HDMI + VGA dual display, RS232 expansion, SSD storage, and optional WiFi, Bluetooth, 4G, or 5G modules. It is a practical choice for HMI, MES, ERP, PLM, equipment control, and data visualization projects.

Product Features

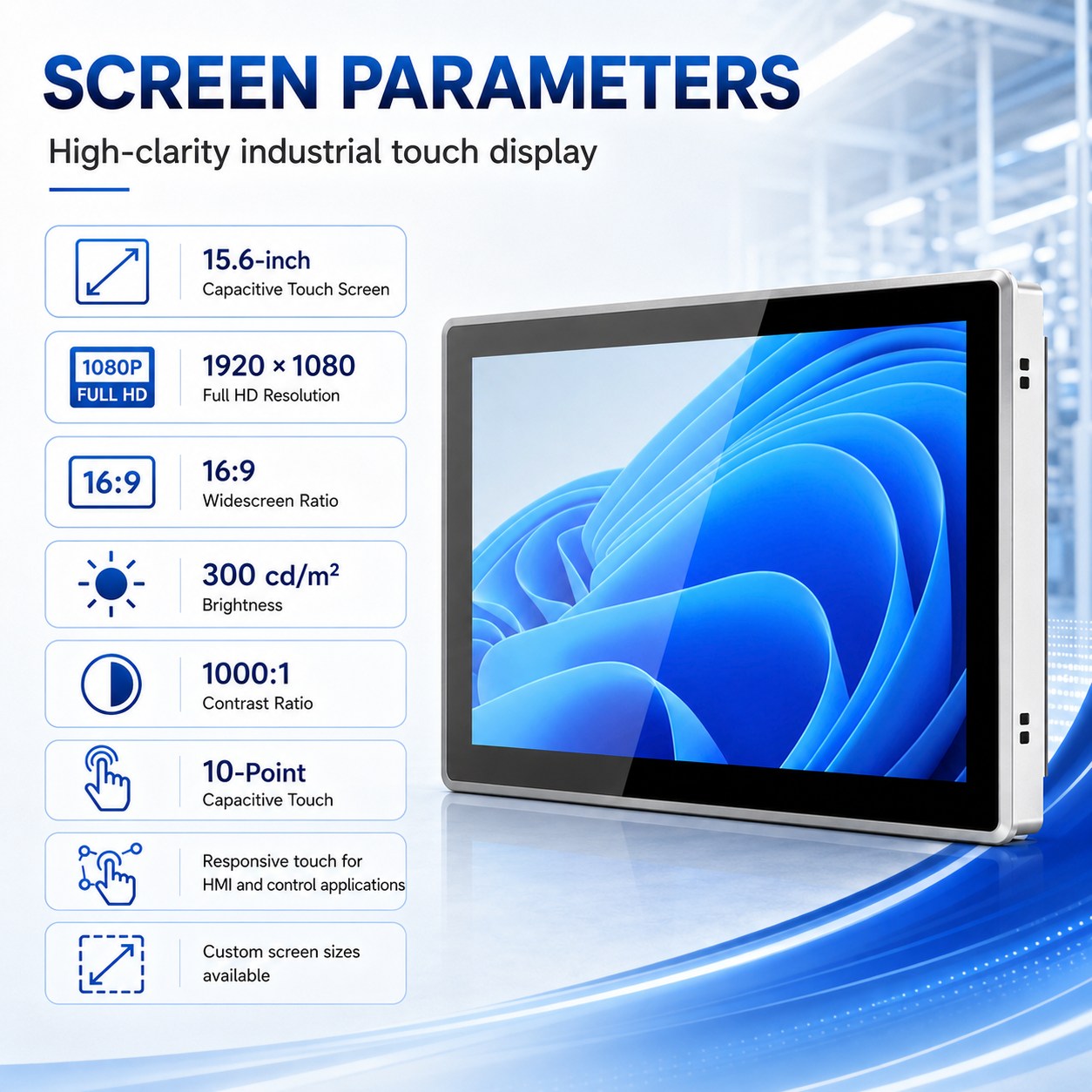

15.6″ Full HD Touch Display
1920 × 1080 resolution, 16:9 widescreen ratio, 300 cd/m² brightness, and 10-point capacitive touch for clear operation in industrial environments.

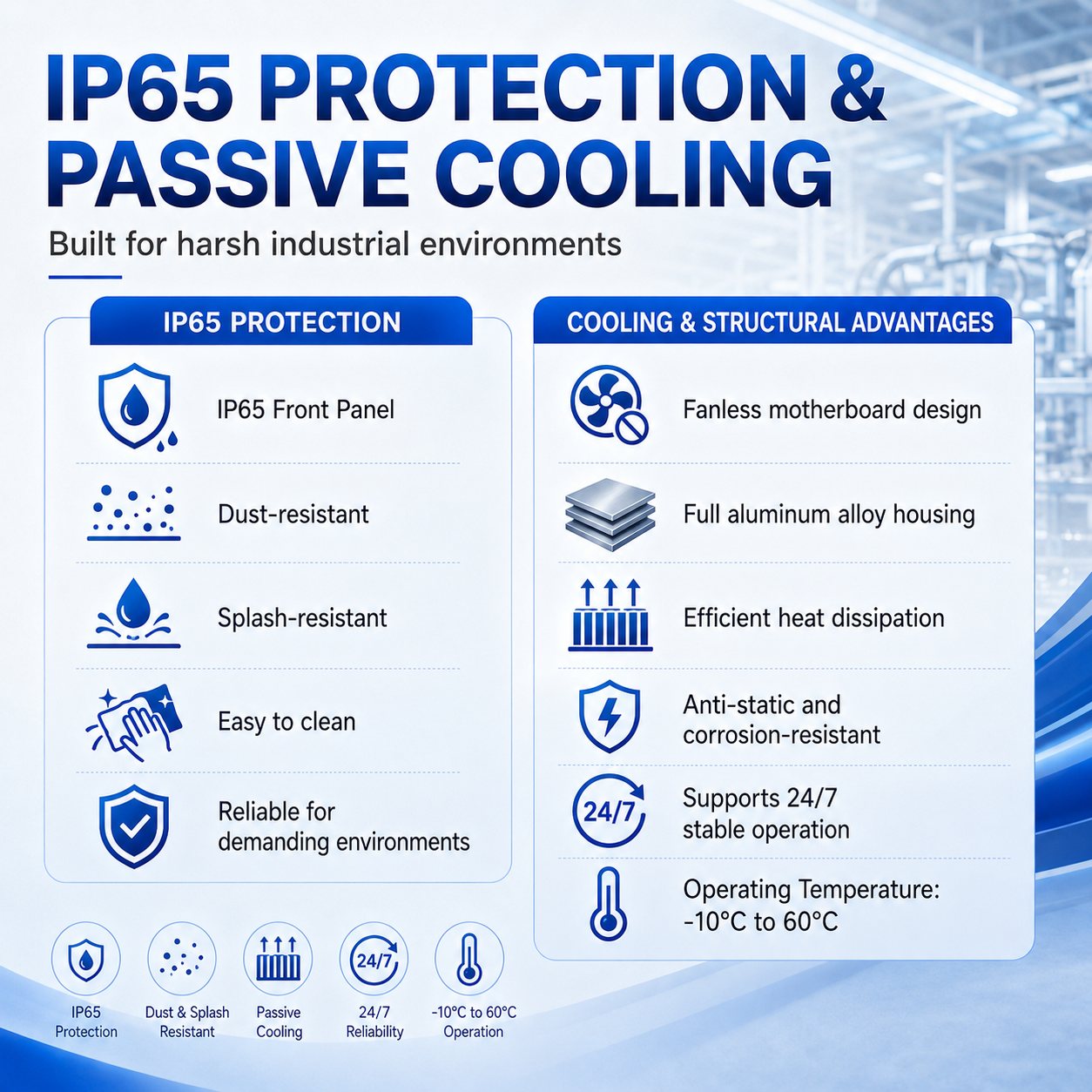

IP65 Front Panel Protection
The front panel is resistant to dust, splashes, and daily cleaning, making it suitable for demanding production areas.

Fanless Aluminum Cooling Design
The full aluminum alloy housing helps dissipate heat without a fan, reducing dust intake and improving long-term reliability.

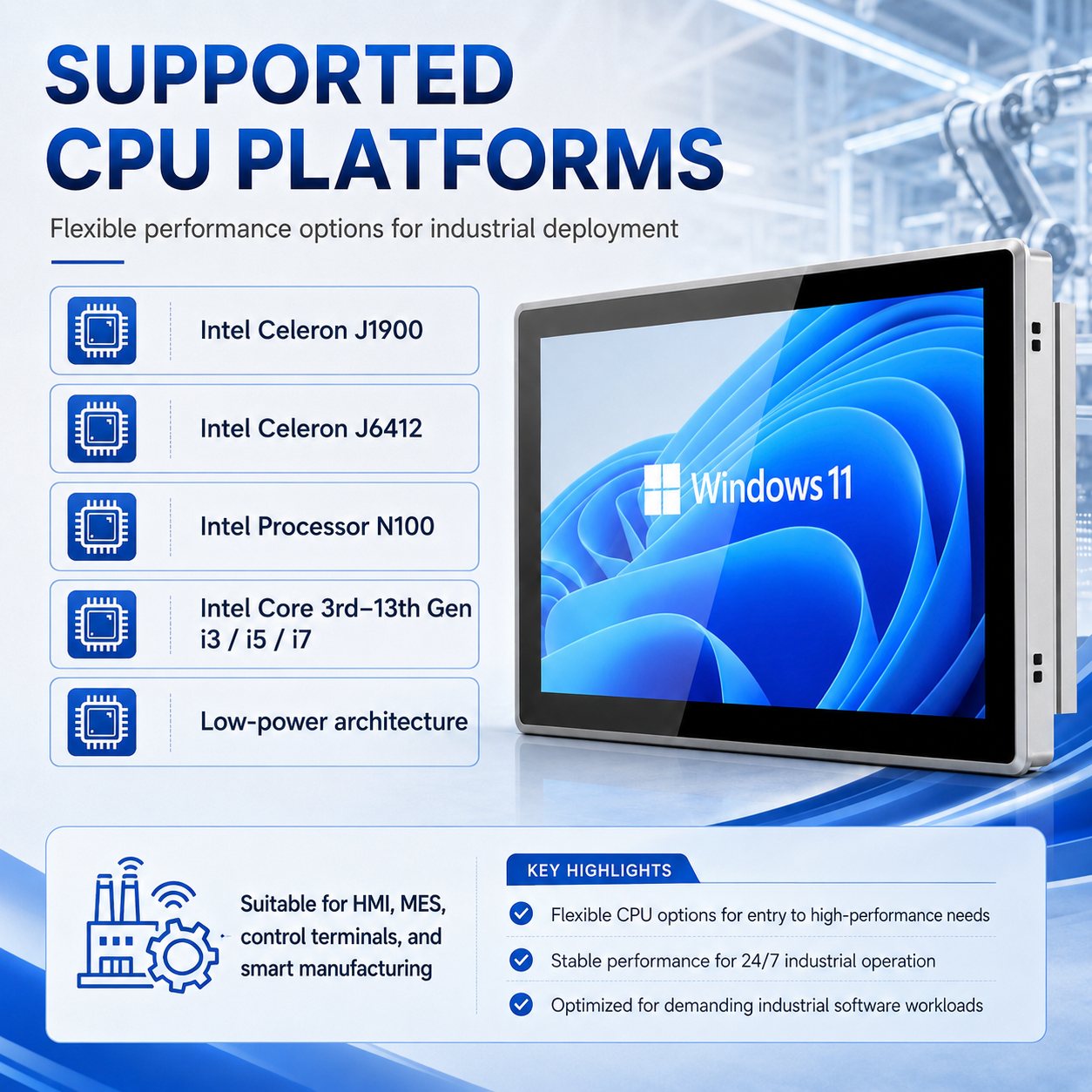

Flexible CPU Options
Supports Intel Celeron J1900, J6412, N100, and Intel Core i3/i5/i7 platforms from 3rd to 13th generation, depending on project requirements.

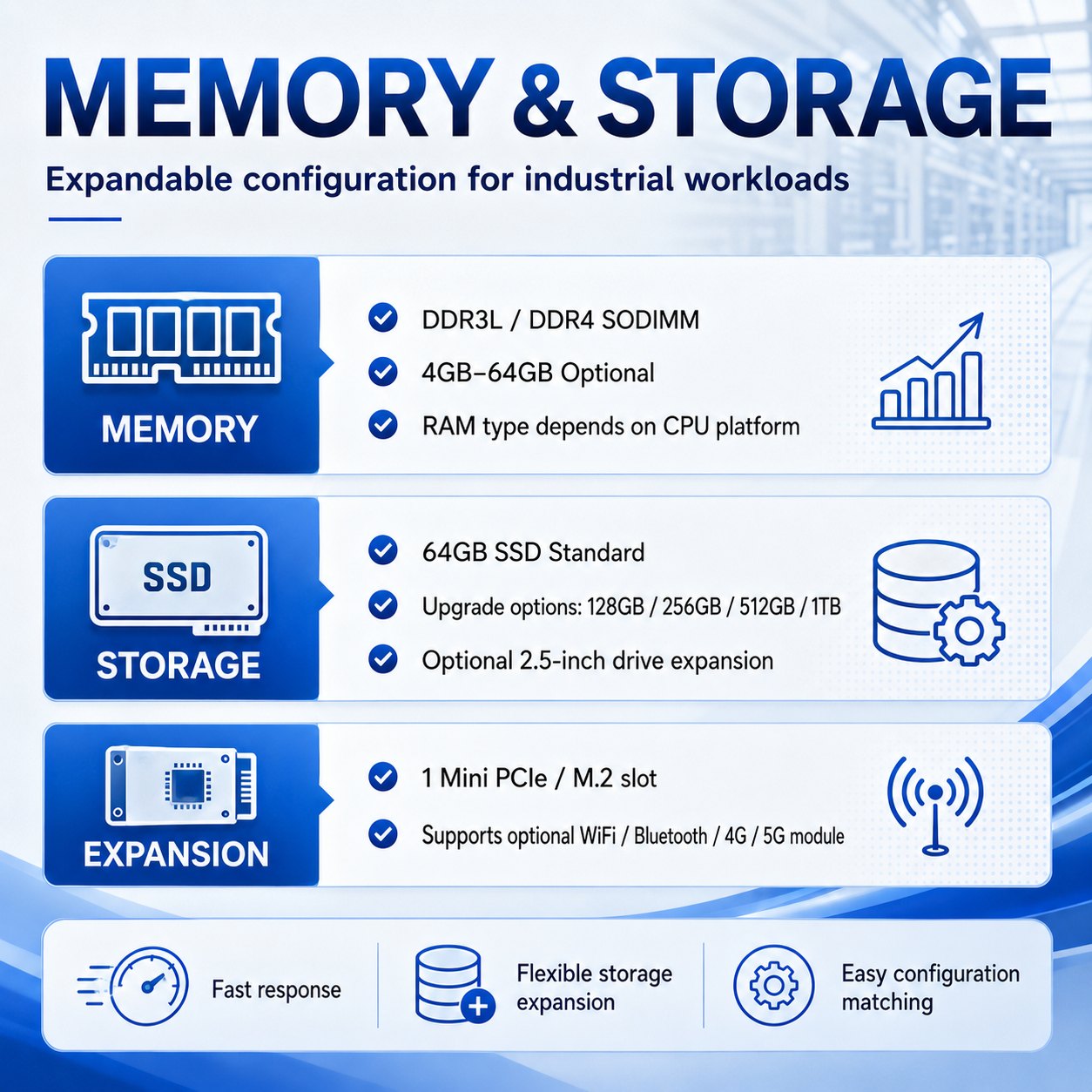

Expandable Memory and Storage
DDR3L / DDR4 SODIMM memory, 4GB–64GB optional, standard SSD storage with upgrade options up to 1TB, plus optional 2.5-inch drive expansion.

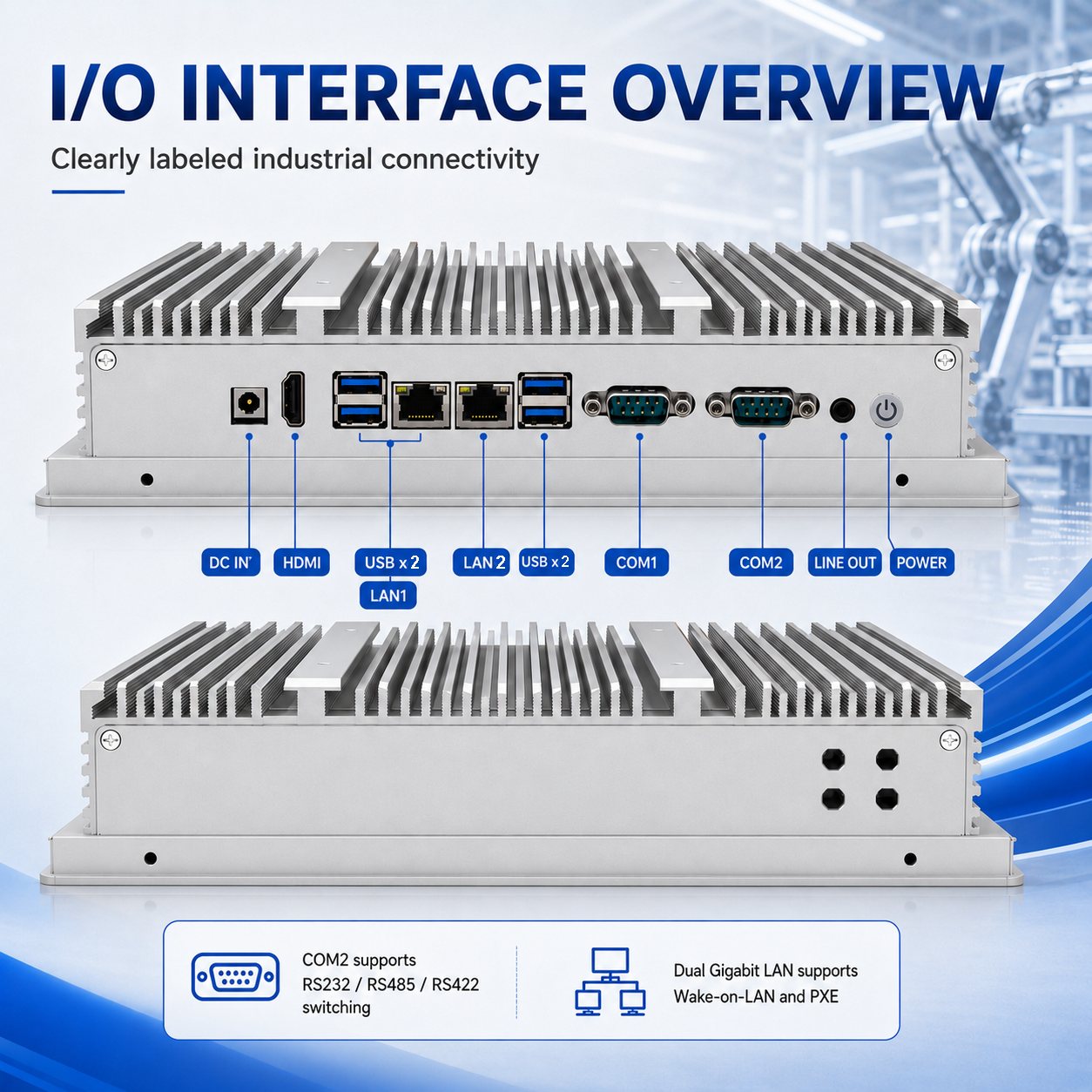

Rich Industrial Interfaces
Dual Gigabit LAN, HDMI, VGA, USB, DC IN, Line Out, power button, and 2–6 RS232 serial ports. COM2 supports RS232 / RS485 / RS422 switching.

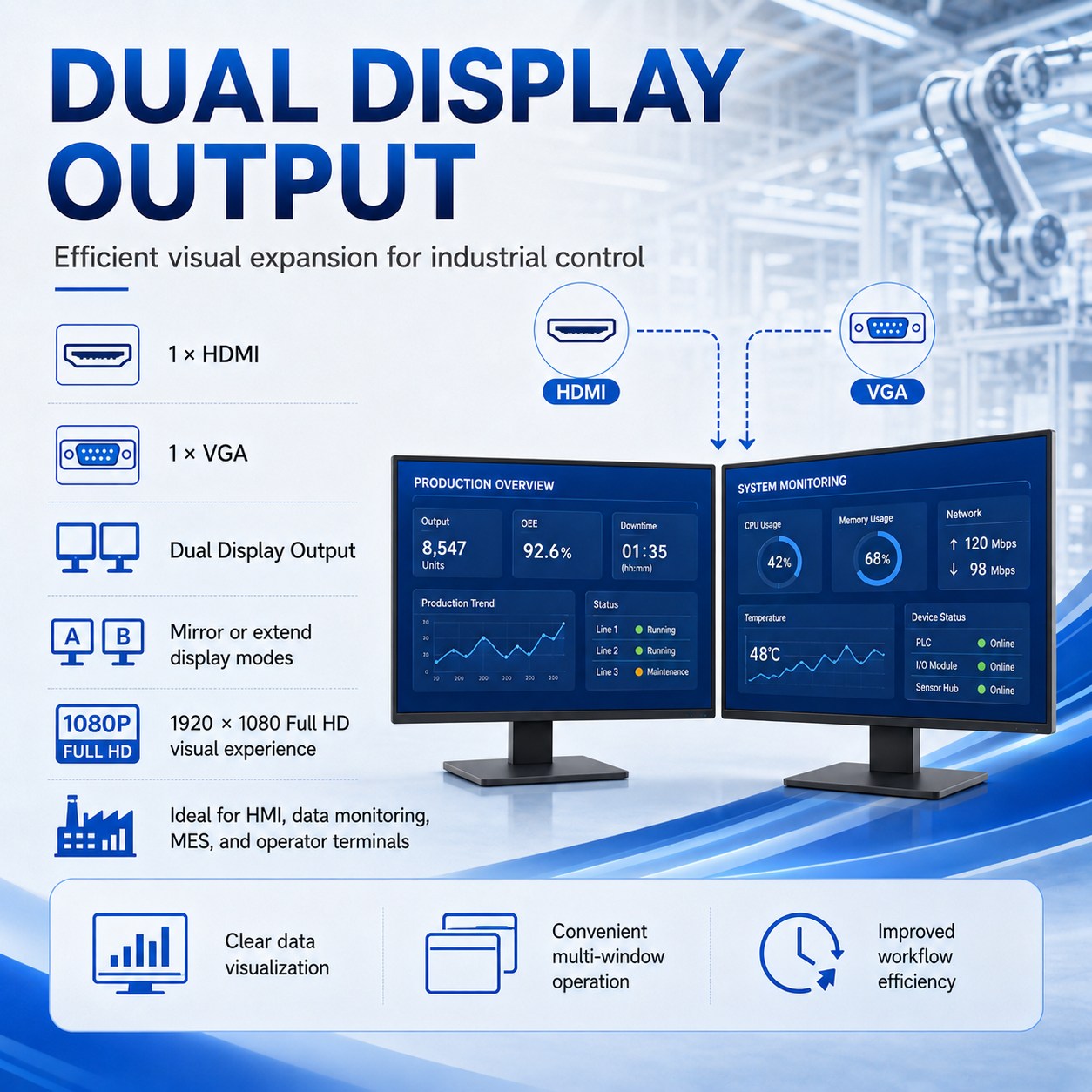

Dual Display Output
HDMI + VGA output supports mirror or extended display modes for control rooms, production monitoring, and operator stations.

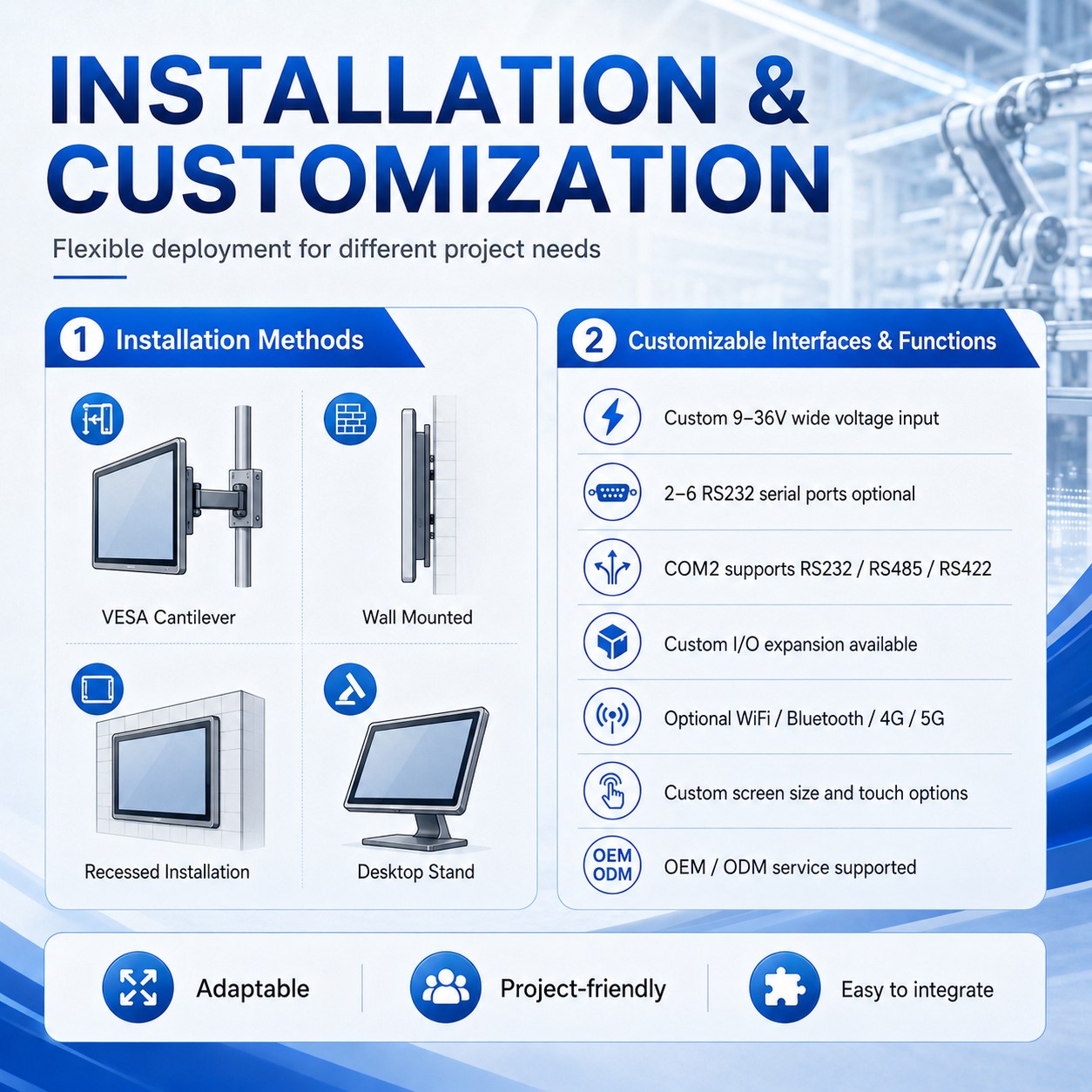

Multiple Installation Methods
Supports VESA cantilever, wall-mounted, recessed, and desktop stand installation for flexible deployment.

Customizable for Projects
Available with custom I/O, 9–36V wide voltage input, wireless modules, screen size options, and OEM/ODM configuration support.

Built for 24/7 Operation
Designed for continuous use in factories, terminals, equipment cabinets, and industrial control systems.

Application Industries

Manufacturing automation
Smart factory control terminals
HMI and machine operation panels
MES / ERP / PLM workstations
Food and beverage production lines
Chemical processing plants
Pharmaceutical production equipment
Energy and power monitoring
Transportation and logistics systems
Self-service terminals and industrial kiosks
Intelligent infrastructure and equipment monitoring
Warehouse and production data visualization
