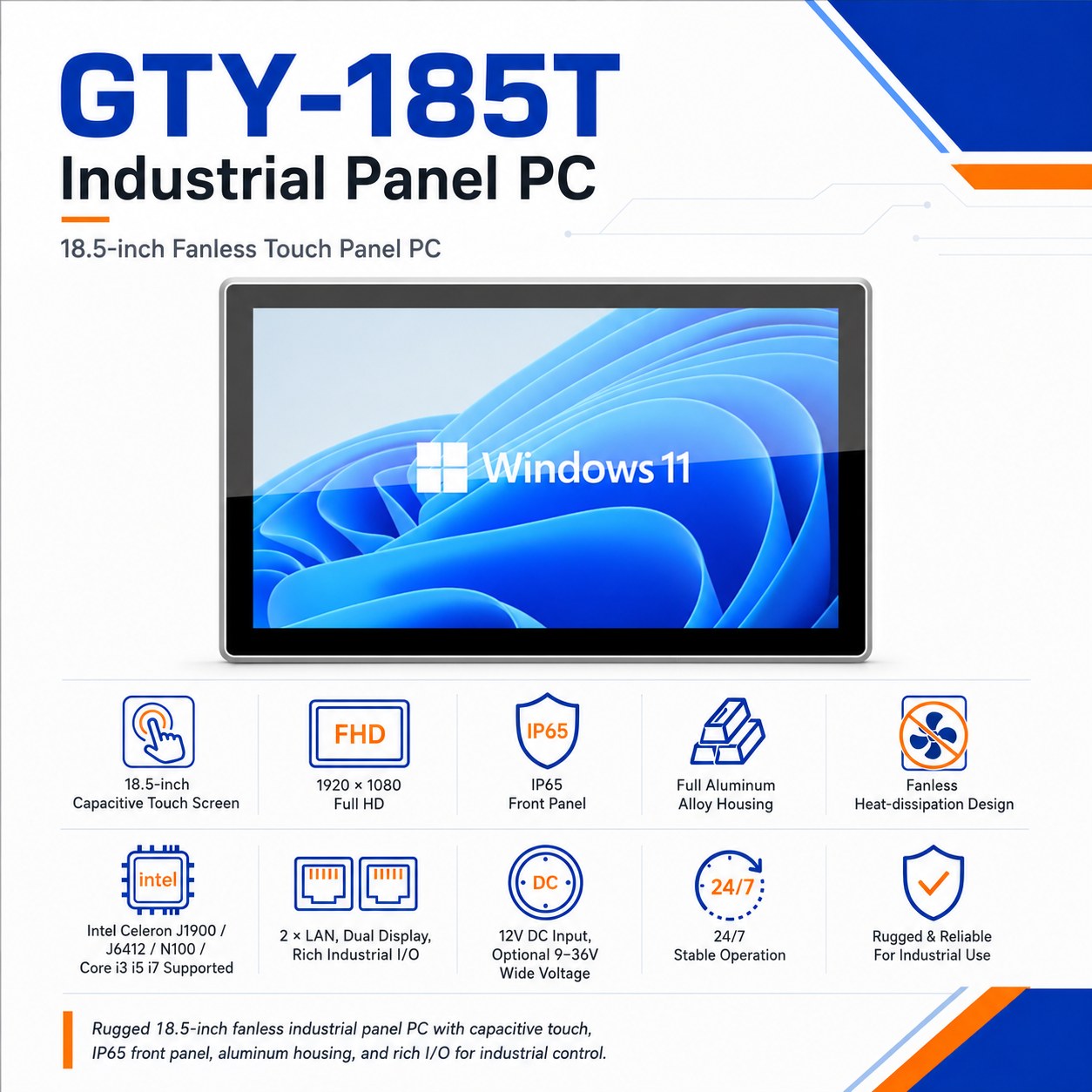

18.5 Inch Industrial Panel PC IP65 Touch Screen Fanless HMI Computer for Factory Automation
Model name: GTY-185T
18.5″1920×1080 HD PCAP capacitive touchscreen
Supports 10-finger touch
100% fanless passive cooling, all-aluminum enclosure
Intel Celeron J6412 / N100 / Core i3/i5/i7 CPU options
Front IP65 dust & water resistant
Optional 9-36V wide DC power input
Dual LAN + USB + Dual COM + HDMI + VGA ports
Supports Windows & Linux operating systems
Designed for 24/7 continuous industrial operation
Product Details
Specification
Ordering information
Product Details
Product Introduction
The GTY-185T is an 18.5-inch industrial panel PC built for HMI, machine control, MES terminals and factory operation screens. It combines a Full HD capacitive touch display, fanless aluminum housing, Intel low-power processors and rich industrial I/O in one compact system. With an IP65-rated front panel, dual display output, dual LAN, optional serial ports and flexible installation options, it fits both new automation projects and equipment upgrade needs.
Product Features

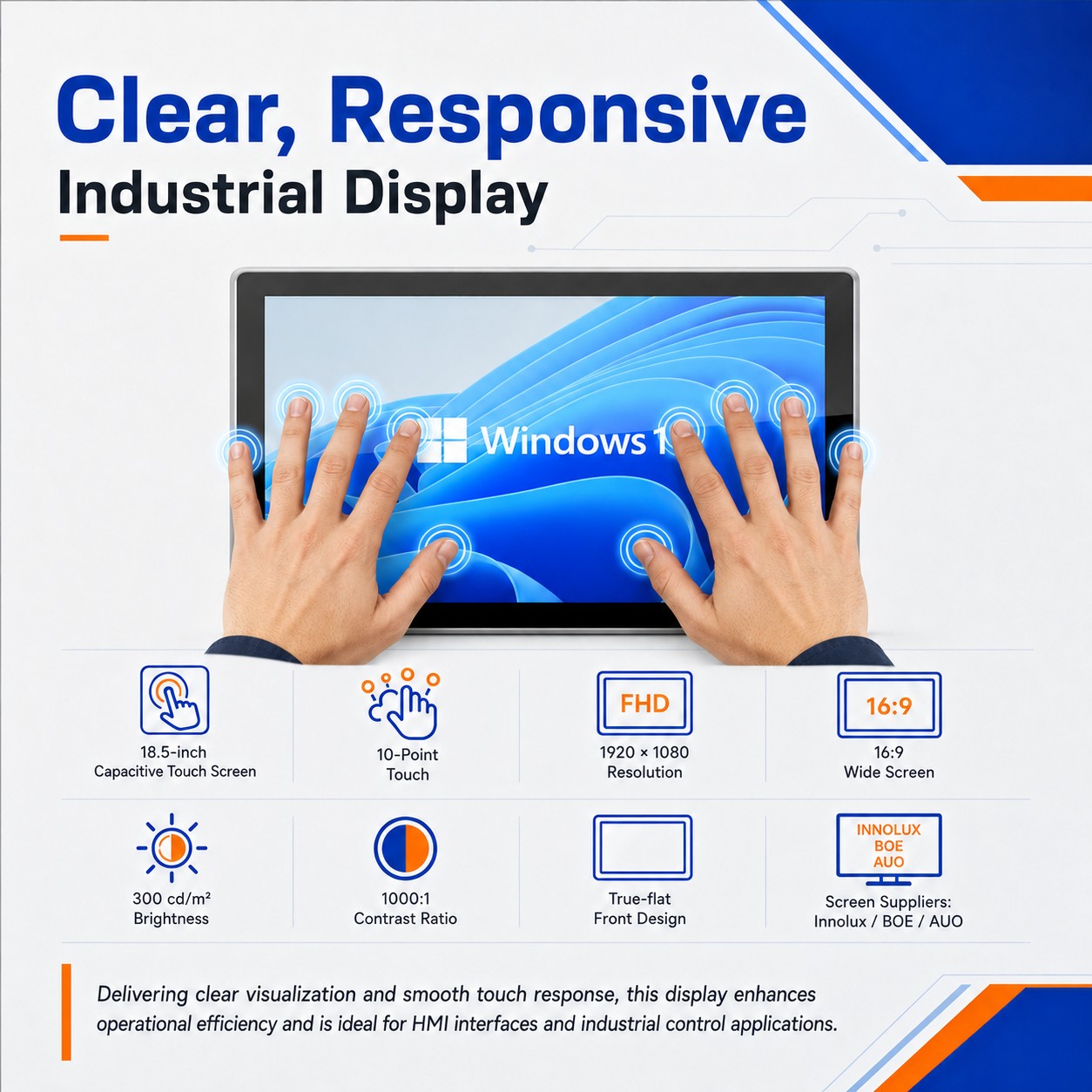

18.5-inch FHD touch display
1920 × 1080 resolution, 16:9 wide screen, 300 cd/m² brightness and 10-point capacitive touch for clear operation.

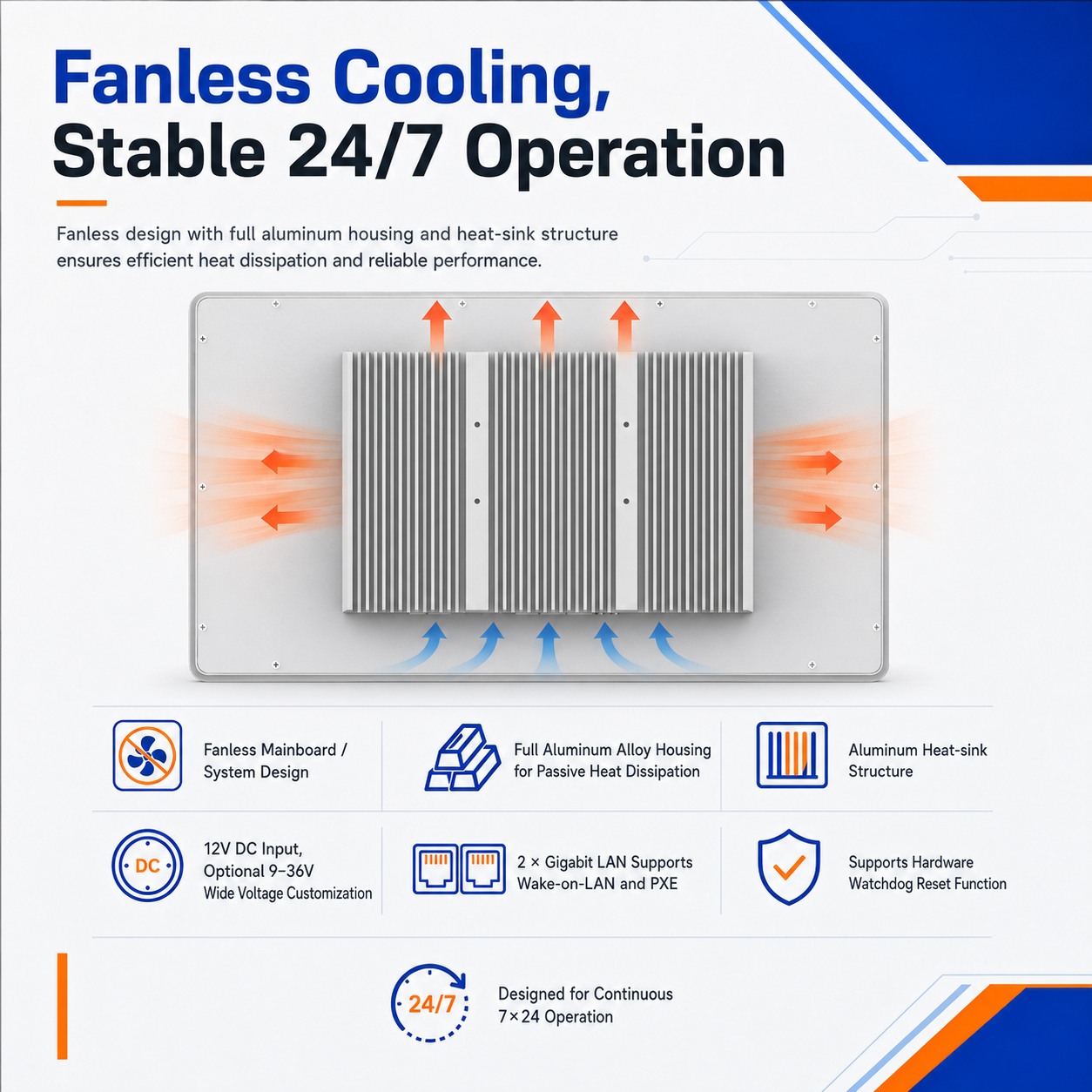

Fanless aluminum structure
The full aluminum alloy housing and rear heat-sink design support stable cooling without a fan.
Flexible Intel platform
Supports Intel Celeron J1900 / J6412 / N100 and Intel Core i3 / i5 / i7 low-power processors.

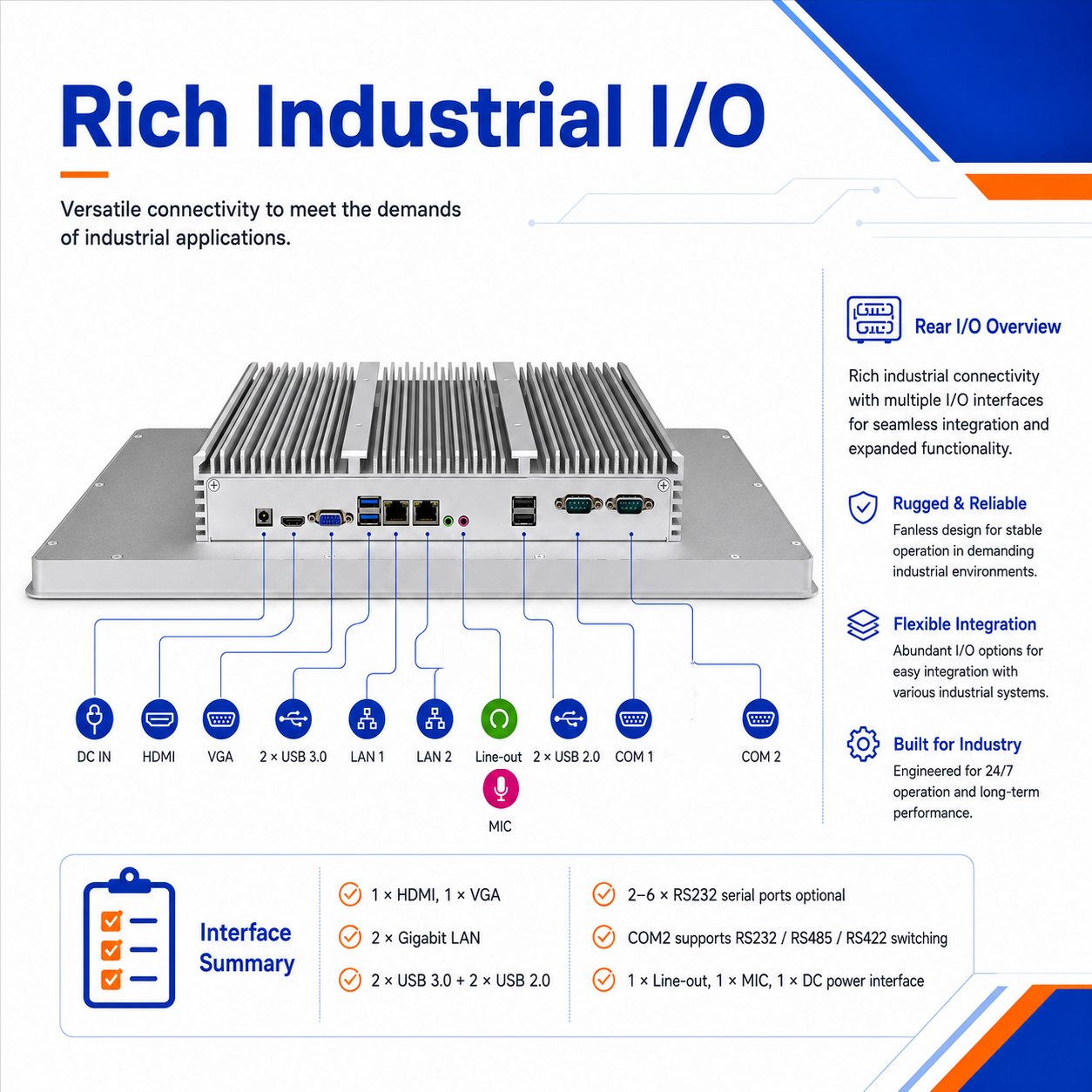

Rich industrial interfaces
Equipped with HDMI, VGA, dual Gigabit LAN, USB 3.0, USB 2.0, audio, DC input and optional 2–6 RS232 ports.
Industrial communication support
COM2 supports RS232 / RS485 / RS422 switching for easier connection with PLCs, controllers and field devices.

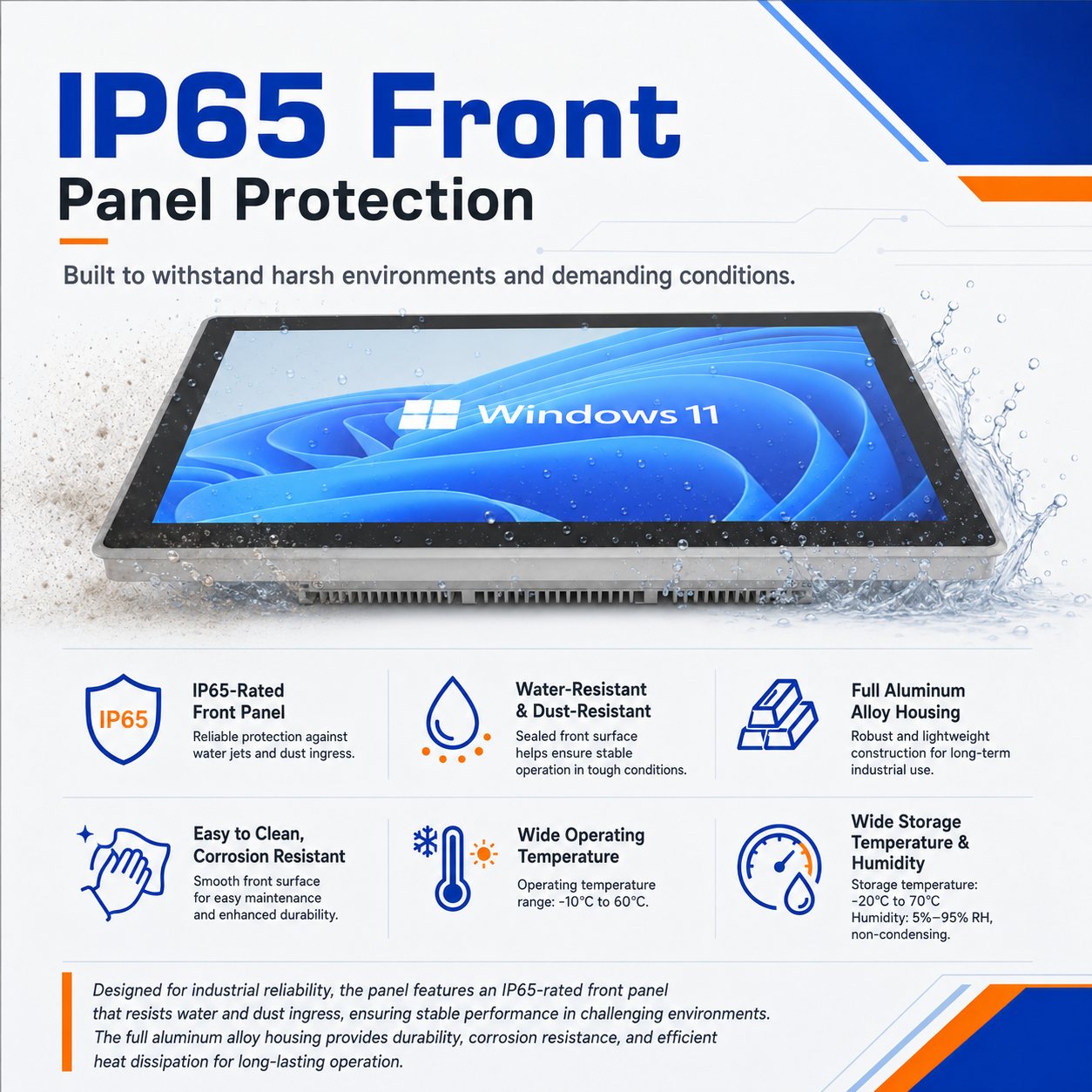

IP65 front protection
The sealed front panel helps resist dust and water ingress in demanding industrial environments.

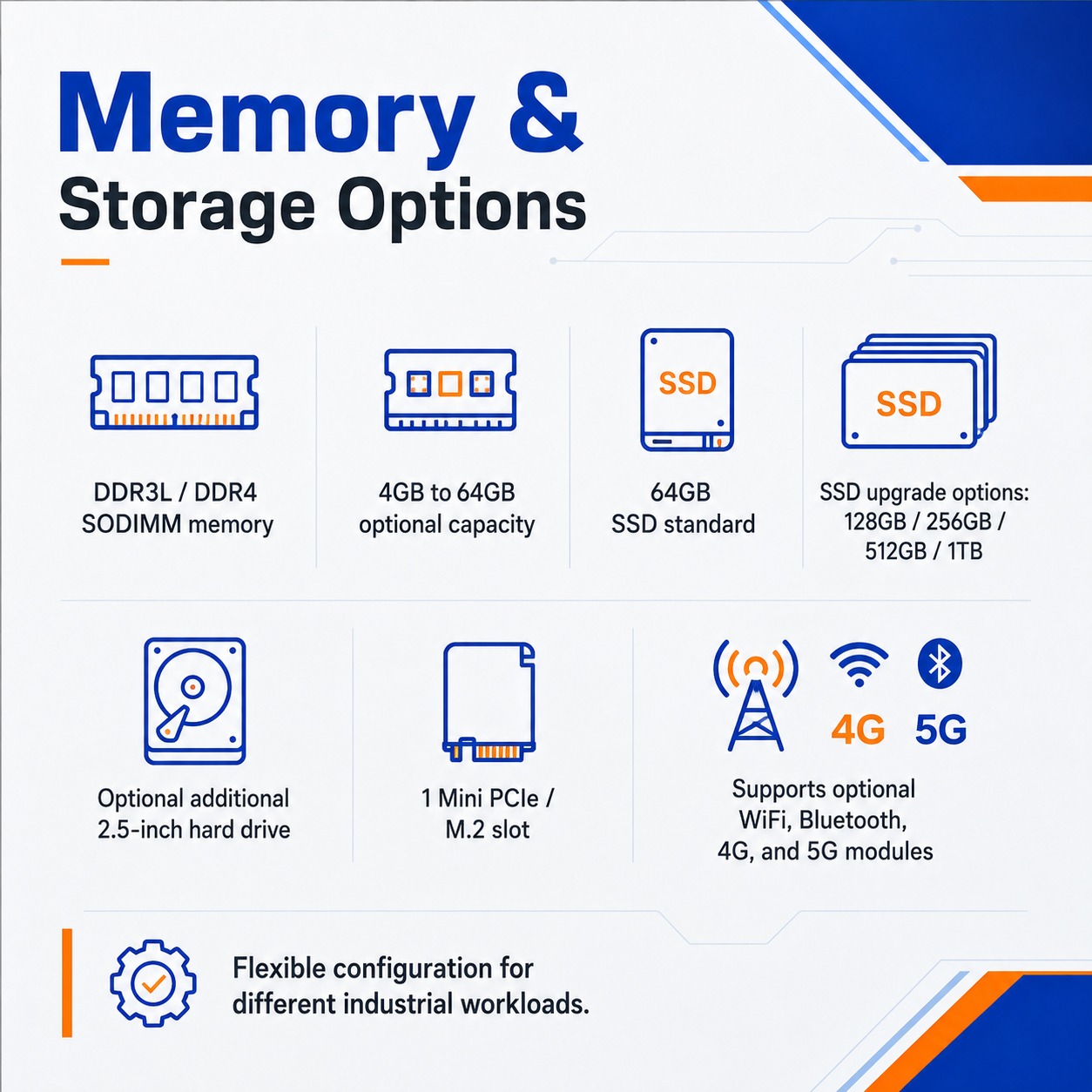

Flexible memory and storage
Supports DDR3L / DDR4 SODIMM memory from 4GB to 64GB, with SSD upgrades up to 1TB.

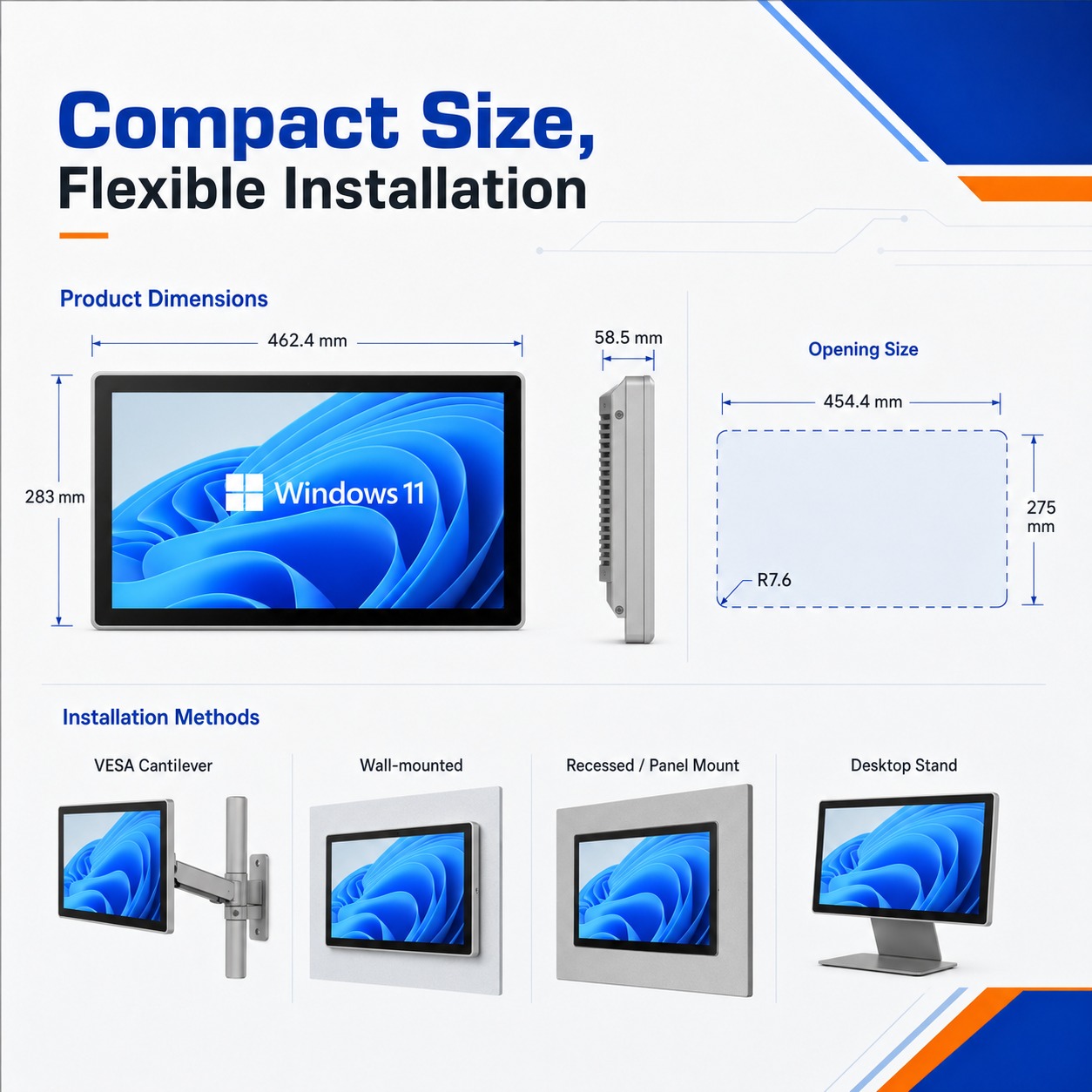

Multiple mounting methods
Supports VESA cantilever, wall-mounted, recessed / panel mount and desktop stand installation.
Wide voltage customization
Standard 12V DC input, with optional 9–36V wide voltage support for industrial power environments.
OEM/ODM ready
Screen size, I/O configuration, memory, storage, wireless modules and mounting design can be customized.
Application Industries
Manufacturing automation, HMI machine control, MES / ERP / PLM terminals, ESOP workstations, food and beverage production, chemical processing, pharmaceutical equipment, energy systems, transportation and logistics, smart factory terminals, intelligent infrastructure, industrial data collection, control cabinets and self-service industrial terminals.
Specification
| System Configuration | |
| processor | Celeron J1900/J6412/N100 Processors |
| 3th /4th /5th/6th/7th/8th/10th/11th/12th/13th Gen Intel Core i3/i5/i7 Processors | |
| operating system | Windows XP/ 7/10/11, Linux support |
| Memory capacity | DDR3L / DDR4 SODIMM memory slots, supporting 4-64 GB optional. RAM type is Depands on CPUs |
| Hard drive support | 64 G SSD ( upgradeable to 128GB/ 256GB/512GB/1TB/2TB , 2.5-inch hard drive can be added separately) |
| graphics card | Depands on the CPUs |
| WiFi function | Built-in WiFi and Bluetooth module (Optional module) |
| Extend | 1 Mini PCIe / M.2 slot, supporting WIFI , Bluetooth, 4G , 5G (optional module) |
| network | 2* Gigabit Ethernet, supports Wake-on-LAN and PXE functionality . |
| Power characteristics | DC 12V (supports 9-36V wide voltage customization) , power consumption 30-100W |
| Screen size | 18.5″ capacitive touch screen, 16 : 9 wide, 300 cd /m² (1000:1) Size can be customized |
| resolution | 1920×1080 |
| Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
| Structural parameters | |
| Box material | IP 65 rated aluminum alloy panel, all-aluminum fanless design. |
| Installation method | Supports VESA cantilever, wall- mounted, recessed , and desktop stand types. |
| Overall dimensions | 462.4mm*283mm*58.5mm |
| Opening size | 454.4mm*275mm R7.6 |
| Packaging size | 500*425*155mm |
| Backlight | More than 50000H |
| Product weight | gross weight:7.5 kg |
| Product Color | silver |
| Ambient temperature | Operating temperature: -10℃~60℃ |
| Storage temperature: -20℃~70 ℃ | |
| relative humidity | 5%-95% relative humidity, non-condensing |
| Interface parameters | |
| POWER | 1* Power switch |

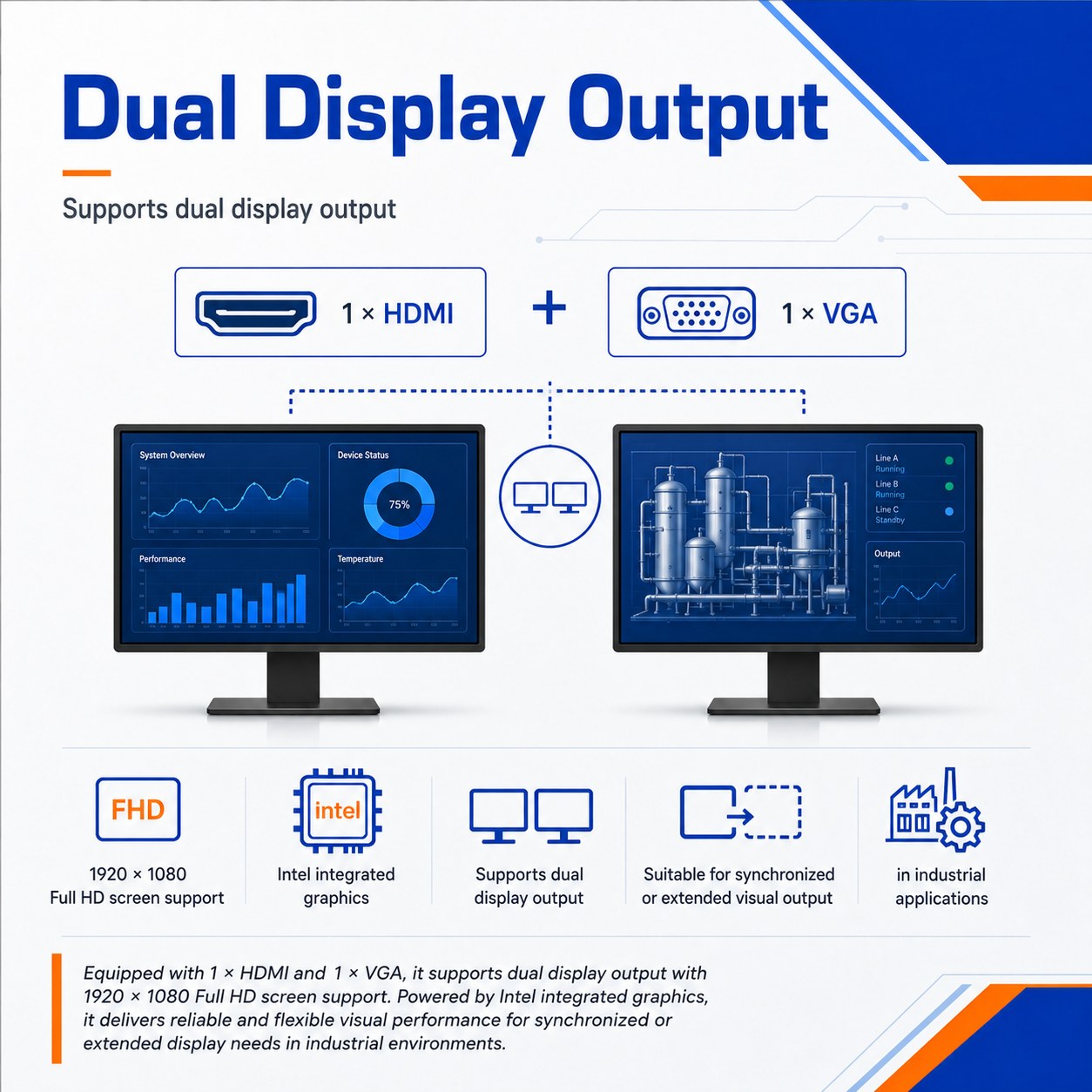

| Display Interface | 1 VGA, 1 HDMI |
| LAN | 2 * Gigabit Ethernet, supporting Wake-on-LAN and PXE functionality . |
| USB | 2 USB 2.0 ports, 2 USB 3.0 ports ( the number of USB 3.0 ports varies depending on the platform) |
| COM | 2-6* RS232 serial interface, COM2 supports RS232/RS485 switching. |
| audio | 1* Line out interface, 1* MIC interface |
| power supply | 1* DC power interface, supports 12V power input |
| Heat dissipation | Fanless aluminum block heat sink |
| Quality Inspection | Material intake, assembly, aging, and multiple inspections(Resistant to earthquakes, shockproof, and anti-drop) |
| Certification | RoHS, CE, FCC , CCC |
| warranty | One-year warranty for the whole machine |
