Model name: GA1000-i5-12450H
Products Features
– Onboard Core™ i5-12450H Processor 8 Cores 12 Threads 3.3GHz up to 4.4GHz
– Equipped with a smart Silent Fan.
– 2 x DDR4 SO-DIMM, Support Max 64GB.
– Supports Dual HDMI 2.0 High – Definition Output.
– Supports dual M.2 SSD High-speed Hard Disk.
– Equipped with an Intel high – speed network card.
-Ideal for office productivity, business applications, multimedia entertainment, digital signage, and edge computing deployments.

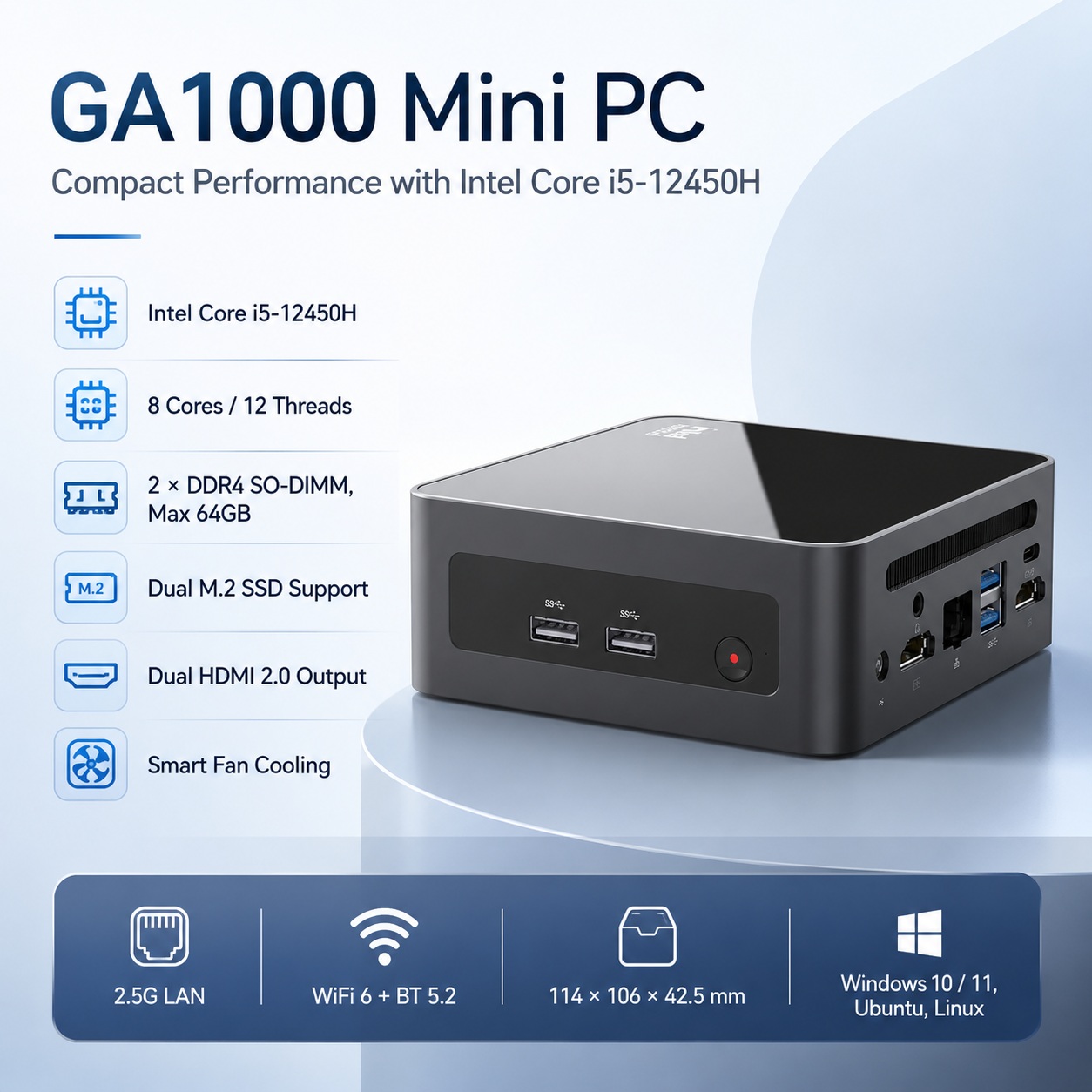

The GA1000 Mini PC is a compact, high-performance desktop solution powered by the 12th Gen Intel Core i5-12450H processor. With 8 cores, 12 threads, DDR4 memory expansion up to 64GB, dual M.2 SSD storage, dual HDMI 2.0 display output, Intel 2.5G LAN, WiFi 6, and Bluetooth 5.2, it delivers reliable performance for business, education, retail, digital signage, and daily office computing.

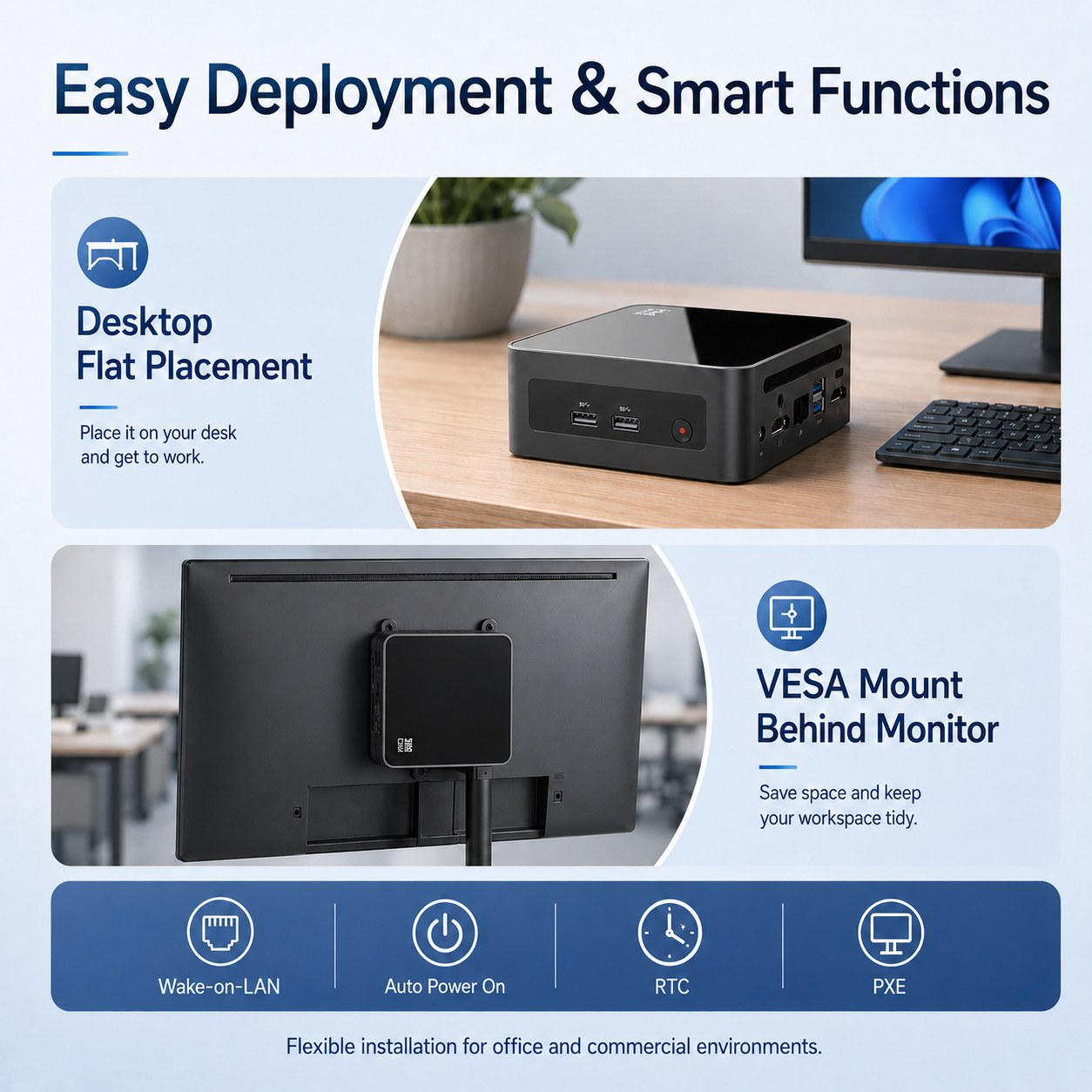

Its small 114×106×42.5mm body supports desktop flat placement and VESA mounting behind a monitor, helping users build a clean and space-saving workstation.

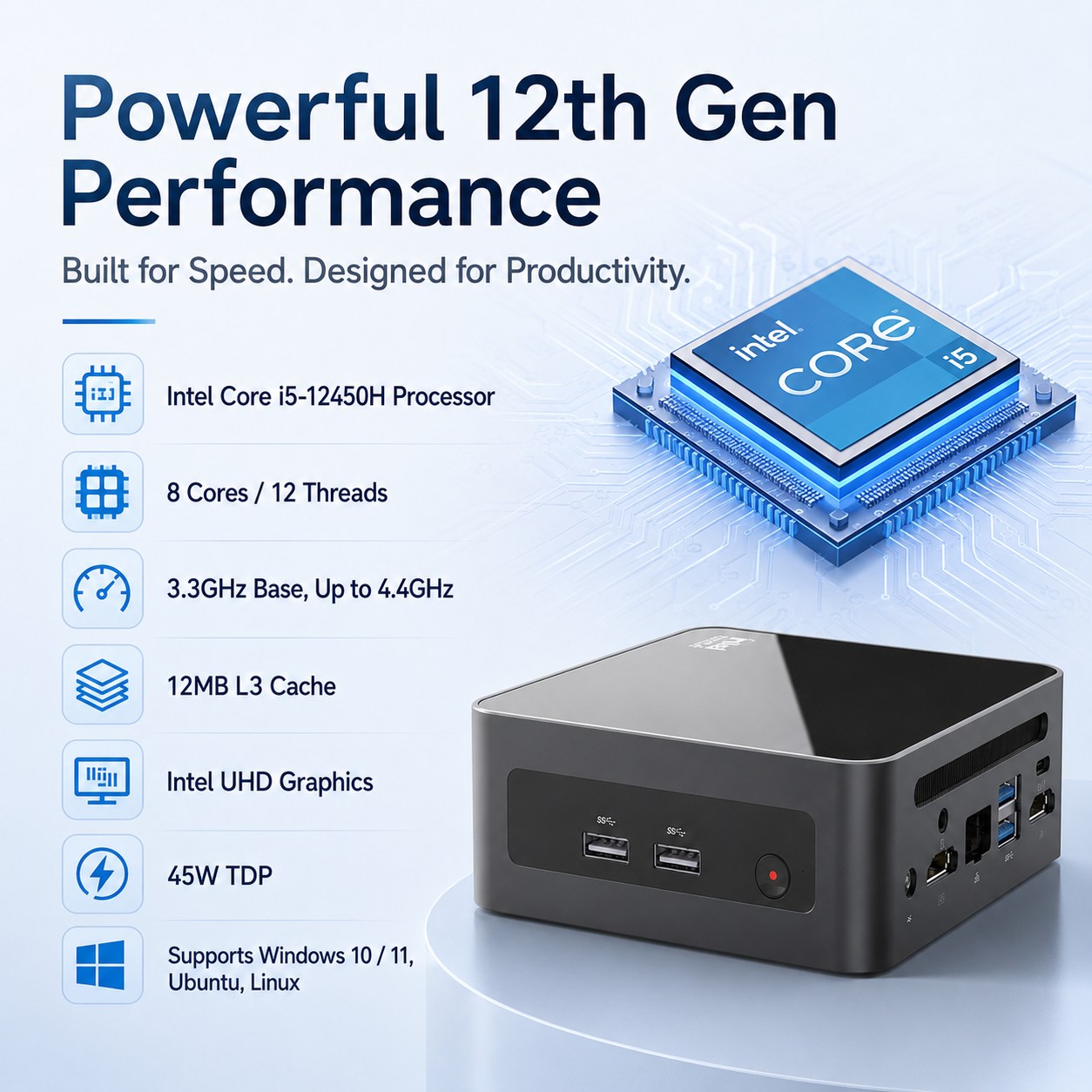

12th Gen Intel Core Performance
Powered by Intel Core i5-12450H with 8 cores, 12 threads, up to 4.4GHz, 12MB L3 cache, and 45W TDP.

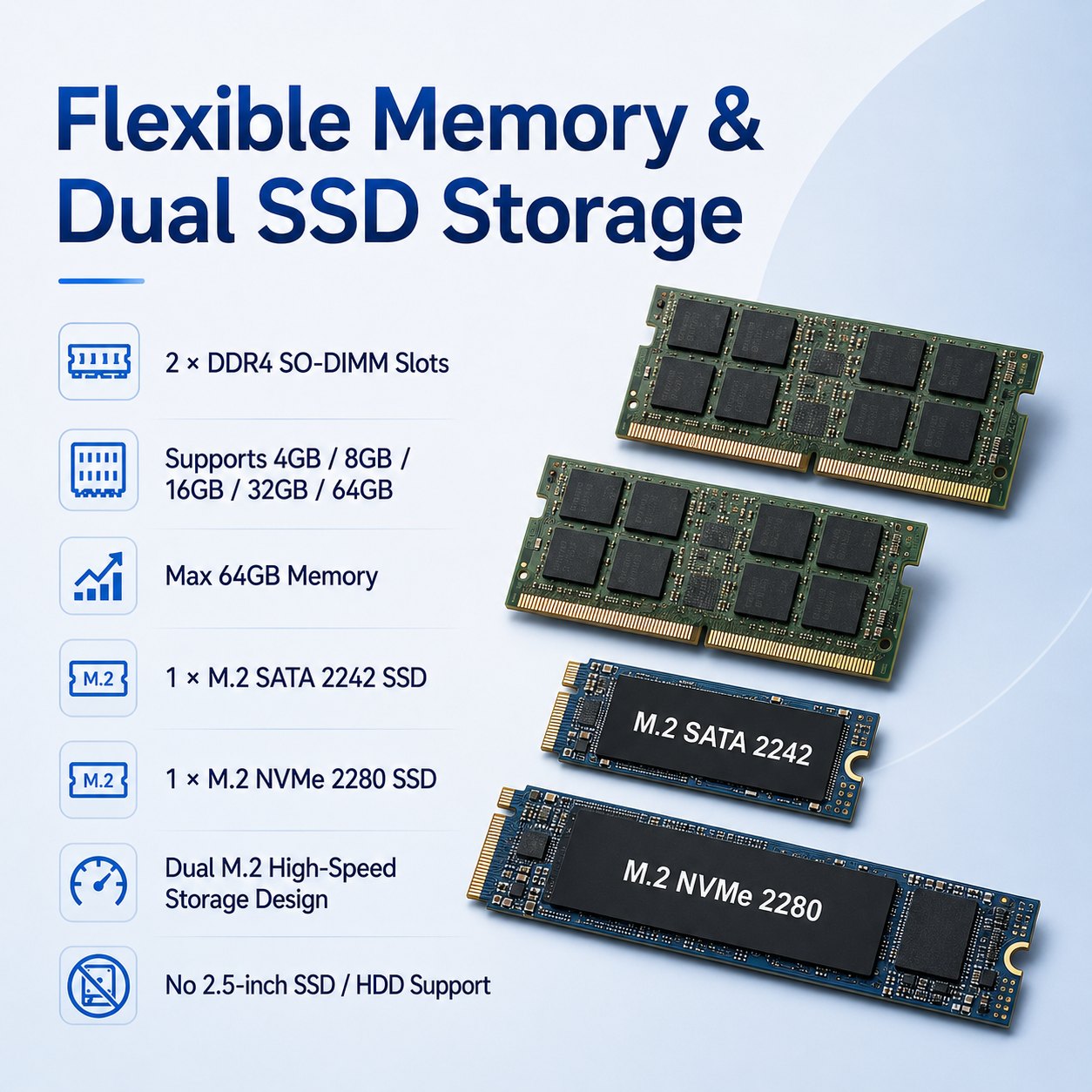

Expandable DDR4 Memory
2× DDR4 SO-DIMM slots support 4GB, 8GB, 16GB, 32GB, and up to 64GB memory.
Dual M.2 SSD Storage
Supports 1× M.2 SATA 2242 SSD and 1× M.2 NVMe 2280 SSD for fast system response and flexible storage expansion.

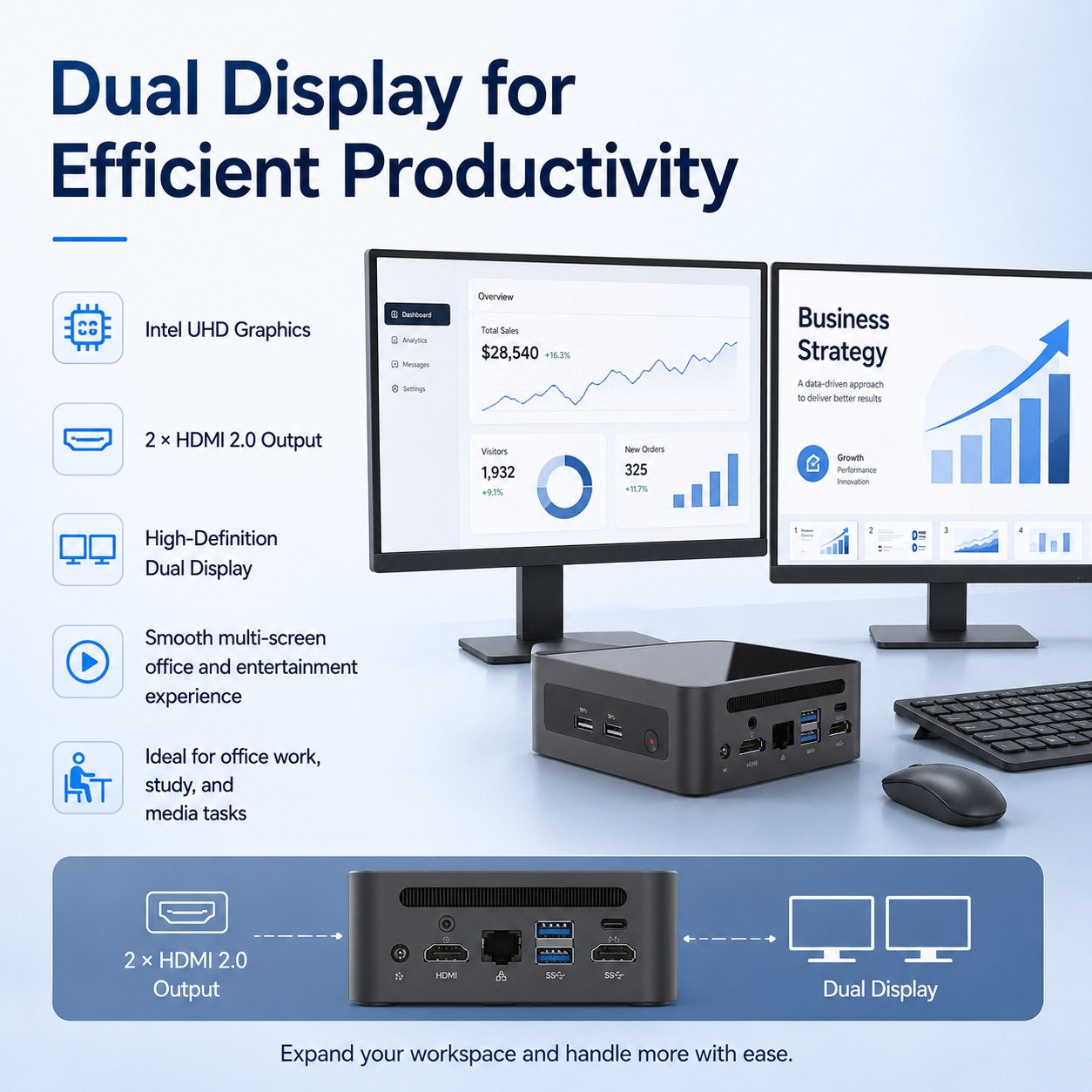

Dual HDMI 2.0 Display Output
2× HDMI 2.0 ports enable high-definition dual-screen display for office work, digital signage, education, and meeting rooms.

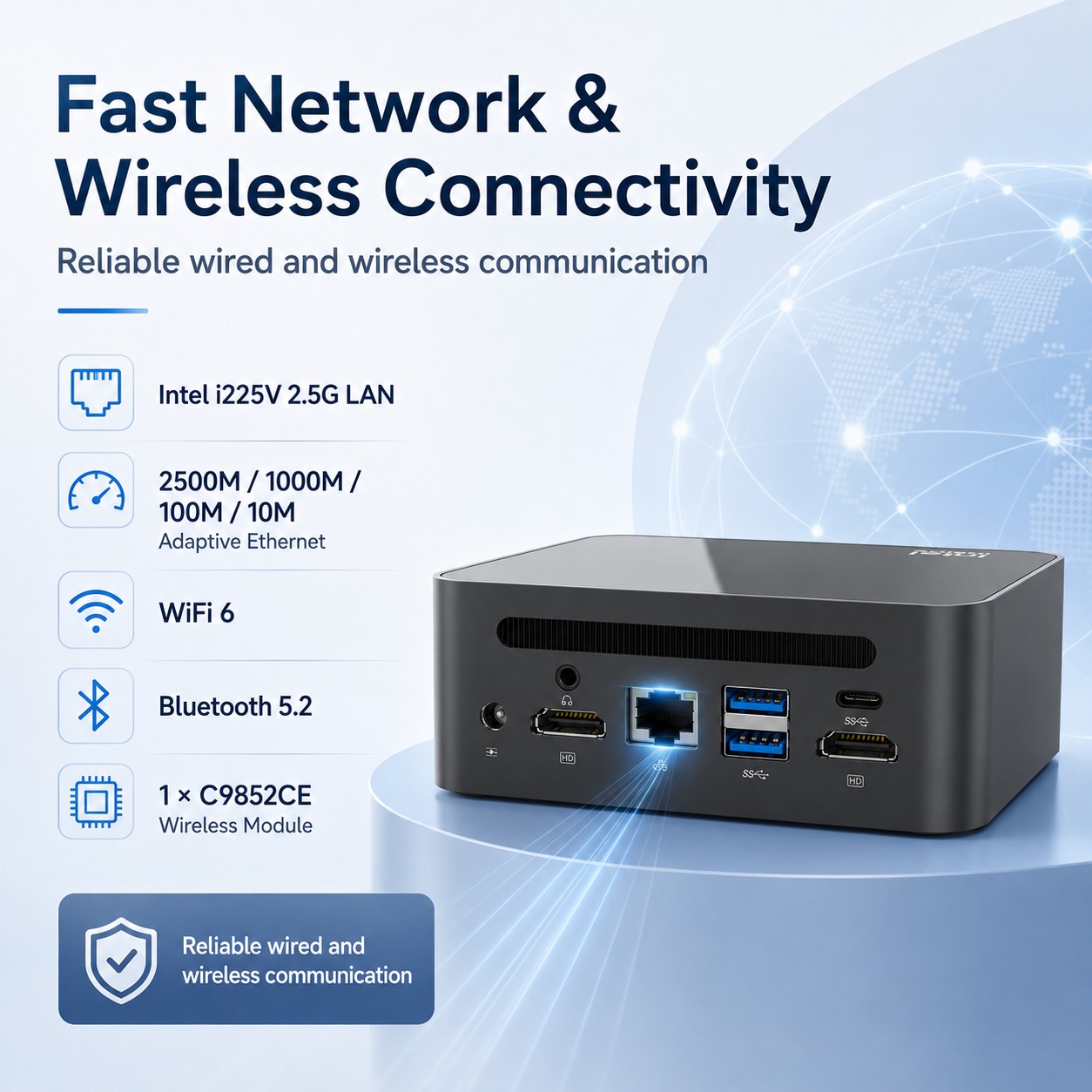

Fast Wired and Wireless Network
Built with Intel i225V 2.5G LAN, WiFi 6, and Bluetooth 5.2 for stable wired and wireless connectivity.

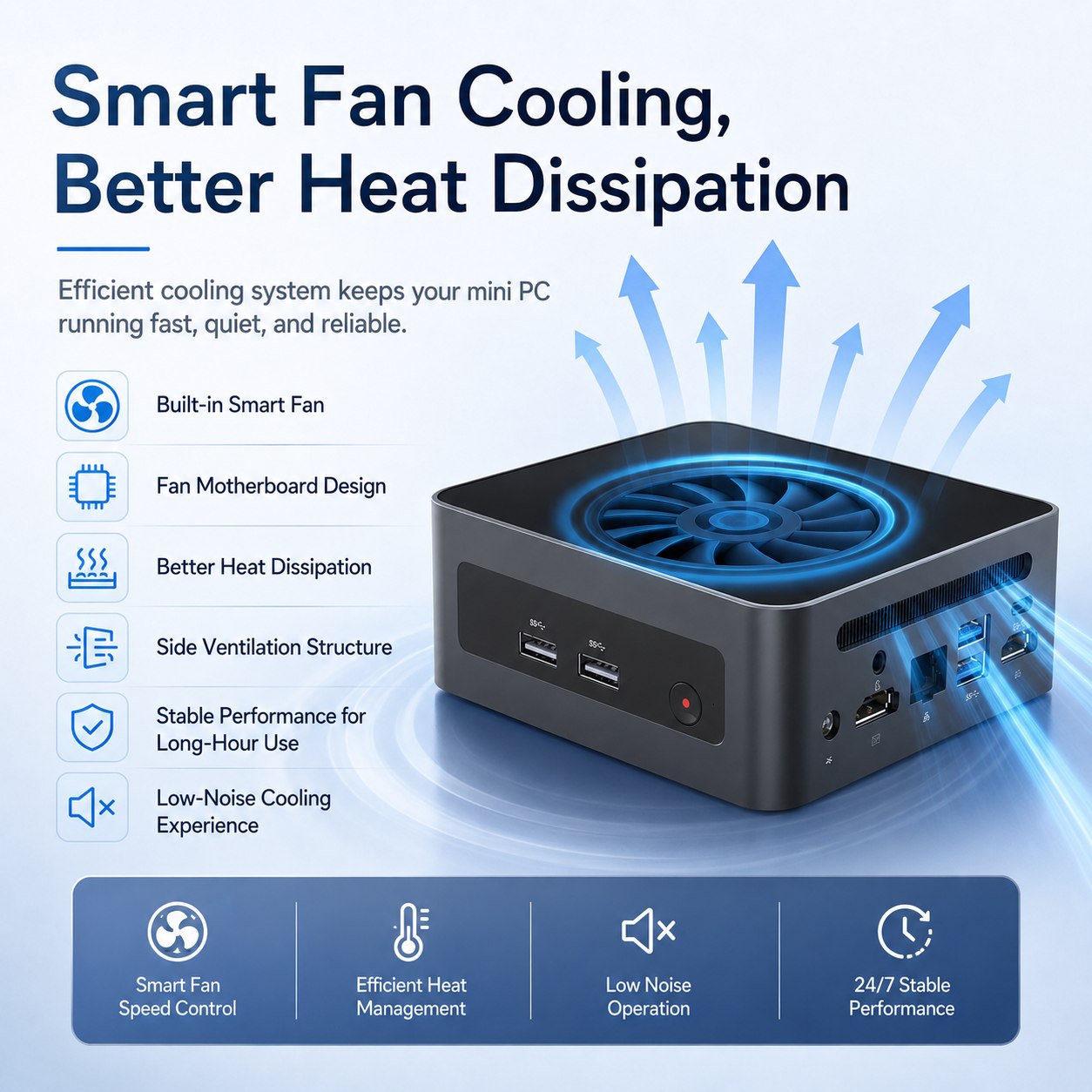

Smart Fan Cooling Design
Equipped with smart fan cooling and side ventilation for better heat dissipation and stable long-hour operation.

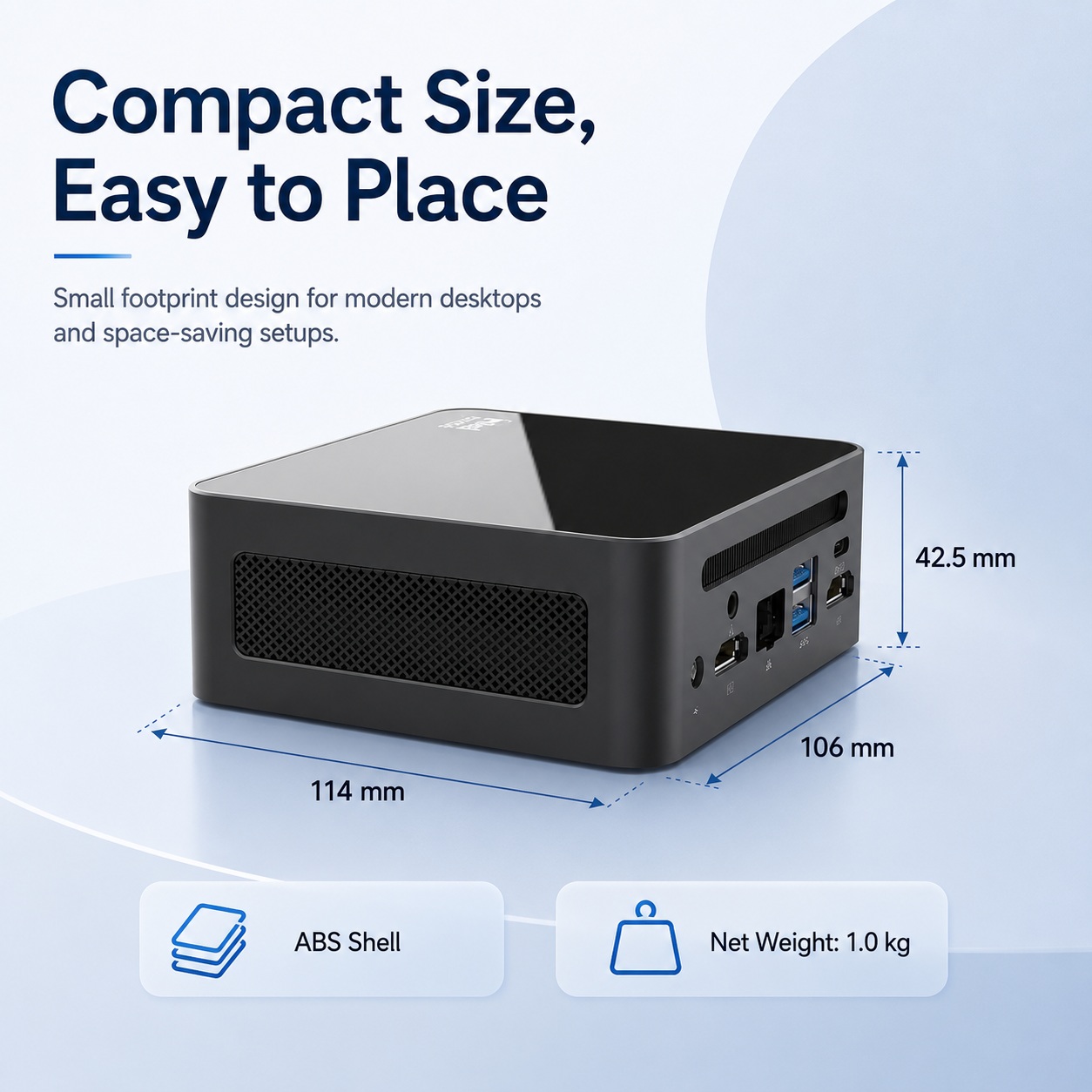

Compact Space-Saving Body
Small 114×106×42.5mm size with ABS shell, suitable for desktop use or VESA mounting behind a monitor.
Business-Ready System Support
Compatible with Windows 10, Windows 11, Ubuntu, and Linux. Supports Wake-on-LAN, Auto Power On, RTC, and PXE.
Office workstation
Business desktop replacement
Education and computer lab
Retail POS system
Digital signage player
Meeting room display system
Home entertainment
Remote learning terminal
Commercial kiosk
Light industrial control terminal

| Basic Information: | |||
| CPU | Intel® Core™ i5-12450H Processor 8 Cores 12 Threads 3.3GHz up to 4.4GHz (Max. Leistungstaktrate) 12MB L3 cache TDP 45W Intel® UHD Graphics for 12th Gen Intel® Processors. | ||
| TDP | 45W | ||
| Chipset | Refer to the CPU | ||
| BOIS | AMI EFI BIOS | ||
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB,MAX 64GB | ||
| OS | Windows10/Windows11/Ubuntu/Linux | ||
| Audio | High Definition Audio Controller | ||
| Network | Intel i225V 2.5G Network Connection, 2500M/1000M/100M/10M | ||
| Video | Intel® UHD Graphics | ||
| Storage: | |||
| M.2 | 1*M.2 SATA 2242 SSD+1*M.2 Nvme 2280 SSD | ||
| SATA | Don’t support 2.5inch SSD/HDD | ||
| Wi-Fi: | |||
| Module | 1 × C9852CE WiFi6 + Bluetooth5.2 | ||
| Antenna | 2 x inner RF cables without antennas | ||

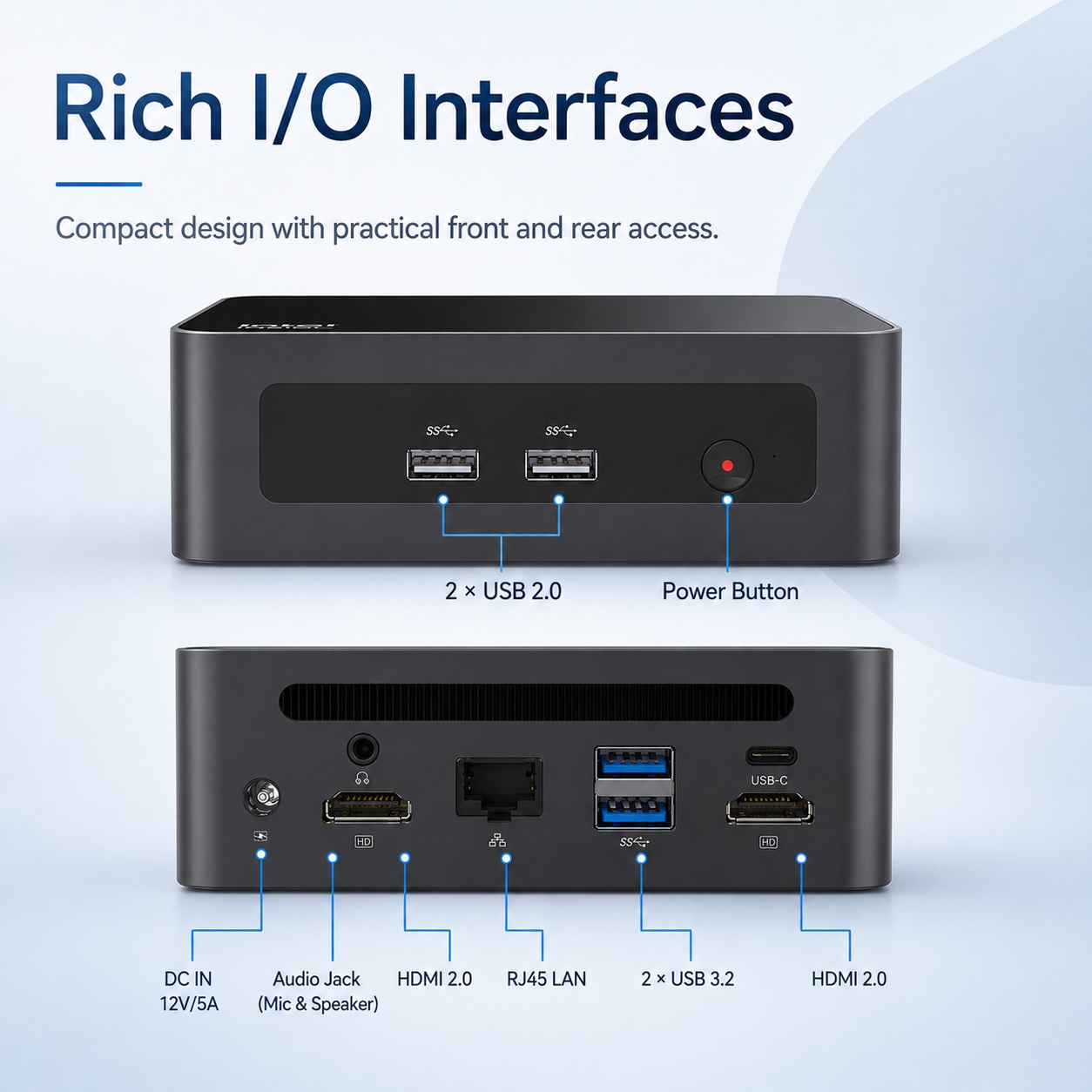

| Input/output port: | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x DC IN 12V/5A | ||
| USB | 2 x USB 3.2,2 x USB 2.0 | ||
| Display | 2 x HDMI v2.0 | ||
| LAN | 1 x i225, RJ45 port LAN | ||
| Audio | 1 x Audio(MIC&SPK) | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | 12V/5A, 5.5/2.5mm | ||
| Operating Temperature | 0/+60 Centigrade | ||
| Storage Temperature | -20/+ 70 Centigrade | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Wake-On-LAN, Auto-Power-On, RTC, PXE | ||
| Size | 114*106*42.5mm | ||
| Weight | Net 1kg, Gross 1.5kg | ||
| Shell | ABS | ||
| Cooling Mode | Support for smart fans | ||
| Package Content: | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xHDMI cable | ||
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GA1000 | i5-12450H | Intel® UHD Graphics | 3.3-4.4Ghz | 2 x HDMI v2.0 1x USB Type-C | 2 x SO-DIMM DDR4, Max up to 64GB | 2*M.2 (ONE 2242, ONE 2280) SSD | 1 | 4 x USB 3.0 | 12V-5A |
