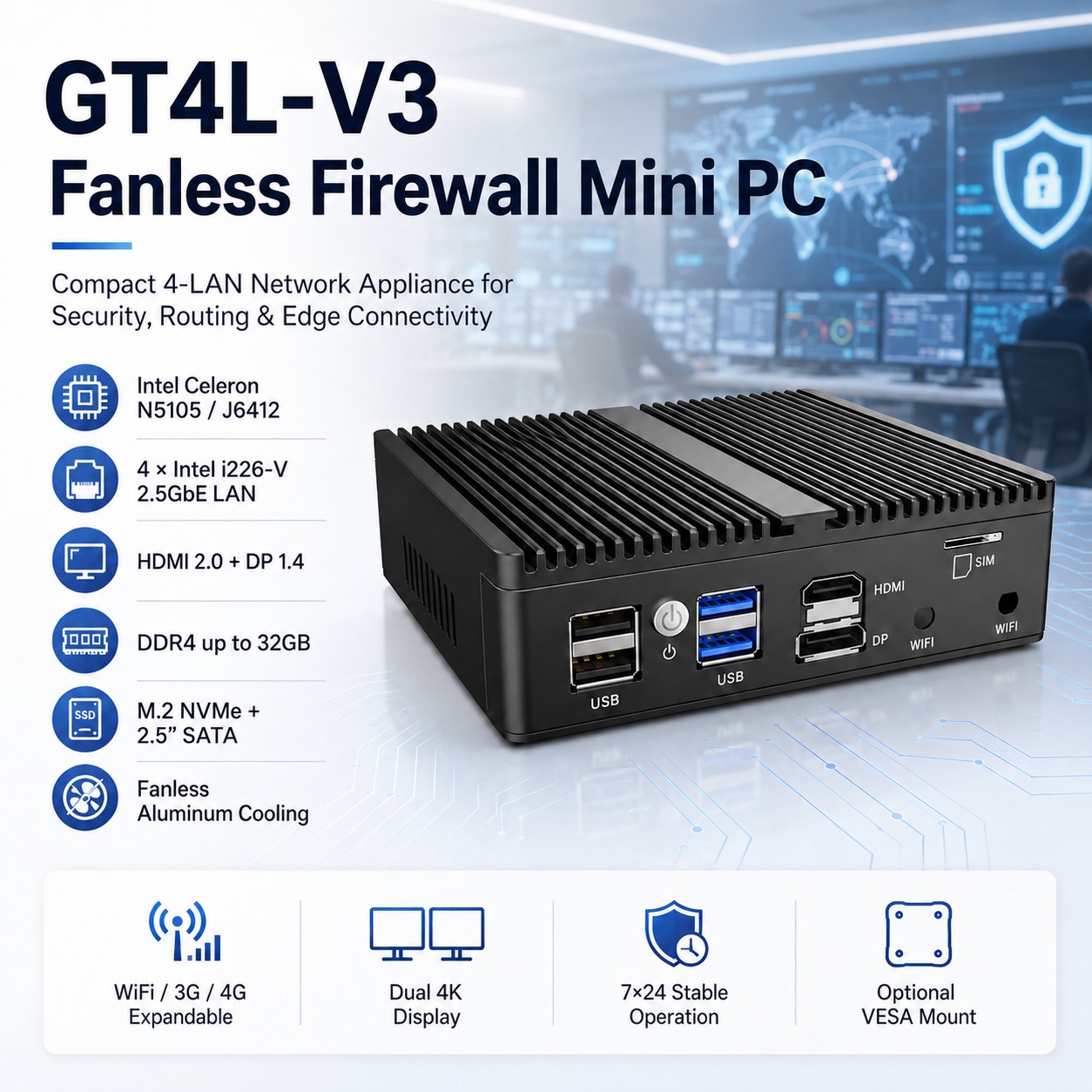

4LAN Fan Firewall Computer N5105
Products Features

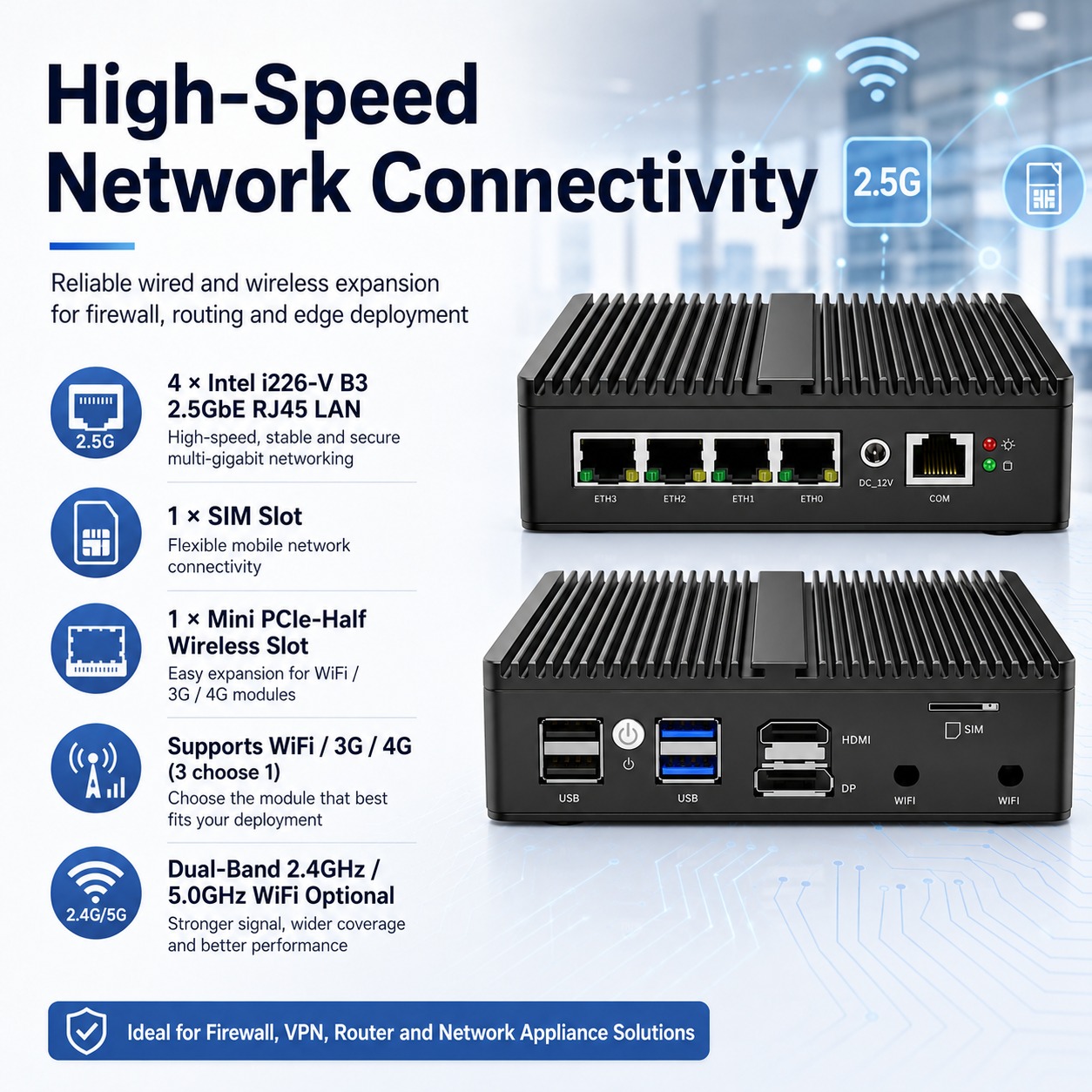

-4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console.

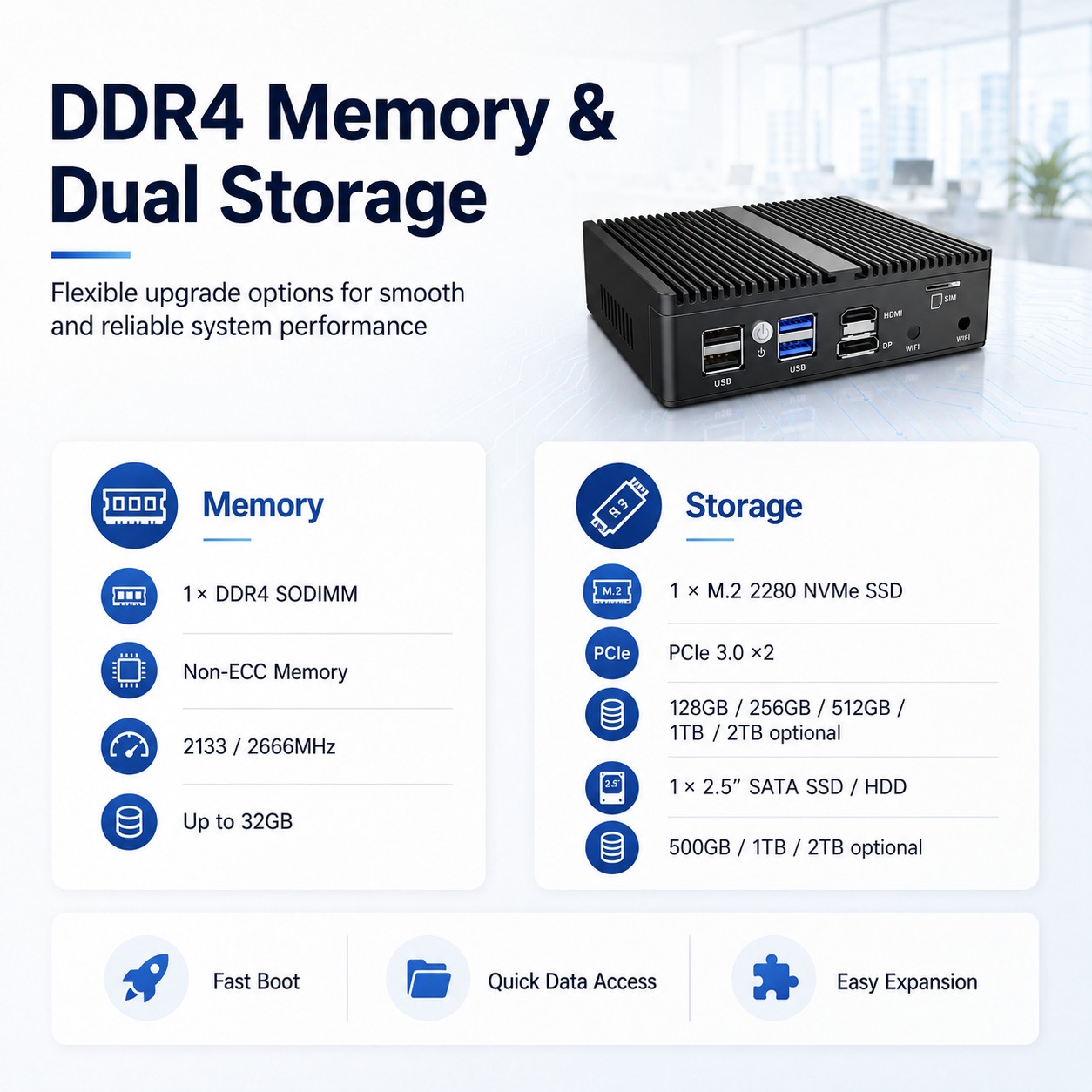

-2xDDR4 SODIMM non-ecc ram slot, max support 32GB.
-Support two storage: 1xM.2 Nvme 2280+1×2.5”SATA SSD/HDD.

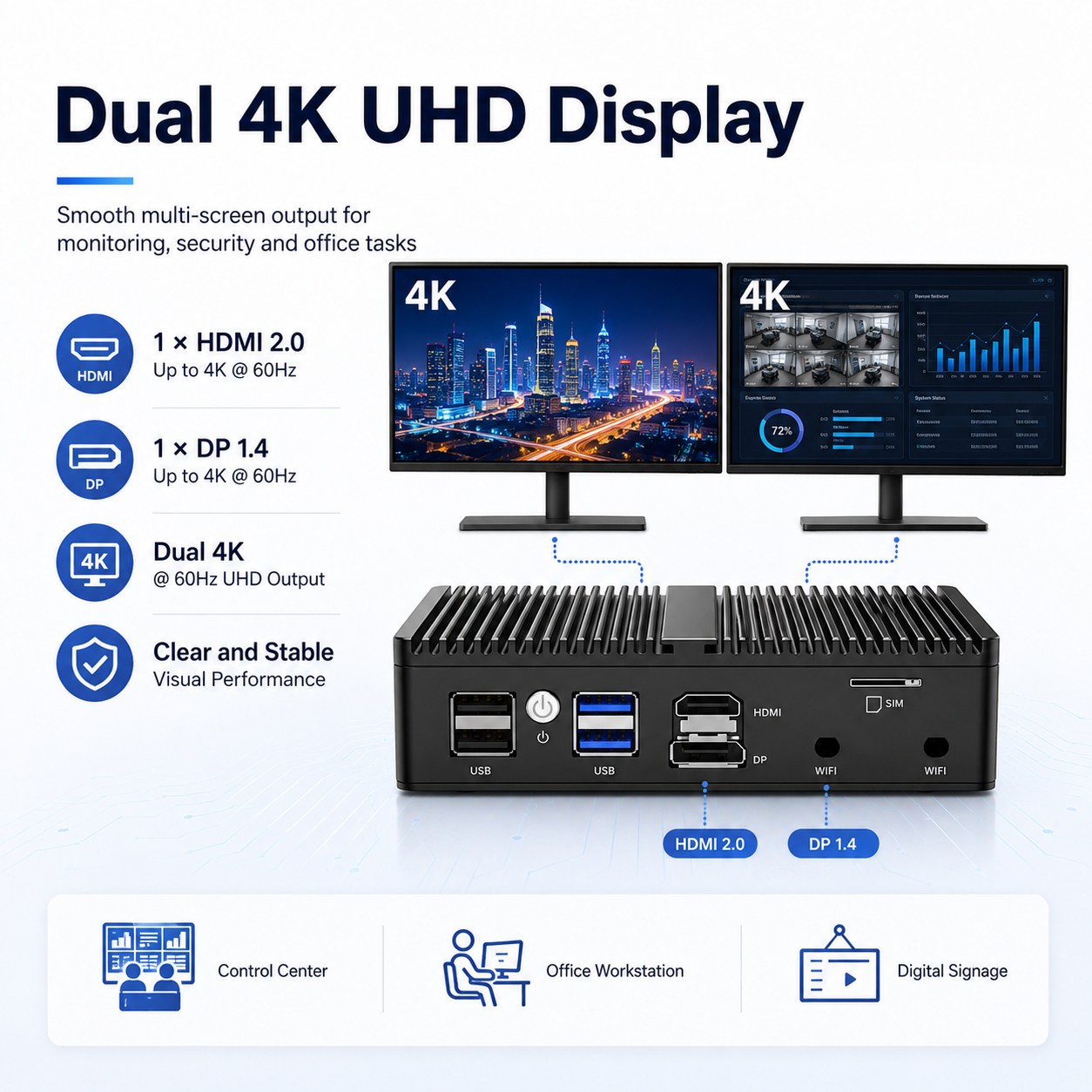

-1xHD-MI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.

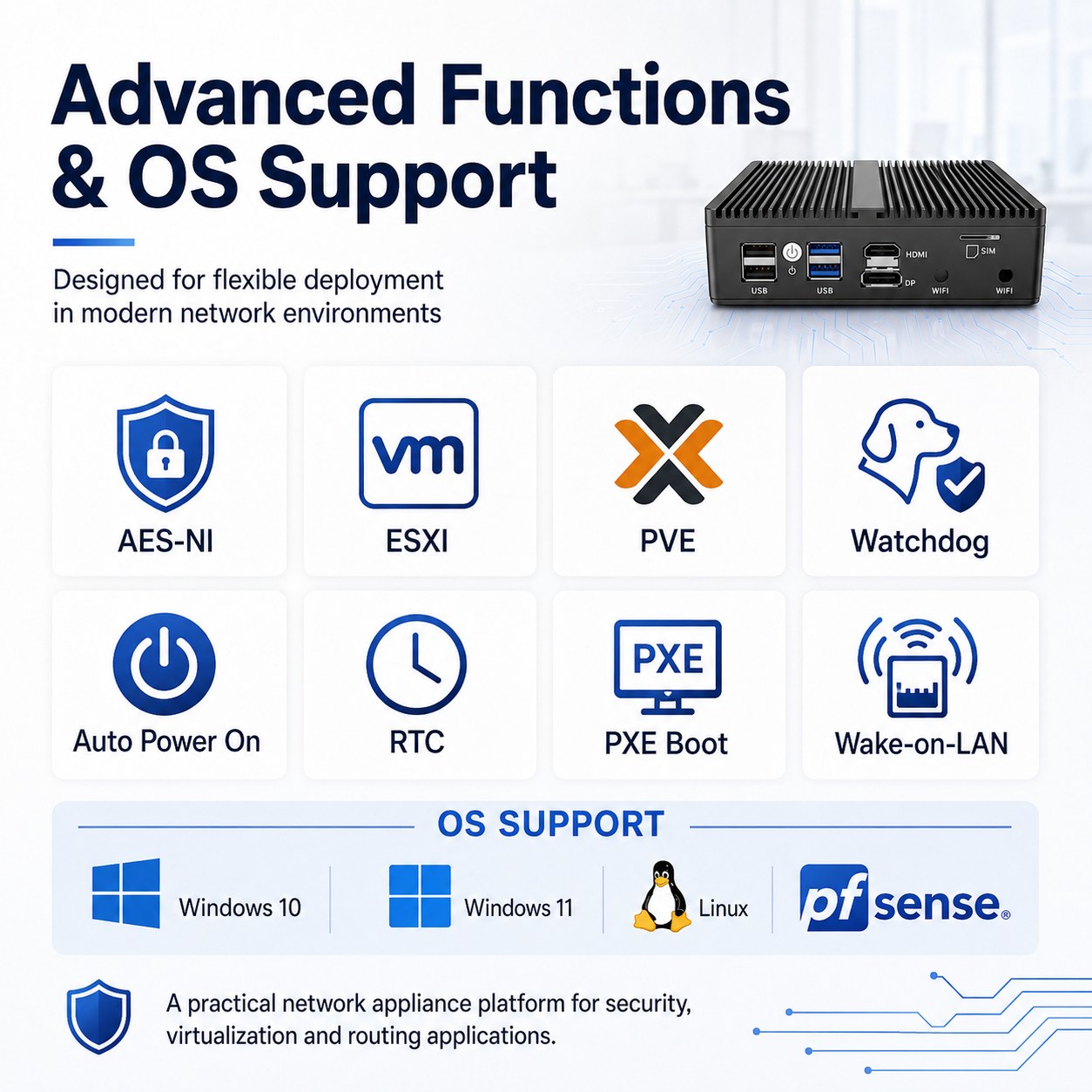

-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

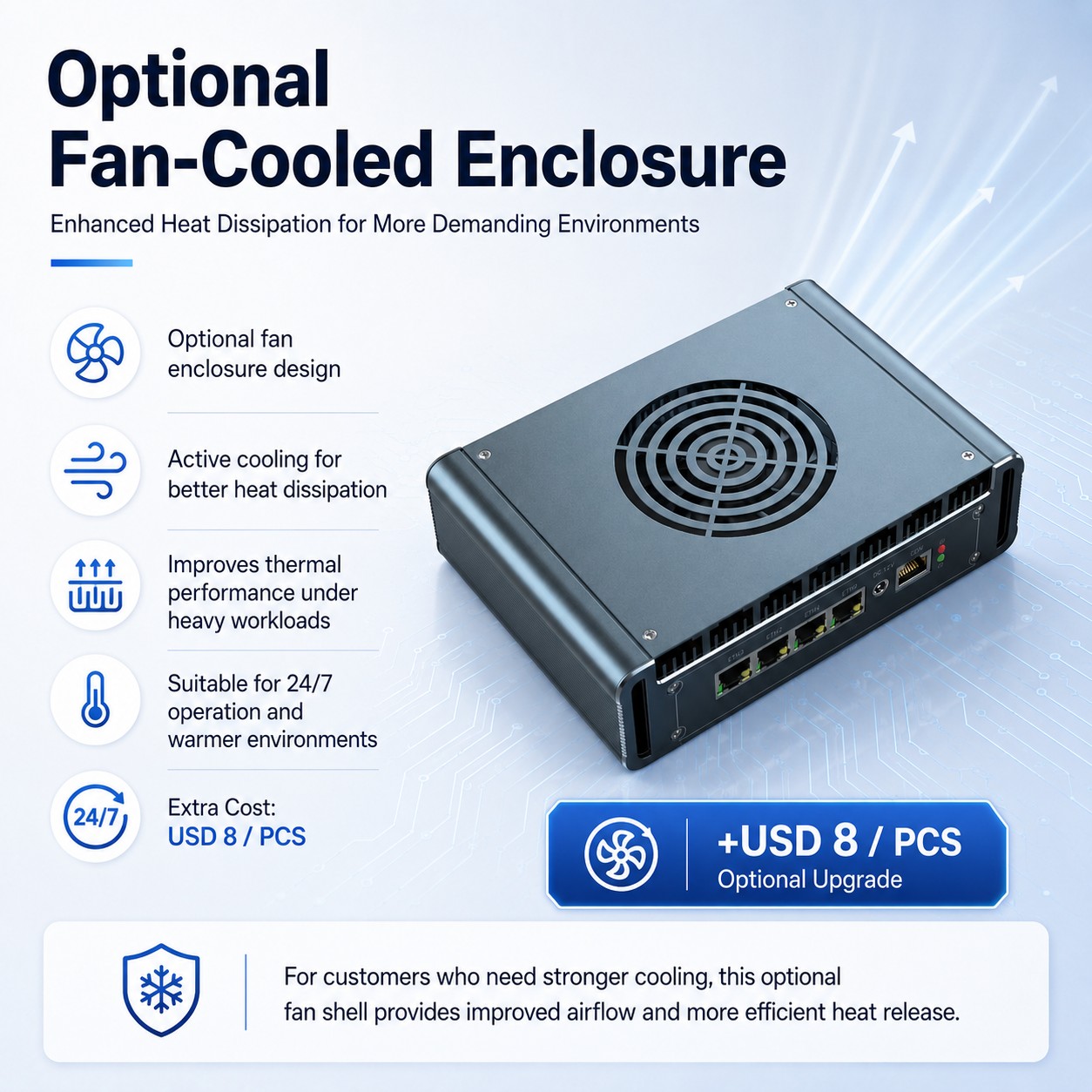

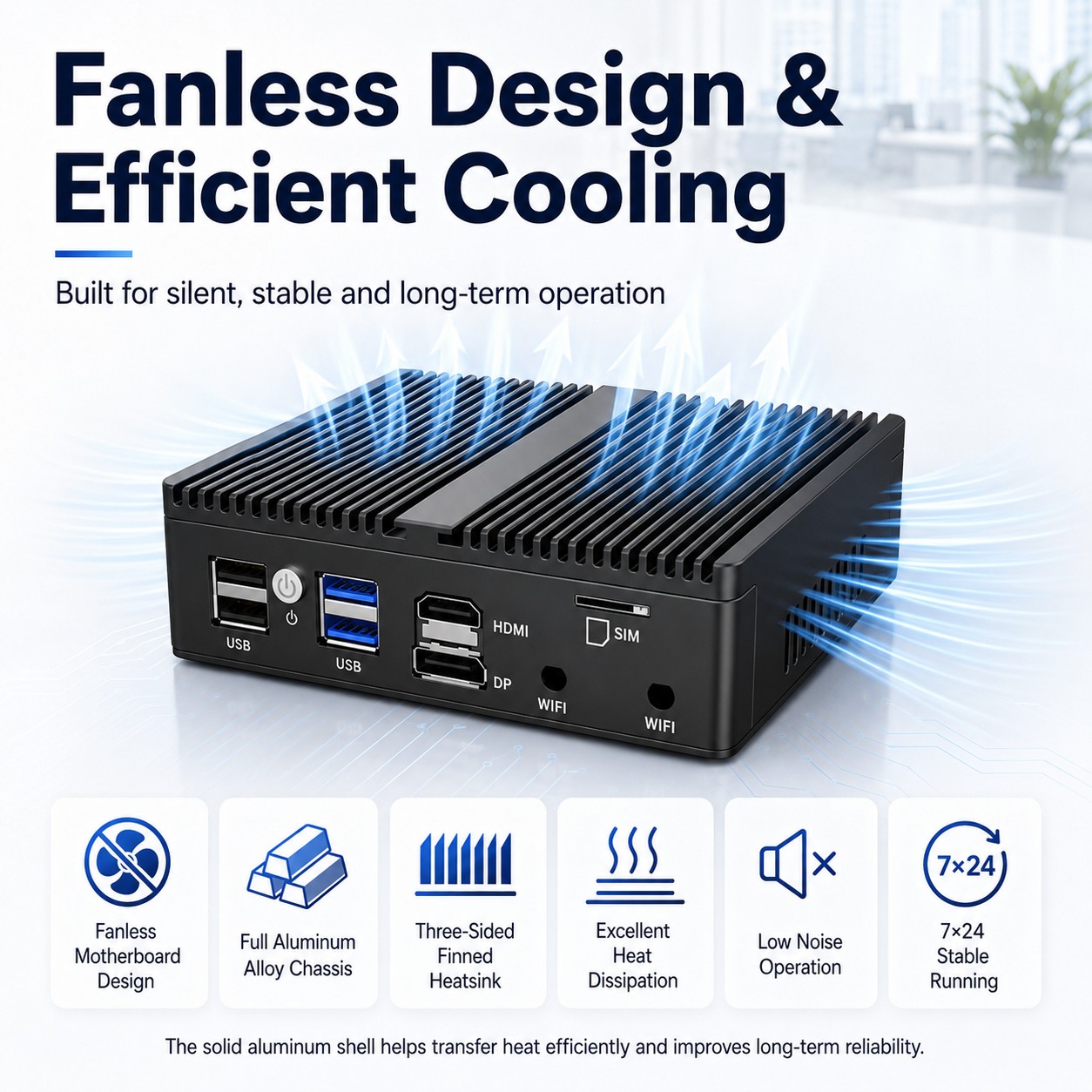

-Full Aluminum Alloy solid-built shell with FAN to help heat dissipation,excellent cooling performance.
-Motherboard Fanless system attached heat sink,work as long as 7×24 hours*365Days.
-Low consumption TDP and can be mounted back of monitor by VESA bracket.
Product Details
Specification
Ordering information
Product Details
Specification
| Basic Information: | |||

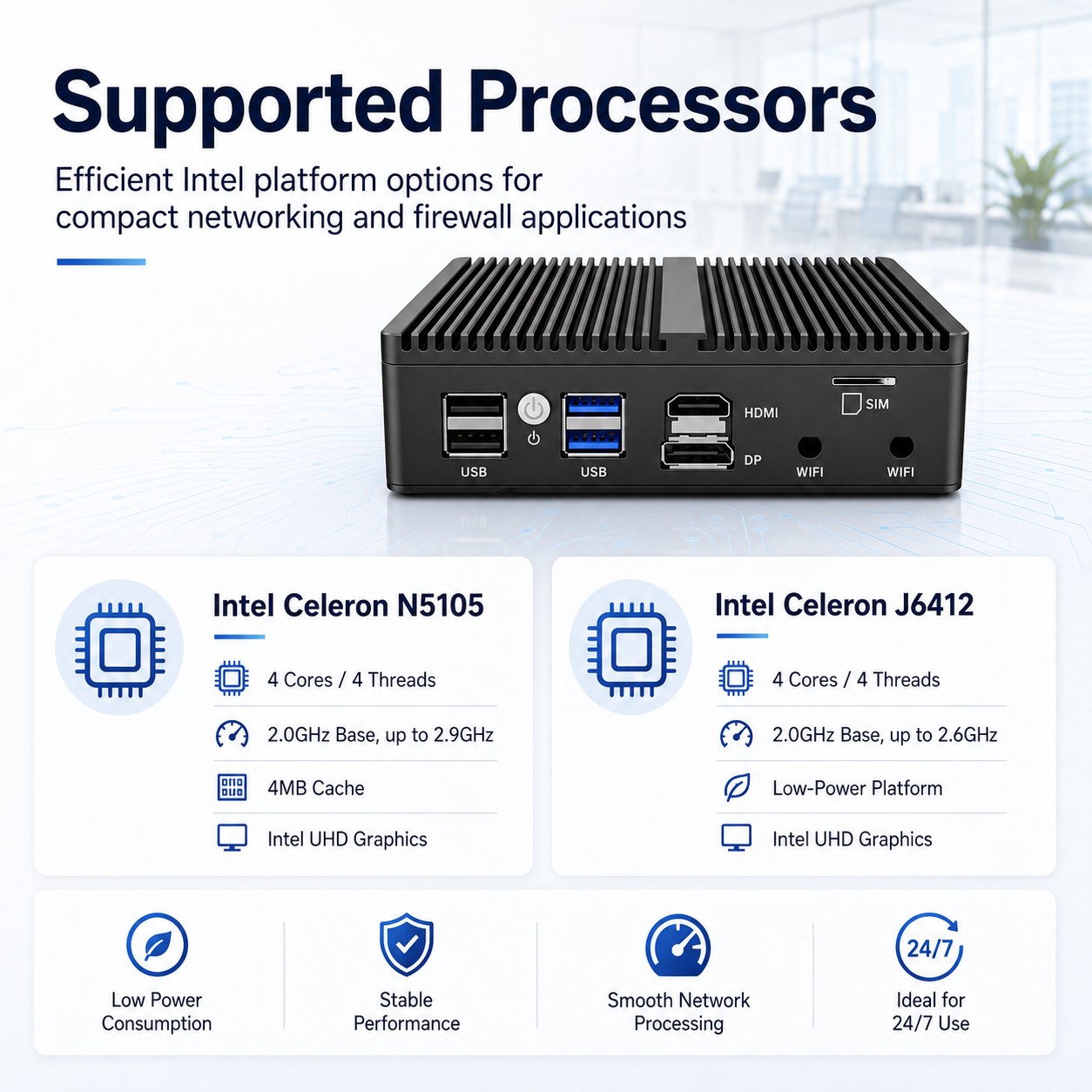

| CPU | 1.Intel Cele-ron N5105 Quad cores, 4 threads 2.00 GHz-2.90GHz 4M Cache Intel UHD Graphics 2. Intel Core i3-1115G4 Dual cores, 4 threads 3GHz-4.1GHz 6M Cache Intel UHD Graphics 3. Intel Core i5-1135G7 Quad cores, 8 threads 2.4GHz-4.2GHz 8M Cache Intel Iris Xe Graphics 4. Intel Core I7-1165G7 Quad cores, 8 threads 2.8GHz-4.7GHz 8M Cache Intel Iris Xe Graphics | ||
| TDP | 10W | ||
| Motherboard Size | 120 x 120 mm customized size | ||
| BOIS | AMI BIOS, ACPI supported | ||
| Chipset | Intel Geleron | ||
| Memory | 2*SODIMM memory slot 4GB/ 8GB/ 16GB/32GB RAM DDR4 | ||
| OS | Windows 7/Windows 8/Windows 10/Linux/pfSense | ||
| Network | 4*Onboard Intel i225-V B3 | ||
| Video | Intel UHD Graphics / Intel Iris Xe Graphics | ||
| Storage: | |||
| MSATA | 1 x M.2 Nvme 2280 128GB/256GB/512GB/1TB/2TB optional | ||
| SATA | 1* 2.5inch SATA HDD 500GB/ 1TB / 2TB Max | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

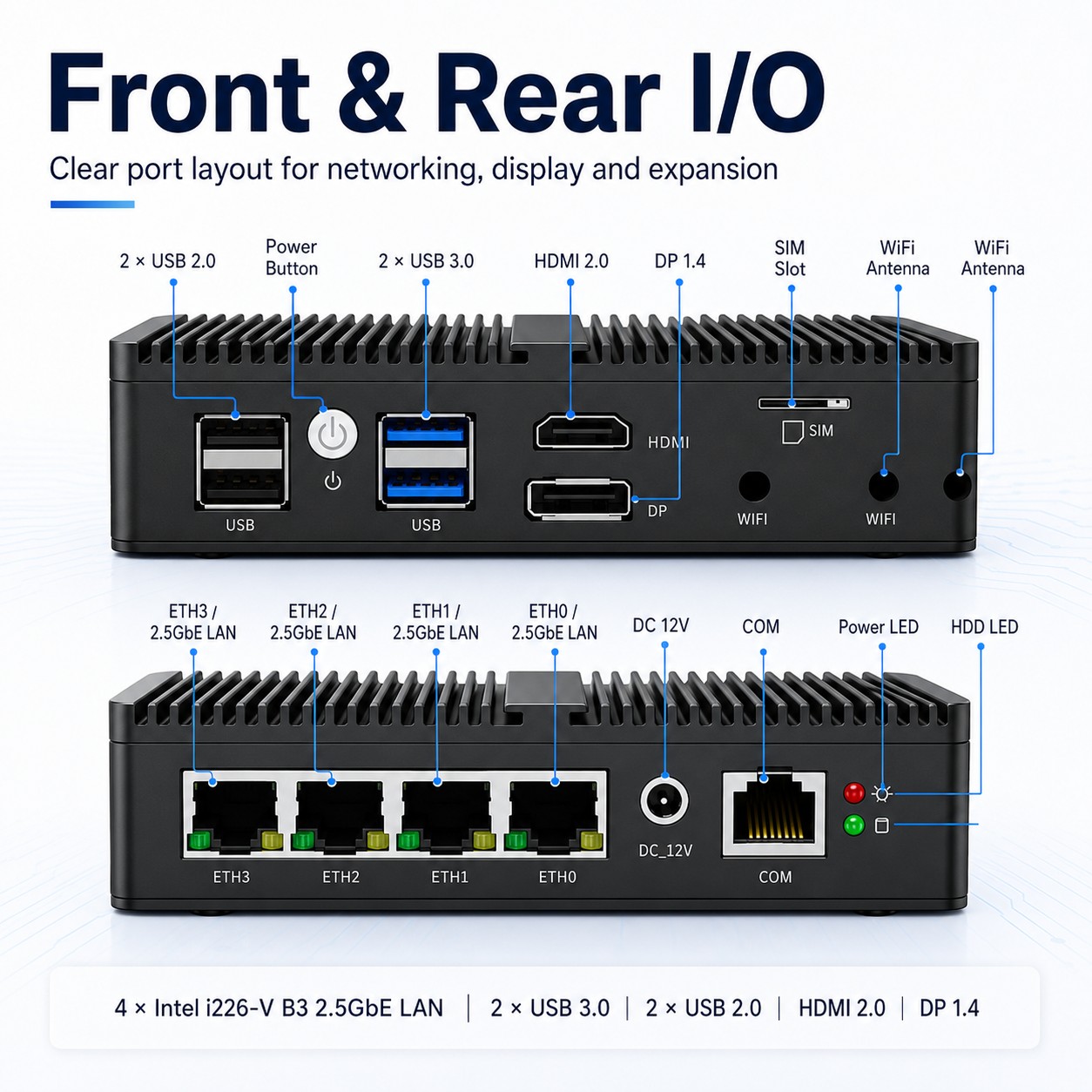

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 1 x Power LED, 1 x HDD LED | ||
| USB | 2 x USB3.0+2 x USB2.0 | ||
| Display | 1xHD-MI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display | ||
| LAN | 4*Onboard Intel i225-V B3 2.5G RJ45 LAN | ||
| SIM | 1 x SIM Card slot | ||
| WIFI | Dual band 2.4GHz/5.0GHz(Optional need pay extra USD8/PCS) | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC+12V, recommend 12V/4A | ||
| Operating Temperature | -20/+60Centigrade | ||
| Storage Temperature | -20/+70 Centigrade | ||
| Relative Humidity | 0%~90%@30 (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN | ||
| Size | 178*122*55mm | ||
| Weight | Net 1.2kg, Gross 2kg | ||
| Shell | Black color aluminum alloy add one FAN to help heat dissipation | ||
| Mounting | Can be mounted back of monitor or wall by optional VESA mount | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xUser Manual, 1xVESA mount | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT4L | N5105 | Intel UHD Graphics | 2.0~2.9 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 32G | 1 x M.2 NVMe 2280/2.5 inch SATA3.0 | 4 x i225/226 | 8 | 12V/4A |
| GT4L | N5100 | Intel UHD Graphics | 1.1~2.8 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 32G | 1 x M.2 NVMe 2280/2.5 inch SATA3.0 | 4 x i226 | 8 | 12V/4A |
| GT4L | Pentium Gold 7505 | Intel UHD Graphics | 2.0~3.5 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 64G | 1 x M.2 NVMe 2280/2.5 inch SATA3.0 | 4 x i226 | 8 | 12V/7A |
| GT4L | I3 1115G4 | Intel UHD Graphics | 1.7~4.1 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 64G | 1 x M.2 NVMe 2280/2.5 inch SATA3.0 | 4 x i226 | 8 | 12V/7A |
| GT4L | I5 1135G7 | Intel Iris Xe Graphics | 2.4~4.2 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 64G | 1 x M.2 NVMe 2280/2.5 inch SATA3.0 | 4 x i226 | 8 | 12V/7A |
| GT4L | I7 1165G7 | Intel Iris Xe Graphics | 2.8~4.7 GHz | DP/HDMI | 2 x SO-DIMM DDR4, Max 64G | 1 x M.2 NVMe 2280/2.5 inch SATA3.0 | 4 x i226 | 8 | 12V/7A |
