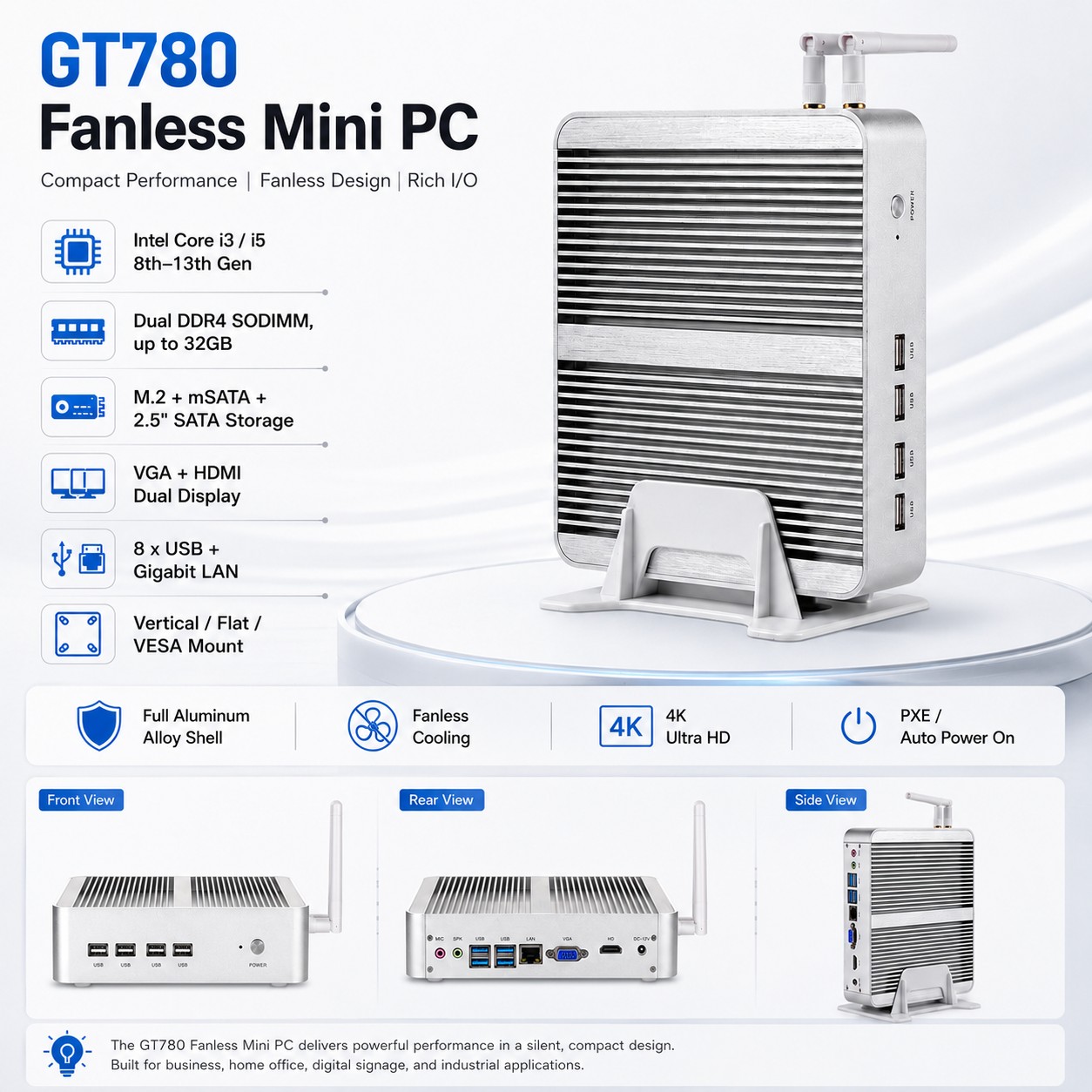

Fanless Mini PC i3 i5 12th 13th Gen GT780
1*HDMI+1*VGA+1LAN+4*USB 3.0+4*USB2.0+SPK+MIC+12V DC IN
Products Features
– Brushed Full Aluminum Alloy Black color shell, Exquisite production
crati on outside design.

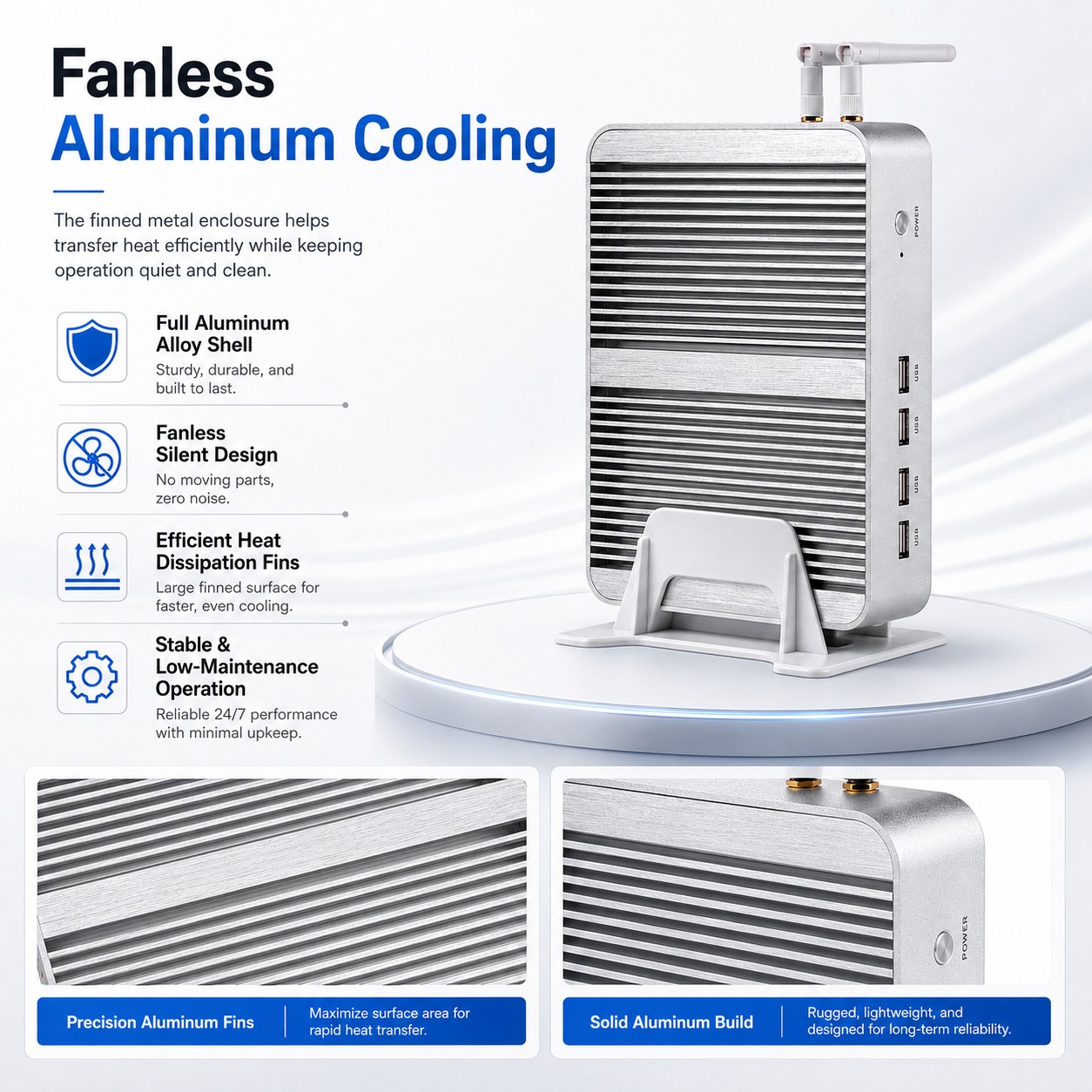

– Fanless system without cooling fan, no any noise, work as long as 24 hours.
– Multi ports Support 1*HDMI+1*VGA+1LAN+4*USB 3.0+4*USB2.0

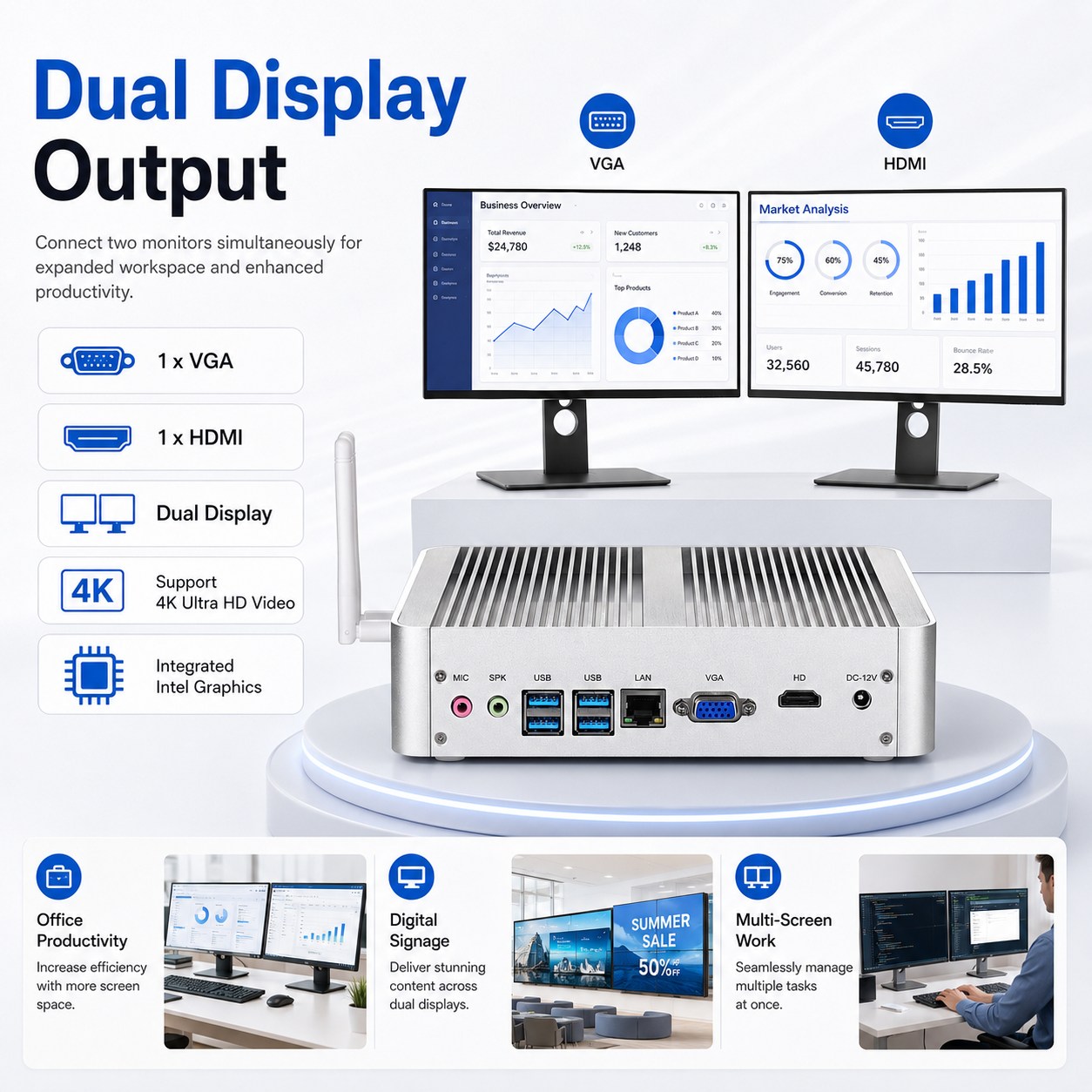

– Support HDMI+VGA Dual display output synchronously.
–Support HDMI 1.4 4K: 4096×2304@24Hz

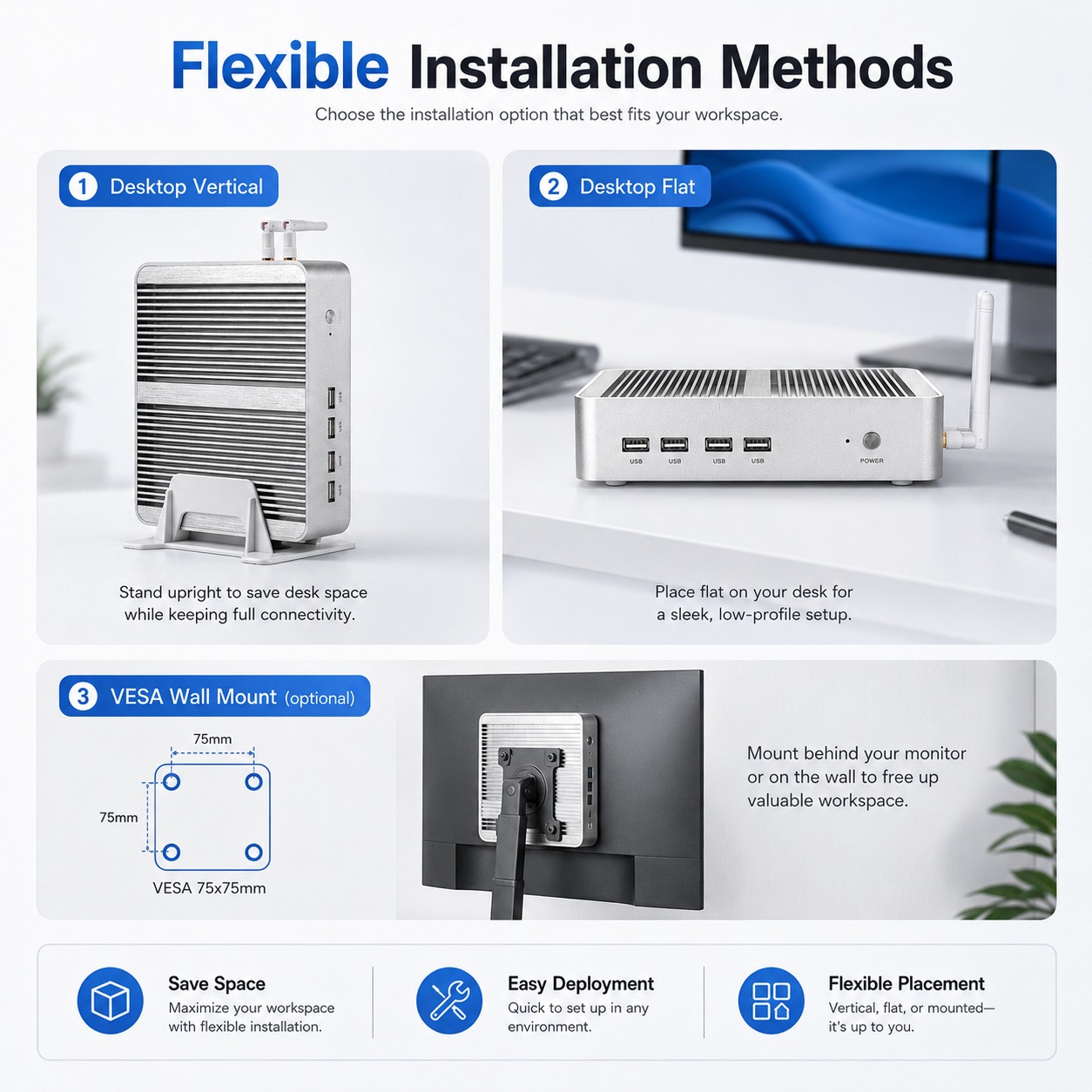

– Can be mounted on the wall by VESA Bracket.
-Support Restore AC Power loss/LAN PXE boot/ WOL on windows 7
Product Details
Specification
Ordering information
Product Details
GT770 is a fanless mini PC with 8th-12th Gen i3 8140U, i5 8250U I5-10210U I5-1135G7 I5-1235U processor. Redefine the new form of computer: compact, Space-saving, Fanless design, zero noise disturbance,
Low power consumption and Energy saving, easy to carry, stable performance. Rich I/O Ports: 8 USB ports, HDMI+VGA Dual display, RJ45 LAN, SPK+MIC, etc…
Widely Application Area: Office working / Digital signage / Education Computer Lab/Call center /Conference room/Home entertainment /Home theater/Cloud Computing etc…
Specification
| Basic Information: | |||

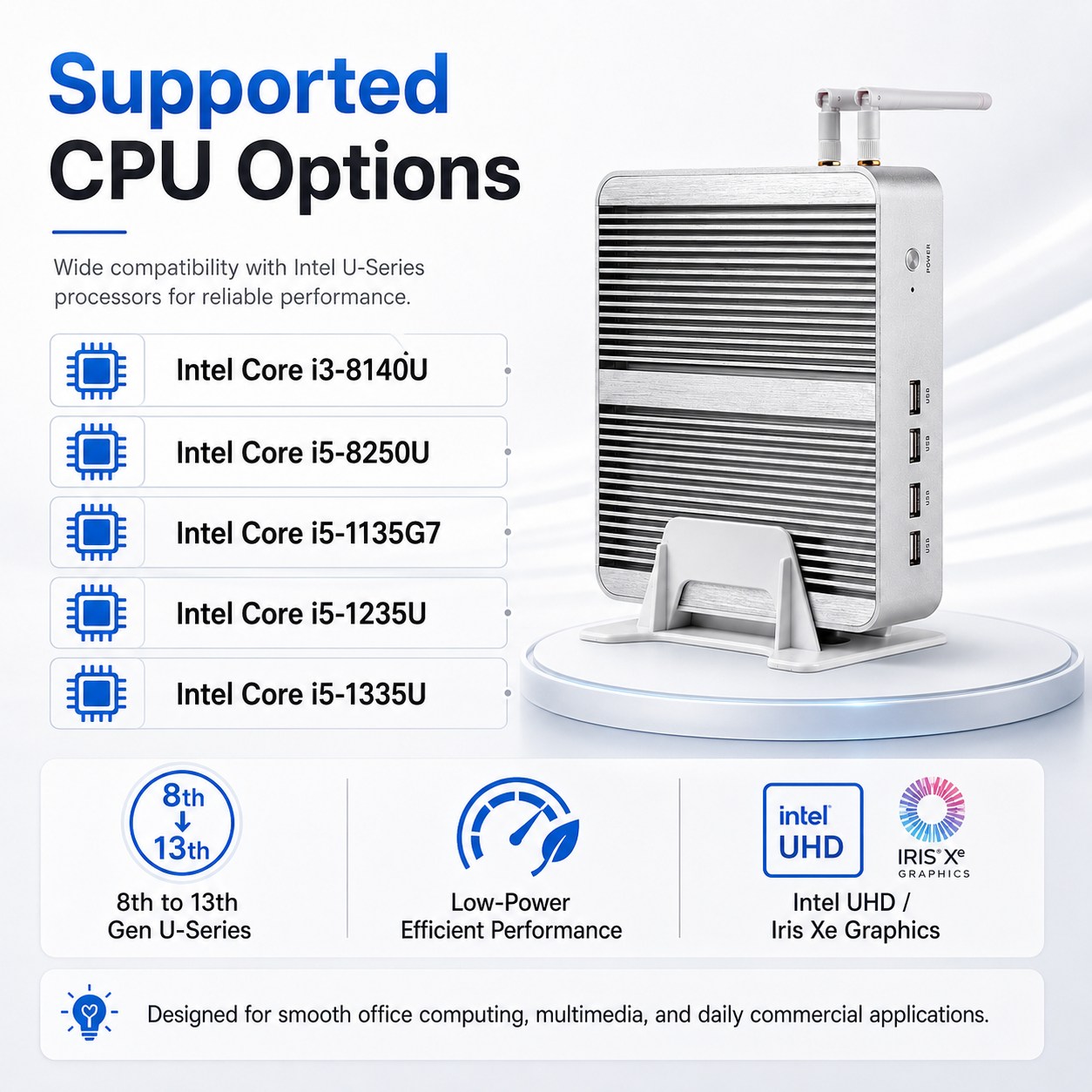

| CPU | 1. Intel Core i3-8140U Dual cores 4threads 2.1GHz up to 3.9GHz 4MB cache TDP 15W Intel UHD Graphics 620. | ||
| 2.Intel Core i5-8250U 4 cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphics 620. | |||
| 3.Intel Core i5-1135G7 4 cores 8 threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel Iris Xe Graphics | |||
| 4.Intel Tiger Lake Core i5-1235U 10 cores 12 threads 1.3GHz up to 4.4GHz 12MB cache TDP 15W Intel Iris Xe Graphics G7 (80EU) | |||
| Intel Core i5-1335U 10 cores 12 threads max up to 4.6GHz 12MB cache TDP 15W Intel® Iris® Xe Graphics eligible | |||
| TDP | 15W | ||
| BOIS | AMI BIOS, ACPI supported, support call-on fuction, automatically | ||

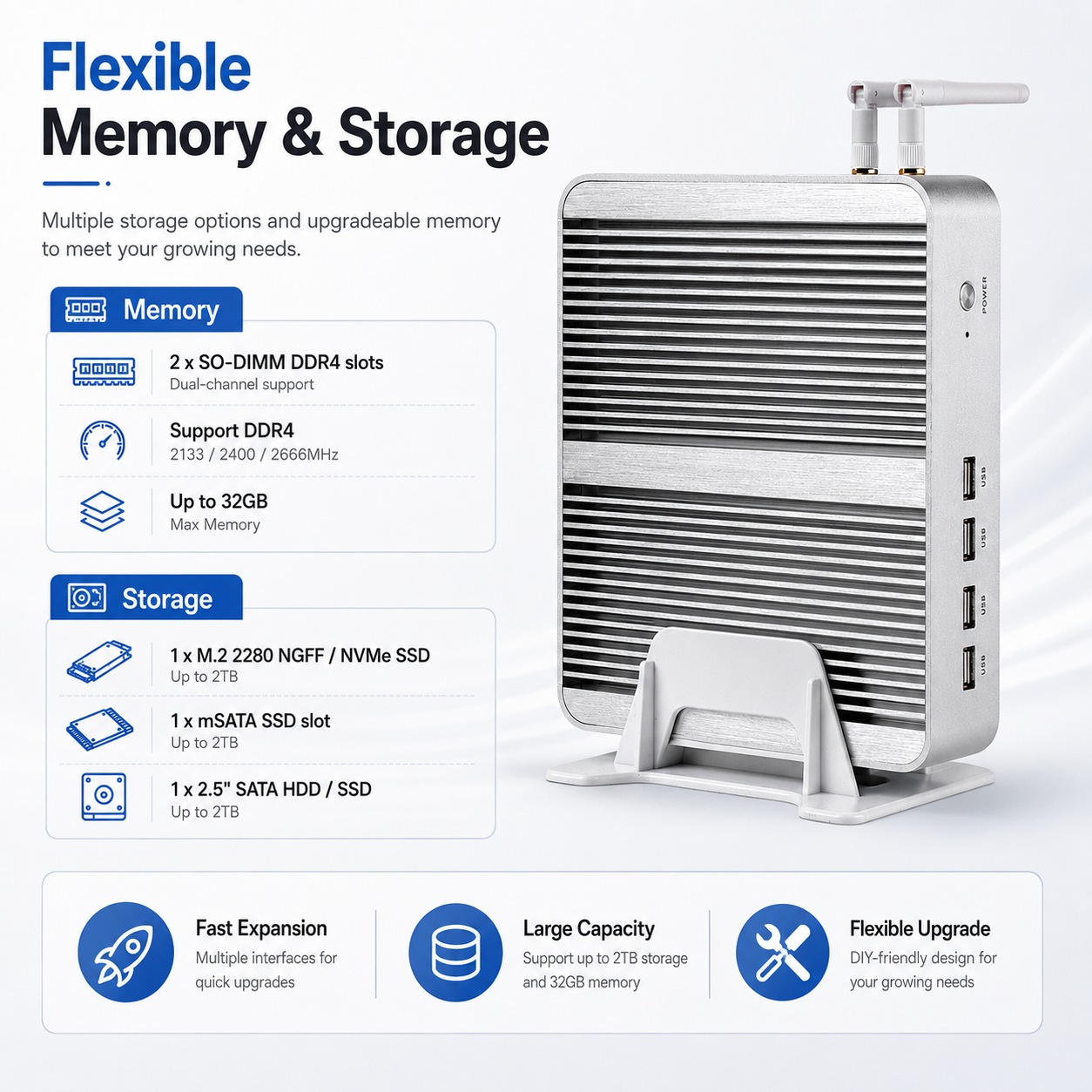

| Memory | 2 x SO-DIMM Slot, Support DDR4 4G/8G/16G/32G DDR4-2133/2400/2666MHz | ||
| OS | Windows 10/11/ Linux OS | ||
| Characteristic | MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4, AVX2.0, SSE4.2, HTT… | ||
| Audio | Adopting ALC892 chip 6 channel sound card | ||
| Network | RTL8168E PCIE Gigabit ethernet NIC 10/100/1000 BaseT LAN | ||
| Video | Refer to the CPUs | ||
| Storage: | |||
| SATA | 1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 2TB, support 6Gb/s | ||
| M-SATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s | ||
| M.2 | 1x M.2 Ngff / Nvme 2280 up to 2TB | ||
| Wi-Fi: | |||

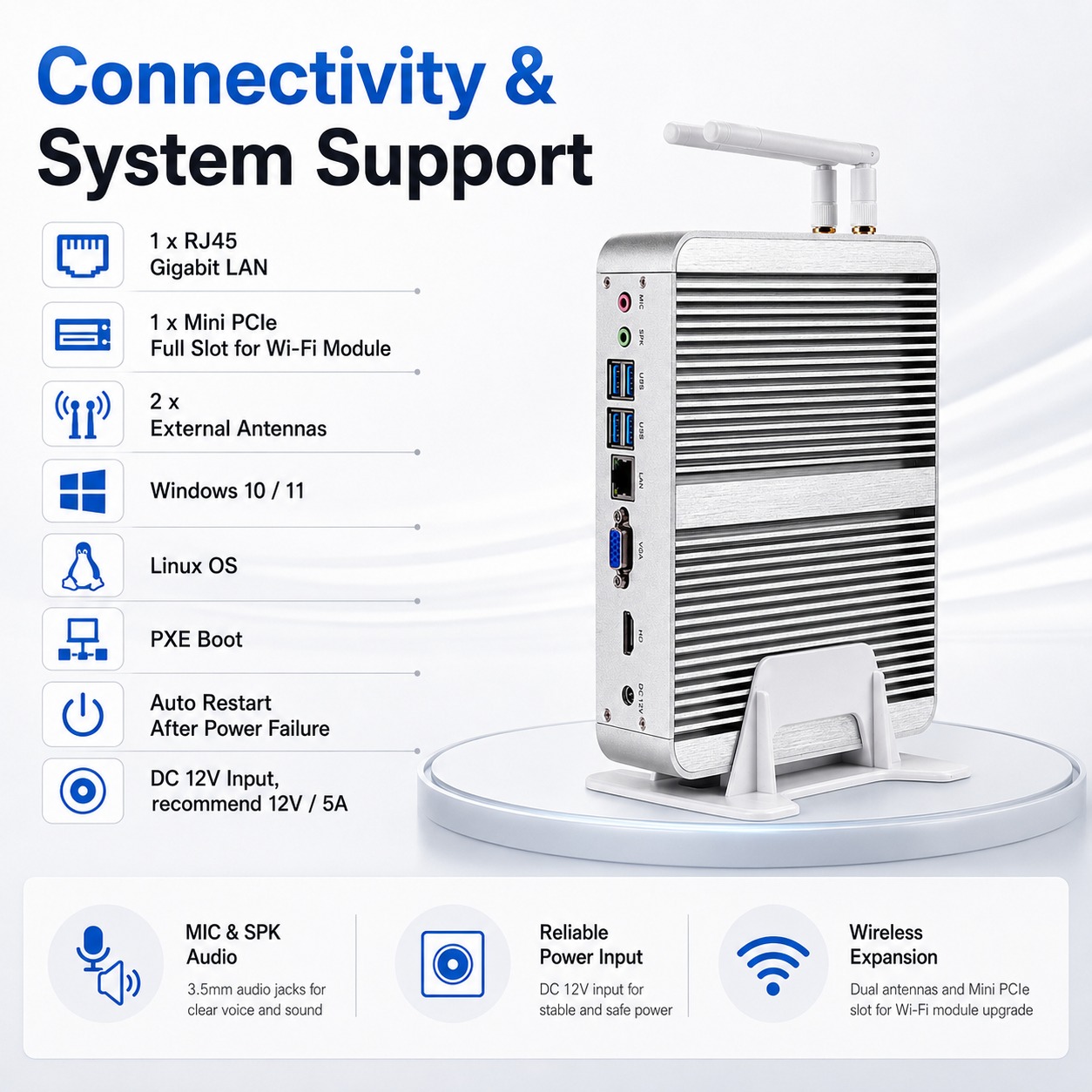

| Module | 1 x mini PCIE-full port for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

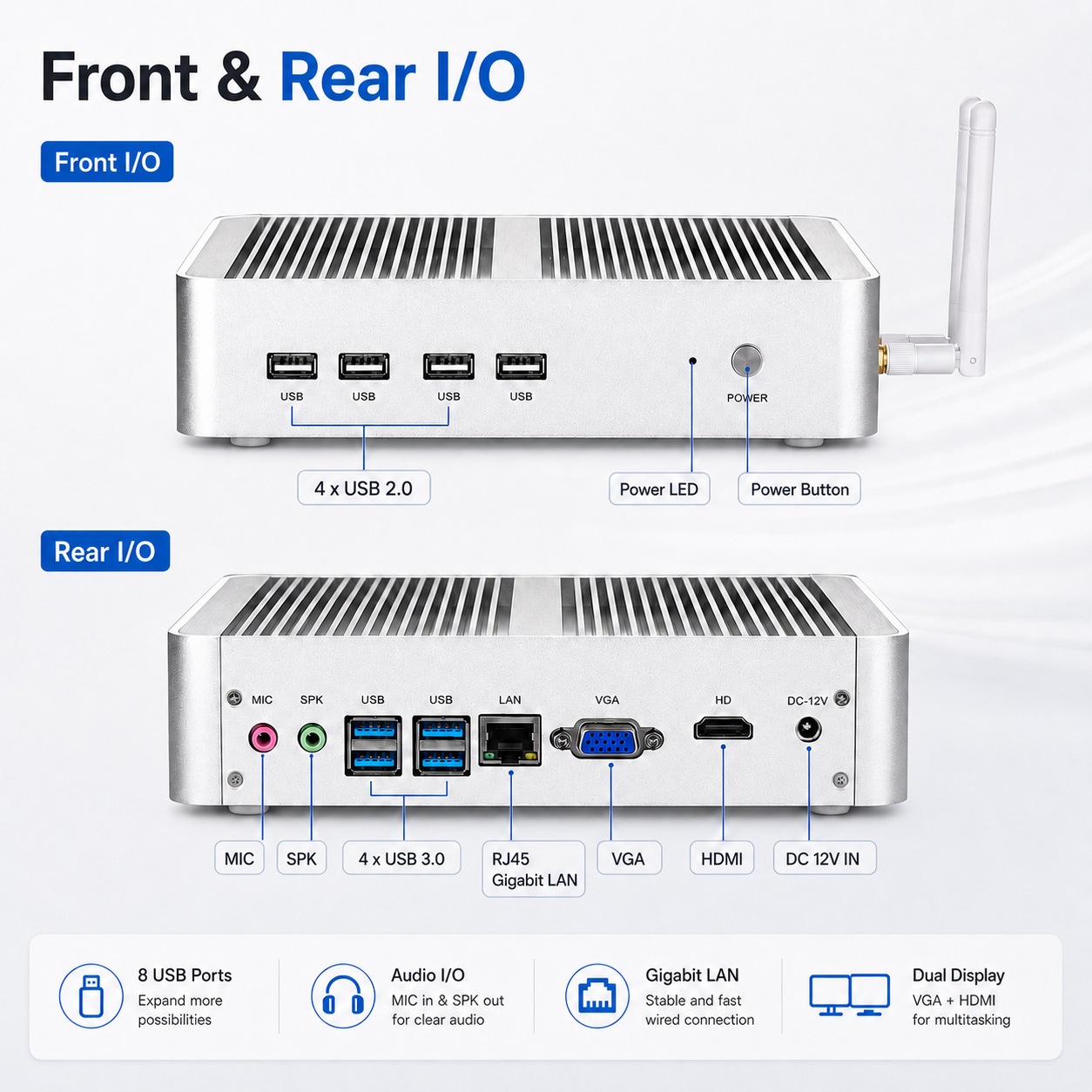

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 1 x LED | ||
| USB | 4 x USB3.0, 2 x USB2.0 | ||
| Display | 1 x VGA, 1 x HDM Dual Display | ||
| LAN | 1 x RJ45 Giga LAN | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +12V~+19V, recommend 12V/5A | ||
| Operating Temperature | 0/+70 Centigrade | ||
| Storage Temperature | -20/+85 Centigrade | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | PXE/Auto restart when lost power | ||

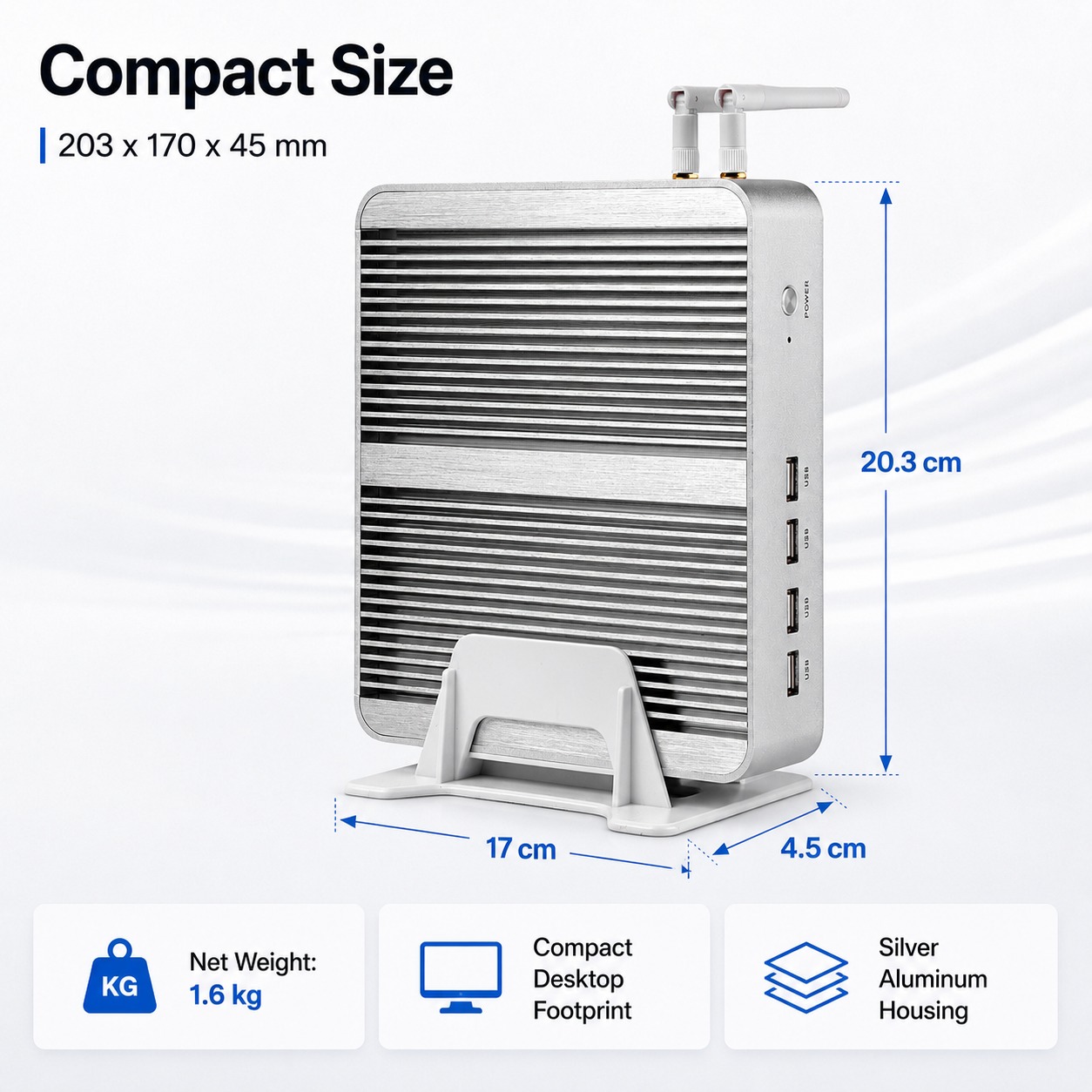

| Size | 20.3CM*17CM*4.5CM | ||
| Weight | Net 1.6kg, Gross 2.8kg | ||
| Shell | Sliver | ||
| Cooling Mode | Fanless design | ||
| Wall Mounted | Support with VESA Bracket (Optional) | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT770 | i3-8145U | intel UHD Graphics 620 | 2.1GHz up to 3.9GHz | HDMI+VGA | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/ 1 x M.2 2280 SSD | 1 | 8 | 12V/5A |
| GT770 | i5-8259U | intel UHD Graphics 620 | 2.3GHz up to 3.8GHz | HDMI+VGA | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/ 1 x M.2 2280 SSD | 1 | 8 | 12V/5A |
| GT770 | I5-10310U | Intel UHD Graphics | 1.7GHz up to 4.4GHz | HDMI+VGA | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/ 1 x M.2 2280 SSD | 1 | 8 | 12V/5A |
| GT770 | I5-1135G7 | Intel Iris Xe Graphics G7 (80EU) | 2.4GHz up to 4.2GHz | HDMI+VGA | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/ 1 x M.2 2280 SSD | 1 | 8 | 12V/5A |
| GT770 | I5-1235U | Intel Iris Xe Graphics G7 (80EU) | 1.3GHz up to 4.4GHz | HDMI+VGA | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/ 1 x M.2 2280 SSD | 1 | 8 | 12V/5A |
