The Best Mini Computer for Home & Office
Model name: GT860
1*HDMI+1DP+1LAN+4*USB 3.0+4*USB2.0+SPK+MIC+12V DC IN
Products Features
-Powerful Intel® 8-12th Generation Core™ i7 CPU,Assure powerful performance for gaming, office, drawing;
-RAM: 2*DDR4 RAM slots 2xfaster than 1 ram slot, DDR4 2xfaster than DDR3;
-Triple-Storage: support 1*Msata SSD+1*M.2 NVME(22×80) SSD+1*2.5” SATA SSD/HDD
-Built-in Gigabit LAN, USB 3.0, USB2.0, SPK, MIC, Video (HDMI & Display port)
-Zero noise, Aluminum Alloy Fanless Chassis Support Windows 10, 11, and Linux

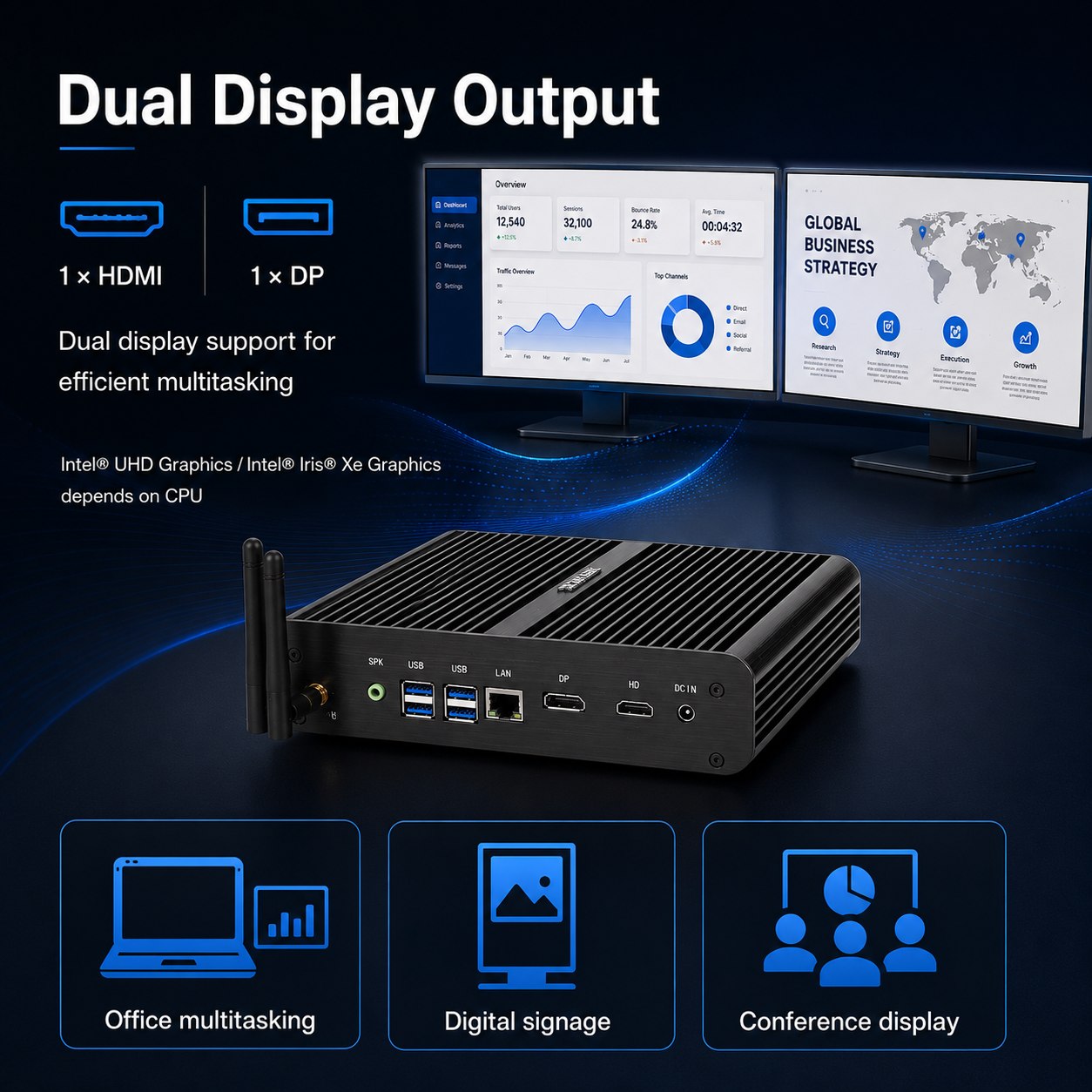

-Support dual screen (DP and HDMI) for simultaneous display or synchronous different displays
-Support HDMI 1.4 4K: 4096×2304@30Hz, DP 1.2 4K: 4096×2304@60Hz, support DP to VAG transfer only (does not support DP to HDMI transfer)
-Support diskless boot/ Restore AC Power Loss
Product Details
Specification
Ordering information
Product Details

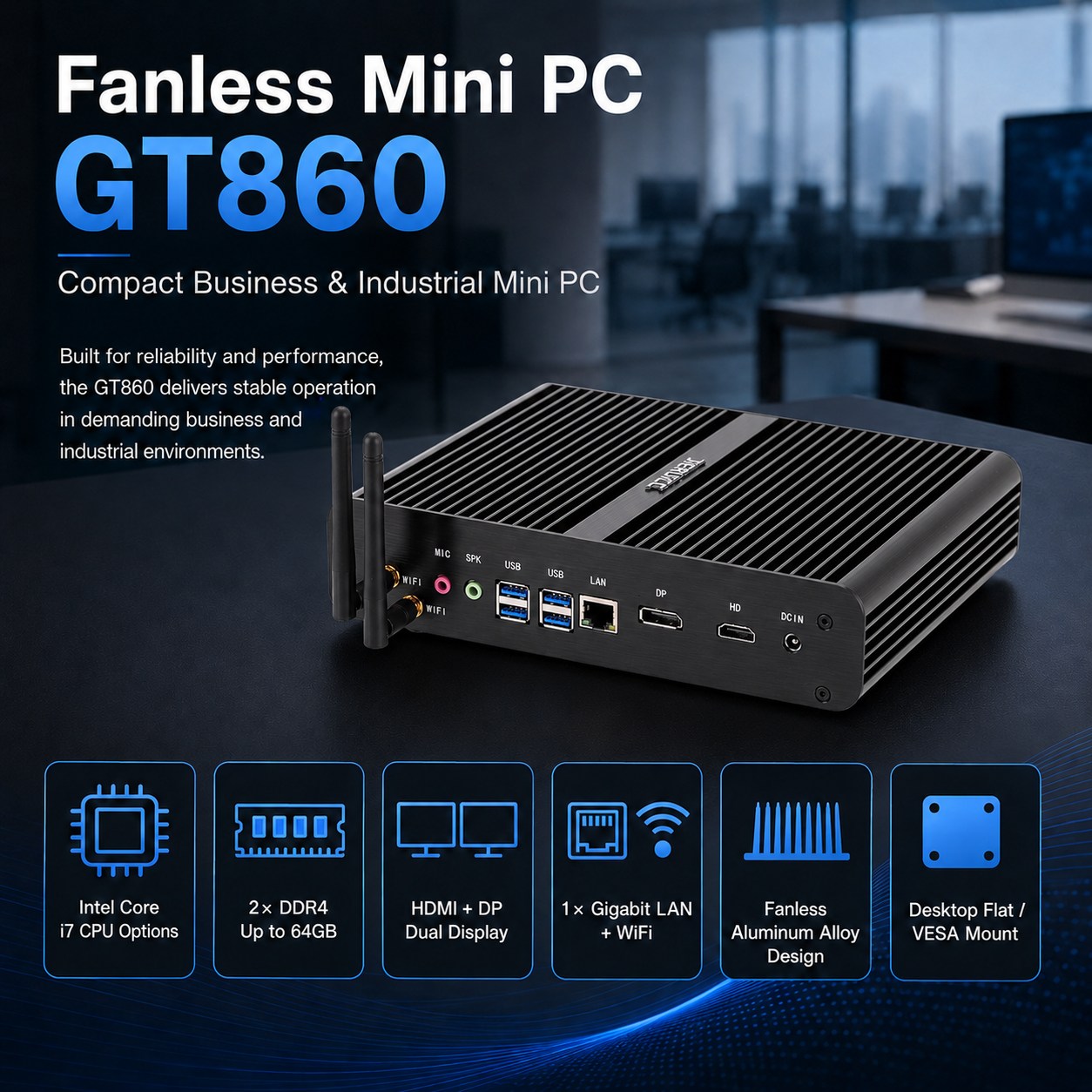

The GT860 is a compact fanless mini PC designed for stable business computing, office work, digital signage, retail POS, education, meeting rooms, and light industrial applications. Powered by Intel Core i7-8560U, i7-1165G7, or i7-1255U processors, it delivers reliable performance in a silent aluminum alloy enclosure.
With dual display support through HDMI and DP, DDR4 memory up to 64GB, flexible storage options, Gigabit LAN, dual-band WiFi, and Bluetooth, the GT860 is suitable for space-saving desktop deployment or VESA mounting behind a monitor.
Product Features
- Intel Core i7-8560U / i7-1165G7 / i7-1255U CPU options

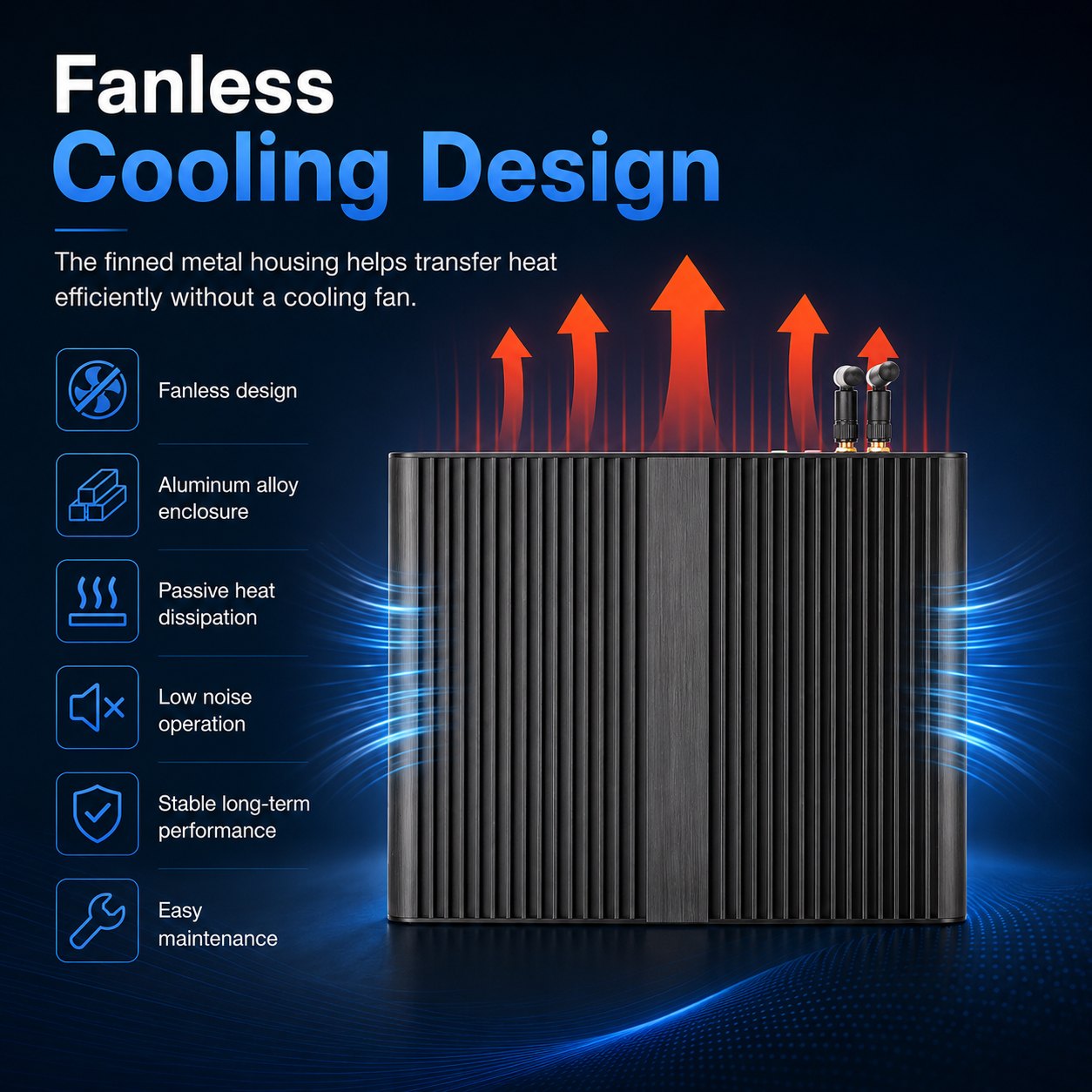

- Fanless aluminum alloy enclosure for quiet passive cooling

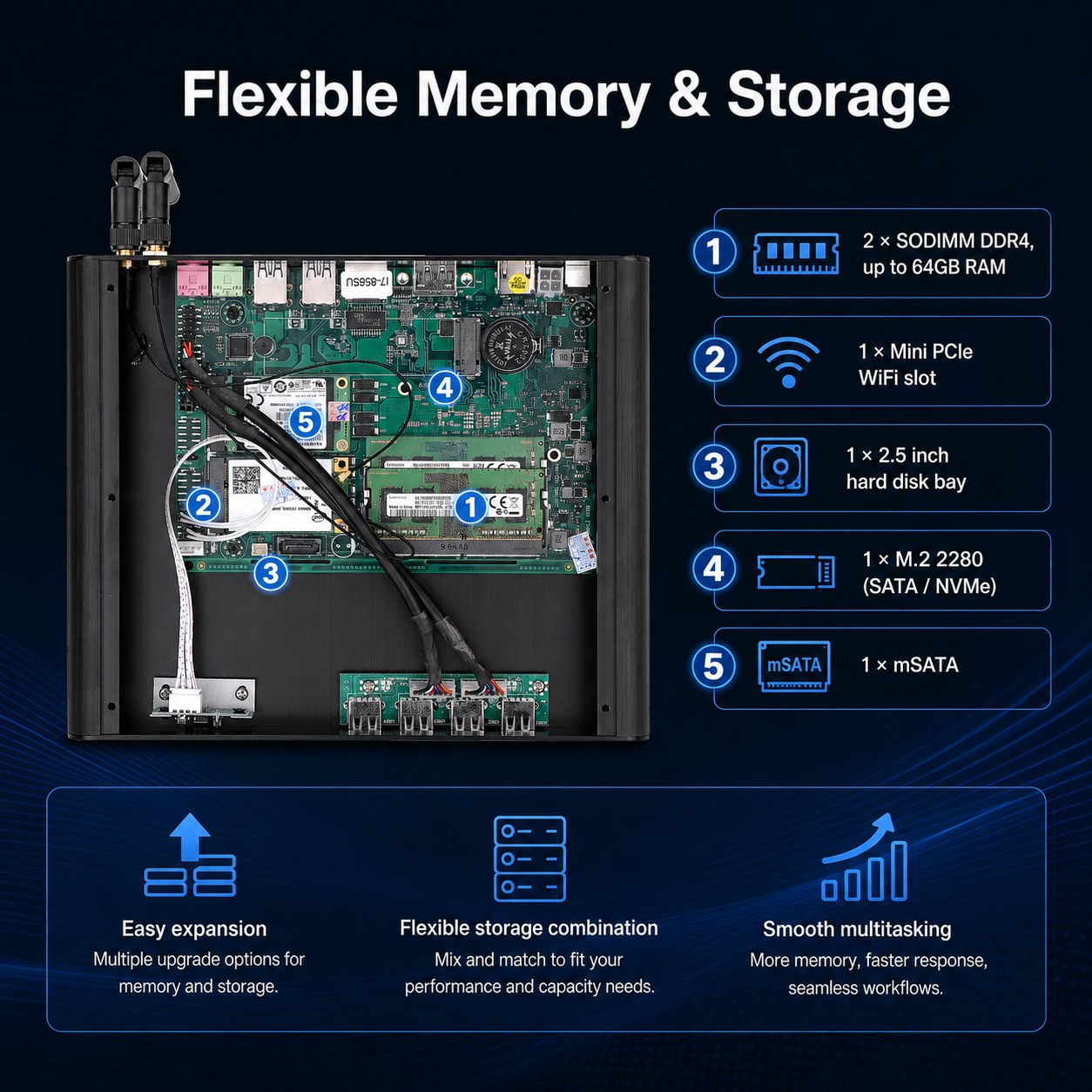

- 2 × DDR4 SODIMM memory, up to 64GB RAM
- Flexible storage: 2.5” HDD bay, mSATA, and M.2 2280 SATA / NVMe
- HDMI + DP dual display for multitasking and signage use
- 1 × Gigabit LAN, dual-band WiFi, and Bluetooth 4.0 / 4.2

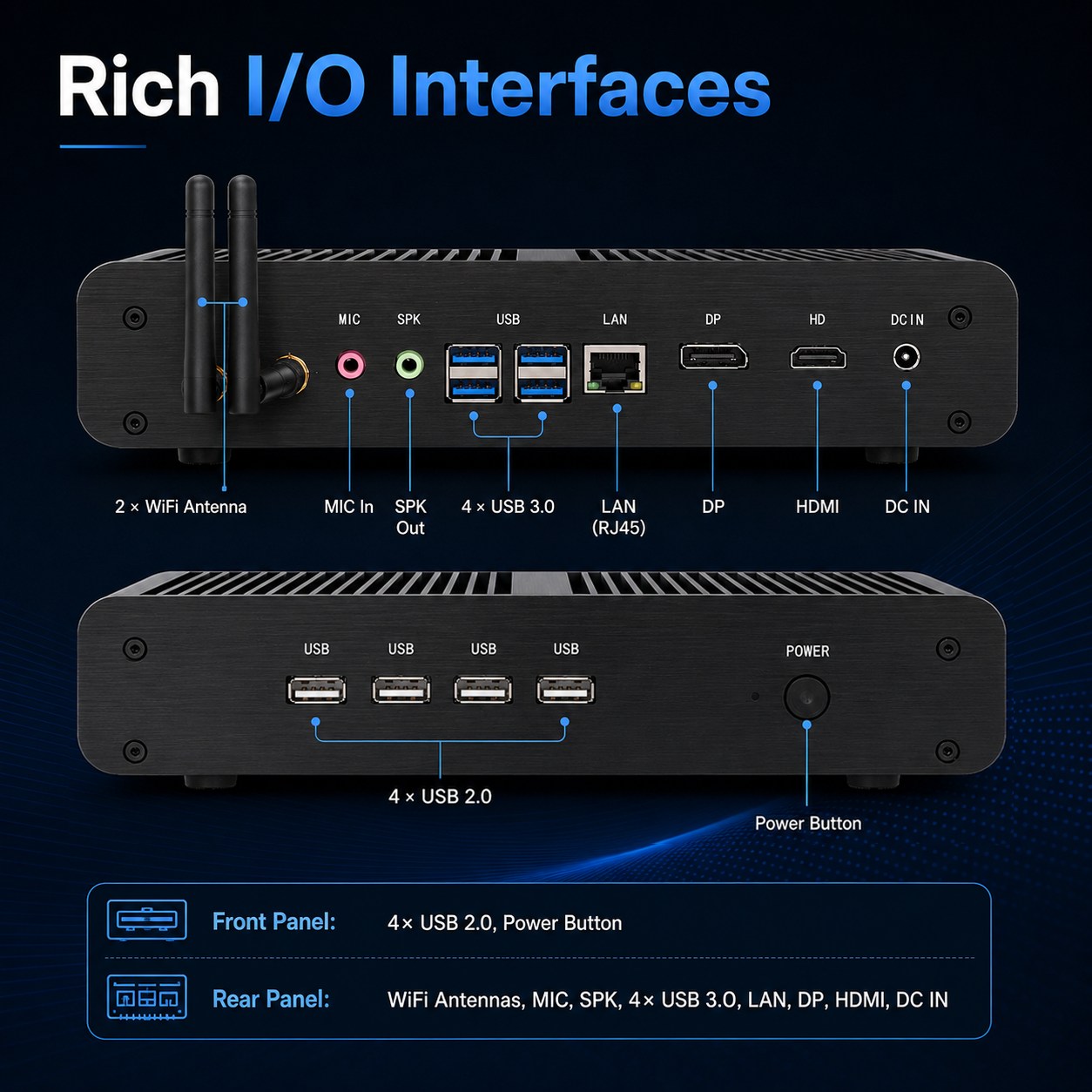

- Front I/O: 4 × USB2.0 and power button

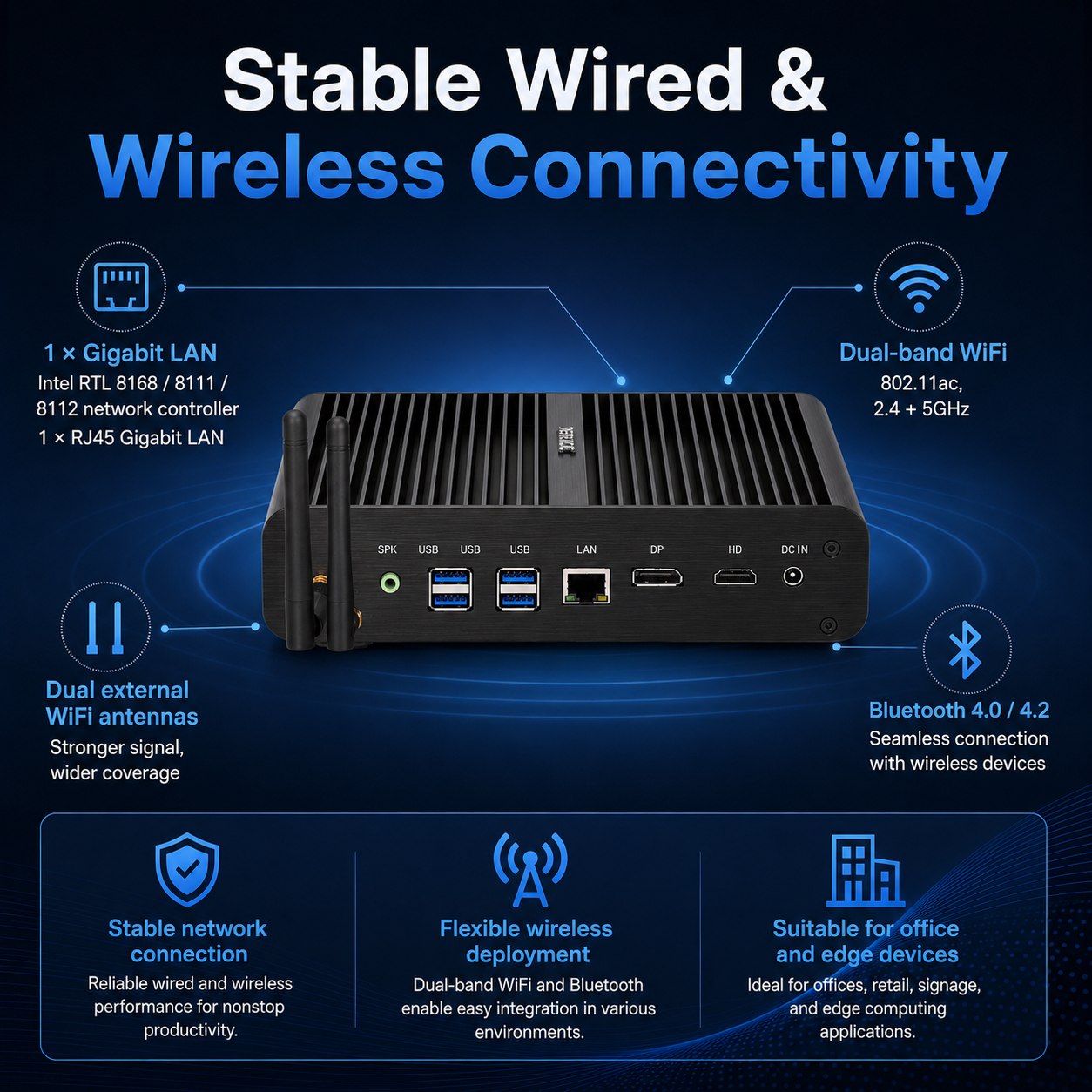

- Rear I/O: MIC, SPK, 4 × USB3.0, LAN, DP, HDMI, DC IN, 2 × WiFi antennas
- Supports Windows 10 / 11 and Linux Ubuntu

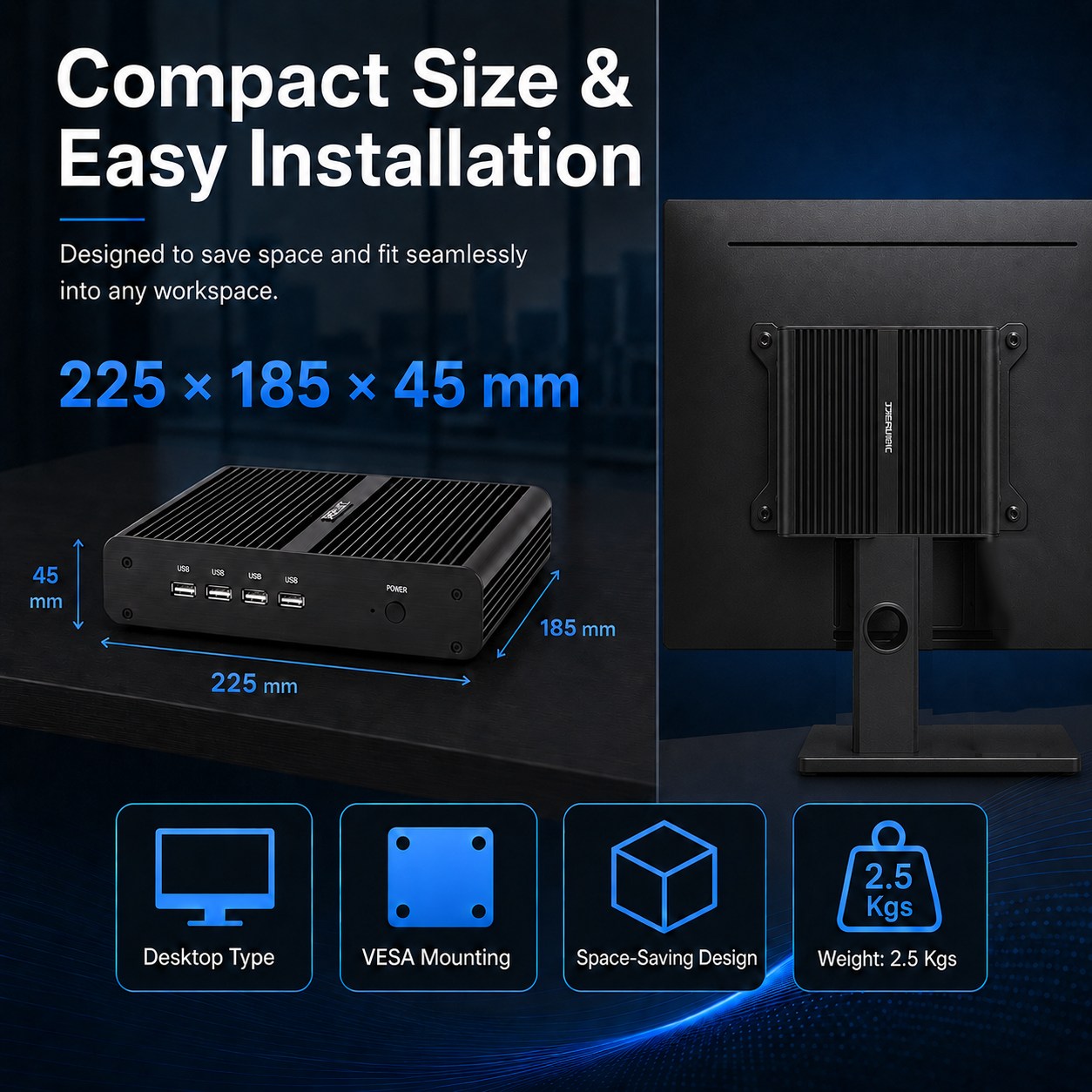

- Compact size: 225 × 185 × 45 mm
- Supports desktop use and optional VESA mounting
Product Application Industries
- Office computing and business workstations
- Retail POS systems
- Digital signage and advertising displays
- Education and training classrooms
- Meeting rooms and conference systems
- Industrial control and edge computing
- Kiosk terminals
- Light automation equipment
Specification
| Spec | |
| CPU | Intel® Core™ i7-8565U (8M Cache, Quad-core 8Threads,1.8Ghz up to 4.00 GHz) |
| Intel® Core™ i7-10510U (8M Cache, Quad-core 8Threads,1.8Ghz up to 4.90 GHz) | |
| Intel® Core™ i7-10710U (12M Cache, Quad-core 8Threads,1.1Ghz up to 4.70 GHz) | |
| Intel® Core™ i7-1165G7 (12M Cache, Quad-core 8Threads, 2.8Ghz up to 4.70 GHz) | |
| Intel® Core™ i7-1255U (12M Cache, 10Cores 12Threads 1.7Ghz up to 4.70 GHz) | |
| Chipset | SOC |
| Video | Intel® UHD Graphics / Intel Iris Xe Graphics depands on CPU |
| Network Card | 2 x Intel RTL 8168/8111/8112 gigabit lan |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |
| Memory | 2 x SODIMM DDR4, up to 64GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA/1 x M.2 2280 (SATA/NVME) |
| Expand | 1 x Mini PCIE WiFi slot |
| I/O Interfaces | |
| Front Panel | 1 x Power button |
| 4 x USB2.0 | |
| Rear Panel | 1 x DC_in |
| 1 x HDMI | |
| 1 x DP | |
| 1 x Lan | |
| 4 x USB3.0 | |
| 1 x Audio | |
| 2 x WiFi antennas | |
| Software Support | |
| Bios | AMI bios |
| System Support | Windows 10/11 OS, linux ubuntu etc |
| Mechanical | |
| Material | Aluminum alloy |
| Colour | Black |
| Size | 225 x 185 x 45mm |
| Weight | 2.5Kgs |
| Insallation Method | Desktop type/vesa mounting |
| With holding vertical stand, vesa mount as the optional | |
| General | |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 19V/5A |
| Packing List | GT860 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card |
| Environment | |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT860 | I7 8550U | Intel® UHD Graphics 620 | 1.8~4.0 GHz | DP/HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 1 | 8 | 12V/5A |
| GT860 | I7 10510U | Intel® UHD Graphics | 1.8~4.9 GHz | DP/HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 1 | 8 | 19V/5A |
| GT860 | I7 10710U | Intel® UHD Graphics | 1.1~4.7 GHz | DP/HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 1 | 8 | 19V/5A |
| GT860 | I7 1165G7 | Intel® Iris® Xe Graphics | 1.2~4.7 GHz | DP/HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 1 | 8 | 12V/7A |
| GT860 | I7 1255U | Intel® Iris® Xe Graphics eligible | 3.5~4.7 GHz | DP/HDMI | 2 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA/1 x M.2 2280 (SATA/NVME) | 1 | 8 | 19V/5A |
