Intel I5 I7 13th 4 LAN 10G 2 SFP+/4 SFP+ Firewall Mini PC
Model name: GT4L-2S/G4L-4S
1. Intel Pentium 8505/Core i5-13420H / i7-13620H optional
2. 64GB DDR5 + NVMe SSD Support
3. 2 or 4x SFP+ & 4x GbE Network Ports

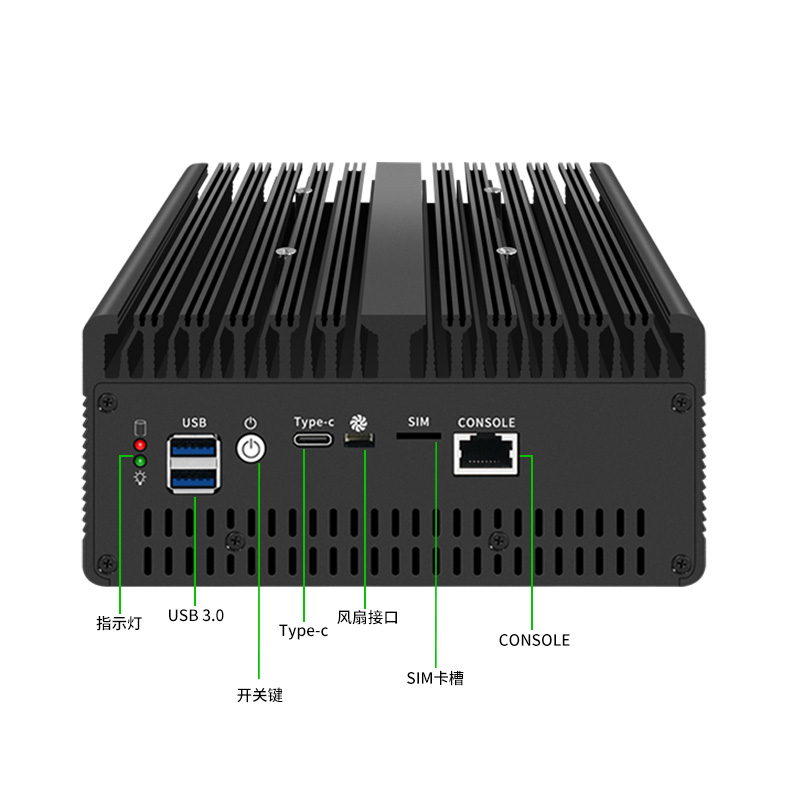

4. Front I/O: 1*Power Button; 2*USB3.0; 1*RJ45 Console; 1*SIM card slot;1*Type-c

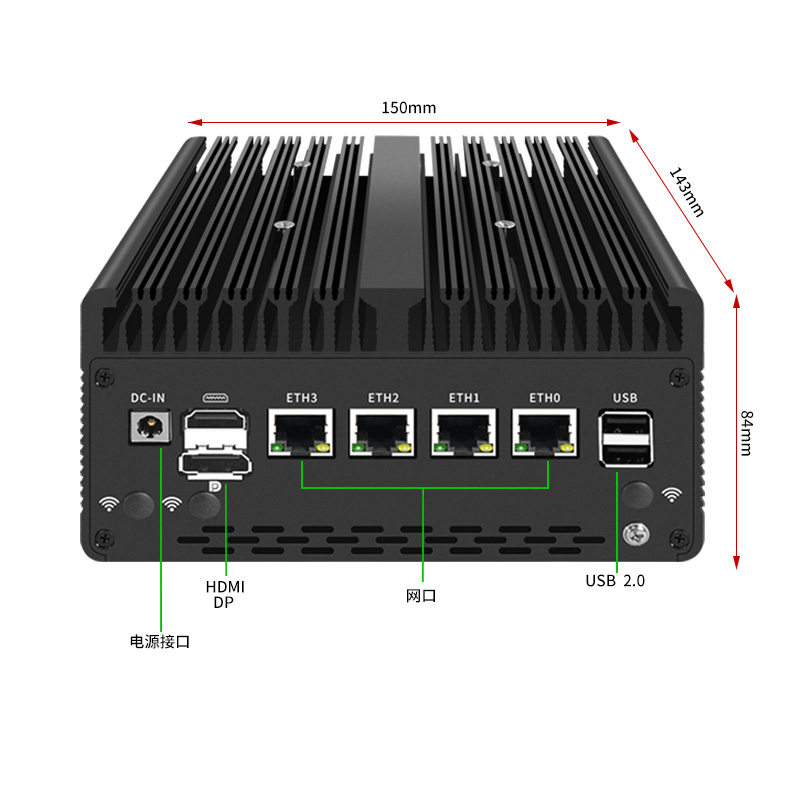

5. Rear I/O: 2*SFP+ ports; 4*Ethernet ports; 2*USB2.0; 1*HDMI, 1*DP; 1*DC_IN
6. 4x Intel 2.5GbE + 10G SFP+
7. Auto-Power Recovery & Wake-on-LAN
8. Data Center & Office Edge Solutions
Product Details
Specification
Ordering information
Product Details
Product Features
-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xType-C USB2.0, 1xSIM_5G slot, 1xRJ45 CONSOLE.
1*PCle x8 expansion slot PCIE3.0x4 signal optional: Intel 82599ES 2*10G SFP+ module or Intel X710-DA4 4*10G SFP+ module or Intel I350-AM4 4*1G SFP module.
-2xDDR5 SODIMM non-ecc laptop ram slot, support max 64GB 4800MHz.
-Support 1xM.2 NVME/PCIEx4 2280 SSD+1xSATA3.0.
-1xM.2 2230 slot, support PCIE3.0/USB/CNVI signal, 1xM.2 3052 slot, support PCIE3.0/USB signal.
-1xHDMI, 1xDP support 2x4K UHD video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN, etc.
-Solid-built full aluminum shell with high tooth fins as a heat sink, efficient cooling performance, exquisite production craft on the outside design.
🏭 Application Scenarios
Data Centers: SD-WAN nodes, virtualization servers, storage gateways
Edge Computing: IIoT gateways, AI inference, 5G MEC
Enterprise Networks: Firewall/NAS, smart building controllers
Specification
| Processor | Intel Pentium Gold 8505 5 cores, 6 threads max up to 4.40 GHz,Cache 8M, In-tel UHD Graphics max 1.10GHz,TPD 15W |
| Intel Core i5-13420H 8 cores, 12 threads max up to 4.6Ghz,Cache 12M, Intel UHD Graphics max 1.40GHz, TPD 45W | |
| Intel Core i7-13620H 10 cores, 16 threads max up to 4.9Ghz,Cache 24M, Intel UHD Graphics max 1.50GHz, TPD 45W | |
| BIOS | AMI EFI BIOS (UEFI boot only) |
| Memory slot | 2 x DDR5 SODIMM non-ecc laptop ram slot, support max 64GB 4800MHz/5600Mhz |
| Storage slot | Support 1xM.2 NVME/PCIEx4 2280 SSD+1*SATA 6.0Gb/s (Support 2.5 inch HDD/SSD) |
| Display Port | 1xHDMI, 1xDP support 2x4K UHD video display |
| Rear I/O interface | 2*SFP+ ports; 4*Ethernet ports; 2*USB2.0; 1*HDMI, 1*DP; 1*DC_IN |
| WIFI | 1xM.2 2230 slot, support PCIE3.0/USB/CNVI signal, 1xM.2 3052 slot, support PCIE3.0/USB signal. |
| Front I/O interface | 1*Power Button; 2*USB3.0; 1*RJ45 Console; 1*SIM card slot;1*Type-c |
| Ethernet port | 4*Intel i226 2.5Gigabit Ethernet |

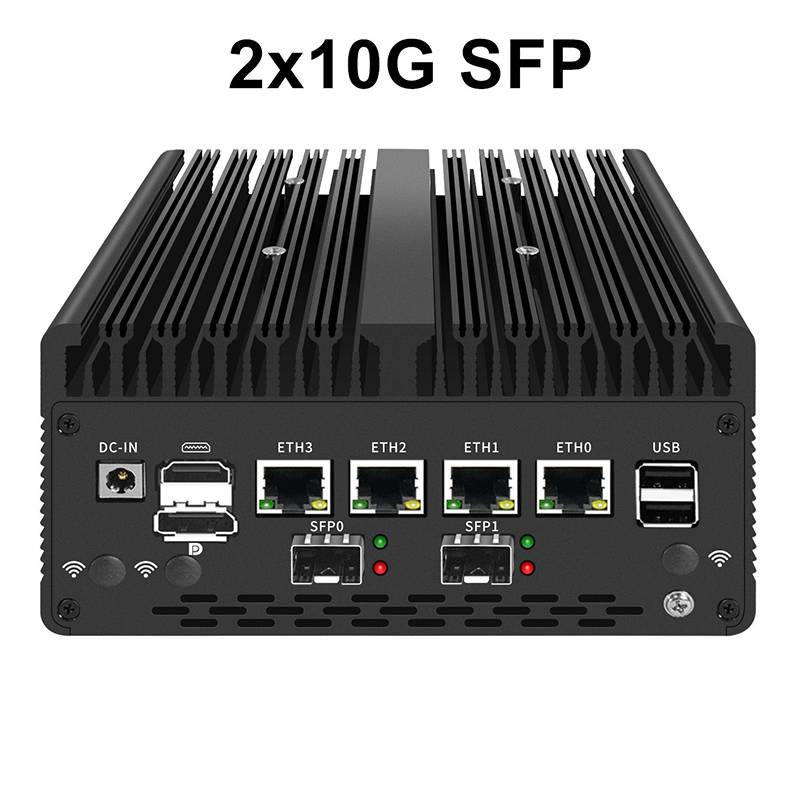

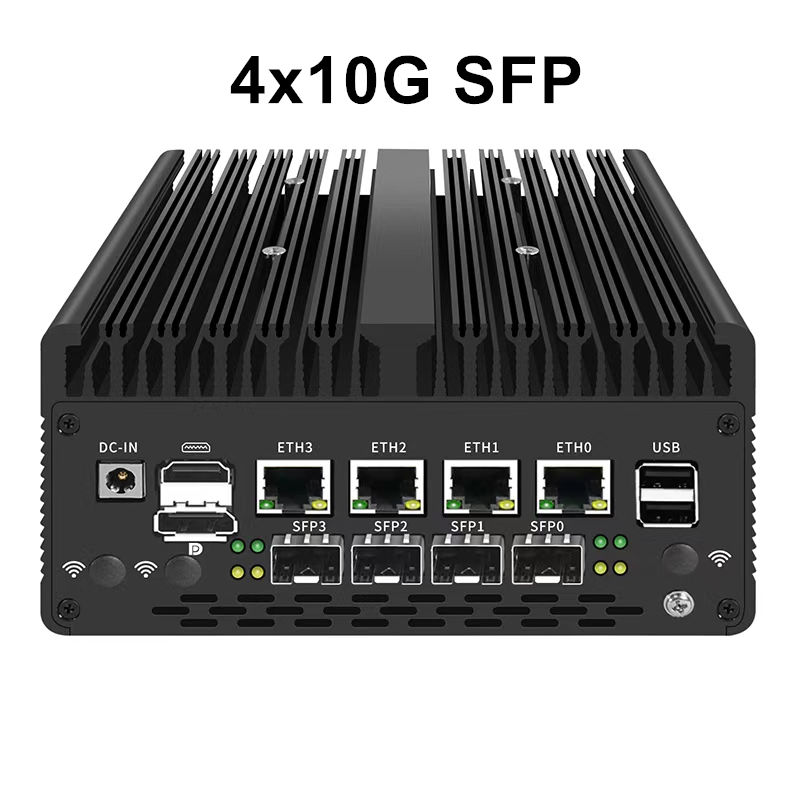

| SFP+ port | 2*Intel x553 10G SFP+(Customized 4* 10G SFP+ Optional) |
| Other functions | Start Auto after power restored; Wake-up on LAN; PXE; Watchdog |
| Power supply | DC 5.5/2.5mm 12V |
| Size & Weight | 150*143*84MM, Netweight: 1.5KG, Gross weight: 2.5KG |
| Included accessories | 1*Power plug; 1*Power adapter; 1*SATA cable |
Ordering information
| Model | Processor | Frequency | SFP+ | Display | Memory | Storage | LAN | USB | Console | Power |
| GT4L-2S | Pentium Gold 8505 | 5 cores, 6 threads Up to 2.2GHz | 2 or 4 x X553 10G SFP | DP+HDMI | 2 x SO-DIMM DDR5 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA | i226*4 | 4 | 1*RJ45 Console | 12V |
| GT4L-4S | i5-13420H | 8 cores, 12 threads Up to 2.0GHz | 2 or 4 x X553 10G SFP | DP+HDMI | 2 x SO-DIMM DDR5 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ | i226*4 | 4 | 1*RJ45 Console | 12V |
| GT4L-4S | i7-13620H | 10 cores, 16 threads Up to 2.0GHz | 2 or 4 x X553 10G SFP | DP+HDMI | 2 x SO-DIMM DDR5 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ | i226*4 | 4 | 1*RJ45 Console | 12V |
Please note that the CPU will be updated according to the release time of Intel/AMD.
If the latest CPU is not shown here, please contact our sales to get the latest information!
