GTY-101T 10.1-inch Fanless Industrial Panel PC with IP65 Touch Screen
Model name: GTY-101T
10.1″ 1280×800 HD PCAP capacitive touchscreen
100% fanless passive cooling, all-aluminum enclosure
Intel Celeron J6412 / N100 / Core i3/i5/i7 CPU options
Front IP65 dust & water resistant
Optional 9-36V wide DC power input
Dual LAN + USB + COM + HDMI + VGA ports
Supports Windows 11 & Linux operating systems
Designed for 24/7 continuous industrial operation
Product Details
Specification
Ordering information
Product Details
Product Introduction

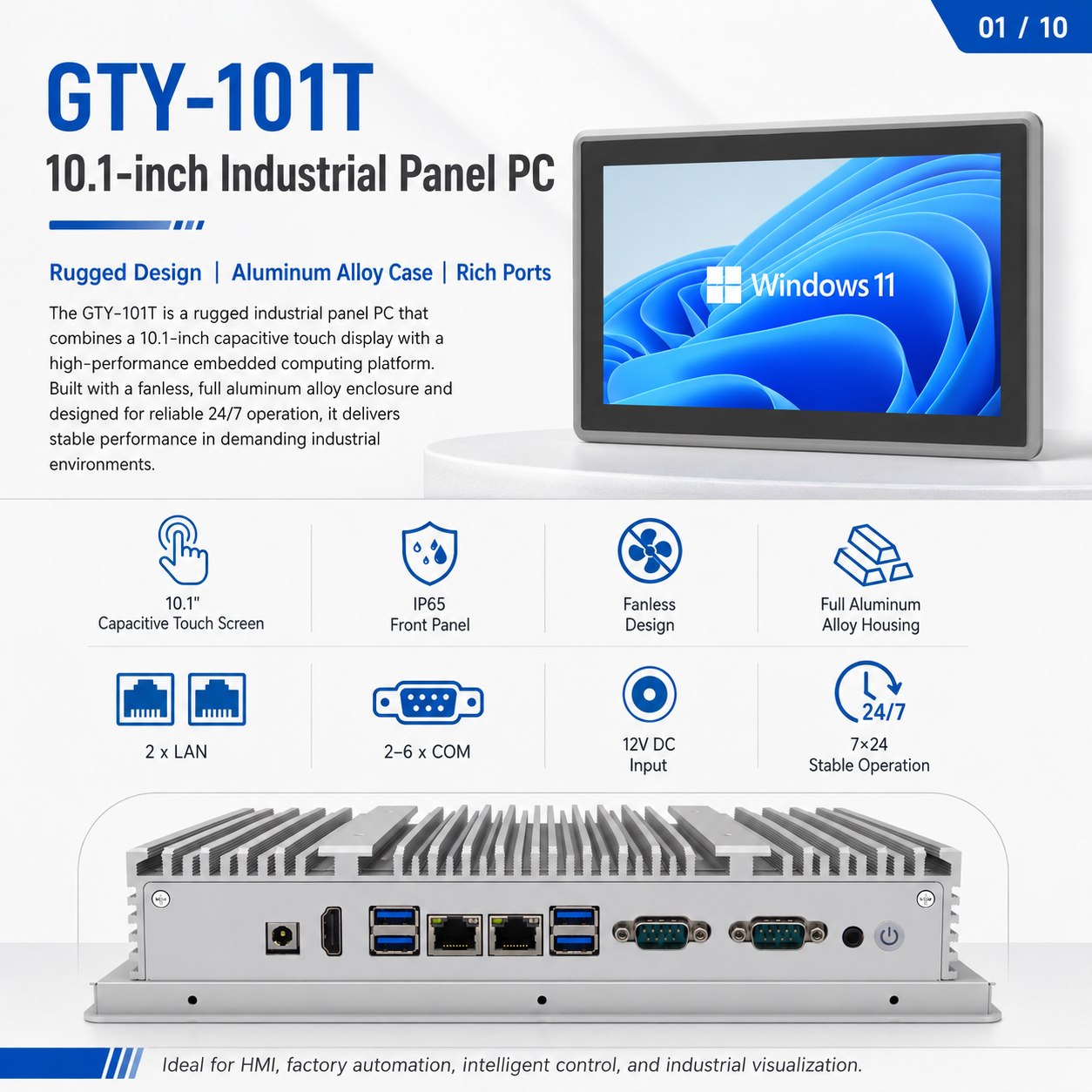

The GTY-101T is a compact 10.1-inch industrial panel PC designed for HMI, factory automation, data visualization, and control terminal applications. It combines a capacitive touch display, embedded computing platform, fanless aluminum alloy enclosure, and rich industrial I/O in one rugged system. With Intel low-power processor options, dual Gigabit LAN, HDMI/VGA display output, RS232/RS485 support, and optional wireless expansion, it delivers stable 24/7 operation for demanding industrial environments.
Product Features
- 1-inch capacitive touch screenwith 1280 × 800 resolution and 16:10 aspect ratio
- IP65-rated front panelfor dust-resistant and splash-resistant industrial use
- Fanless full aluminum alloy housingfor efficient passive heat dissipation
- Intel CPU options:Celeron J1900, J6412, N100, and Core i3/i5/i7 low-power processors
- Flexible memory and storage:DDR3L / DDR4 / DDR5 options depend on CPU platform; SSD upgrade options available

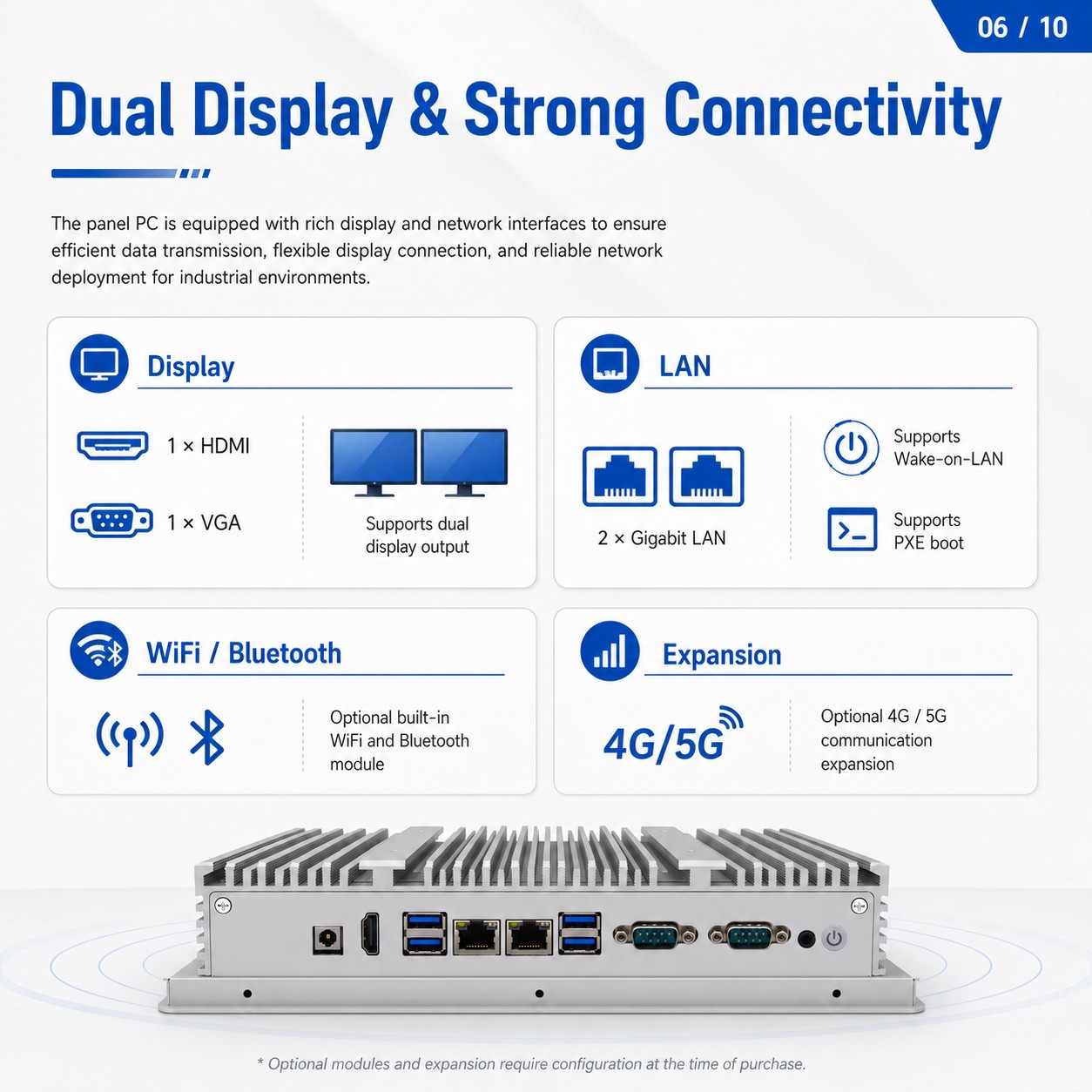

- Dual display output:1 × HDMI + 1 × VGA
- Reliable networking:2 × Gigabit LAN with Wake-on-LAN and PXE support
- Industrial serial ports:2–6 × RS232, with COM2 supporting RS232 / RS485 / RS422 switching
- Expandable communication:optional WiFi, Bluetooth, 4G, and 5G modules
- Wide installation support:VESA cantilever, wall-mounted, recessed installation, and desktop stand
- OEM/ODM customization:screen size, CPU, memory, storage, I/O, voltage, touch solution, and wireless modules
Product Application Industries
- Factory automation
- Industrial HMI and control terminals
- MES / ERP / PLM production terminals
- Smart manufacturing self-service terminals
- Food and beverage production lines
- Chemical processing
- Pharmaceutical manufacturing
- Energy and power monitoring
- Transportation systems
- Logistics and warehouse management
- Intelligent infrastructure
- Industrial automation and control equipment
Specification
| System Configuration | |

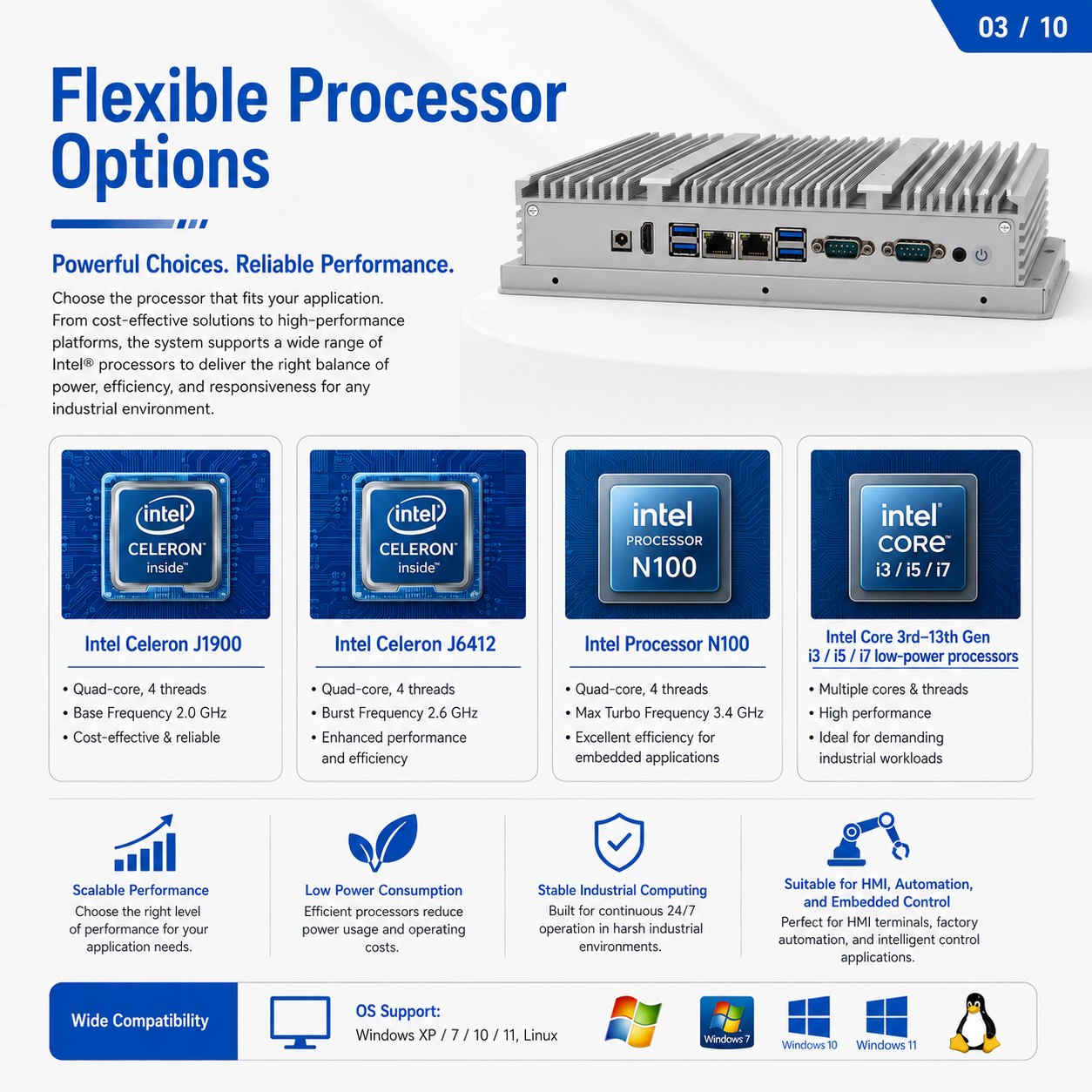

| processor | Celeron J1900/J6412/N100 Processors |
| 3th /4th /5th/6th/7th/8th/10th/11th/12th/13th Gen Intel Core i3/i5/i7 Processors | |
| operating system | Windows XP/ 7/10/11, Linux support |
| Memory capacity | DDR3L / DDR4 SODIMM memory slots, supporting 4-64 GB optional. RAM type is Depands on CPUs |
| Hard drive support | 64 G SSD ( upgradeable to 128GB/ 256GB/512GB/1TB , 2.5-inch hard drive can be added separately) |
| graphics card | Intel @ HD Graphics core graphics card |
| WiFi function | Built-in WiFi and Bluetooth module (Optional module) |
| Extend | 1 Mini PCIe / M.2 slot, supporting WIFI , Bluetooth, 4G , 5G (optional module) |
| network | 2* Gigabit Ethernet, supports Wake-on-LAN and PXE functionality . |
| Power characteristics | DC 12V (supports 9-36V wide voltage customization) , power consumption 30-100W |
| Screen size | 10.1 ” capacitive touch screen, 16 : 10 wide, 250 cd /m² (1000:1) Size can be customized |
| resolution | 1280×800 |
| Watchdog | Supports hardware reset function (256 levels, 0~255 seconds) |
| Structural parameters | |
| Box material | IP 65 rated aluminum alloy panel, all-aluminum fanless design. |
| Installation method | Supports VESA cantilever, wall- mounted, recessed , and desktop stand types. |

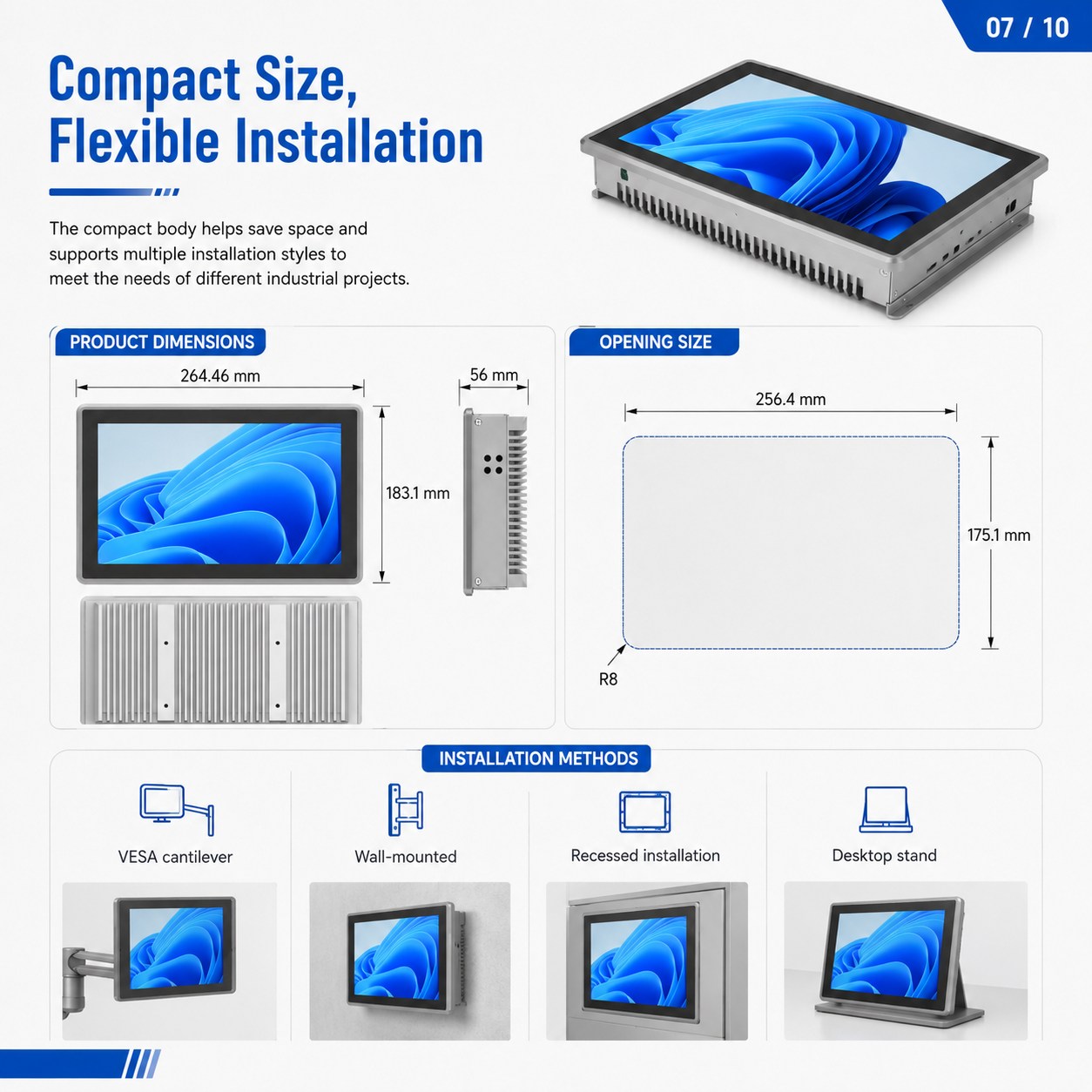

| Overall dimensions | 264.46mm* 183.1 mm*56mm |
| Opening size | 256.4mm* 175.1 mm R8 |
| Packaging size | 340*285 * 115mm |
| Backlight | More than 50000H |
| Product weight | gross weight:4.5 kg |
| Product Color | silver |
| Ambient temperature | Operating temperature: -10℃~60℃ |
| Storage temperature: -20℃~70 ℃ | |
| relative humidity | 5%-95% relative humidity, non-condensing |

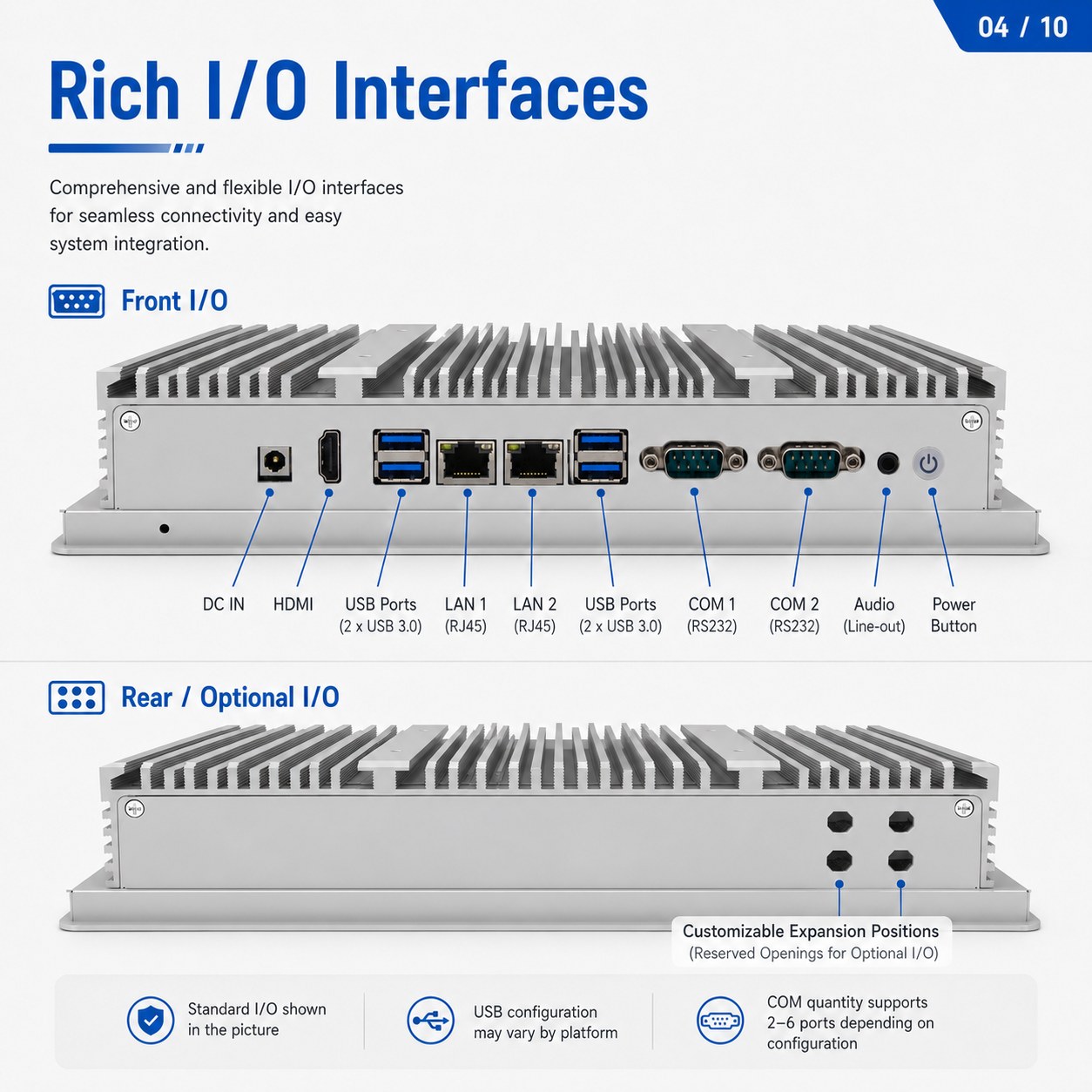

| Interface parameters | |
| POWER | 1* Power switch |
| Display Interface | 1 VGA, 1 HDMI |
| LAN | 2 * Gigabit Ethernet, supporting Wake-on-LAN and PXE functionality . |
| USB | 2 USB 2.0 ports, 2 USB 3.0 ports ( the number of USB 3.0 ports varies depending on the platform) |
| COM | 2-6* RS232 serial interface, COM2 supports RS232/RS485 switching. |
| audio | 1* Line out interface, 1* MIC interface |
| power supply | 1* DC power interface, supports 12V power input |
| Heat dissipation | Fanless aluminum block heat sink |
| Quality Inspection | Material intake, assembly, aging, and multiple inspections(Resistant to earthquakes, shockproof, and anti-drop) |
| Certification | RoHS, CE, FCC , CCC |
| warranty | One-year warranty for the whole machine |
