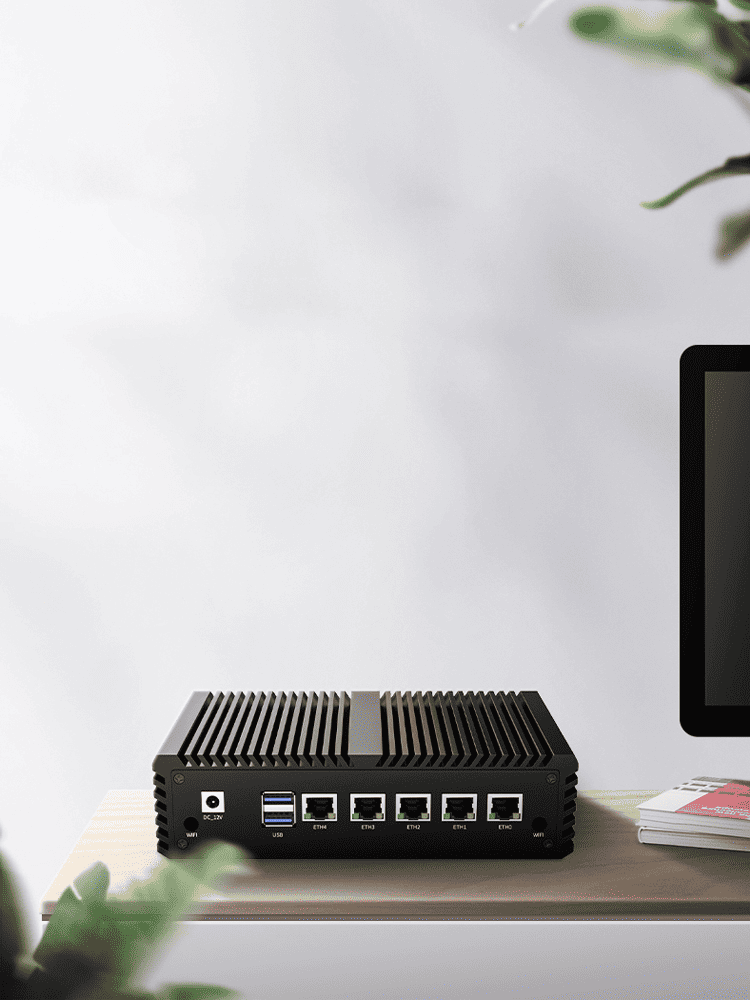

5LAN Firewall Router GT5L
Products Features
-5*INTEL I225(LAN2~LAN5 Support POE) 1000M Adaptive network card,Support Wake On LAN/PXE
-1*DDR4-2933MHz SODIMM, non-ecc ram slot, max support 16GB.
-Support 1*MSATA ,Maximum Transfer Rate6Gb/s,Support WIFI/4G+1*7Pin SATA3.0,Maximum Transfer Rate6Gb/s
-VGA+HDMI+LVDS(optional) and VGA+HDMI+EDP(optional) support synchronous and asynchronous output of three displays
-TPM(optional),LPT/GPIO/8 in and 8 out，2*RS232,COM1/2
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy solid-built shell with three-sided ice thorns, excellent cooling performance.
-Fanless system without cooling fan, work as long as 7×24 hours.
-Low consumption TDP and can be mounted back of monitor by VESA bracket
Product Details
Specification
Ordering information
Product Details
Specification
| Basic Information: | |||
| CPU | 1.Intel Cele-ron N5105 Quad cores, 4 threads 2.00 GHz-2.90GHz 4M Cache Intel UHD Graphics Can customize CPU: Jasper Lake N6005 、N6000 、N4505 、N4500 、N5105 、N5100 | ||
| TDP | 10W | ||
| Motherboard Size | 156*115mm Customized size | ||
| BOIS | AMI 128Mb BIOS,ACPI supported, Supports Power on startup | ||
| Chipset | Intel Geleron | ||
| Memory | 1*DDR4-2933MHz SODIMM, non-ecc ram slot, max support 16GB | ||
| OS | Windows 10/Linux/pfSense | ||
| Network | 5*INTEL I225(LAN2~LAN5 Support POE) 1000M Adaptive network card | ||
| Video | Intel® HD Graphics | ||
| Storage: | |||
| MSATA | 1 x M-SATA3.0 slot for MSATA SSD 64GB/128GB/256GB/512GB/1TB optional | ||
| SATA | 1* 2.5inch SATA HDD 500GB/ 1TB / 2TB Max | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 24V DC In | ||
| LED | 1 x Power LED, 1 x HDD LED | ||
| USB | 2 x USB3.0+2 x USB2.0 | ||
| COM | 2*RS232 | ||
| Display | 1xHD-MI and 1x VGA Support Max 1920*1080@60Hz video display | ||
| LAN | 5*INTEL I225(LAN2~LAN5 Support POE) 1000M Adaptive network card | ||
| SIM | 1 x SIM Card slot | ||
| WIFI | Dual band 2.4GHz/5.0GHz (Optional need pay extra USD8/PCS) | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC+24V, recommend 24V/5A | ||
| Operating Temperature | -20/+60Centigrade | ||
| Storage Temperature | -20/+70 Centigrade | ||
| Relative Humidity | 0%~90%@30 (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN | ||
| Machine Size | 187*120*50mm | ||
| Weight | Net 1.4kg, Gross 2.2kg | ||
| Shell | Black color aluminum alloy | ||
| Mounting | Can be mounted back of monitor or wall by optional VESA mount | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xUser Manual, 1xVESA mount | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT5L | N5095 | Intel UHD Graphics | 2.0~2.9 GHz | VGA/HDMI | 1 x SO-DIMM DDR4, Max 16G | 1 x Msata/2.5 inch SATA3.0 | 5 x i225/226 | 4 | 12V/5A |
| GT5L | N5105 | Intel UHD Graphics | 2.0~2.9 GHz | VGA/HDMI | 1 x SO-DIMM DDR4, Max 16G | 1 x Msata/2.5 inch SATA3.0 | 5 x i225/226 | 4 | 12V/5A |
