Model name: ZPC238-M30
1*HDMI+1*VGA+1DP+1*USB(Touch)+1*Audio+12V DC IN
Products Features

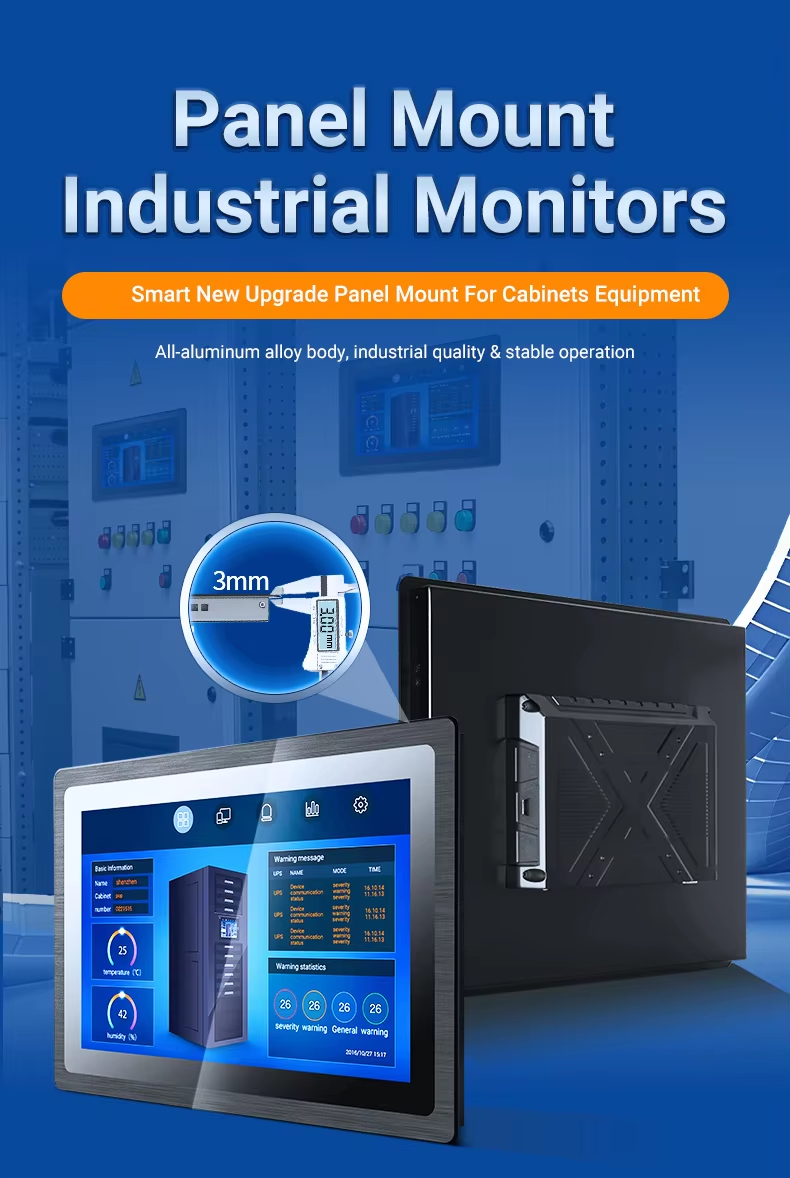

1. Designed for cabinet equipment applications
2. 10-point touch, optional capacitance/resistance/non-touch
3. Special board structure, simple wiring
4. Automatically identify signal source, support VGA/HDMI/DP
5. IP65 front panel protection
6. High and low temperature resistance, -10℃~60℃
7. Wide voltage input, DC 12V-36V
8. Industrial-grade protection, multiple rigorous tests
Meet the ZPC238-M30 Series Industrial Monitor — purpose-built to thrive in demanding industrial control applications. Featuring IP65 front-panel protection, wide-temperature resilience (-10°C to 60°C), and anti-vibration construction, this embedded panel display delivers uncompromising reliability where standard monitors fail.
Built for Industrial Rigor
Deploy the ZPC238-M30 Series in the most challenging settings:
Factory Automation: Machine HMI, PLC control stations
Outdoor Kiosks: Transportation hubs, utility substations
Heavy Equipment: Agricultural, construction, and mining machinery
Process Control: Oil & gas, chemical processing plants
Embedded Systems: Control cabinets, medical devices, military applications
Key Features & Technical Advantages
Extreme Environment Resilience
IP65-Rated Front Panel: Dust-tight and protected against high-pressure water jets.
Wide Operating Temperature: -10°C to 60°C (cold-start capable).
Anti-Vibration Design: Withstands shocks up to 5G (MIL-STD-810G validated).
Flexible Touch Technology
10-Point Projected Capacitive Touch (Standard), Resistive, or Non-Touch configurations.
Glove & Wet-Hand Operation Support (Capacitive models).
Industrial-Grade Signal & Power Compatibility
Auto-Sensing Inputs: Seamlessly switches between VGA/HDMI/DisplayPort.
Wide Voltage Input (DC 12–36V): Supports unstable power sources common in vehicles/mobile installations.
Optimized for Seamless Integration
Dedicated Board Architecture: Simplified wiring with unified I/O ports (power, signal, control).
Flush-Mount Design: Secure embedded installation in panels/enclosures (NEMA 4/12 equivalent).
Reliability Validated
50,000+ hour MTBF (LED backlight).
EMI/EMC certified for industrial electromagnetic environments.

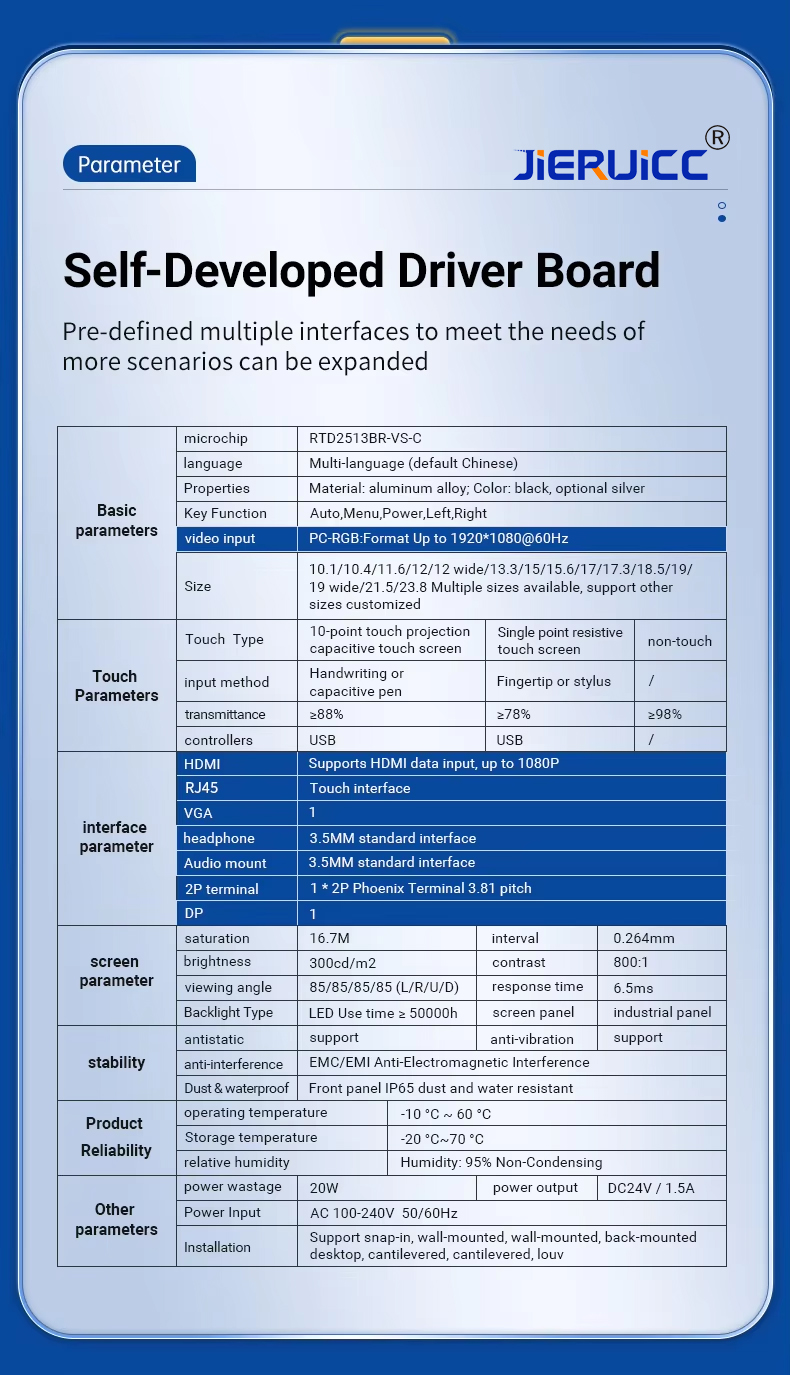

| Model name | Non-touch | ZPC238-M3000 |
| Capacitive touch | ZPC238-M3010 | |
| Resistive touch | ZPC238-M3020 | |

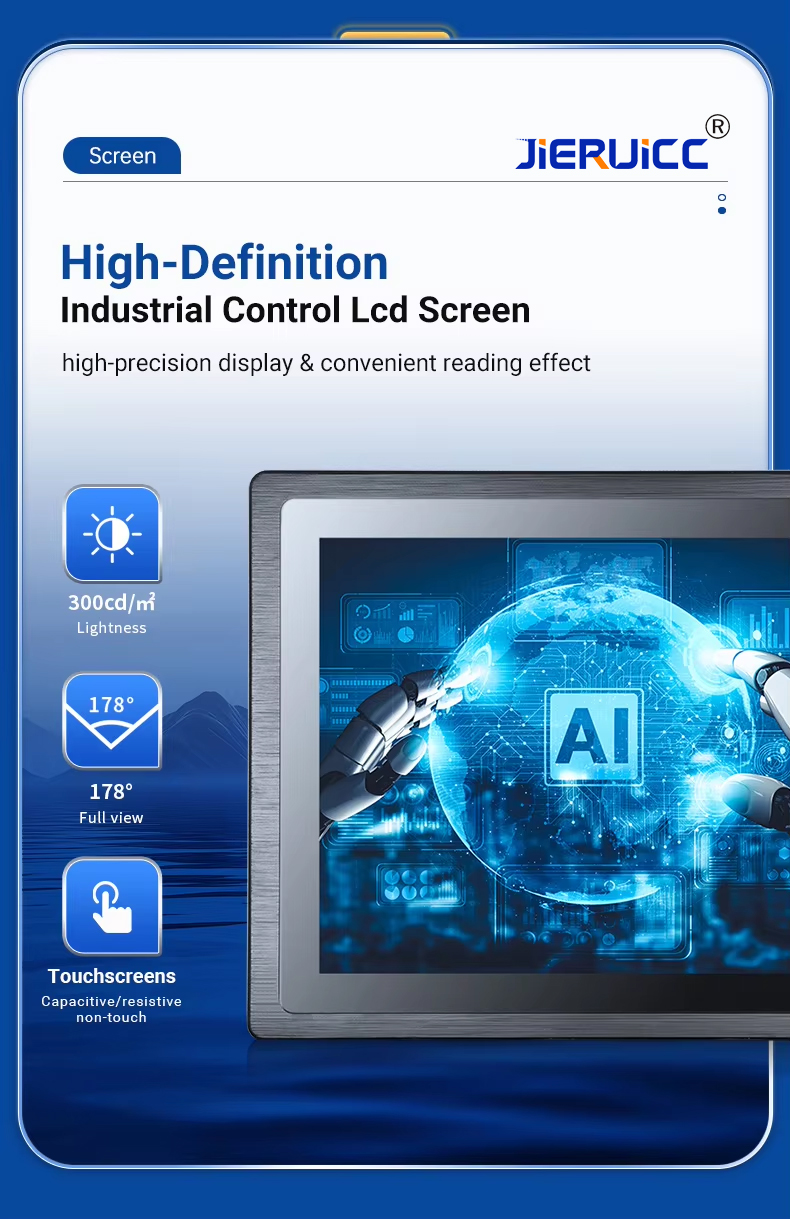

| Display parameter | Screen size | 23.8inch |
| Resolution | 1920×1080(16:9) | |
| Brightness | 300 cd/m² | |
| Hardware Configuration | CPU | RTD2513BR |
| Key function | AUTO/MENU/POWER/LEFT/RIGHT | |
| Touch parameter | Screen touch type | 10-point touch projection Single-point Capacitive touch screen |
| clicks | capacitive>50 million times | |
| Surface hardness | >7H | |
| Touch strength | 45g | |
| Glass type | Chemically enhanced plexiglass | |
| Color | 16.7M | |
| Contrast ratio | 1000:1 | |
| Viewing angle | 85/85/85/85 (L/R/U/D) | |
| Anti-interference | EMC|EMI | |
| Anti-vibration | GB242 standard | |
| VLT | >85% | |

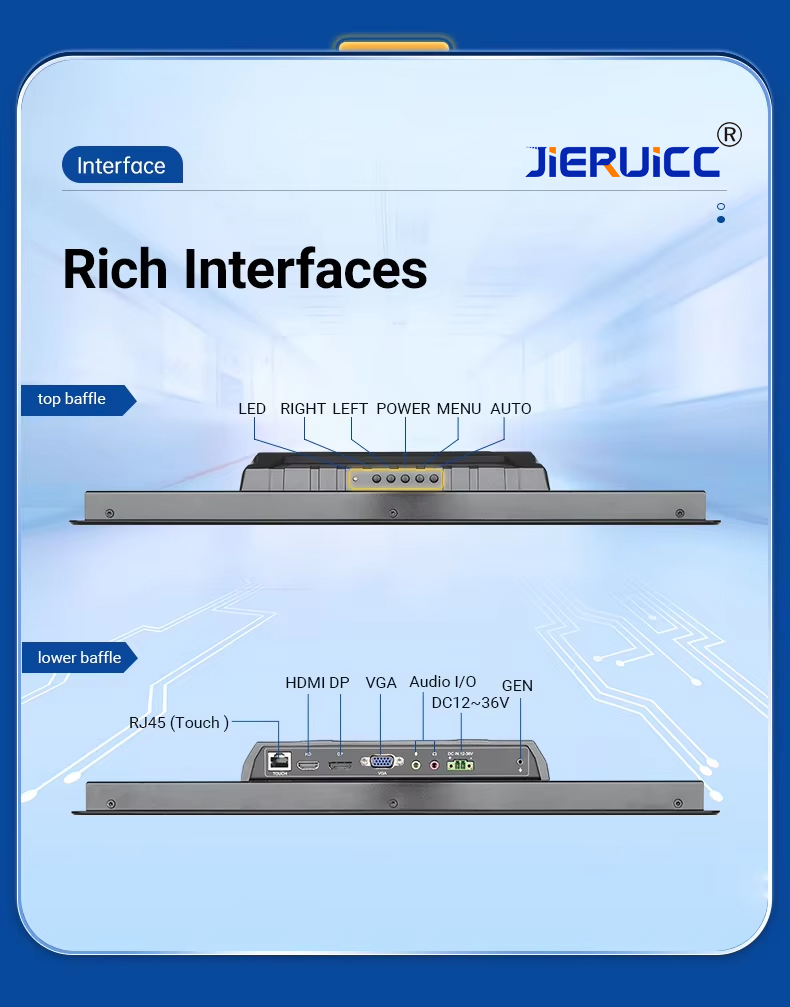

| I/O Ports | Power input | 1*DC,12V-36V |
| VGA | 1*VGA | |
| HDMI | 1*HDMI | |
| DP | 1*DP | |
| Touch | 1*USB Touch connector | |
| Audio | 1*PC AUDIO(3.5mm) | |
| Grounding | 1*GND | |
| Other parameter | MTBF Time | 50000Hours |
| Temperature/Humidity | Working temperature:-10°C~60°C (-20°C~70°C can be customized);Storage temperature: -20~70°C;humidity:95% non-condensing | |
| IP Grade | Front panel IP65 dust and water resistant | |
| Shell material | Aluminum alloy shell | |
| Shell color | Black | |
| Power adapter | AC100V~240V、50Hz/60Hz Input DC 24V/1.5A | |

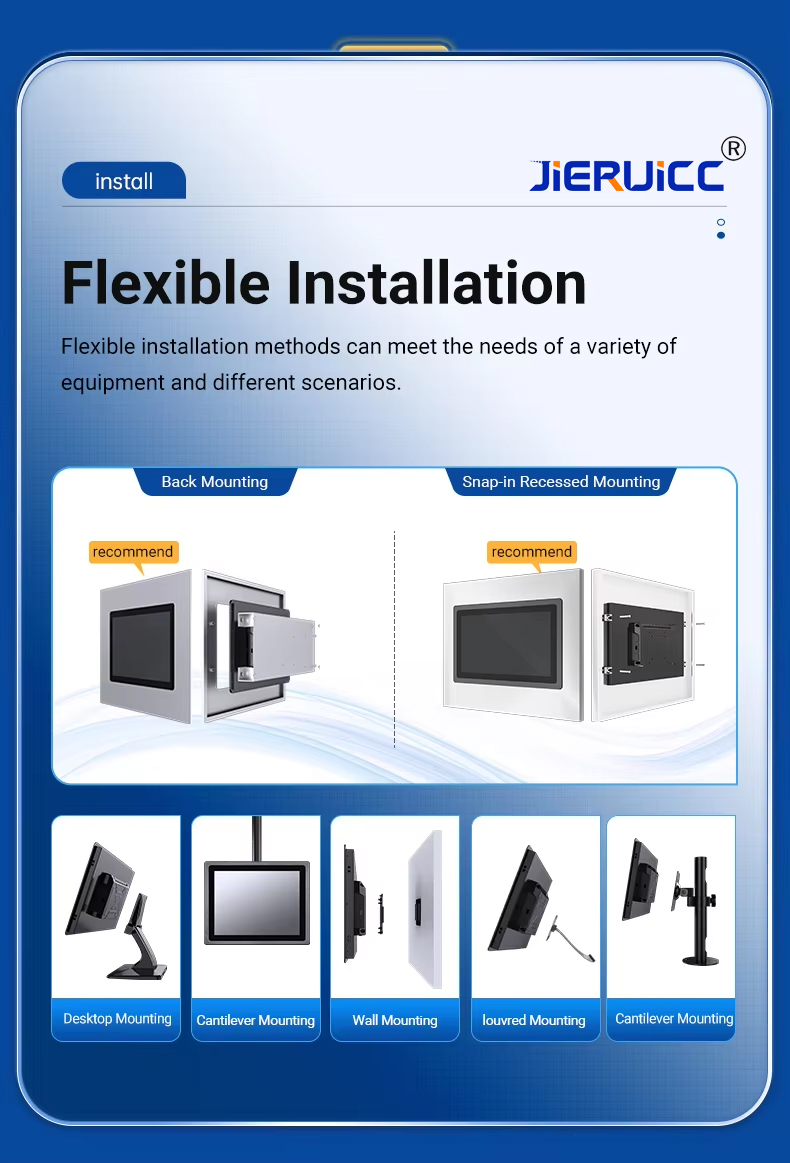

| Installation methods | Support Embedded installation with iron sheet/Back-mounted Installation, etc. | |
| Warranty | 12Months free. warranty maintain. 24months paid maintain warranty | |
| Maintenance mode | Send back to facotry for repair | |
| Packing item | Product weight | 10KG |
| 1PCS Package weight | 13KG | |
| Overall dimensions | W576.4x H345.9x D62.5mm | |
| Installation size | W573.4 x H342.9mm(Please reserve an extra 1-2mm error for the opening the hole) | |
| Packing item | Power adapter*1、Power cable*1、Embedded buckle*4、Screws*4 | |
| Certificate | Certificate | CE/FCC/Rohs Certificates |
