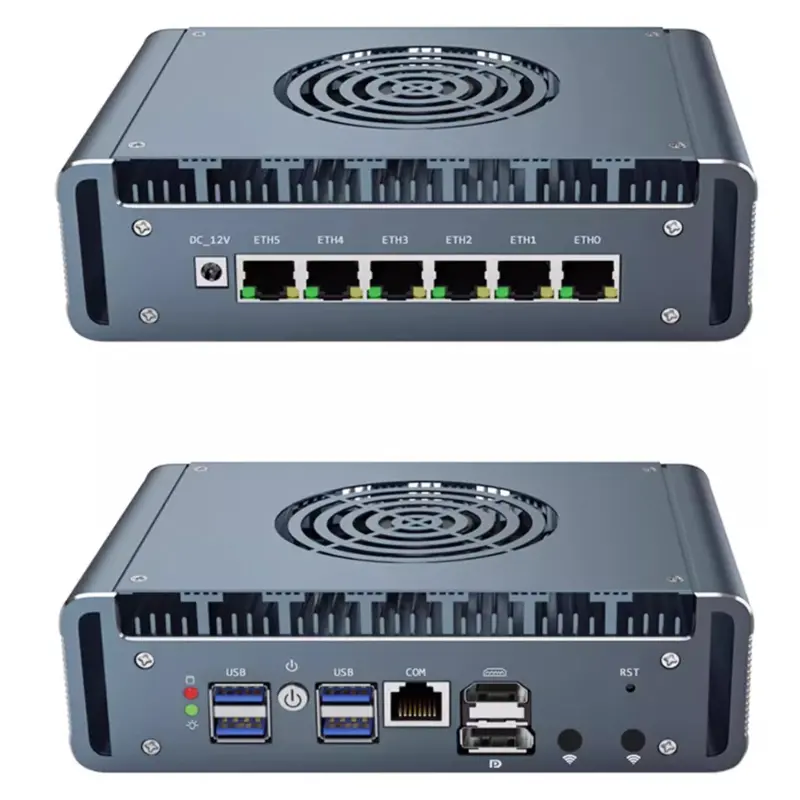

Pfsense Router 6 LAN Intel i226 2.5G i3 i5 i7 1265U N100
6 x INTEL I226 LAN+1 x COM,1 x HDMI, 2 xUSB2.0, 2 xUSB3.0, 1 x DP1 x MIC, 1 x SPK+DC12V-7A
– Aluminum alloy structure, fan design with cooling fan.
– Onboard Intel Core i3 i5 i7 12th processor
– Support DDR5 memory, up to 64GB
– 1 x m.2 2280 NVME slot, 1 x mSATA SSD, 1 x 2.5 inch SATA
-Support WOL and PXE boot
-FAN System with cooling fan
-Support Windows 7/10/11/LINUX/Pfsense OS
-Support AES-NI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc
Product Details
Specification
Ordering information
Product Details
JIRUICC Pfsense Router GT6L-V3 equipped with Core i7 i5 i3 11th 12th N100 Gen Processor i3 1115G4 / I5-1145G7 / i7-1185G7 / i7-1265U / N100 high performance CPU
support HDMI+DP Dual Display. This Pfsense firewall router with 6*Intel I226 network card supports 2.5GbE which can bring you faster network usage.
This Soft router GT6L-V3 is a fan design with cooling FAN and preinstall with pfSense, also it supports OPNsense/OpenWrt/Unbutun/windows and other popular open-source software solutions.
It is widely used in Business / Home Router / Network Security / Banking and Finance / Healthcare / Government and Public Sector / Education Institutions / E-commerce and Retail / Information Technology (IT) Services / Energy and Utilities
By using a firewall on your PC, you can significantly enhance your computer’s security and reduce the risk of unauthorized access, data breaches, and malware infections.
It is an essential component of a layered security approach, working alongside other security measures like antivirus software, regular updates, and safe browsing practices.
Specification
| Basic Information: | |||
| Intel Core i3 1115G4 Processor, 2 cores, 4 threads, 6M Cache, 1.70 GHz, up to 4.10 GHz | |||
| Intel Core I5-1145G7 Processor, 4 cores, 8 threads, 8M Cache, 2.60 GHz, up to 4.40 GHz | |||
| Intel Core i7-1185G7 Processor, 4 cores, 8 threads, 12M Cache, 3.0 GHz, up to 4.80 GHz | |||
| Intel Pentium Gold Processor 8505, 5 cores, 6 threads, 8M Cache,1.2Ghz up to 4.40 GHz | |||
| Intel Processor N100, 4 cores, 4 threads, 6M Cache, up to 3.40 GHz | |||
| Intel Core i7-1265U Processor, 4 cores, 8 threads, 12M Cache, 2.80 GHz, up to 4.70 GHz | |||
| TDP | refer to CPU | ||
| BOIS | AMI EFI BIOS | ||
| Chipset | refer to CPU | ||
| Memory | 1 x DDR5 4800 MHz SODIMM Memory slot Up to 16GB(N100) 2 x DDR5 262 Pin 4800 MHz SODIMM Memory slot Up to 64GB(I7 1265U/8505) 2 x DDR4 3200 MHz SODIMM Memory slot Up to 64GB(I7 1185G7/I5 1145G7/I3 1115G4) | ||
| OS | Windows 10/11/linux/centos/ubuntu/pfSense/OPNsense etc | ||
| Network | 6 x Intel I225/I226 2.5G Lan Port | ||
| Video | Intel UHD Graphiacs/Intel Iris Xe Graphics | ||
| Storage: | |||
| SSD | 1 x M.2 2280 nvme ,1*2.5inch Sata, 1*MSATA 1 x M.2 2280 nvme, 1*SATA3.0(N100) | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | DC12V-7A 5.A*A | ||
| LED | 1 x Power LED, 1 x HDD LED | ||
| USB | 2 x USB3.0+2 x USB2.0 | ||
| Display | 1 x HDMI, 1 x DP | ||
| LAN | 6 x INTEL I226 LAN 10 / 100 / 1000 LAN,RJ45 | ||
| Audio | 1 x MIC, 1 x SPK | ||
| RST | 1 x RST | ||
| COM | 1 x COM | ||
| WIFI | 2 x WiFi Holes Dual band 2.4GHz/5.0GHz or 4G Module | ||
| Expand | Support 1 MINIPCIE channel (can be WIFI/Bluetooth/4G) | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC12V-7A 5.A*A | ||
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) | ||
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) | ||
| Relative Humidity | 0%~90%@30 (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog | ||
| Size | 178*123*55mm | ||
| Weight | Net 1kg, Gross 1.2kg, 2KG/full units | ||
| Shell | Black color aluminum alloy | ||
| Mounting | Can be mounted back of monitor or wall by optional VESA mount | ||
| Cooling Mode | With fan, PWM Intelligent temperature control | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xUser Manual, 1xVESA mount | ||
Ordering information
| Model | Processor | Graphic | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT6L-V3 | I3 1115G4 | Intel® UHD Graphics | 1.70~4.10GHz | DP/HDMI | 2 x DDR4 | 1 x M.2 2280 NVMe/1 x mSATA/1 x SATA | 6 | 4 | DC 12V |
| GT6L-V3 | I5 1145G7 | Intel® Iris Xe Graphics | 1.10~4.40GHz | DP/HDMI | 2 x DDR4 | 1 x M.2 2280 NVMe/1 x mSATA/1 x SATA | 6 | 4 | DC 12V |
| GT6L-V3 | I7 1185G7 | Intel® Iris Xe Graphics | 1.20~4.80GHz | DP/HDMI | 2 x DDR4 | 1 x M.2 2280 NVMe/1 x mSATA/1 x SATA | 6 | 4 | DC 12V |
| GT6L-V3 | 8505 | Intel® UHD Graphics | 3.30~4.40GHz | DP/HDMI | 2 x DDR5 | 1 x M.2 2280 PCIE4.0 x4/1 x SATA | 6 | 4 | DC 12V |
| GT6L-V3 | I7 1265U | Intel® Iris Xe Graphics eligible | 3.60~4.80GHz | DP/HDMI | 2 x DDR5 | 1 x M.2 2280 PCIE4.0 x4/1 x SATA | 6 | 4 | DC 12V |
| GT6L-V3 | N100 | Intel® UHD Graphics | 3.40GHz | DP/HDMI | 1 x DDR5 | 1 x M.2 2280 NVMe/1 x SATA | 6 | 4 | DC 12V |
