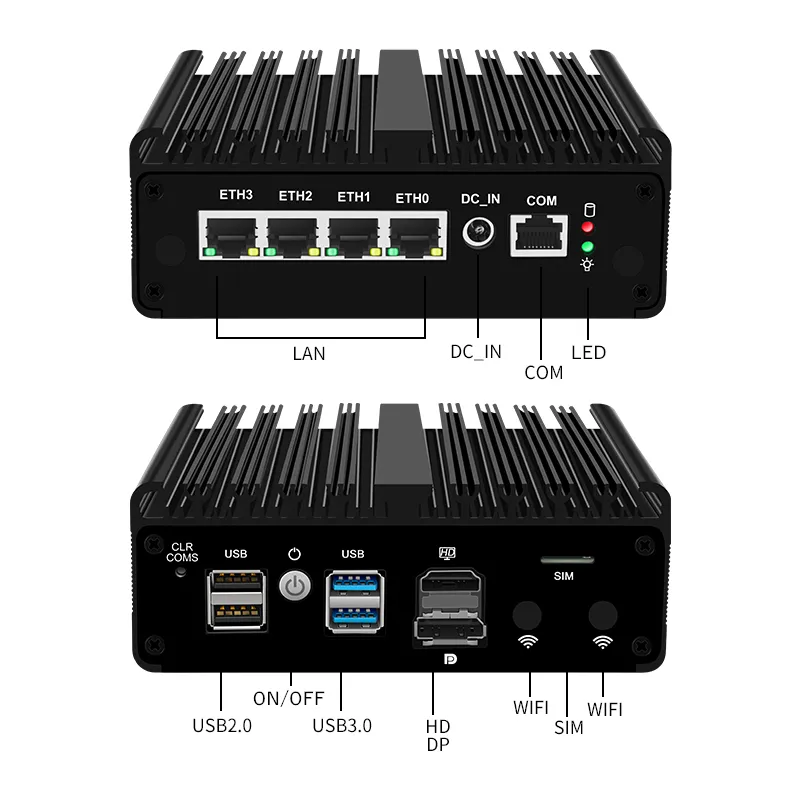

Pfsense Firewall PC N150 4LAN i226 GT4L-V4
-4xIn-tel i226-V B3 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0.
-1xDDR4 / DDR5 RAM Slot max support 32GB.
-Support 1xHD-MI2.0 and 1xDP1.4 dual 4K@60Hz video display.
-1 x COM ports: 1xDB9 RS232.
-1xM.2 2230 WiFi slots, supports 802.11 AX WiFi6 module(optional).
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN, etc.
-Full Aluminum Alloy high-quality solid-built shell, excellent cooling performance.
-Fanless system without cooling fan, noiseless and durable fit for industrial grade field, works as long as 7×24 hours.
-Low consumption TDP and can be mounted at the back of the monitor by a VESA bracket(optional).
Product Details
Specification
Ordering information
Product Details
JIERUICC 4-Port 2.5G i226 Industrial firewall Mini PC
A compact, enterprise-grade networking powerhouse engineered for seamless integration into demanding environments. Equipped with 4 × Intel i226-V 2.5 GBase-T RJ45 ports, this fanless system delivers wire-speed throughput for mission-critical routing, firewall, and virtualization tasks.
Key Features
Multi-CPU Architecture: Supports Intel Alder Lake N150, Celeron J5005, N5105, and N6415 processors for scalable performance in network-intensive workloads.
Dual 4K Display & Industrial I/O: HDMI 2.0 + DP 1.4 (4K@60Hz) for KVM management, paired with RS-485/RS232 serial ports for PLC/SCADA integration.
Enterprise-Grade Expansion:
1× DDR4/DDR5 SODIMM (32GB max)
M.2 2230 slot for WiFi 6/6E (802.11ax) or 4G module
4× USB ports (2× USB 3.0 +2× USB 2.0)
1* SIM Card slot support 3G/4G module
1* COM RS232
Always-On Security: AES-NI hardware acceleration for VPN/IPsec, coupled with Watchdog, RTC, and PXE boot for unattended operation.
Industrial Reliability
Crafted from CNC-machined aluminum alloy, the fanless chassis ensures silent 24/7 operation across -20°C to 60°C extremes. With ultra-low TDP and optional VESA mounting, it thrives in space-constrained deployments like network cabinets or factory floors.
Applications
Network Security: Deploy as pfSense/OPNsense firewall and VPN concentrator appliance.
Edge Computing: Host Proxmox/ESXi VMs for SD-WAN or IoT protocol conversion.
Industrial Automation: RS-485/232 connectivity for PLC monitoring and legacy equipment bridging.
Digital Signage: Drive dual 4K displays while managing network traffic concurrently.
Certified Compatibility: Pre-validated with Windows 10/11, Linux, and major firewall OS.
Specification
| Basic Information: | |||
| CPU | Intel Twin Lake N150 4 cores 4 threads up to 3.60GHz 6MB Cache TDP 6W(Use DDR5 RAM) | ||
| Intel Pentium Gemini Lake J5005 1.5GHz Max to 2.8GHz Quad Cores 4MB Four Threads Intel UHD Graphics 605 (Use DDR4 RAM) | |||
| Intel Pentium Elkhart Lake N6415 1.2GHz Max to 3.0GHz Quad Cores Four Threads Intel UHD Graphics (Use DDR4 RAM) | |||
| Intel Celeron N5105 2.0GHz Max to 2.9GHz Quad Cores Four Threads Intel UHD Graphics (Use DDR4 RAM) | |||
| TDP | 6W-10W refer to the CPUs | ||
| Motherboard Size | 120 x 120 mm customized size | ||
| BOIS | AMI /EFI BIOS | ||
| Chipset | refer to the CPUs | ||
| Memory | 1xDDR5 4800Mhz SODIMM non-ecc ram slot, max support 32GB(N150 CPU). 1xDDR4 SODIMM non-ecc ram slot, 2133/2666Mhz max support 32GB(J5005/N5105/N6415) | ||
| OS | Windows 10/11/Linux/pfSense | ||
| Network | 4*Onboard Intel i226-V B3 | ||
| Video | Intel UHD Graphics | ||
| Storage: | |||
| M.2 SSD | 1 x M.2 Nvme 2280 128GB/256GB/512GB/1TB/2TB optional | ||
| SATA | 1* 2.5inch SATA HDD 500GB/ 1TB / 2TB Max | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 1 x Power LED, 1 x HDD LED | ||
| USB | 2 x USB3.0+2 x USB2.0 | ||
| Display | 1xHD-MI2.0 and 1xDP1.4 support dual 4K@60Hz UHD video display | ||
| LAN | 4*Onboard Intel i226-V B3 2.5G RJ45 LAN | ||
| COM | 1 x COM | ||
| SIM | 1 x SIM Card slot | ||
| WIFI | Dual band 2.4GHz/5.0GHz (Optional need pay extra USD8/PCS) | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC+12V, recommend 12V/4A | ||
| Operating Temperature | 0/+50Centigrade | ||
| Storage Temperature | -20/+50 Centigrade | ||
| Relative Humidity | 0%~90%@30 (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN | ||
| Size | 136*126*40mm | ||
| Weight | Net 1.2kg, Gross 2kg | ||
| Shell | Black color aluminum alloy | ||
| Mounting | Can be mounted back of monitor or wall by optional VESA mount | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xUser Manual, 1xVESA mount | ||
Ordering information
| Model | Processor | Graphics | Network Card | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT4L-V4 | N150 | Intel UHD Graphics | i226*4 | Up to 3.6GHz | 1 x DP/1 x HDMI | 1 x SO-DIMM DDR5 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ 1 x Msata 3.0 | 4 | 4 | 12V4A |
| GT4L-V4 | J5005 | Intel UHD Graphics | i226*4 | 1.5~2.8 GHz | 1 x DP/1 x HDMI | 1 x SO-DIMM DDR4 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ 1 x Msata 3.0 | 4 | 4 | 12V4A |
| GT4L-V4 | N6415 | Intel UHD Graphics | i226*4 | 1.2~3.0 GHz | 1 x DP/1 x HDMI | 1 x SO-DIMM DDR4 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ 1 x Msata 3.0 | 4 | 4 | 12V4A |
| GT4L-V4 | N5105 | Intel UHD Graphics | i226*4 | 2.0~2.9 GHz | 1 x DP/1 x HDMI | 1 x SO-DIMM DDR4 | 1 x M.2 NVMe SSD/1 x 2.5 inch SATA/ 1 x Msata 3.0 | 4 | 4 | 12V4A |
