JIERUICC GT6500 Fanless Industrial Mini PC Dual LAN Dual COM for Industrial Automation & IoT Applications
Model name: GT6500
Products Features
– All-aluminum alloy shell, ice spike wave design, maximum area auxiliary heat dissipation.
– Dual LAN interfaces (Intel I219 Gigabit + I226 2.5G)
– Equipped with 2 DDR5 SODIMM slots, 1 M.2 NVMe SSD, and 1 SATA HDD
– 2 HDMI ports and 1 DP, 1 type-C port support four 4K@60Hz UHD video displays

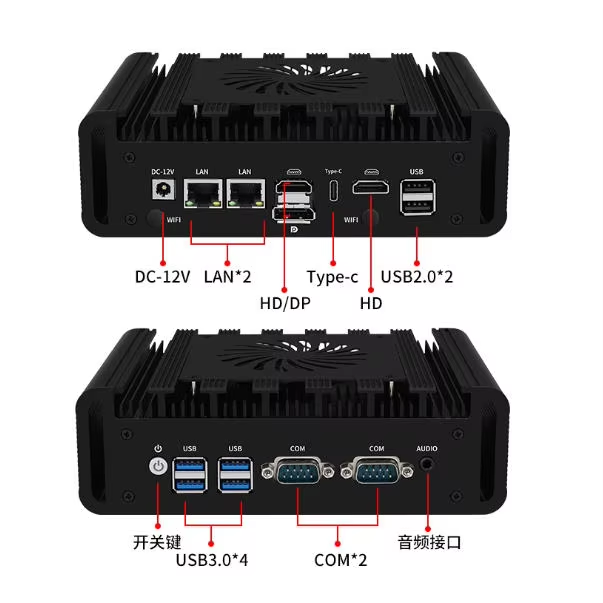

– 4 USB3.0, 2 USB2.0, 1 Type-C, 2 COM (COM2 support RS232/RS485), and 1 Audio port
– Fanless design supports 7×24 hours of continuous, stable operation
-Support Restore AC Power loss/LAN PXE boot
Product Details
Specification
Ordering information
Product Details
Product Introduction

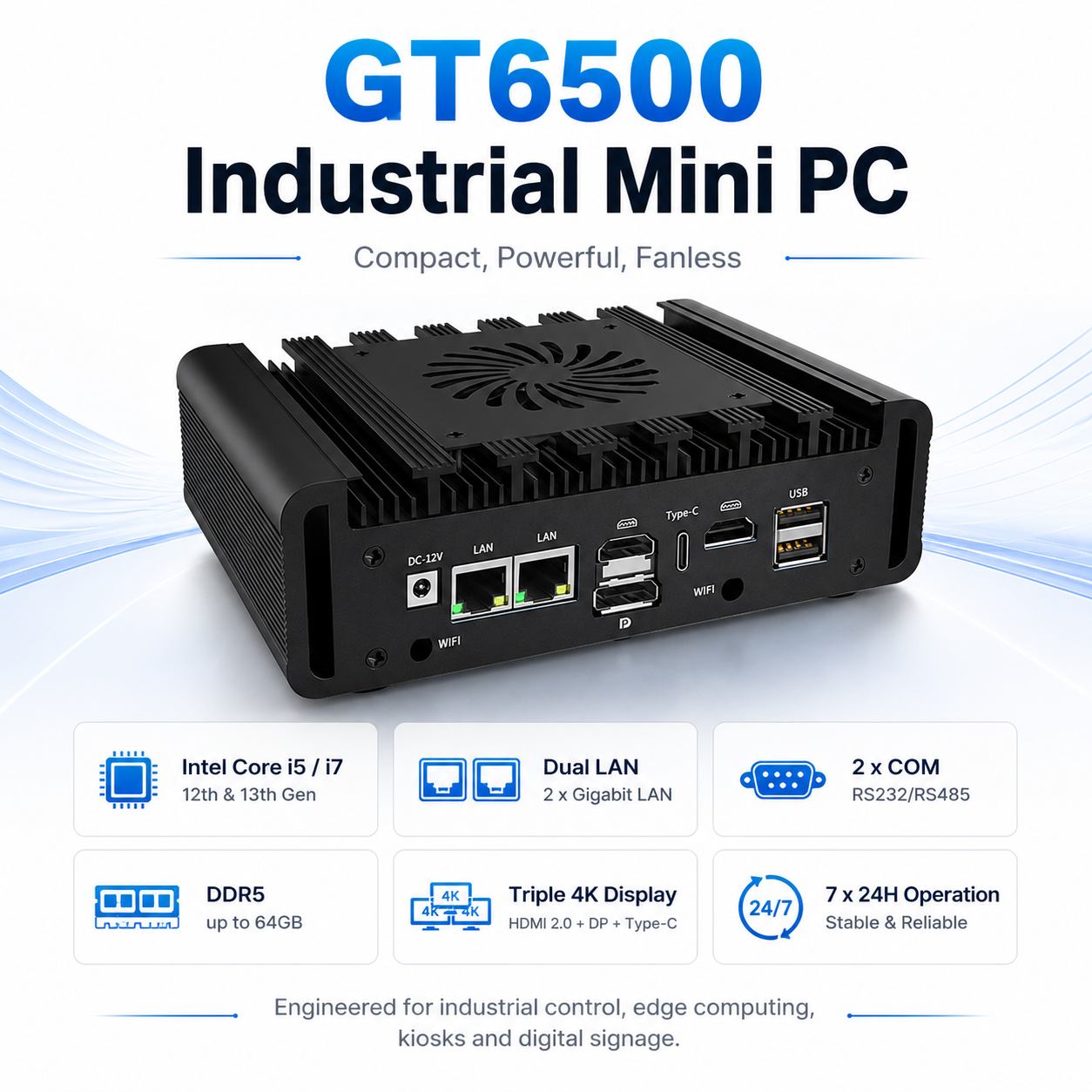

The GT6500 is a compact fanless industrial mini PC designed for industrial automation, edge computing, digital signage, smart kiosks, network gateway, and embedded control applications. Powered by optional Intel Core i5 / i7 12th and 13th-generation processors, it delivers reliable computing performance in a rugged aluminum alloy chassis built for long-term 24/7 operation.
With dual LAN, dual COM, triple 4K display output, DDR5 memory, NVMe PCIe 4.0 storage, and rich industrial I/O, the GT6500 provides a flexible and high-performance embedded computer solution for commercial and industrial environments.
Key Features
• Optional Intel Core i5-1345U or Intel Core i7-13620H processor
• 2 x DDR5 4800MHz SODIMM memory slots, up to 64GB
• 1 x M.2 2280 NVMe PCIe 4.0 x4 SSD and 1 x 2.5-inch SATA HDD / SSD
• Dual LAN: 1 x Intel I219 Gigabit LAN + 1 x Intel I226 2.5G LAN
• Triple 4K UHD display output via 2 x HDMI and 1 x DisplayPort
• USB-C interface with display support
• Rich I/O ports: 4 x USB 3.0, 2 x USB 2.0, 2 x HDMI, 1 x DP, 1 x Type-C, 2 x LAN, 2 x COM, 1 x Audio
• 2 x COM ports: COM1 supports RS232, COM2 supports RS232 / RS485
• Optional WiFi, Bluetooth, and 4G module via Mini PCIe
• Fanless aluminum alloy enclosure for efficient heat dissipation

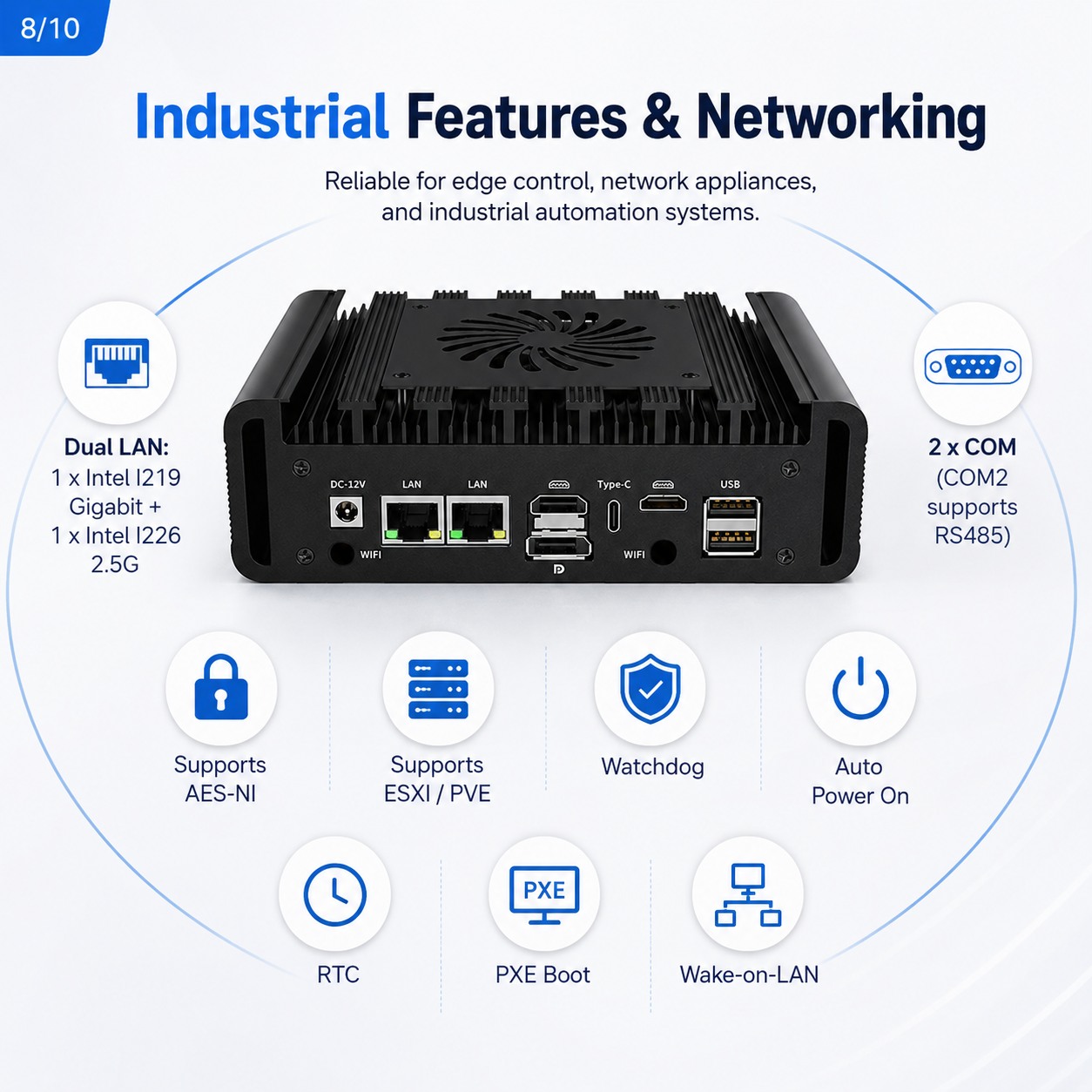

• Supports AES-NI, ESXi, PVE, Watchdog, Auto Power On, RTC, PXE Boot, and Wake-on-LAN
• Compact size: 178 x 126 x 56 mm
• Optional VESA mount for wall or monitor-back installation
• Supports Windows 10 / 11, Linux, and pfSense
Product Advantages

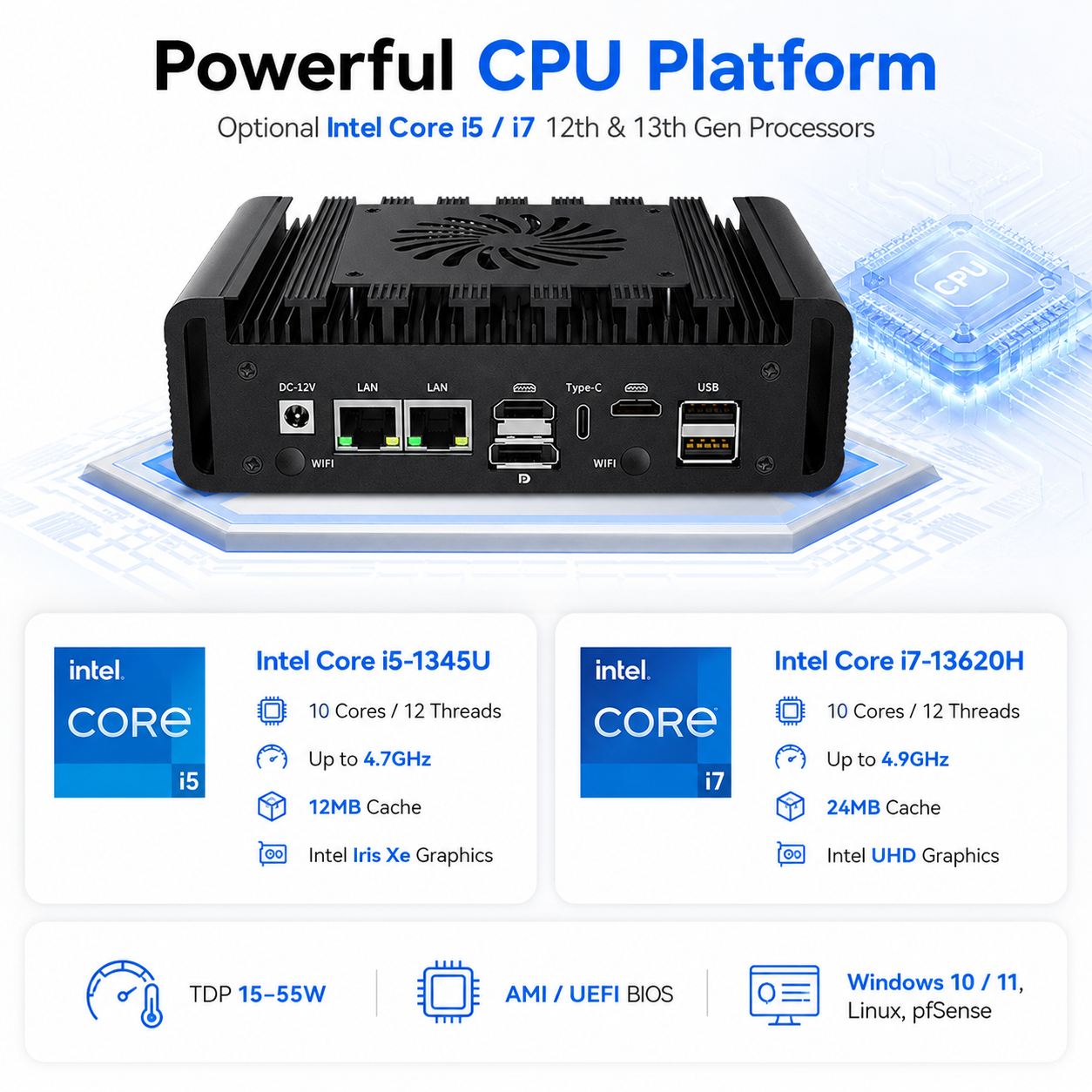

Powerful Industrial Performance
The GT6500 supports Intel Core i5 and i7 12th / 13th Gen processors, offering strong multi-core performance for industrial control, real-time data processing, edge computing, and multi-tasking applications.

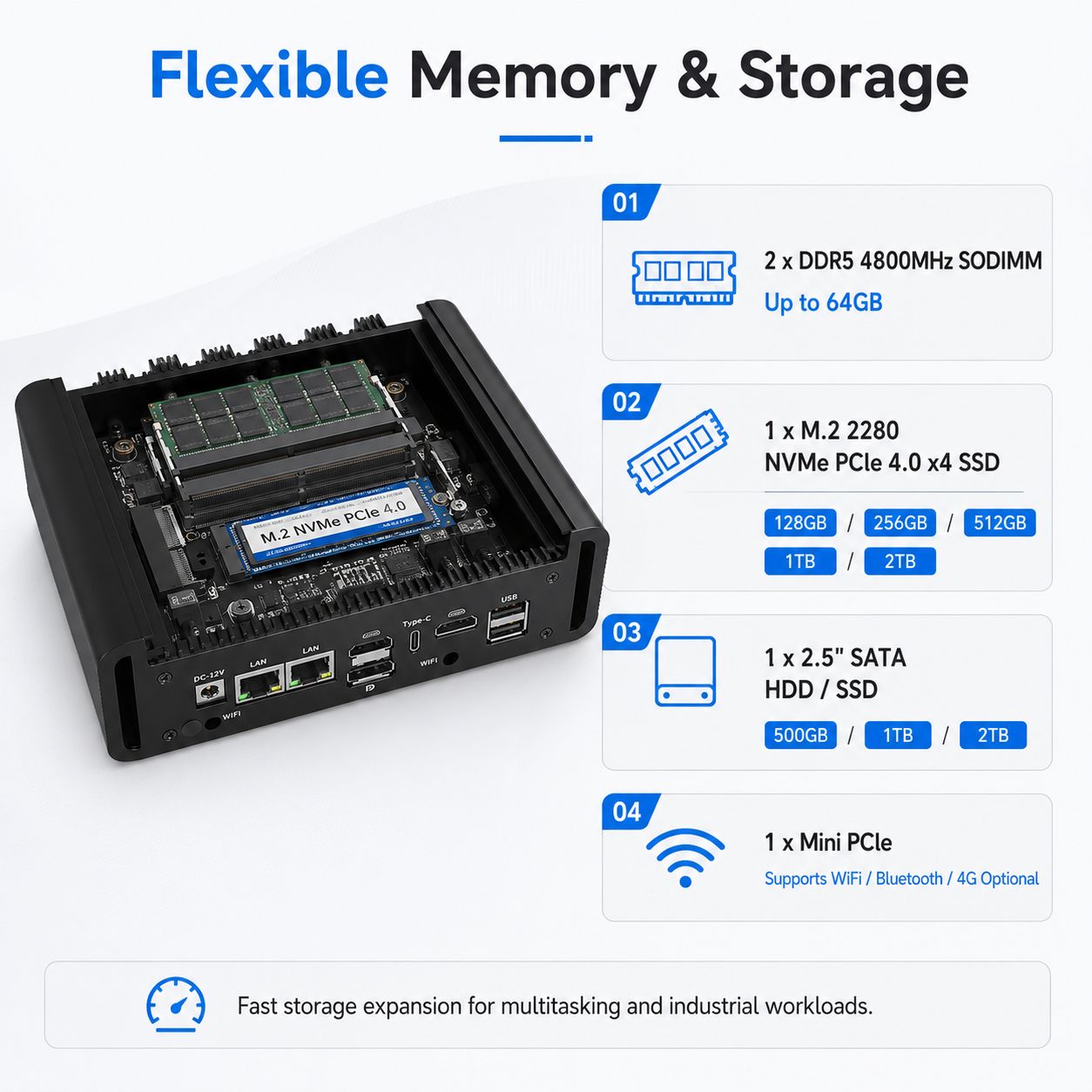

High-Speed DDR5 Memory & Dual Storage
With dual DDR5 SODIMM slots and support for NVMe PCIe 4.0 SSD, the GT6500 delivers faster data access, smoother system response, and greater storage flexibility. The additional 2.5-inch SATA bay allows users to expand storage capacity for industrial data, signage content, system logs, or application software.
Dual LAN for Stable Networking
Equipped with Intel Gigabit LAN and Intel 2.5G LAN, the GT6500 is suitable for network gateway, firewall, industrial IoT, automation control, and edge networking applications that require stable and high-speed data transmission.

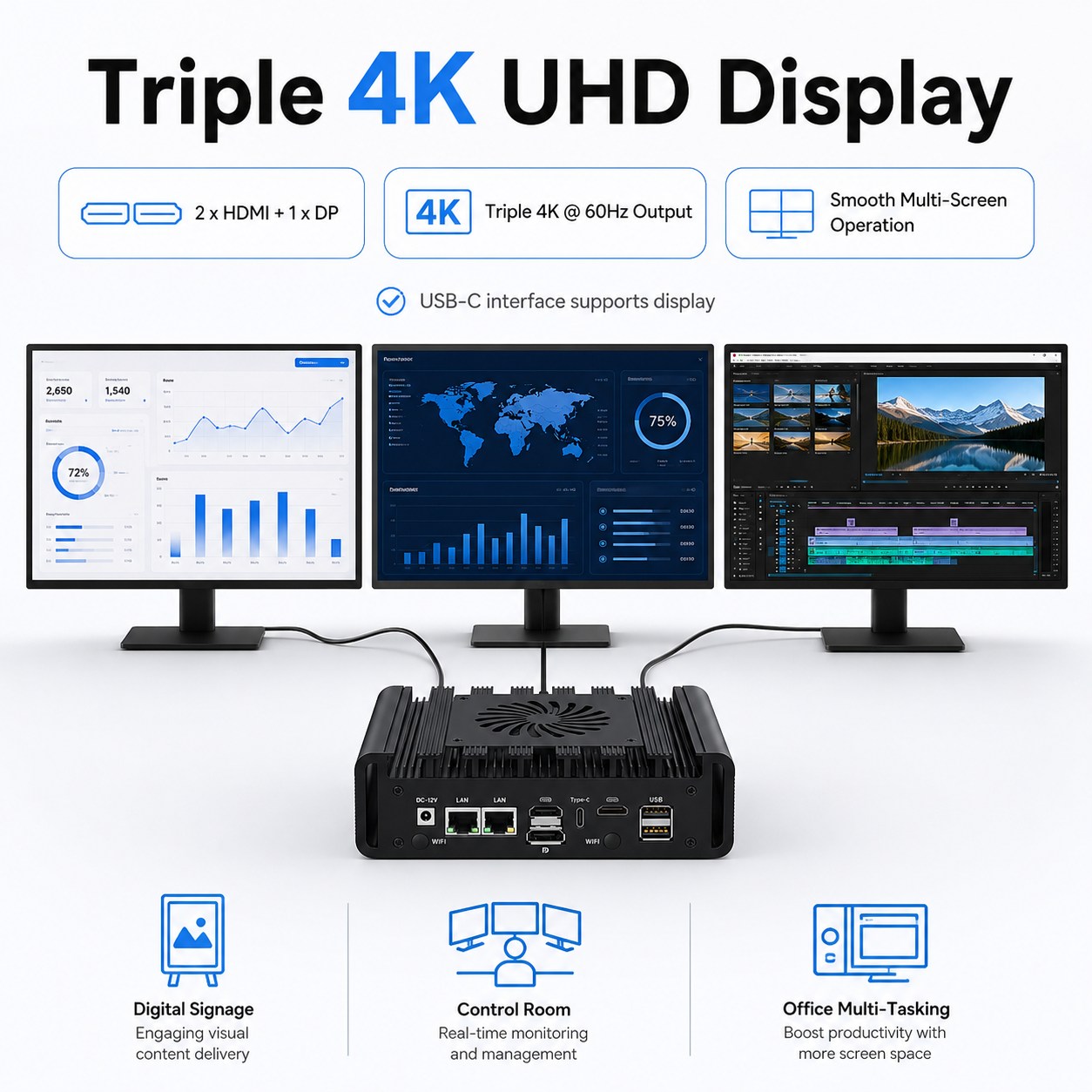

Triple 4K Display Output
The GT6500 supports triple 4K@60Hz UHD display output through 2 x HDMI and 1 x DisplayPort, making it ideal for digital signage, control rooms, smart retail terminals, monitoring systems, and multi-screen workstation environments.

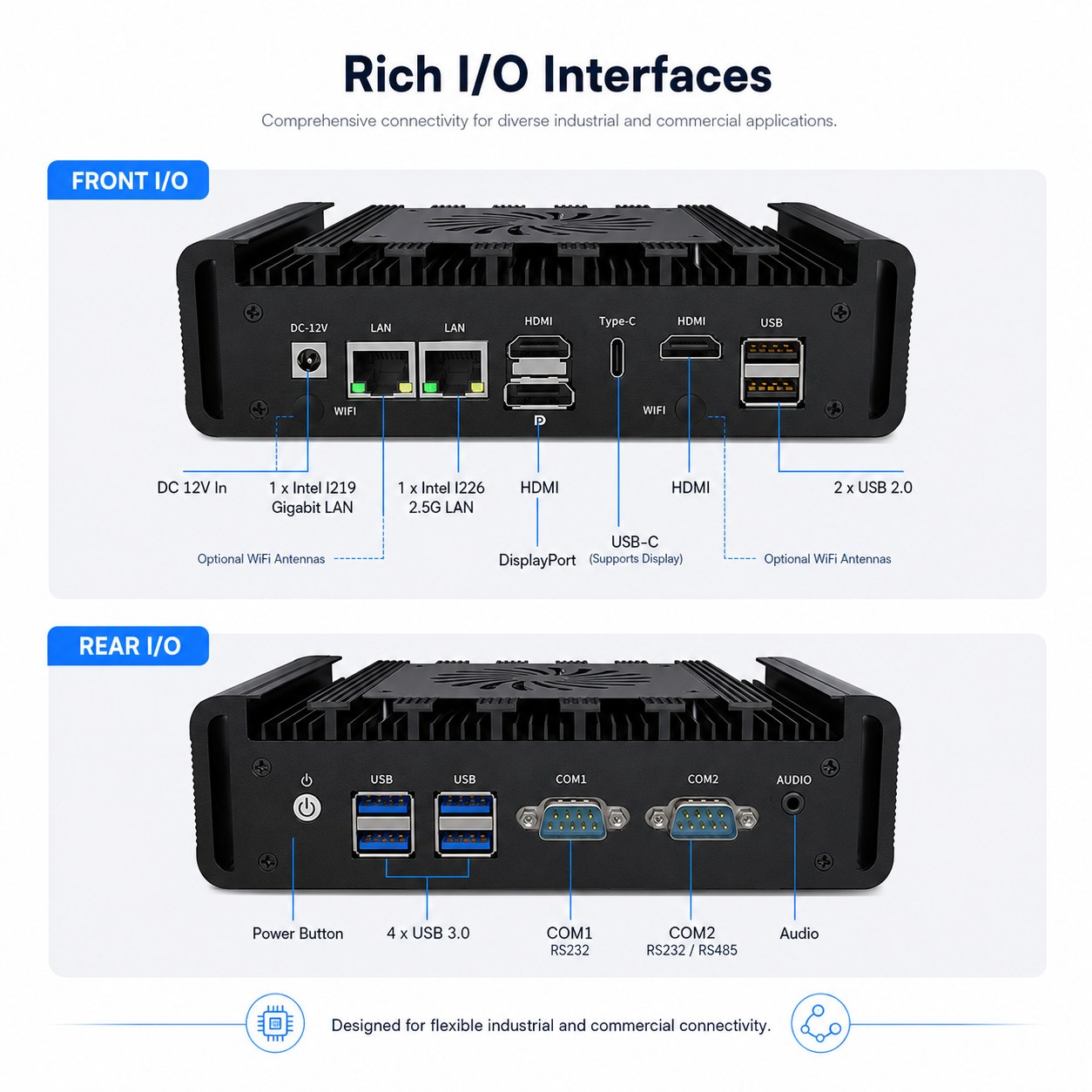

Rich Industrial I/O Expansion
With multiple USB ports, dual COM ports, dual LAN, HDMI, DP, Type-C, audio, and optional wireless modules, the GT6500 can easily connect to industrial equipment, barcode scanners, sensors, displays, POS devices, cameras, and automation systems.

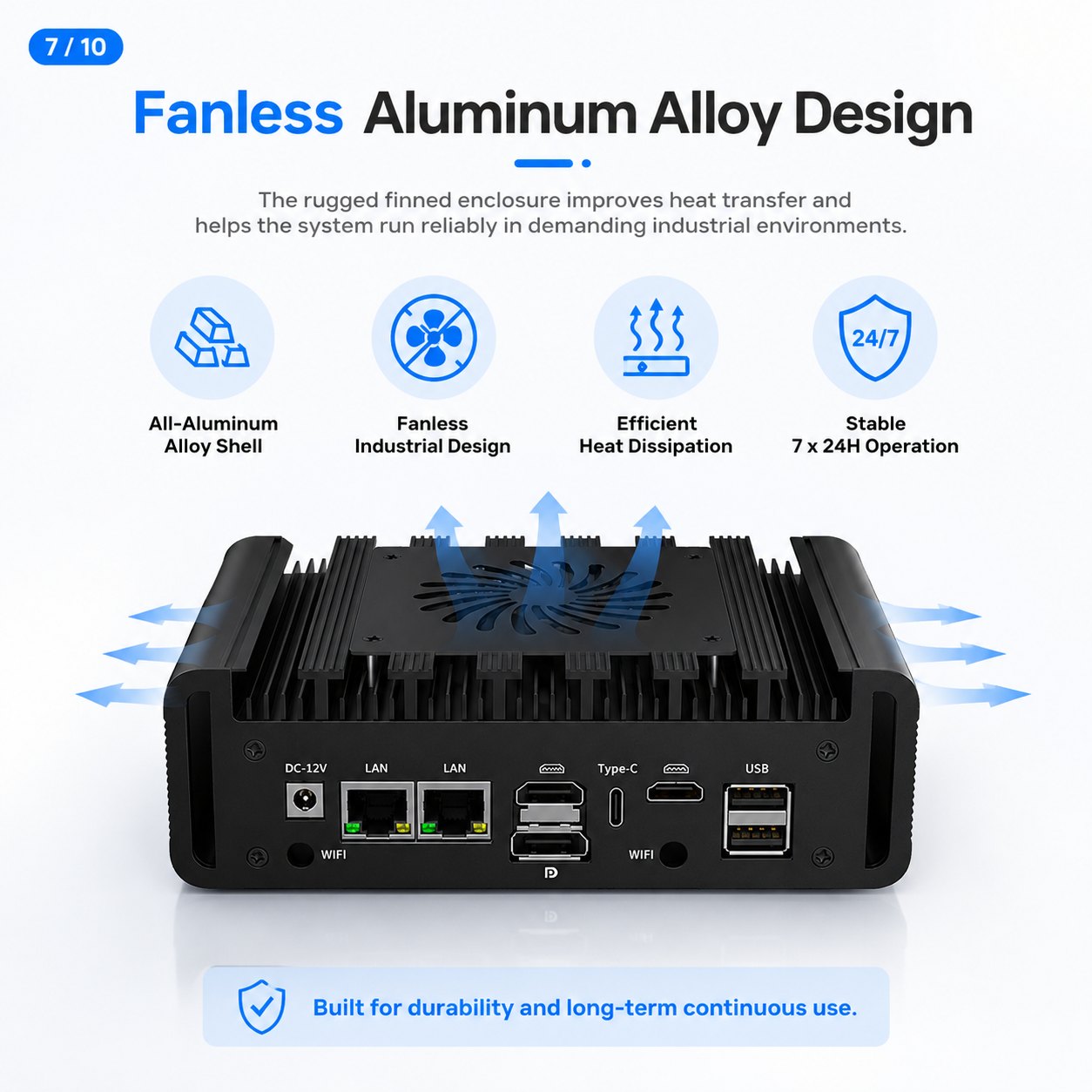

Rugged Fanless Design
The black aluminum alloy shell and fanless cooling structure help reduce dust intake, lower maintenance costs, and improve reliability in long-term industrial use. The finned housing improves heat dissipation and supports stable 7 x 24-hour operation.

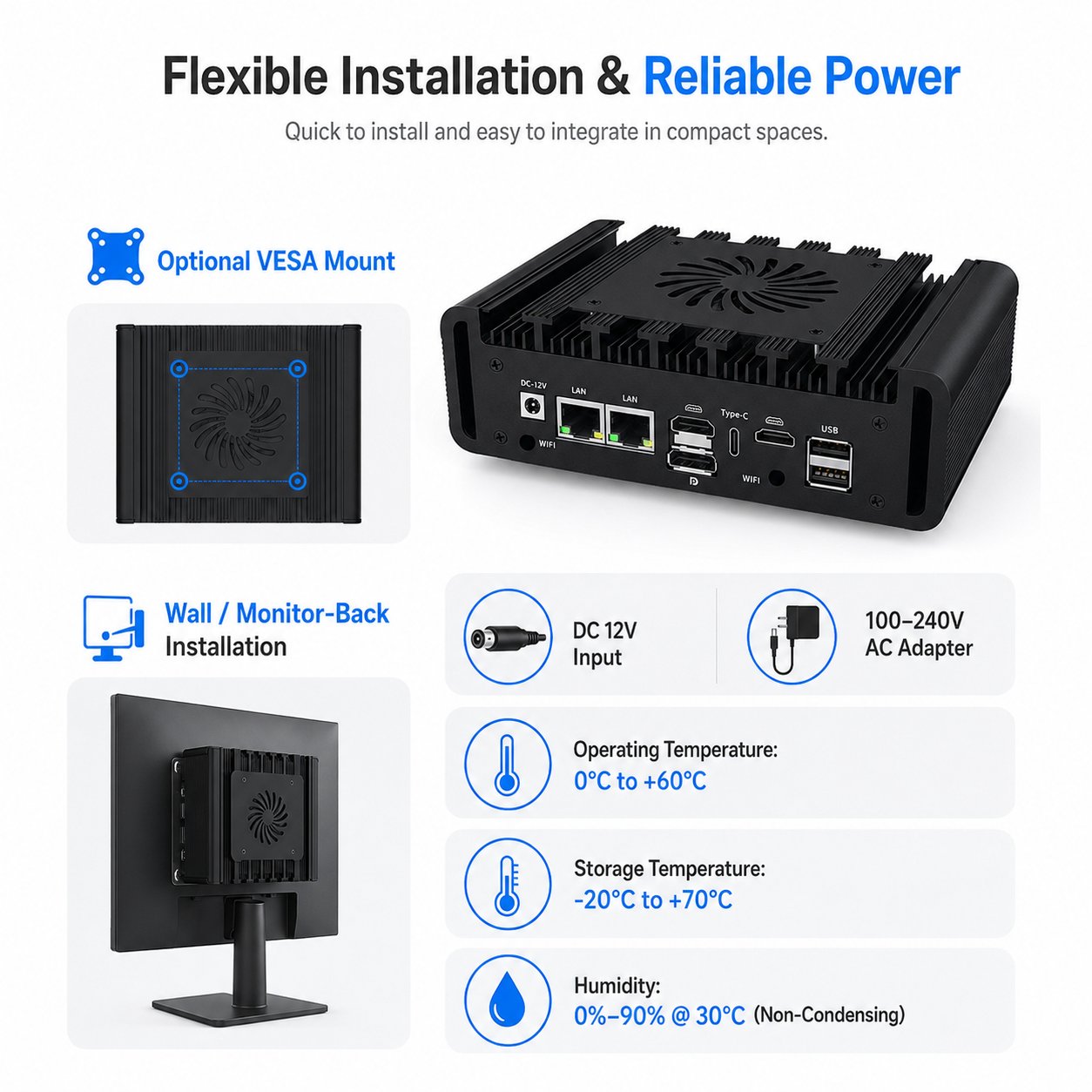

Flexible Installation
With its compact size and optional VESA mounting bracket, the GT6500 can be installed behind a monitor, mounted on a wall, or integrated into kiosks, cabinets, control panels, and space-limited industrial environments.
Typical Applications
• Industrial Automation
• Edge Computing
• Digital Signage
• Smart Kiosk / POS
• Network Gateway
• Industrial IoT
• Control Cabinet
• Machine Vision
• Factory Data Collection
• Commercial Display System
Specification
| Basic Information: | |||
| CPU | Intel Core i5-1345U 10 cores 12 threads max up to 4.7Ghz, cache 12MB,Intel® Iris® Xe Graphics eligible | ||
| Intel Core i7-13620H 10cores, 12threads max up to 4.9 GHz, cache24MB, Intel UHD Graphics | |||
| TDP | 15-55W | ||
| Motherboard Size | 120 x 120 mm customized size | ||
| BOIS | AMI /UEFI BIOS | ||
| Chipset | refer to the CPUs | ||
| Memory | 2 x DDR5 4800Mhz SODIMM non-ecc ram slot, max support 64GB | ||
| OS | Windows 10/11/Linux/pfSense | ||
| Network | 1 x Intel I219 Gigabit Lan+1 x Intel I226 2.5G Lan | ||
| Video | refer to the CPUs | ||
| Storage: | |||
| M.2 SSD | 1 x M.2 2280 NVMe/PCIE4.0x4 SSD 128GB/256GB/512GB/1TB/2TB optional | ||
| SATA | 1* 2.5inch SATA HDD 500GB/ 1TB / 2TB optional | ||
| Wi-Fi: | |||
| Module | 1*MiniPCIE,support WIFI/BT/4G Optional | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 1 x Power LED, 1 x HDD LED | ||
| USB | 4 x USB3.0+2 x USB2.0 | ||
| Display | 2 x HD-MI and 1xDP support triple 4K@60Hz UHD video display | ||
| Type-c | 1 x USB-C interface (supports display) | ||
| LAN | 1 x Intel I219 Gigabit Lan+1 x Intel I226 2.5G Lan | ||
| COM | 2 x COM RS232(COM2 support RS485) | ||
| Audio | 1 x Audio(input & output) | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC+12V, recommend 12V/10A | ||
| Operating Temperature | 0/+60 Centigrade | ||
| Storage Temperature | -20/+70 Centigrade | ||
| Relative Humidity | 0%~90%@30 (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN | ||

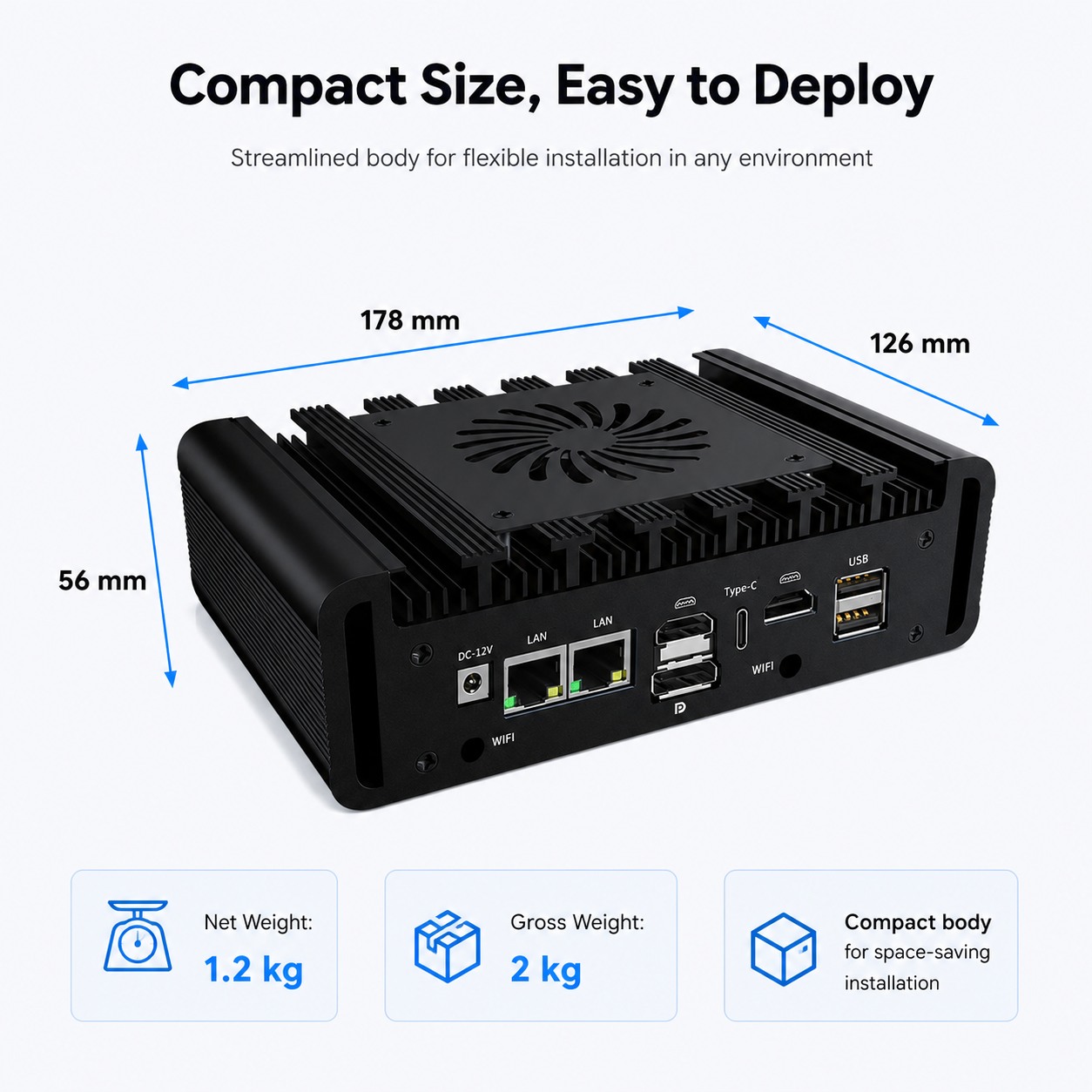

| Size | 178*126*56mm | ||
| Weight | Net 1.2kg, Gross 2kg | ||
| Shell | Black color aluminum alloy | ||
| Mounting | Can be mounted back of monitor or wall by optional VESA mount | ||
| Cooling Mode | Fanless motherboard+Fan case | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xVESA mount | ||
