GB1000-V1 Fanless Industrial PC: i3/N100, 2.5GbE, 6 COM, -10~60°C, 4G LTE
Model name: GB1000-V1
Products Features
Fanless Rugged Design: 180×120×52.5mm compact chassis, 24/7 operation
Multi-Processor Support: Intel i3-6157U/i3-7100U/N100 CPUs

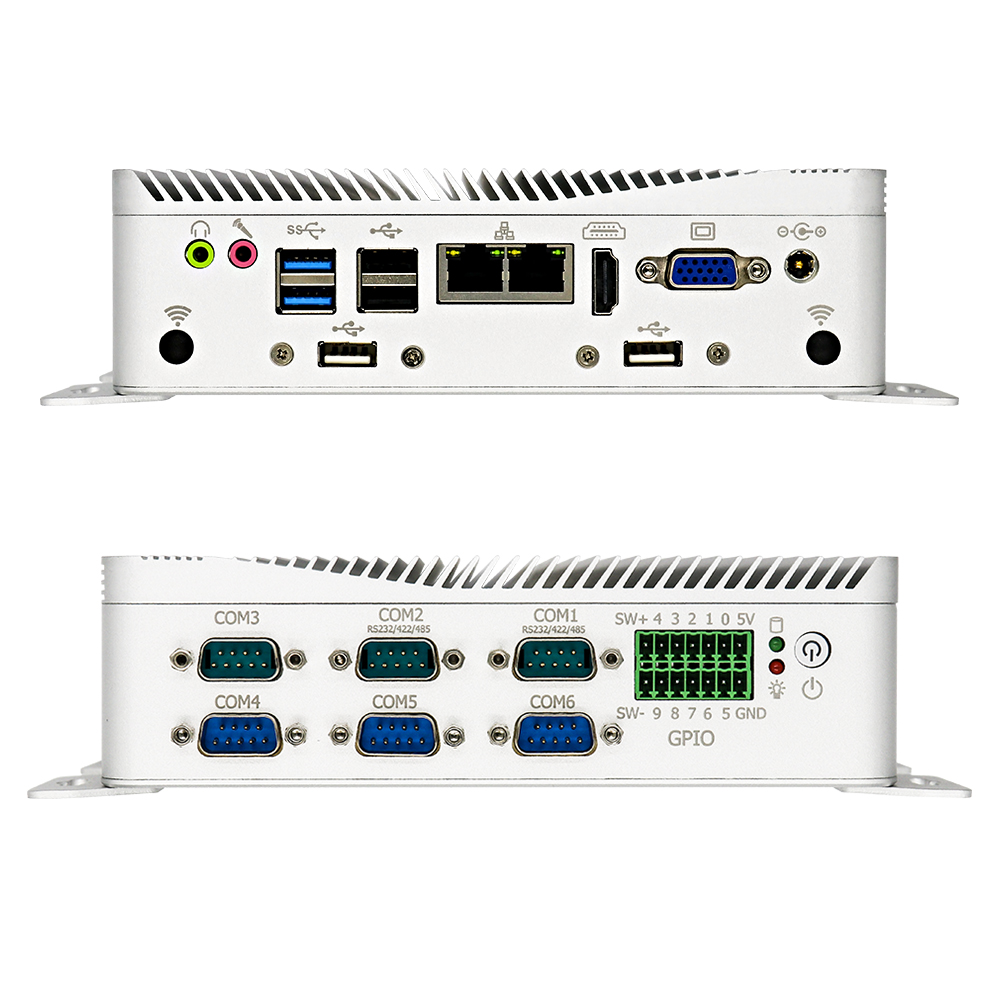

Industrial I/O: 6× COM ports (RS232/422/485 configurable), 4× USB 2.0, 2× USB 3.0
Dual 2.5GbE LAN: Intel® i226-V controllers + Embedded SIM slot for 3G/4G
Reliability Features: Watchdog, RTC, Auto Power-On, -10°C to 60°C operating range
Expansion Ready: GPIO, Trigger Switch, State Lamp, PXE Boot, VGA+HDMI dual sync displa
Product Details
Specification
Ordering information
Product Details
Compact Fanless Industrial PC GB1000-V1 delivers robust computing for harsh environments. Features Intel i3/N100 processors, dual 2.5GbE ports (Intel i226-V), and 6 configurable COM ports (RS232/422/485). With HDMI+VGA synchronous output, GPIO, and wide-temperature operation (-10°C to 60°C), it ensures 24/7 reliability in industrial automation, CNC, robotics, edge AI, and smart vending systems. Factory-direct with 3-year warranty.
Specification
| Basic Information: | |||
| CPU | Onboard Intel Core i3-6157U 2.4GHz Dual Core Four Threads Intel® Iris® Graphics 550 TDP 28W | ||
| Onboard Intel Core i3-7100U 2.4GHz Dual Core Four Threads Intel HD Graphics 620 TDP 15W | |||
| Onboard Intel Alder Lake Gen12 N100 1.8Ghz up to 3.4GHz Quad Core Four Threads Intel® UHD Graphics TDP 6W | |||
| TDP | 6W-28W | ||
| Chipset | Intel SOC | ||
| BOIS | AMI BIOS, ACPI supported | ||
| Memory | 1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB optional (i3-6157U/i3-7100U) 1 x SO-DIMM DDR5 Slot Support 8GB/16GB/32GB optional (N100) | ||
| OS | Windows 7/8/ 10/11/ Linux | ||
| Audio | ALC662 chip Support 6 channels of sound | ||
| Network | 2 x RJ45 2.5GbE Intel i226V | ||
| Video | Refer to Above CPU | ||
| 4G | Full hight Minipcie 4G Module support. with SIM Card slot | ||
| Storage: | |||
| SATA | 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s (i3-6157U/i3-7100U) | ||
| M.2 | 1 x M.2 NVME 2280 (N100 only) | ||
| 2.5inch SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| Wi-Fi: | |||
| Module | 1 x mini PCIE-half port for Wi-Fi module(I3 only) / M.2 KEY-E x 1 (For N100) | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||
| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| LED | 2 x LED | ||
| USB | 4 x USB2.0, 2 x USB3.0 | ||
| Display | 1 x VGA, 1 x HDMI support 4K@30Hz | ||
| GPIO | 1 x GPIO（Custom Input and Output） | ||
| COM | 6 x COM, COM1 COM2 can change to RS232/RS422/RS485 from BIOS | ||
| LAN | 2 x 2.5GbE RJ45 Intel i226V | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +12V~+19V, recommend 12V/5A | ||
| Operating Temperature | -10/+60 Centigrade | ||
| Storage Temperature | -20/+ 70 Centigrade | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Watchdog, Auto power on, RTC, State lamp interface, Trigger switch(wafer 1*2) | ||
| Size | 180*120*52.5mm | ||
| Weight | Net 1.05kg, Gross 2.5kg | ||
| Shell | Silver color aluminum alloy(any customized color for bulk order) | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | COM | USB | Power |
| GB1000-V1 | i3-6157U | Intel Iris Graphics 550 | 2.4GHz | 28W | 1 x VGA / 1 x HDMI | 1 x SO-DIMM DDR4 up to 32GB | 1 x M-SATA 1 x 2.5inch SATA | 2 | 6 | 2 x USB3.0 4 x USB2.0 | 12V/5A |
| GB1000-V1 | i3-7100U | Intel HD Graphics 620 | 2.4GHz | 15W | 1 x VGA / 1 x HDMI | 1 x SO-DIMM DDR4 up to 32GB | 1 x M-SATA 1 x 2.5inch SATA | 2 | 6 | 2 x USB3.0 4 x USB2.0 | 12V/5A |
| GB1000-V1 | N100 | Intel® UHD Graphics | 1.8Ghz up to 3.4GHz | 6W | 1 x VGA / 1 x HDMI | 1 x SO-DIMM DDR5 up to 32GB | 1 x M.2 2280 Nvme 1 x 2.5inch SATA | 2 | 6 | 2 x USB3.0 4 x USB2.0 | 12V/5A |
