NUC Mini PC 11th Gen i3-1115G4 i5-1135G7 i7-1165G7
Products Features
– Rich interfaces: 2 x HDMI 2.0, 1 x Mini DP 1.4,Support 4K@60H,1 x Type-C, support Intel® Thunderbolt™ 4
2 x USB2.0, 4 x USB3.0,1 LAN, MIC, SPK etc to connect multiple devices.
– Compact size 135*125*51MM hold by a hand, but powerful stronger performance.
– Support 1*Mini DP 1.4 and 2*HDMI2.0(4K@60Hz), for 3 screens video display synchronously and
asynchronously.

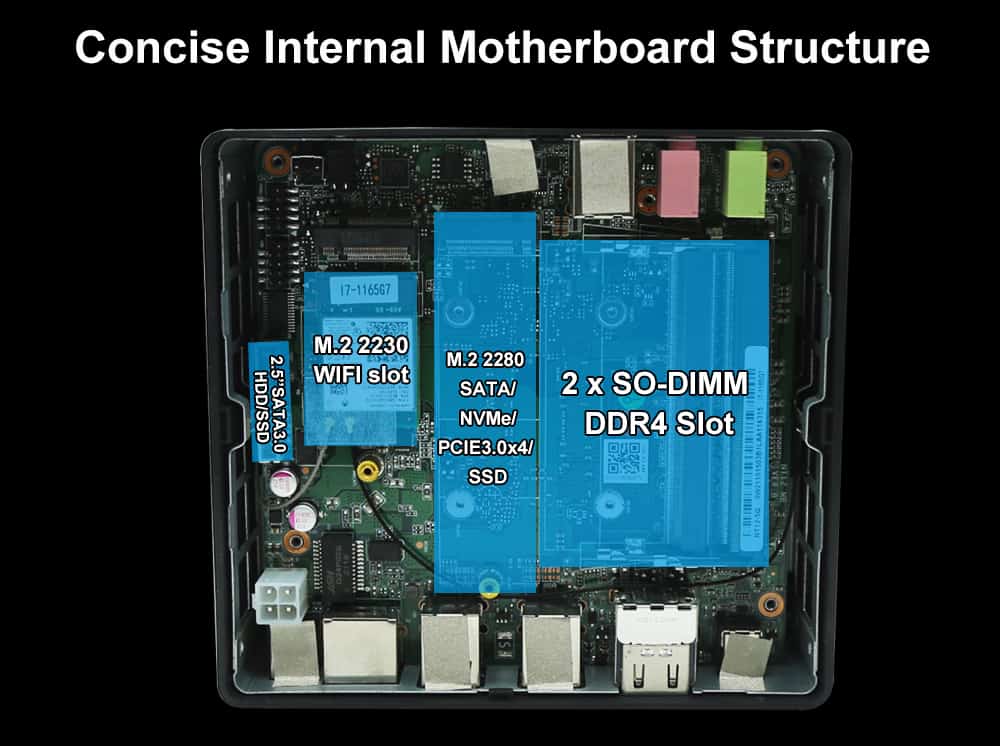

– 2 x SODIMM DDR4 memory slot up to 64GB more fast speed improve work efficiency and have a
smooth experience.
– 1 x M.2 2280 NVME/PCIE3.0x4/SATA SSD up to 2TB+1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
– Can be mounted on the backside of Monitor by VESA Bracket
– Support Calls on function automatically, Wake-On-LAN, PXE Booting. Watchdog
– Widespread Applications such as Enterprise, Schools, Bank, Digital signage,AI, Cloud computing, Supermarket, Service center, Hospital, POS,HTPC, CCTV, etc.
Product Details
Specification
Ordering information
Product Details
JIERUICC’s NUC Mini PC GT890 with compact size, 135*125*51MM. Small body with powerful performance. Equipped with intel 11th generation i3-1115G4, i5-1135G7, i7-1165G7 processors.
Support 1*Mini DP 1.4 and 2*HDMI2.0(4K@60Hz), for 3 screens video display synchronously and asynchronously, it’s the best choice for digital signage, Htpc, Video editing, light gaming purpose.
Support Gigabit RJ45 Lan+M.2 2230 2.4G/5G Dual band AC(AX) WiFi/Bluetooth, Full featured Type-C, support Intel Thunderbolt 4 function, Support TPM2.0, PXE, RTC, Wake on LAN, Auto power on etc
2xSODIMM DDR4 ram slot up to 64GB, large capacity and high frequency memory improve work efficiency and give you a smooth experience.
Support 1*M.2 2280 NVME/PCIE3.0x4/SATA SSD+1*2.5” SATA HDD/SSD, max up to 2TB big storage.
Specification
| Basic Information: | ||||
| CPU | 1.Onboard 11th Gen 10nm CPU Tiger Lake Intel Core i3-1115G4 2 cores 4 threads 3.0GHz up to 4.1GHz 6MB cache TDP 12W Intel Iris Xe Graphics | |||
| 2.Onboard 11th Gen 10nm CPU Tiger Lake Intel Core i5-1135G7 4 cores 8 threads 2.4GHz up to 4.2GHz 6MB cache TDP 12W Intel Iris Xe Graphics | ||||
| 3. Onboard 11th Gen 10nm CPU Tiger Lake Intel Core i7-1165G7 4 cores 8 threads 2.8GHz up to 4.7GHz 12MB cache TDP 12W Intel Iris Xe Graphics | ||||
| 4. Onboard 12th Gen 10nm CPU Tiger Lake Intel Core i5-1240P 12 cores 16 threads 1.7GHz up to 4.4GHz 12MB cache TDP 28W Intel Iris Xe Graphics | ||||
| 5. Onboard 12th Gen 10nm CPU Tiger Lake Intel Core i7-1260P 12 cores 16 threads 2.1GHz up to 4.7GHz 18MB cache TDP 28W Intel Iris Xe Graphics | ||||
| TDP | 12W | |||
| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB/64GB DDR4-2666 | |||
| OS | Windows 8.1/10/11/Ubuntu | |||
| Network | Onboard RTL 8111F PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN | |||
| Video | Intel® Iris® Xe Graphics | |||
| Wi-Fi: | ||||
| Module | 1 x M.2 2230 2.4G/5G Dual band AC(AX) WiFi/Bluetooth | |||
| Antenna | 2 x inner RF cables and without external antenna | |||
| Power and Working Environment: | ||||
| Input | DC100-240V AC/50-60Hz | |||
| Output | DC+19V, recommend 19V/4.7A | |||
| Operating Temperature | 0/+70 Centigrade | |||
| Storage Temperature | -20/+85 Centigrade | |||
| Relative Humidity | 10%~85% | |||
| Input/output port： | ||||
| Switch | 1 x Power On/Off Switch | |||
| Power | 1 x 19V Power In | |||
| USB | 2 x USB2.0, 4 x USB3.0 | |||
| Type-C | 1 x Type-C, support Intel® Thunderbolt™ 4 | |||
| Display | 1 x Mini DP 1.4, 2 x HDMI 2.0, Support 4K@60H | |||
| LAN | 1 x RJ45 Giga LAN | |||
| Audio | 1 x MIC, 1 x SPK | |||
| Storage: | ||||
| M.2 | 1 x M.2 2280 NVME/PCIE3.0x4/SATA SSD | |||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | |||
| Product Dimension & Details: | ||||
| Size | 135*125*51MM | |||
| Weight | Net 1.78kg, Gross 2kg | |||
| Shell | Black color PVP top and Silver aluminum alloy body | |||
| Cooling Mode | With a copper cooling fan | |||
| Functions | TPM2.0, PXE, RTC, Wake on LAN, Auto power on | |||
| Package Content： | ||||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | |||
| Optional | 1xHDMI cable, 1xUser Manual | |||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | USB | Power |
| GT890 | i3-1115G4 | Intel Iris Xe Graphics | 3.0GHz up to 4.1GHz | 28 W | 1DP1.4+ 2HDMI 2.0 | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x 2.5inch SATA/SSD | 1 | 4*USB3.0 2*USB2.0 | 19V/4.7A |
| GT890 | i5-1135G7 | Intel Iris Xe Graphics | 2.4GHz up to 4.2GHz | 28 W | 1DP1.4+ 2HDMI 2.0 | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x 2.5inch SATA/SSD | 1 | 4*USB3.0 2*USB2.0 | 19V/4.7A |
| GT890 | i7-1165G7 | Intel Iris Xe Graphics | 2.8GHz up to 4.7GHz | 28 W | 1DP1.4+ 2HDMI 2.0 | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x 2.5inch SATA/SSD | 1 | 4*USB3.0 2*USB2.0 | 19V/4.7A |
| GT890 | i5-1240P | Intel Iris Xe Graphics | 1.7GHz up to 4.4GHz | 28 W | 1DP1.4+ 2HDMI 2.0 | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x 2.5inch SATA/SSD | 1 | 4*USB3.0 2*USB2.0 | 19V/4.7A |
| GT890 | i7-1260P | Intel Iris Xe Graphics | 2.1GHz up to 4.7GHz | 28 W | 1DP1.4+ 2HDMI 2.0 | 2 x SO-DIMM DDR4, up to 64GB | 1 x M.2 2280 (SATA/NVME)/1 x 2.5inch SATA/SSD | 1 | 4*USB3.0 2*USB2.0 | 19V/4.7A |
