Mini PC with GPU RTX5060 for Vision AI Purpose
Model name: HT230

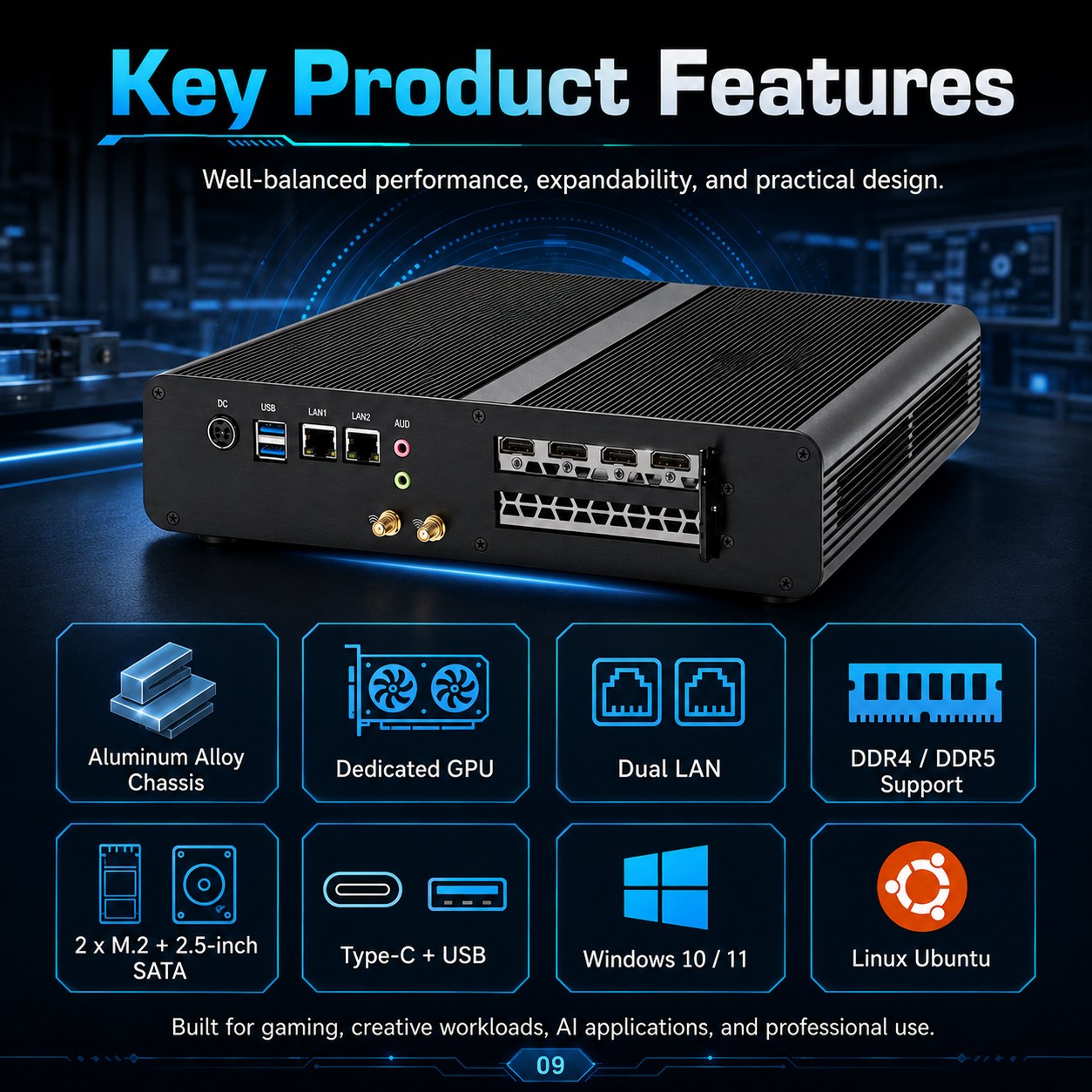

Products Features
– Support 4-channel display out for simultaneous display or synchronous different displays
– Built-in GTX 1660s 6G/ RTX 3070M 8G / RTX 3060M 12G/RTX4060 8G/RTX5060 8G.
– 2 x DDR4 SO-DIMM/DDR5(13th gen) RAM, MAX 64GB.
– Support 2 x M.2 2280 SATA / NVME SSD, 1 x 2.5 inch SATA SSD/HDD
– Support 6*USB3.0+2*USB2.0+2 RJ45 LAN
– Support PXE, Auto Power On, RTC, Wake On LAN.
– Three Silence Copper Fans as a heat-sink for 7×24 hours stable performance.
Product Details
Specification
Ordering information
Product Details

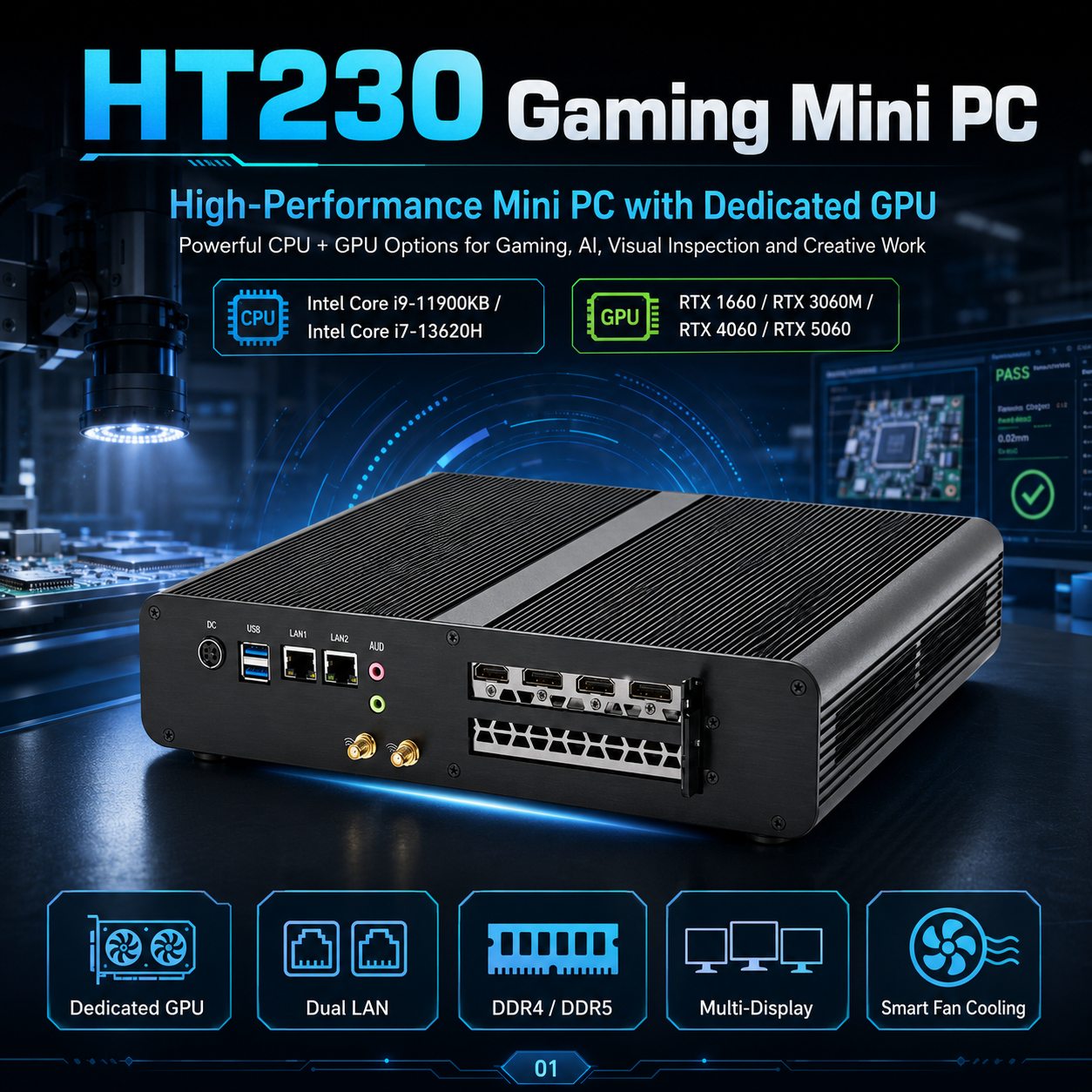

HT230 is a Fan cooling Gaming computer with Intel i7-10870H / i9-11950H / i5-13600H/ i7-13620H/i7-13700H with Nvidia GeForce RTX 3070M 8G/RTX 3060M 12G/GTX1660S 6G / RTX4060 8G/ RTX5060 8G.
Support 4Display: 2 x HDMI2.0 + 2 x DP / 1 x HDMI2.0 + 2 x DP, it depends on different GPU
Redefine the new form of computer, High performance. Compact size, Space-saving, Fan cooling design, less noise disturbance, Low power consumption, Energy saving, easy to carry
Wide Application Area: Vision AI/ Cybercafe/Office working / Digital signage / Education/Call center /Conference room/Home entertainment /Home theater/Cloud Computing etc.
Specification
| Motherboard | |

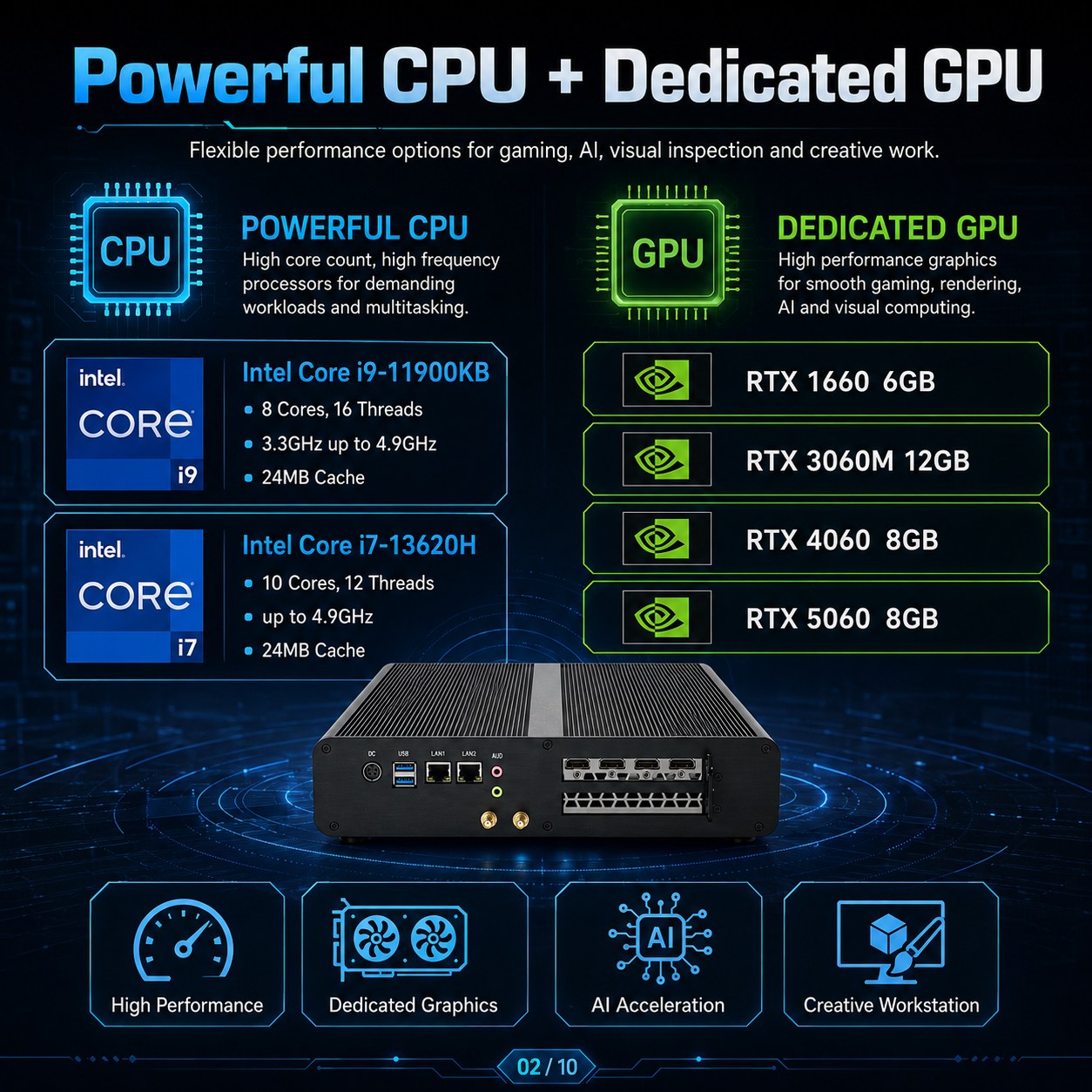

| CPU | Intel Core i9-11950H(24M Cache, 8cores, 16 threads up to 5.0 GHz) |
| Intel Core i5-13600H (18M Cache, 12cores, 16threads max up to 4.8 GHz) | |
| Intel Core i7-13620H (24M Cache, 10cores, 12threads max up to 4.9 GHz) | |
| Intel Core i7-13700H (24M Cache, 14cores, 20threads max up to 5.2 GHz) | |
| GPU | Nvidia GeForce RTX 3060M 12G / RTX 3070M 8G |
| GeForce GTX1660 6G GDDR6 | |
| RTX4060 8GB / RTX5060 8G | |

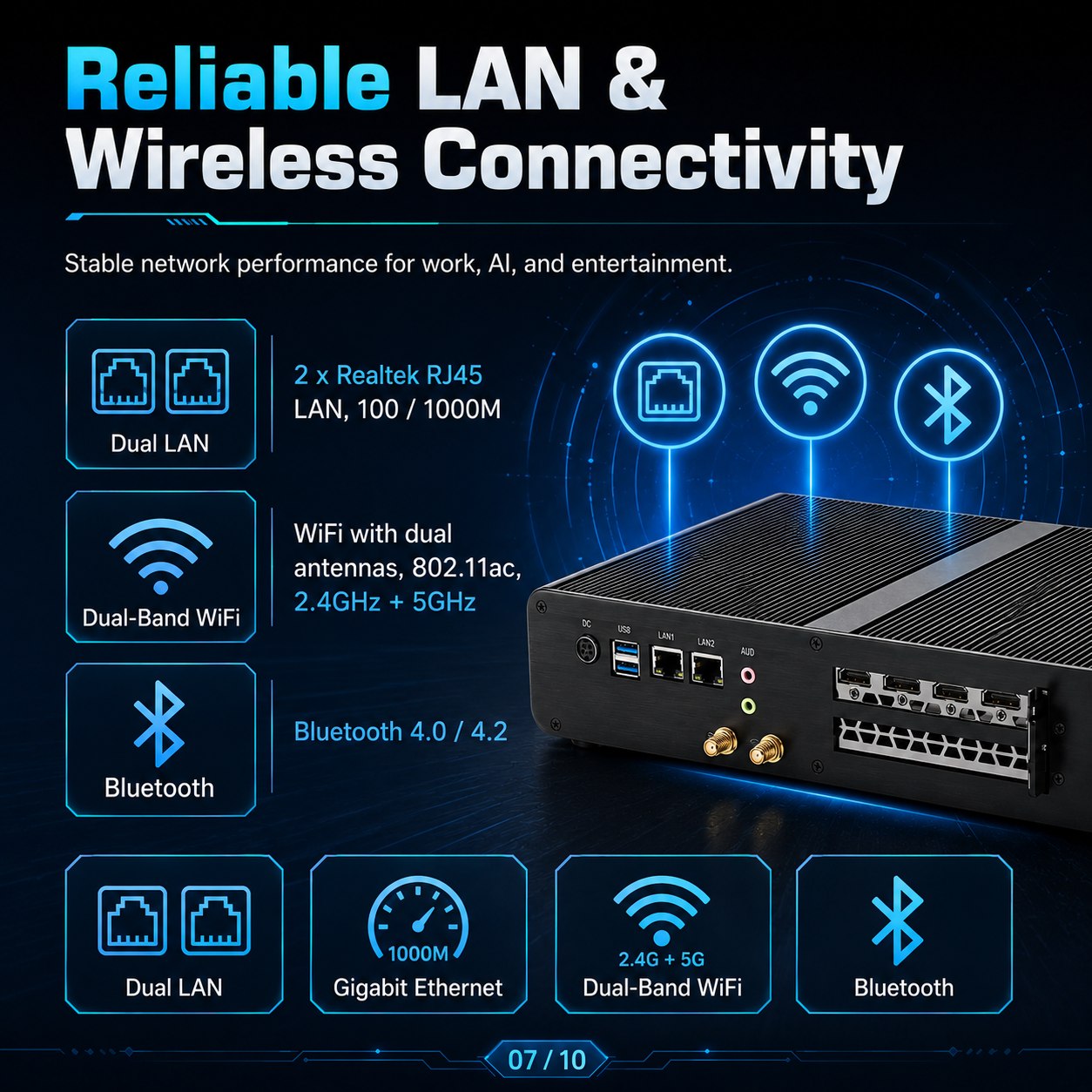

| Network Card | 2 x Realtek LAN, 100/1000M |
| WiFi and Bluetooth | With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2 |

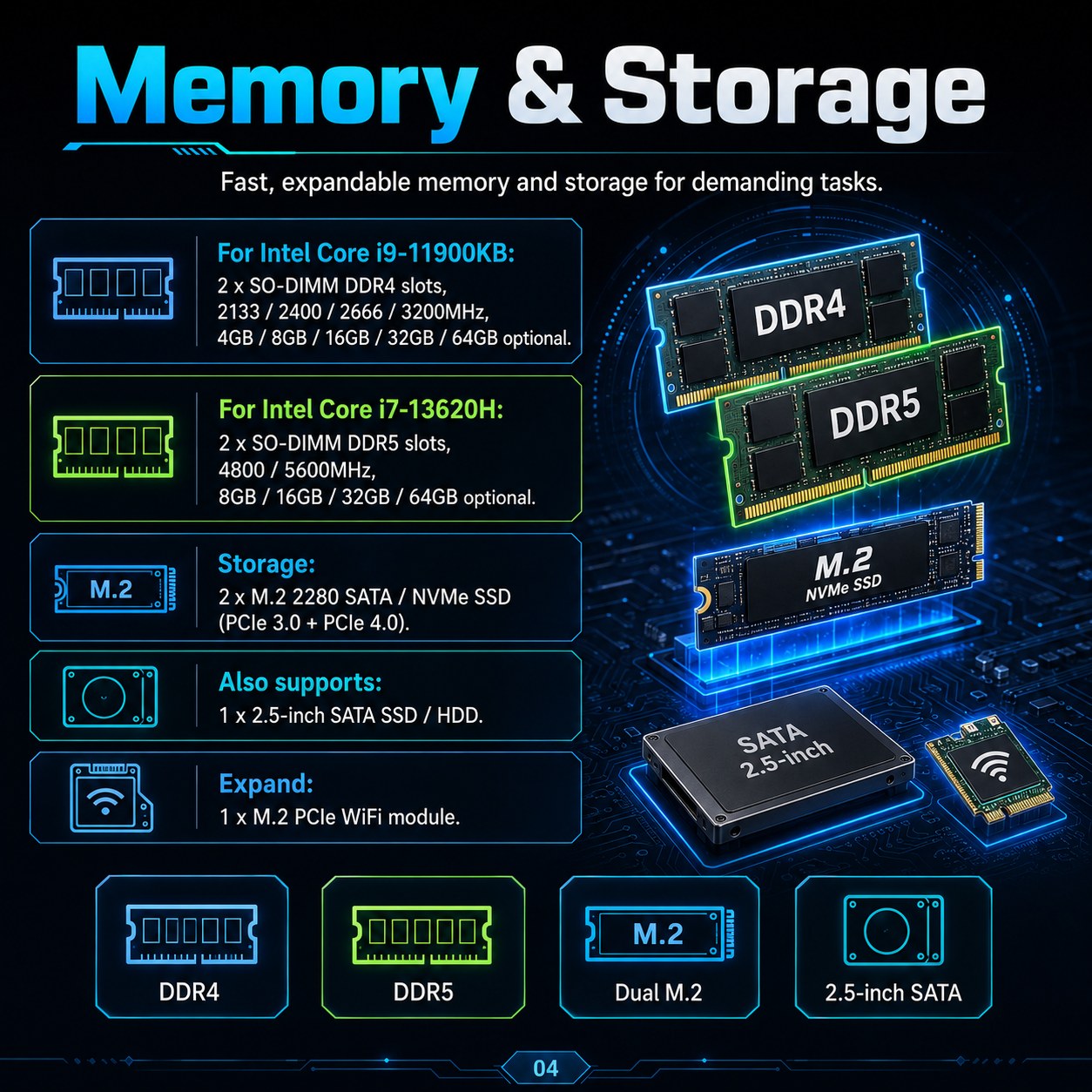

| Memory | i5-13600H/ i7-13620H / i7-13700H: 2 x SO-DIMM DDR5 slots, 4800/5600MHz i9-11950H: 2 x SO-DIMM DDR4 slots, 2133/2400/2666/3200MHz |
| Storage | 2 x M.2 2280 SATA / NVME (PCIE3.0+PCIE4.0)SSD 1 x 2.5 inch SATA SSD/HDD |
| Expand | 1 x M.2 PCIE WiFi module |

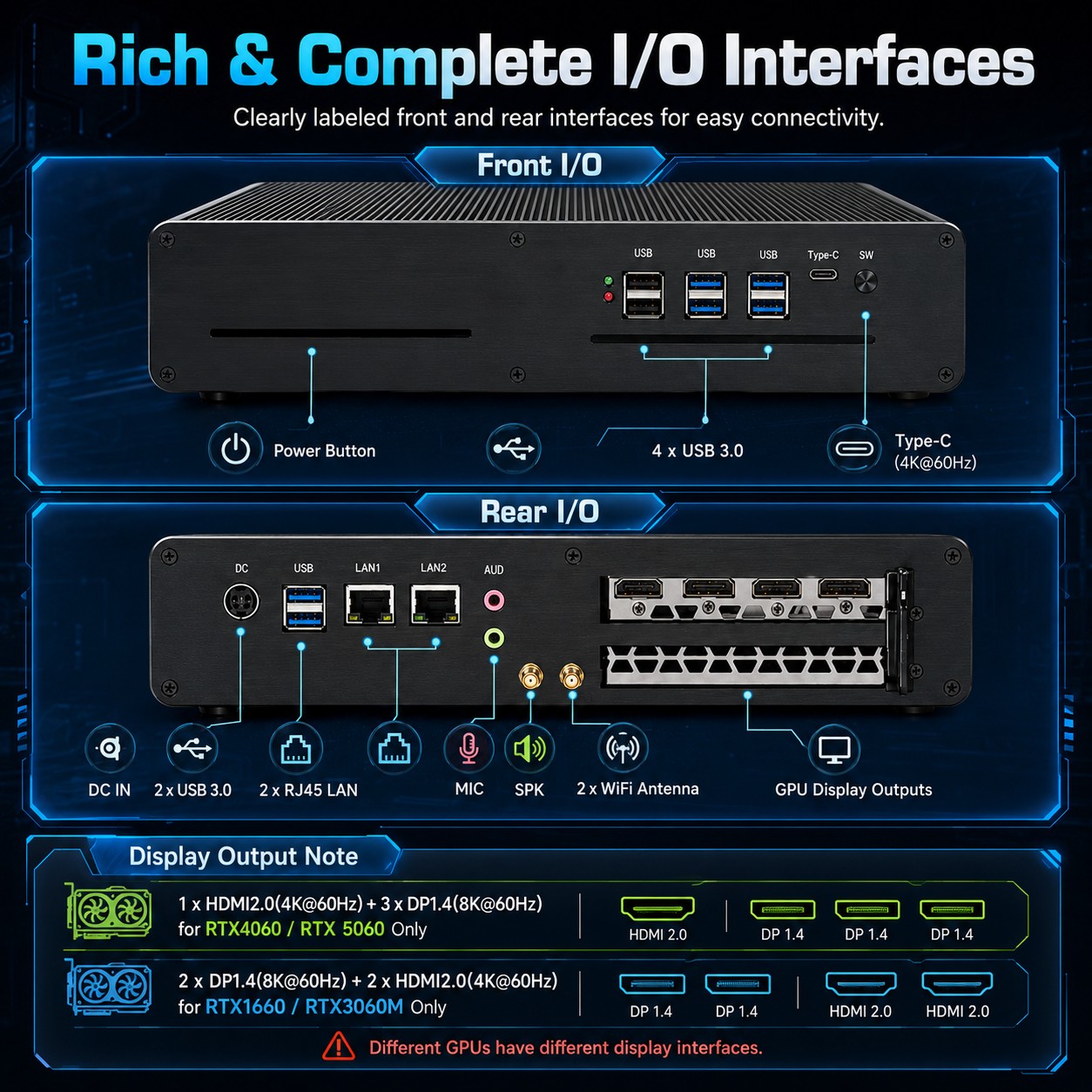

| I/O Interfaces | |

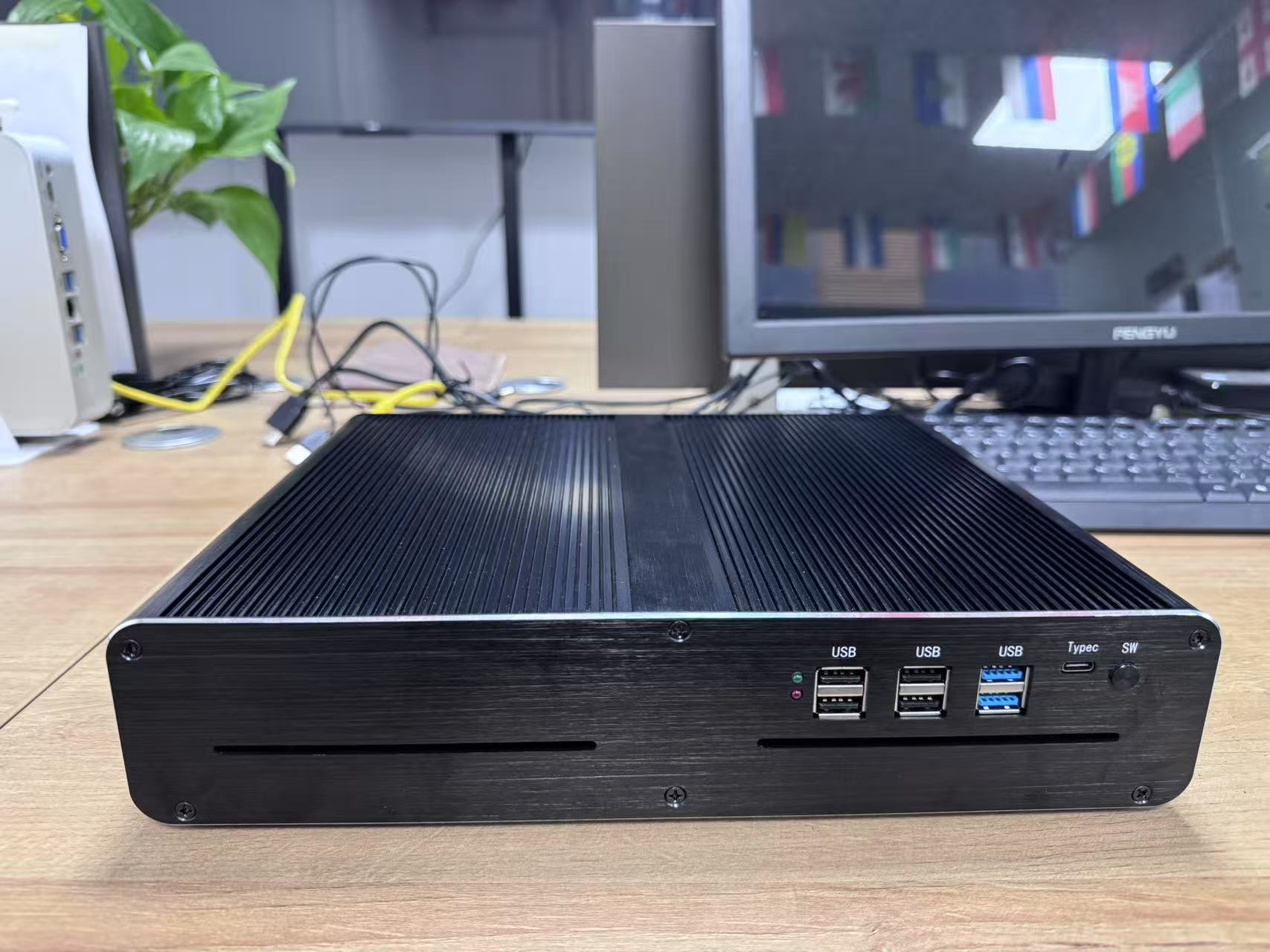

| Front Panel | 1 x Power button |
| 1 x Type-C(4K@60Hz) | |
| 4 x USB 3.0 | |

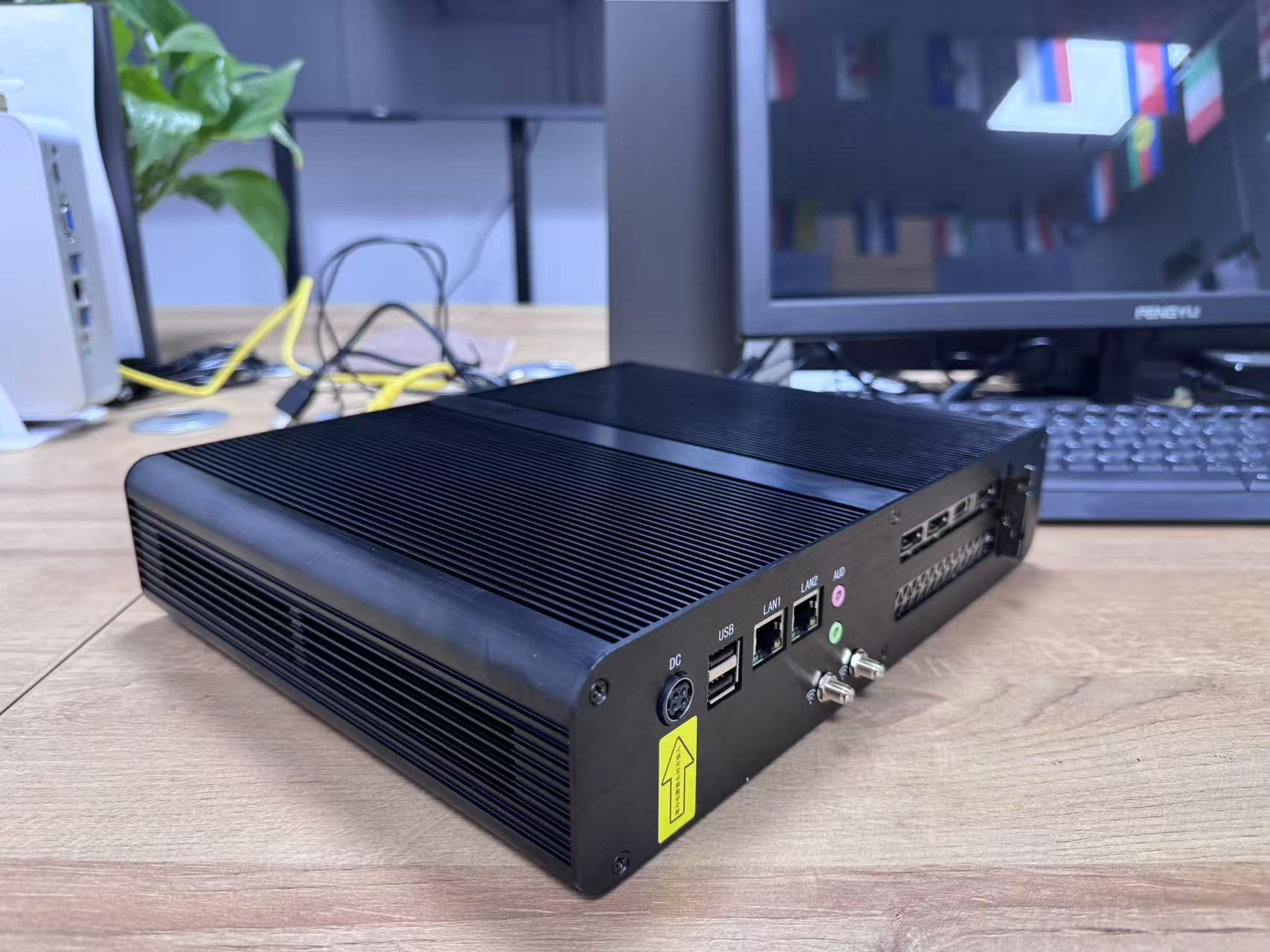

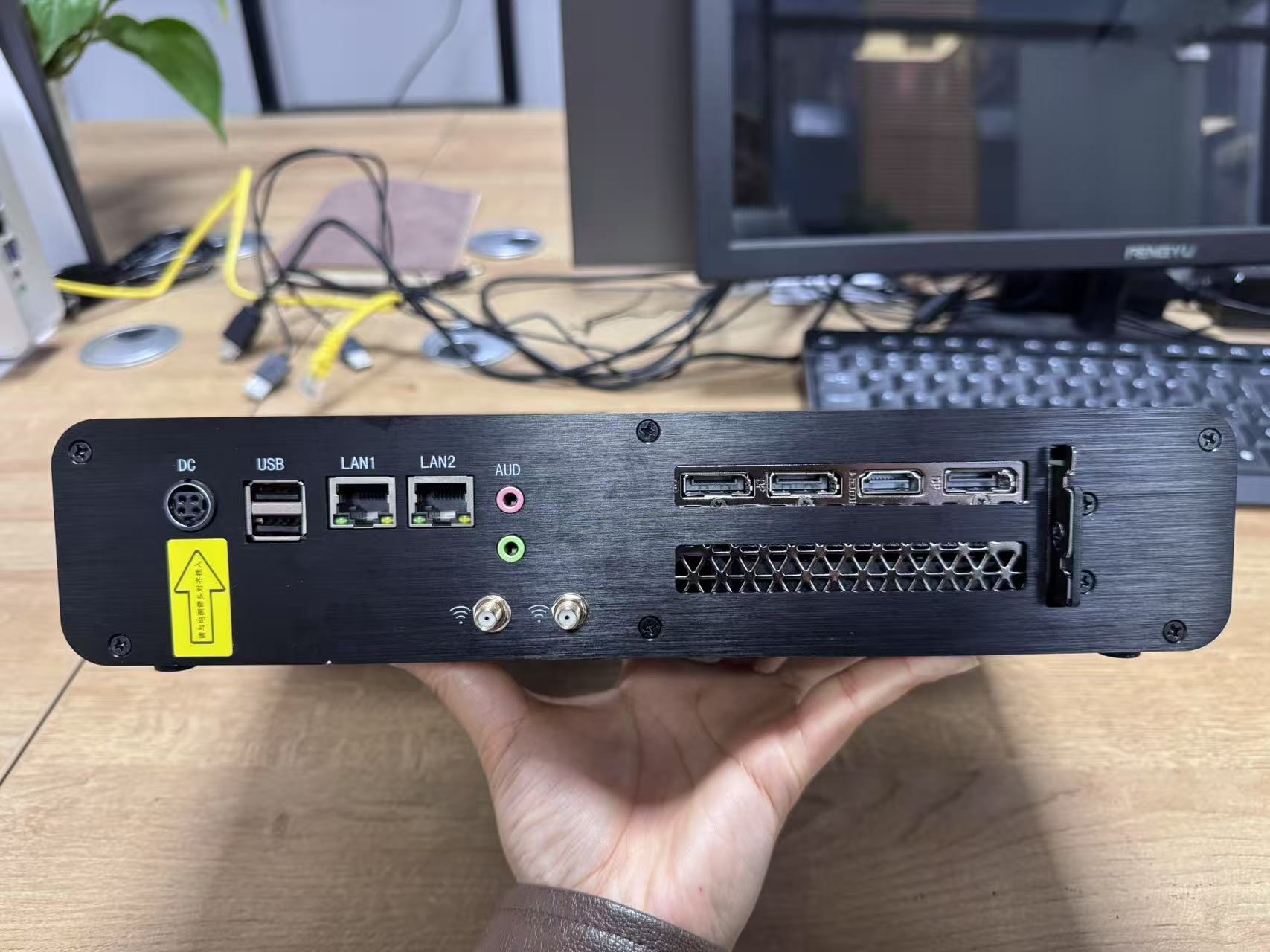

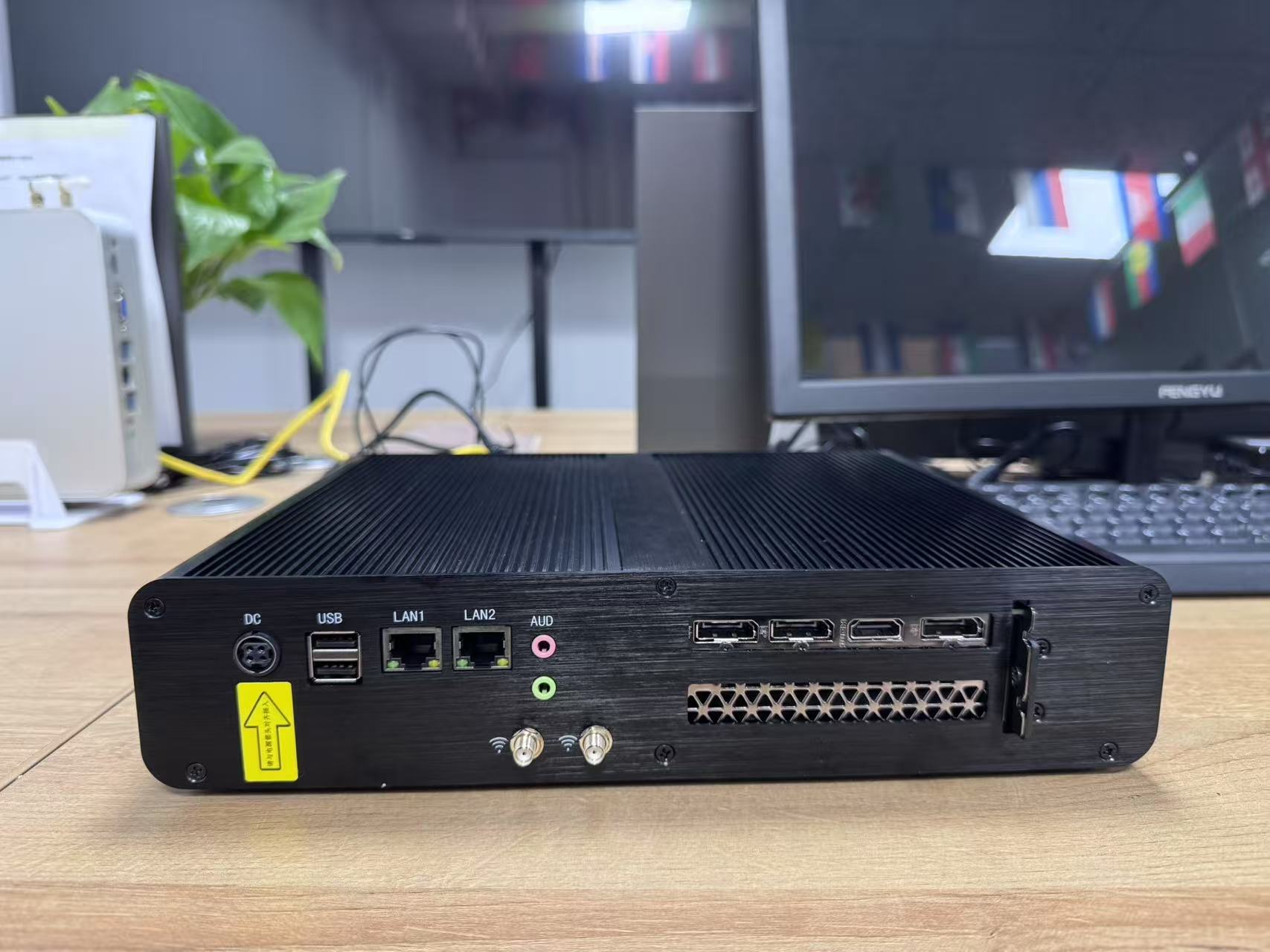

| Rear Panel | 1 x DC_in |
| 2 x USB 3.0 | |
| 2 x RJ45 LAN | |
| 1 x MIC, 1 x SPK | |
| Display port | 1 x HDMI2.0+1 x DP1.4+1 x DVI for GTX1660 Only |
| 2 x DP1.4(8K@60Hz)+2 x HDMI2.0(4K@60Hz) for RTX3060M/RTX3070M Only | |
| 1 x HDMI2.0(4K@60Hz)+ 2 x DP1.4(8K@60Hz) for RTX4060 / RTX 5060 Only | |
| Software Support | |
| System Support | Windows 10/11, linux ubuntu etc |
| General | |

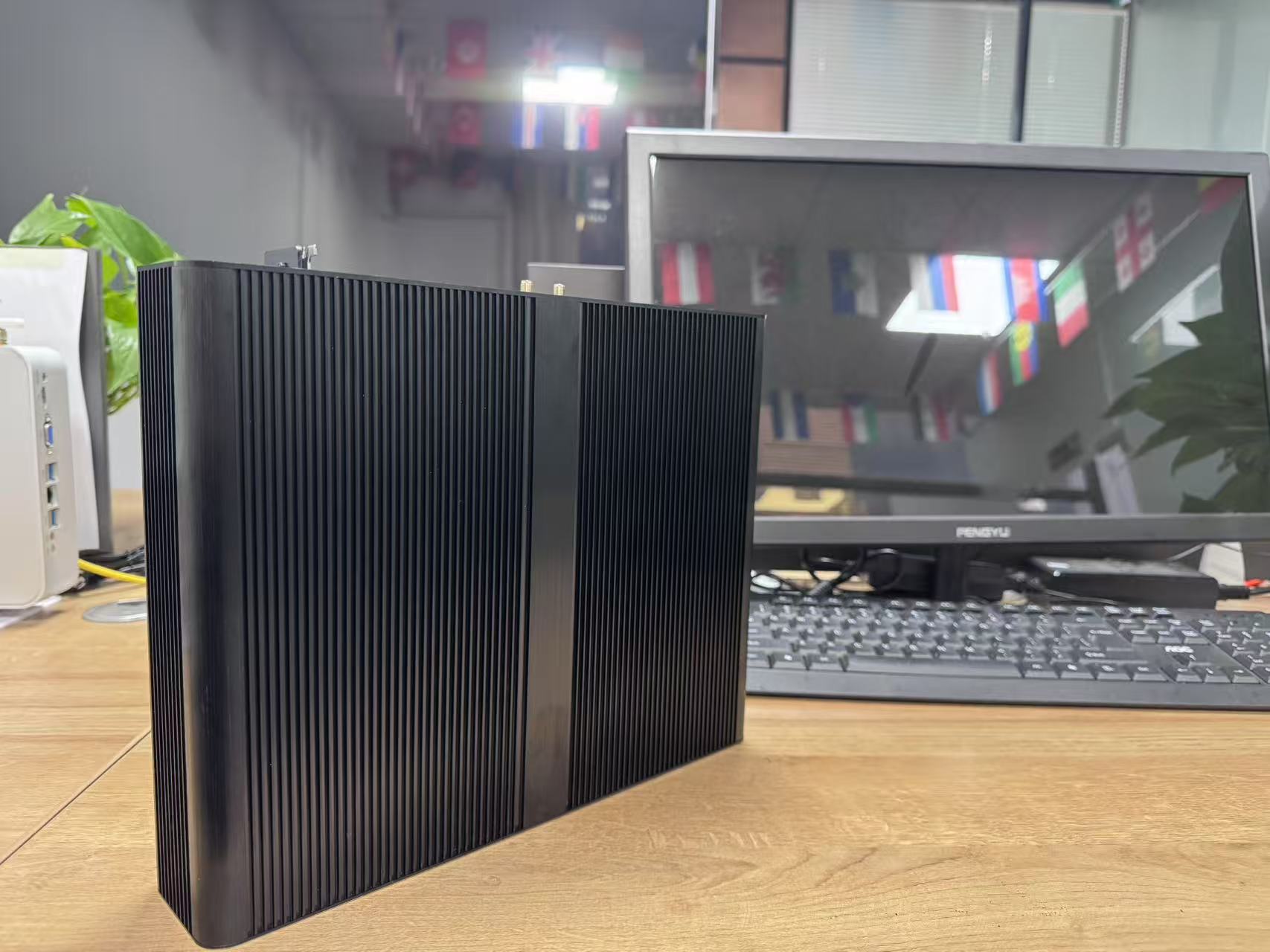

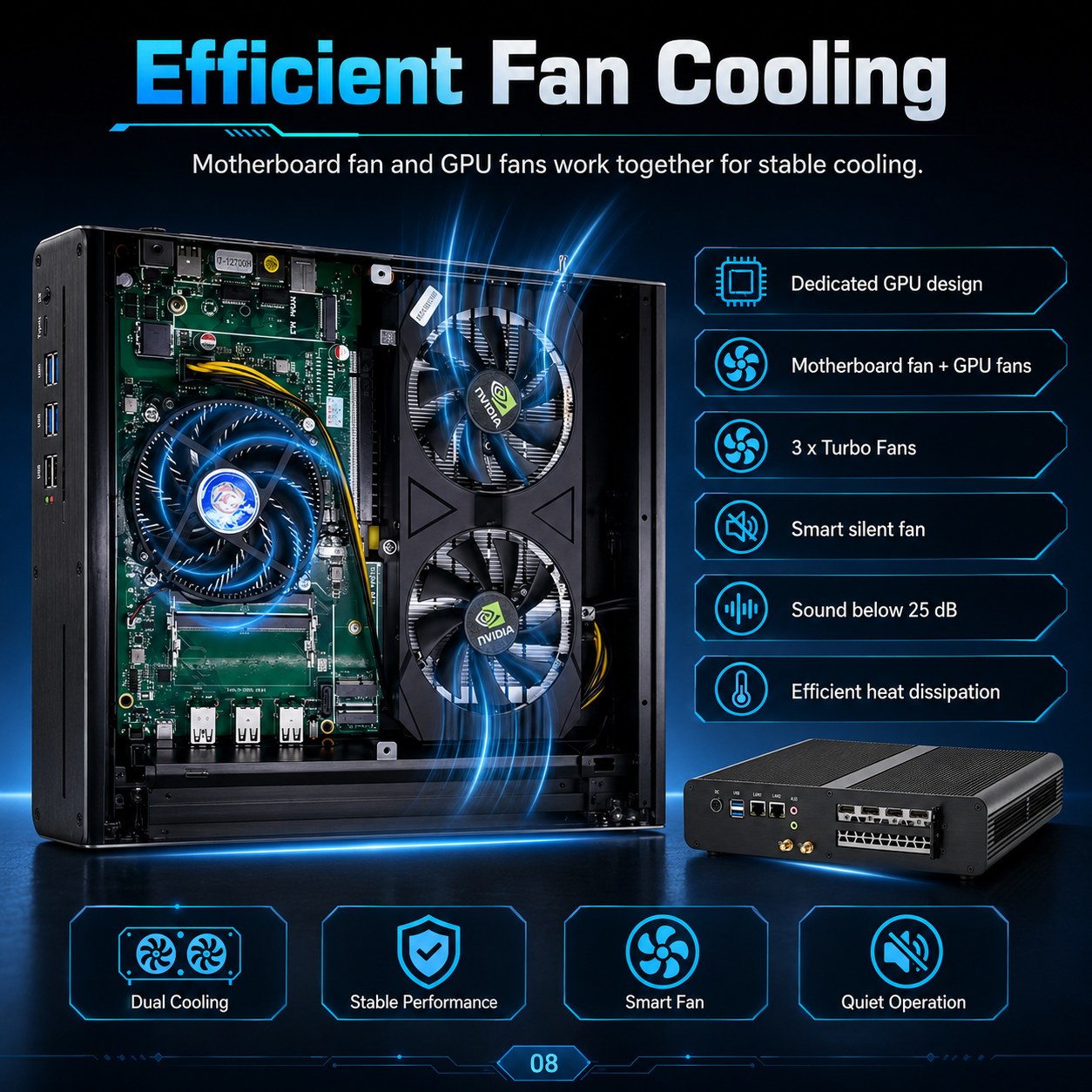

| Cooling Mode | Smart silent fan, sound below 25 decibels (place it vertically to reduce the fan speed & sound effectively) |
| Power Supply | DC100-240V AC/50-60Hz, 19V/15.79A |
| Heat-sink | 3 x turbo Fan |
| Packing List | HT230 Mini pc, power supply, power cord, vertical stand, warranty card |
| Mechanical | |
| Material | Aluminum alloy |
| Colour | Black |
| Size | 320mm(L)x240mm(W)x57mm(H) |
| Weight | 5Kgs |
| Insallation Method | Desktop type |
| Operating Temperature | 0°C~50°C Centigrade |
| Storage Temperature | ‘-20°C~80°C Centigrade |
| Relative Humidity | 10%~90% (non-condensing) |
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| HT230 | I7 10870H | Nvidia GeForce RTX 3070M 8G | 2.2~5.0 GHz | 2*HDMI/2*DP | 2 x SO-DIMM DDR4 | 2 x M.2 2280 SATA SSD/ 1 x 2.5-inch SATA SSD/HDD | 2 | 8 | 19V/15.79A |
| Nvidia GeForce RTX 3060M 12G | |||||||||
| GeForce GTX1660S 6G GDDR6 | |||||||||
| RTX4060 8GB / RTX5060 8GB | 1*HDMI/3*DP | ||||||||
| HT230 | I9 10980HK | Nvidia GeForce RTX 3070M 8G | 2.4~5.3 GHz | 2*HDMI/2*DP | 2 x SO-DIMM DDR4 | 2 x M.2 2280 SATA SSD/ 1 x 2.5-inch SATA SSD/HDD | 2 | 8 | 19V/15.79A |
| Nvidia GeForce RTX 3060M 12G | |||||||||
| GeForce GTX1660S 6G GDDR6 | |||||||||
| RTX4060 8GB / RTX5060 8GB | 1*HDMI/3*DP | ||||||||
| HT230 | i9-11950H | Nvidia GeForce RTX 3070M 8G | max up tp 5GHz | 2*HDMI/2*DP | 2 x SO-DIMM DDR5 | 2 x M.2 2280 SATA SSD/ 1 x 2.5-inch SATA SSD/HDD | 2 | 8 | 19V/15.79A |
| Nvidia GeForce RTX 3060M 12G | |||||||||
| GeForce GTX1660S 6G GDDR6 | |||||||||
| RTX4060 8GB / RTX5060 8GB | 1*HDMI/3*DP | ||||||||
| HT230 | i5-13600H | Nvidia GeForce RTX 3070M 8G | max up tp 4.8 GHz | 2*HDMI/2*DP | 2 x SO-DIMM DDR5 | 2 x M.2 2280 SATA SSD/ 1 x 2.5-inch SATA SSD/HDD | 2 | 8 | 19V/15.79A |
| Nvidia GeForce RTX 3060M 12G | |||||||||
| GeForce GTX1660S 6G GDDR6 | |||||||||
| RTX4060 8GB / RTX5060 8GB | 1*HDMI/3*DP | ||||||||
| HT230 | i7-13620H | Nvidia GeForce RTX 3070M 8G | max up tp 4.9 GHz | 2*HDMI/2*DP | 2 x SO-DIMM DDR5 | 2 x M.2 2280 SATA SSD/ 1 x 2.5-inch SATA SSD/HDD | 2 | 8 | 19V/15.79A |
| Nvidia GeForce RTX 3060M 12G | |||||||||
| GeForce GTX1660S 6G GDDR6 | |||||||||
| RTX4060 8GB / RTX5060 8GB | 1*HDMI/3*DP | ||||||||
| HT230 | i7-13700H | Nvidia GeForce RTX 3070M 8G | max up tp 5.2 GHz | 2*HDMI/2*DP | 2 x SO-DIMM DDR5 | 2 x M.2 2280 SATA SSD/ 1 x 2.5-inch SATA SSD/HDD | 2 | 8 | 19V/15.79A |
| Nvidia GeForce RTX 3060M 12G | |||||||||
| GeForce GTX1660S 6G GDDR6 | |||||||||
| RTX4060 8GB / RTX5060 8GB | 1*HDMI/3*DP |
Please note that the CPU will be updated according to the release time of Intel/AMD.
If the latest CPU is not shown here, please contact our sales team to get the latest information!
