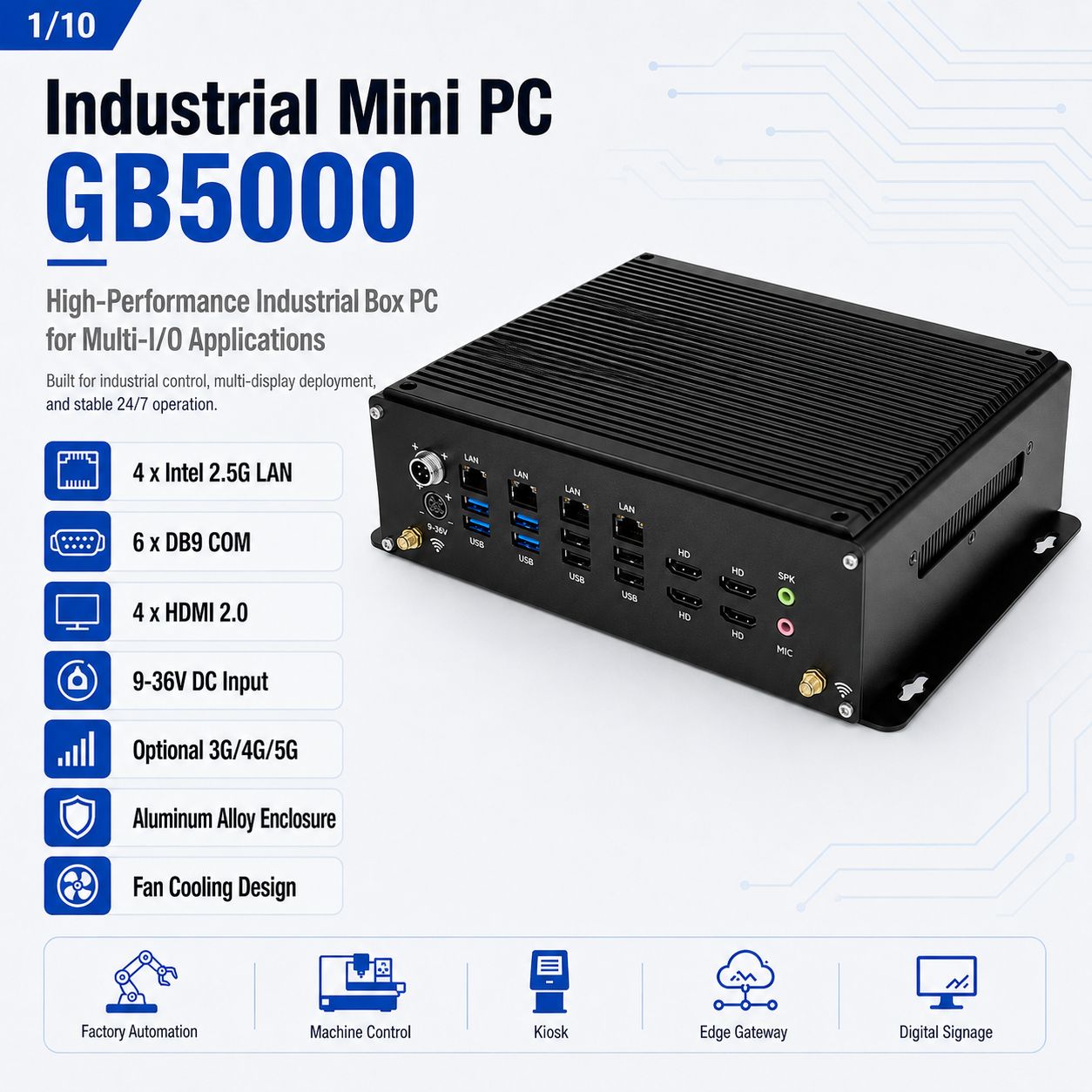

Industrial-Grade Mini PC I7-13th Gen 4 LAN 4 HDMI2.0 For Automation/Edge Computing
Products Features
Model name: GB5000
– Rich interfaces: 4 x RJ45 Gigabit LAN port, 4x HDMI 2.0 (4K@60Hz), supports 4 display outputs synchronously
4 x USB3.0, 4 x USB2.0, MIC, SPK, etc to connect multiple devices.
– Compact size with Cooling fan design, Powerful and stronger performance.
– DDR4 / DDR5 High speed RAM max up to 64 GB.
– Big storage: 2 x M.2 slot for NVME SSD/1*SATA3.0 2.5inch HDD/SSD.
– Embedded SIM Slot for 3G/4G/5 G.
– Support Calls on function automatically, Wake-On-LAN, PXE Booting. Watchdog
Product Details
Specification
Ordering information
Product Details
Our industrial-grade mini PC GB5000 delivers unmatched performance with Intel® Core™ i5/i7 processors, DDR5 RAM, and dual NVMe storage.
Built for harsh environments, it features 6 COM ports, 5G connectivity, and rugged aluminum cooling. Ideal for automation, AI, IoT, and edge computing.
Customizable OEM/ODM options and a 3-year warranty ensure reliability.
Product Features
Powerful Processing:
Intel® Core™ i5-8305G / i7-12650HX / i7-13650HX (14 Cores, 20 Threads, Max 4.9GHz).
DDR4/DDR5 RAM Support:
i5: 2x SO-DIMM DDR4 (Up to 32GB).
i7 12th/13th Gen: 2x SO-DIMM DDR5 (Up to 64GB).
Massive Storage:
2x M.2 NVMe/SATA SSD Slots + 1x SATA3.0 (6Gb/s).
Industrial Connectivity:
4x Intel® i226V LAN Ports (Optional Dual LAN).

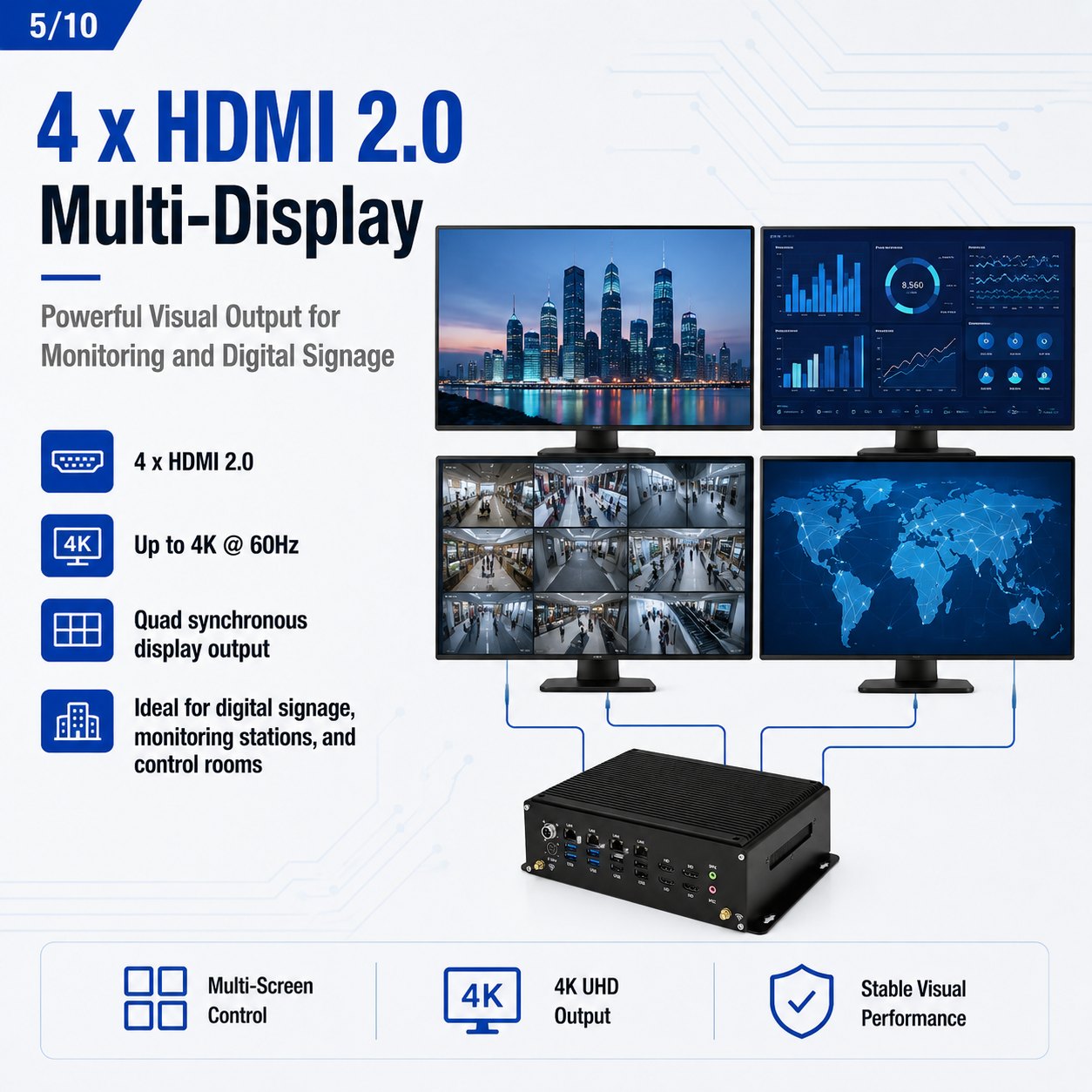

4x HDMI 2.0 (4K@60Hz), 8x USB (4x USB3.0 + 4x USB2.0).

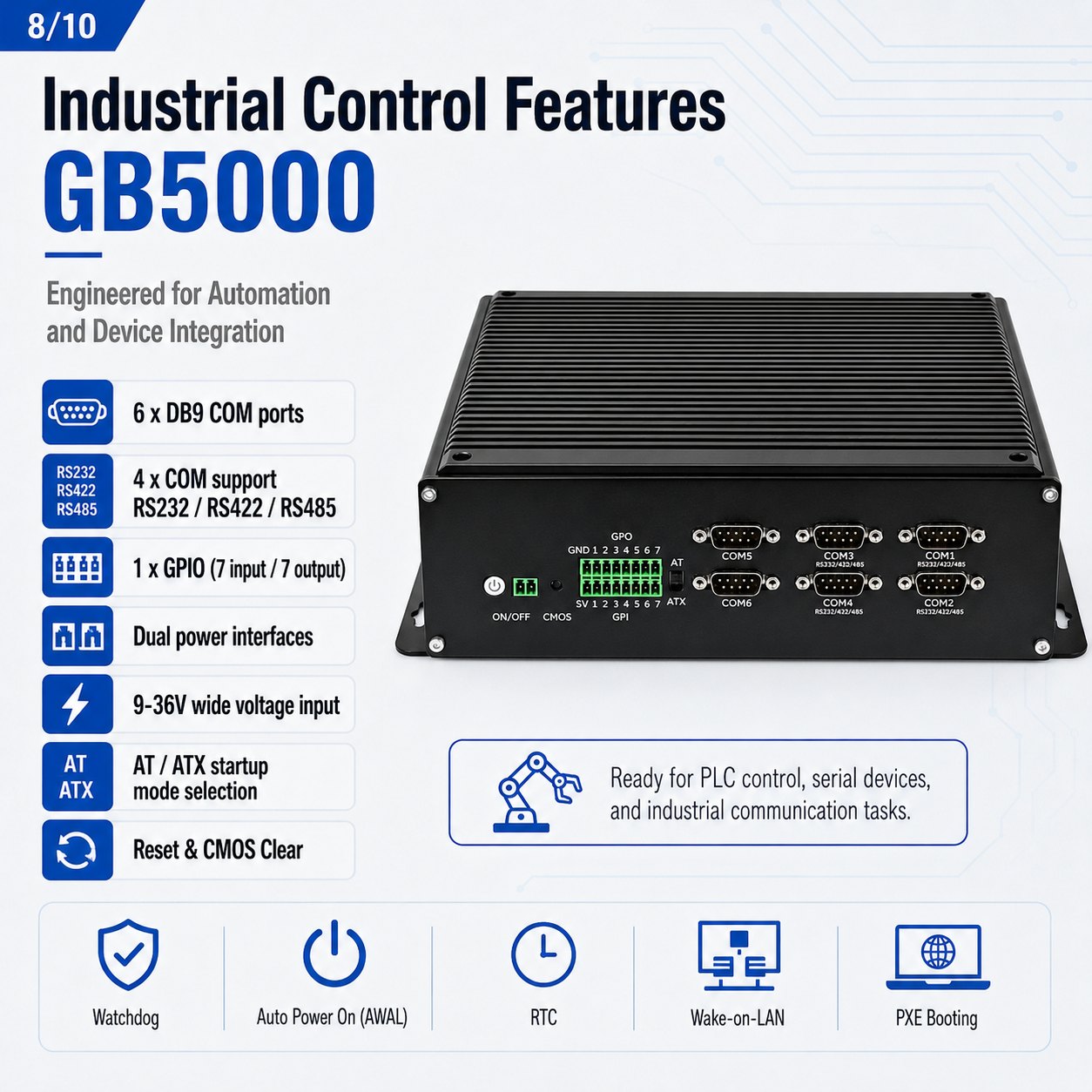

6x DB9 COM Ports (RS422/RS485), GPIO (7pin I/O).
Embedded SIM Slot for 3G/4G/5G.
Robust Design:

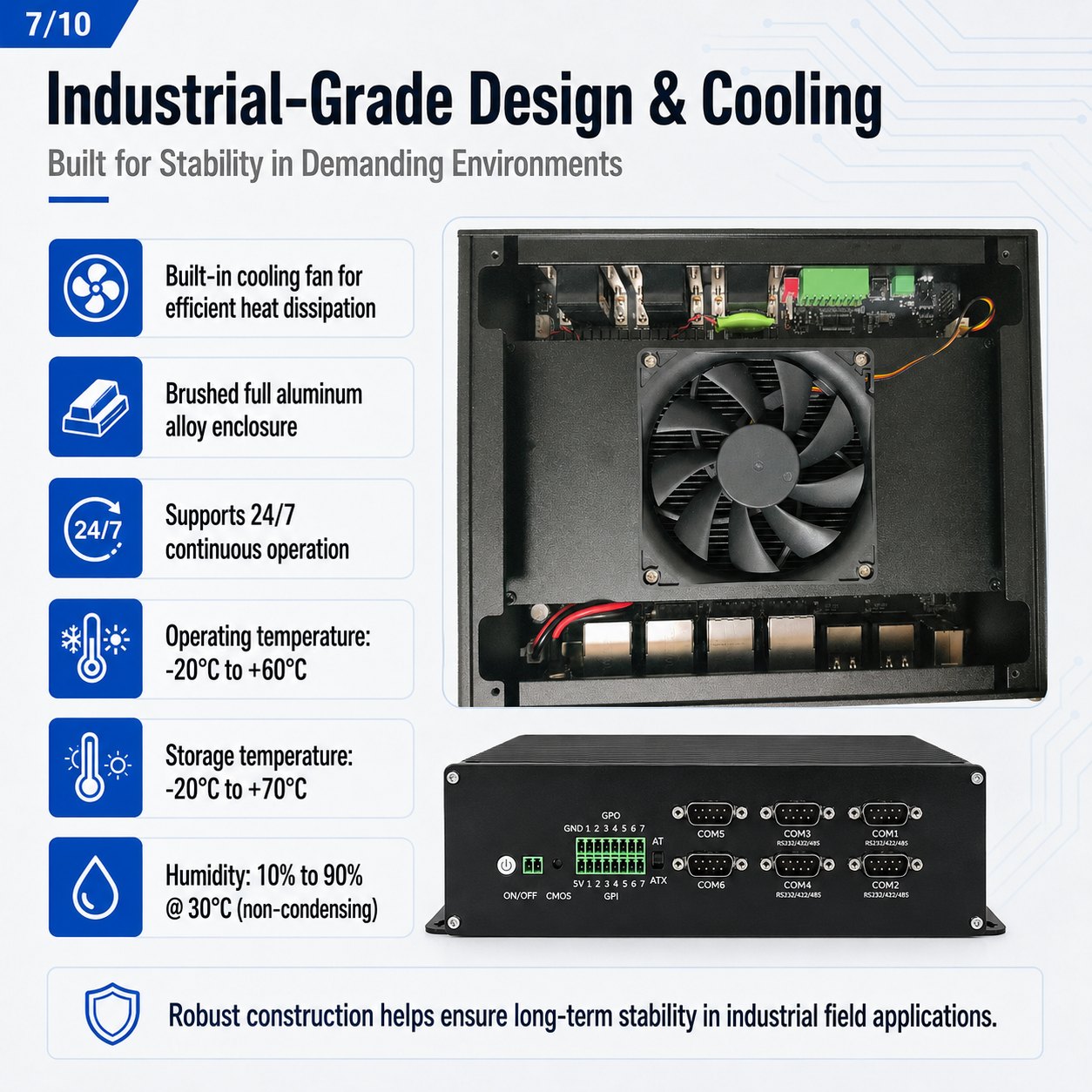

All-Aluminum Chassis with Active Cooling.
Watchdog, PEX, RTC, WOL (ATX Mode), One-Key Reset.
Reliability:
3-Year Warranty + Lifetime Technical Support.
OEM/ODM Customization Available.

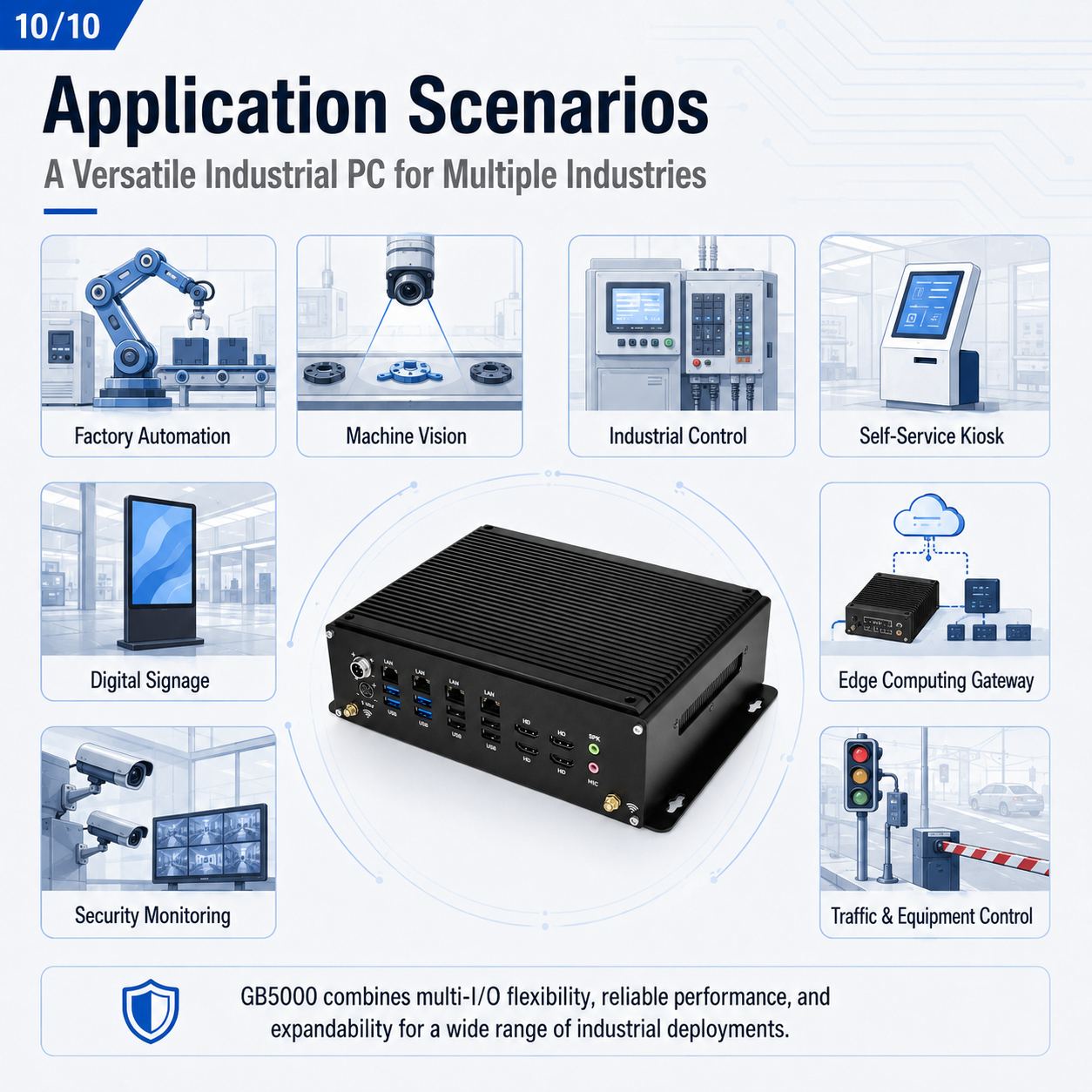

Industrial Automation:
Control machinery with precision via RS422/485 ports and GPIO.
Edge AI & IoT: Run AI models locally with Intel i7’s 14-core power and 5G connectivity.
Smart Transportation: Process traffic data in real-time with 4x HDMI for multi-display dashboards.
Energy Management: Monitor grids using watchdog timers and rugged design for 24/7 operation.
Medical & Retail: Rugged design & Superior quality and Rich I/O Ports can meet the needs of different Peripheral interface.
Robotics: High-speed processing for motion control and sensor integration.
Specification
| Basic Information: | |||

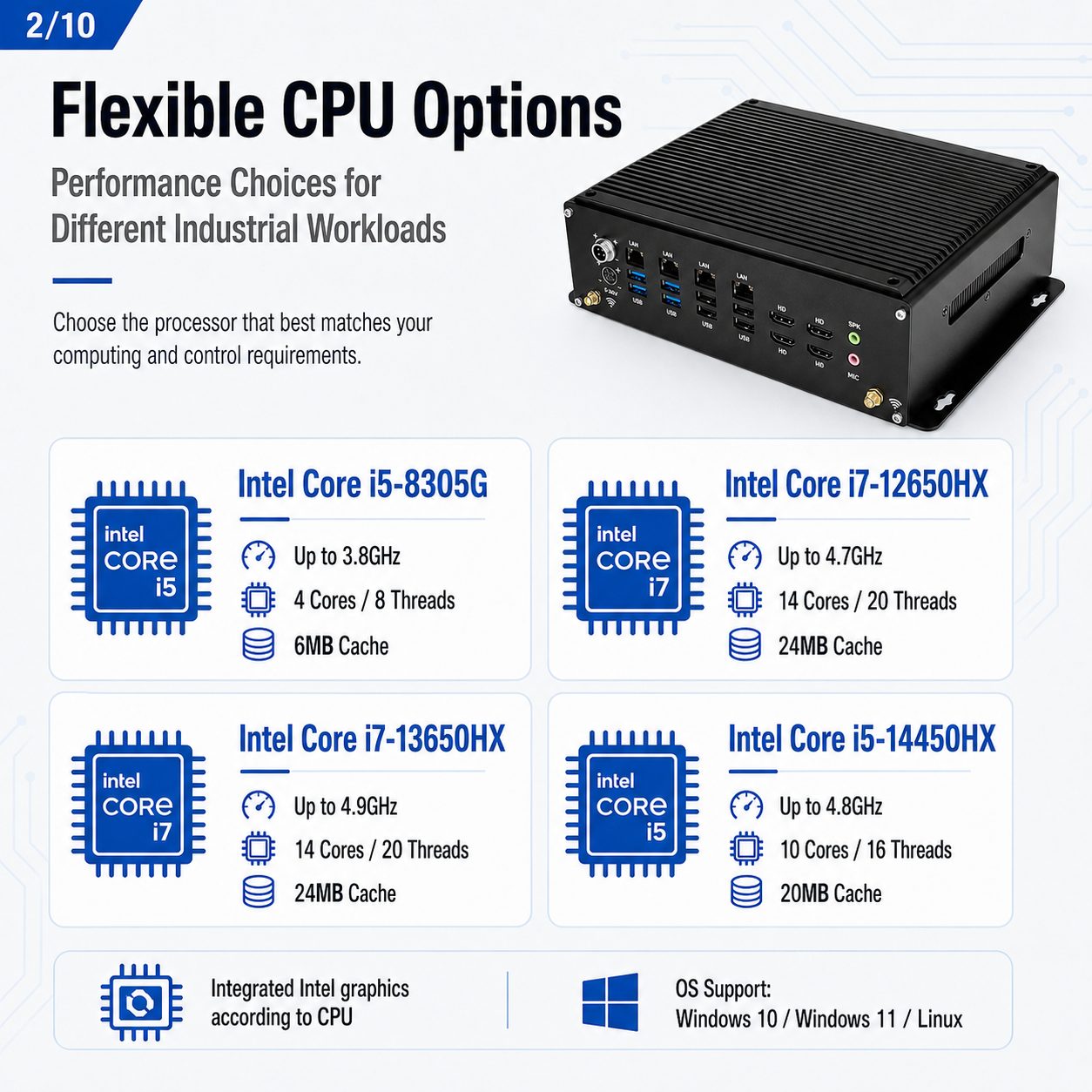

| CPU | 1. Intel Core i5-8305G 2.8GHz Max 3.8GHz Quad Cores 8 Threads 6MB cache TDP 45W Intel® HD Graphics 630 | ||
| 2. Intel Core i7-12650HX Max 4.7GHz 14 Cores 20 Threads 24MB cache TDP 55W Intel® UHD Graphics for 12th Gen Intel® Processors | |||
| 3. Intel Core i7 13650HX Max 4.9GHz 14 Cores 20 Threads 24MB cache TDP 55W Intel® UHD Graphics for 13th Gen Intel® Processors | |||
| TDP | Refer to CPU | ||
| Chipset | Refer to CPU | ||
| BOIS | American Megatrends Inc | ||

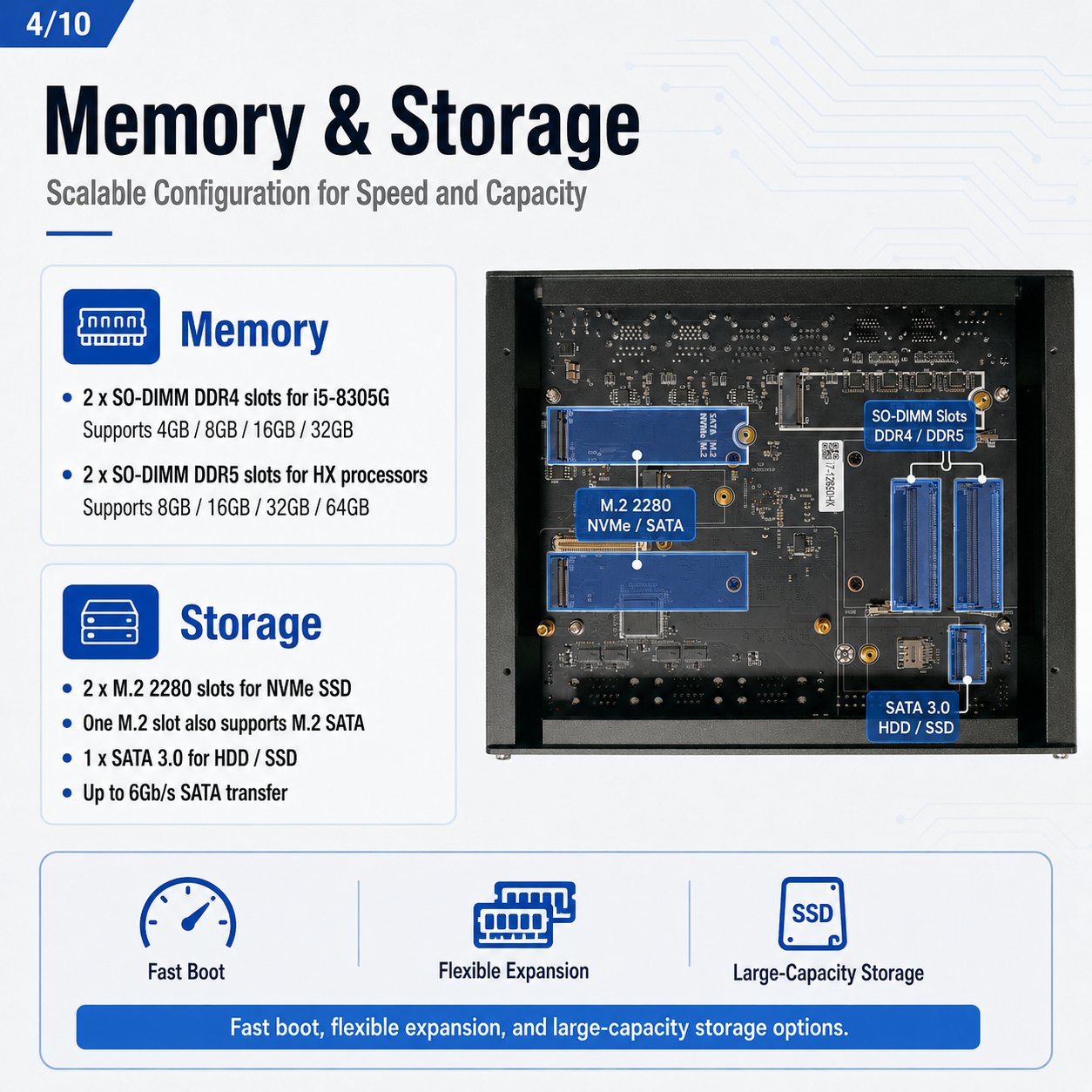

| Memory | 2 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB/32GB (for i5-8305G ) 2 x SO-DIMM DDR5 Slot Support 8GB/16GB/32GB/64GB (for i7 12-13th gen) | ||
| OS | Windows 10/11/Linux | ||
| Audio | Intel High Definition Audio Controller | ||
| Network | 4 x Intel(R) i226V(optional 2Lan) | ||
| Video | Refer to CPU | ||
| Storage: | |||
| M.2 SSD | 2 x M.2 slot for NVME 2280 SSD(one of them support M.2 SATA) | ||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, supports 6Gb/s | ||
| Wi-Fi: | |||

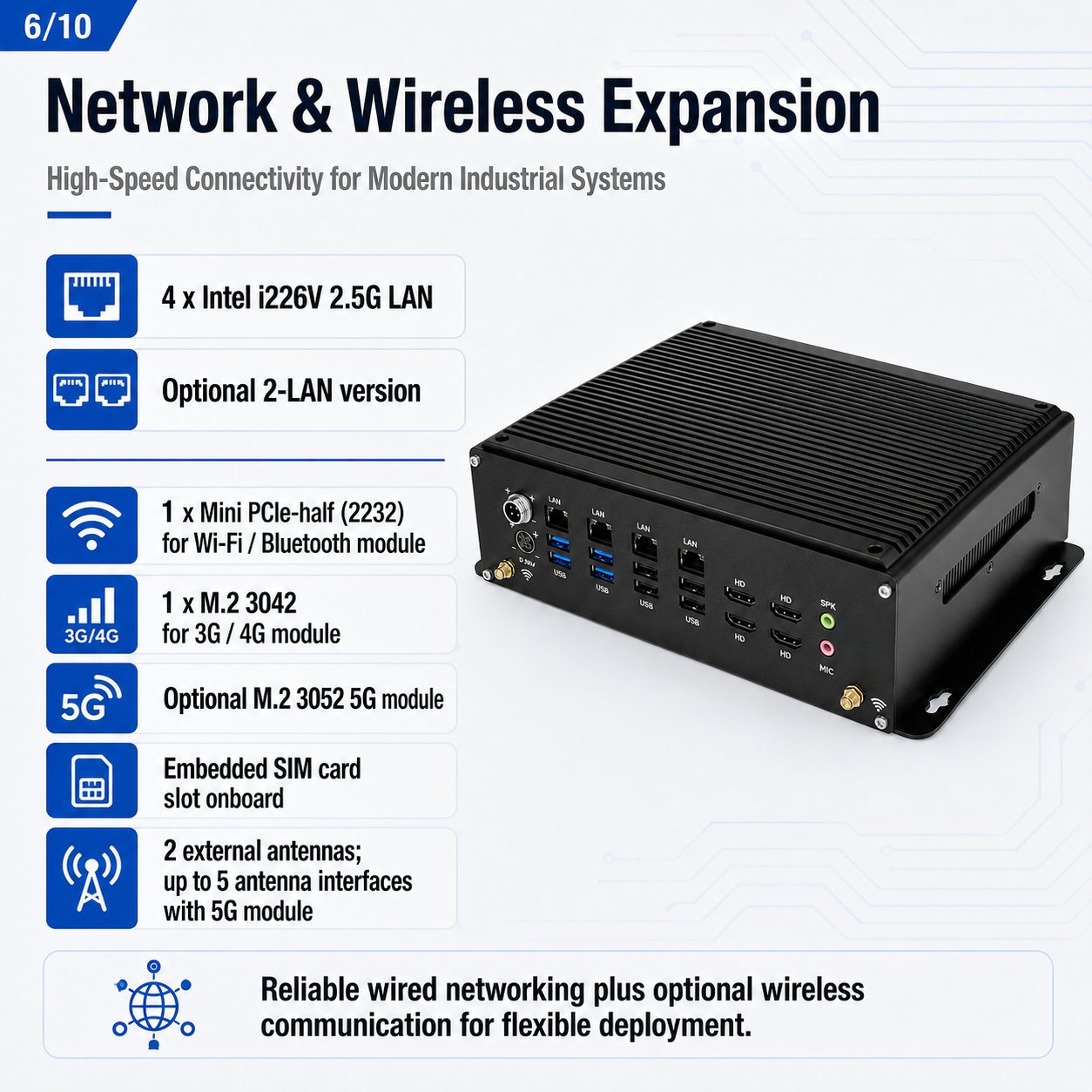

| Module | 1 x mini PCIE-half port(2232) for Wi-Fi/Bluetooth module 1 x M.2 3042 3G/4G module, on-board SIM card slot (optional 3052 5G module) | ||
| Antenna | 2 x inner RF cables and 2 x external antennas(When supporting 5G modules, there are 5 antenna interfaces) | ||

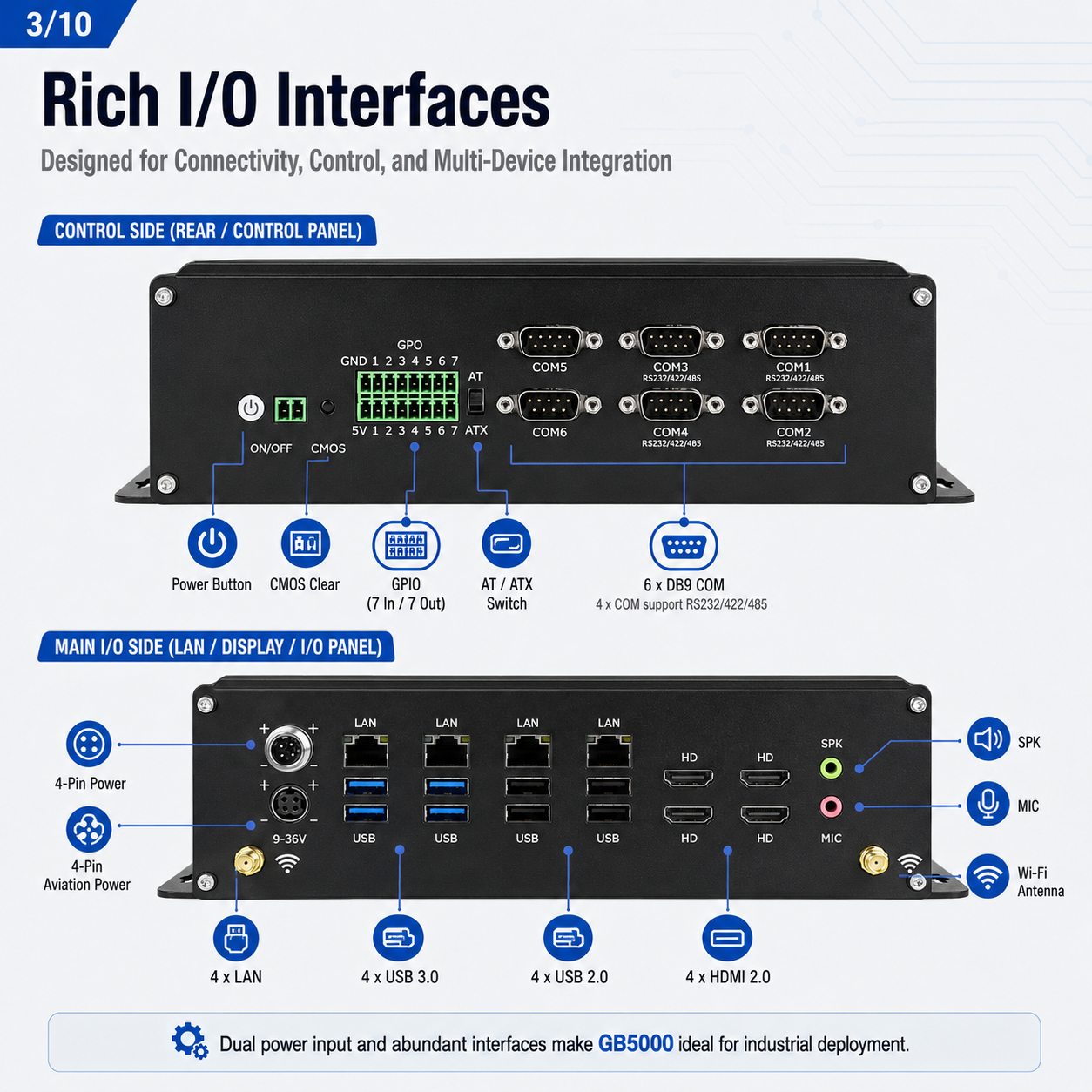

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | Dual power interfaces, 4-pin round pin or 4-pin aviation plug, supporting 9-36V power input | ||
| USB | 4 x USB3.0 ，4 x USB2.0 | ||
| Display | 4 x HDMI 2.0（4K@60Hz） | ||
| LAN | 4 x Intel i226V 2.5G(2Lan optional) | ||
| Audio | 1 x MIC, 1 x SPK | ||
| COM | 6 x DB9 COM(4xCOM support RS422/RS485) | ||
| GPIO | 1 x GPIO( 7pin input, 7pin output) | ||
| SIM | 1 x embedded SIM card slot onboard support 3G/4G/5G network | ||
| ATX/AT | 1 x dip switch, supporting ATX/AT startup mode selection | ||
| Others | 1 x Reset, 1 x CMOS clear bution, 1 x 2pin Phoenix terminal power supply input | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +9V~+36V, recommend 19.5V-12.3A | ||
| Operating Temperature | -20/+60 Centigrade | ||
| Storage Temperature | -20/+70 Centigrade | ||
| Relative Humidity | 10%~90%@30 Centigrade (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | PEX, Watchdog, One key reset, AWAL, RTC, WOL(ATX mode) | ||

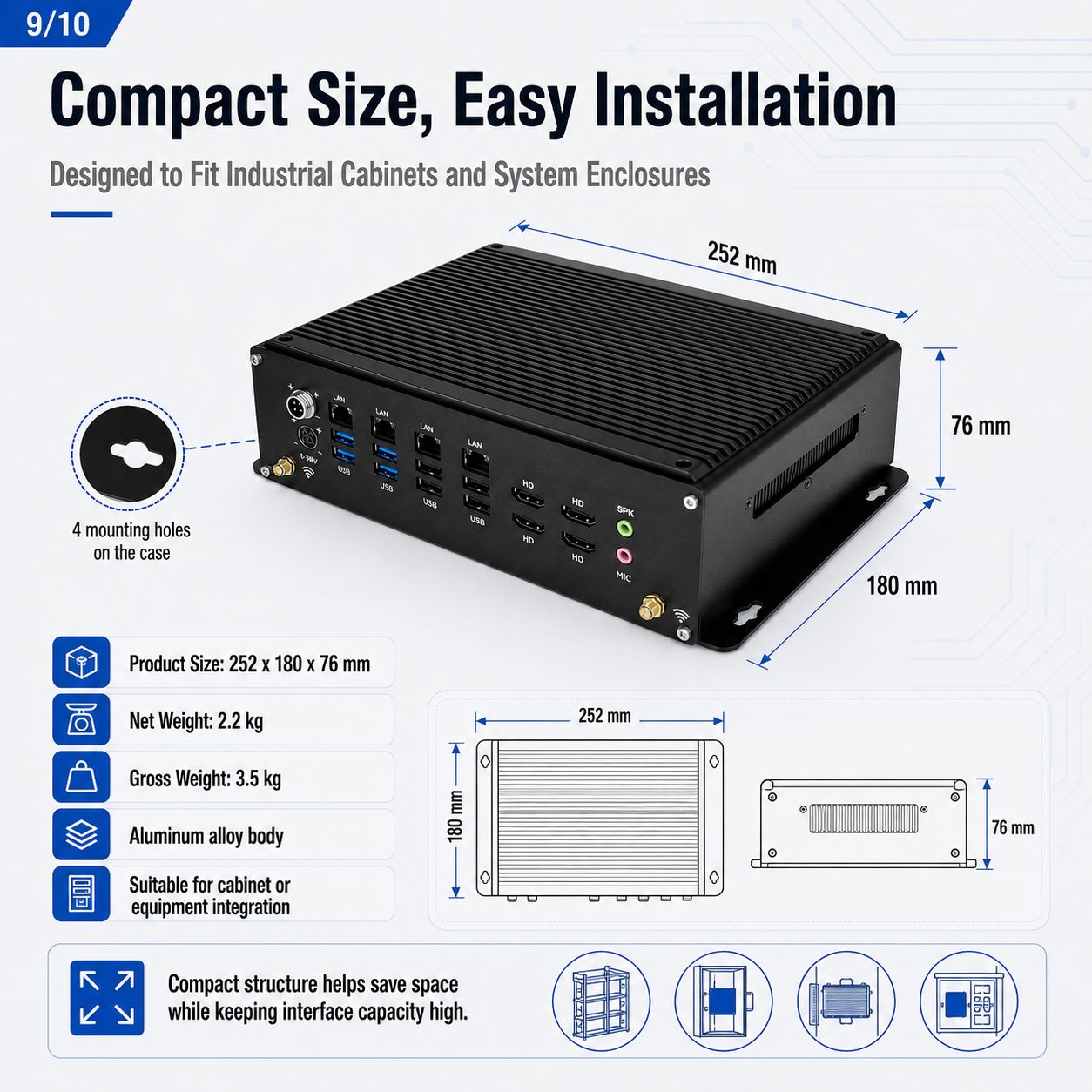

| Size | 252 x 180 x 76 mm | ||
| Weight | NW 2.2KG, GW 3.5KG | ||
| Shell | Aluminum alloy body | ||
| Mounting | 4 mounting holes on case | ||
| Cooling Mode | Smart Cooling Fan | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,Wi-Fi antennas | ||
| Optional | 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | COM | USB | Power |
| GB5000 | i5-8305G | Intel® HD Graphics 630 | 2.8GHz up to 3.8GHz | 28W | 4 x HDMI2.0 | 2 x SO-DIMM DDR4 up to 64GB | 2 x M.2 NVME/SATA 1 x 2.5inch SATA | 4 | 6 | 4 x USB3.0 4 x USB2.0 | 19.5V-12.3A |
| GB5000 | i7-12650HX | Intel® UHD Graphics | up to 4.7GHz | 55W | 4 x HDMI2.0 | 2 x SO-DIMM DDR5 up to 64GB | 2 x M.2 NVME/SATA 1 x 2.5inch SATA | 4 | 6 | 4 x USB3.0 4 x USB2.0 | 19.5V-12.3A |
| GB5000 | i7 13650HX | Intel® UHD Graphics | up to 4.9GHz | 55W | 4 x HDMI2.0 | 2 x SO-DIMM DDR5 up to 64GB | 2 x M.2 NVME/SATA 1 x 2.5inch SATA | 4 | 6 | 4 x USB3.0 4 x USB2.0 | 19.5V-12.3A |
