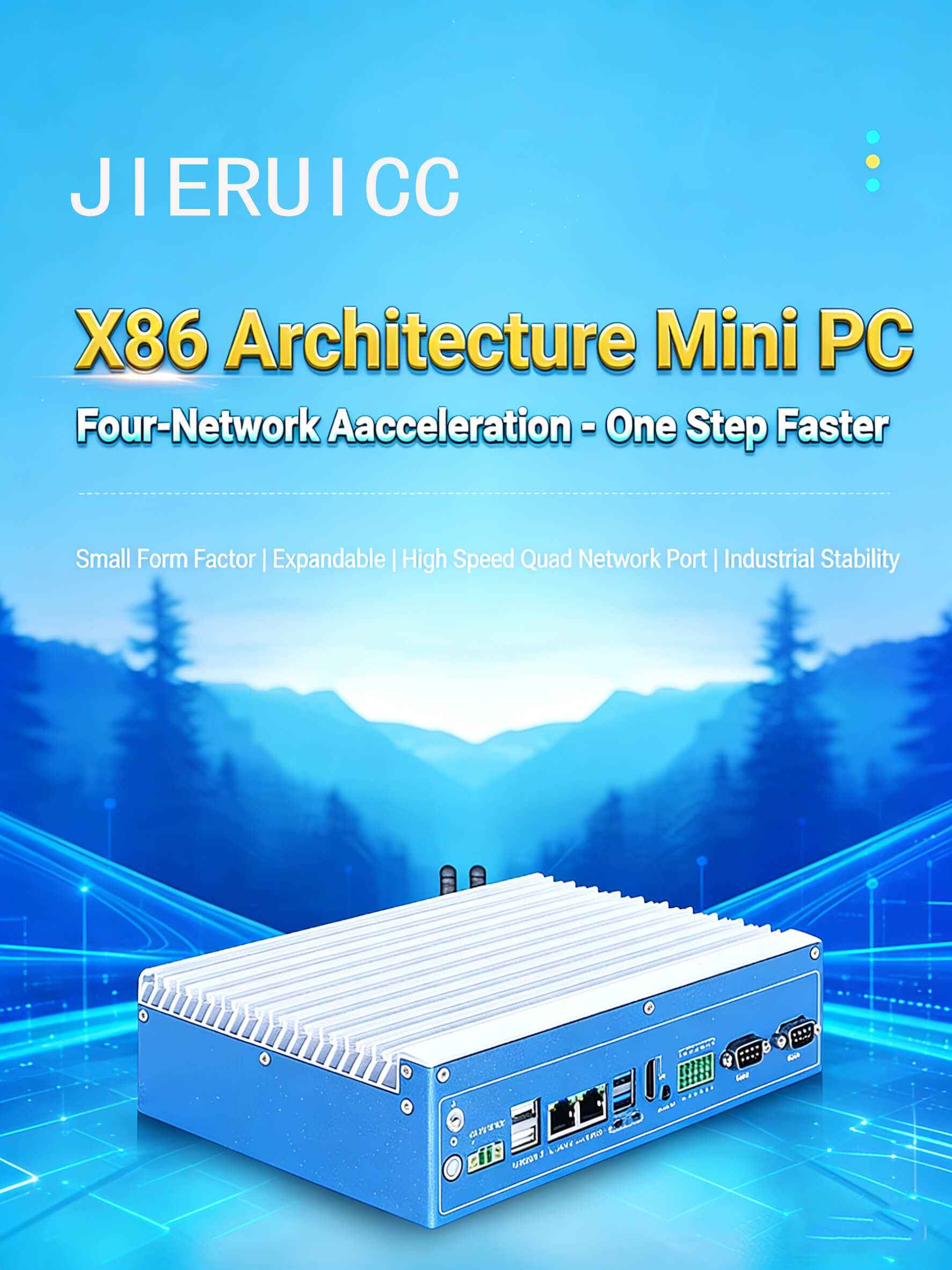

GC1000 Compact Industrial Computer | Wide Temperature IPC
Model name: GC1000
Products Features
1. Compact Design: Measures 230mm x 165mm x 57.1mm with an integrated dedicated board structure.
2. Processor Flexibility: Supports a range of Intel processors, from Celeron J6412/N97~N305 to Core i3/i5/i7.
3. Expansion Ready: Offers flexible expansion slots for various add-on card applications.
4. High-Speed Networking: Capable of dual 2.5GbE + dual Gigabit Ethernet ports for enhanced communication.
5. Multi-Display Output: Features simultaneous display via DP and HDMI (4K@60Hz) interfaces.
6. Comprehensive I/O: Provides abundant connectivity, including 8 USB ports and 6 COM ports.

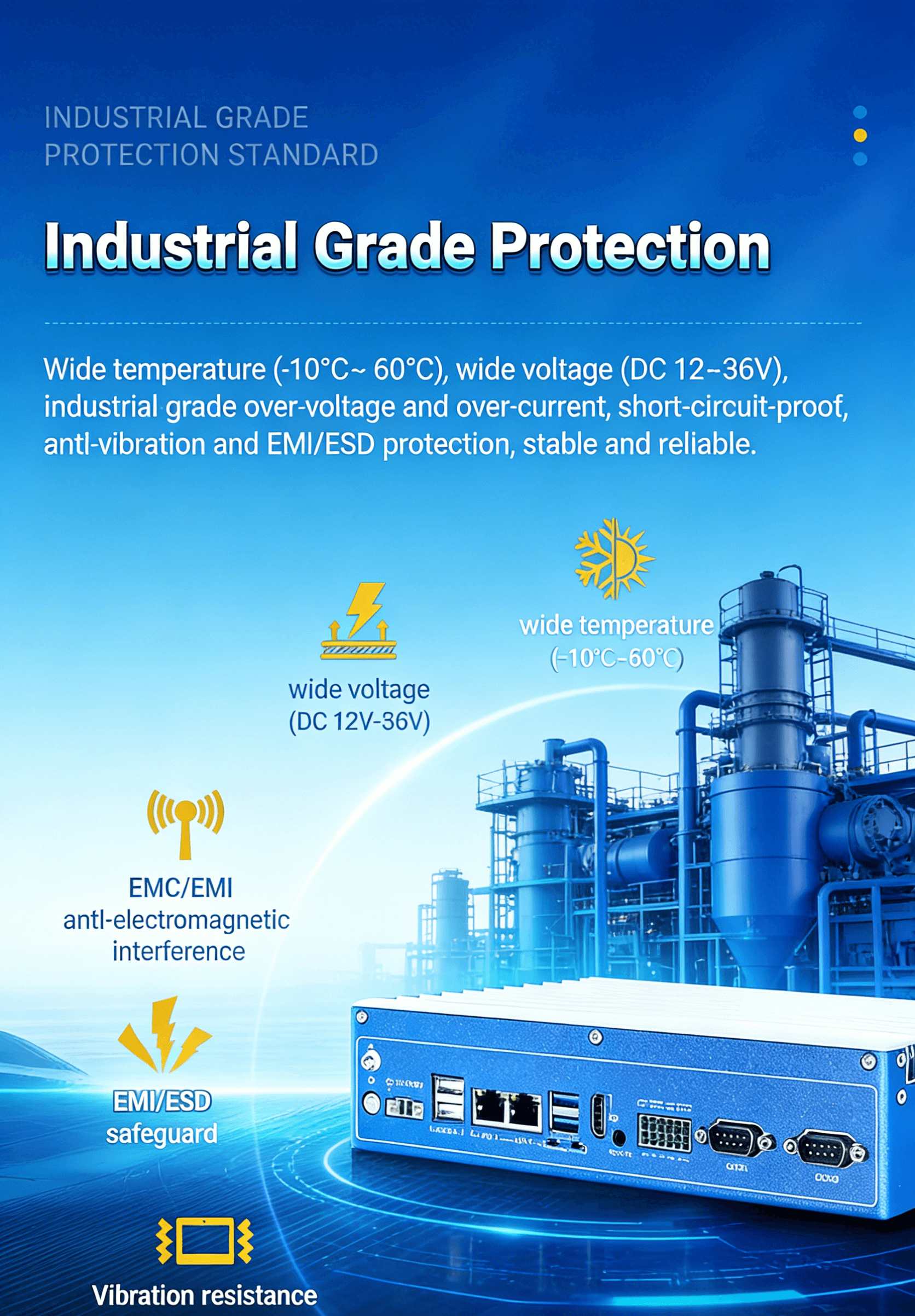

7. Rugged Operation: Designed for harsh conditions with a wide temperature/voltage range and EMI/ESD/vibration protection.
Product Details
Specification
Ordering information
Product Details

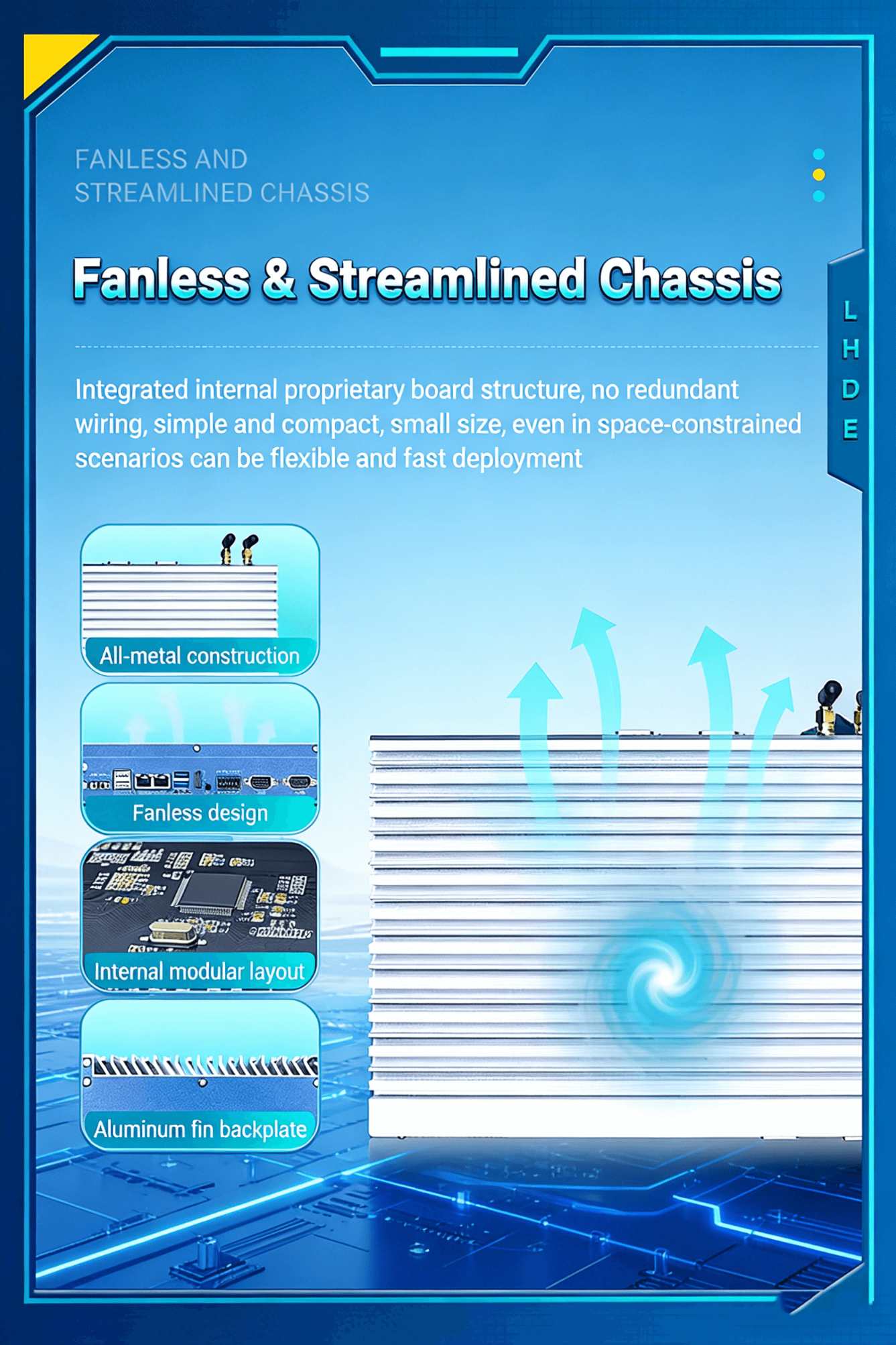

GC1000 industrial computer is a compact and small-sized industrial computer with SGCC closed body + full aluminum back fins, which is sturdy, dust-proof, and highly efficient in heat dissipation. An internally integrated special board design, with no redundant cables, is more stable and reliable. Supports Intel® J6412, N97, and 8th/10th/12th generation i-series chips, providing excellent computing performance and response speed. With 2*2.5 GbE+2*GbE high-speed quad-network communication and rich I/O interfaces, the high bandwidth + multi-expansion capability will accelerate the process of industrial intelligence and is suitable for industrial automation, vision inspection, data acquisition, edge computing, and other scenarios.
Specification
| Basic Information: | |||
| CPU | Intel Celeron J6412 4 cores/4 threads, base frequency 2.00 GHz, maximum turbo frequency 2.6 GHz,Intel® UHD Graphics | ||
| TDP | 10W | ||
| Chipset | Intel SOC | ||
| BOIS | AMI BIOS, ACPI supported | ||
| Memory | DDR4-2133/2400MHz, 4GB/8GB/16GB/32GB/64GB Optional | ||
| OS | Windows 10/11/Linux | ||
| Network | Onboard 2* intel i226 2.5G Ethernet Port | ||
| Video | integrated graphics | ||
| 3G / 4G | 3G/4G Module support. with SIM Card slot | ||
| Storage: | |||
| Msata | 1 x Msata | ||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| M.2 | 1 x M.2 2280 Nvme/SATA | ||
| Wi-Fi: | |||
| Module | Built-in M.2 PCIE protocol WIFI , USB protocol Bluetooth 5.0 | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

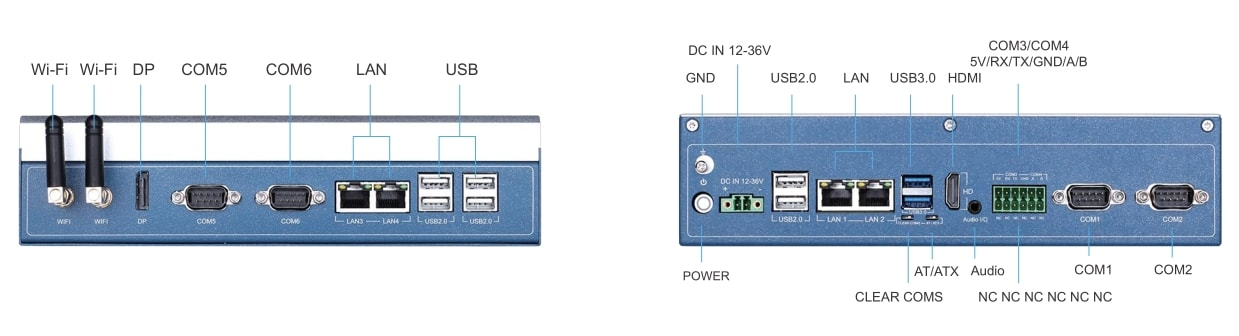

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1*2P Phoenix terminal (supports 12-36V) | ||
| SIM | 1 x SIM Card slot | ||
| Phoenix Terminal | 1*12P Phoenix terminal (232/485/NC, see specifications for details) | ||
| GND | 1 x GND | ||
| USB | 2 x USB2.0, 4 x USB3.0 | ||
| Display | 1 x HDMI | ||
| 1 x DP | |||
| COM | Supports 5*RS232 serial sockets and 1*RS485 | ||
| LAN | 4 x RJ45 Giga LAN | ||
| GPIO | Support 8*GPIO | ||
| Audio | 1*Audio Out, supports audio output, headphone jack: 3.5mm standard interface | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Power adapter | 12V/2.5A (3.81-2P phoenix terminal) | ||
| Operating Temperature | -20°C ~ 70°C Centigrade | ||
| Storage Temperature | -30°C ~80°C | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | Calls on function automatically, Wake-On-LAN,PXE | ||

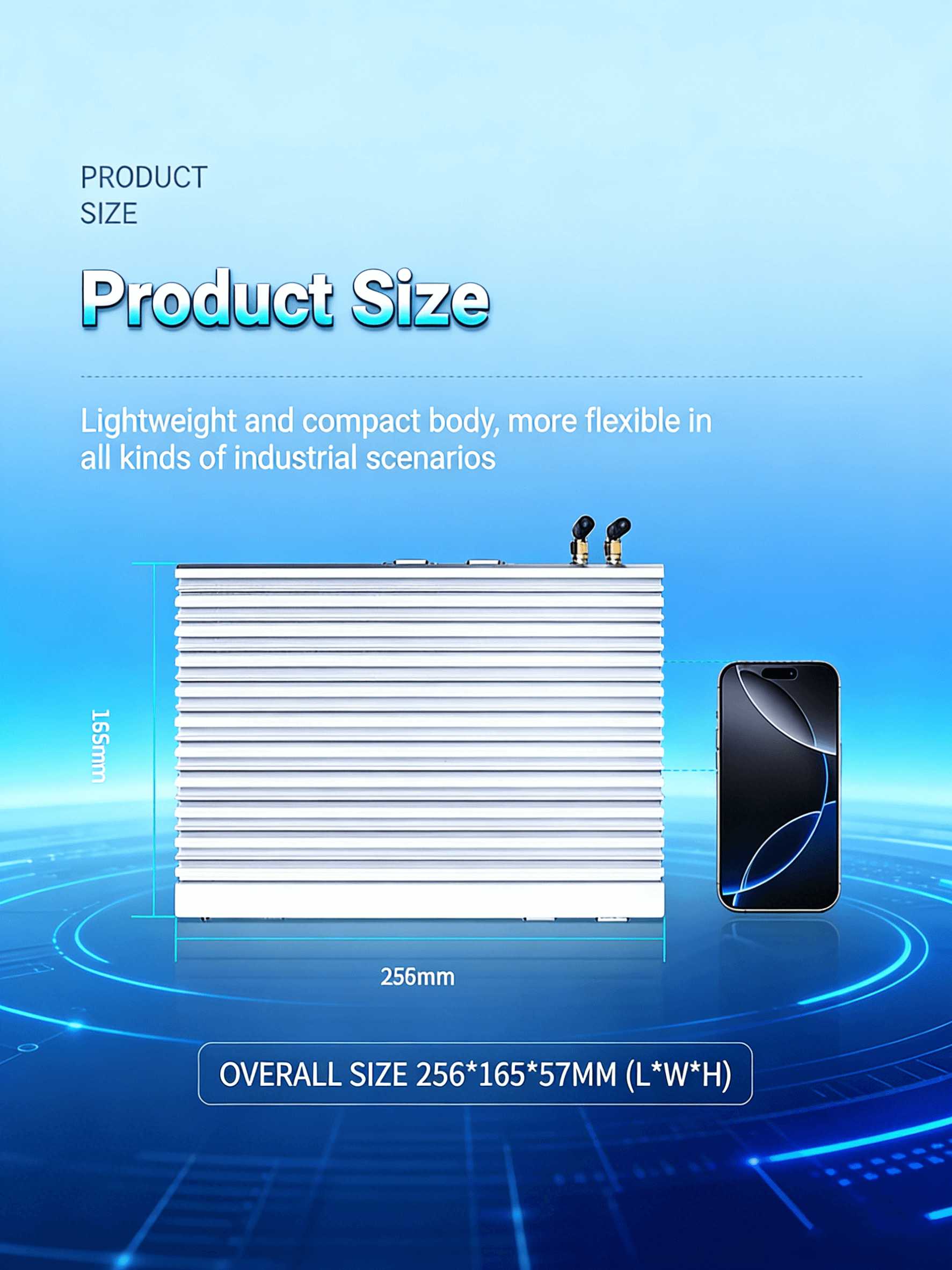

| Size | 230x 165 x 57.1mm | ||
| Weight | Net 1.35kg, Gross 2kg | ||
| Shell | Aluminum Alloy Silver gray + dark blue color | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | GPIO | Memory | Storage | LAN | USB | COM | Power |
| GC1000 | J6412 | Intel® UHD Graphics | 2.0-2.41GHz | 1*DP, 1*HDMI | 8 | 2 x SO-DIMM DDR4 | 1*Msata 1*M.2 NVME 1*2.5inch SSD/HDD | 4 | 6 | 5 | DC in 9-36V 12V/2.5A |
| Please note that the CPU will be updated according to the release time of Intel/AMD. If the latest CPU is not shown here, please contact our sales to get the latest information! | |||||||||||
