Fanless Firewall PC GT196L with 6 Intel I226 LAN for pfSense, OPNsense and VPN Gateway
Model name: GT196L
- 6 x Intel i225 / i226-V+1 x COM RJ45+1 x COM RS232+1 x HDMI,4 x USB3.0
- Intel Core i5 8260U 8265U i3 8140U 3145U Celeron 5205U
- Rich I/O: HDMI, COM RS232, RJ45 RS232, 4 x USB3.0, 6 x LAN, DC-in
- 1 x DDR4 slot, Up to 32GB Ram
- Rich Storage: mSATA SSD, 2.5 Inch SSD/HDD
- Fanless, Watchdog, AWAL, RTC, WOL
- Embedded Expansion: Mini PCIe for WiFi/4G, with SIM slot
Product Details
Specification
Ordering information
Product Details
Product Introduction

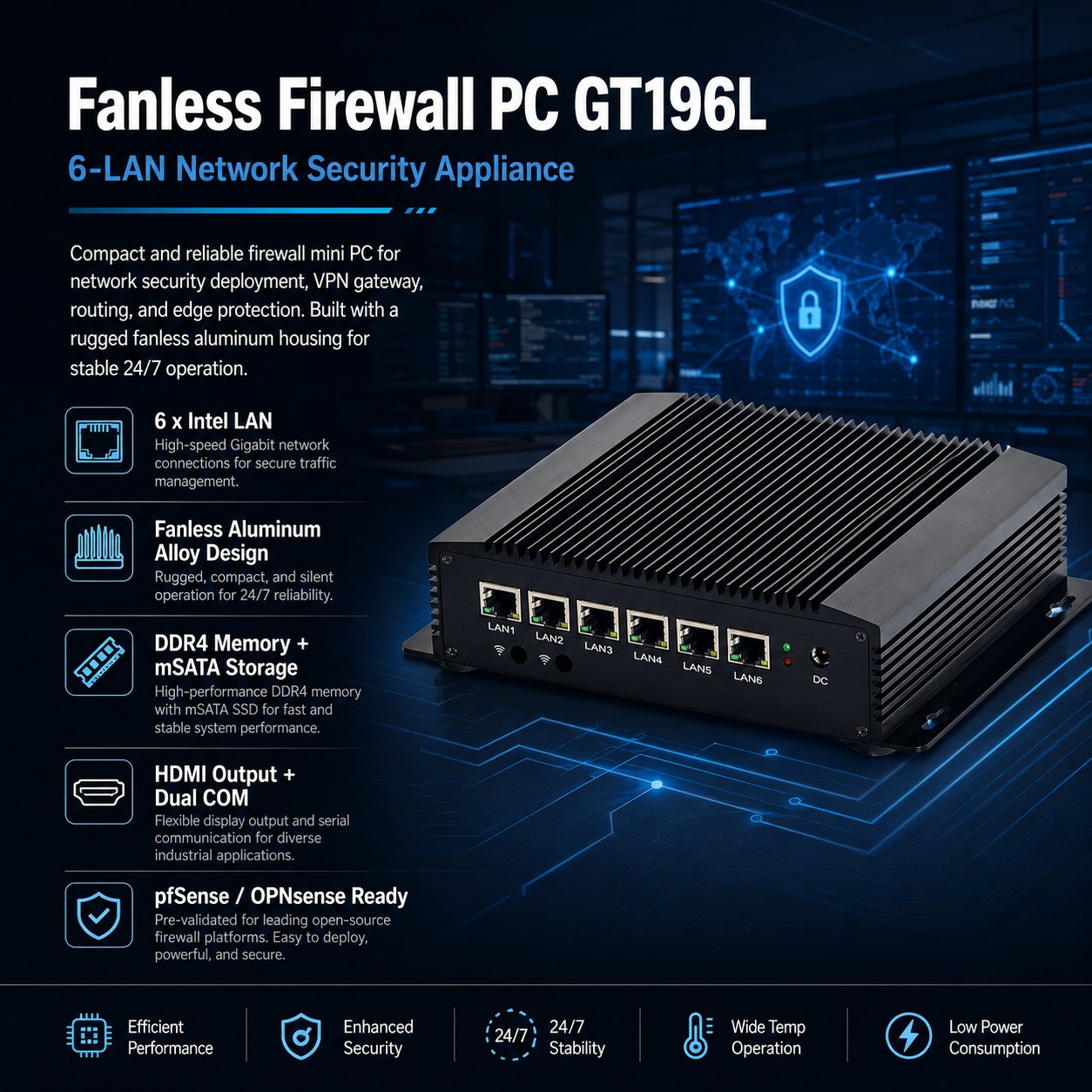

GT196L is a compact fanless firewall PC built for network security, routing, VPN gateway, and edge firewall deployment. It supports Intel Core i3-8140U or Intel Core i5-8260U processors, 6 Intel I226 LAN ports, DDR4 memory, mSATA storage and 2.5” SATA expansion.
The aluminum alloy enclosure works as a passive heat sink, helping the system run quietly and reliably in 24/7 network environments. With AMI BIOS, HDMI, USB 3.0, RS232, console RJ45, Mini PCIe expansion and wide software compatibility, GT196L is suitable for pfSense, OPNsense, Untangle, FreeBSD-based router systems, Linux, and Windows.
Product Features

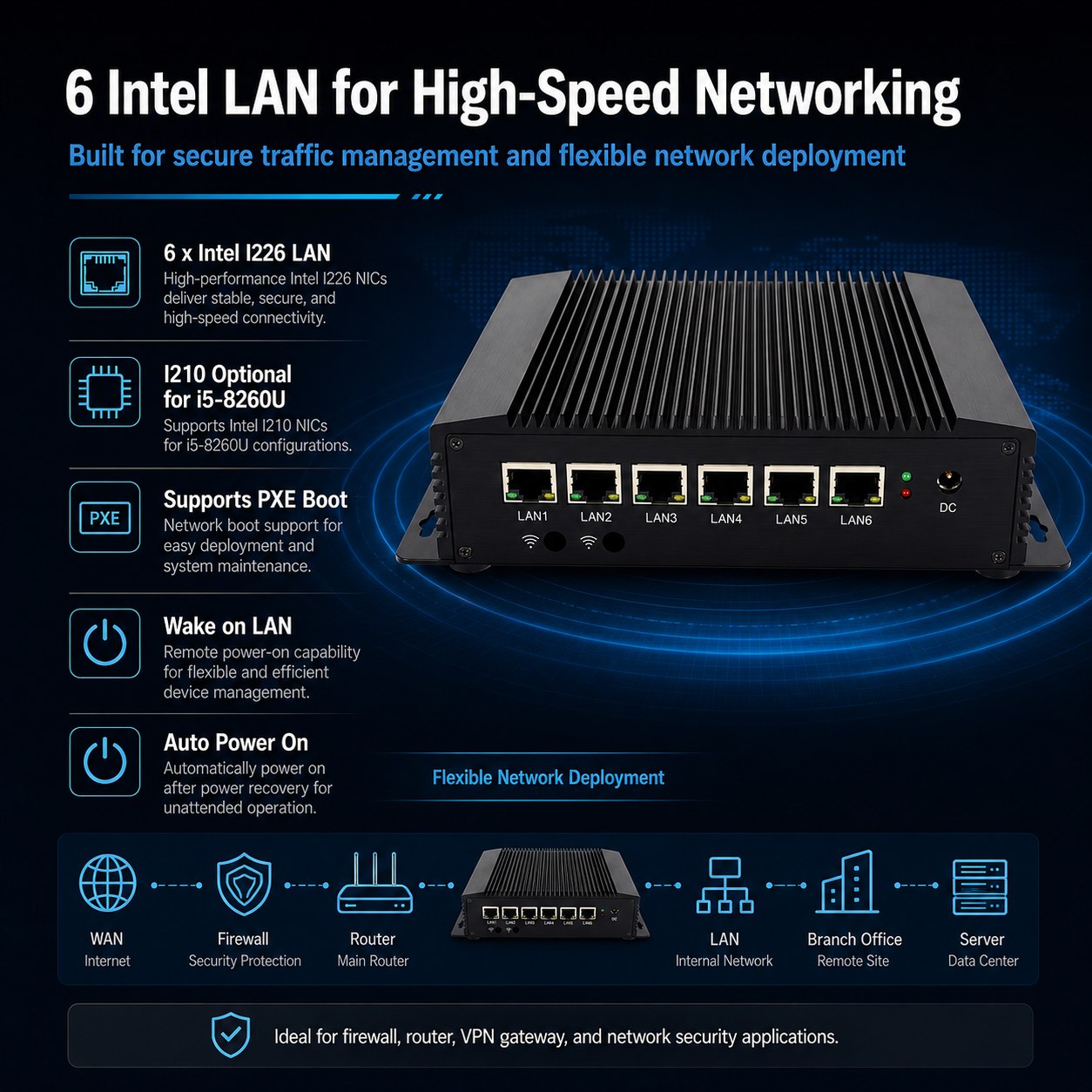

- 6 x Intel I226 LAN ports for firewall, router, and gateway applications
- Intel I210 LAN is optional for the i5-8260U configuration
- Intel Core i3-8140U or Intel Core i5-8260U processor options

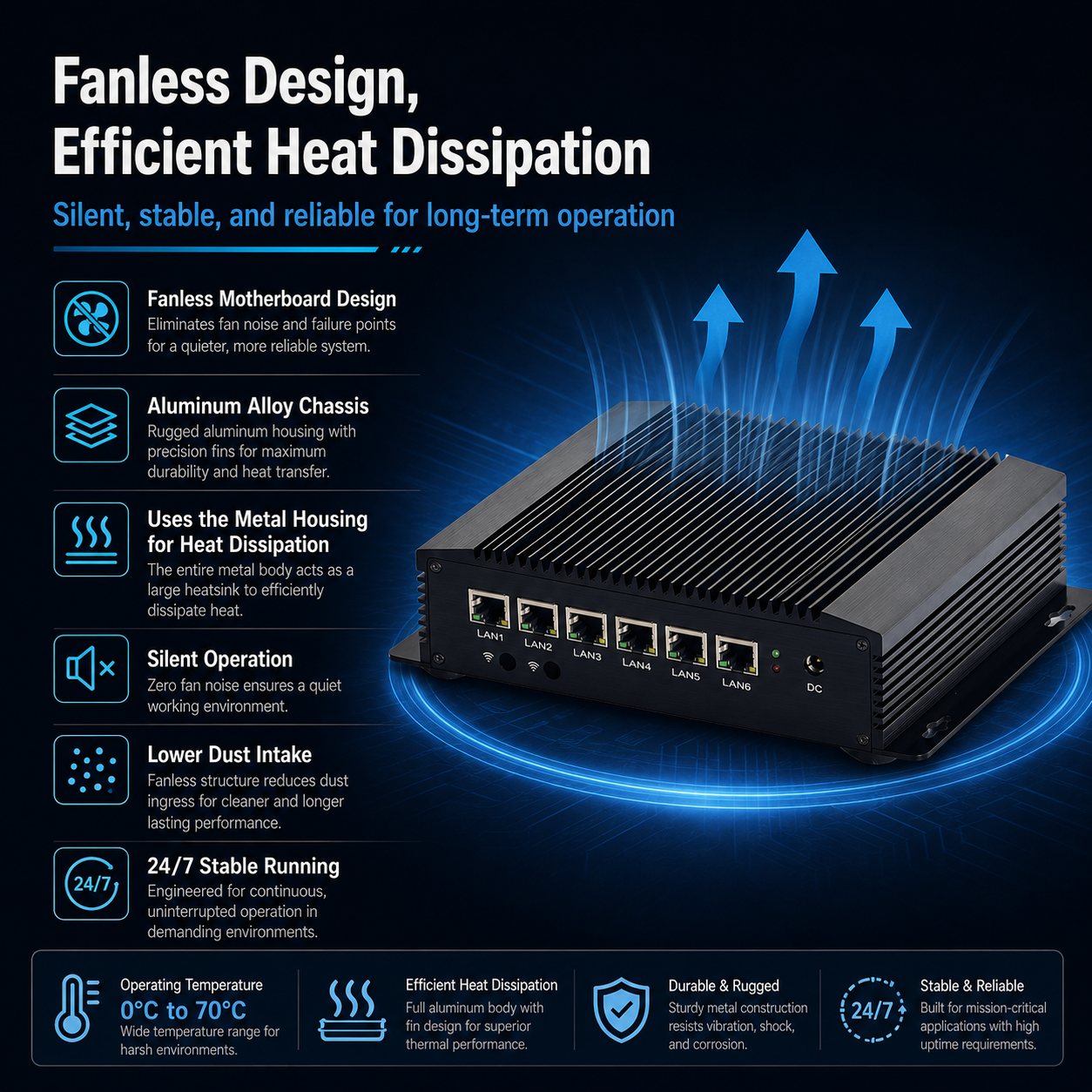

- Fanless aluminum alloy chassis for silent operation and passive cooling
- 1 x SO-DIMM DDR4 memory, up to 32GB RAM
- 1 x mSATA SSD and 1 x 2.5” SATA HDD/SSD bay
- 1 x HDMI output, supports synchronous or asynchronous display
- 4 x USB 3.0, 1 x COM RS232, 1 x Console RJ45 RS232
- 1 x full-length Mini PCIe slot for optional 3G/4G module
- Supports PXE boot, Wake-on-LAN, auto power on, scheduled boot, and watchdog
- Compatible with pfSense, OPNsense, Untangle, FreeBSD router systems, Linux, and Windows

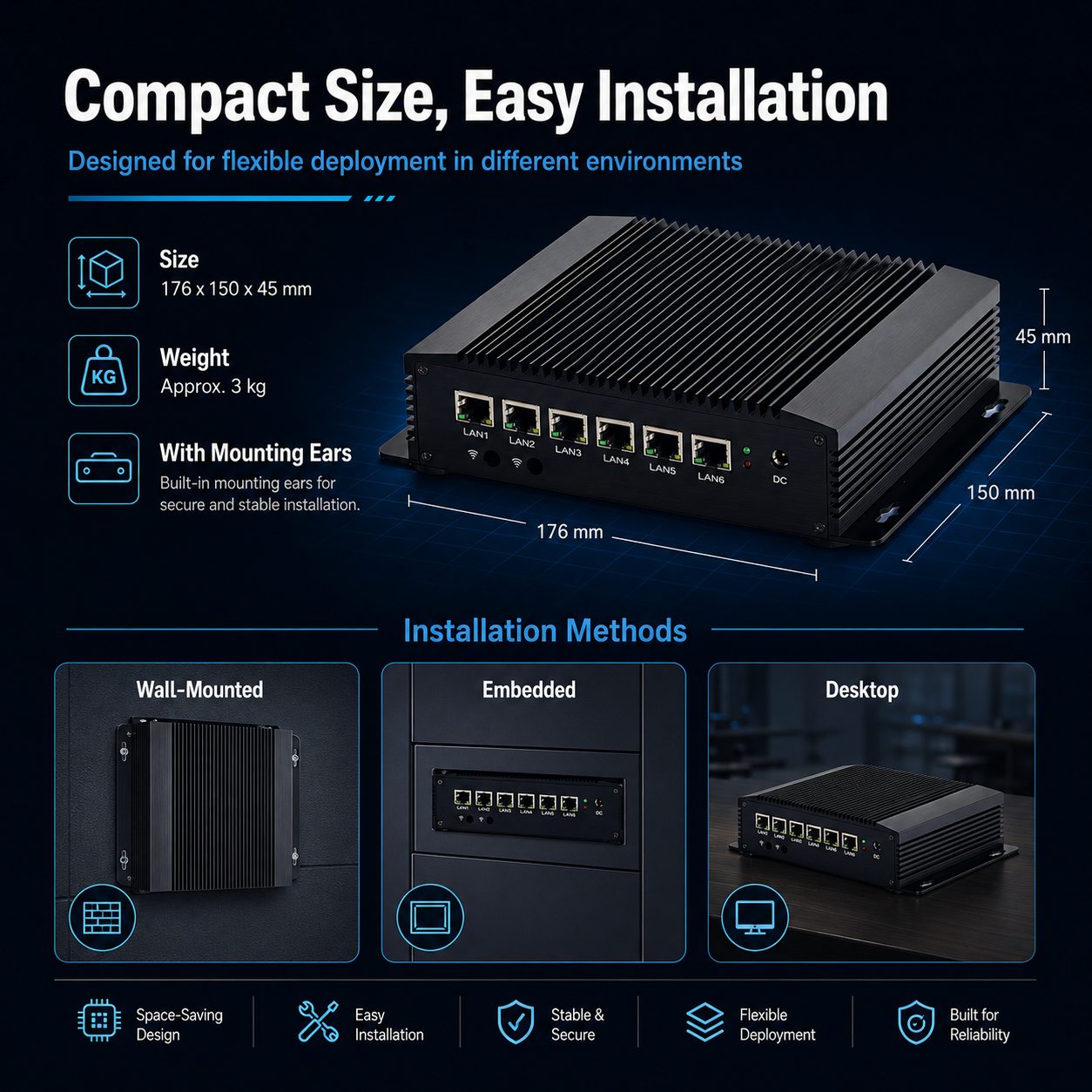

- 176 x 150 x 45 mm compact size with mounting ears
- Supports wall-mounted, embedded, and desktop installation
- DC 12V 5A power input
- Operating temperature: 0°C to 70°C
Product Application Industries
- Enterprise firewall deployment
- VPN gateway and remote access network
- Branch office router
- SMB network security
- IDS / IPS security system
- Edge security gateway
- Industrial network control
- Server room network management
- Network integration projects
- Open-source firewall hardware solutions
Specification
| Mechanical | |
| Material | Aluminum alloy |
| Colour | Black |
| Size | 176 x 150 x 45mm |
| Weight | 3Kgs |
| Installation Method | With mounting ears / Wall-mounted, embedded, desktop |
| Motherboard | |
| CPU | Intel® Core™ i3-8140U Dual core 4threads (4M Cache, 2.1Ghz up to 3.9GHz) |
| Intel® Core™ i5-8260U Quad core 8threads (6M Cache, 2.6Ghz up to 3.90 GHz) | |

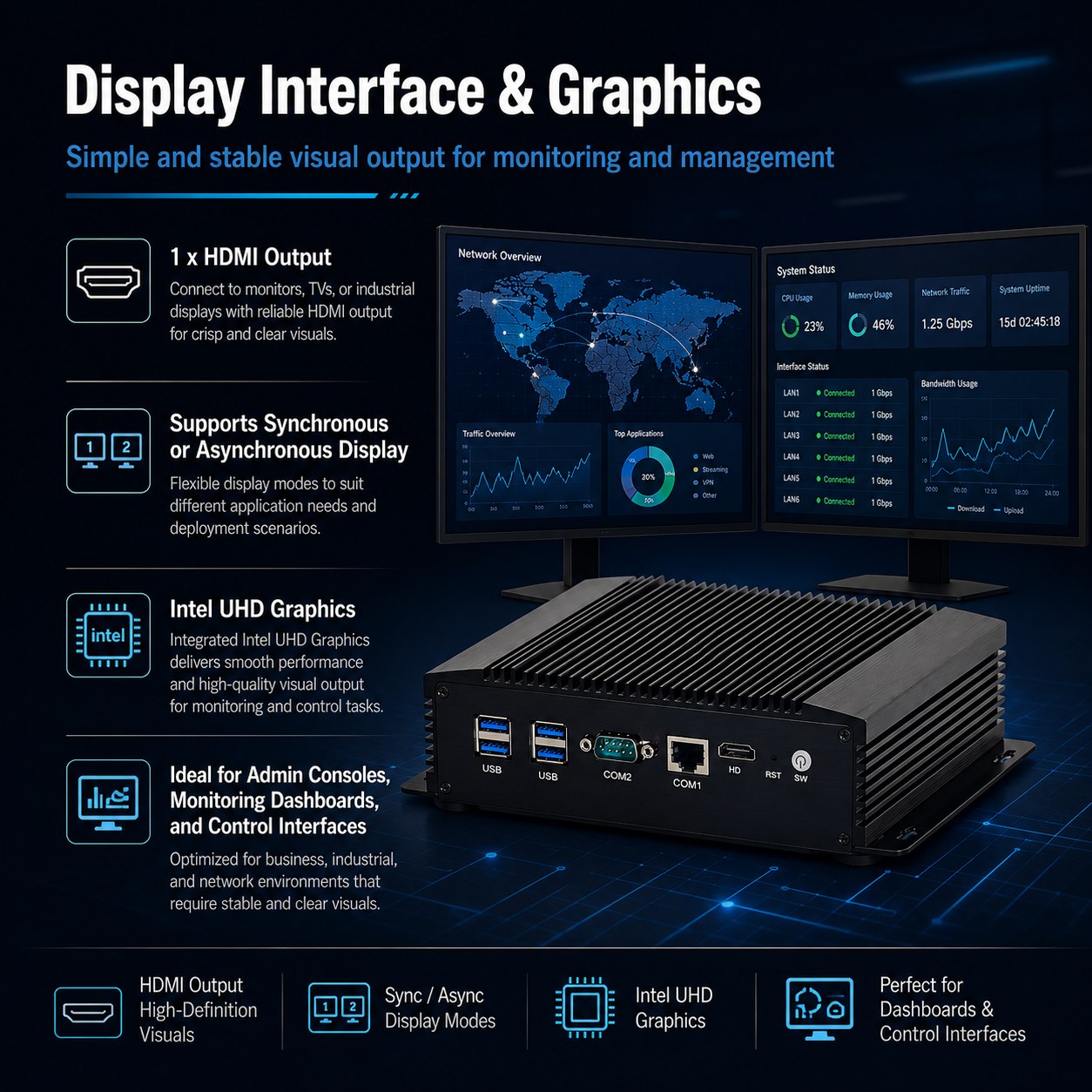

| Display Ports | 1 x HDMI, supports synchronous or asynchronous display |
| Chipset | Intel SOC |
| Graphic | Intel UHD Graphics |
| Network Card | 6 x Intel I226 LAN(I210 optional for i5-8260U), support PXE boot, wake on LAN, Auto power on |
| Expand | 1 x full-length MINI-PCI-e (support USB signal 3G/4G communication module) |
| Memory | 1 x SO-DIMM DDR4, up to 32GB RAM |
| Storage | 1 x 2.5 inch hard disk bay/1 x mSATA |
| Other Function | Power-on boot, scheduled boot, wake-up on LAN, PXE boot, watchdog |

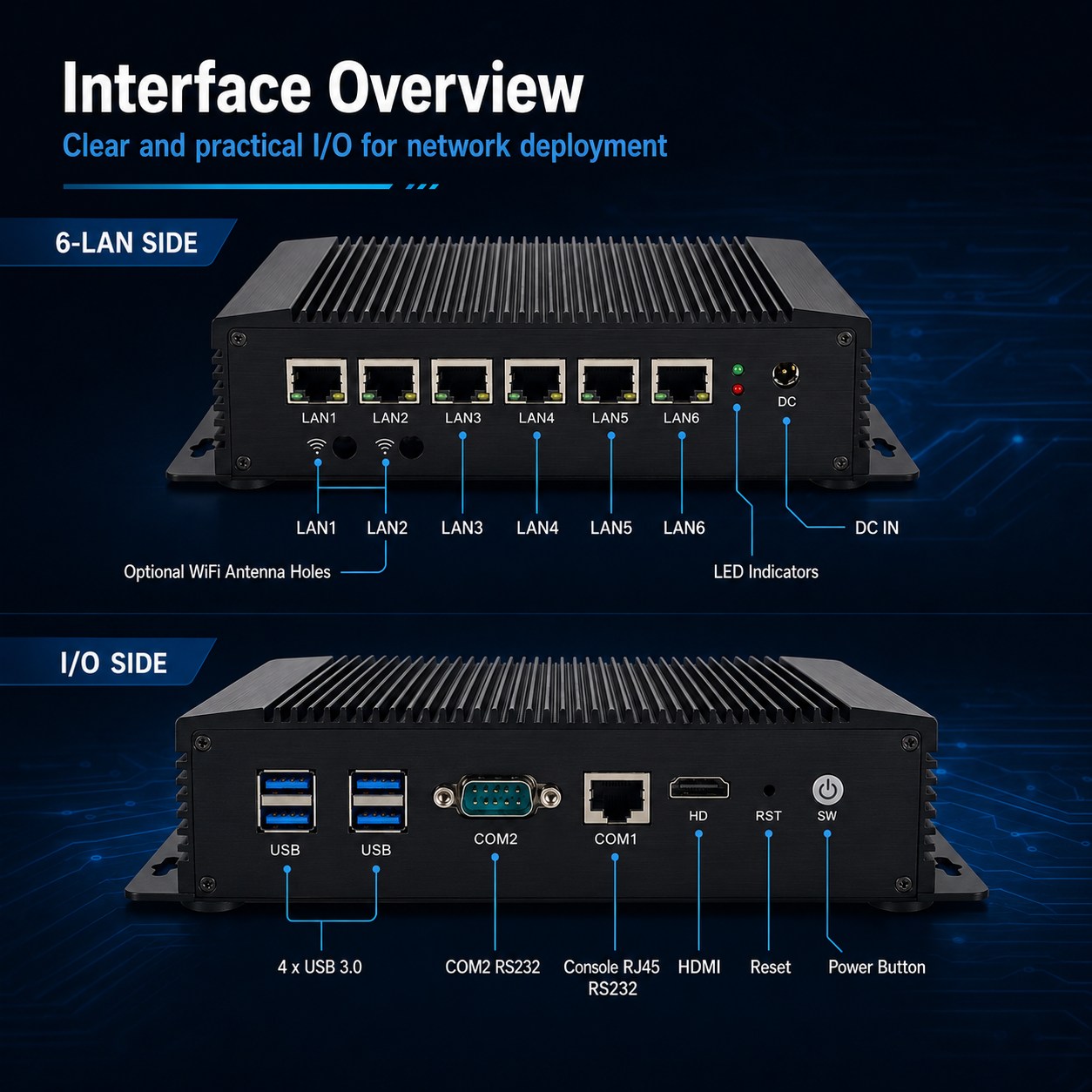

| I/O Interfaces | |
| Front Panel | 1 x Power button |
| 1 x RST | |
| 4 x USB3.0 | |
| 1 x Console RJ45 RS232 | |
| 1 x COM RS232 | |
| 1 x HDMI | |
| Rear Panel | 6 x LAN |
| 1 x DC-IN | |
| Software Support | |
| Bios | AMI BIOS |
| System Support | Any FreeBSD-based router systems, Linux distros, or Windows.OS etc |
| Compatibility | Firewalls tested with pfSense, Untangle, OPNsense, and other popular open-source software solutions |
| General | |
| Cooling Mode | Fanless |
| Power Supply | DC100-240V AC/50-60Hz, DC 12V 5A |
| Packing List | mini pc, power supply, power cord, warranty card |
| Environment | |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -20°C~80°C Centigrade (-68°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT196L | I5 8260U | Intel® UHD Graphics | 1.6~3.9 GHz | HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA | 6 | 4 | 12V5A |
| GT196L | I3 8140U | Intel® UHD Graphics 620 | 2.1~3.9 GHz | HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA | 6 | 4 | 12V5A |
| GT196L | 5205U | Intel® UHD Graphics | 1.90 GHz | HDMI | 1 x SO-DIMM DDR4 | 1 x 2.5 inch/1 x M-SATA | 6 | 4 | 12V5A |
