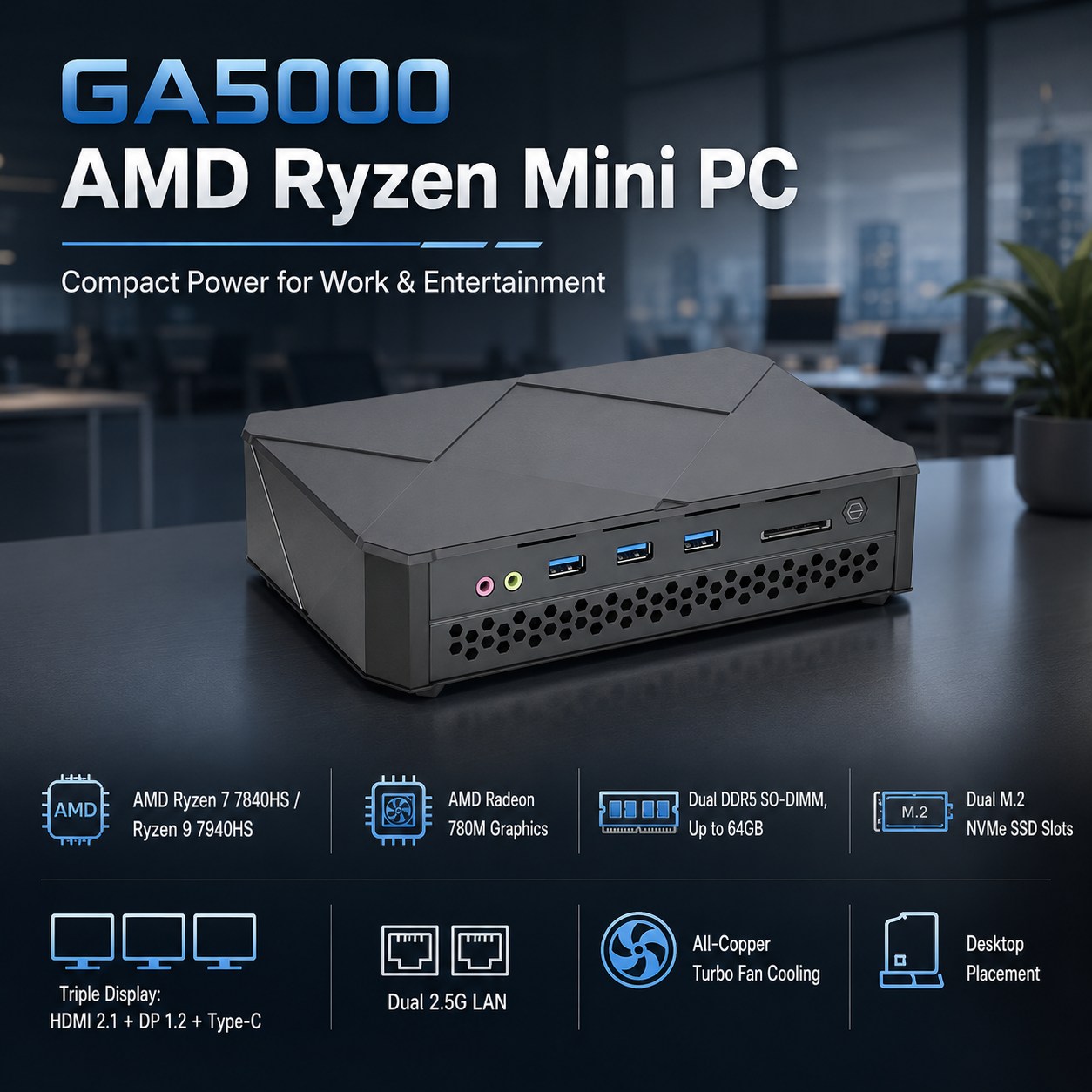

AMD Ryzen Mini PC R9 7940HS
Model name: GA5000
Products Features
– Onboard Latest Processor AMD Ryzen 7-7840HS / Ryzen 7-7840HS
– 2 x DDR5 SO-DIMM, Support Max 64GB.

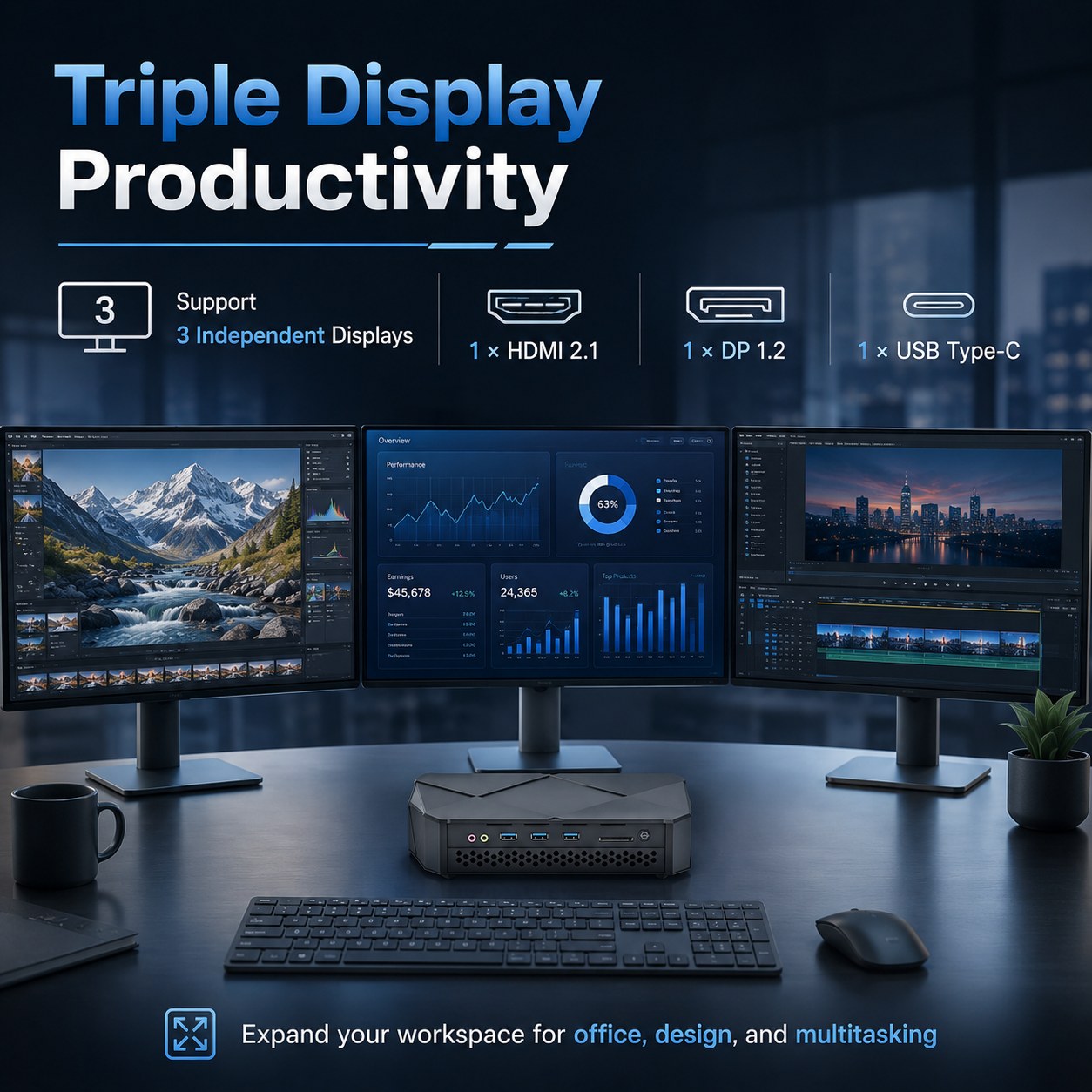

– Support HDMI 2.1 + DP 1.2 + Type-C Three Displays Ports.
– Support Dual M.2 NVME High-speed Hard Disk.

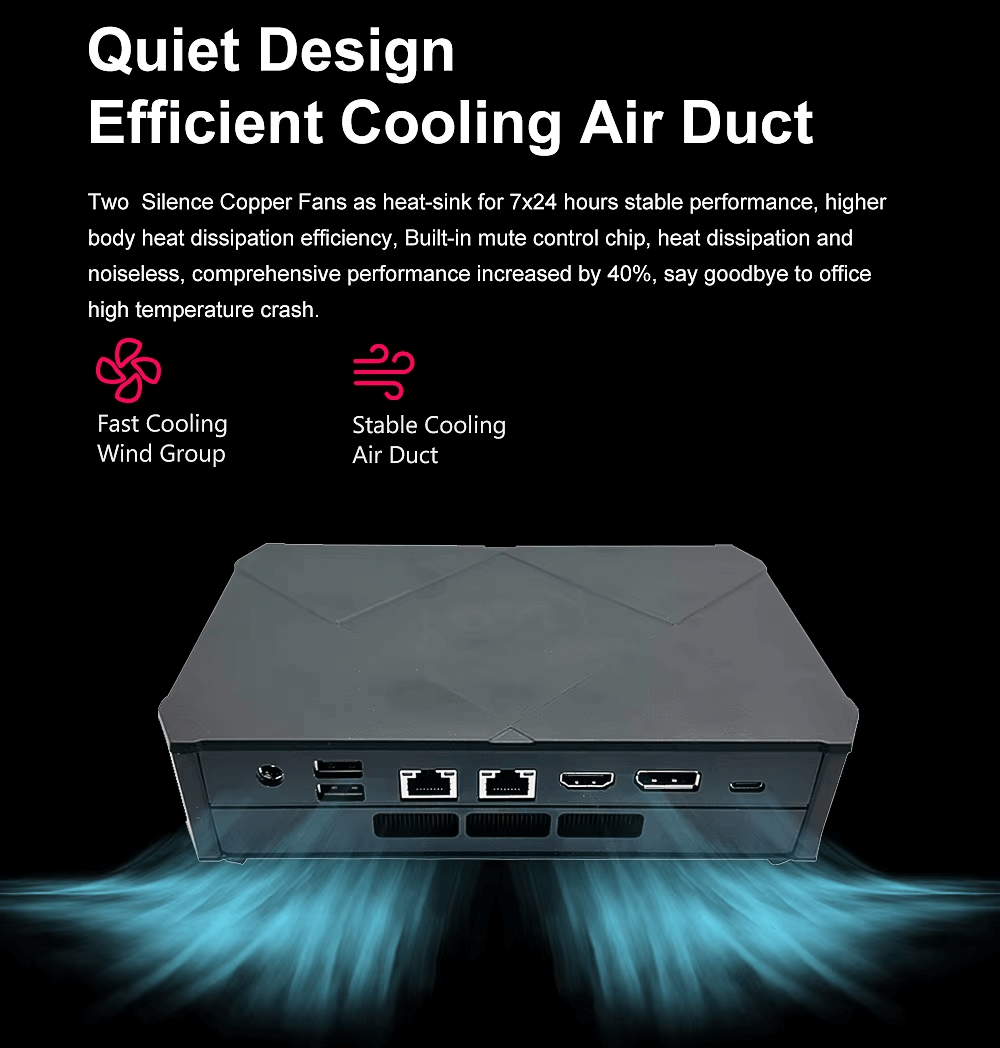

– All-copper turbo fan.
– Dual Intel i226V 2.5Gb Network Cards.
-Compact size: 225*145*45mm
Product Details
Specification
Ordering information
Product Details
JIERUICC’s high-performance AMD mini PC features AMD’s latest Ryzen 9 7940HS or Ryzen 7 7840HS processors (8C/16T) with AMD Radeon 780M graphics.

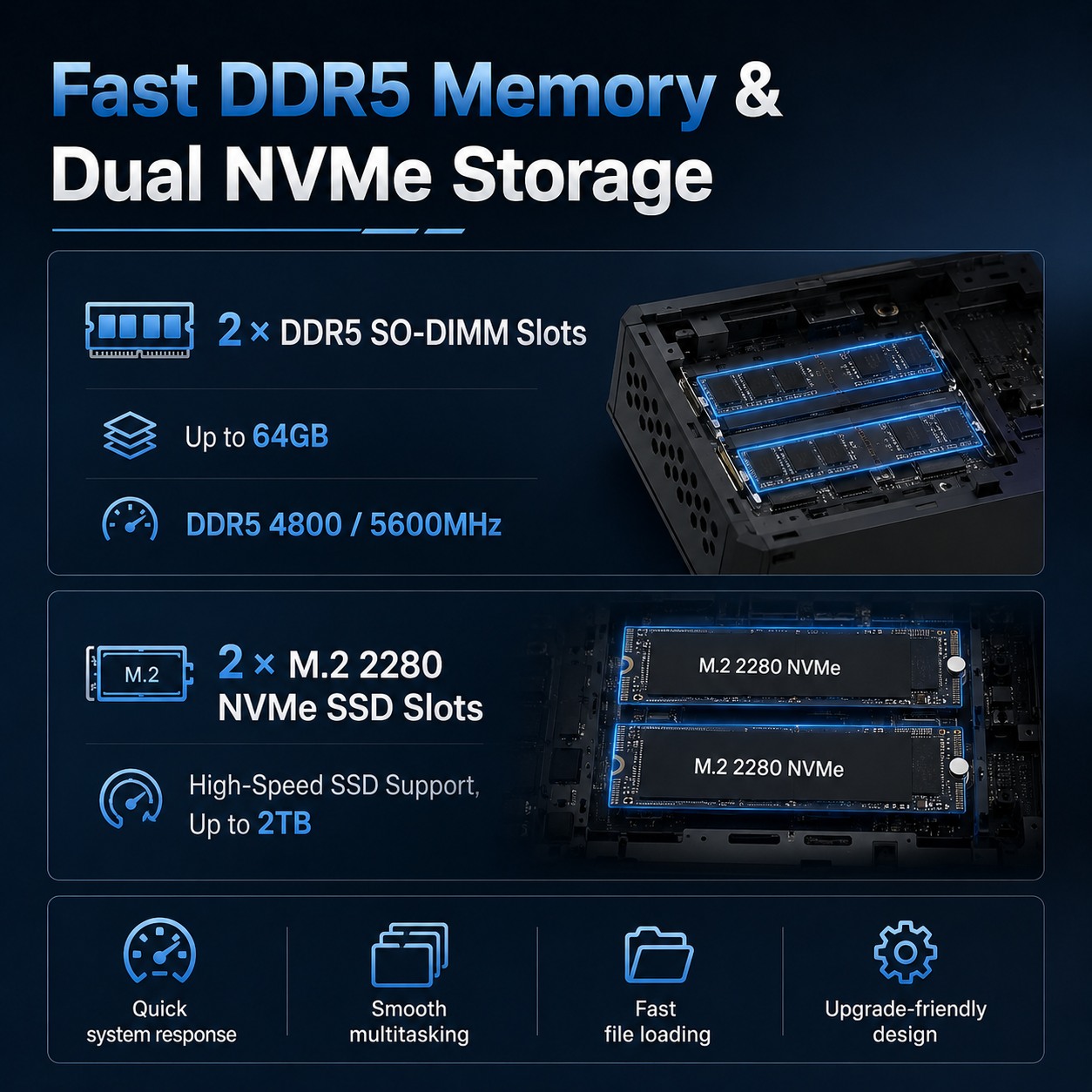

Supports up to 64GB DDR5 5600MHz RAM via dual SO-DIMM slots and dual M.2 NVMe SSDs for blazing-fast storage.
Equipped with dual Intel i225-V 2.5G LAN ports, triple 4K display outputs (HD+DP+Type-C), and rich I/O including 6x USB ports.
The ultra-compact 225x145x45mm design operates at a low 35W TDP with a wide voltage input (12-19V).
Supports enterprise features like Wake-on-LAN, Auto-Power-On, PXE, and RTC. Compatible with Windows 10/11 and Linux OS.
Specification
| Basic Information: | ||||

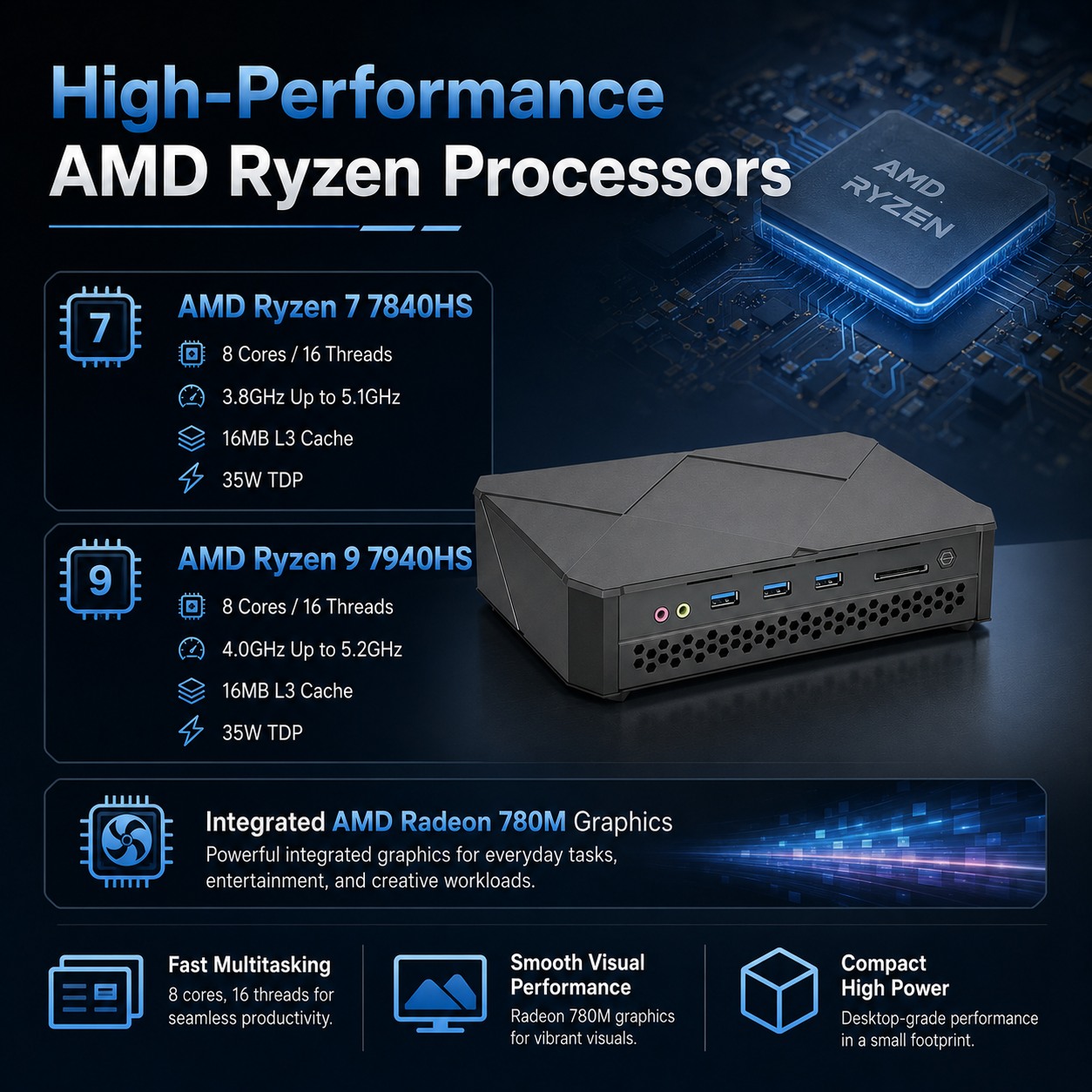

| CPU | 1. AMD Ryzen 7-7840HS Processors 8 Cores 16 Threads 3.8GHz up to 5.1GHz 16MB L3 cache TDP 35W AMD Radeon 780M. | |||
| 2. AMD Ryzen 9-7940HS Processors 8 Cores 16 Threads 4.0GHz up to 5.2GHz 16MB L3 cache TDP 35W AMD Radeon 780M | ||||
| TDP | 35W | |||
| BIOS | BIOS AMI BIOS, ACPI supported | |||
| Graphics Card | AMD Radeon 780M. | |||
| Display Port | 1 x HDMI2.0+1 x DP1.2+1 x Type-C | |||
| Memory | 2 x SO-DIMM DDR5 Slot, up to 64GB DDR5 4800MHz/ 5600MHz | |||
| OS | Windows10/11/Linux OS | |||

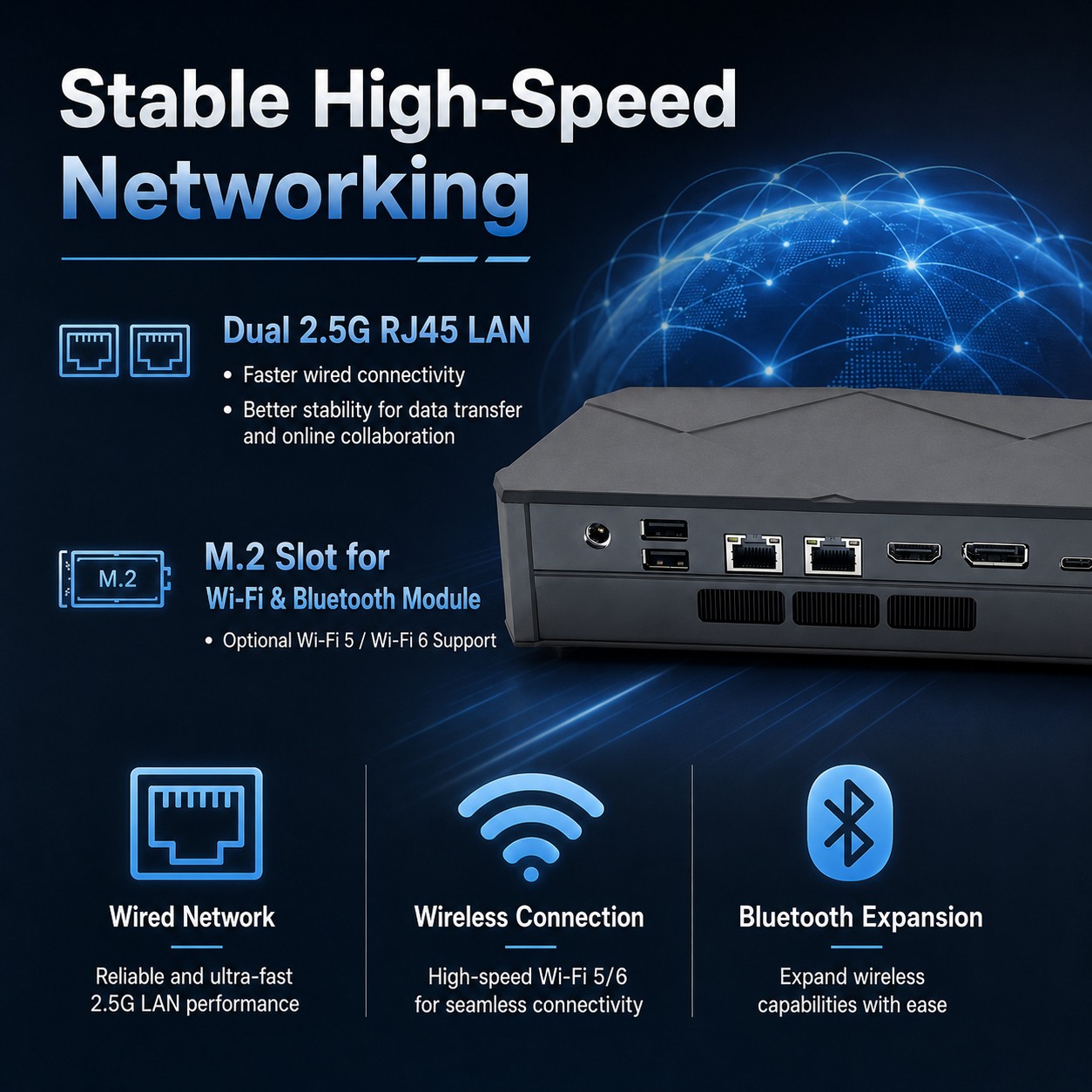

| Network | 2 x Intel i225V Network Connection 10/100Mbps/1000Mbps/2500Mbps BaseT LAN | |||
| Wi-Fi: | ||||
| Module | 1 x M.2 slot for Wi-Fi & Bluetooth module [Wi-Fi5: Support 2.4&5.0G and Wi-Fi6: Supported (Optional)] | |||

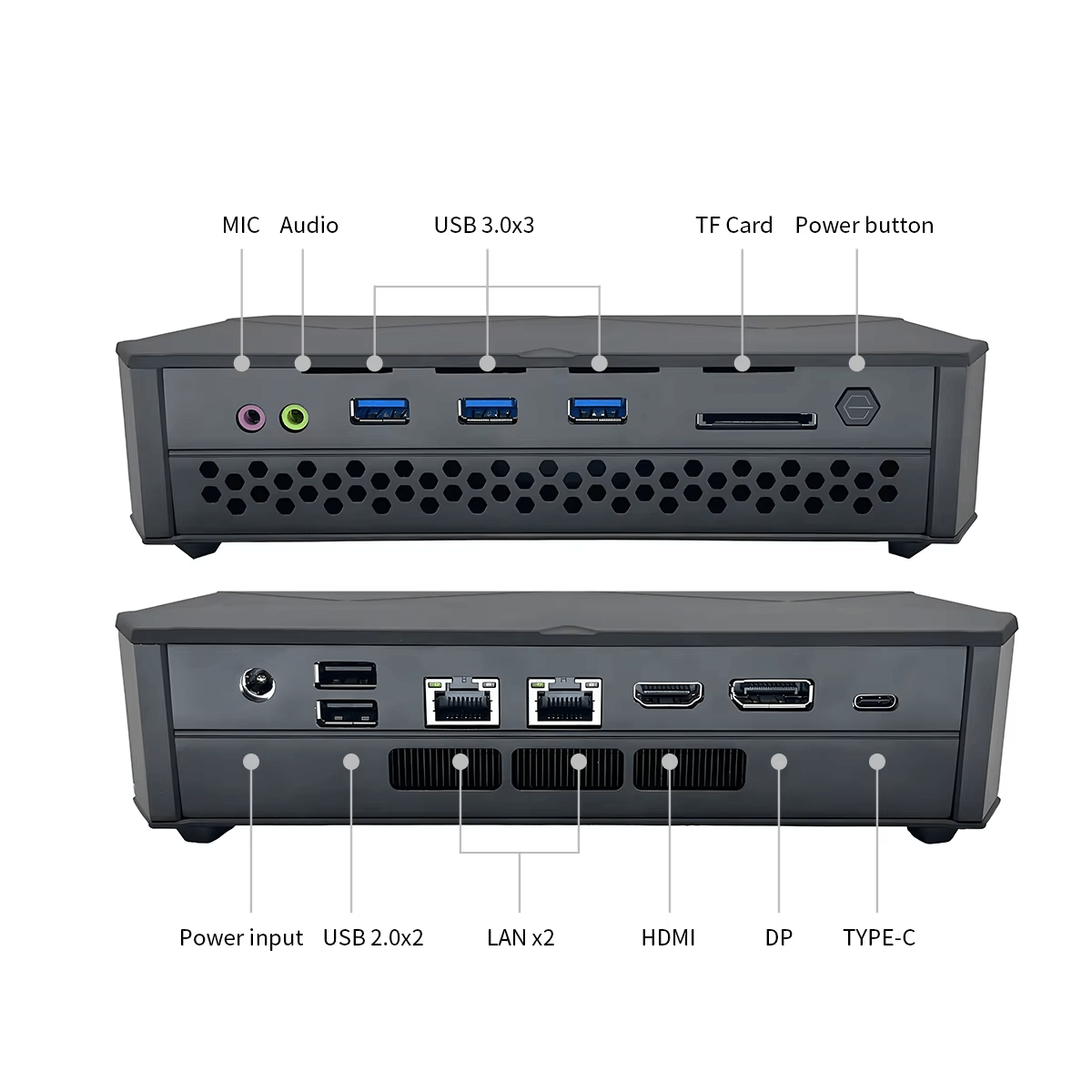

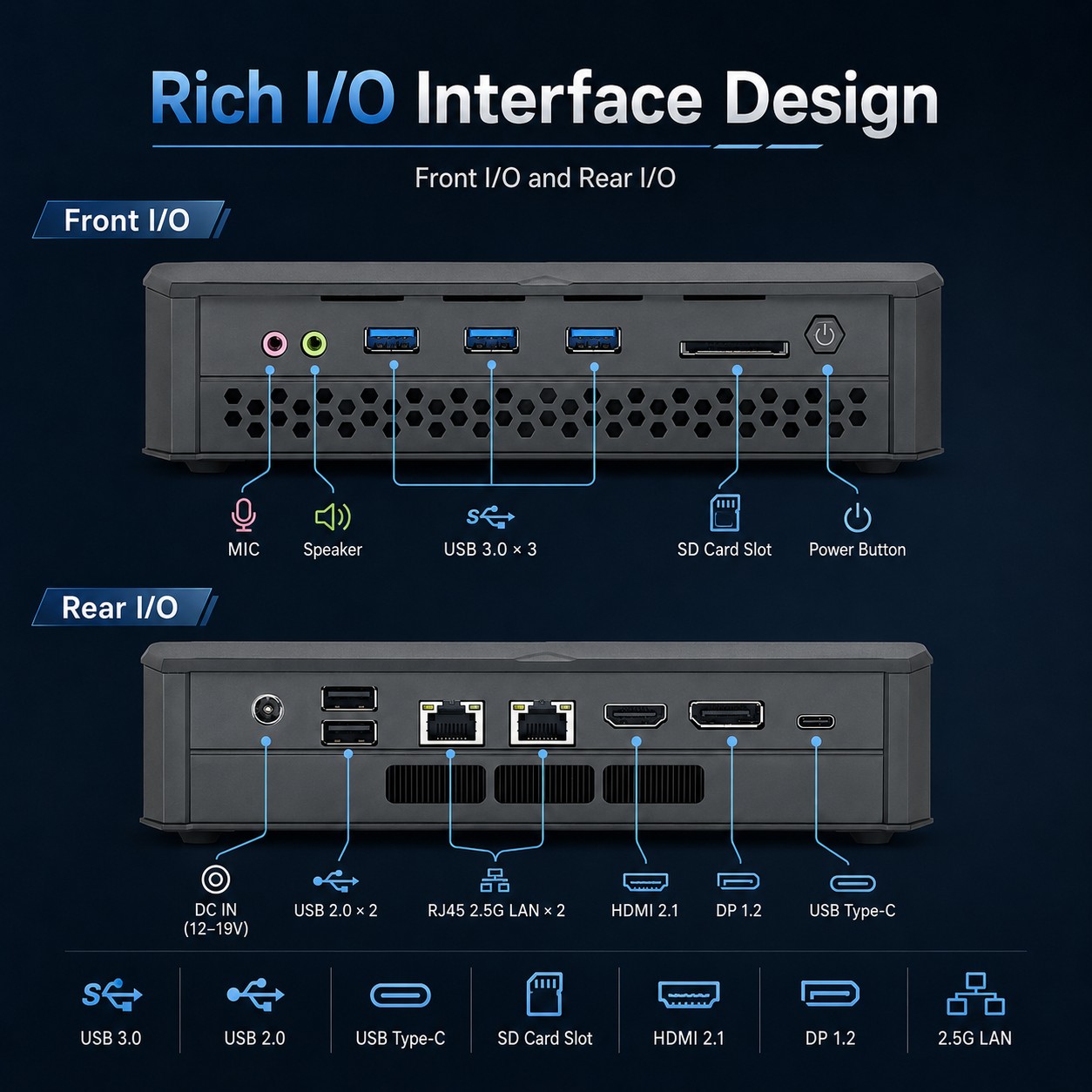

| Input/output port： | ||||
| Switch | 1 x Power On/Off Switch | |||
| Power | 1×DC（55*25) 12-19V | |||
| USB | 2 x USB2.0, 3 x USB3.0, 1 x Type-C | |||
| Display | 1 x HDMI 2.1 , 1 x DP 1.2, 1x USB Type-C | |||
| LAN | 2 x RJ45 Intel 2.5G LAN | |||
| SD Card slot | 1 x SD Card slot | |||
| Audio | 1 x MIC, 1 x SPK | |||
| Storage: | ||||
| M.2 | 2 x M.2 slot for NVMe 22*80 SSD, up to 2TB | |||
| Power and Working Environment: | ||||
| Input | DC100-240V AC/50-60Hz | |||
| Output | DC +12V~+19V, recommend 19V-6.32A | |||
| Operating Temperature | -10/+60 Centigrade | |||
| Storage Temperature | -30/+70 Centigrade | |||
| Relative Humidity | 5%~95% @30°C(non-condensing) | |||
| Product Dimension & Details: | ||||

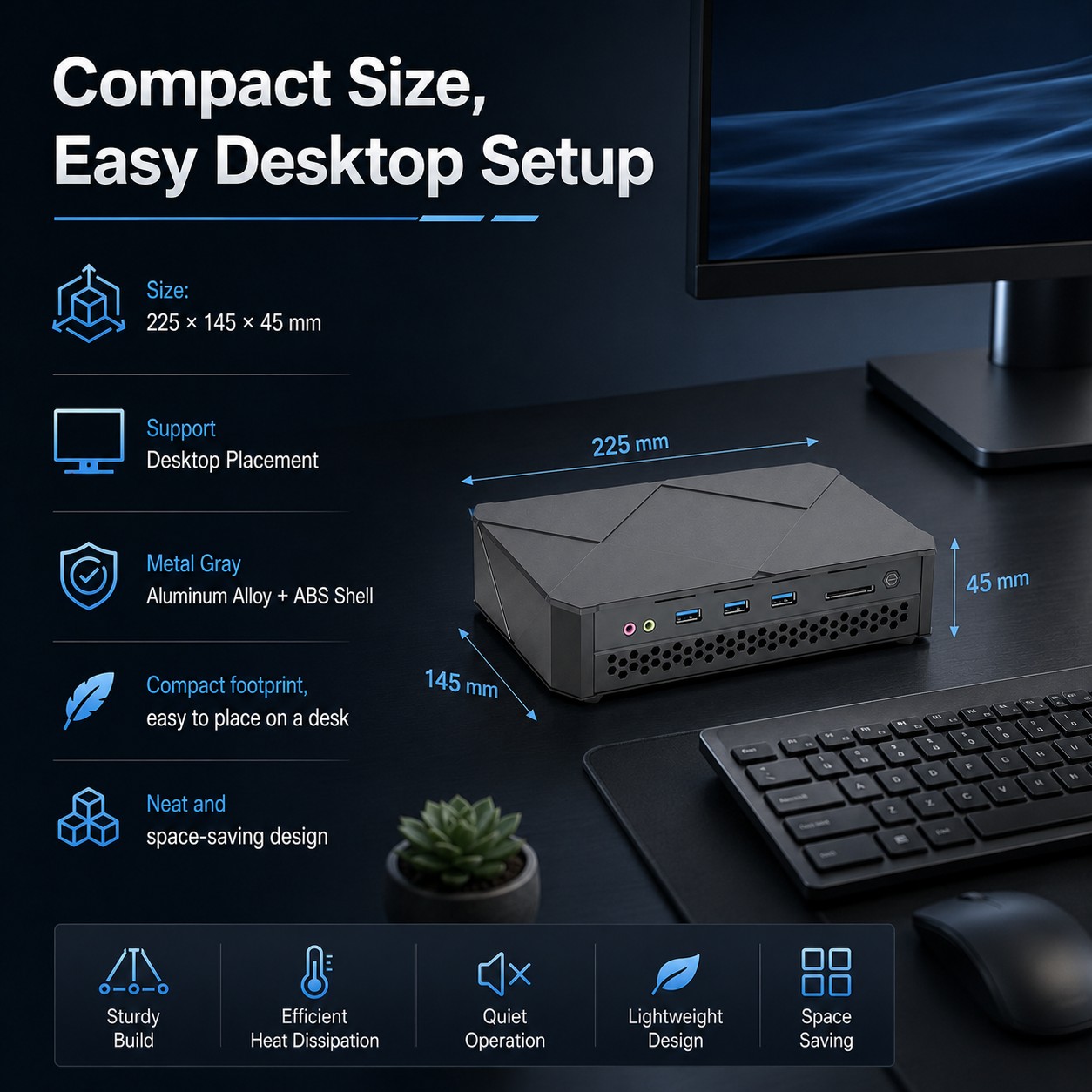

| Size | 225*145*45mm | |||
| Weight | Netweight:1kg / GW：2.5KG | |||
| Installation Mode | Support Desktop | |||
| Shell | Metal Grey Color Aluminum Alloy+ABS | |||

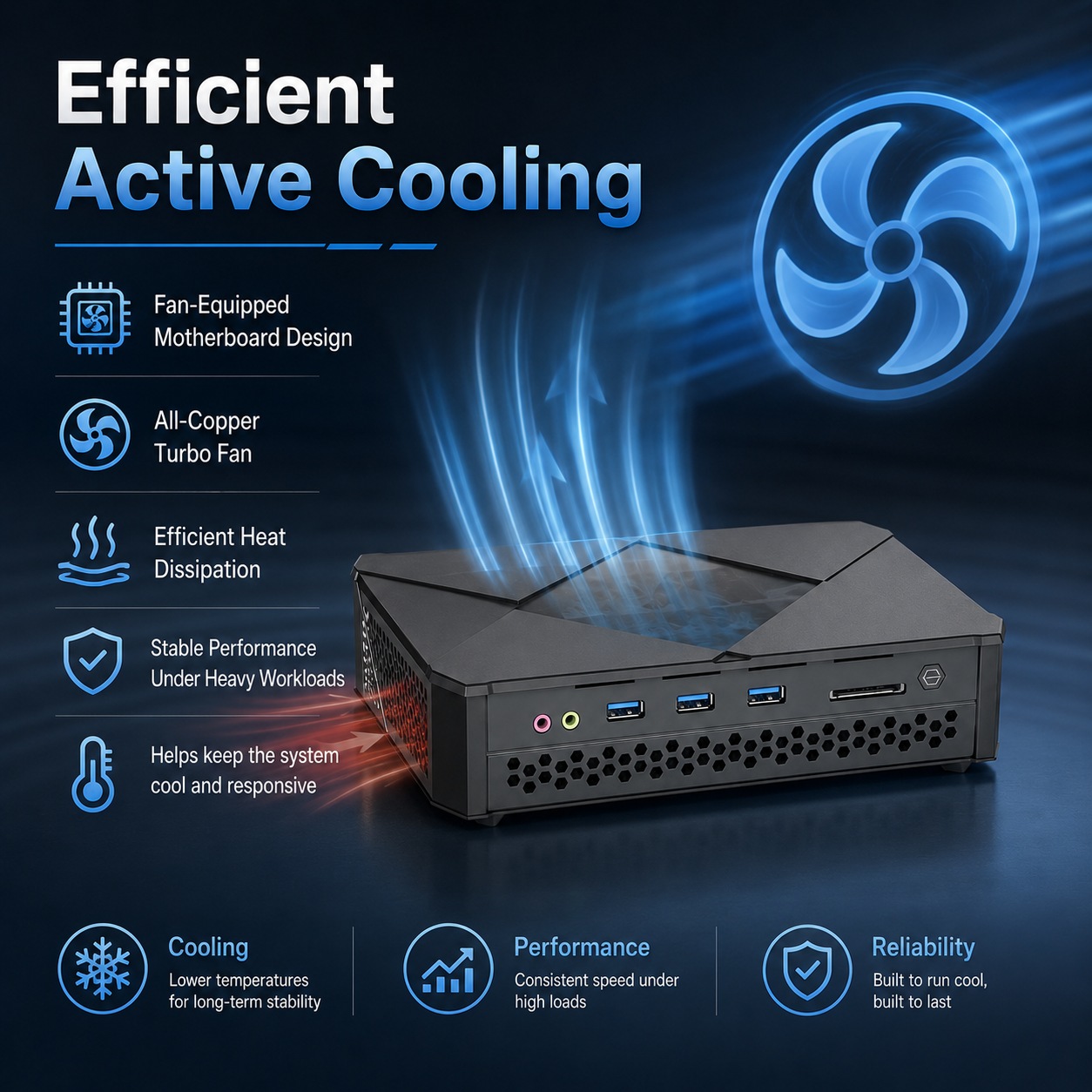

| Cooling Mode | All-copper turbo fan | |||
| Plugs Type | US/JP/AU/UK/EU | |||

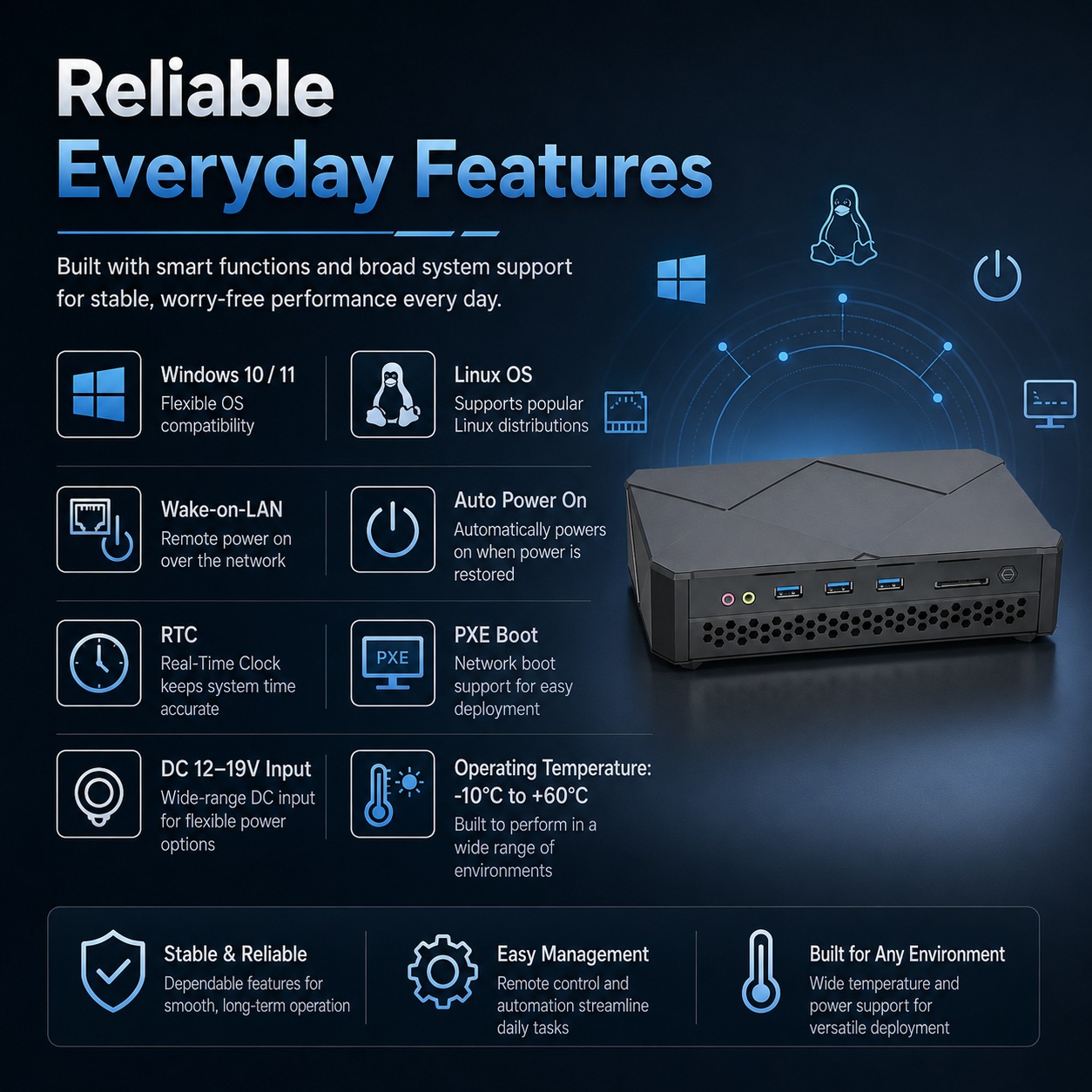

| BIOS | Wake-On-LAN, Auto-Power-On, RTC, PXE | |||
| Package Content： | ||||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | |||
| Optional | 1xHDMI cable | |||
Ordering information
Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GA5000 | R7 7840HS | AMD Radeon 780M | 3.8~5.1 GHz | DP/HDMI/TYPE-C | 2 x SO-DIMM DDR5, Max up to 64GB | 2 x M.2 slot for NVMe 22*80 SSD | 2 | 2 x USB2.0, 3 x USB3.0, 1 x Type-C | 19V-6.32A |
| GA5000 | R9 7940HS | AMD Radeon 780M | 4.0~5.2 GHz | DP/HDMI/TYPE-C | 2 x SO-DIMM DDR5, Max up to 64GB | 2 x M.2 slot for NVMe 22*80 SSD | 2 | 2 x USB2.0, 3 x USB3.0, 1 x Type-C | 19V-6.32A |
Please note that the CPU will be updated according to the release time of Intel/AMD.
If the latest CPU is not shown here, please contact our sales team to get the latest information!
