AMD Ryzen 9 7940HS, DDR5 RAM, PCIE4.0 SSD, Dual LAN, 2*HDMI, 1*USB-C, 4K Triple Display, Wi-Fi 6e, Small Desktop Computer
Products Features
Dimension: Ultra-small size 131*131*46MM NUC design, Small body Strong Performance
CPU: AMD R9 7840HS / 7940HS 8-core 16-threads
GPU: AMD Radeon 780M
Ram: 2*SO-dimm DDR5 slot, Max support 64GB
SSD: Support 1*2280 NGFF/PCIE X4 high speed SSD+1*2.5 inch sata3.0 SSD/HDD
WiFi: Intel AX210 support 802.11A/B/G AC Bandwidth:2.4G/160M 5.8G/2400M Bluetooth5.3
RJ45: 1* RTL8111X / 1*Intel 226 2.5G RJ45 LAN port 100M/1000Mbps
I/O: 2 x USB3.2 + 2*USB2.0 , 2 x HDMI 2.0, 1 x Type-C, 8K@60Hz thunderbolt, 2 x RJ45 LAN, 1 x Audio, 1 x switch, 1 x DC IN
OS: Windows 8/10/11/sever2012/2016/linux/centos/ubuntu, Have TPM2.0
Power: 19V 6.3A
Product Details
Specification
Ordering information
Product Details
AMD Ryzen 9 7940HS, DDR5 RAM, PCIE4.0 SSD, Dual LAN, 2*HDMI, 1*USB-C, 4K Triple Display, Wi-Fi 6e, Small Desktop Computer

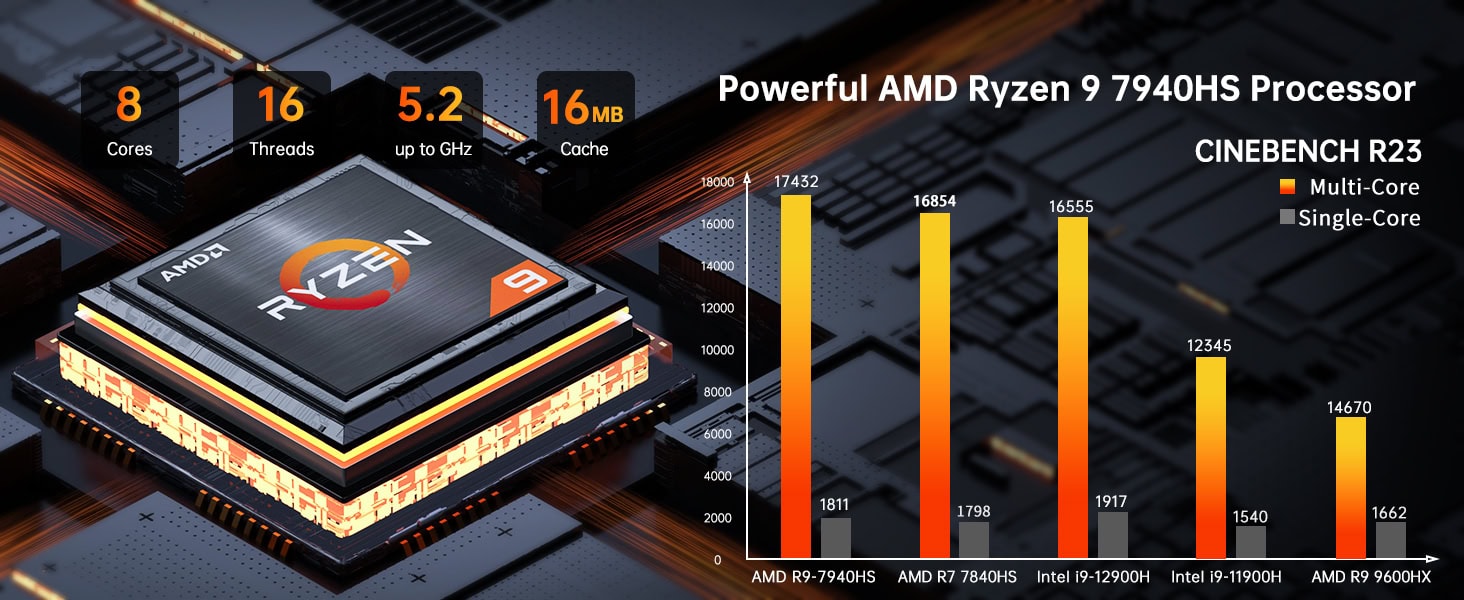

【Comes with Powerful AMD Processor】This Mini computer is equipped with AMD Ryzen 9 7940HS processor, 8 Cores 16 Threads, Base Clock 4.0GHz, Max. Boost Clock 5.2GHz.
The default TDP is 35-54W. It can handle office daily work and Home entertainment easily. like Office work, Watching movies, Some light games, Video editing, and 3D Design tasks.

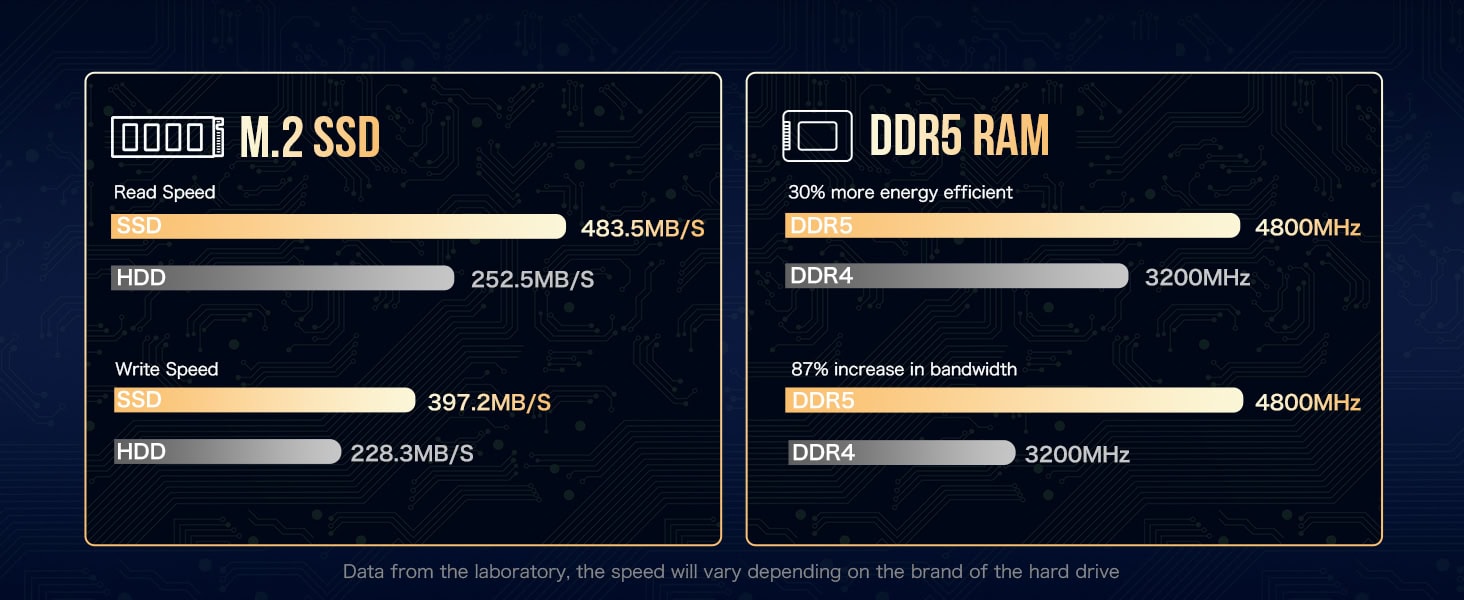

【RAM and Storage Expand】This Mini desktop computer was preinstalled Windows 10/11 Pro OS, There are two DDR5 RAM slots, Support DDR5 RAM max up to 64GB, 1* M2 2280 SSD PCIE4.0 SSD max up to 2TB,
1*2.5inch SATA SSD/HDD optional.
【Triple Display】The AMD Ryzen 9 7940HS mini pc has three video outputs: 2*HDMI, 1*USB-C. The integrated graphics is AMD Radeon 780M,
which has twelve Graphics Core. Graphics Frequency: 2800 MHz. It supports 4K output and supports connecting three monitors at the same time, press “Windows” + “P” to set the multi display.
【Dual Nic Support】This Micro PC supports two LANs. 1*1G Gigabit Ethernet and 1*2.5G Gigabit Ethernet.
Built-in WiFi 6E and Bluetooth 5.3. The wireless WiFi also supports Gigabit. Fast and stable. it’s very convenient to work anywhere
【Compact Design】AMD 7940HS Small PC size is 131*131*46MM (5.2*5.2*1.8inch)only, and its weight (including the power brick) is no more than 2KG.
with a VESA Bracket, you can mount the AMD 7940HS Small PC on the backside of the monitor. save space and offer you A clean uncluttered desktop
Specification
| Material | Aluminum alloy |
| Colour | Black |
| Size | 131*131*46MM |
| Weight | 2Kgs |
| Installation Method | Desktop type |
| Vesa mounting | |
| Motherboard | |
| CPU | AMD R9 6900HX 8-core 16-threads, CPU 3.3GHz up to 4.9GHz, three-level Cache 16MB |
| AMD R7 7840HS 8-core 16-threads, CPU 3.8GHz up to 5.1GHz, three-level Cache 16MB | |
| AMD R9 7940HS 8-core 16-threads, CPU 4.0GHz up to 5.2GHz, three-level Cache 16MB | |
| Integrated Graphics | R9 6900HX: AMD Radeon 680M / R9 7840HS/7940HS: AMD Radeon 780M |
| Network Card | 1* RTL8111X / 1*Intel 226 2.5G RJ45 LAN port 100M/1000Mbps |
| WiFi and Bluetooth | M.2 interface, Intel AX210 support 802.11A/B/G AC Bandwidth:2.4G/160M 5.8G/2400M Bluetooth5.3 |
| Memory | 2*SO-dimm DDR5 slot, Max support 64GB |
| Storage | 1*M.2 2280 NGFF/PCIE X4 high speed SSD 1*2.5-inch SATA3.0 SSD/HDD |
| Features | Support Auto power on, wake-on-lan, PXE, RTC etc |

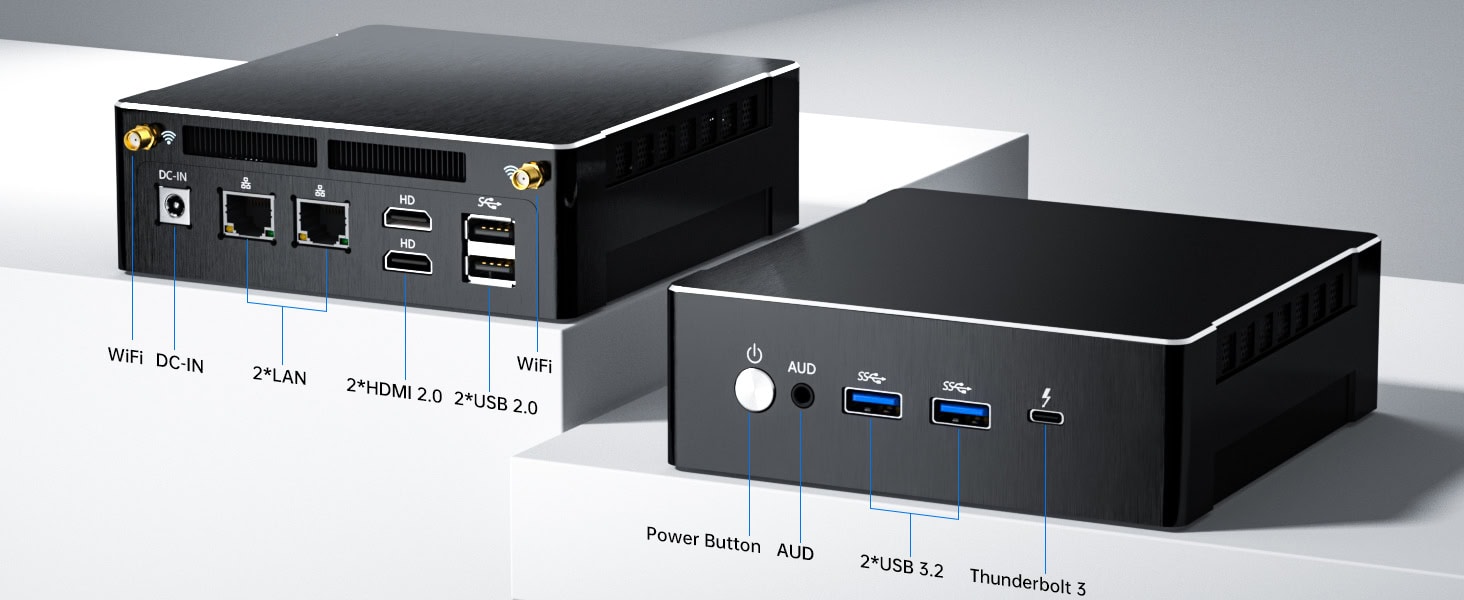

| I/O Interfaces | |
| Front Panel | 1 x Power button |
| 1 x Type-C, 8K@60Hz thunderbolt | |
| 1 x AUDIO | |
| 2 x USB3.2 | |
| Real Panel | 1 x 2.5G LAN |
| 1 x 1G LAN | |
| 2*HDMI2.0 Max support 4096*2160/60Hz | |
| 2 x USB2.0 | |
| 1 x DC IN | |
| 2 x WiFi Dual Antennas | |
| Software Support | |
| Bios | AMI bios |
| System Support | Windows 8/10/11/Server 2012/2016/Linux/CentOS/Ubuntu have TPM2.0 |
| General | |
| Cooling Mode | Efficient heat dissipation of the Cooper turbo fan |
| Power Supply | 19V 6.3A |
| Packing List | mini pc, power supply, power cord, vesa bracket, sata cable, warranty card |
| Environment | |
| Operating Temperature | 0°C~70°C Centigrade (32°F~140°F) |
| Storage Temperature | -40~85°C (-40 ~185°F) C37 |
| Relative Humidity | 10%~95% (non-condensing) |
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GA4000 | R9 6900HX | AMD Radeon 680M | 3.3~4.9 GHz | 2*HDMI2.0 1*USB-C thunderbolt | 2 x SO-DIMM DDR5, up to 64GB Max | 1M.2 2280 NGFF/PCIE X4 1 x 2.5-inch SATA SSD/HDD | 2 | 2*USB3.2 2*USB2.0 | 19V/6.3A |
| GA4000 | R7 7840HS | AMD Radeon 780M | 3.8~5.1 GHz | 2*HDMI2.0 1*USB-C thunderbolt | 2 x SO-DIMM DDR5, up to 64GB Max | 1M.2 2280 NGFF/PCIE X4 1 x 2.5-inch SATA SSD/HDD | 2 | 2*USB3.2 2*USB2.0 | 19V/6.3A |
| GA4000 | R9 7940HS | AMD Radeon 780M | 4.0~5.2 GHz | 2*HDMI2.0 1*USB-C thunderbolt | 2 x SO-DIMM DDR5, up to 64GB Max | 1M.2 2280 NGFF/PCIE X4 1 x 2.5-inch SATA SSD/HDD | 2 | 2*USB3.2 2*USB2.0 | 19V/6.3A |
Please note that the CPU will be updated according to the release time of Intel/AMD.
If the latest CPU is not shown here, please contact our sales team to get the latest information!
